UnityMbed is a high-performance development platform built around the robust N32G031 32-bit Arm Cortex-M0+ microcontroller running at 48 MHz. Far from just a basic breakout board, the hardware is engineered for real-time control and industrial IoT applications. It boasts an advanced integrated analog front-end—featuring a 12-bit 1Msps ADC, built-in OPAMP, Comparator, and a programmable gain amplifier (PGA up to 32x)—making it exceptionally capable for direct sensor acquisition without external components.

To unleash the full potential of this hardware without the traditional friction of embedded programming, UnityMbed pairs its feature-packed board with a purpose-built, LLM-assisted desktop IDE. The platform can offload heavy code synthesis, datasheet verification, and memory safety checks entirely to your computer. This helps reduce common embedded development problems: code may compile successfully, but still fail on real hardware because a required setup step was missed, such as enabling a peripheral clock, selecting the correct GPIO mode, or using the correct register sequence.

Develop and Deploy at the Speed of Thought

Imagine you are building an automated system, such as a multi-sensor smart greenhouse or a custom robotic arm. Often, the first few days of development are wasted on tedious setup: digging through thousands of pages of component datasheets, manually configuring I2C or PWM registers, and troubleshooting broken compiler toolchains just to get a single sensor reading. UnityMbed completely transforms this painful process by refocusing your time on the actual physical application.

The entire prototyping loop is streamlined into three steps, managed entirely within a unified, single-page IDE workspace:

1. Plug the board into your computer.
2. Prompt your project logic in plain text within the AI-assisted editor.
3. Build and flash the validated code directly into the silicon with a single click.

This workflow makes UnityMbed highly adaptable: students can instantly see how code affects hardware, while professional engineers can safely deploy and trace high-speed IoT networks in noisy, high-voltage industrial environments using the Pro Kit’s isolated hardware debuggers. When offline, users can still edit projects and use available local toolchain functions, but advanced features require internet access and a connection to the UnityMbed AI Cloud.

Features & Specifications

Hardware

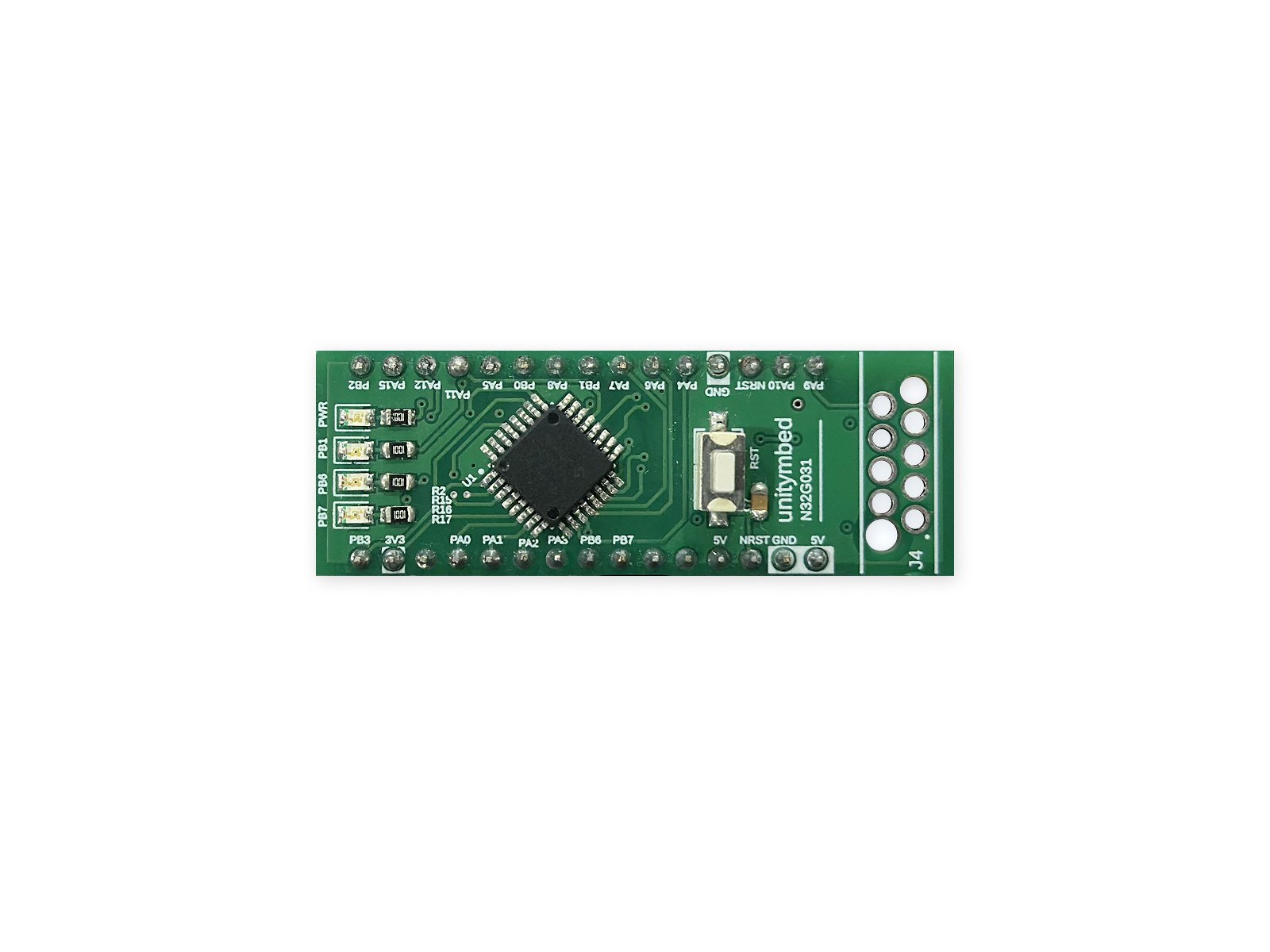

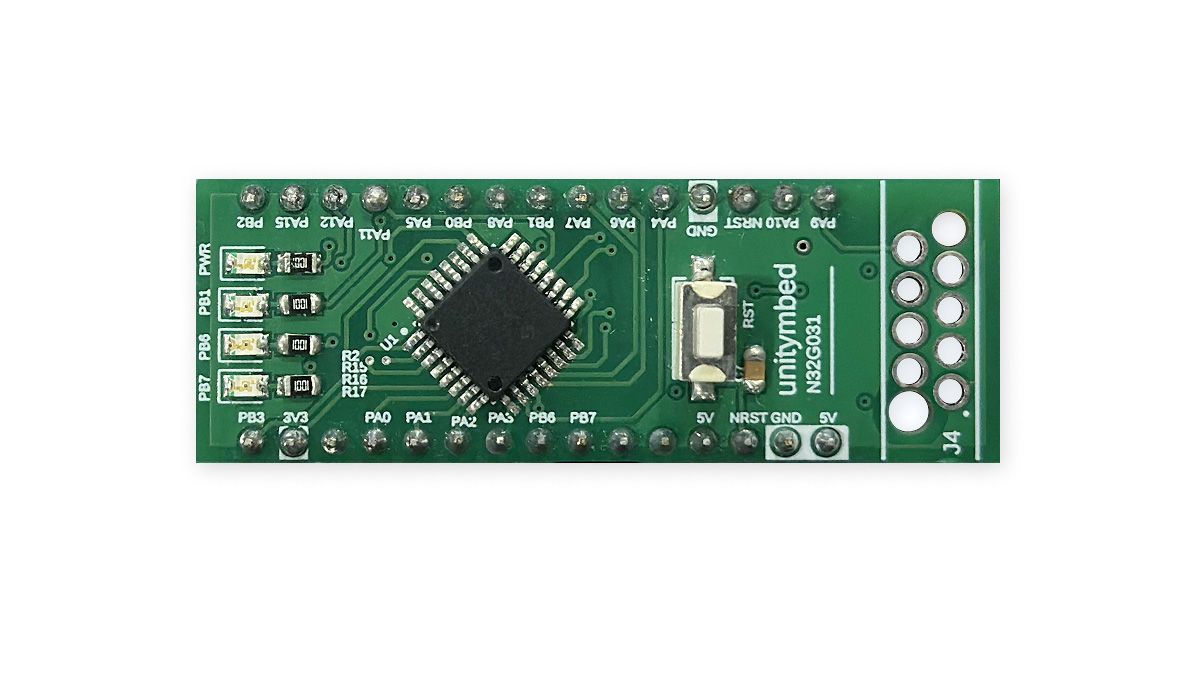

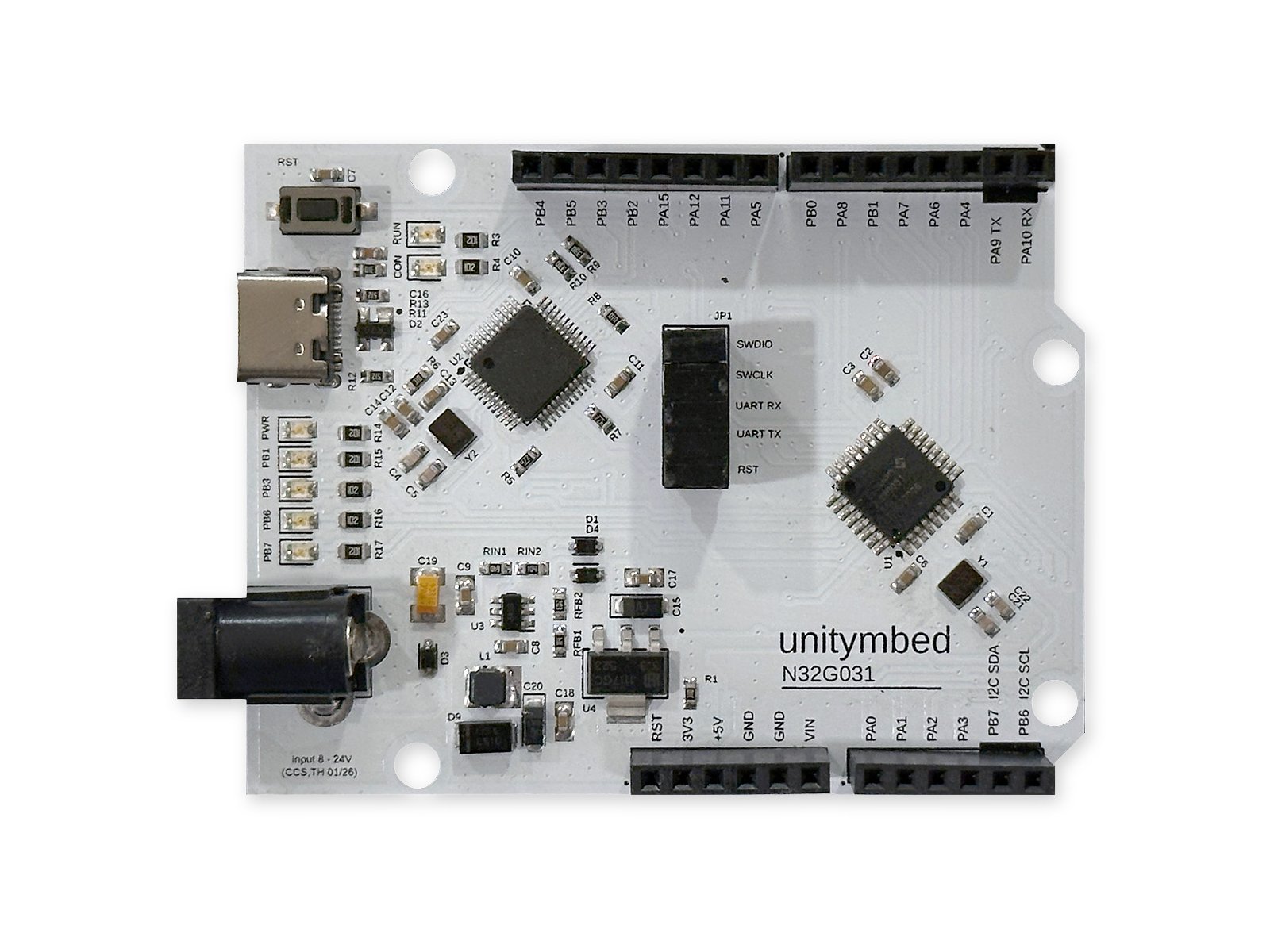

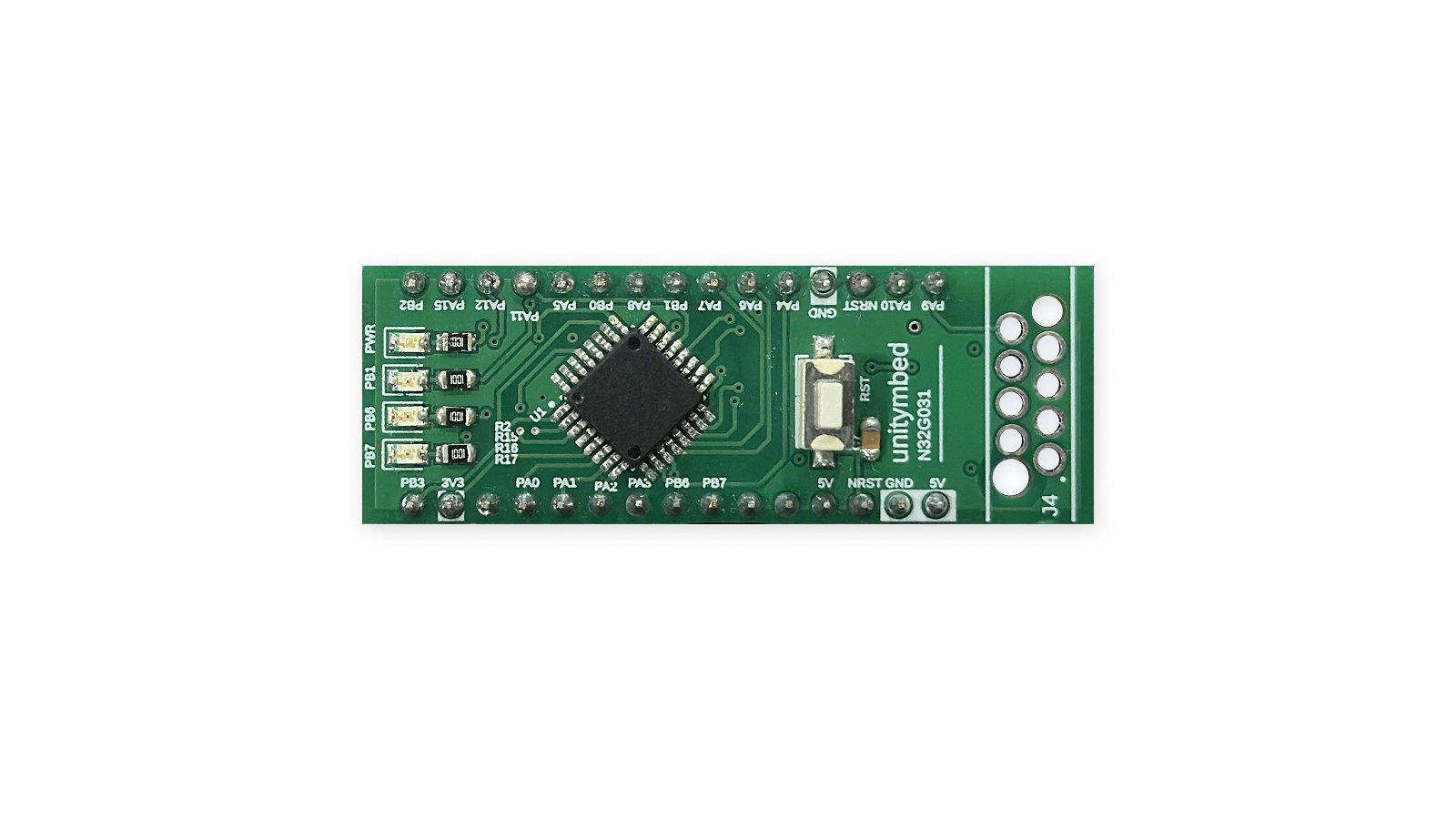

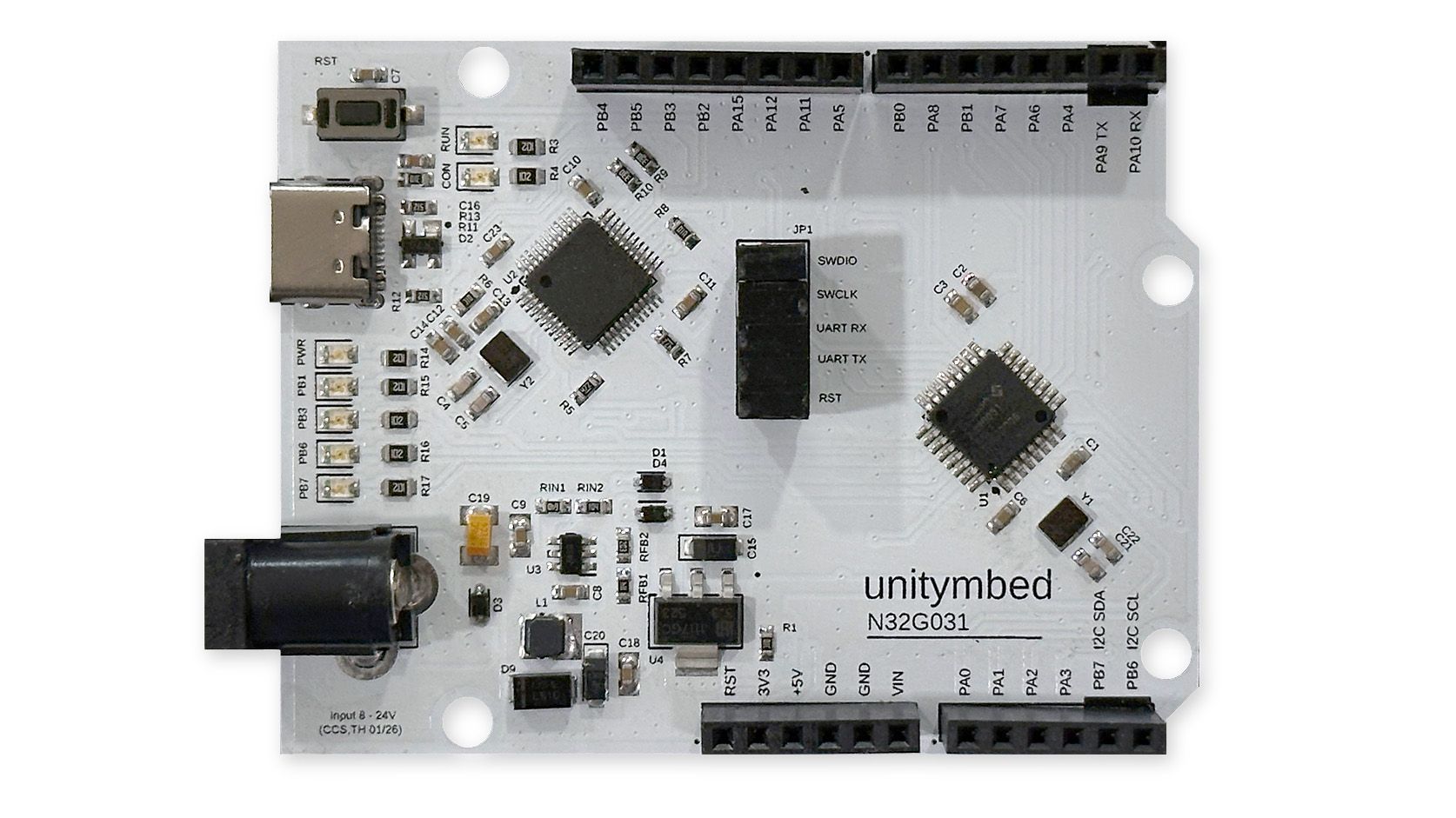

• Main Processor: N32G031 K8L7 NBF2006 Arm Cortex-M0+ (Starter and Pro boards), N32G452 CCL7 TBE46004 Arm Cortex-M4 FPU (External Debugger)
• Max Clock Speed: Up to 48 MHz (Starter and Pro boards), up to 144 MHz (External Debugger)
• Memory: 64 KB Flash / 8 KB SRAM (Starter and Pro boards), High-performance execution registers (External Debugger)
• Security & Math: Hardware Math Acceleration (HDIV/SQRT), ECC verification, and Flash encryption (Starter and Pro boards)

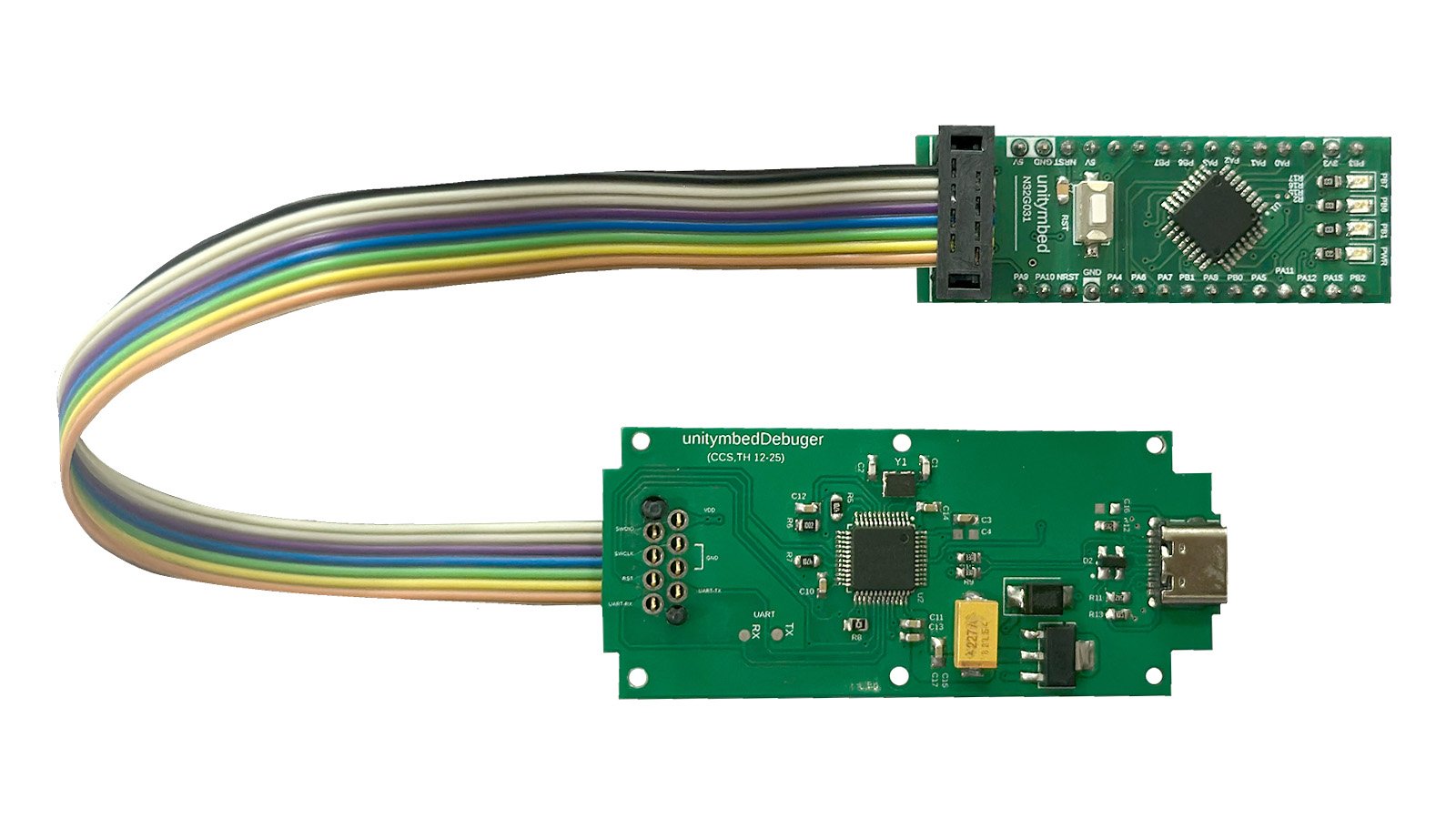

• Debug Engine: Onboard integrated debugger (Starter board), Isolated with no onboard debug (Pro board), External multi-link unit (External Debugger)
• GPIO: 22 configurable pins (Starter board), 20 configurable pins (Pro board)
• Peripherals: SPI, I2C, 2x USART, 12-bit ADC, Adv. PWM, OPAMP, CMP (Starter and Pro boards); SWD Pipeline + Isolated UART (External Debugger)
• Power Input: 5.0 V via USB-C or 8–24 V via DC barrel jack (Starter board), Powered via dedicated external debugger connection cable (Pro board), 5.0 V via USB-C (External Debugger)
• Output Rail: Dual 5.0 V and 3.3 V header pins (Starter board), Dual 5.0 V and 3.3 V header pins with enhanced thermal management (Pro board), N/A (External Debugger; provides 5.0 V power and 3.3 V / 5.0 V logic reference to the Pro board via the connection cable)
• Dimensions: 67.0 x 28.0 x 2.0 mm (Starter board), 50.0 x 18.0 x 2.0 mm (Pro board), 68.0 x 29.0 x 2.0 mm (External Debugger)
• Weight: 20.0 g (Starter board), 6.0 g (Pro board), 8.0 g (External Debugger)

Integrated Software & Firmware Features

• All-in-One Desktop Workspace: Natively maps peripheral registers and configurations directly into the desktop editor workspace.
• Hardware-Aware Safety Constraints: Pre-configured safety constraints ensuring generated firmware precisely aligns with the physical limits of the N32G031 silicon, mitigating memory overruns.
• Seamless Prompt-to-Flash Pipeline: Optimized bootloader sequences providing immediate code generation, automatic compilation, and isolated physical flashing via a one-click execution pipeline.

Pinout Diagrams

Open Source

We believe in community-driven learning and workflow transparency. While our hardware designs and IDE remain proprietary, each UnityMbed project is distributed as a self-contained, open-source project folder.

Full official circuit schematics and production-ready multi-layer PCB layout files for our development boards will be published. Selected application example repositories and demo firmware projects will also be made available so backers can fully evaluate, clone, and build upon the platform.

• Licensing: UnityMbed project files are released under the MIT License. Bundled vendor SDK files retain their original Nations Technologies license.
• Public Repository: https://github.com/GRB-UNITYMBED
• Supported Platforms: Windows, macOS, and Linux
• File Access Timeline: Example project repositories will be published on GitHub at some point during production, after the campaign ends.
