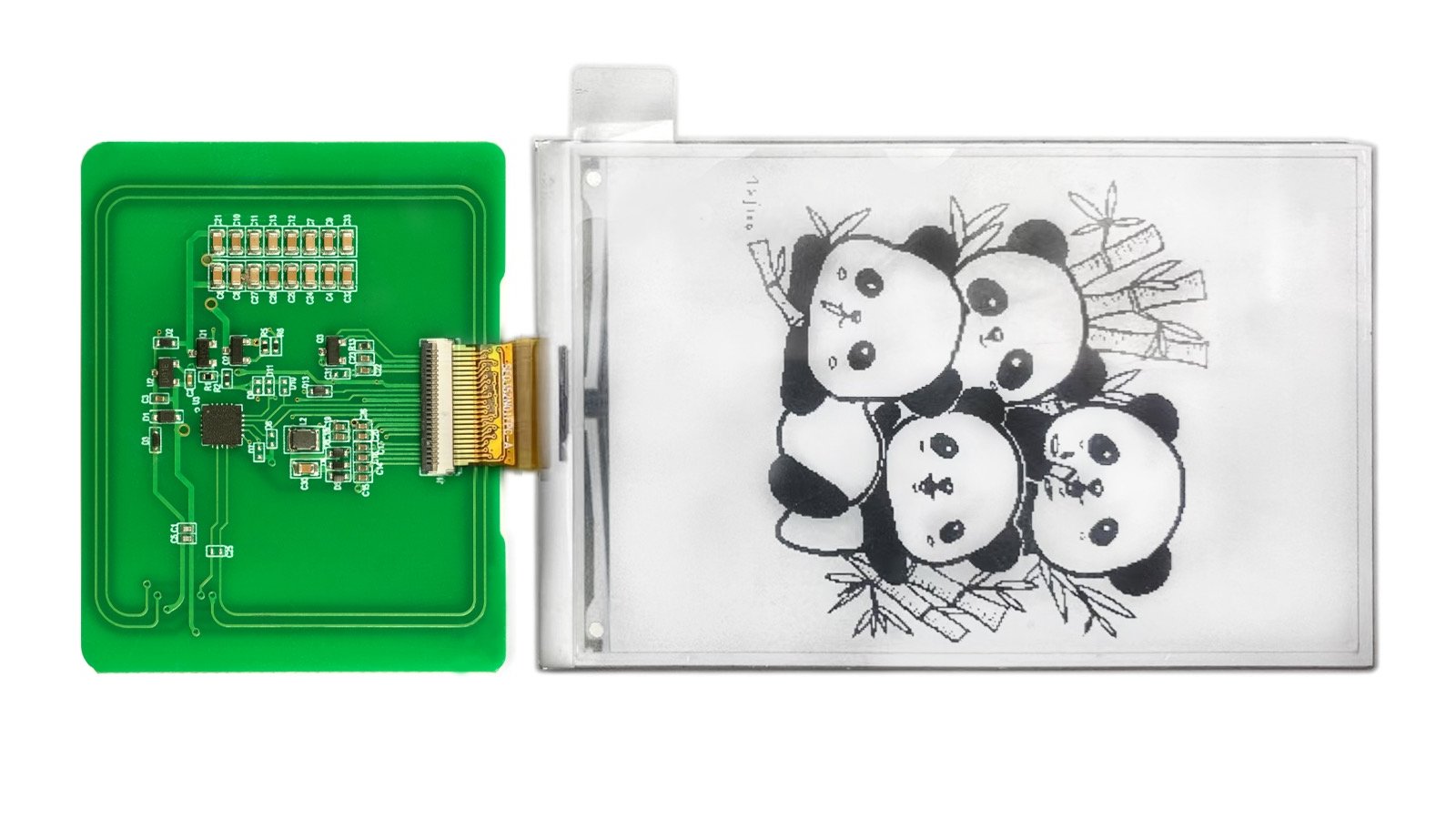

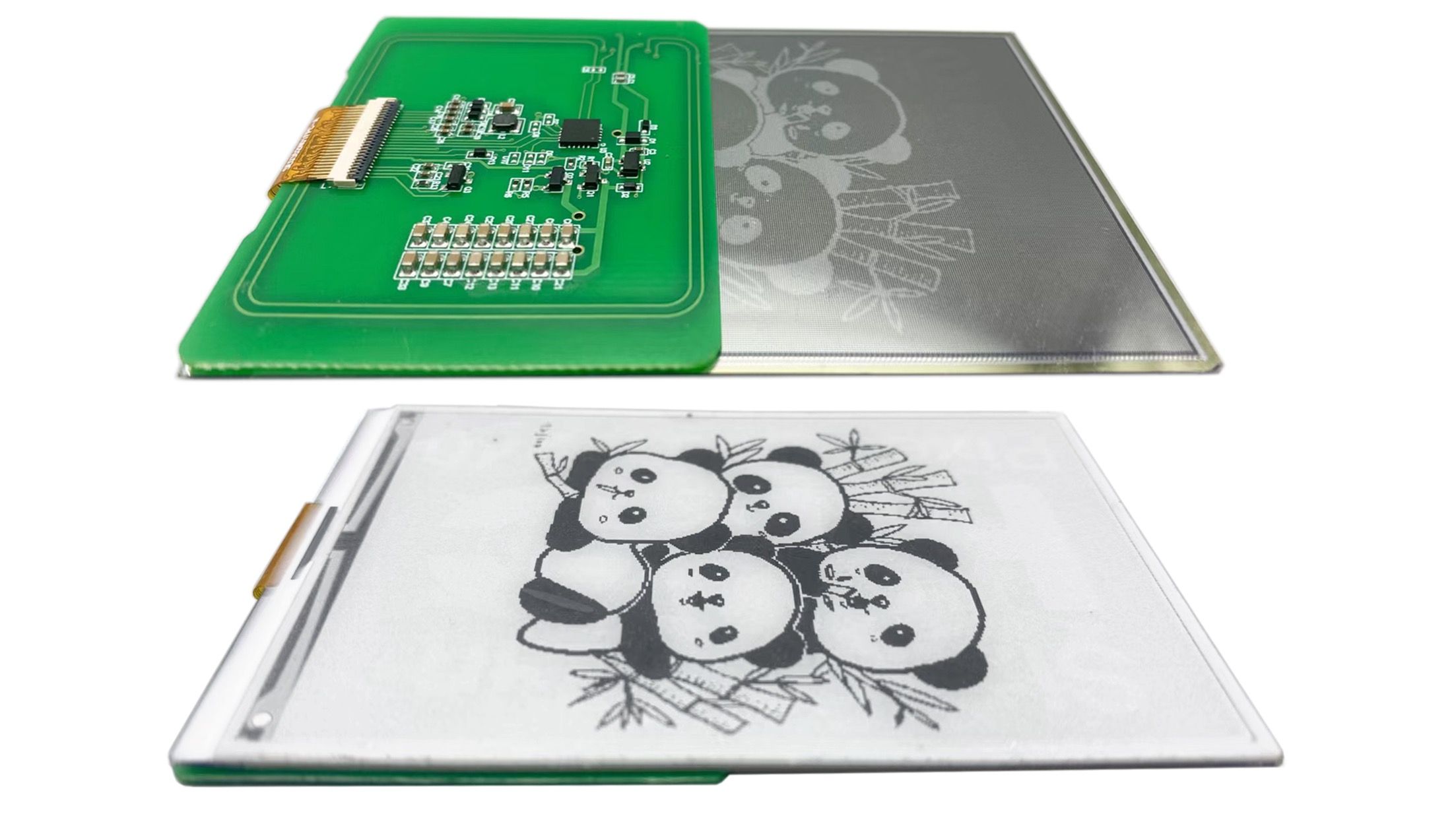

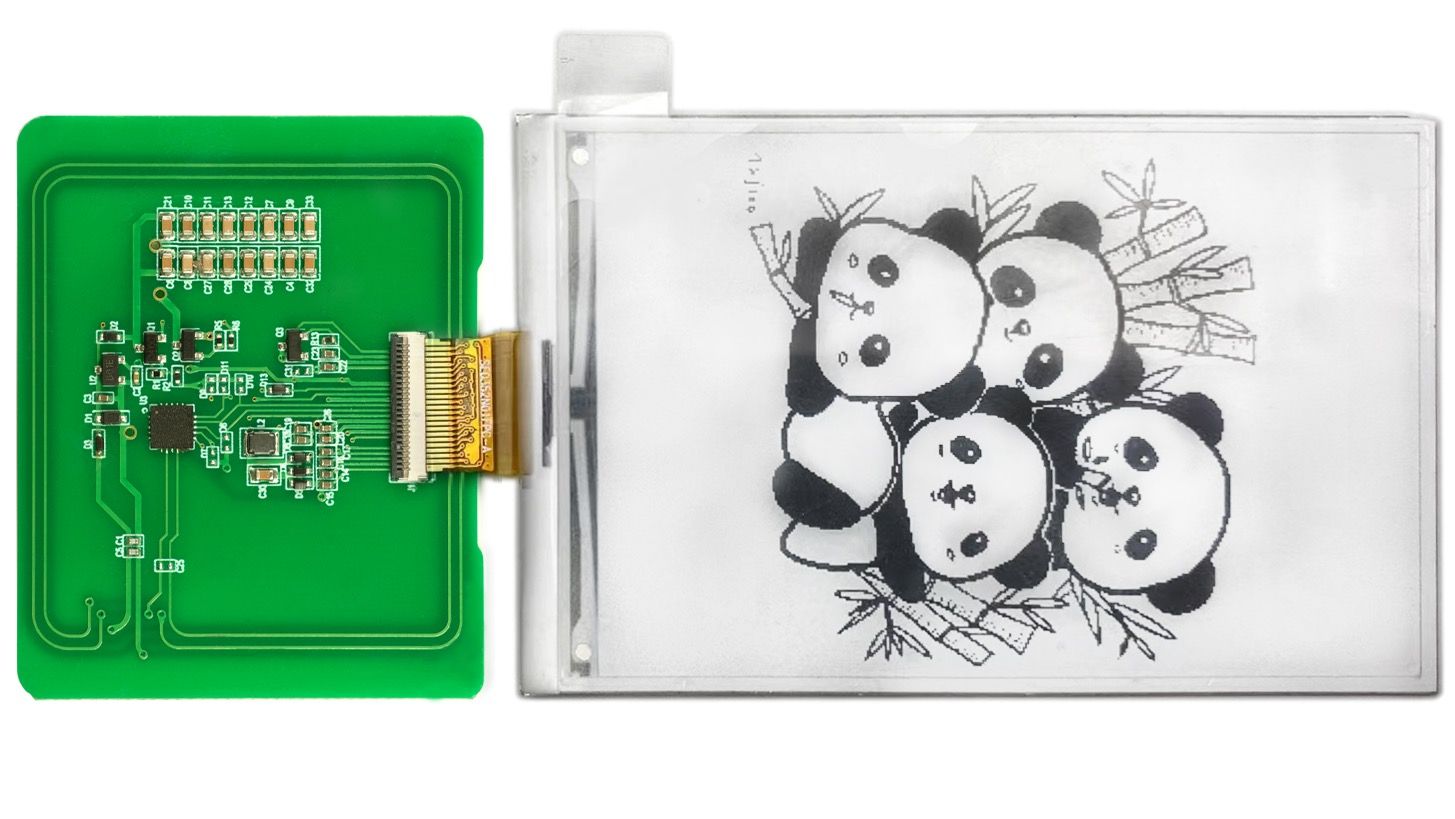

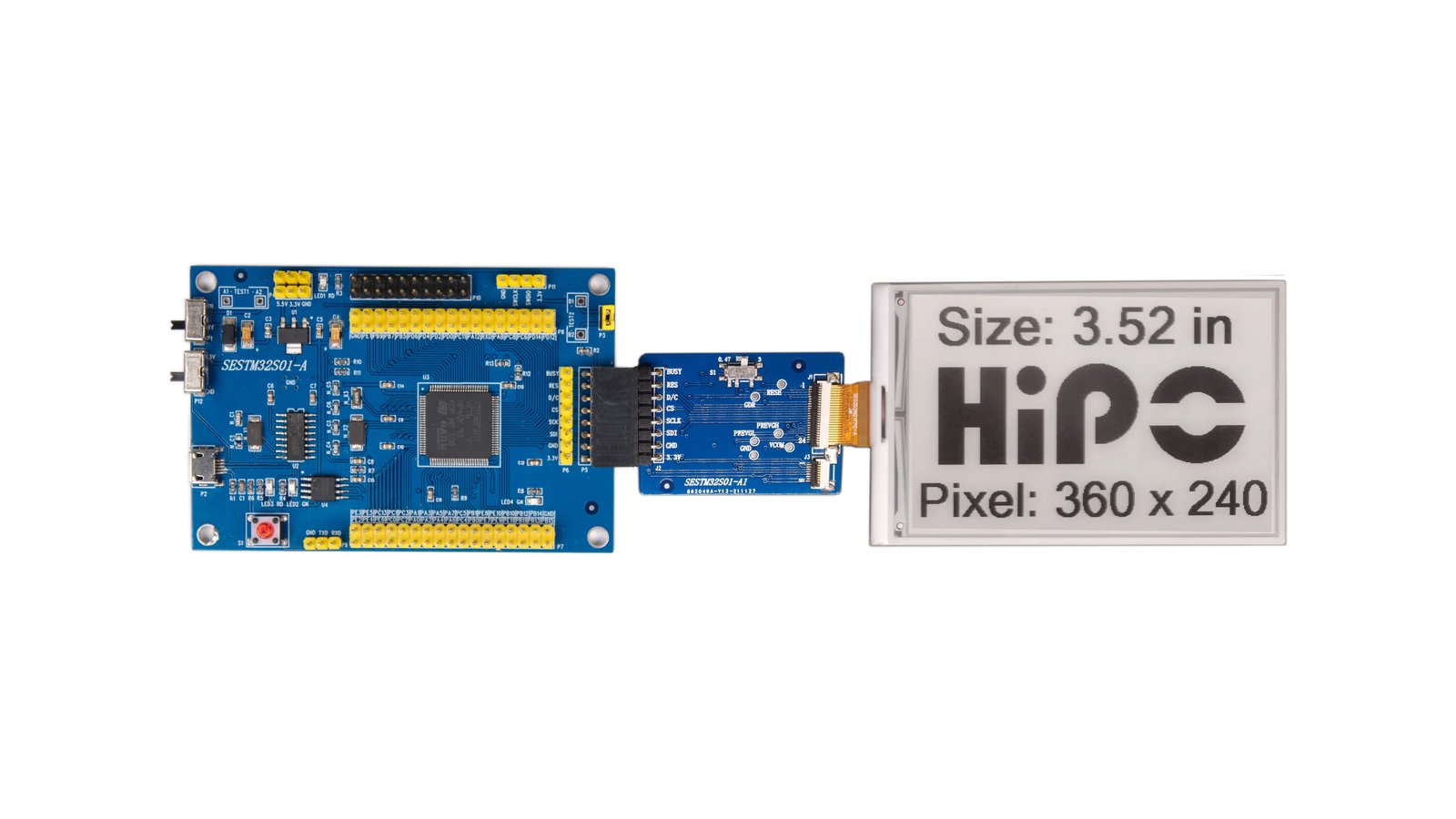

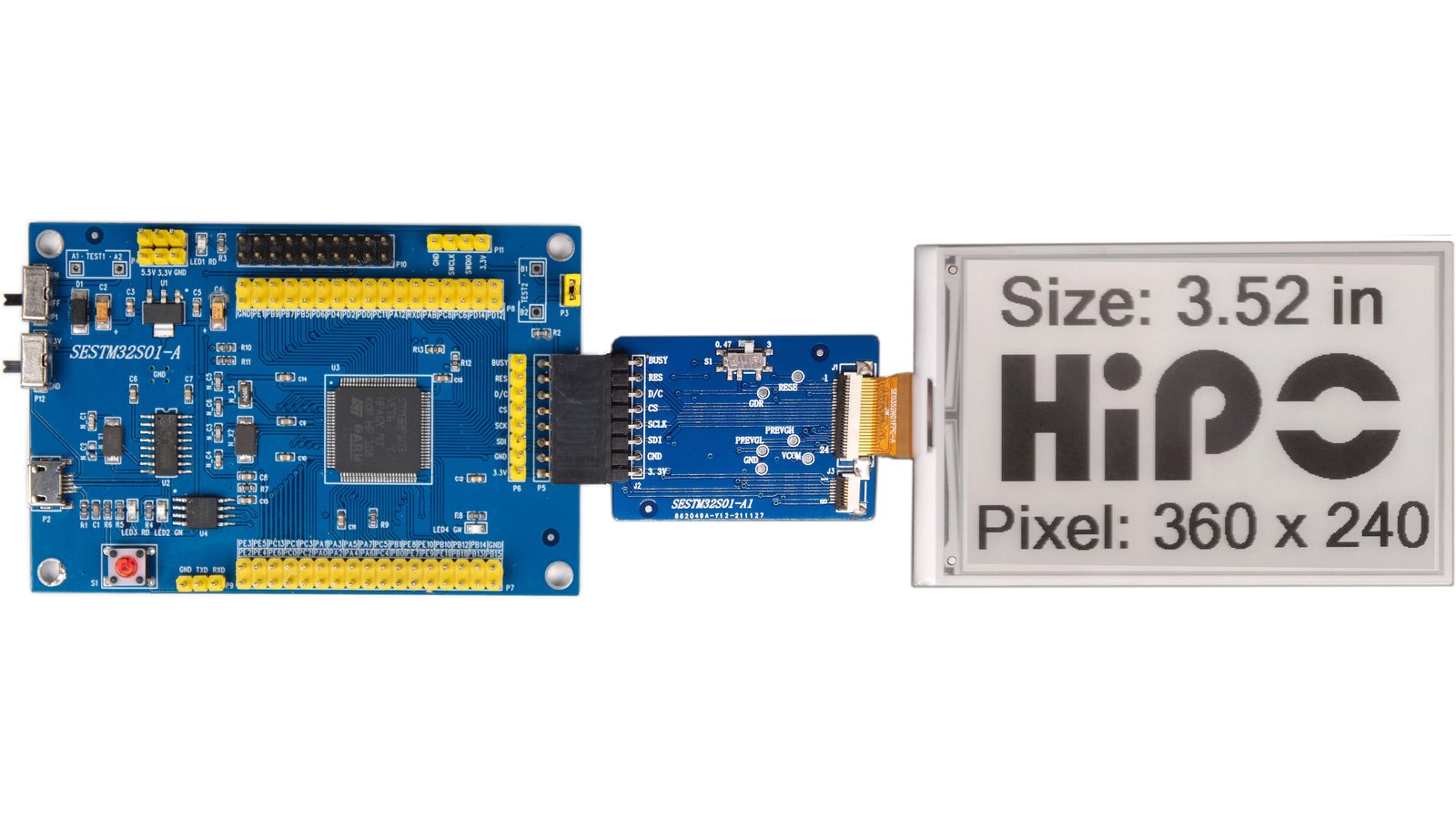

HiPo is an open source 3.52-inch electronic paper display module the size of a business card. The magic of this e-paper display is that new images can be uploaded to it with just a phone app. No batteries are necessary for its operation. Image content can be uploaded either with our standalone NFC board, or with our STM32 companion board, which lets the user edit the code, giving access to other features like sensor integration and remotely controlled displays.
click to expand
No batteries required
NFC is used to transfer text or images to the e-paper display, and derives the necessary power by that same NFC during transmission. This is possible because electronic ink technology can be displayed on a screen almost permanently, without an onboard battery. As a substitute for paper, e-paper can be used for repeatedly changing content with low energy consumption. HiPo can be used for a variety of applications, such as a badge, label or daily sticky note. Whether it’s a store price tag, company name tag, or hotel room status display, the applications are up to you.
Comparisons
| 3.52" HiPo NFC E-Paper Label | 2.13" Passive NFC-Powered E-ink E-Paper Display | 2.7" Passive NFC-Powered E-Paper Module | 4.2" Passive NFC-Powered e-Paper | |
|---|---|---|---|---|
| Manufacturer | Guangdong SID Technology | Good Display | WaveShare | WaveShare |
| Display Size | 49.7 x 74.5 mm | 48.6 x 23.7 mm | 57.3 × 38.2 mm | 84.8 × 63.6 mm |
| Resolution | 360 x 240 px | 250 x 122 px | 264 x 176 px | 400 x 300 px |
| Refresh Time using NFC | 3 s | 3 s | 6 s | 4 s |
| Open Source | Yes | No | No | No |
| Price with US Shipping | $39 | $35 | $33 | $76 |
Features & Specifications
- Compatible with STM32, Arduino, ESP8266, ESP32, and RPi (open-source code for STM32 only)
- Data transfer via 4 lines SPI with frequency 1 M to 5 M SPS
- Waveform stored in O-Chip OTP, easy to program with KEIL 5 open source software
- Working temperature: 32 - 122 °F
- Storage temperature: -4 - 140 °F
- White reflectance above 30%
- Contrast ratio above 8:1
- Ultra wide viewing angle
- Ultra low power consumption
- Pure reflective mode
- Bi-stable display
- Ultra low current deep sleep mode
- On-chip display RAM
Support & Documentation
- Our open source schematics, code, software instructions and datasheet are available in our GitHub repository.
- NFC phone app is being refined and will be available before shipping.(currently for android only)
Manufacturing Plan
We have worked with our producer company to ensure there will be no issues with production. They will still need a certain amount of extra time to print our logo and related certifications, all of which should be completed in a timely manner once the campaign is completed and ready for production.
Fulfillment & Logistics
After testing and packaging the production batch of HiPos, we will send them on to Crowd Supply’s fulfillment partner, Mouser Electronics, who will distribute them to backers worldwide. For more information, you can refer to this useful guide to ordering, paying, and shipping. You can confirm and update your order details and more in your Crowd Supply account.
Risks & Challenges
We are prepared to launch this product regardless of the scale of crowdfunding that we receive, as we are interested in continuing to develop and grow the product. Our goal is to have as many people utilize our product as possible.
