Lime AC Case

by HackerGadgets

An active-cooling aluminum enclosure for the LimeSDR product family

View all updates Nov 21, 2019

Customized RF Shield and Attachable Fan

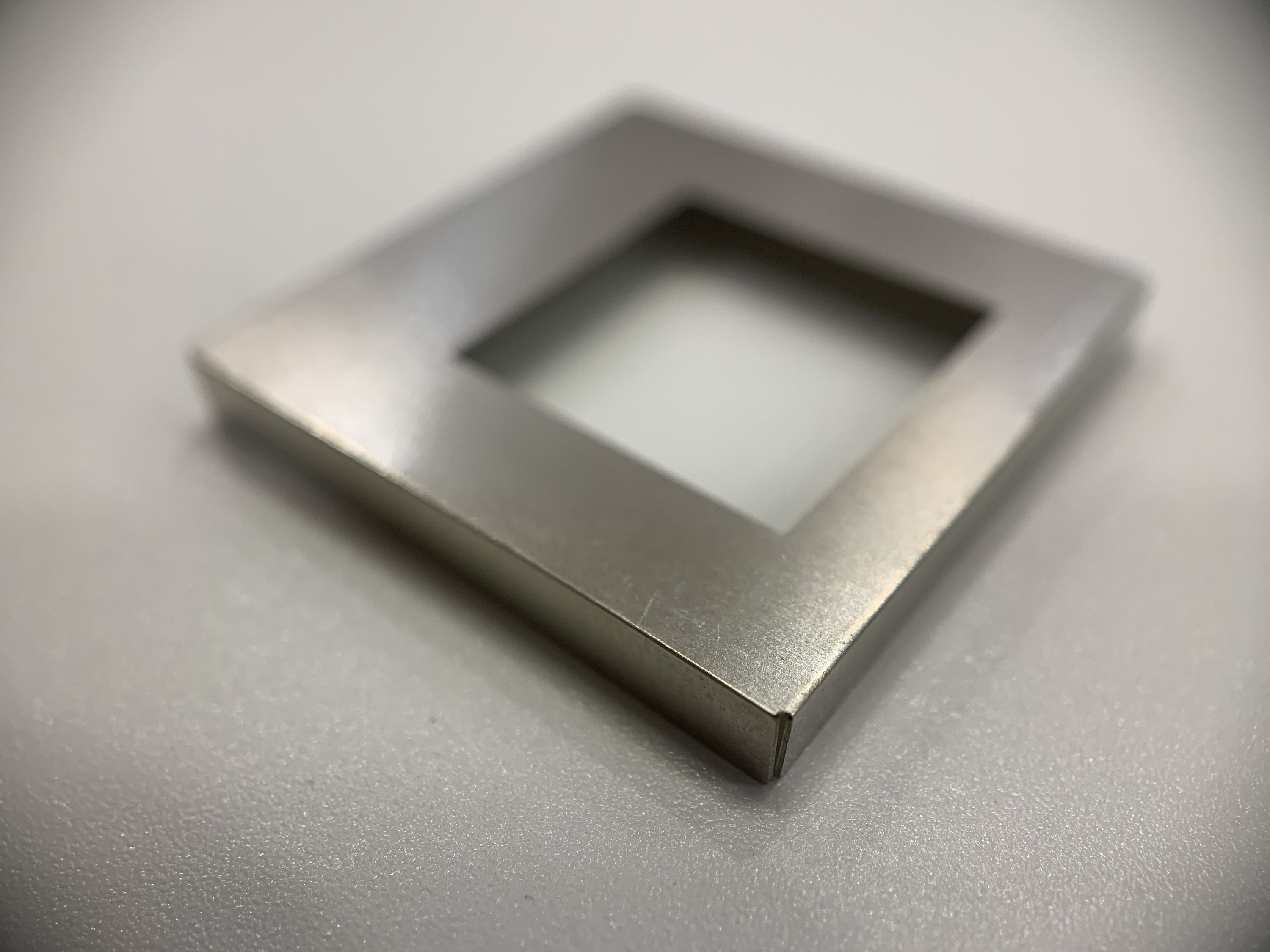

Customized RF shield

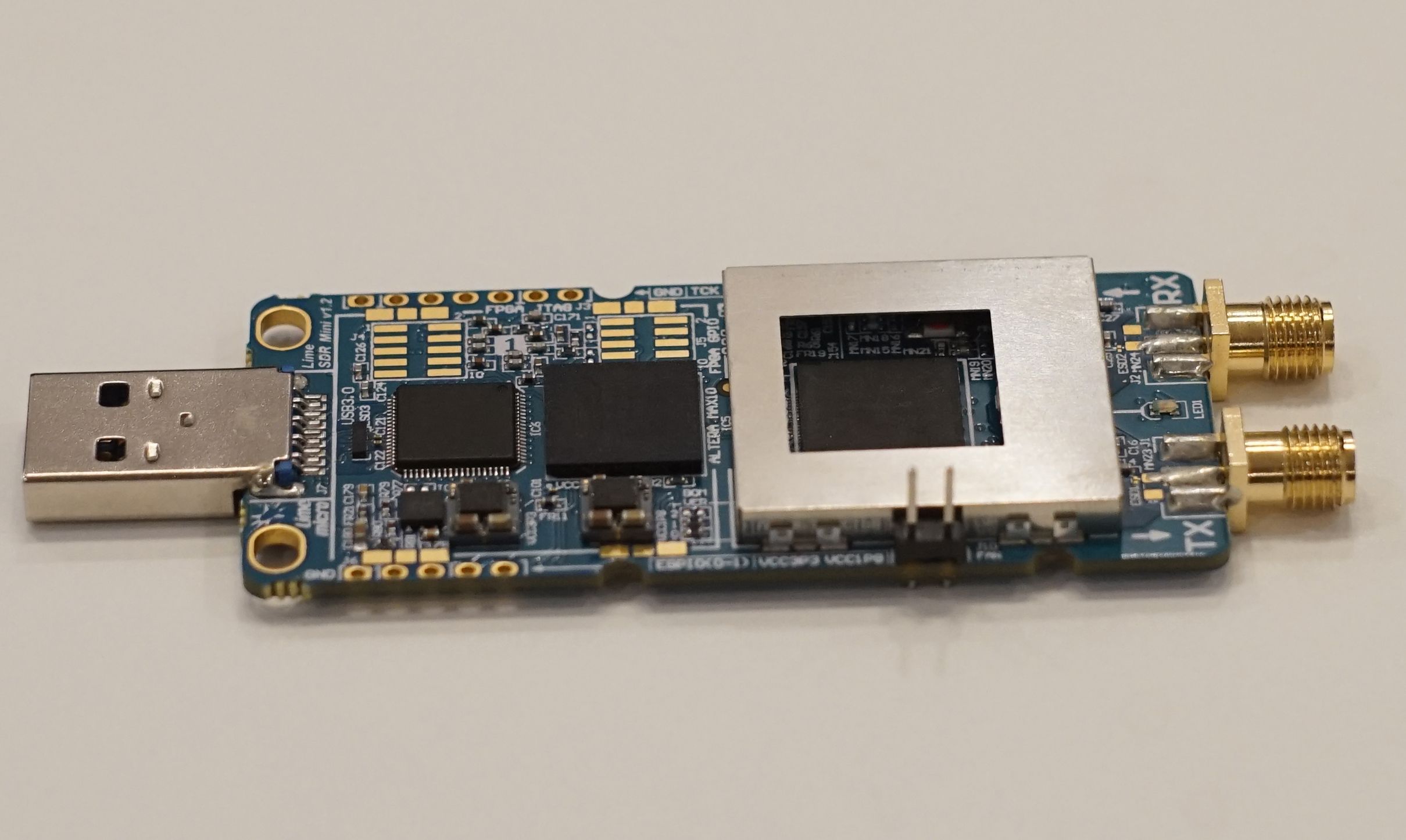

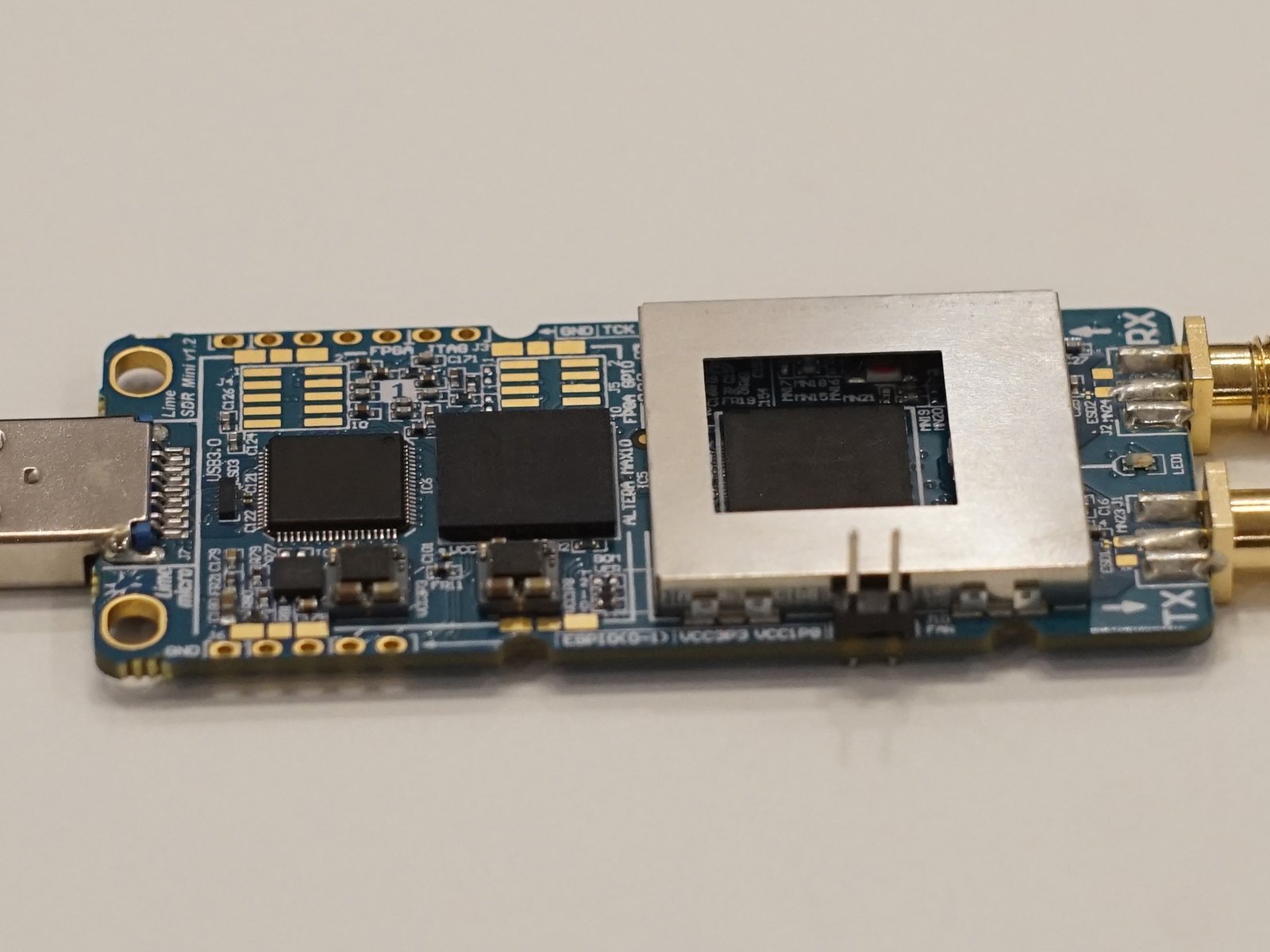

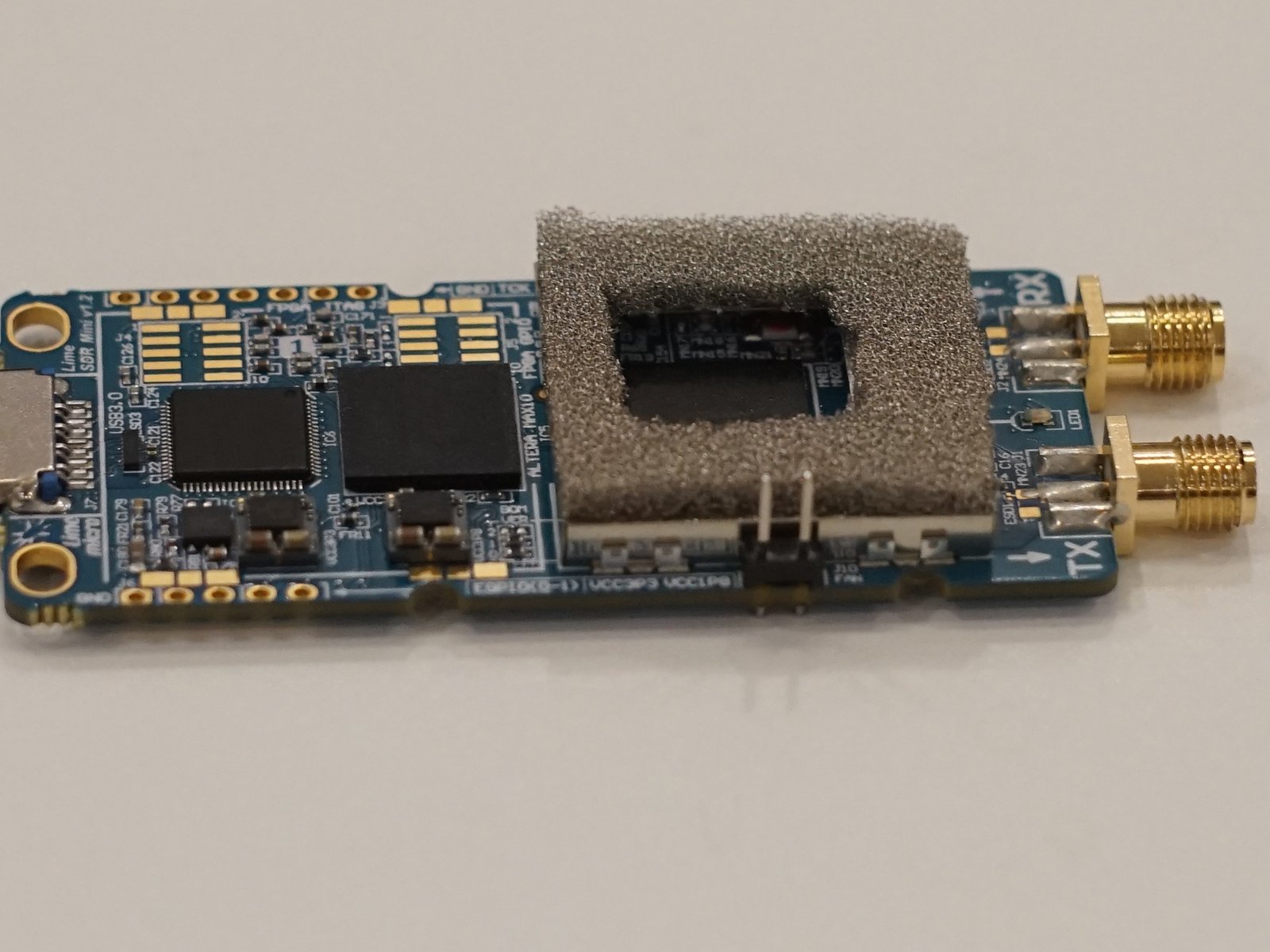

The last week we ordered some customized RF shields for the LimeSDR Mini, and there is a conductive sponge to connect the top case and the RF shield base, which would form a new shielding for the RF parts.

This conductive sponge was hand cut for this concept, but it will be done by machine in the mass production.

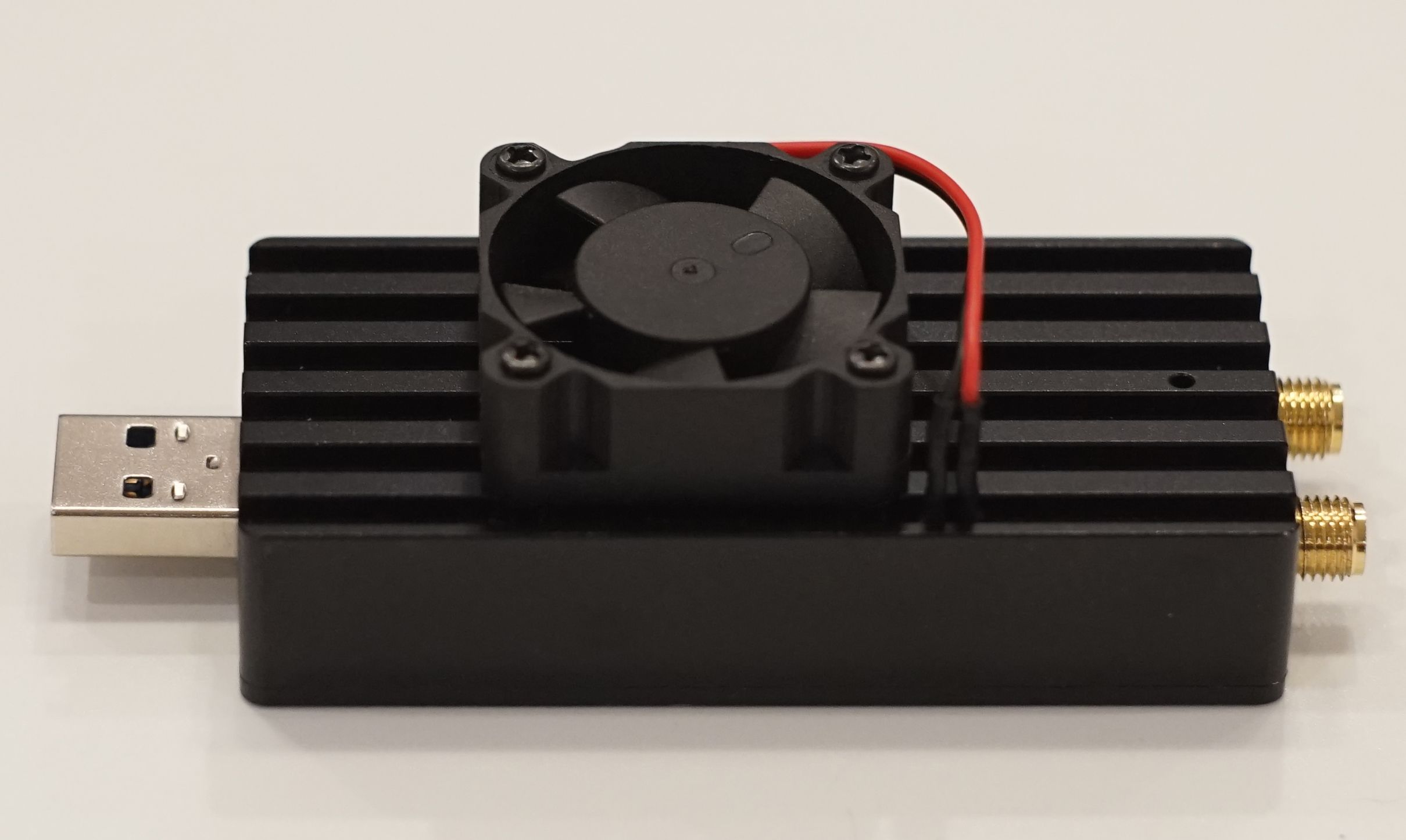

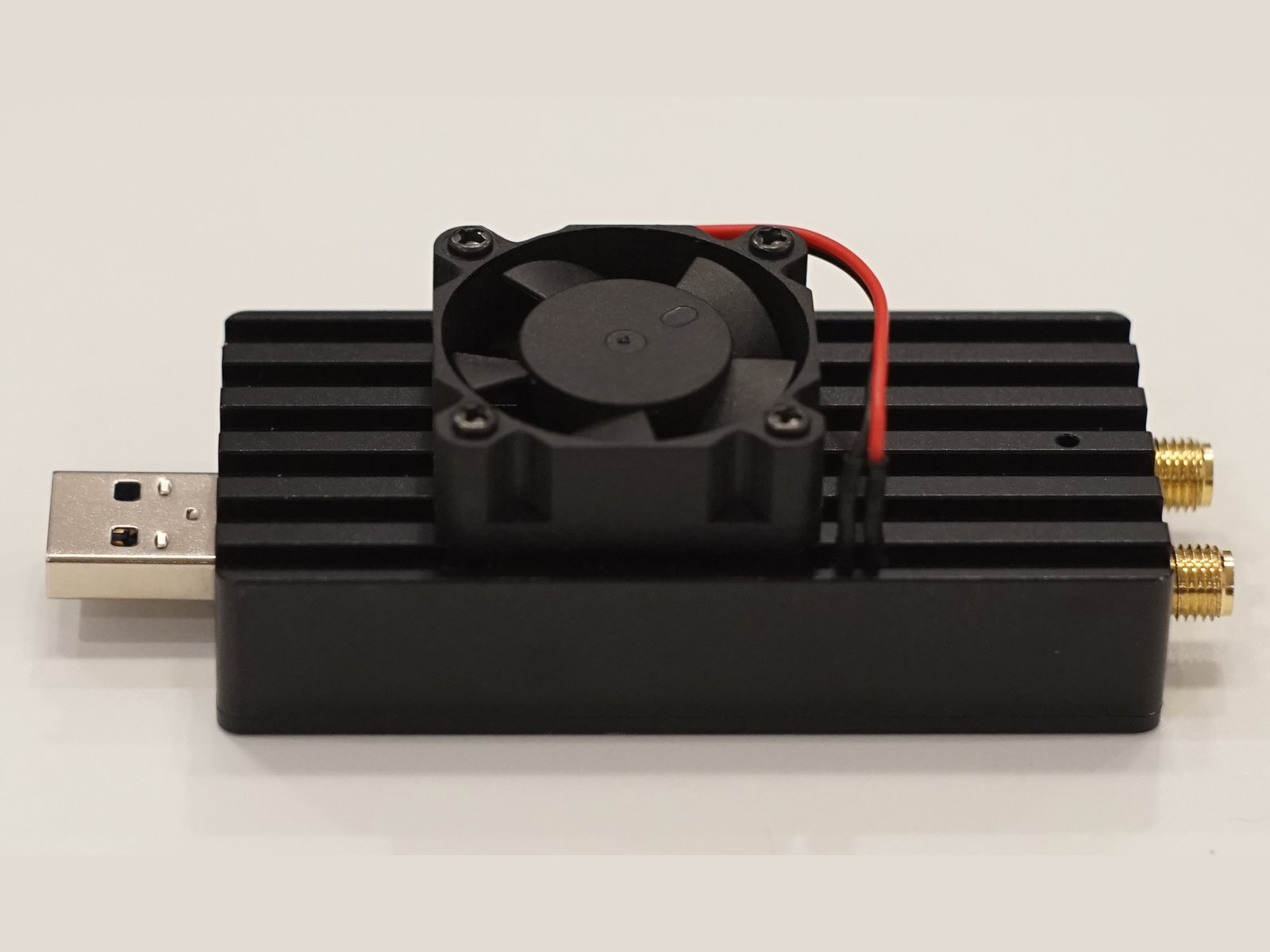

Attachable Fan

We had changed the way the fan connects to the board, from fix soldered to attached by 2 pins. This way, you can disconnect and connect the fan easily.


$11,175 raised

of $5,000 goal

223% Funded! Order Below

Product Choices

$79

Lime AC Mini Case

An aluminum case for LimeSDR Mini, including one fan.


$189

LimeSDR Mini

From the LimeSDR Mini project.

The LimeSDR Mini is the perfect way to start experimenting with and building your own wireless networks, protocols, and testers.


$129

Lime AC Tetra Case

An aluminum case for LimeSDR USB Type-A, with one fan and 12 U.FL-to-SMA cables. This case allows for all on-board RF and CLK lines to be externally available.


$315

LimeSDR USB Type-A

From the LimeSDR project.

The LimeSDR is based on Lime Microsystem’s latest generation of field programmable RF transceiver technology, combined with FPGA and microcontroller chipsets. These connect to a computer via USB 3 with a Type-A connector. LimeSDR then delivers the wireless data and the CPU provides the computing power required to process the incoming signals, and to generate the data to be transmitted by the LimeSDR to all other devices.

Credits

HackerGadgets

HackerGadgets is an open electronic hardware design team based in Guangzhou, China. We focus on open source hardware, including consulting on embedded systems design and hardware manufacturing. HackerGadgets is passionate and actively committed to Open Source projects and electronics education.


vileer deng

Ring Bei

Woody Wu
