An active-cooling aluminum enclosure for the LimeSDR product family

View all updates Dec 09, 2019

Production Process

In the past week, we have placed the order to the factory for the LimeSDR Mini case version, and we’ve started to order the accessories, fan, custom RF shields, and conductive sponge.

Here are the parts we received so far:

RF Shields and Conductive Sponges:

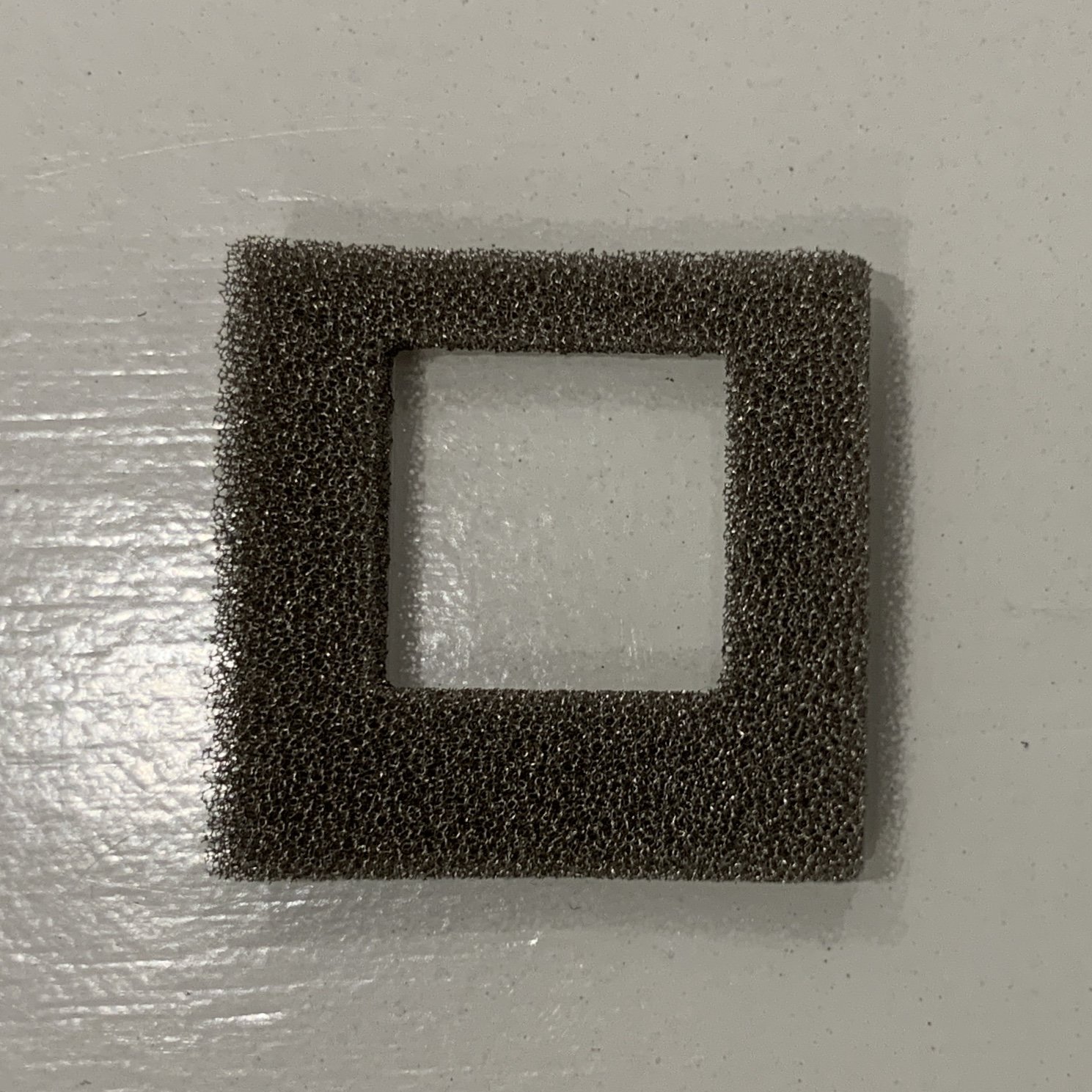

Conductive Sponge (perfect cut as we promised):

You may notice that we haven’t placed the Type-A version to the factory as well as the mini version. That is because we are re-measuring the dimensions for the Type-A board with the dial gauge and Marble comparator. We can get a more accurate model than we if we used the vernier calipers. Once we confirm measurements and make any necessary design changes, we’ll place the order.

Thanks,
HackGadgets Team


$10,917 raised

of $5,000 goal

218% Funded! Order Below

Product Choices

$79

Lime AC Mini Case

An aluminum case for LimeSDR Mini, including one fan.


$189

LimeSDR Mini

From the LimeSDR Mini project.

The LimeSDR Mini is the perfect way to start experimenting with and building your own wireless networks, protocols, and testers.


$129

Lime AC Tetra Case

An aluminum case for LimeSDR USB Type-A, with one fan and 12 U.FL-to-SMA cables. This case allows for all on-board RF and CLK lines to be externally available.


$315

LimeSDR USB Type-A

From the LimeSDR project.

The LimeSDR is based on Lime Microsystem’s latest generation of field programmable RF transceiver technology, combined with FPGA and microcontroller chipsets. These connect to a computer via USB 3 with a Type-A connector. LimeSDR then delivers the wireless data and the CPU provides the computing power required to process the incoming signals, and to generate the data to be transmitted by the LimeSDR to all other devices.

Credits

HackerGadgets

HackerGadgets is an open electronic hardware design team based in Guangzhou, China. We focus on open source hardware, including consulting on embedded systems design and hardware manufacturing. HackerGadgets is passionate and actively committed to Open Source projects and electronics education.


vileer deng

Ring Bei

Woody Wu
