Oct 09, 2017

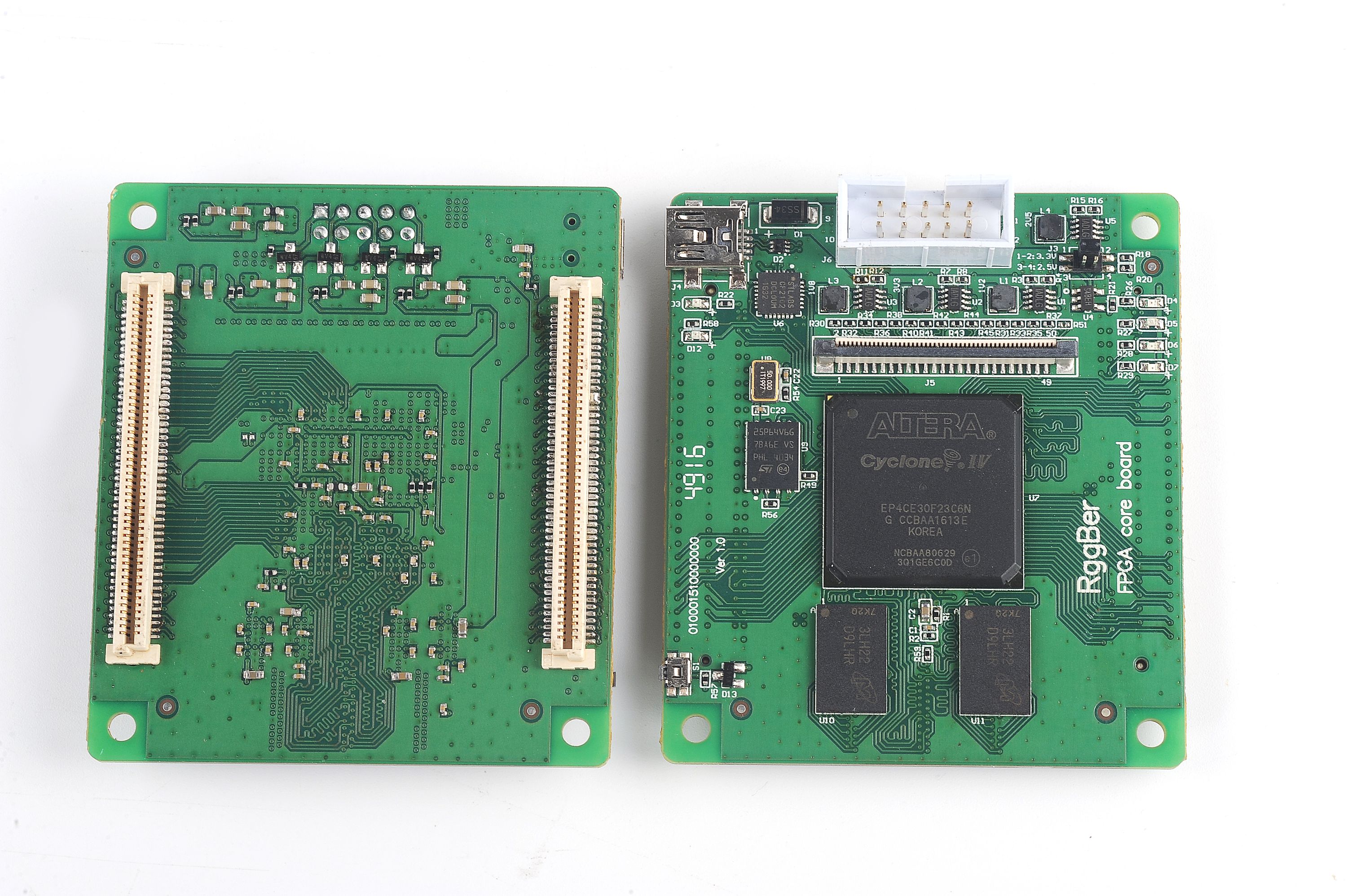

RGGBer's FPGA Board: a cost-effective, standalone, multi-purpose dev tool

Although RGGBer is a dev kit with a series of modular hardware designed around machine vision development, its FPGA processor board can function independently in a variety of applications. It can be used for all kinds of development work that could benefit from an FPGA with a full set of expansion ports and on-board hardware resources. During the crowdfunding and pre-order phases of the campaign, the FPGA processor board is available at a very low price.

The processor board consists of:

Some of the potential applications that the FPGA processor board can support include:

  • Multi-axis motion control
  • High-speed data acquisition
  • Biomedical signal analysis
  • Heterogeneous computing
  • Multi-protocol conversion

Jie Zou
RGGBer team

$2,319 raised

of $2,000 goal

16

days left

115%

funded

24

pledges

Pledge Now

$5

Support Us!

Show the RGGBer project some love and help bring open source hardware to embedded vision development.


$39

FPGA Processor Board - Early Bird

There are two FPGA chip options. The EP4CE30F23C6N supports 400 Mbps x 32 bits DDR2 date rate and EP4CE30F23C8N supports 332 Mbps x 32 bits DDR2 date rate.


$49

FPGA Processor Board

There are two FPGA chip options. The EP4CE30F23C6N supports 400 Mbps x 32 bits DDR2 date rate and EP4CE30F23C8N supports 332 Mbps x 32 bits DDR2 date rate.


$39

Video Mainboard

HDMI input and output, MCU, wireless module, expansion ports, etc.


$18

Camera Module

OV5640 sensor chip: 60° view angle, supports Auto-focus; OV5640 sensor chip: 120° view angle


$12

iXCtrl Add-on Card

4 x SMA jacks, bread-board prototyping zone, iXCtrl interface


$18

Expansion Kit

This kit expands RGGBer's capabilities to work with sensors, actuators, and other devices. It also adds audio capabilities. It includes: iXCtrl add-on card, DC/DC module: input 8 ~ 26 V, output 5V@3A, DC/DC module: input 8 ~ 55 V, output 5 V@2 A, speaker: 25 mm x 15 mm, 1 W, 8 ohm, and a buzzer: 12 mm x 9.5 mm, 5 V, 42 Ohm


$12

QVGA LCD Monitor Add-on Card

Connect an LCD monitor. Supports LQ035NC111, backlight LED control, iXHis interface


$15

QVGA LCD Monitor

LCD Monitor LQ035NC111


$118

HD Camera Dev Kit

This kit includes the components used for typical digital camera development. It includes the FPGA processor board, video mainboard, OV5640 AF camera module, USB cable, HDMI cable, and storage box.


$108

VPU Card Dev Kit

The kit includes the components needed for typical Video Processing Unit (VPU) card development. It includes the FPGA processor board, video mainboard, USB cable, two HDMI cables, and a storage box.


$250

Multi-Camera/ADAS Dev Kit

This kit contains the components needed for typical multi-camera or ADAS project development. It includes two FPGA processor boards, two video mainboards, two OV5640 AF camera modules, two USB cables, two HDMI cables, an HDMI type C FPC cable, and a storage box.


$190

Complete RGGBer Dev Kit

This kit bundles together all of the things! It includes the FPGA processor board, video mainboard, OV5640 AF camera module, USB cable, two HDMI cables, HDMI type C FPC cable, storage box, QVGA LCD add-on card, LQ035NC111 LCD, accessories kit, and acrylic case.


$8

Acrylic Case

1 x Laser-cut acrylic case for RGGBer, 4 x screws, 4 x studs


$8

USB Cable

USB type A to mini-USB cable, 0.5 m.


$8

HDMI Cable

HDMI type A to type C cable, 1.0 m.


$12

HDMI Type C, FPC Cable

HDMI type C to type C, FPC cable, 0.2 m. For connecting multiple RGGBers together.
