6502 Companion

Experiment with the 6502 microprocessor and related components

This project is coming soon. Sign up to receive updates and be notified when this project launches.

Everything You Need on a Single PCB

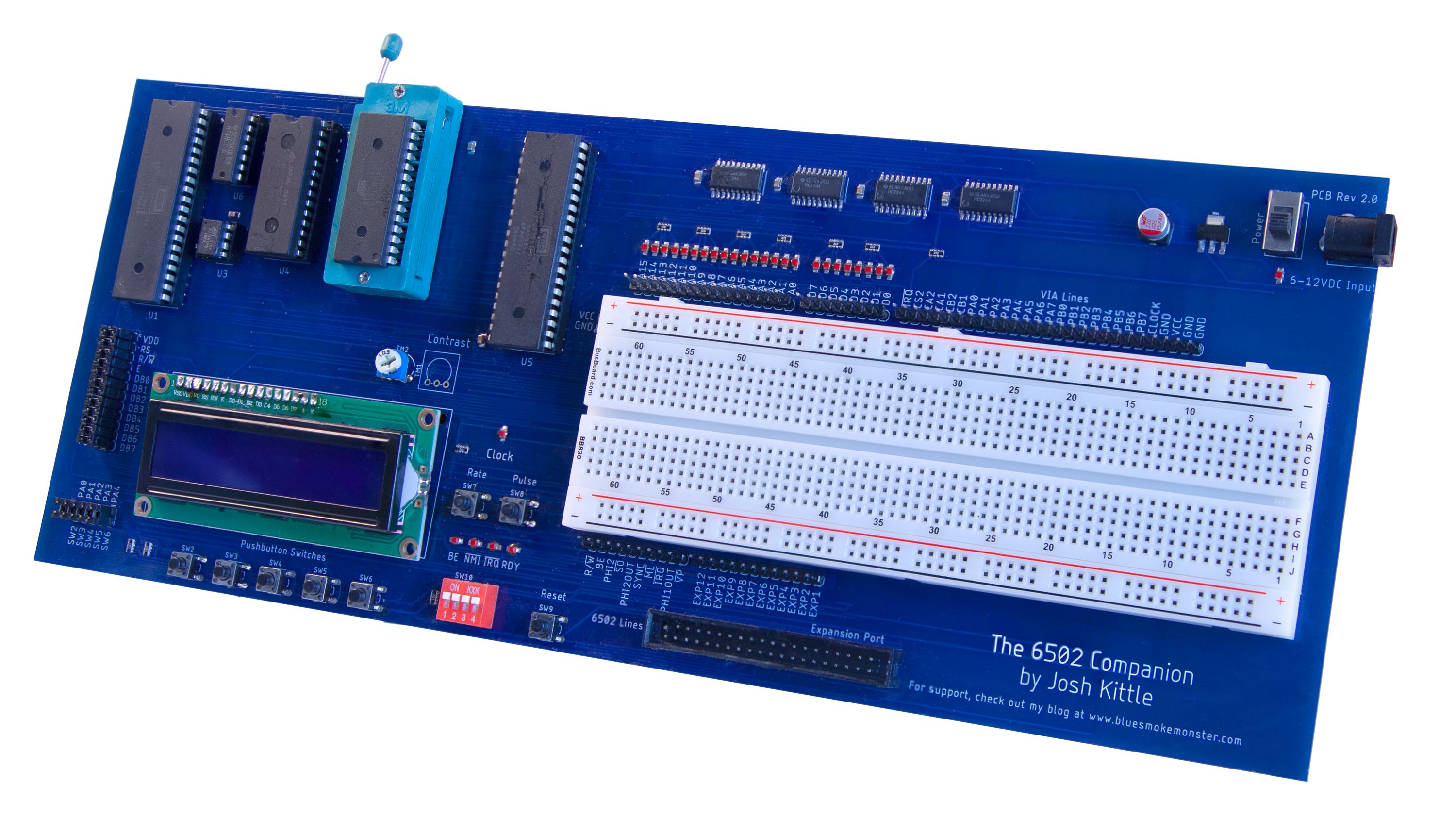

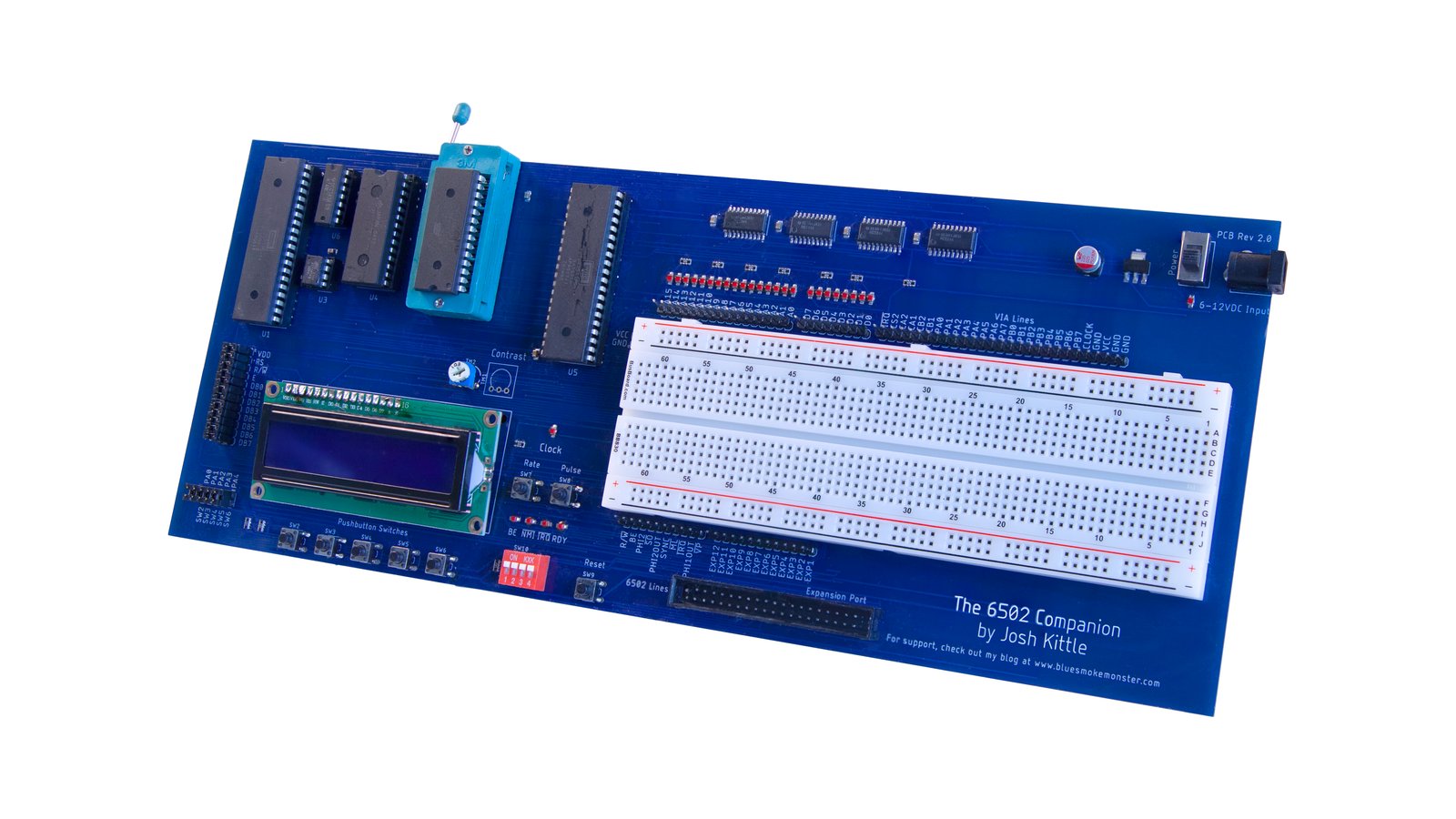

The 6502 Companion is a custom-designed PCB that supports a 6502 microprocessor, a 65C22 Versatile Interface Adapter, a 28C256 EEPROM, a 62256 Static RAM module, and an ATtiny85 operating as a programmable clock oscillator. It also includes a breadboard, a power supply, and a few 7400-series logic ICs to drive LEDs that monitor the status of the data bus and the address bus.

This project stands on the shoulders of the 6502 community. By leveraging the common design architectures developed by that community, we were able to produce a board that allows you to experiment with the 6502 without having to breadboard together all the bits that make it useful.

Back in its heyday, it wasn’t so easy for consumers to kick the tires on this microprocessor. But we’ve come along way since the ‘80s. Among the users of 6502 Companion will be engineers, electronics hobbyists, DIY enthusiasts, retro-gaming fanatics, and students who want to learn about—and experiment with—this sweet piece of history.

For Learning & Experimentation

6502 Companion is not a turnkey System on Chip (SoC) like so many other projects. It was designed to facilitate a learning experience. If you pick one up, you should expect to get very familiar with the 6502 architecture. You’re going to learn about addressing lines, data lines, and a whole lot more.

We encourage users to color outside the lines. With 6502 Companion’s integrated breadboard, you can:

  • Learn how to load a program from a ROM onto the 6502 for execution
  • Learn how to leverage GPIO using the 65C22 Versatile Interface Adapter
  • Use the on-board LEDs to visualize activity on the address bus and the data bus
  • Interface the 6502 to a parallel LCD
  • Explore Static RAM with the 6502

But you can also take the platform that we’ve created and build upon it. There are plenty of resources out there from which you can learn about the 6502 microprocessor. Our primary goal is to help you take that next step. We’ve put everything you need into one bundle so you can skip to the fun part: soldering it all together, breaking it, fixing it, and then—best of all—making it better.

Who Are We?

I was a child of the 80’s, and my first computer was a Commodore 64. Even then, I was interested in dabbling with 6502 assembly. Over the past several years, I’ve come across others in the 6502 community who have begun experimenting with the architecture. I wanted to play along, but I wasn’t particularly excited about breadboarding the basics. This project is my attempt to save others from that hassle.
