LimeSDR: Flexible, Next-generation, Open Source Software Defined Radio

← View All Updates

May

11

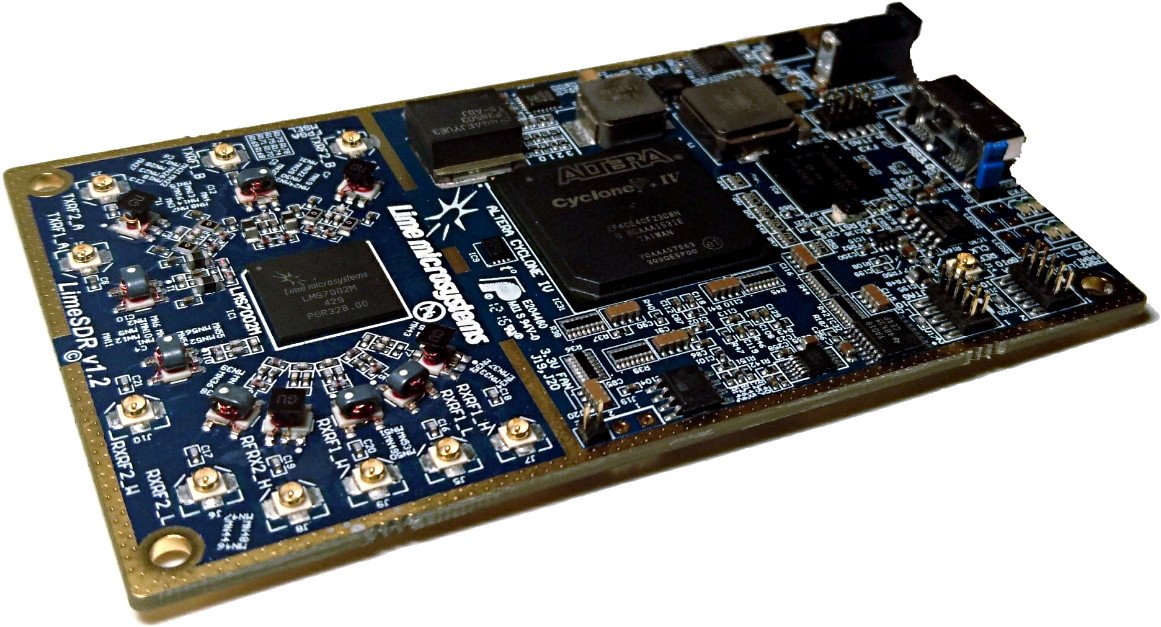

Micro USB Socket Version

You asked for it, we listened, and now we’re pleased to be able to offer a version of the LimeSDR board that is equipped with a micro USB 3.0 Type-B socket, instead of a full size Type-A plug.

We had in fact already created versions of the LimeSDR USB 3.0 design with each of these types of connectors, and a small number of both variants are already out in the field being put through their paces by key members of the open source community. However, while just one connector might seem like a trivial change, it does mean another inventory item with its own, admittedly very similar, yet distinct bill of materials, assembly process, and test harness.

If you already ordered a LimeSDR and want to keep the Type-A plug, you don’t need do anything. If you ordered a LimeSDR and want to change your order to include the micro USB Type-B socket, please email orders@crowdsupply.com with your order number. Note that the socket version will not be available to those who have pledged for LimeSDR with Aluminium Kit, due to the fact that this enclosure has been designed around a full size Type-A plug.

Andrew and the LimeSDR team

$777,477 raised

of $500,000 goal

Funded! Order Now

Jun 21

funded on

155%

funded

3,195

pledges

Product Choices

$10

Support Us

Support the campaign and get app development news first! We will add you to a list to be the first to find out what the LimeSDR community is doing, and what's being developed.


$289

LimeSDR

The LimeSDR is based on Lime Microsystem’s latest generation of field programmable RF transceiver technology, combined with FPGA and microcontroller chipsets. These connect to a computer via USB3. LimeSDR then delivers the wireless data and the CPU provides the computing power required to process the incoming signals, and to generate the data to be transmitted by the LimeSDR to all other devices.


$99

Acrylic Case

A layered acrylic case to protect your LimeSDR. Can be used with either USB Type A or micro USB Type B. Antenna not included - separate purchase available.


$599

LimeSDR with Aluminum Kit

Start developing apps based on Lime Microsystem’s latest generation of field programmable RF transceiver technology. This board comes with fancy aluminum casing. The board will be delivered with turnkey support for a diverse range of SDR ecosystem software, a powerful API and rapid prototyping environment. All the boards in this category will come with a fancy Aluminum casing coated with high quality material, cables, and antennas for a quick set up.


$799

Ultimate LimeSDR With PCle Interface

Start developing apps based on Lime Microsystem’s latest generation of field programmable RF transceiver technology. The board will be delivered with turnkey support for a diverse range of SDR ecosystem software, a powerful API and rapid prototyping environment. All the boards in this category will come with a PCIe interface, cables and Antennas for a quick set up. Stretch goal: if 30 units are sold, all pledges for this level will include dual-channel PA and LNA modules, together with a set of eight SAW filters covering TX and RX on bands I, II, V and VII. See updates for more details.


$85

Four Antenna + Cable Pairs

Omni-directional antenna set, covering frequency range from 800-960 / 1710-2170/ 2400-2700MHz.


$15,000

Enterprise 10 Pack - LimeSDR + Aluminum + Accessories

This package comes with 10 customized high quality enclosures with logo of the sponsor enterprise. The bundle comes with a complete suite of software and set of accessories for an out of the box experience. The package includes a one day training course at the headquarters of Lime Micro in Guildford, England or other designated locations for an extra fee to be agreed with the sponsor organization (not including airfare). On completion of the course, the participants are presented with a certificate following a practical exam in setting up the LimeSDR for one of the use cases presented in the updates during the campaign. The maximum number of attendees will be 10.


$99,000

100 Pack - LimeSDR + Aluminum + Accessories

This package comes with 100 customized high quality enclosures with logo of the sponsor organization. The bundle comes with a complete suite of software and set of accessories for an out of the box experience. The offering will include a support package provided directly from Lime Micro.
