View all updates Jun 13, 2016

LTE Demo with LimeSDR and OpenAirInterface

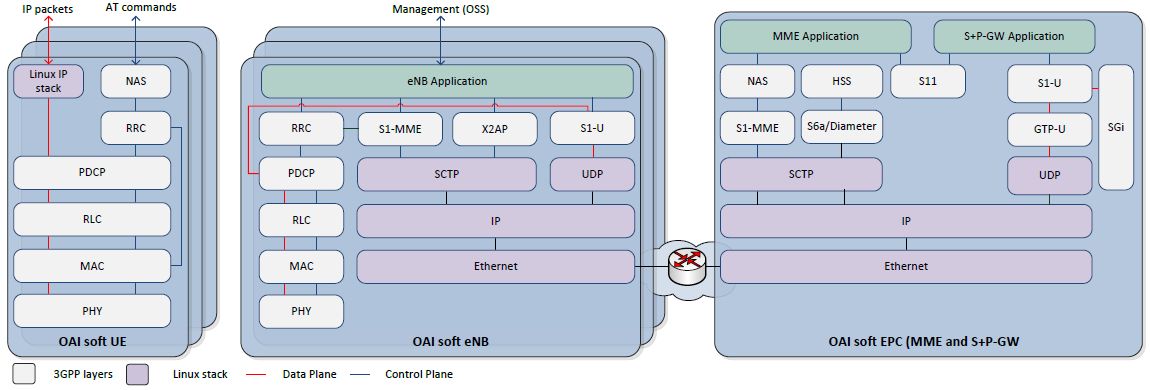

The OpenAirInterface Software Alliance are working towards the development of a 5G cellular stack that will run on commercial off-the- shelf (COTS) hardware, and they already have a functioning 4G (LTE) implementation that runs on a commodity Intel platform equipped with SDR.

In a video that Raymond Knopp of EURECOM shared over the weekend, we can see the OpenAirInterface eNodeB (base station) software being used with LimeSDR to create a 10MHz LTE cell. Following which a handset is shown connecting to the new network and via this to the Internet, before browsing the OpenAirInterface website and streaming video.

Finally, a network speed test is performed and we can see an impressive rate of around 20Mbps downlink and uplink.

To find out more information about OpenAirInterface, including links to the code, installation instructions, documentation and tutorials, see the OAI wiki.

Jessica and the LimeSDR Team


$1,768,150 raised

of $500,000 goal

353% Funded! Order Below

Product Choices

$315

LimeSDR USB Type-A

The LimeSDR is based on Lime Microsystem’s latest generation of field programmable RF transceiver technology, combined with FPGA and microcontroller chipsets. These connect to a computer via USB 3 with a Type-A connector. LimeSDR then delivers the wireless data and the CPU provides the computing power required to process the incoming signals, and to generate the data to be transmitted by the LimeSDR to all other devices.


$99

Acrylic Case

A layered acrylic case to protect your LimeSDR. Antenna not included - separate purchase available.


$129

Lime AC Tetra Case

From the Lime AC Case project.

An aluminum case for LimeSDR USB Type-A, with one fan and 12 U.FL-to-SMA cables. This case allows for all on-board RF and CLK lines to be externally available.


$599

LimeSDR with Aluminum Kit

Start developing apps based on Lime Microsystem’s latest generation of field programmable RF transceiver technology. This board comes with fancy aluminum casing. The board will be delivered with turnkey support for a diverse range of SDR ecosystem software, a powerful API and rapid prototyping environment. All the boards in this category will come with a fancy Aluminum casing coated with high quality material, cables, and antennas for a quick set up.


$799

Ultimate LimeSDR With PCIe Interface

Start developing apps based on Lime Microsystem’s latest generation of field programmable RF transceiver technology. The board will be delivered with turnkey support for a diverse range of SDR ecosystem software, a powerful API and rapid prototyping environment. All the boards in this category will come with a PCIe interface, cables and Antennas for a quick set up.


$13

Multi-band 4G/3G/2G Monopole Antenna

From the Crowd Supply Basics project.

Use one antenna for each of LimeSDR's four channels. Connect each antenna to the LimeSDR using a U.FL-to-SMA cable.

A TG.09 4G/3G/2G cellular hinged SMA(M) mount monopole antenna.


$8

U.FL-to-SMA Cable

From the Crowd Supply Basics project.

Use one cable for each of LimeSDR's four channels. The 100 mm version works well with the Acrylic Case.

A Hirose U.FL to SMA (jack) bulkhead straight connector with a 1.32 mm diameter cable. Less than -2 dB cable insertion loss up to 6 GHz. Both connectors are gold-plated brass and the cable conductor is silver-coated copper.


$169

GPIO Board

This stackable expansion board for the LimeSDR provides individually settable, bi-directional level-shifted I/O for FPGA GPIO 0-7. Each I/O has a high-voltage and power Darlington drive stage suitable for inductive loads, such as coaxial relays. LimeSDR not included.


$85

Hacker Case

This custom acrylic case accommodates both a LimeSDR, a GPIO Board or LMS8001 Companion, together with SMA connectors for all RF ports and clock I/O. A 40 mm cooling fan is included. LimeSDR, GPIO Board/LMS8001 Companion, and SMA connectors are not included.
