Jun 02, 2016

Ultimate LimeSDR Front-end Modules Stretch Goal

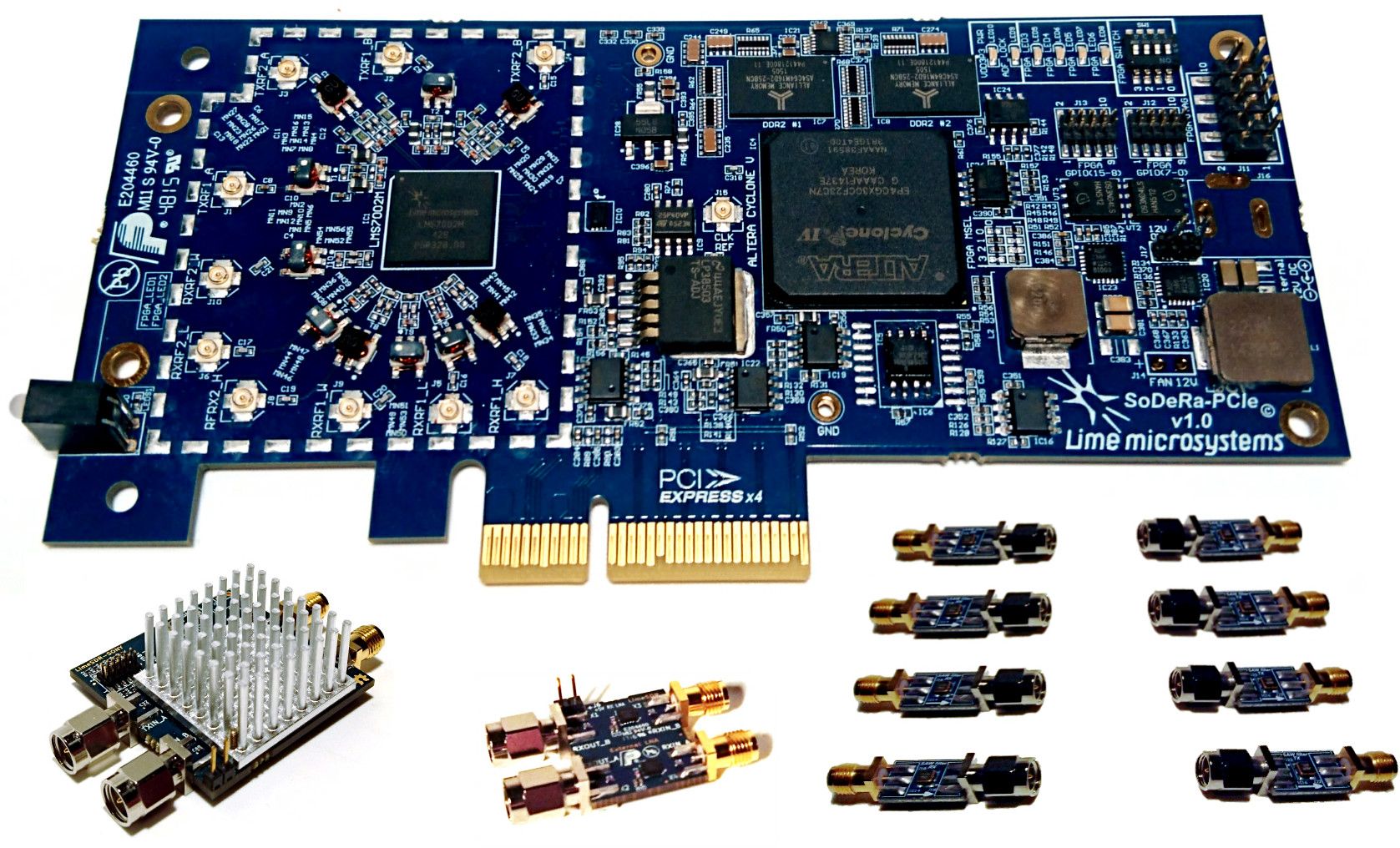

We’ve just added a stretch goal to the Ultimate LimeSDR With PCle Interface pledge tier and if this reaches 50 backers, the reward will now also include dual-channel PA and LNA modules, together with a set of eight SAW filters covering TX and RX on bands I, II, V and VII. However, please note that this tier is now capped at 100 packages and once they’re gone, they’re gone!

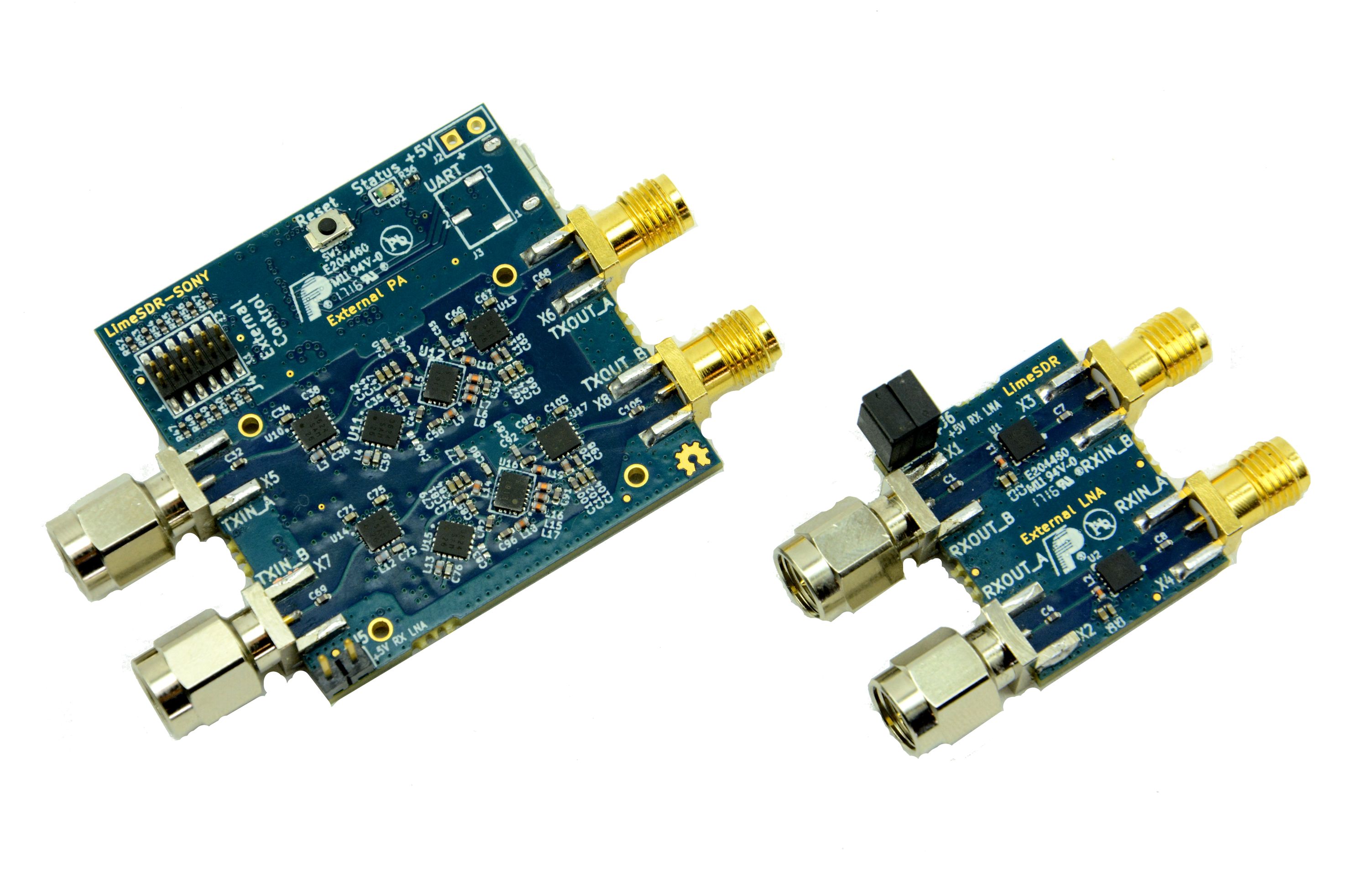

This combination brings with it an even greater level of flexibility, allowing custom solutions to be created for those applications that require greater transmit power, increased receive gain and/or filtering. It should be noted that the PA and LNA modules are both dual-channel, while the former also includes configurable tuners and can simply be programmed via a Micro USB interface.

As with all other Myriad-RF projects, the module designs, along with the associated firmware and software is all open source. For further details see the Myriad-RF blog post.

Jessica and the LimeSDR Team

$1,297,838 raised

of $500,000 goal

Funded! Order Now

Jun 21 2016

funded on

259%

funded

5,140

pledges

Product Choices

$10

Support Us

Support the campaign and get app development news first! We will add you to a list to be the first to find out what the LimeSDR community is doing, and what's being developed.


$289

LimeSDR

The LimeSDR is based on Lime Microsystem’s latest generation of field programmable RF transceiver technology, combined with FPGA and microcontroller chipsets. These connect to a computer via USB3. LimeSDR then delivers the wireless data and the CPU provides the computing power required to process the incoming signals, and to generate the data to be transmitted by the LimeSDR to all other devices.


$99

Acrylic Case

A layered acrylic case to protect your LimeSDR. Can be used with either USB Type A or micro USB Type B. Antenna not included - separate purchase available.


$599

LimeSDR with Aluminum Kit

Start developing apps based on Lime Microsystem’s latest generation of field programmable RF transceiver technology. This board comes with fancy aluminum casing. The board will be delivered with turnkey support for a diverse range of SDR ecosystem software, a powerful API and rapid prototyping environment. All the boards in this category will come with a fancy Aluminum casing coated with high quality material, cables, and antennas for a quick set up.


$799

Ultimate LimeSDR With PCIe Interface

Start developing apps based on Lime Microsystem’s latest generation of field programmable RF transceiver technology. The board will be delivered with turnkey support for a diverse range of SDR ecosystem software, a powerful API and rapid prototyping environment. All the boards in this category will come with a PCIe interface, cables and Antennas for a quick set up.


$85

Four Antenna + Cable Pairs

Omni-directional antenna set, covering frequency range from 800-960 / 1710-2170/ 2400-2700MHz.


$169

GPIO Board

This stackable expansion board for the LimeSDR provides individually settable, bi-directional level-shifted I/O for FPGA GPIO 0-7. Each I/O has a high-voltage and power Darlington drive stage suitable for inductive loads, such as coaxial relays. LimeSDR not included.


$79

Hacker Case

This custom acrylic case accommodates both a LimeSDR and a GPIO Board, and includes SMA connectors for all RF ports, two SMA connectors for clock I/O, and a 40 mm cooling fan. LimeSDR and GPIO Board not included.
