View all updates Jan 03, 2020

USB3 and SoM PCB Assembly Complete

Hi DepthAI fans!

So the following PCBAs just finished soldered assembly (final assembly is still to be done):

  • DepthAI: USB3 Edition
  • DepthAI: System on Module
  • 4K, 60 Hz Video Modular Color Camera

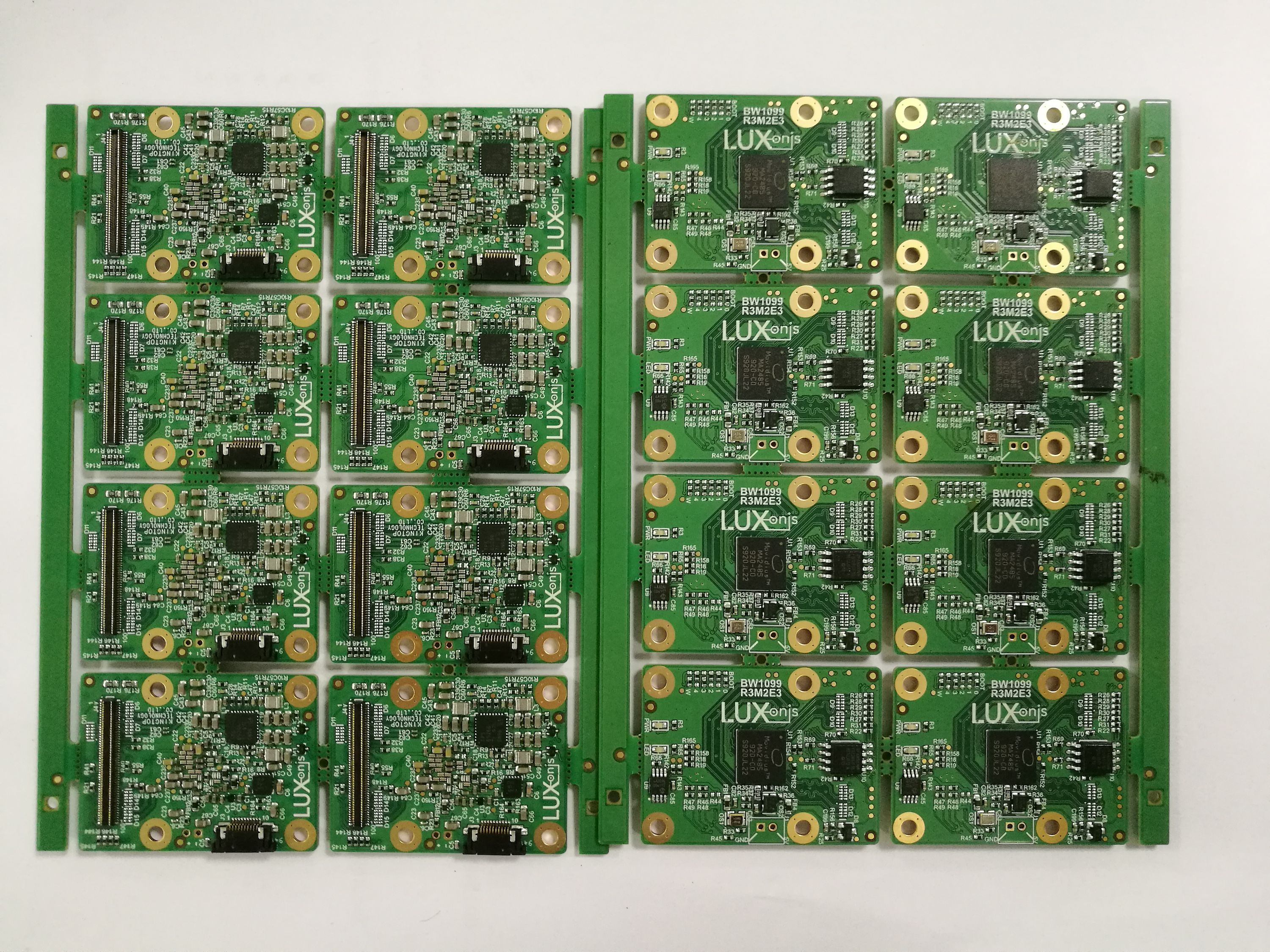

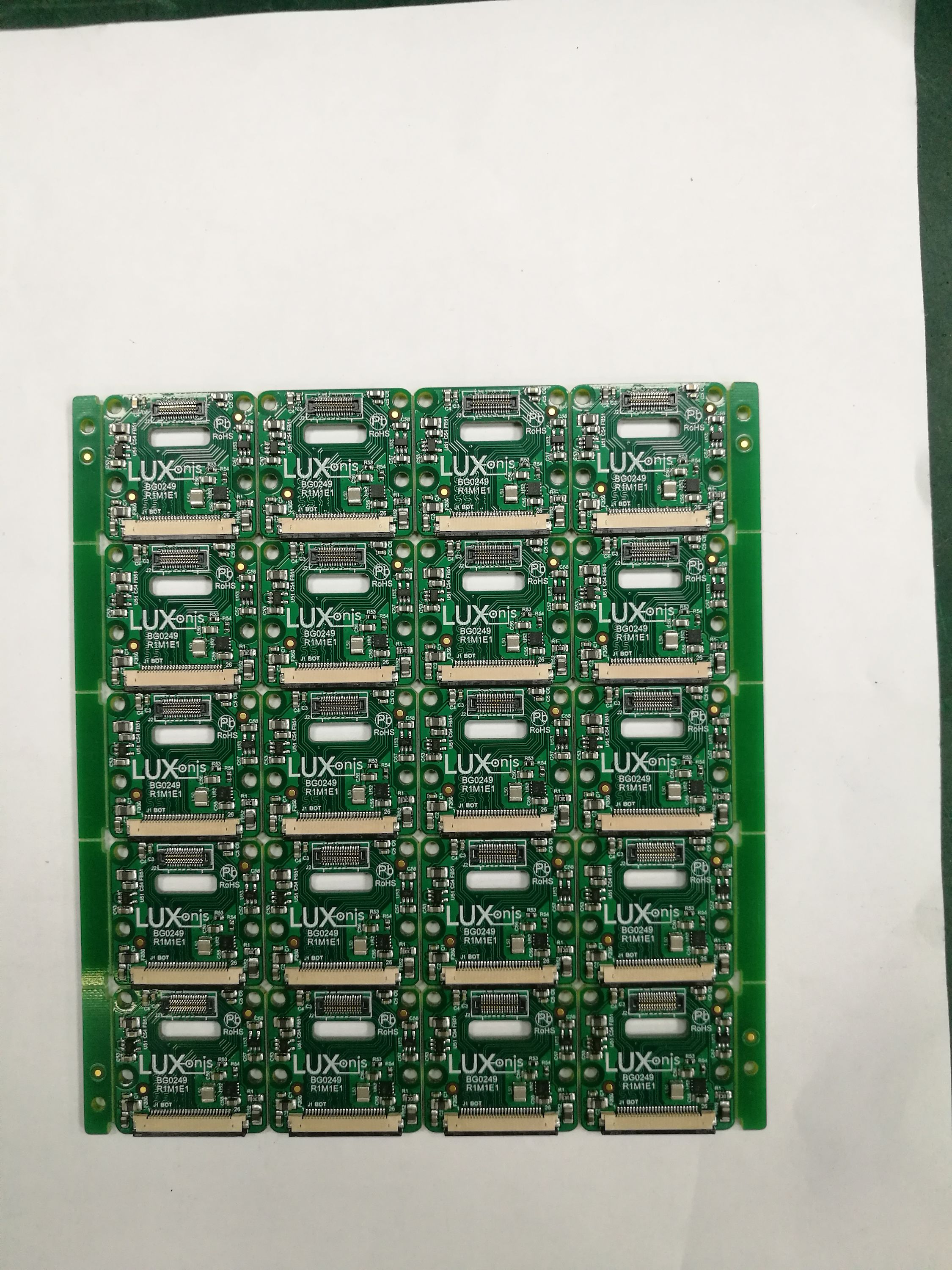

Below are some pictures of the assembled/soldered boards and them shipping out to the US.

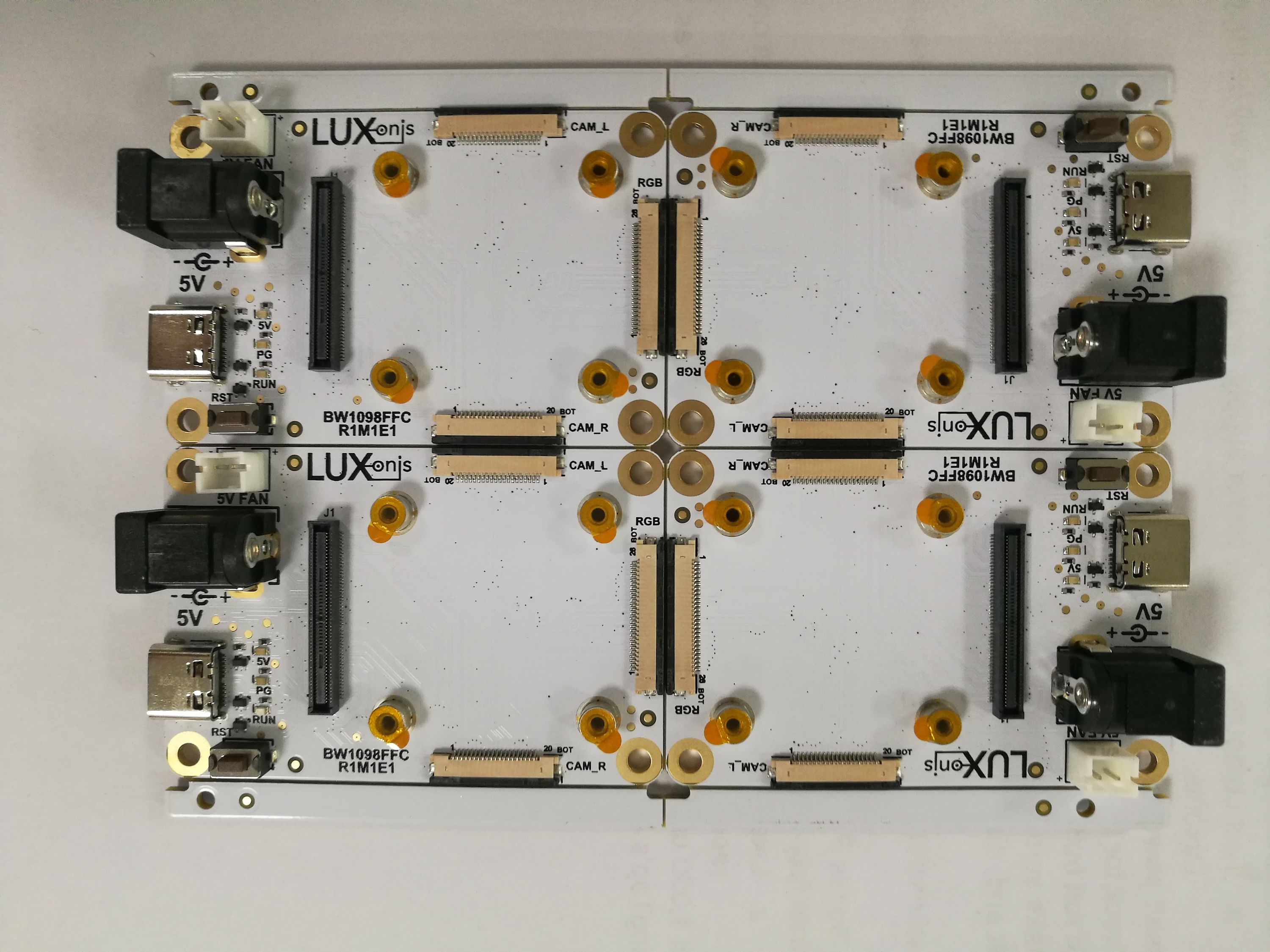

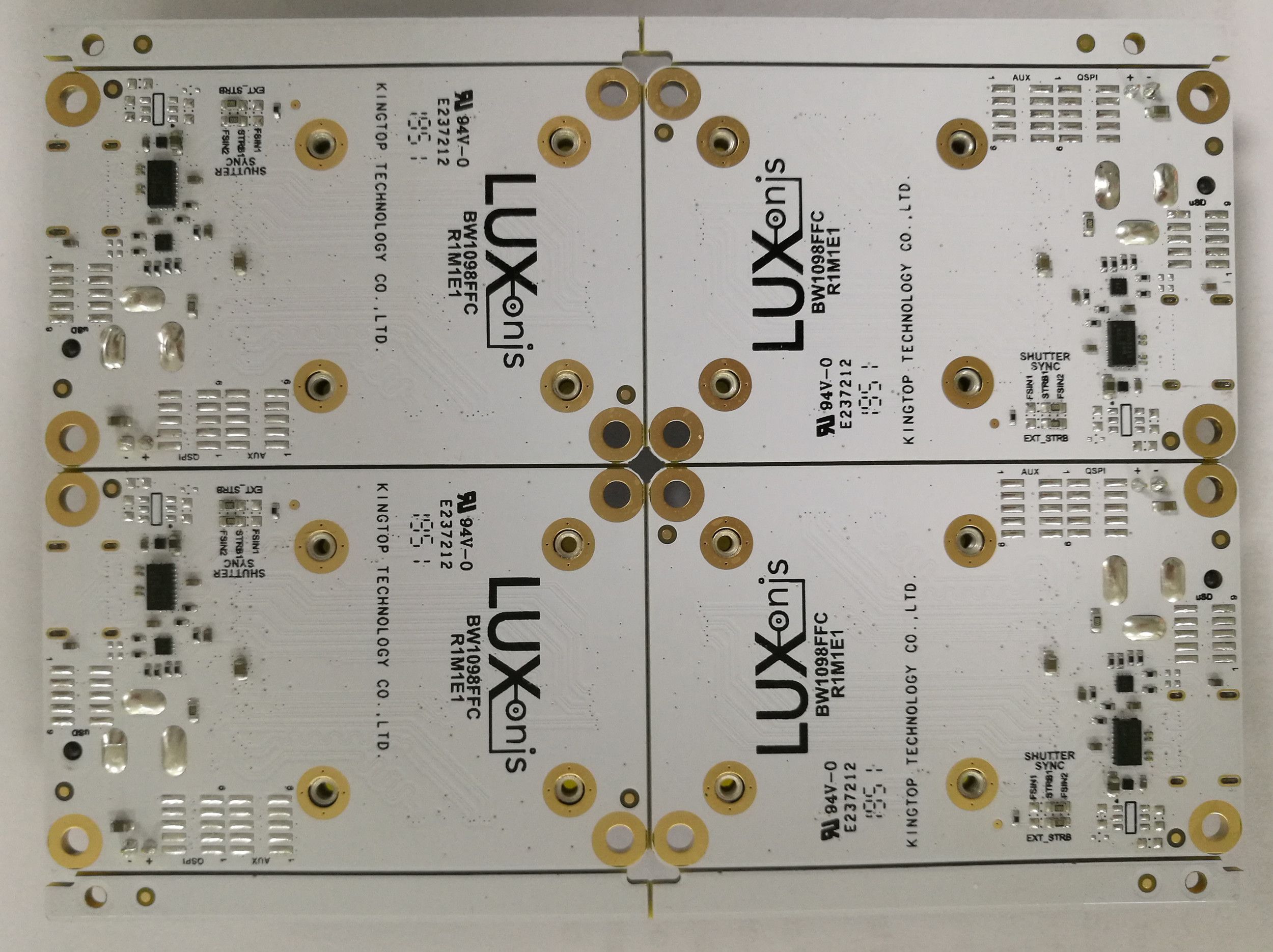

DepthAI: USB3 Edition

DepthAI: System on Module

4K, 60 Hz Video Modular Color Camera

The following DepthAI variants are undergoing soldered assembly now, with the goal to finish before Chinese New Year starts.

  • DepthAI: RPi Compute Module Edition
  • DepthAI: RPi HAT Edition
  • 720p, 120 Hz Global Shutter Modular Stereo Camera Pair

This year Chinese New Year is January 18th through February 2nd, during which time most companies will be offline. The remainder will be offline for even longer - from January 11th through the February 2nd.

So our strategy on fulfillment is (and has been) to conclude all the China-involved production prior to January 11th, doing the remainder of the full-system assembly and test in the United States while China is offline.

It looks like we’re still on schedule to hit this, but it going to be close!

We’ll keep everyone updated.

Thanks, Brandon and the Luxonis Team


$52,706 raised

of $1 goal

Funded! Order Below

Product Choices

$399

DepthAI: RPi Compute Module Edition

Complete DepthAI system including Raspberry Pi Compute Module, microSD card pre-loaded with Raspbian and DepthAI Python interface. Boots up running object localization demo. Just connect to power and an HDMI display.


$315

DepthAI: USB3 Onboard Camera Edition

This DepthAI variant interfaces over USB3C to the host, allowing use with your (embedded) host platform of choice, including the Raspberry Pi and other popular embedded hosts.


$215

DepthAI: USB3 FFC Edition

DepthAI for the host of your choice. Runs on anything that runs OpenVINO (a lot of things), including Mac OS X, Linux (Ubuntu 16.04, Ubuntu 18.04, CentOS, Yocto), and Windows 10.


$120

DepthAI: System on Module

Allows you to integrate the power of DepthAI into your own products. Supports 3 cameras total; dual 720p, 120 Hz Global Shutter and one 4K, 60 Hz Color connected through a 100-pin board-to-board connector. All power conditioning/sequencing, clock synthesis for the Myriad and the cameras, and boot sequencing is included in the module. Just provide 5 V power and physical connections to cameras.


$99

4K, 60 Hz Video Modular Color Camera


$105

720p, 120 Hz Global Shutter Modular Stereo Camera Pair
