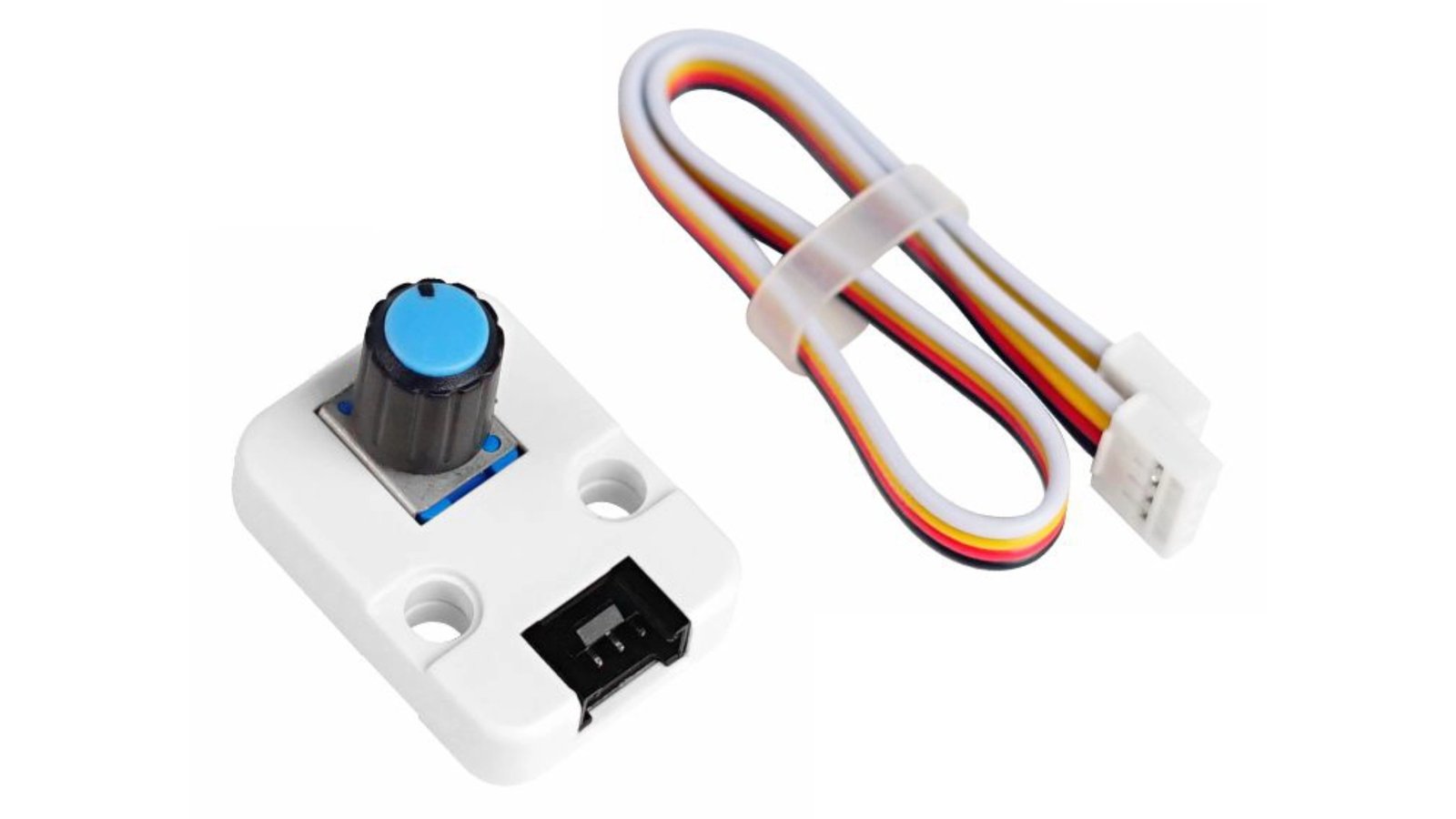

Grove Rotary Potentiometer (10 kΩ)
Includes one 20 cm Grove cable.
$4
$8 US Shipping / $18 Worldwide
M5Stack
Keyboards & Input Devices
Includes one 20 cm Grove cable.
Part of the M5Stack ecosystem of Grove-compatible sensor, actuator, and expansion boards, this module’s rotary dial adjusts its internal resistance, making it possible to sense the angle of the dial with a simple analog-to-digital conversion performed by a Grove-compatible connected board such as M5Core.
| Resistance range | 0 - 10 kΩ |
| Output voltage range | 0 - 2500 mV |
| Net weight | 6 g |

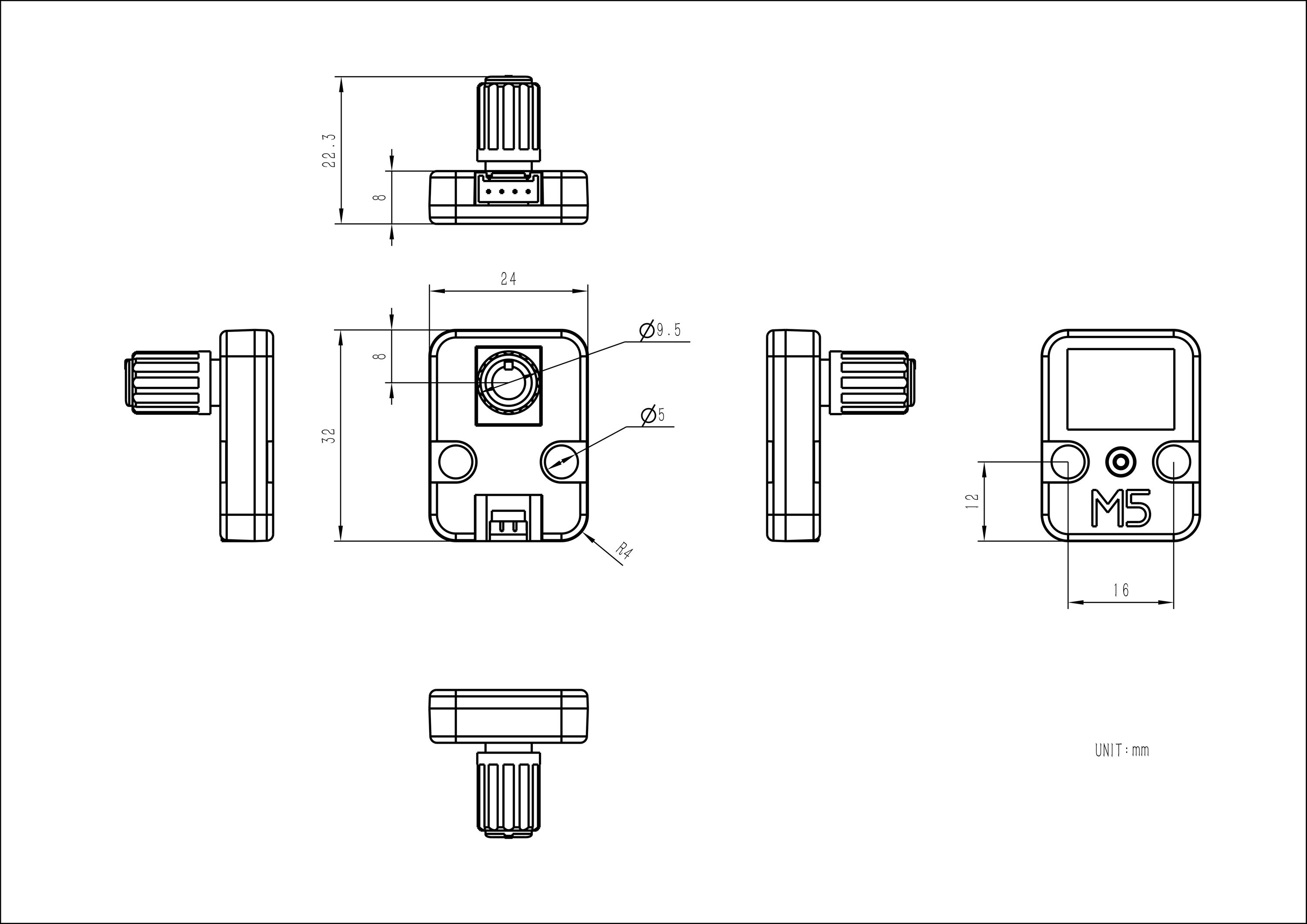

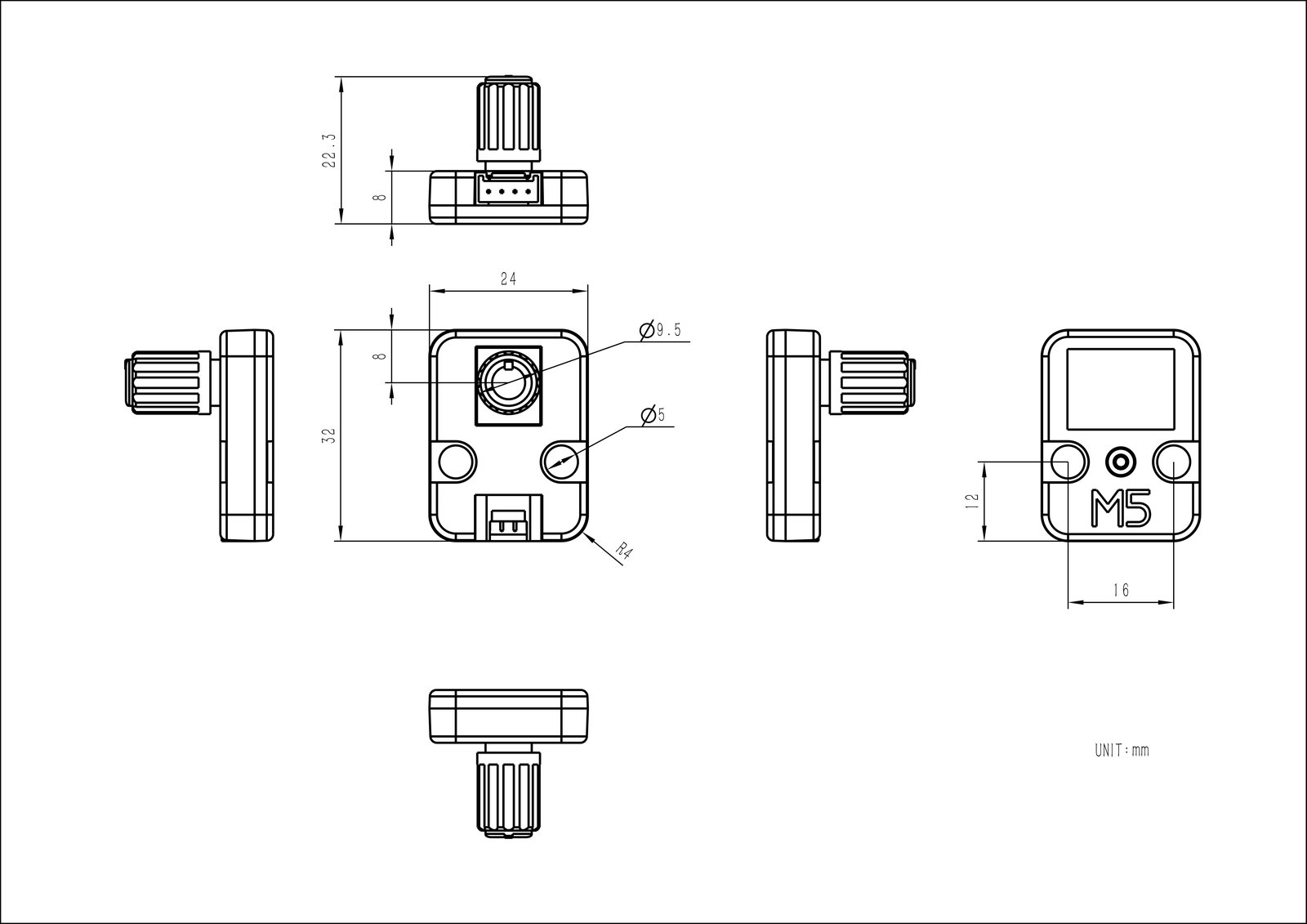

| Dimensions | 32 mm × 24 mm × 22 mm |
| Interfaces | Grove connector, 2 × LEGO-compatible holes |
| Software support | UIFlow, Arduino |
| Manufacturer |
M5Stack
|
|---|---|
| Introduced | Aug 14, 2022 |
| Lifecycle Status | Active |
