Micro WS2812 2020 RGB LED Matrix

A tiny, addressable, daisy-chainable, 25x25 mm, 8x8 pixel LED matrix

This project is coming soon. Sign up to receive updates and be notified when this project launches.

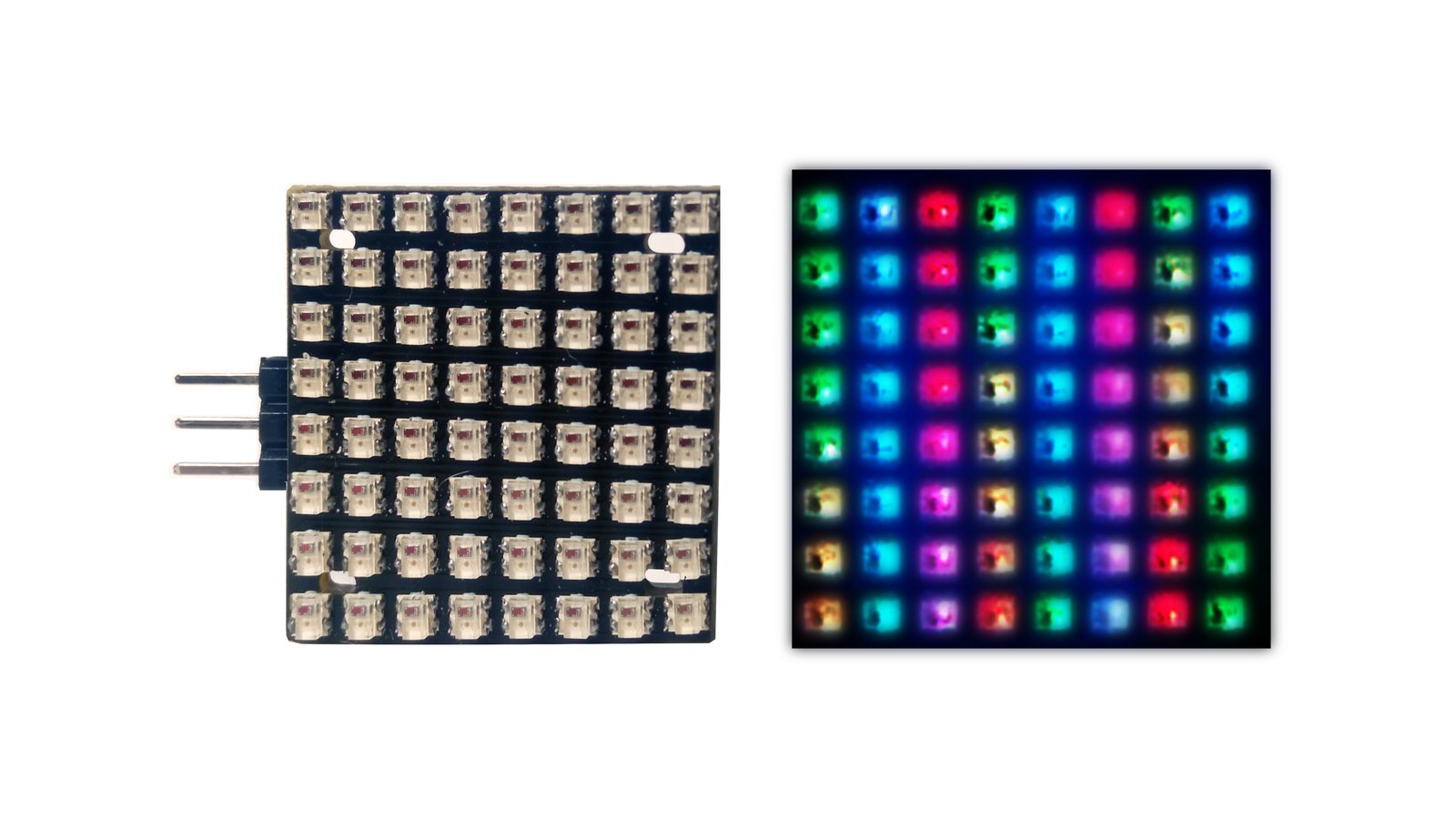

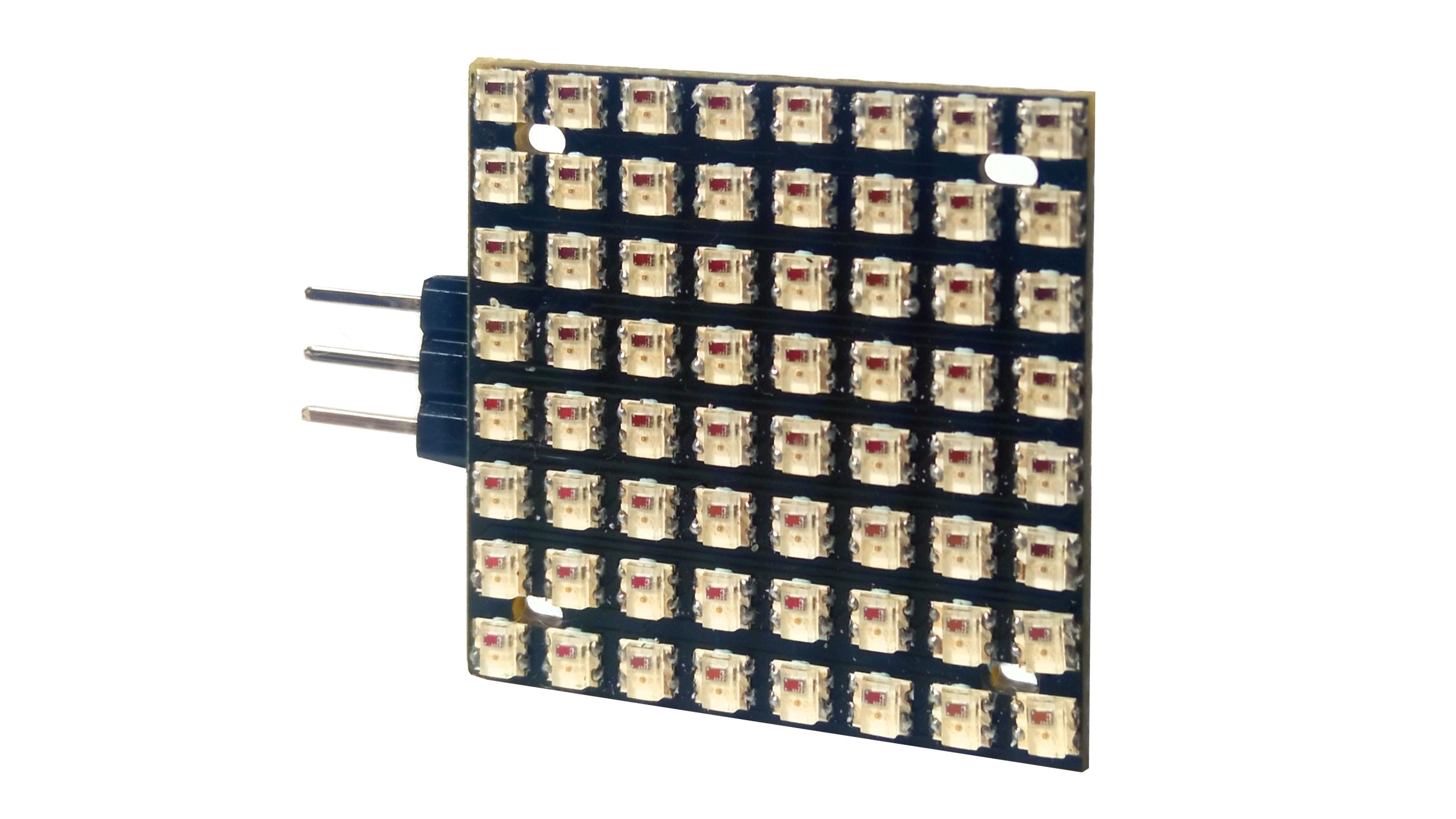

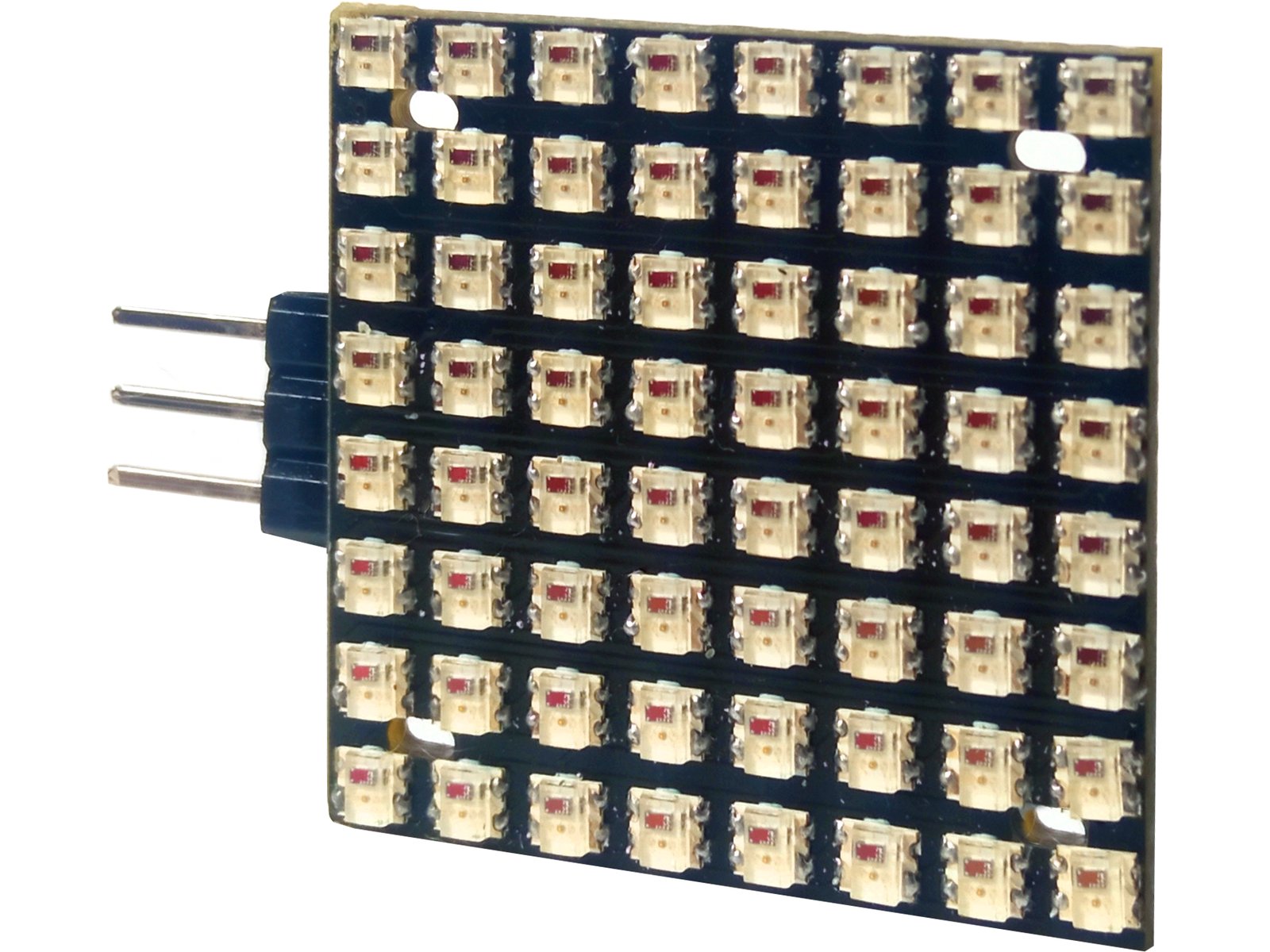

The Micro WS2812 2020 RGB LED Matrix is a tiny 25x25 mm 8x8 WS2812-2020 matrix. It’s just about 1 in square, or, approximately the size of an American quarter.

This miniature matrix is daisy-chainable, meaning you can keep stacking the boards side by side while only using one data pin. To top it off, this matrix is compatible with all other WS2812 related matrix code and is open source.

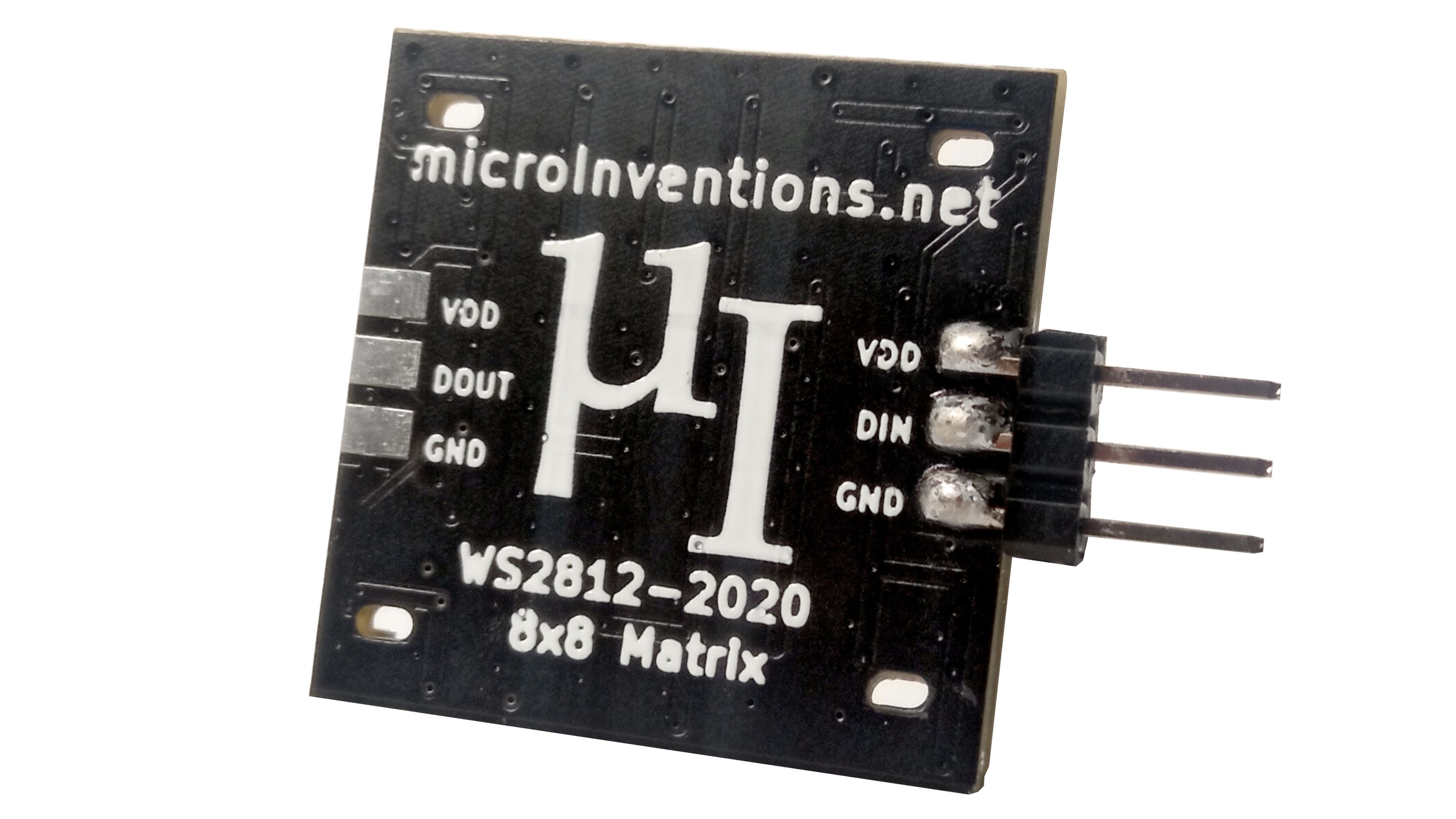

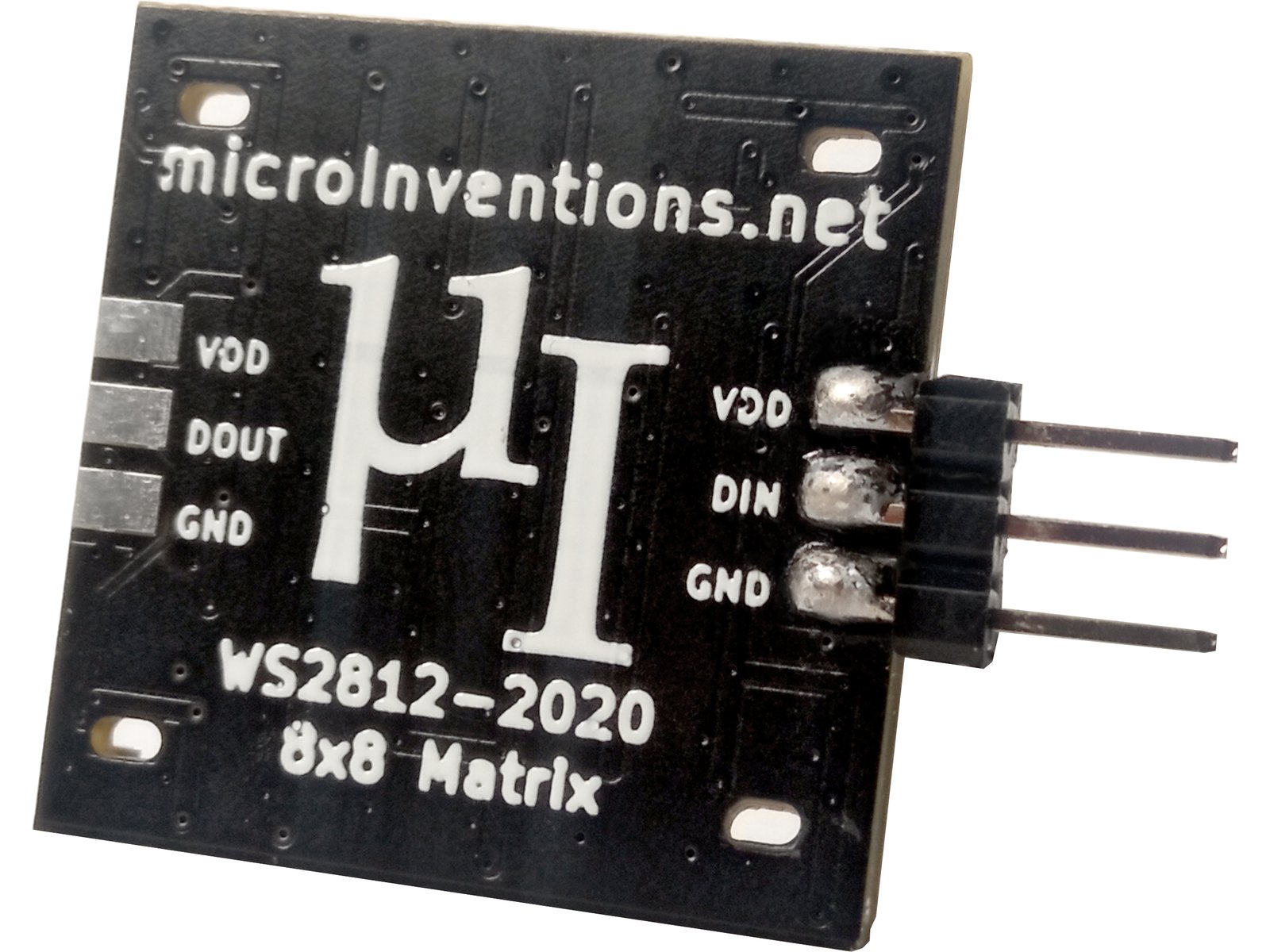

Despite it’s itty-bitty stature, this matrix has everything you need, with solder pad connections for VCC, Ground, Data In and Data Out. It works with 3.3 V or 5 V, and each LED is able to output 16 mA.

Features & Specifications

  • 25*25 mm square
  • WS2812-2020 SMD LEDs
  • 8x8 pixels wide and tall
  • 3.3 V or 5 V
  • VCC, Ground, Data In and Data Out solder pads
  • LED output 16 mA each
  • Daisy-chainable
  • Arduino Compatible

Micro WS2812 2020 RGB LED Matrix Demo

Open Source Documentation

You can find schematics, files and documentation here. You can also follow our progress on Instagram
