HSMC-160 Adapter

by Mitex, LLC

Communicate with a High Speed Mezzanine Connector using regular headers

View all updates Nov 27, 2020

Automated Testing Plan

by SI

Hello,

Before they are shipped to backers, each HSMC-160 Adapter will be tested:

  1. To ensure connectivity, and
  2. To prevent shorting.

Performing these tests manually takes hours, so we decided to design an automated testing station for the HSMC-160 Adapter. We began development this week and are now about 95% complete.

Sincerely,
Shamsi

About the Author

SI

mitexus  ·   Lake Mary, FL


$429 raised

of $3,500 goal

12% Funded Time Expired
Jan 07 2021
ended

Product Choices

$39

HSMC-160 Adapter

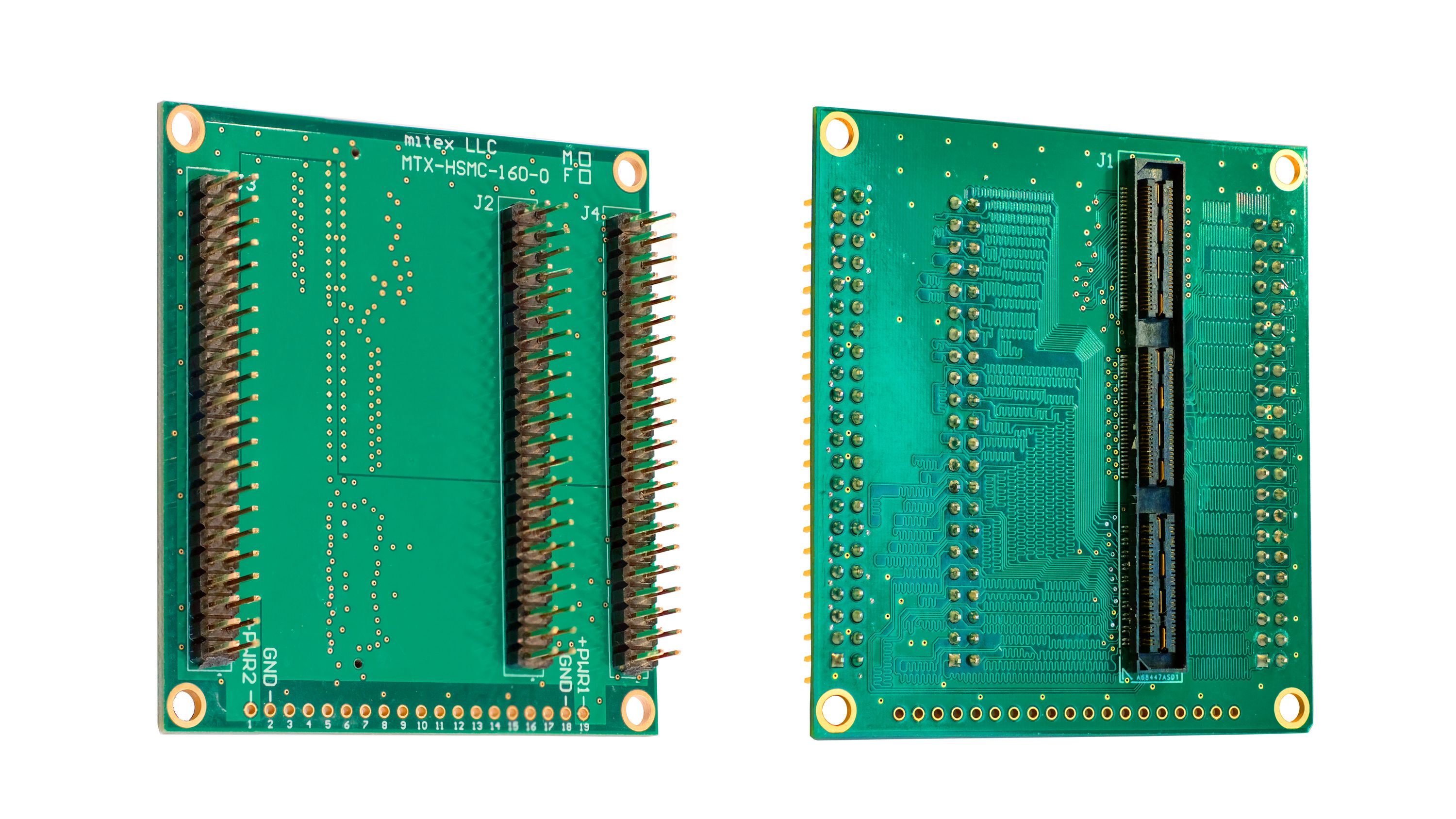

One HSMC-160 Adapter board that converts a 160-pin High-Speed Mezzanine Connector (HSMC) port to three standard, two-row, 44-pin headers with 0.1” (2.54 mm) pitch.

Credits

Mitex, LLC

We design and manufacture hard-coded and soft-coded FPGA-based electronic devices.


SI

Minaya Ismayilova
