HSMC-160 Adapter

by Mitex, LLC

Communicate with a High Speed Mezzanine Connector using regular headers

View all updates Nov 19, 2020

Crowdfunding Begins!

by SI

Dear Backers,

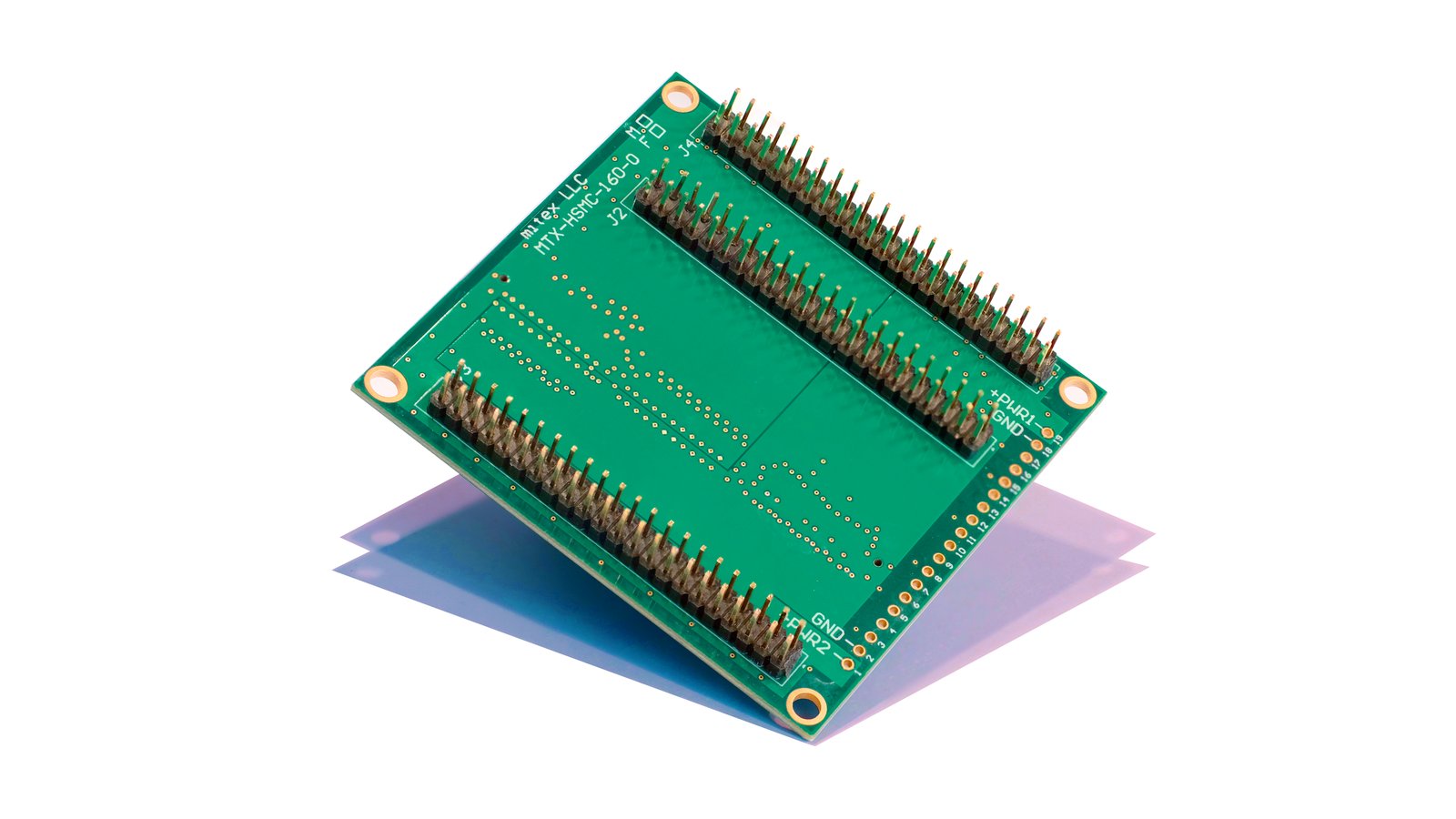

We are pleased to announce the launch of our crowdfunding campaign for HSMC-160 Adapter, an open hardware adapter board designed to bridge between a 160-pin High-Speed Mezzanine Connector (HSMC) and three standard, two-row, 44-pin headers.

HSMC-160 Adapter squeezes the following key specifications into a 7.3 x 6.8 x 1.3 cm package:

  • Its headers have a pitch of 2.54 mm (0.1 inches)
  • Each header is dedicated to one of the three banks of the HSMC
  • Equally sized data traces ensure optimal signal integrity
  • It includes a prototyping area with plated holes for creating small circuits when debugging hardware

We wish you all health and prosperity and hope you are doing well in these difficult times.

Sincerely,
The Mitex team

About the Author

SI

mitexus  ·   Lake Mary, FL


$390 raised

of $3,500 goal

11% Funded

Pledge Now

$39

HSMC-160 Adapter

One HSMC-160 Adapter board that converts a 160-pin High-Speed Mezzanine Connector (HSMC) port to three standard, two-row, 44-pin headers with 0.1” (2.54 mm) pitch.
