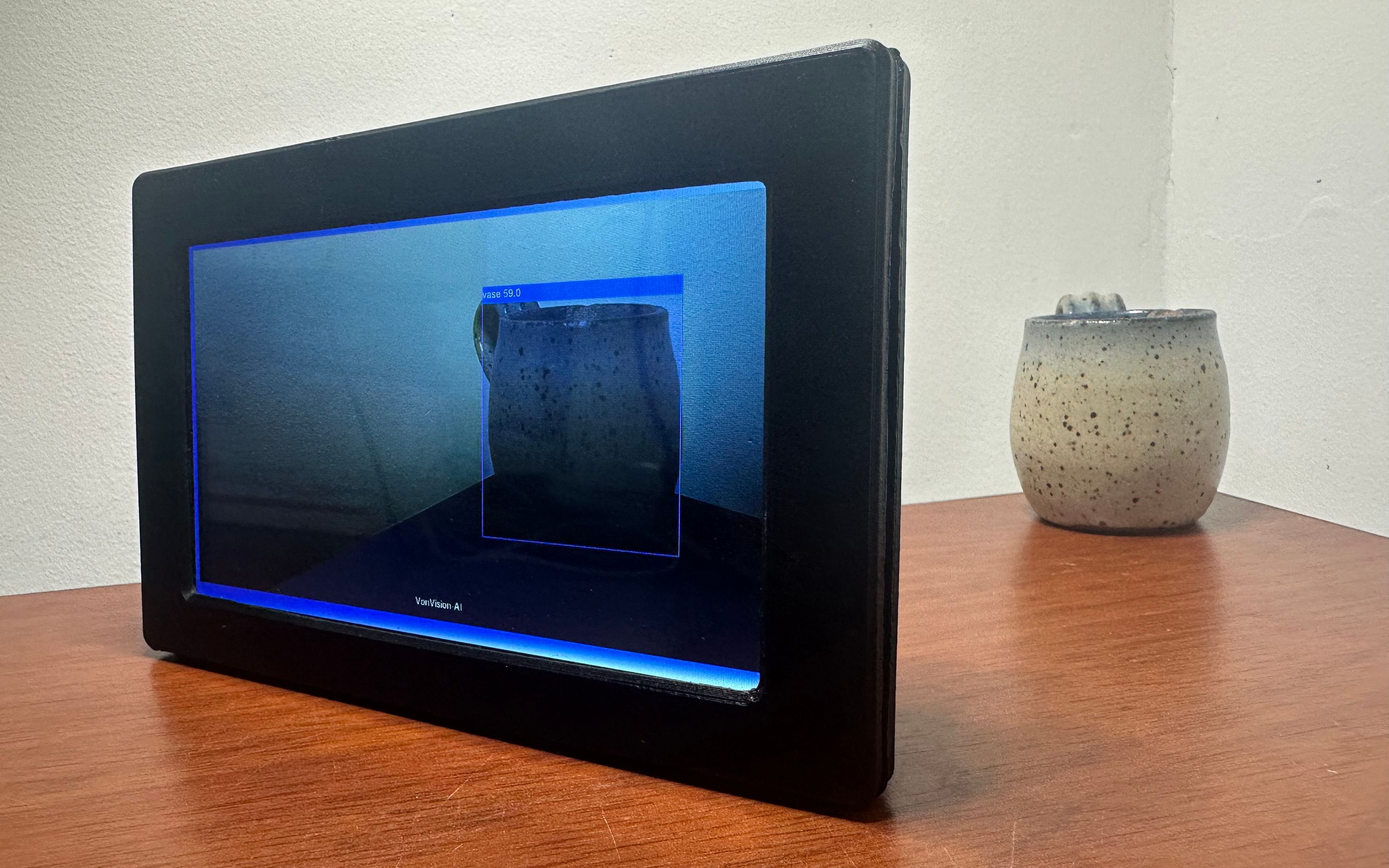

Von VisionAI is a powerful and versatile Edge AI development platform with an onboard NPU and 4K camera. Von VisionAI enables you to quickly design and deploy edge AI applications such as CCTV outdoor cameras, access terminals, and mobile applications without the hassles of custom hardware development.

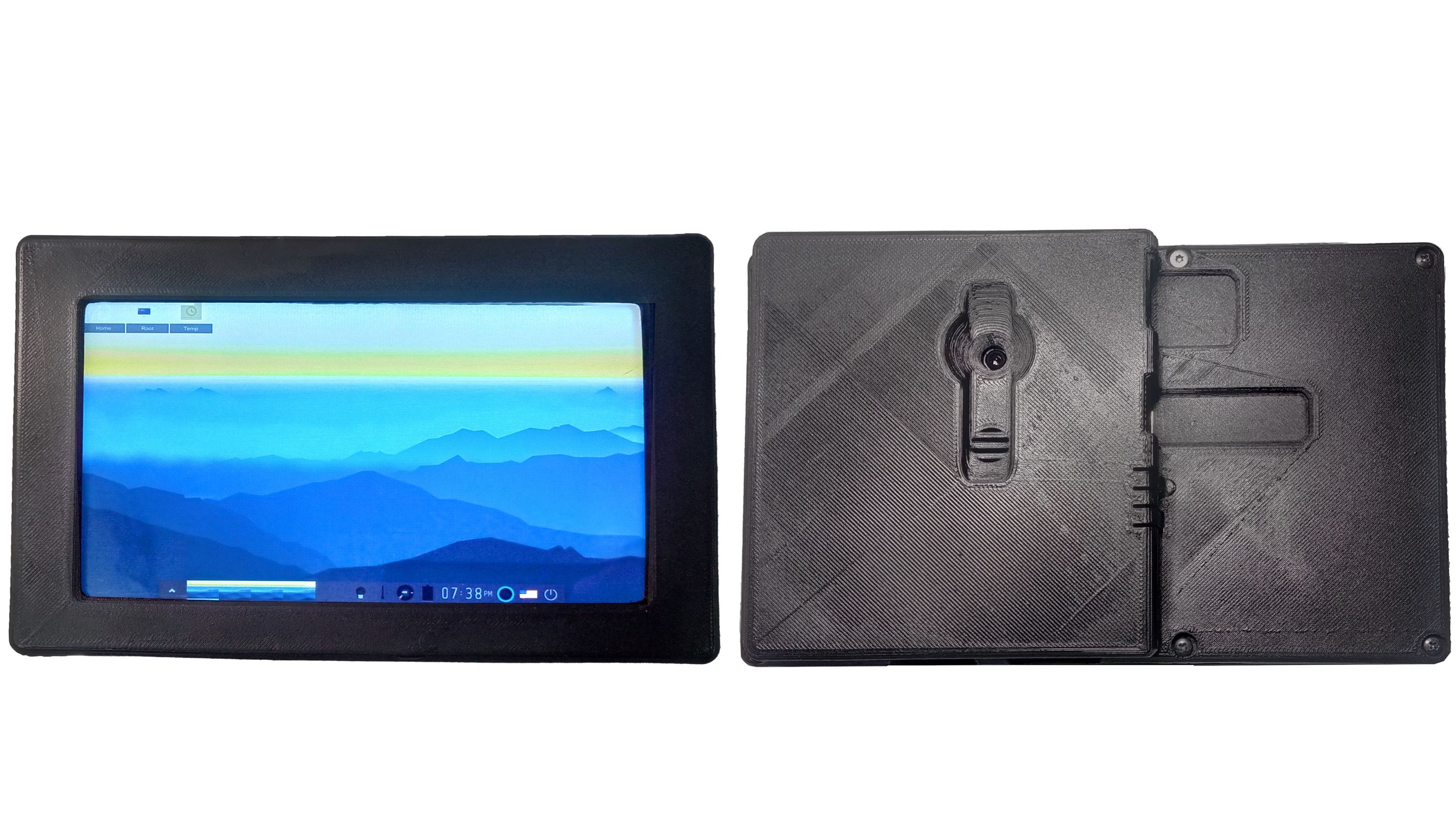

Being fully open source, Von VisionAI features a completely integrated hardware design that is not locked into a third-party System-on-Module format. It features a 7-inch 1024x600 90 Hz touchscreen, a 48 MP Sony camera, 4 GB of LPDDR4X SDRAM, 2.4 GHz Wi-Fi connectivity, Gigabit Ethernet, and USB Type-C.

Adaptable and Portable

Thanks to its integrated design, Von VisionAI is a great solution for use cases such as:

• Deploy outdoors for Edge AI recognition scenarios, while on battery power
• Install with standard PoE splitters far from power outlets
• Apply real-time machine learning to a high-resolution video feed
• Stream H.264 or H.265 video through RTSP or WebRTC
• Analyze multiple Ethernet cameras' worth of data on one device

Features & Specifications

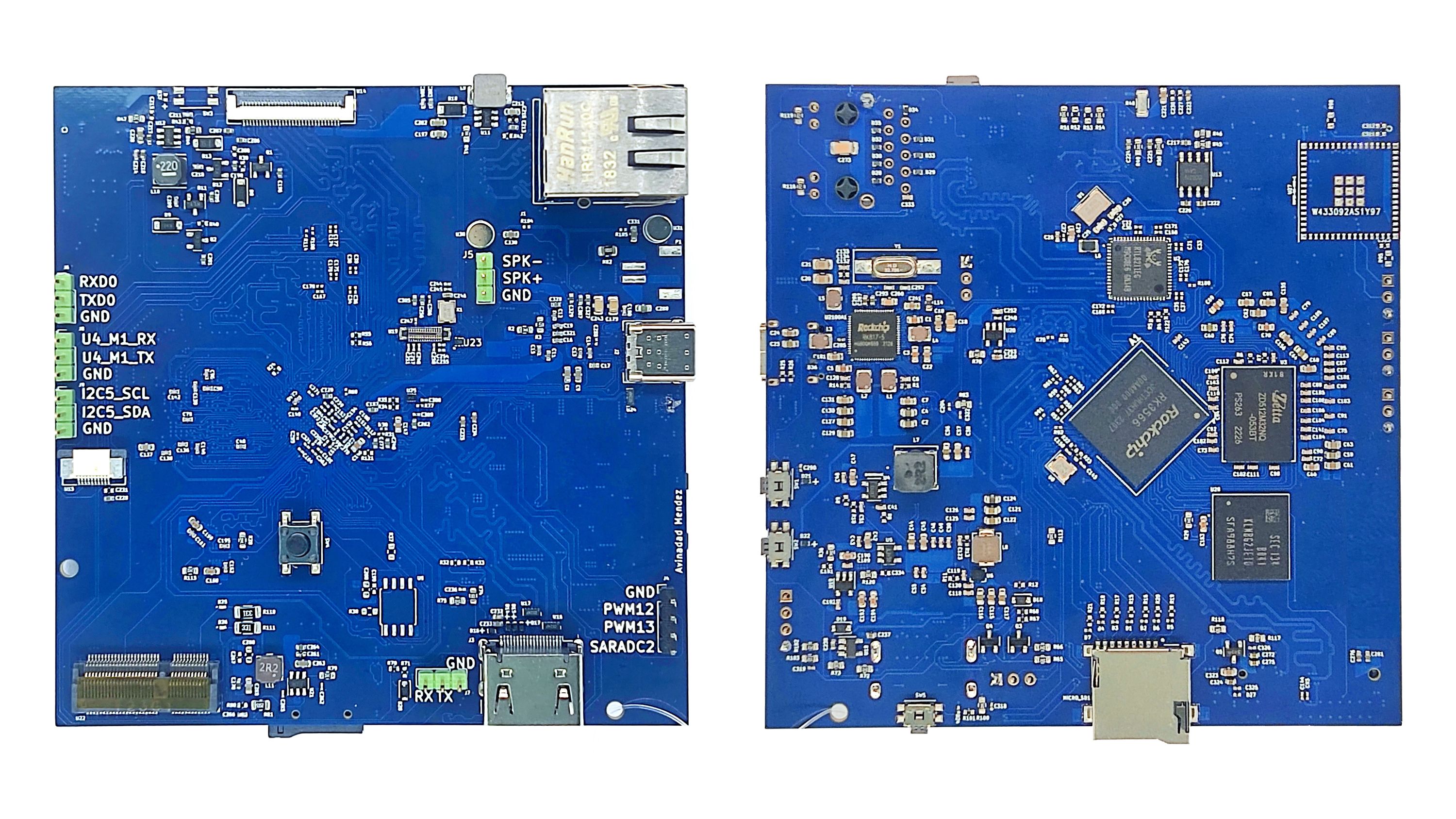

• Rockchip RK3566 quad-core ARM Cortex-A55 @ 1.8 GHz
• Mali GPU supporting Open GL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1
• H.264 and H.265 hardware encoding support up to 1080p@60 fps or 4K@20 fps. Decoding support up to 4K@60 fps.
• 1 TOPS NPU to offload artificial intelligence tasks from the CPU
• 4 GB LPDDR4X system memory
• 32 GB built-in eMMC storage

Interfaces

• Gigabit Ethernet
• PCI Express 2.0 via a Mini PCIe slot
• MIPI CSI-2 slot for Sony IMX586 48 MP camera
• MIPI DSI slot for 1024x600 90 Hz touchscreen
• HDMI for external video
• MicroSD slot for file storage or OS installation
• USB Type-C for data transfer and power/battery recharging and eMMC flashing
• Multiple pin headers with free GPIO let you experiment and have fun!
• JST 2.54 mm 3-pin connector for a LiPo battery

Operating System

• Custom Buildroot OS provided for users to modify freely

Open Source

We are committed to making Von VisionAI fully open-source. Currently, software and OS source files are available in our Github repo, alongside CAD files for our device enclosure. Our team is working hard to clean up the hardware design files to be uploaded. Schematic files will be released before the end of June, while board and layout files will be released at the end of our campaign.
