HikeBuddy

An open-source, low-power hiking/biking computer development board based on ESP32

This project is coming soon. Sign up to receive updates and be notified when this project launches.


Build that perfect tracker for your personalized outdoors needs! Or a bluetooth sensor hub. Or a weather station. Or a wifi-controlled post-it note, a badge, datalogger, and so much more...

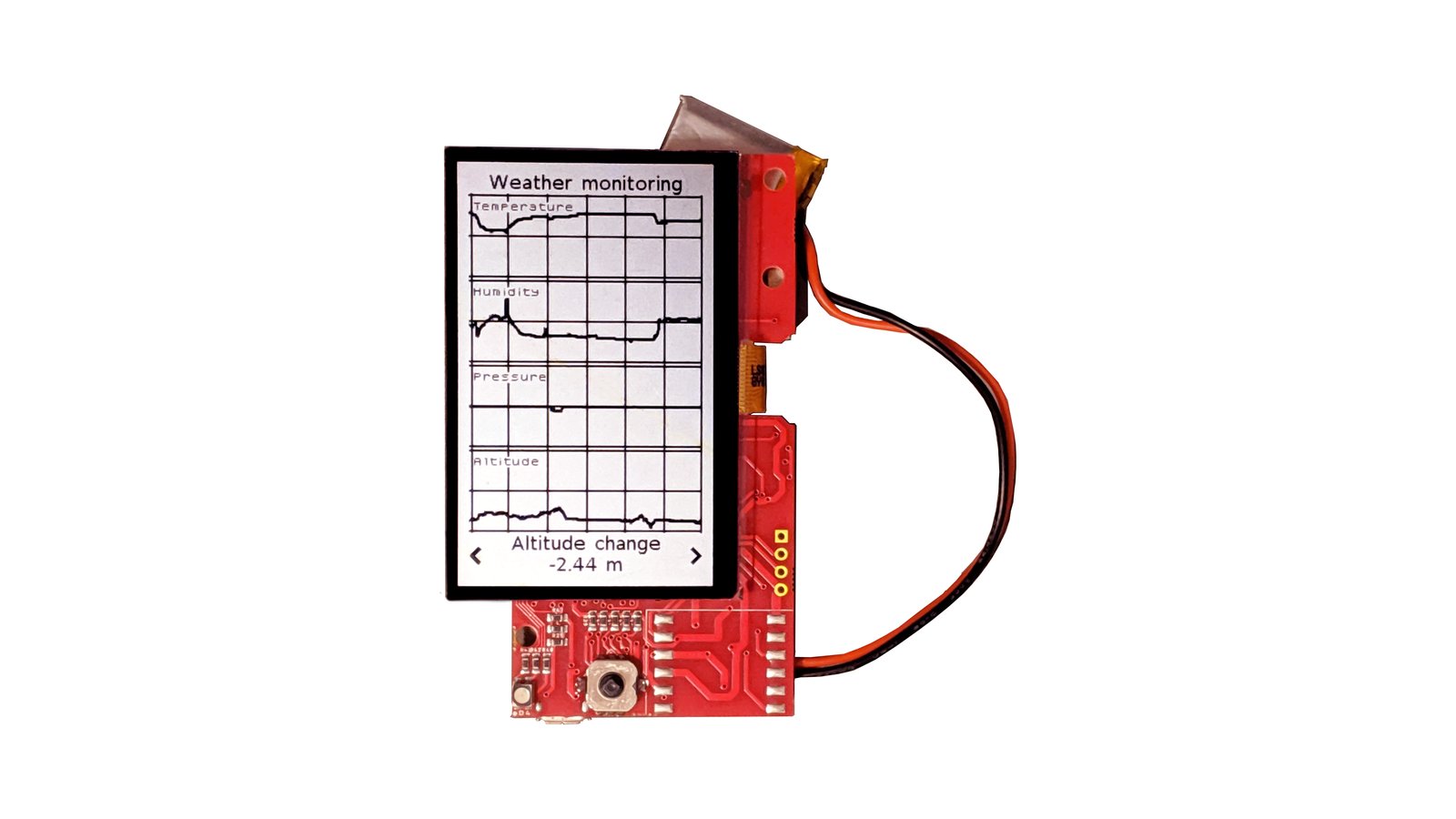

This board features a slew of sensors that can be used to make an awesome GPS tracker, weather monitor or biking computer. It is intended for makers who would like to play around with a reliable piece of hardware.

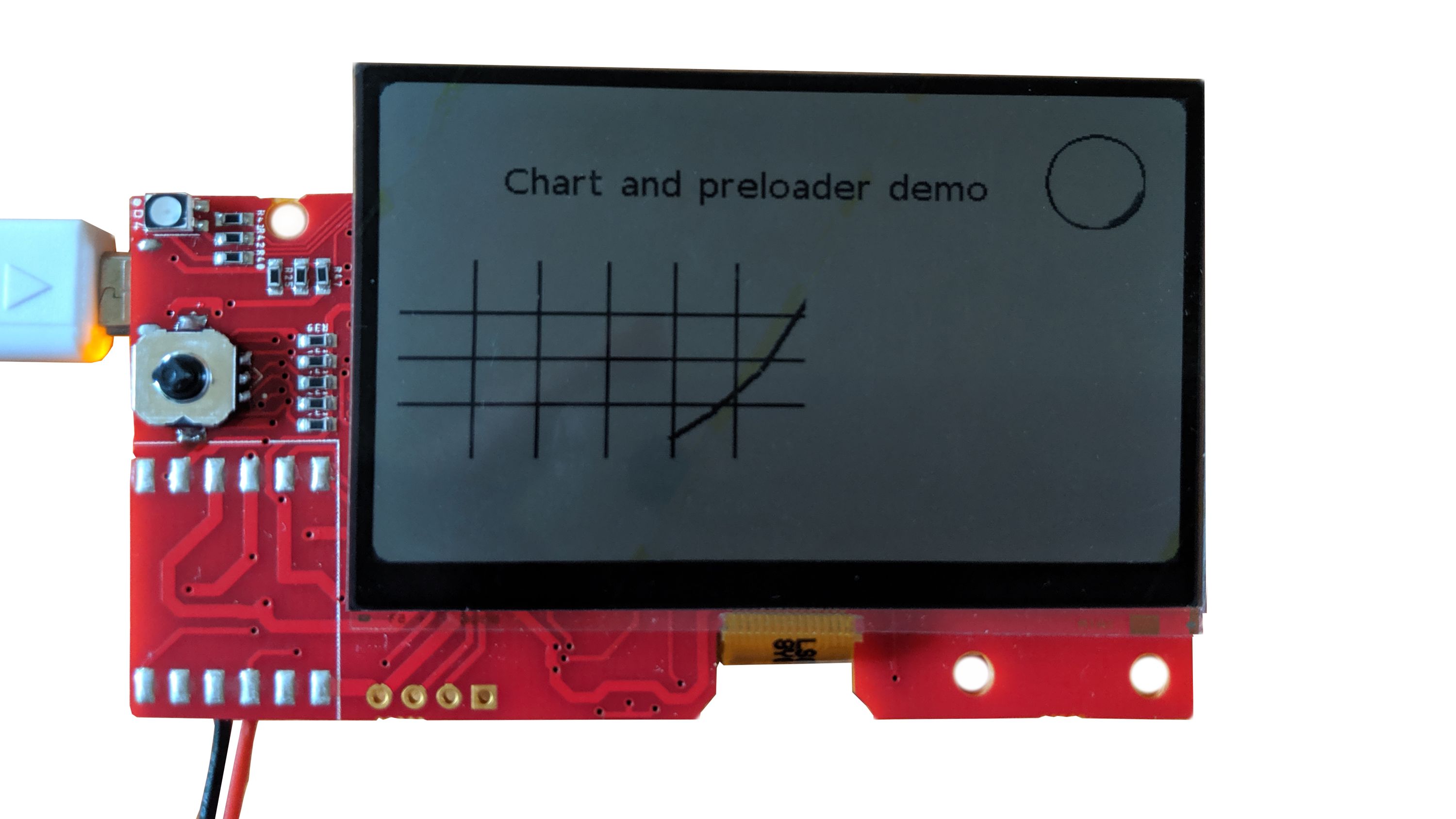

The design uses an ultra-low power, reflective memory LCD display, so you can see it clearly outdoors in bright light, and not kill the battery.

Features

  • 2.7" Sharp Memory LCD (ultra low-power, monochrome display)
  • GPS module with chip antenna
  • Temperature, pressure and humidity sensor (BME280)
  • Accelerometer and magnetometer (LSM303)
  • BLE for adding more sensors (speed and cadence, heart rate etc), WiFi for data transfer etc.
  • Micro SD card slot
  • 5-way switch, vibrator and an RGB led for user interaction
  • LiPo powered, with integrated charge management and regulation
  • Expandable I2C and UART ports to add your own extensions
  • Everything powered by an ESP32 with optional on-board USB programming interface

The hardware is open source, and software driver libraries are available for all the features. A very basic firmware is on its way to help get started. A few more details and links to source files for the entire project are available on Hackaday.

Happy hacking!
