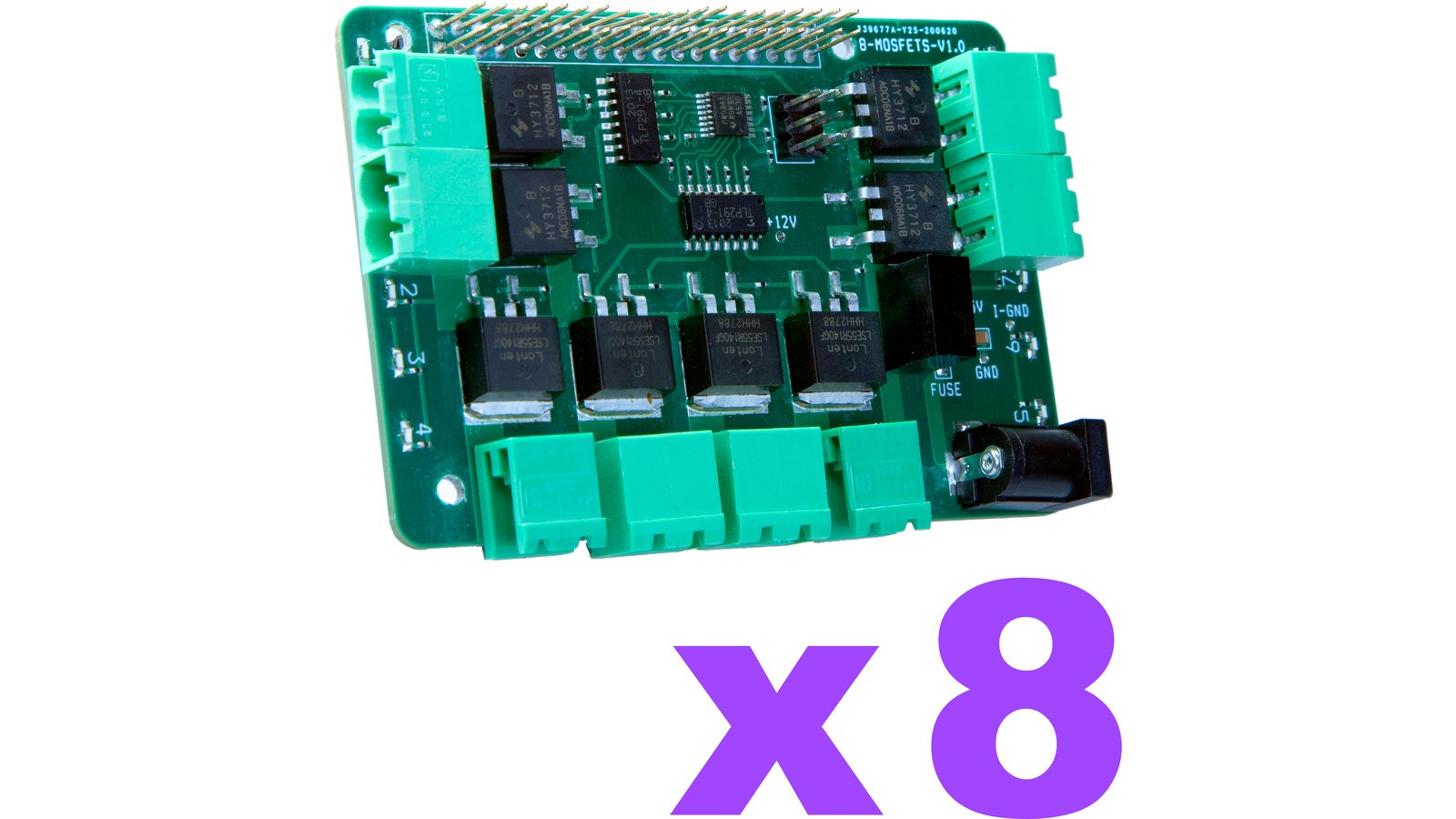

Eight MOSFETs Per Card & Up to Eight Cards per Stack

When looking to drive high loads with a microprocessor, hardware designers typically turn to relays, in part because relatively inexpensive relays are still quite reliable under most circumstances. While they tend to perform well under AC loads, however, they fall short when faced with high DC voltages, fast switching times, and endurance requirements. Which is where 8-MOSFET comes in.

Drive High DC Loads

Popular relay boards for the Arduino and Raspberry Pi platforms can drive loads of up to 250 VAC but only 30 VDC. It is, of course, possible to find specialized relays capable of driving 240 VDC loads, but they’re quite expensive—somewhere in the $10 range—and they’re lacking in other areas. A $1 solid-state MOSFET driver, on the other hand, can easily drive a 240 VDC load while also providing other benefits, such as…

Fast Switching Times

Relays switch their loads by mechanically moving blades. As a result, their switch time is rather high—typically tens of milliseconds. Furthermore, moving parts tend to vibrate, which creates electrical noise when they make or break contact. For applications that require fast, clean switching times, a MOSFET will get the job done in under 0.1 mS with no electrical noise.

High Endurance Under Heavy Loads

Last but not least, while relays have acceptable endurance when switching low currents, their lifespans shrink to somewhere in the neighborhood of 100,000 cycles at high currents. So, if a relay needs to switch a large load once per minute, it might reach the end of its life within a couple of months. A MOSFET, by contrast, has nearly unlimited longevity.

Industrial Reliability at a Reasonable Price

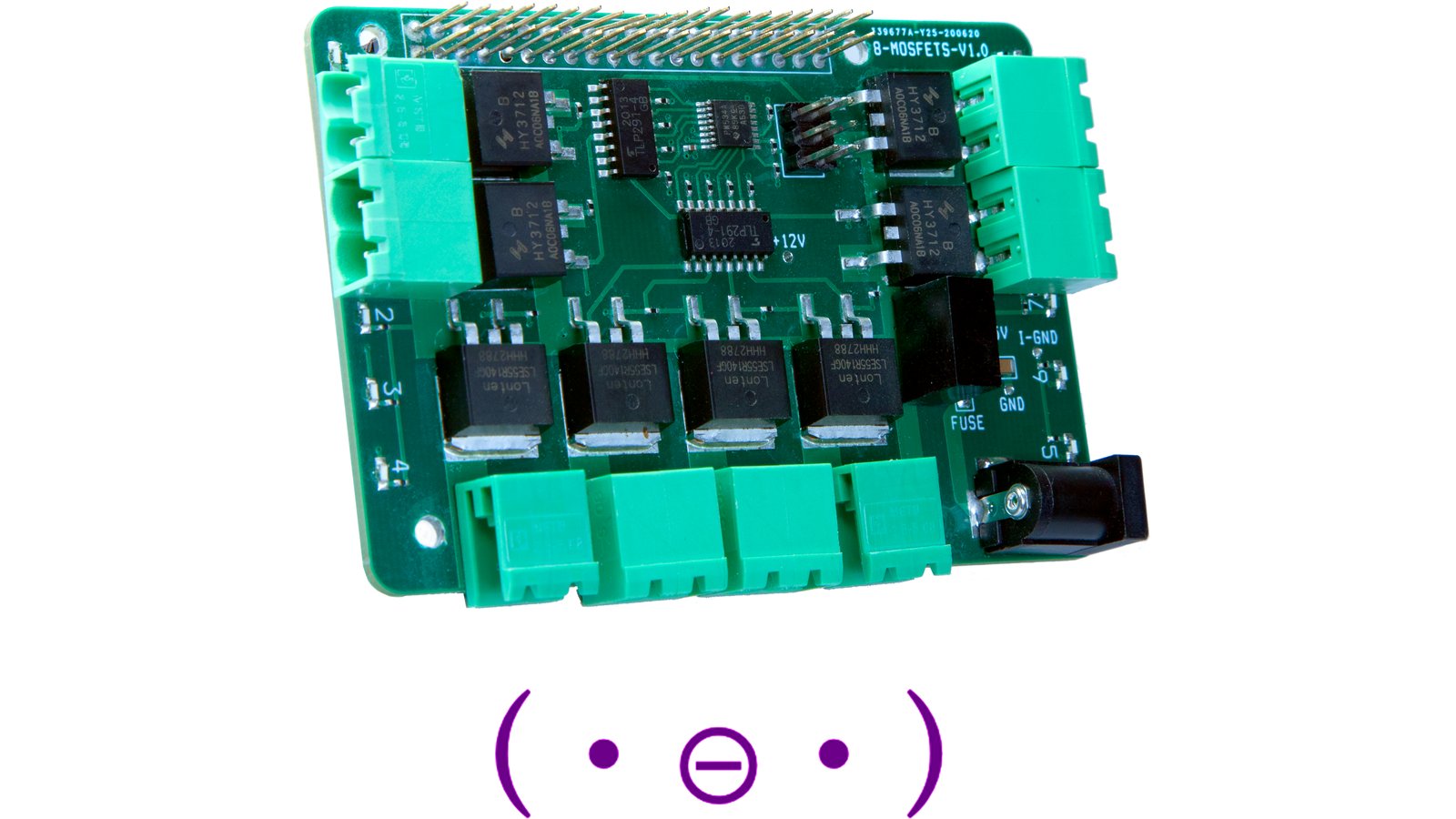

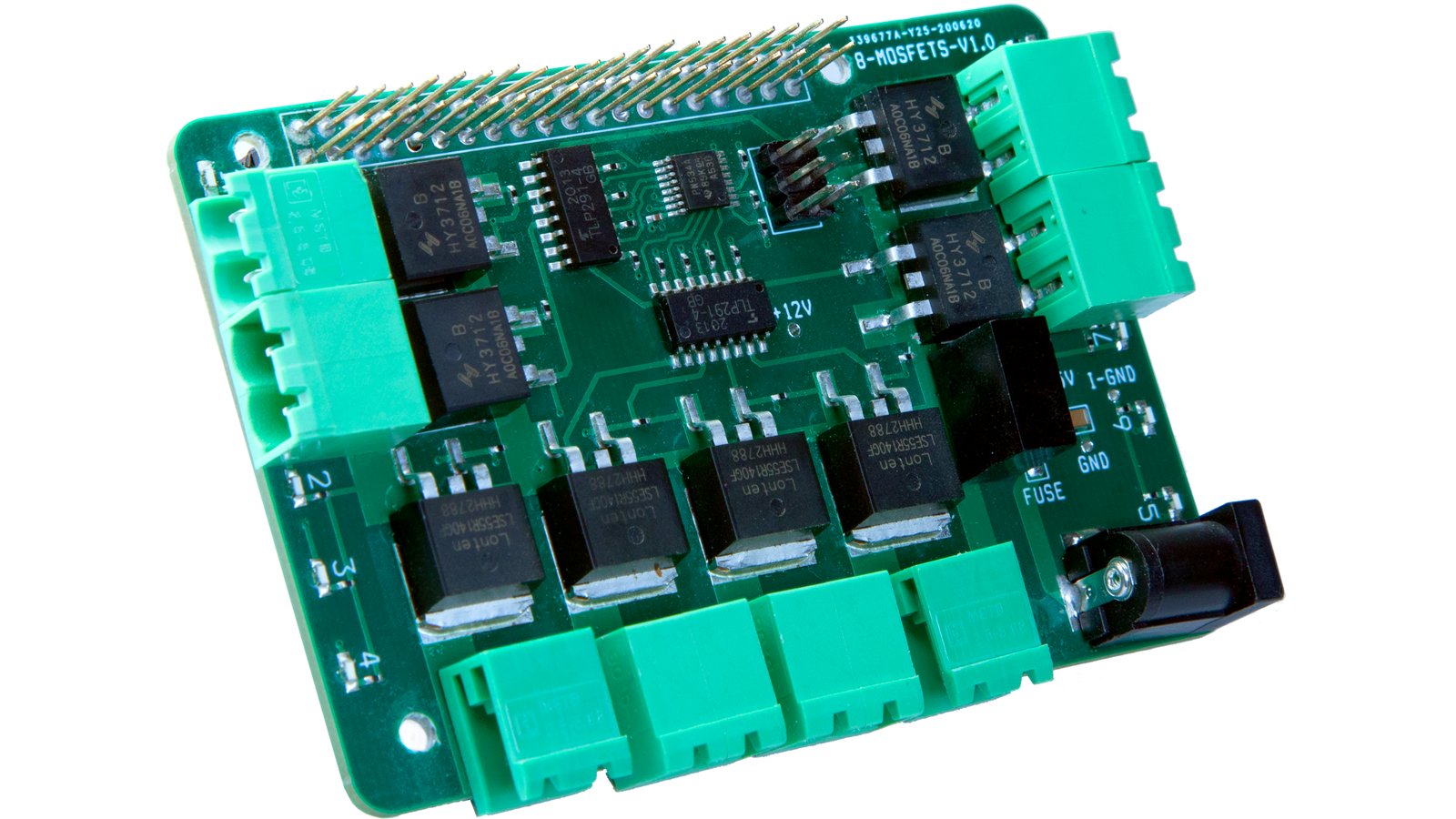

Designed for the industrial automation market, where reliability is critical, 8-MOSFET can drive four high-current loads (24 VDC at 10 A) and four high-voltage loads (240 VDC at 2 A). At the same time, its price tag brings it within reach of anyone who appreciates performance and reliability.

It’s also quite easy to use. 8-MOSFET employs industrial-grade, pluggable connectors that facilitate field installation and debugging. Status LEDs show when MOSFETs are on or off.

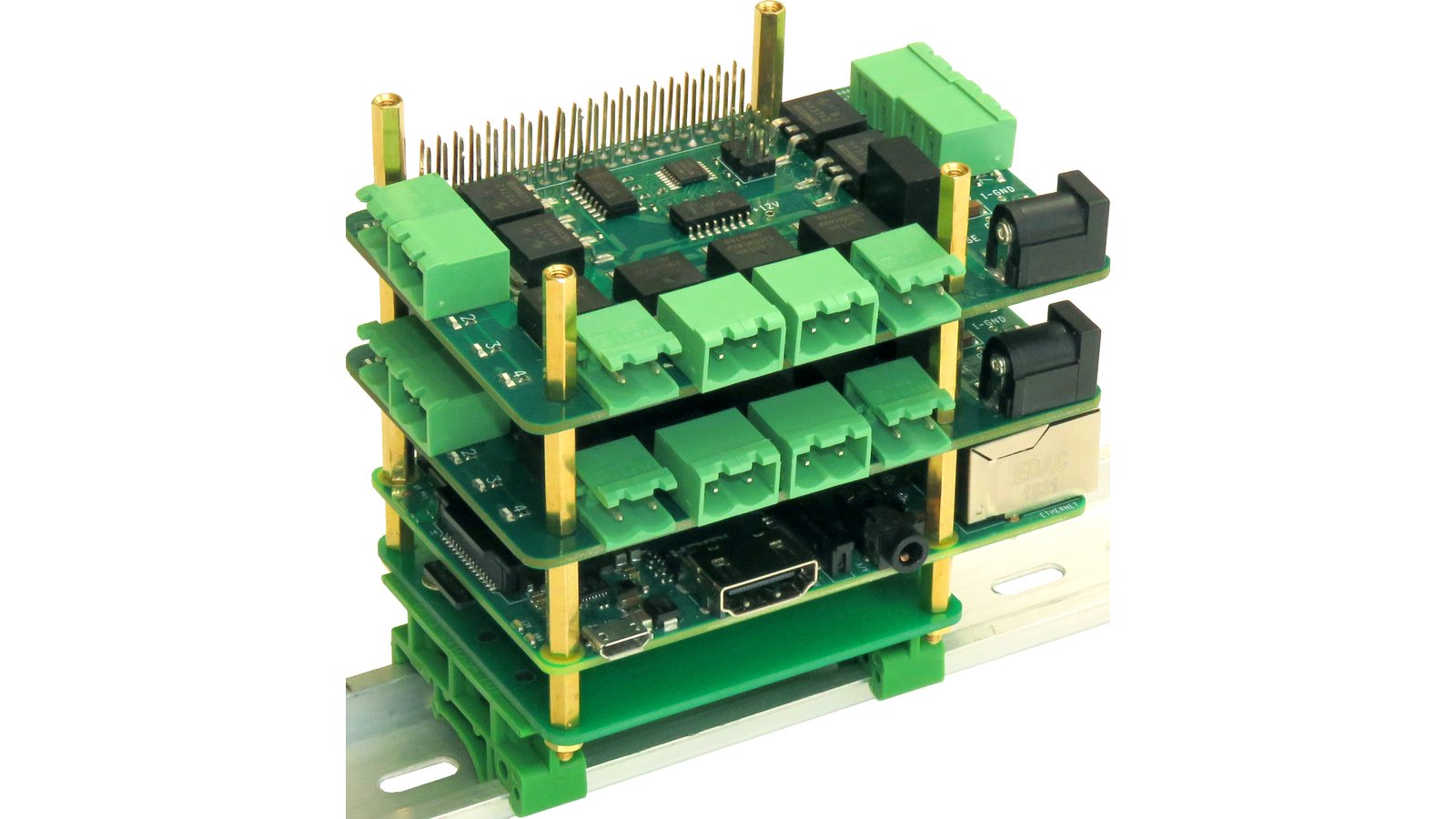

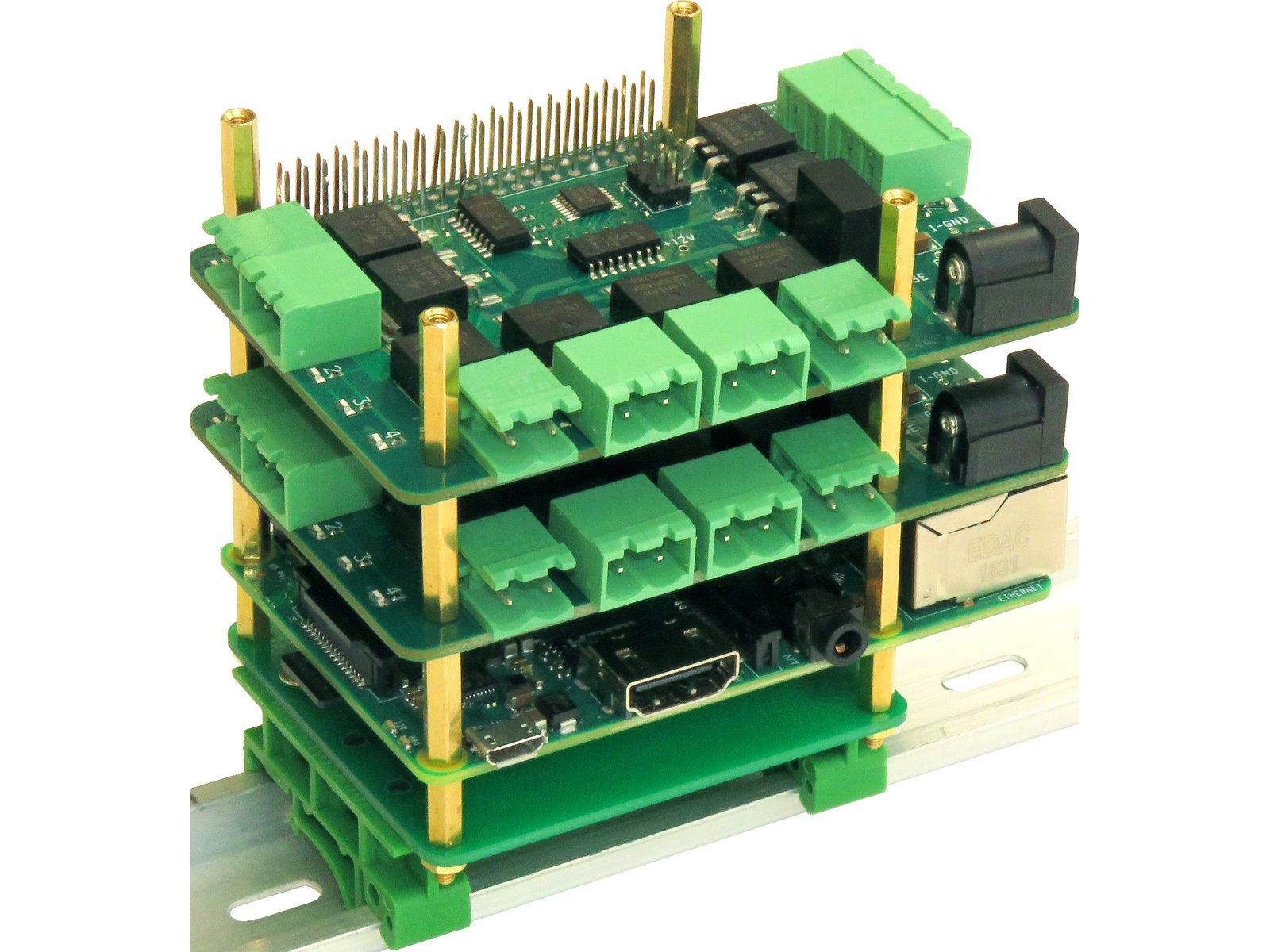

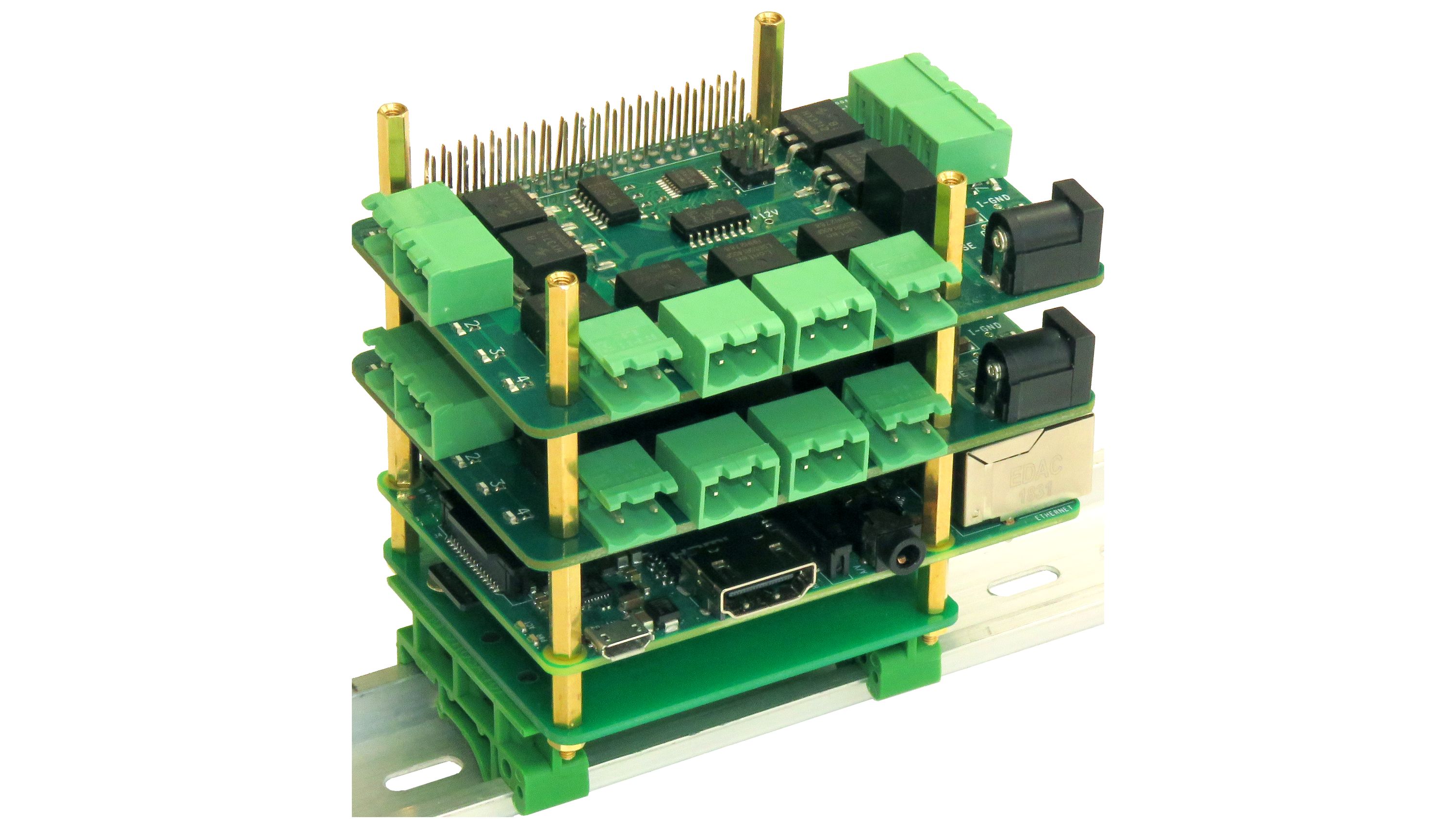

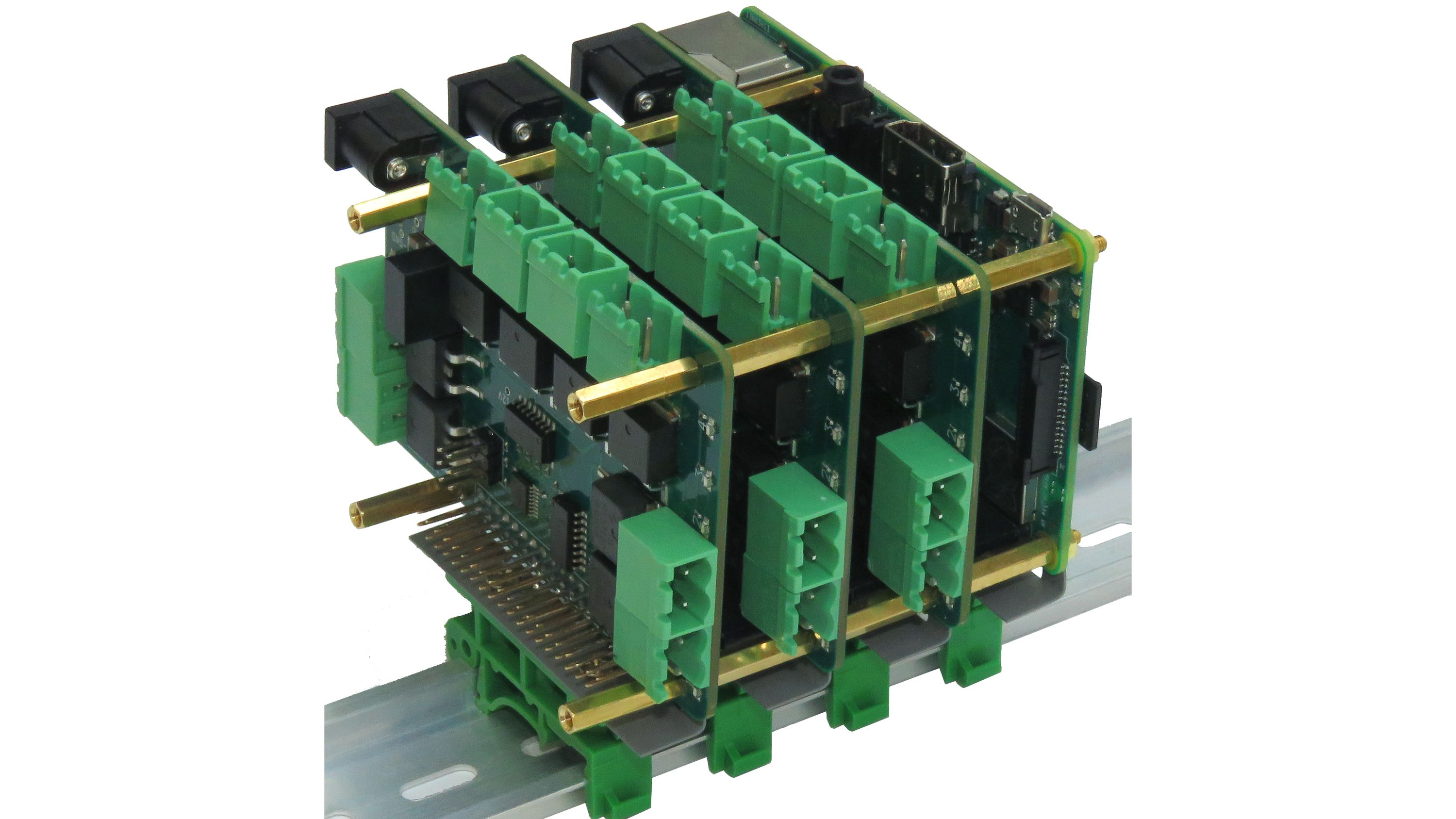

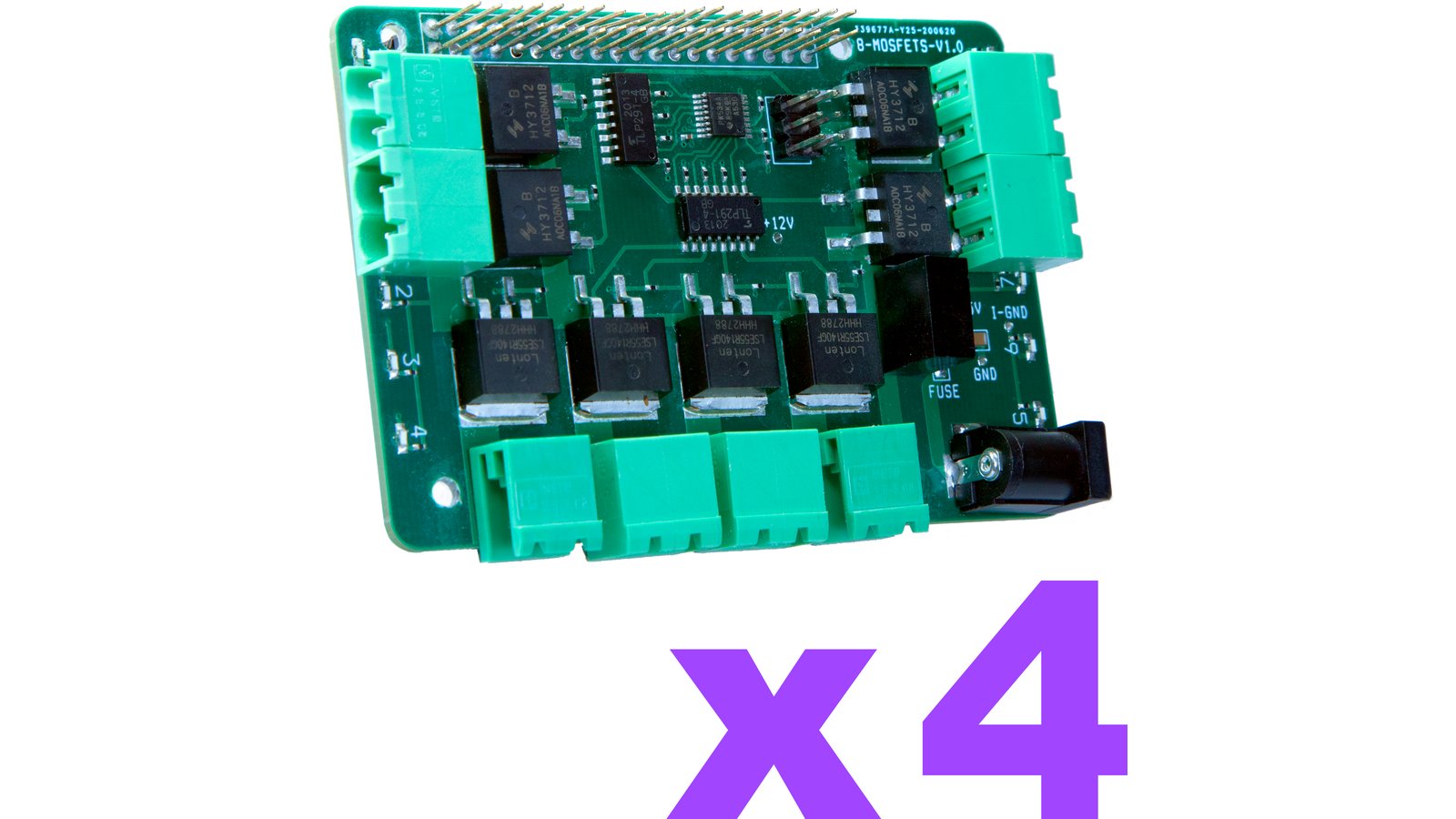

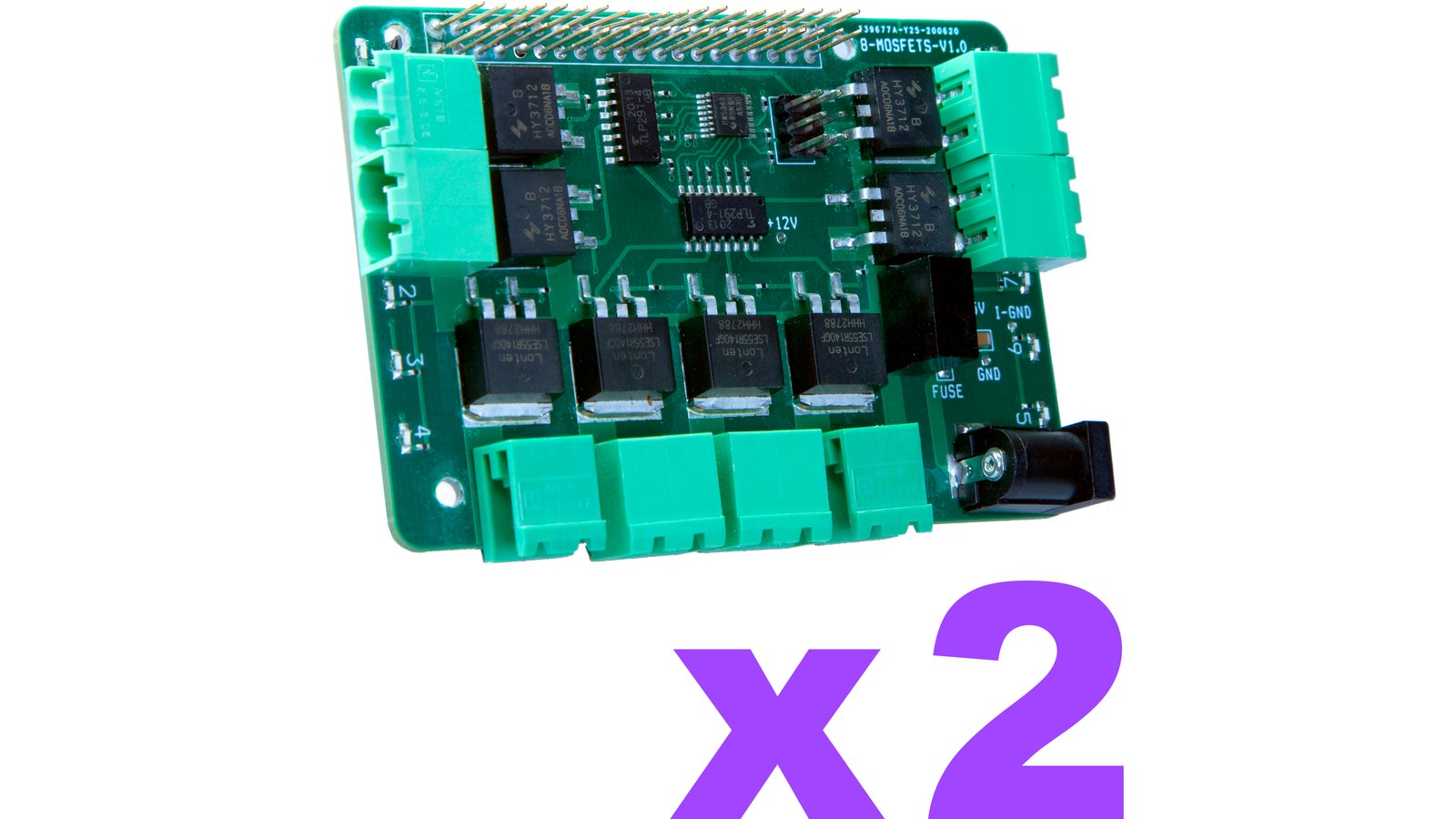

And it’s scalable. Up to eight cards can be stacked on top of a single Raspberry Pi, giving your Pi the ability to drive up to 64 loads. And, because 8-MOSFET only occupies the I²C interface, you’ll still have 24 GPIO pins to use for other applications.

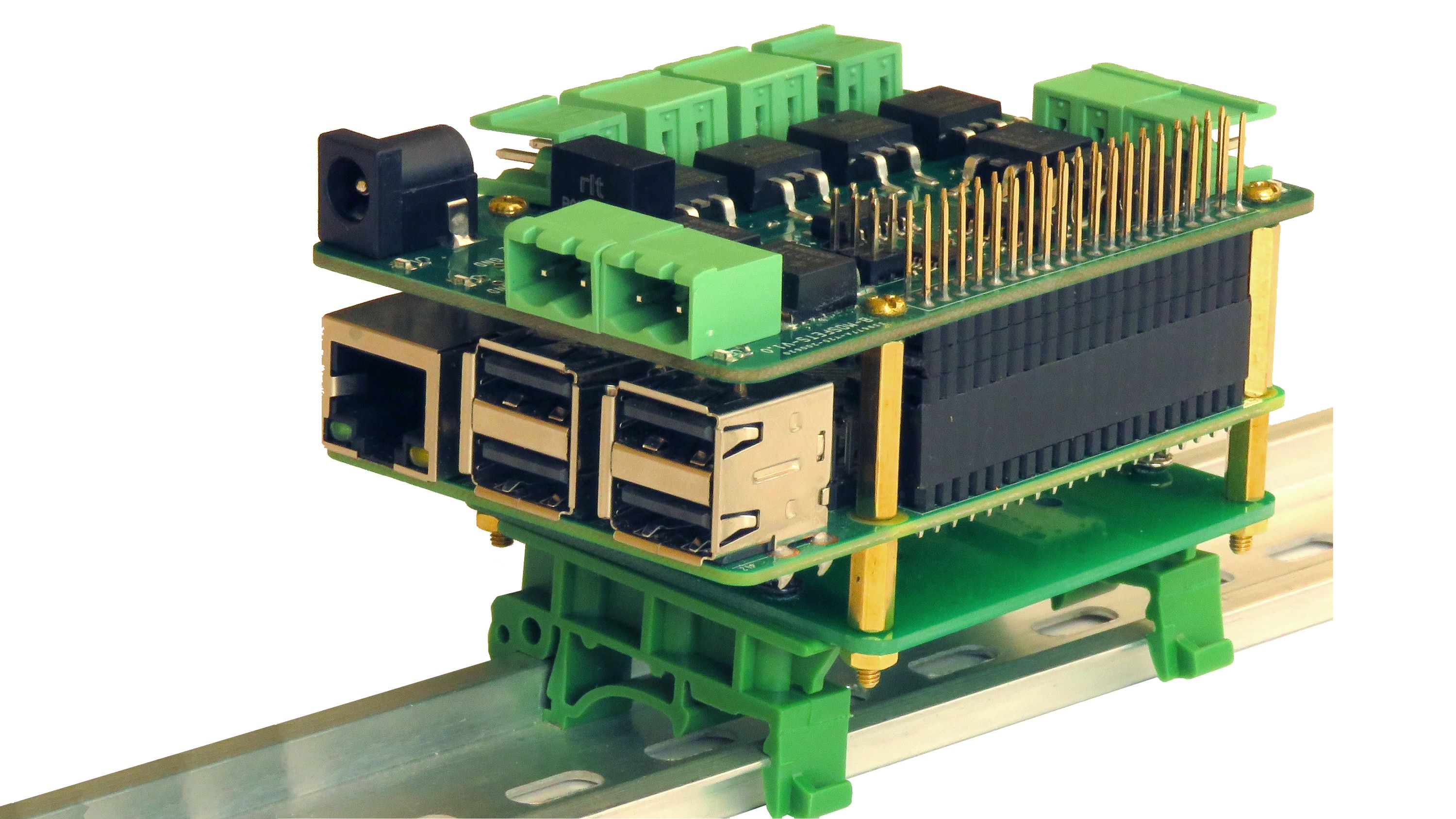

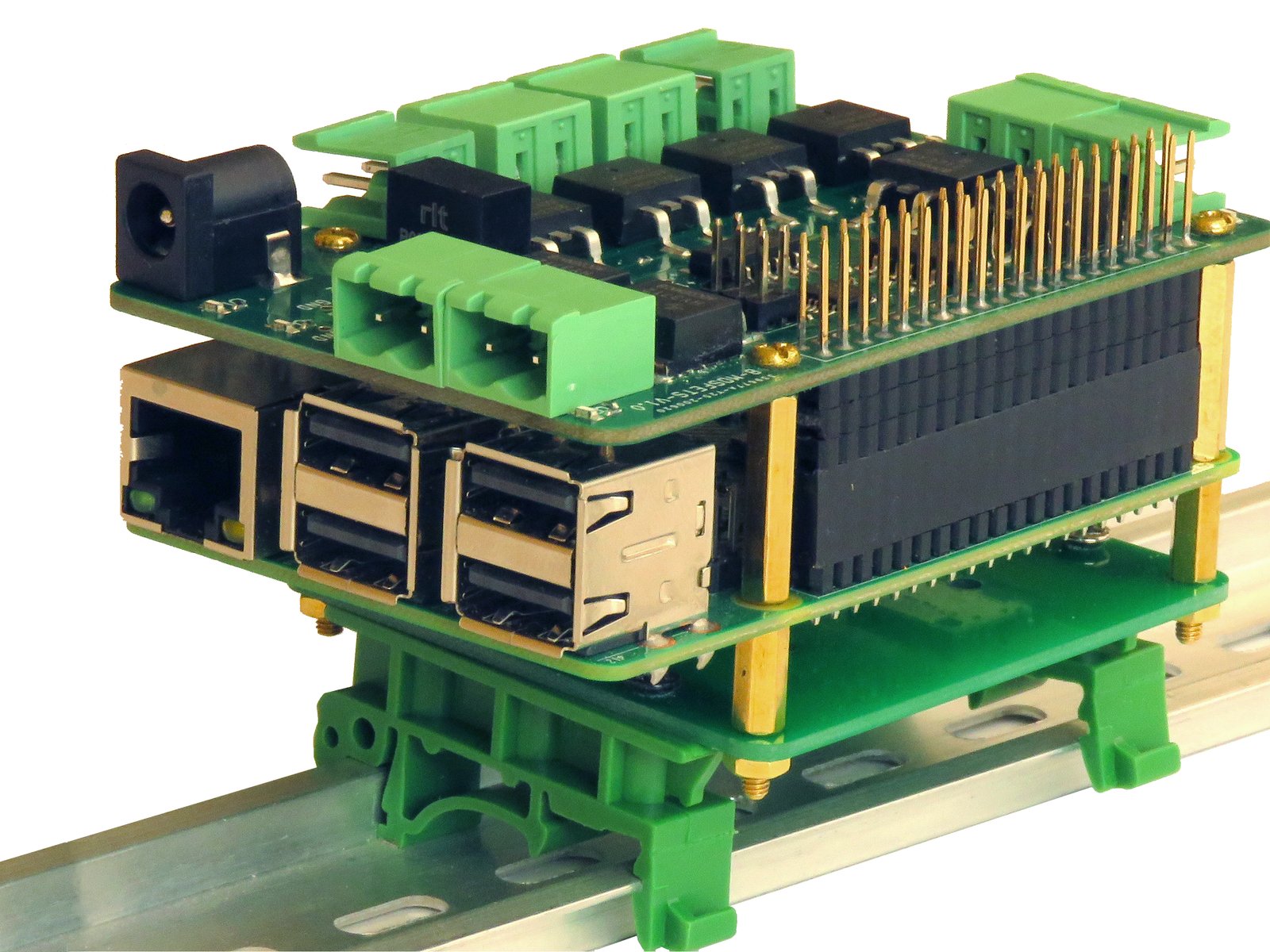

Two DIN-rail Mounting Options

8-MOSFET supports two different DIN-rail orientations.

Parallel to the Rail

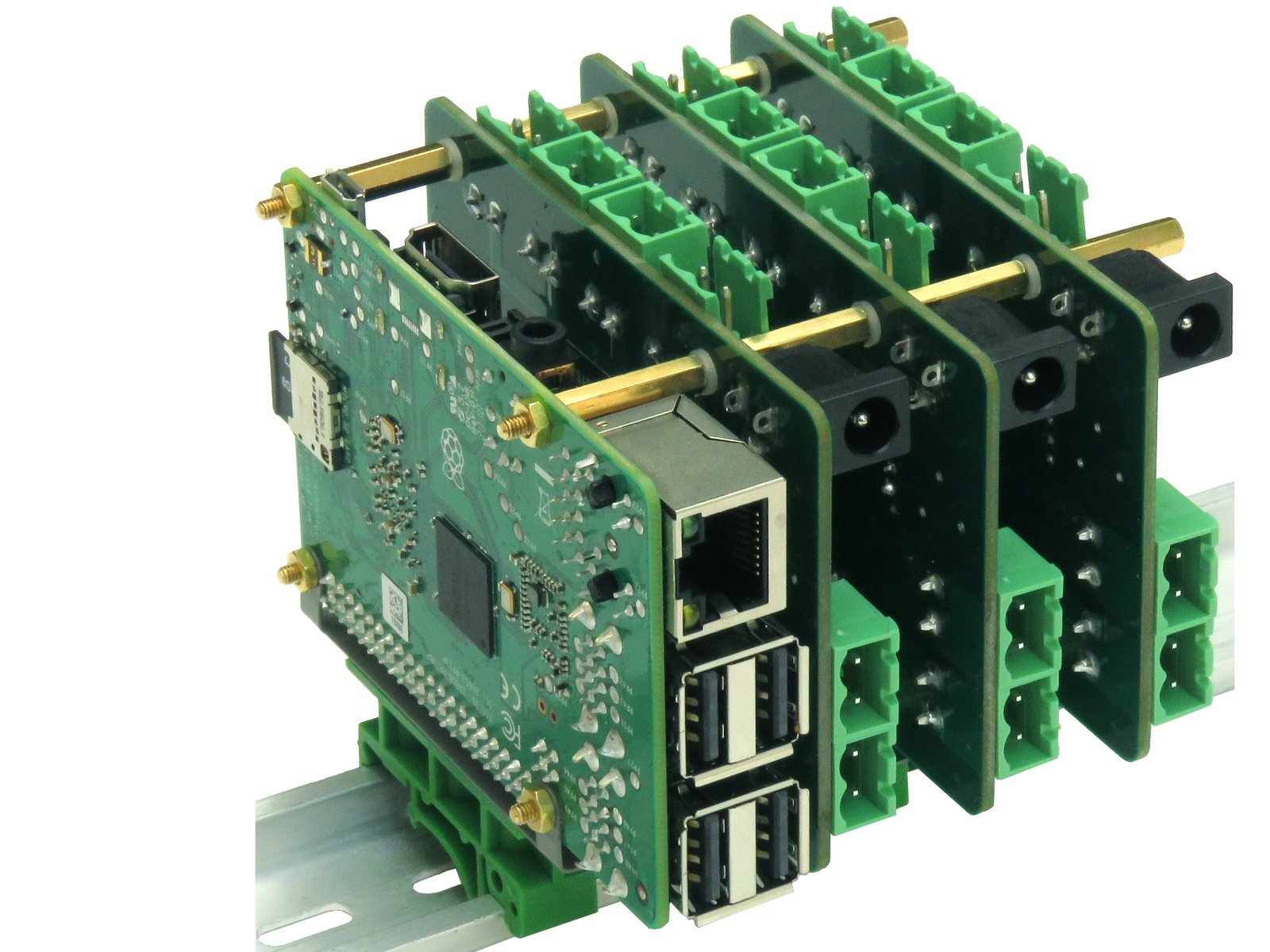

For a single card or a two-card stack, the parallel mounting kit is ideal. While one kit can technically support any number of cards, it becomes mechanically unstable once you get two or three 8-MOSFET cards piled up on your Raspberry Pi.

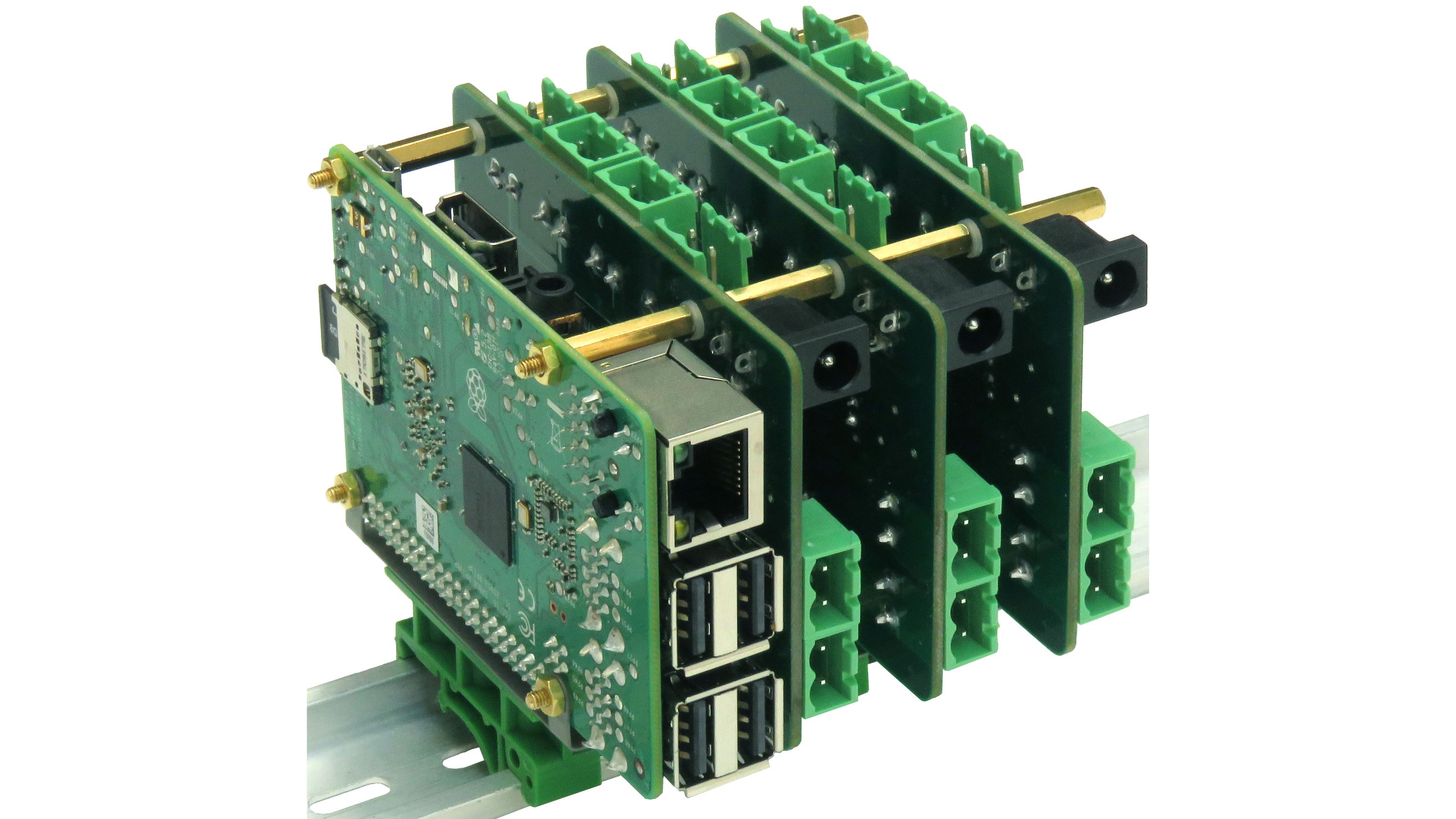

Perpendicular to the Rail

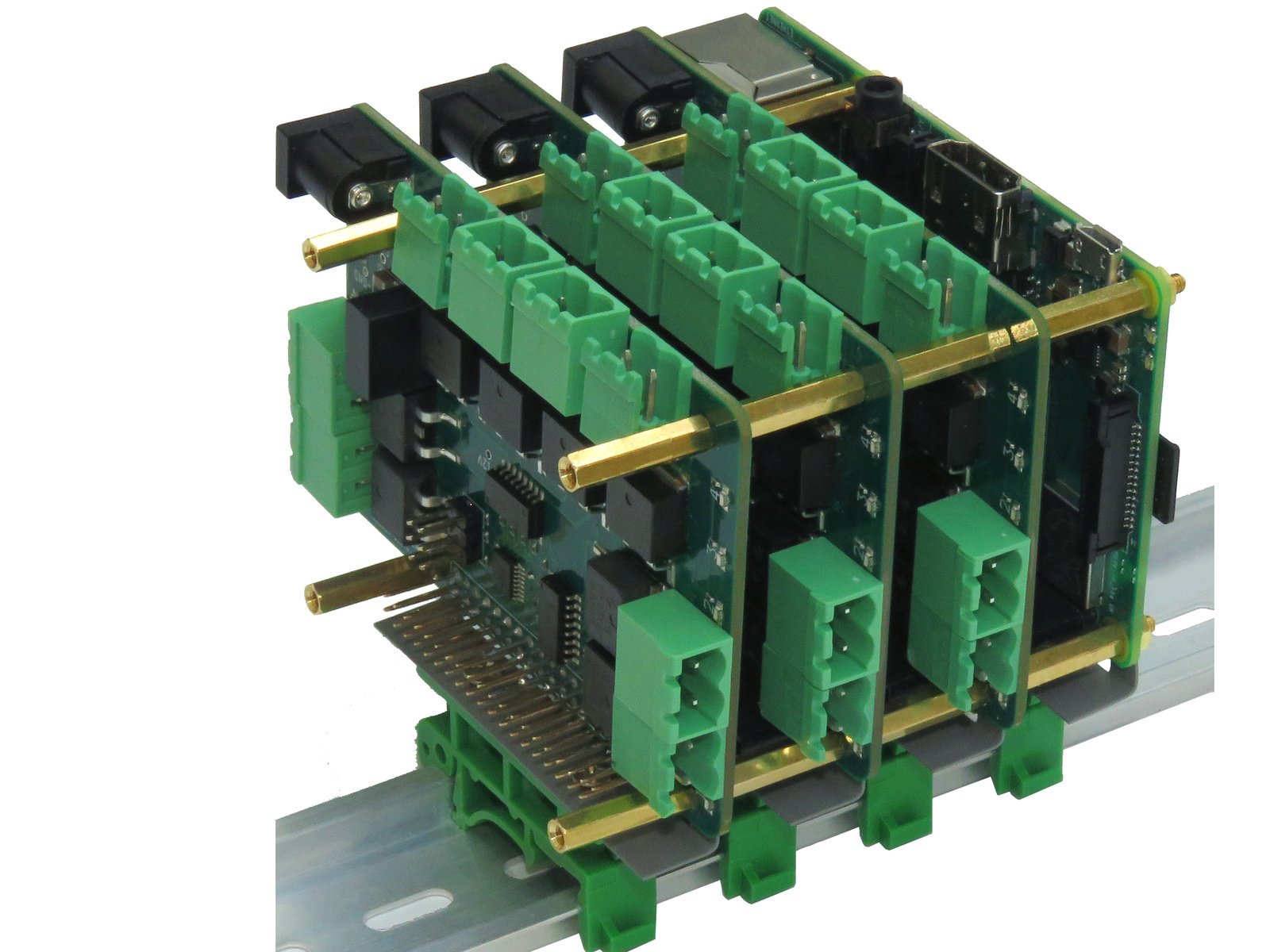

Because each card is secured to the DIN rail with a dedicated steel bracket, the perpendicular mounting kit offers mechanical stability for any number of cards. So, even with eight 8-MOSFET cards on your Raspberry Pi, you’ll still have room for other Raspberry Pi add-on cards.

The perpendicular mounting kit consists of two plastic DIN-rail brackets and two steel brackets. One kit will install the Raspberry Pi and one 8-MOSFET card, and each additional kit will install two more 8-MOSFET cards.

Support for UNO, Nano, Teensy, Feather, and ESP32

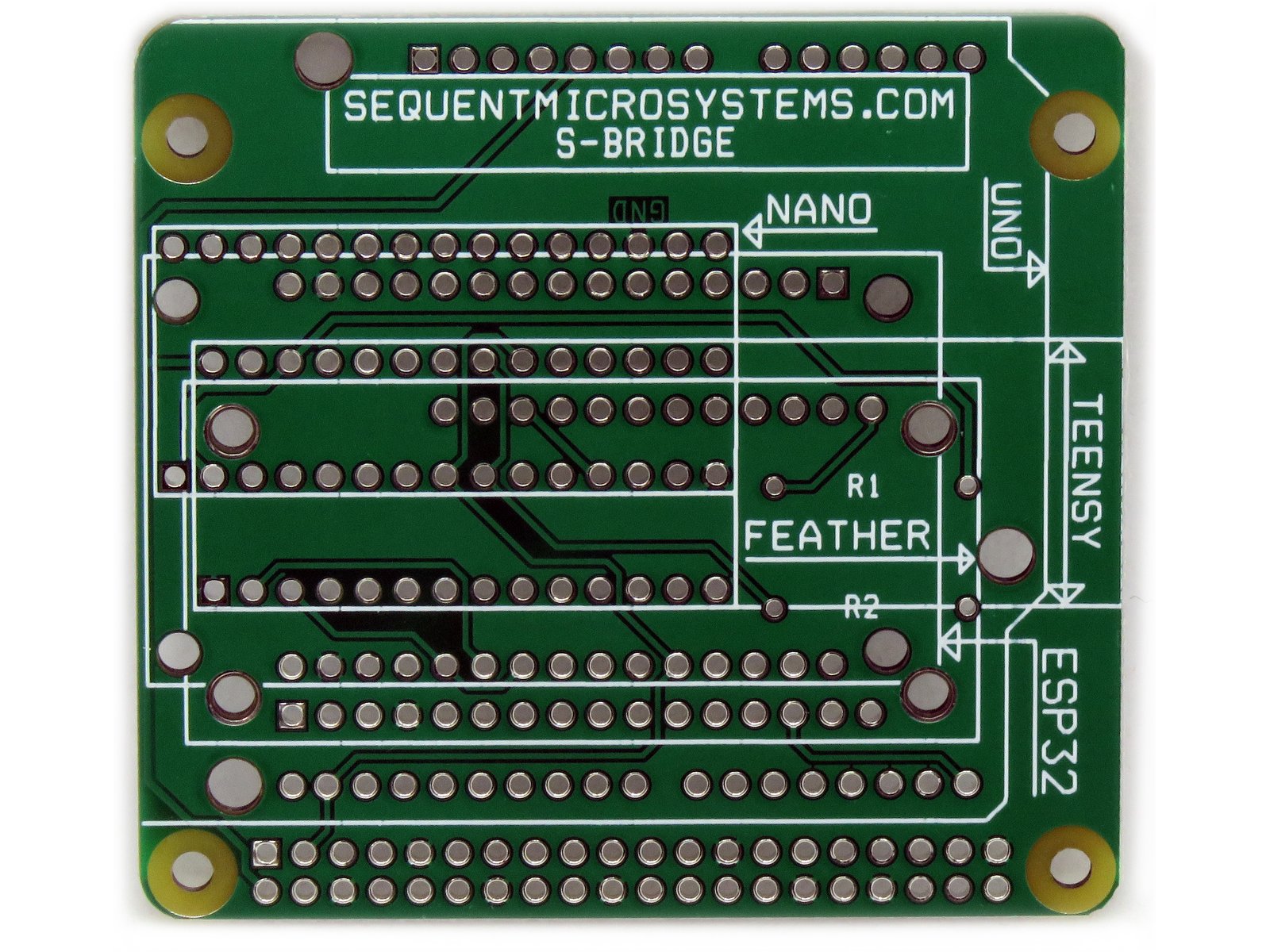

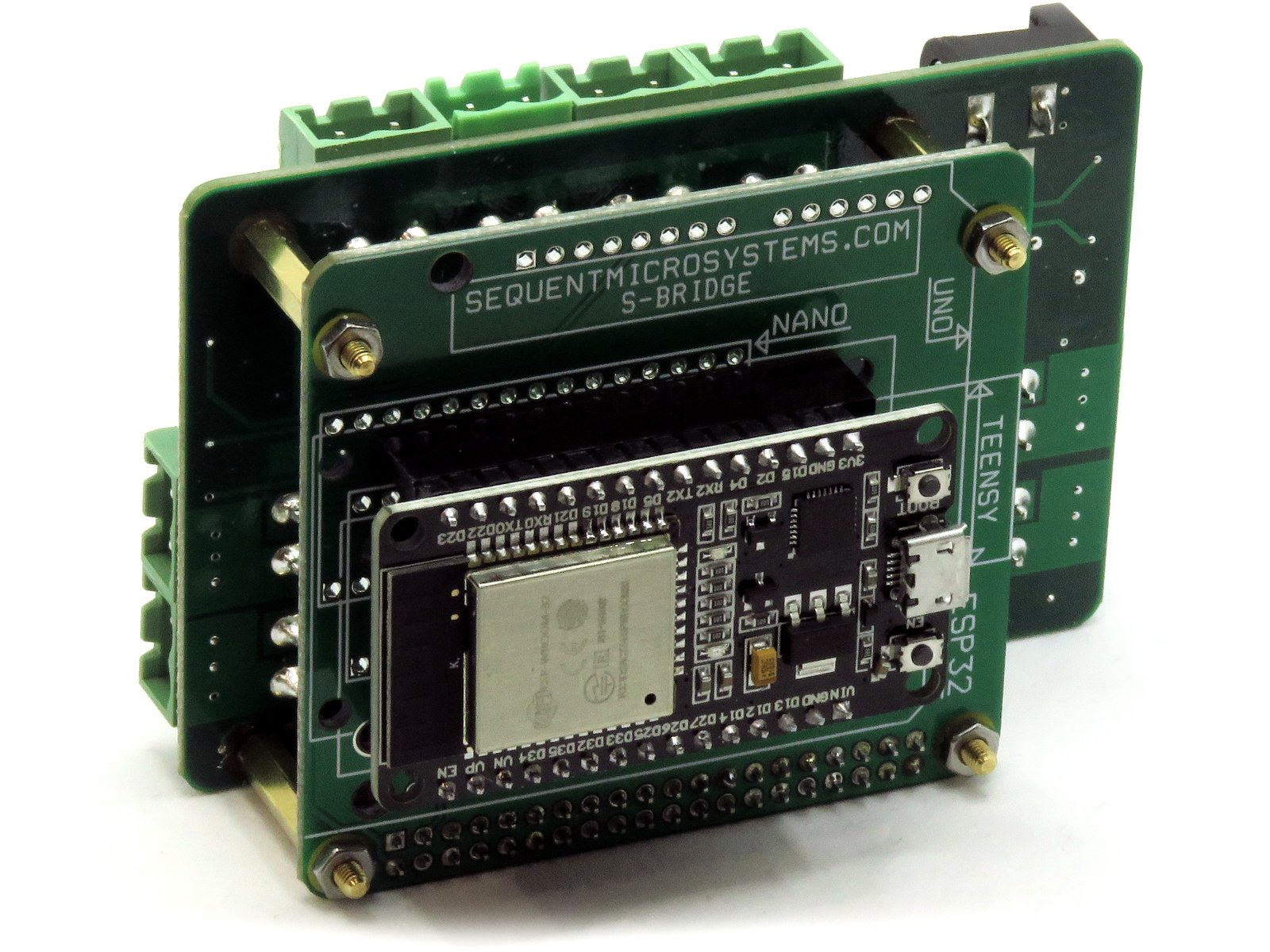

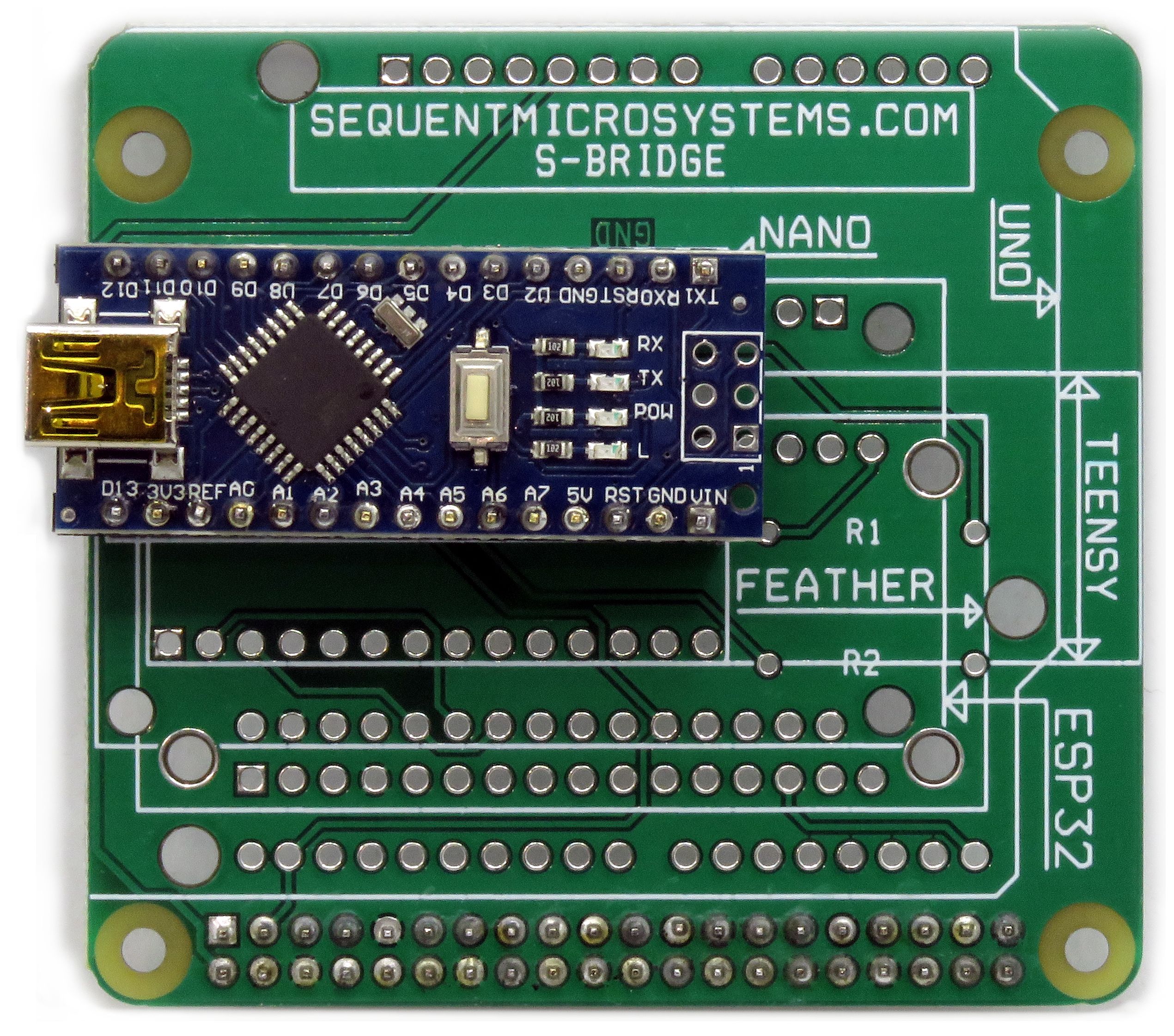

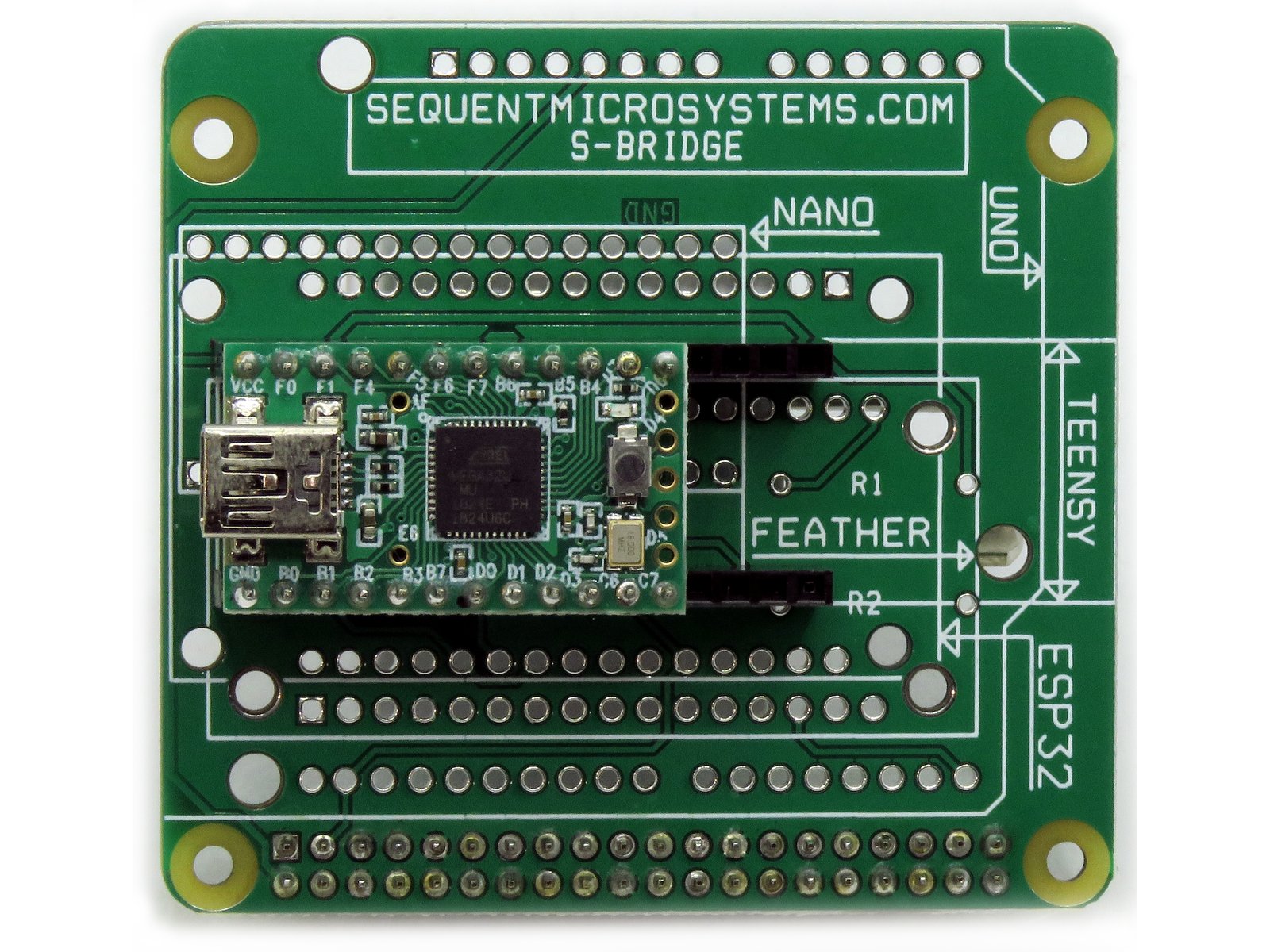

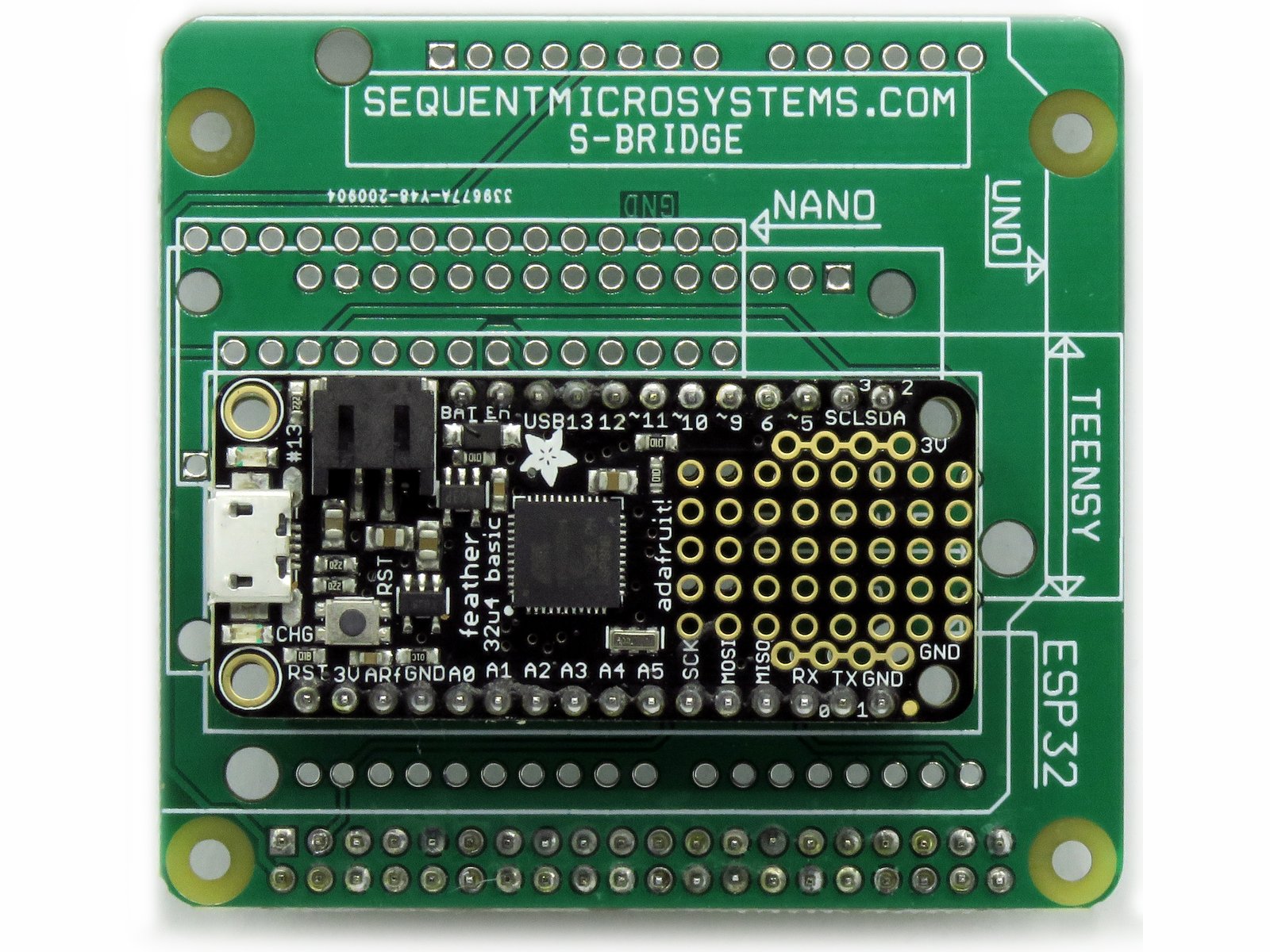

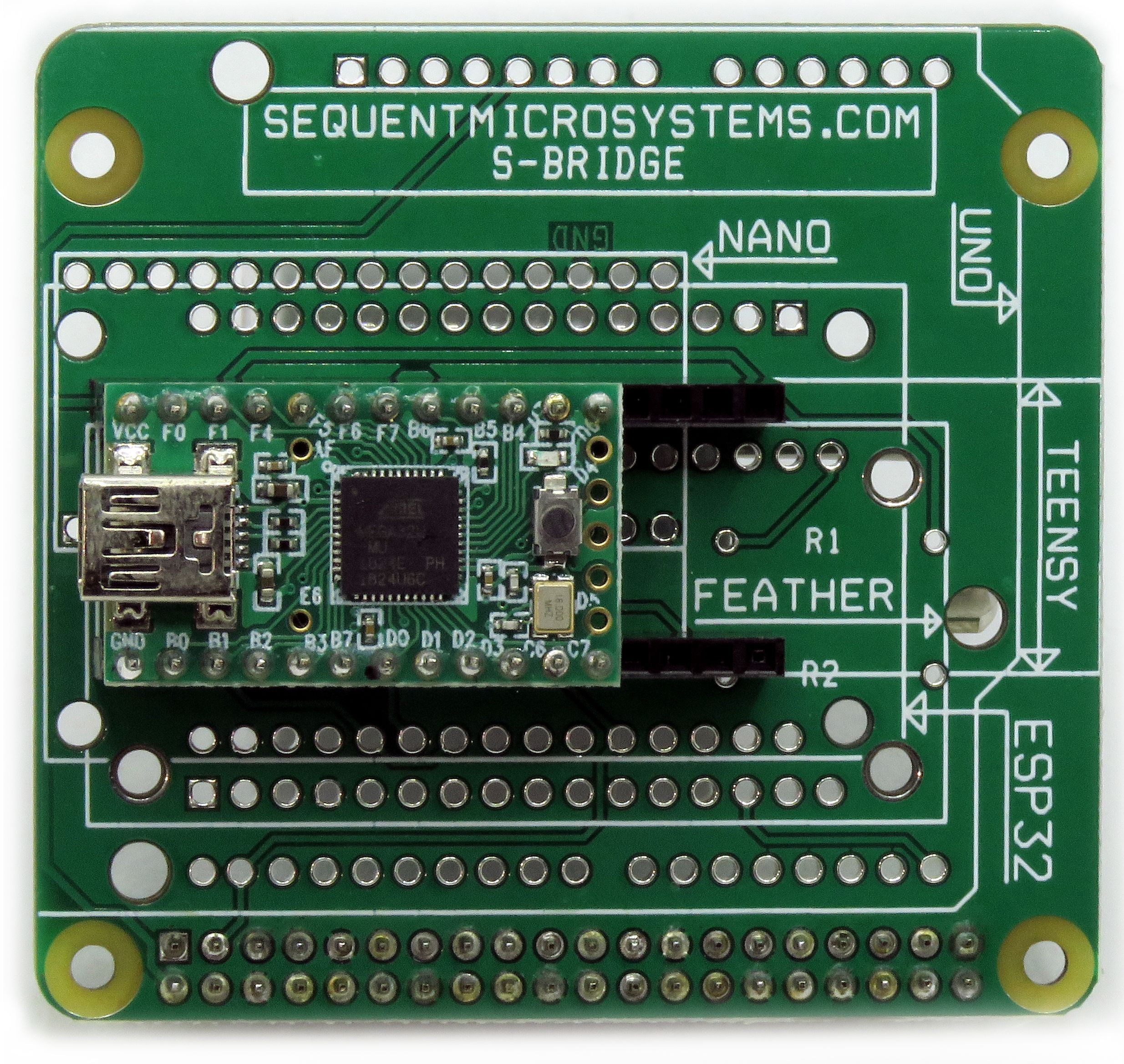

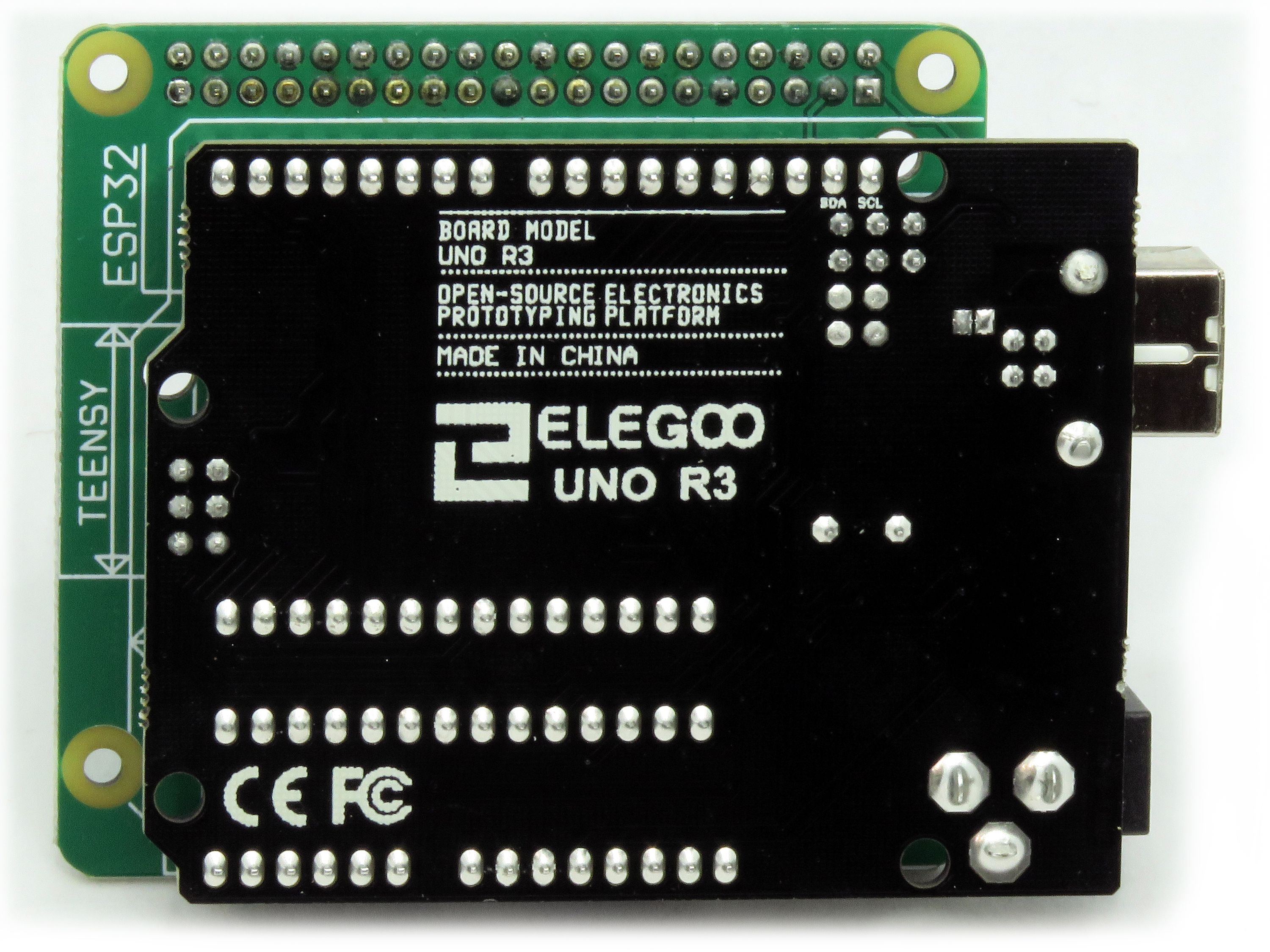

8-MOSFET relies only on the I²C interface of the device to which it’s attached, so it works with any platform that has one—which is to say, practically any single-board computer (SBC) or microcontroller-unit (MCU) board. And, so that you can take advantage of this flexibility without having to fiddle with custom wiring, we designed an optional adapter board that’s compatible with several of the most popular SBC and MCU form factors:

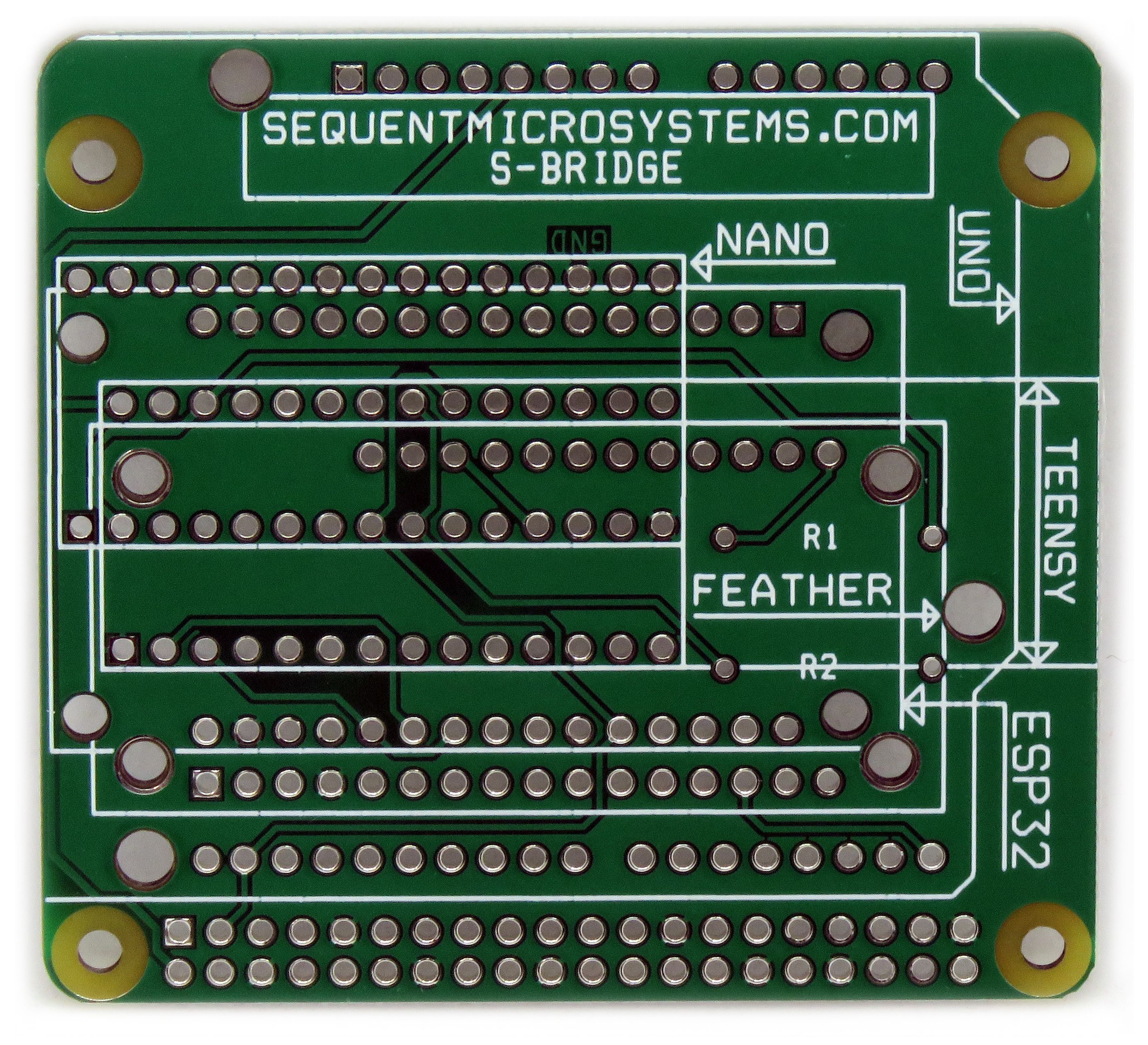

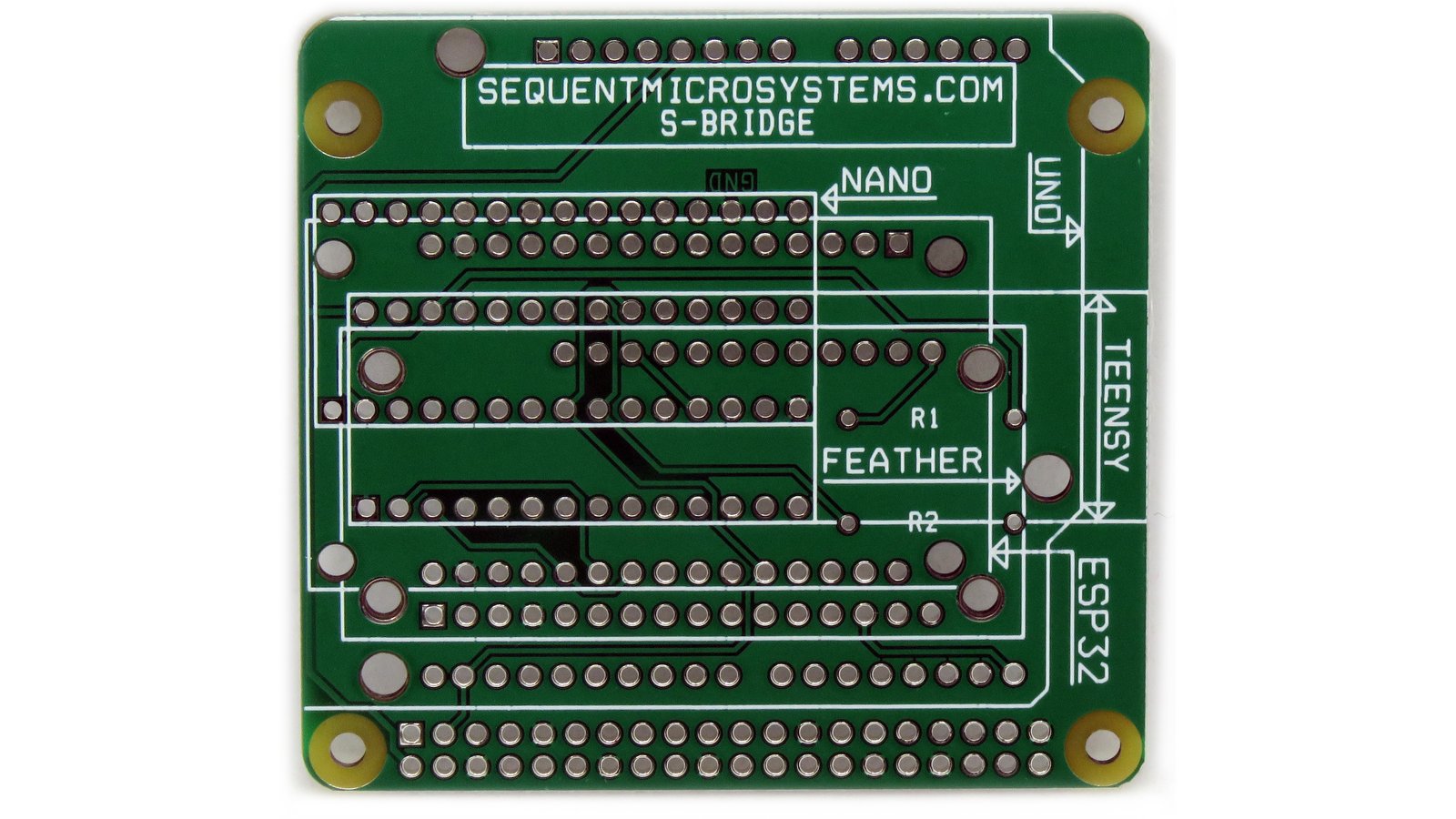

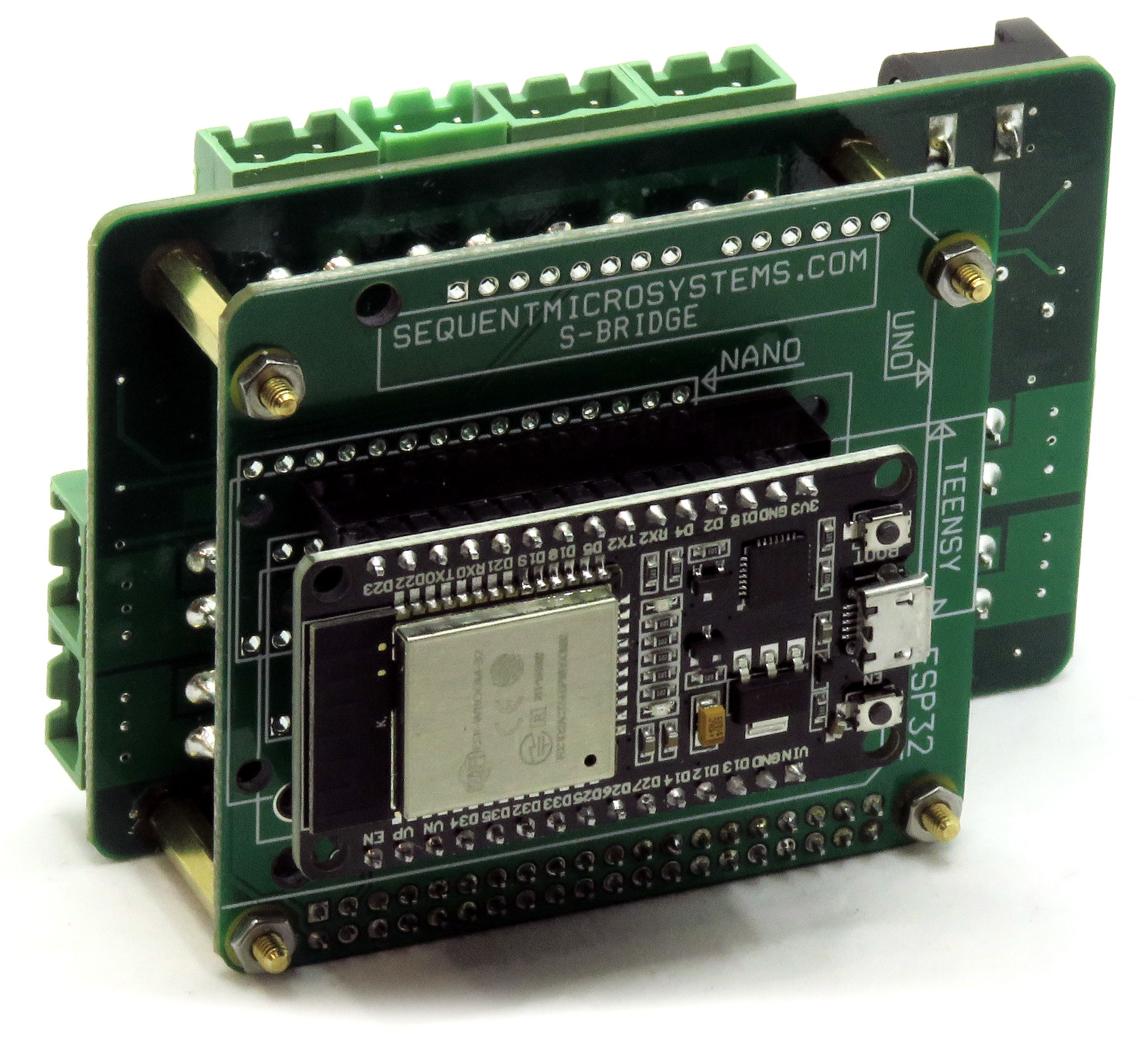

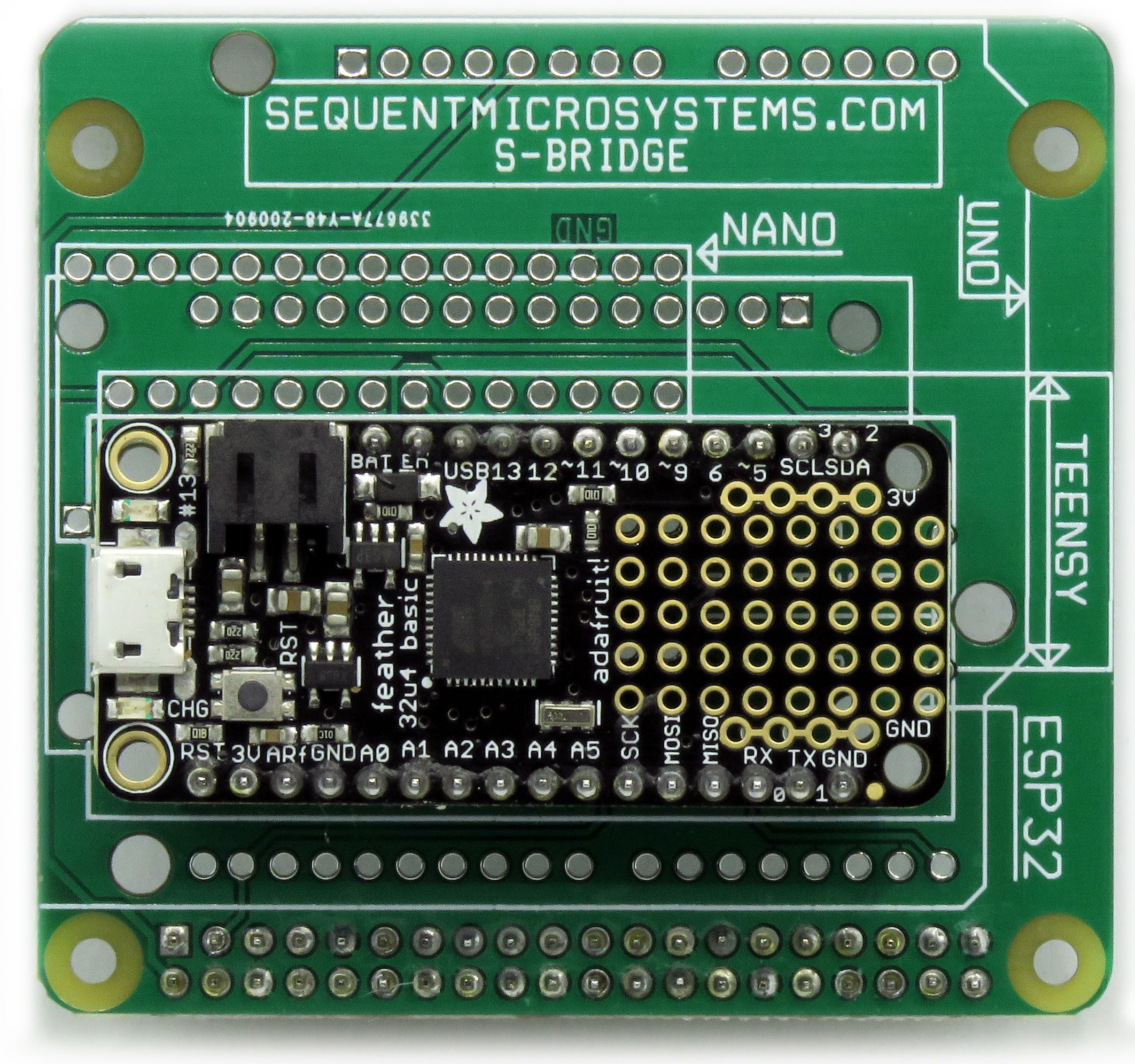

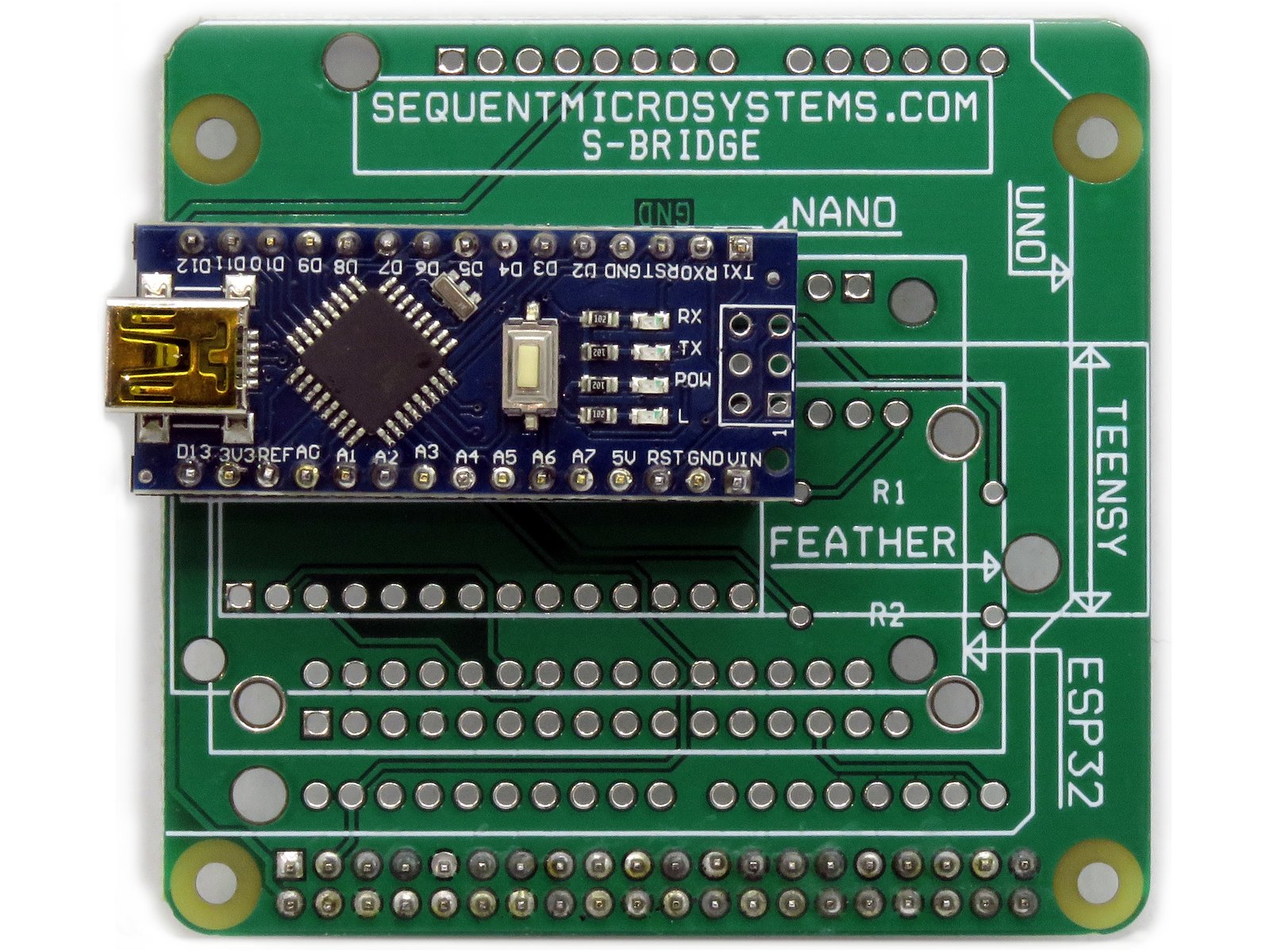

The 8-MOSFET adapter board comes as a kit. Which is to say, we provide headers for all five of the above platforms but you provide the solder. And we intend to support additional platforms in the future, so let us know what you’d like to see added to that list!

Features & Specifications

Comparisons

8-MOSFET8-Relay
Manufacturer Sequent Microsystems Sequent Microsystems
Max DC load - high current10 A / 48 VDC 8 A / 24 VDC
Max DC load - low current2 A / 240 VDC 4 A / 24 VDC
Max AC load - high currentN/A 8 A / 120 VAC
Max AC load - low currentN/A 4 A / 120 VAC
Life span - 10 cycles/second at 8 A / 12 VDCDecades 20 minutes
Price$35 $30

Support & Documentation

Please have a look at our User’s Guide to get a better sense of 8-MOSFET. Or, if you want to see what makes it tick, you can check out our schematics. And of course, if you have questions or suggestions, you can reach out to us through the Ask a technical question link on our campaign page.

Manufacturing Plan

8-MOSFET will be manufactured in China, by partners with whom we have partnered several times in the past—including on a previous 8-MOSFET production run. We are confident that they will do an excellent job, as they have in the past. We expect the production run to take approximately six weeks.

Fulfillment & Logistics

Once all 8-MOSFET boards have been manufactured, we will send them along to Crowd Supply’s fulfillment partner, Mouser Electronics, who will ship them out to backers. Backers will be charged at check-out for shipping and taxes.

Risks & Challenges

Given the maturity of the product, and of our relationship with the manufacturer, we do not anticipate any significant risks. While supply chains have been strained this year, due to COVID-19, we’ve built enough 8-MOSFET boards that we know how and where to source the components we need such that they arrive by the time we need them.
