NanoS3

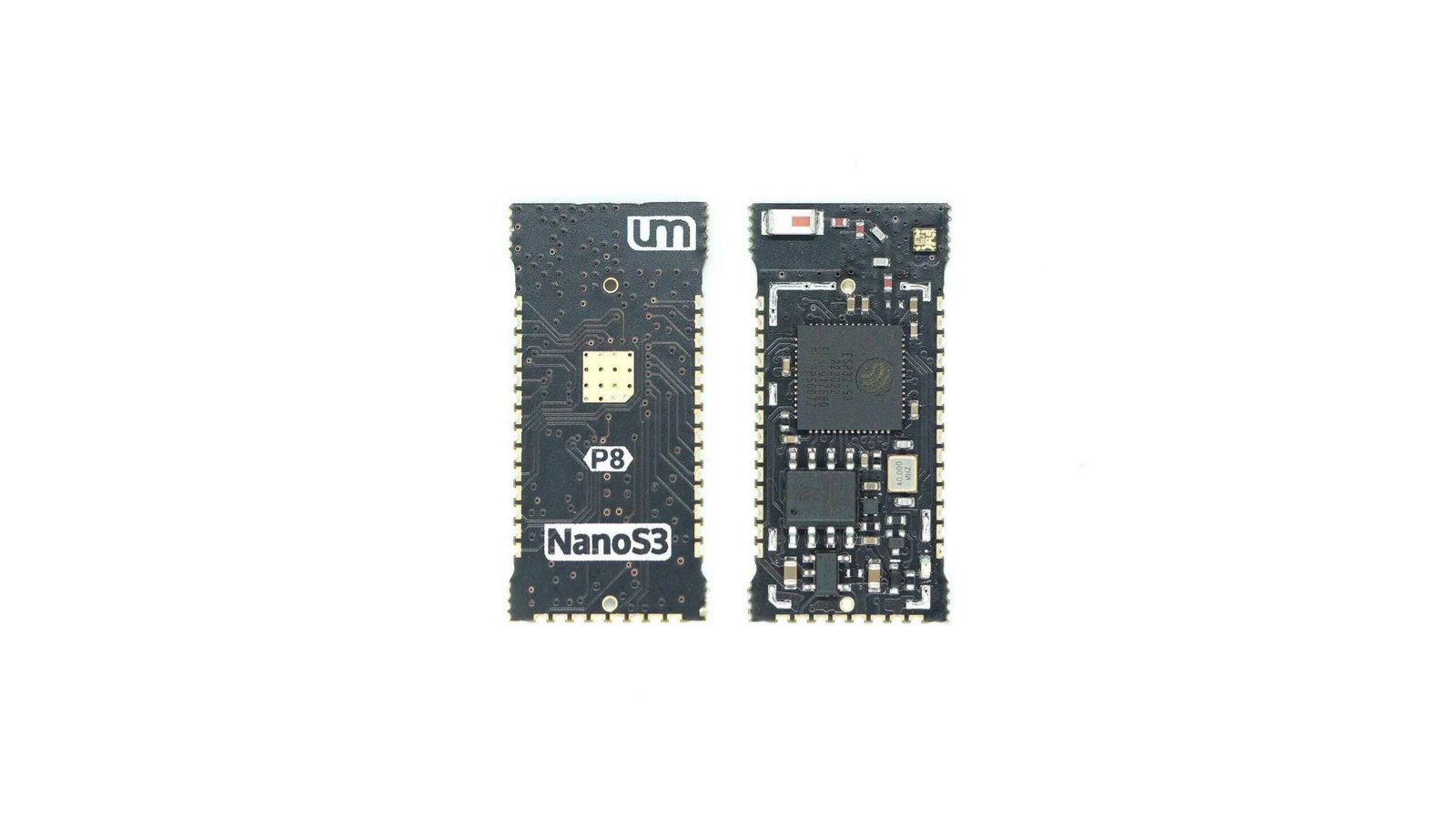

NanoS3 with onboard antenna

NanoS3 board with onboard antenna & pinout card in an ESD bag

^$19 $8 US Shipping / $18 Worldwide

Orders placed now ship Jul 19, 2024.

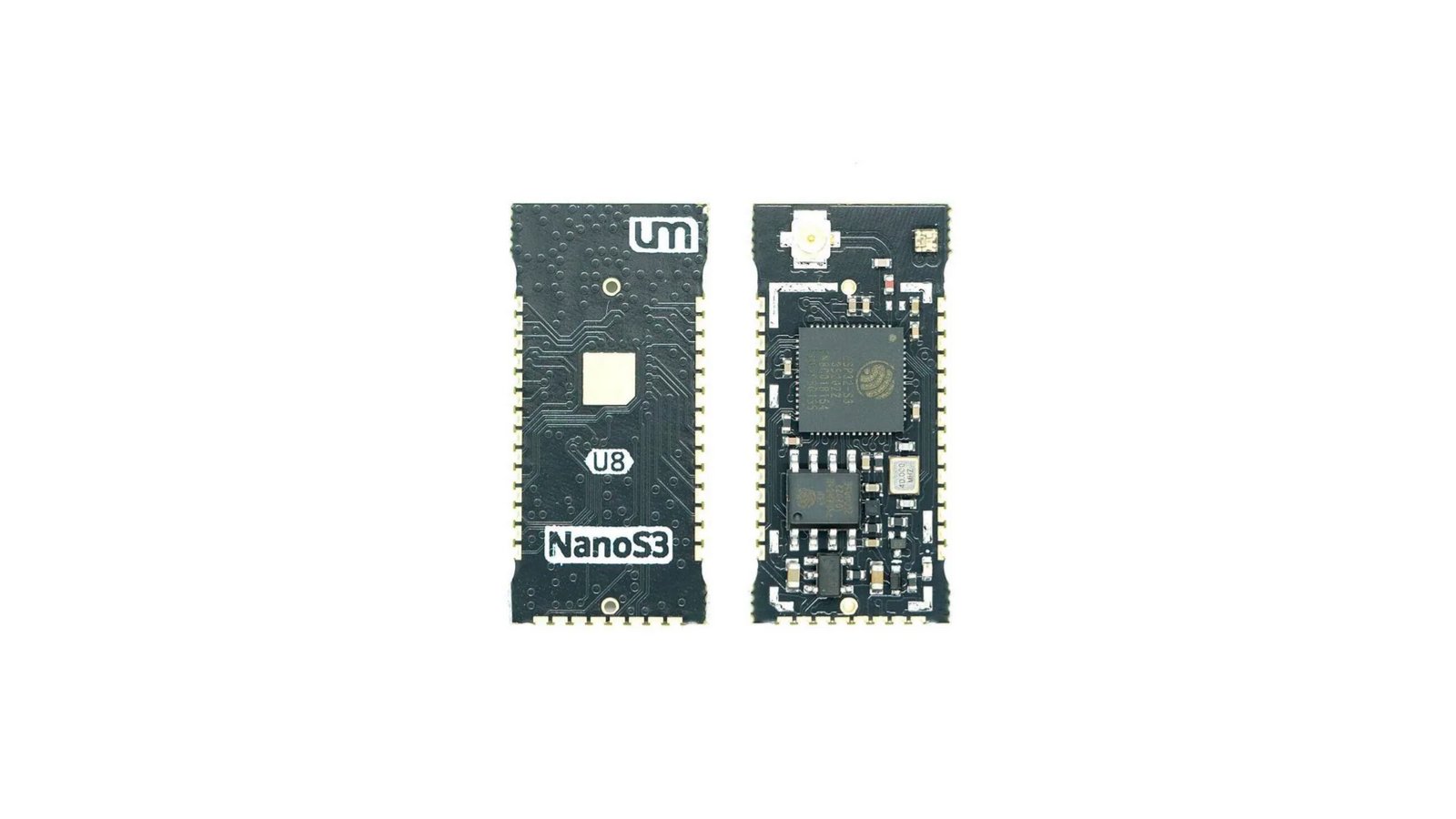

NanoS3 uFL

NanoS3 uFL board & pinout card in an ESD bag (antenna not included)

^$19 $8 US Shipping / $18 Worldwide

Orders placed now ship Jul 31, 2024.

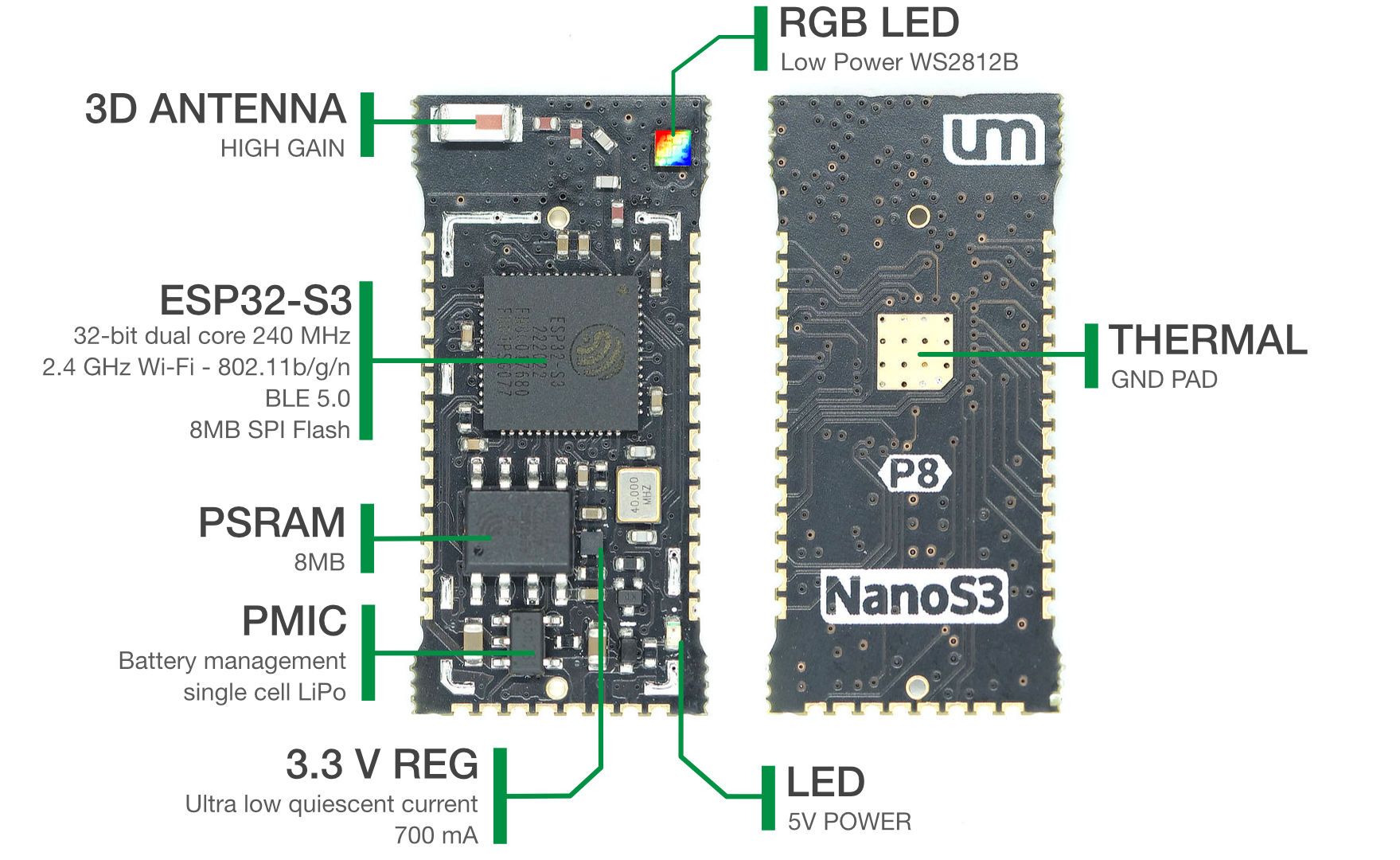

NanoS3 is the world’s smallest full ESP32-S3 based development board in a module format. It has 27x IO broken out, an onboard 3.3 V LDO, battery charging, onboard RGB LED, and ultra low deep sleep current. The NanoS3 includes an onboard 3D high gain antenna, and the NanoS3 uFL includes an u.FL connector for an external Antenna. NanoS3 is basically a TinyS3 as a module, but smaller - 28 x 11 mm. All you need to add is a USB connector of choice if one is required, and some buttons if needed.

Features & Specifications

Dual 32 bit Xtensa LX7 cores @ up to 240 MHz
RISC-V Ultra Low Power Co-processor
2.4 GHz Wifi - 802.11 b/g/n
BLE 5.0 + Mesh
8 MB QSPI Flash
8 MB of extra QSPI PSRAM
700 mA 3.3 V LDO Regulator
ULTRA LOW Deep Sleep Current
Low power RGB LED
Native USB + USB Serial JTAG
D+/D- pins for external USB connector
LiPo Battery Charging
Onboard 3D High Gain Antenna or External u.FL Connector

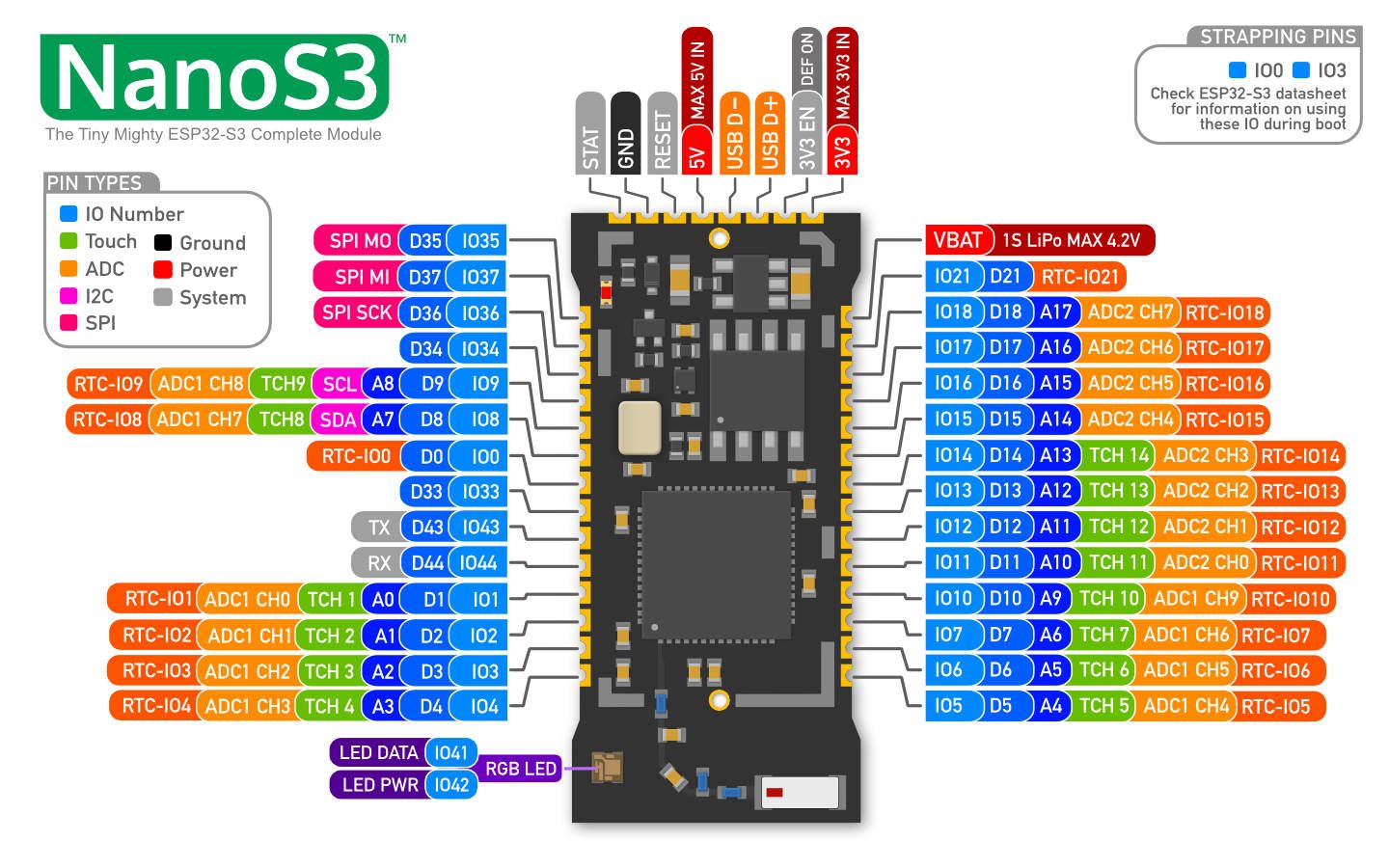

27 GPIO
Only 28 x 11 mm in size
Compatible with TinyPICO Nano
Board Dimensions: 28 mm x 11 mm
Max Thickness: 2.4 mm

Comparisons

	NanoS3	TinyPICO Nano
MCU	ESP32-S3FN8	ESP32-PICO-D4
Cores	2x Xtensa LX7	2x Xtensa LX6
Speed	Up to 240 MHz	Up to 240 MHz
ULP CoProc	1x RISC-V, 1x FSM	1x FSM
SRAM	512 K	520 K
FLASH	8 MB	4 MB
PSRAM	8 MB	4 MB
GPIO	27	14
Native USB	CDC, OTG & USB Serial JTag	-
WiFi	2.4 GHz b/g/n	2.4 GHz b/g/n
Bluetooth	BLE 5 & Mesh	BT Classic & BLE 4.2
DAC	-	2x 8-bit
ADC	2x 12-bit SAR, 20 channels	1x 12-bit SAR, 18 channels
UARTs	3	3
ETH MAC	-	Yes
DMA Controller	5x TX, 5x RX	-
SDIO	Yes	Yes
RGB LED	1515 Neopixel	-
Antenna	Onboard or External u.FL	Onboard
Release Date	July 2023	May 2020
