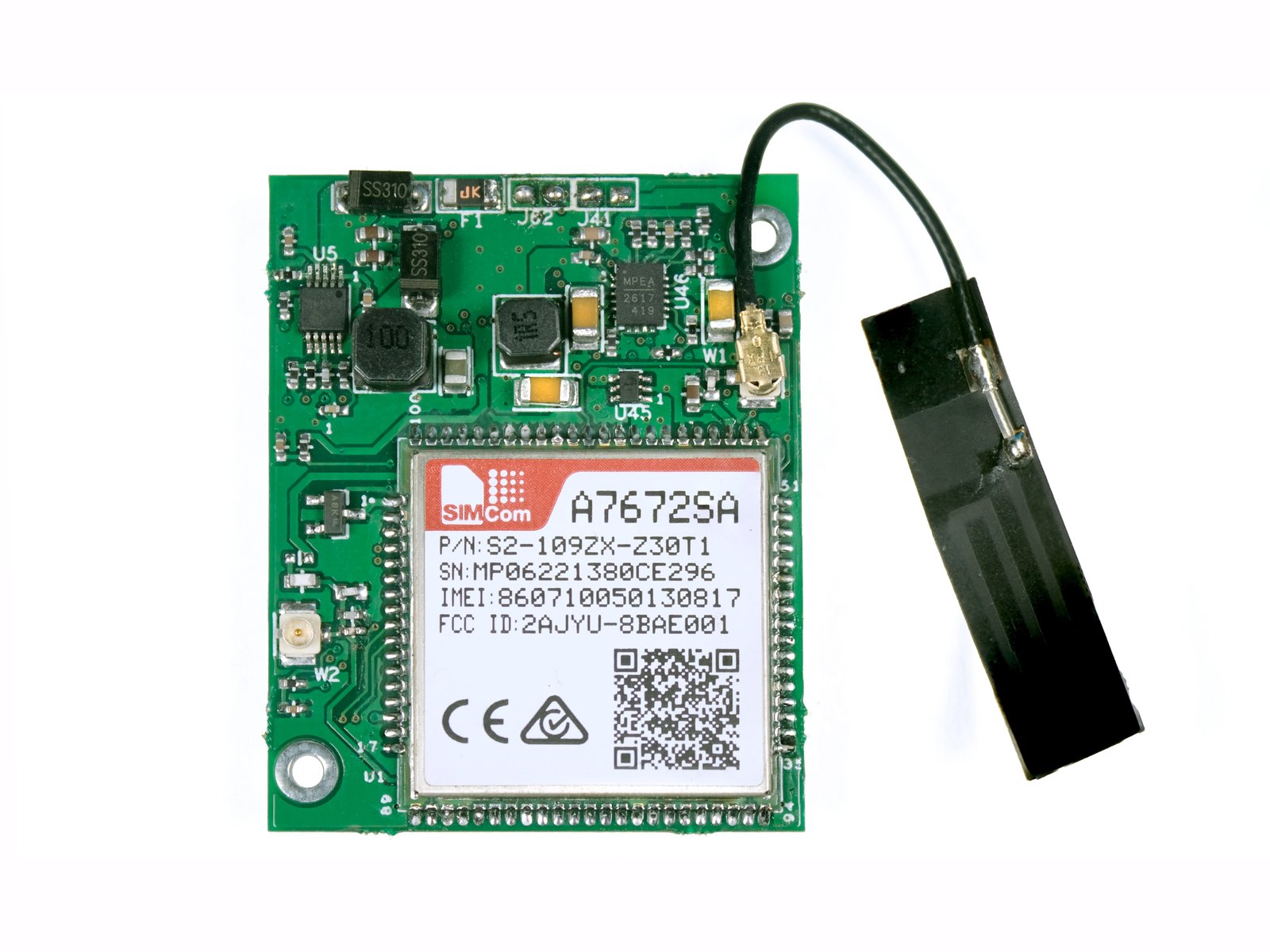

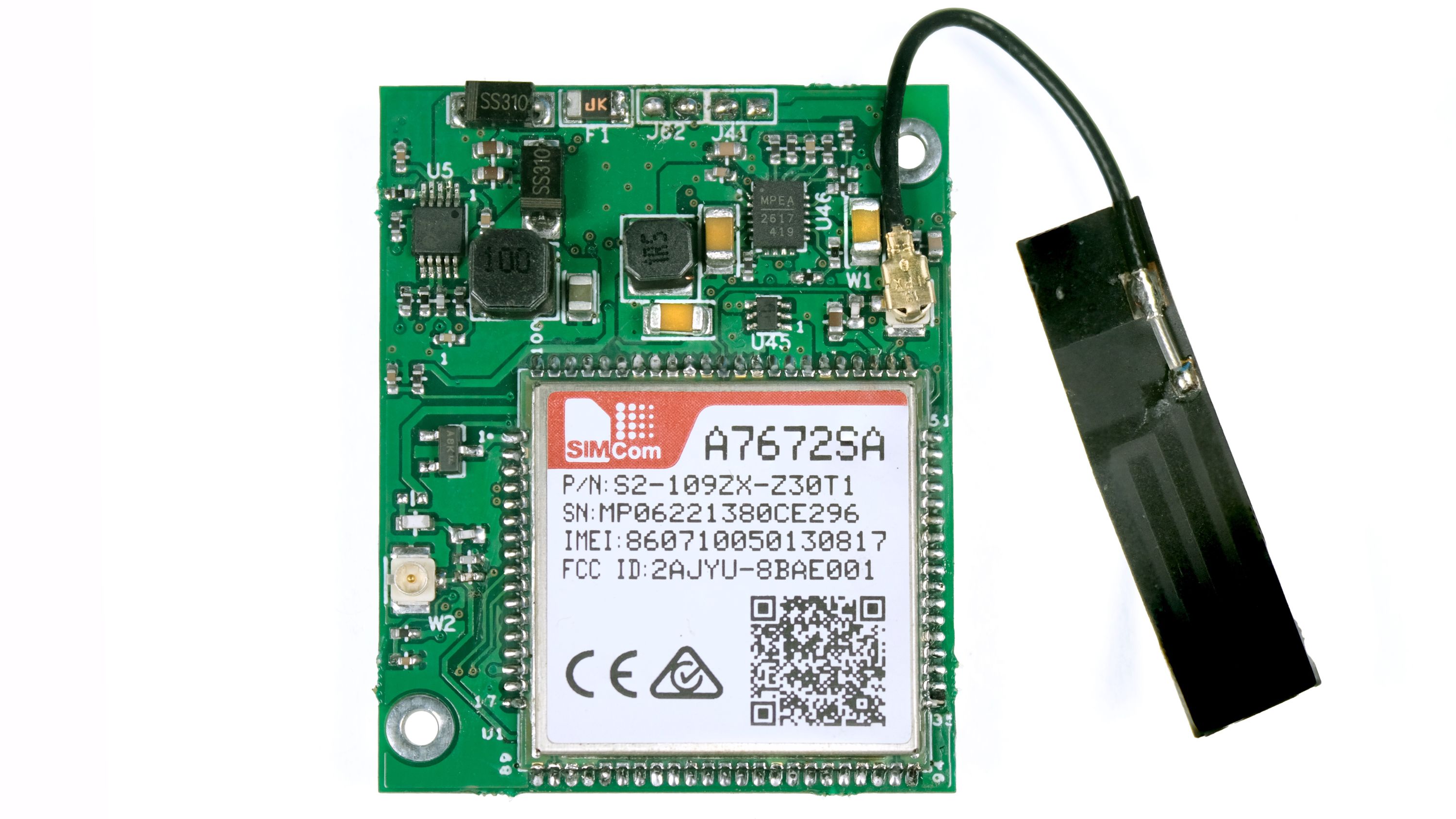

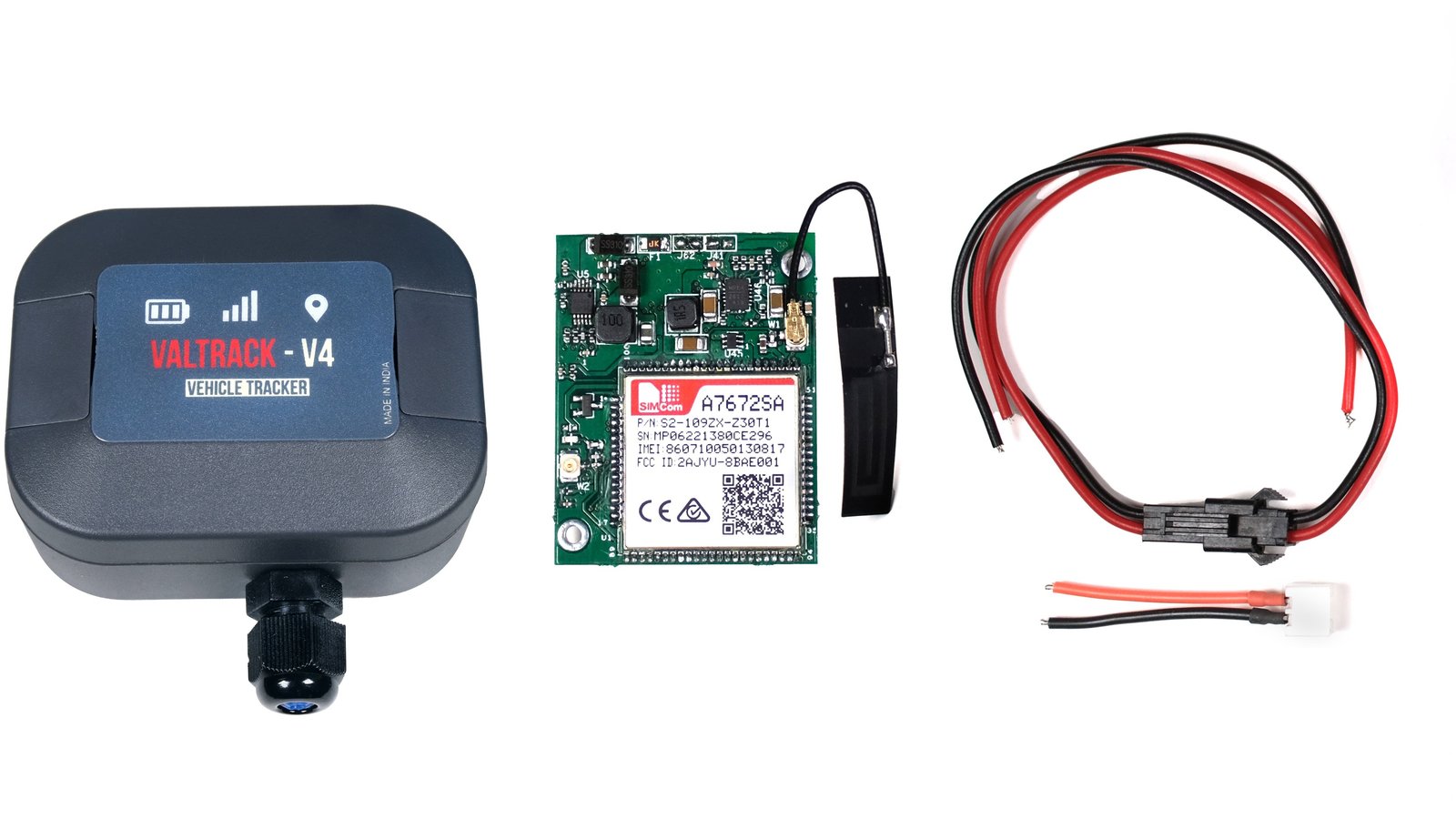

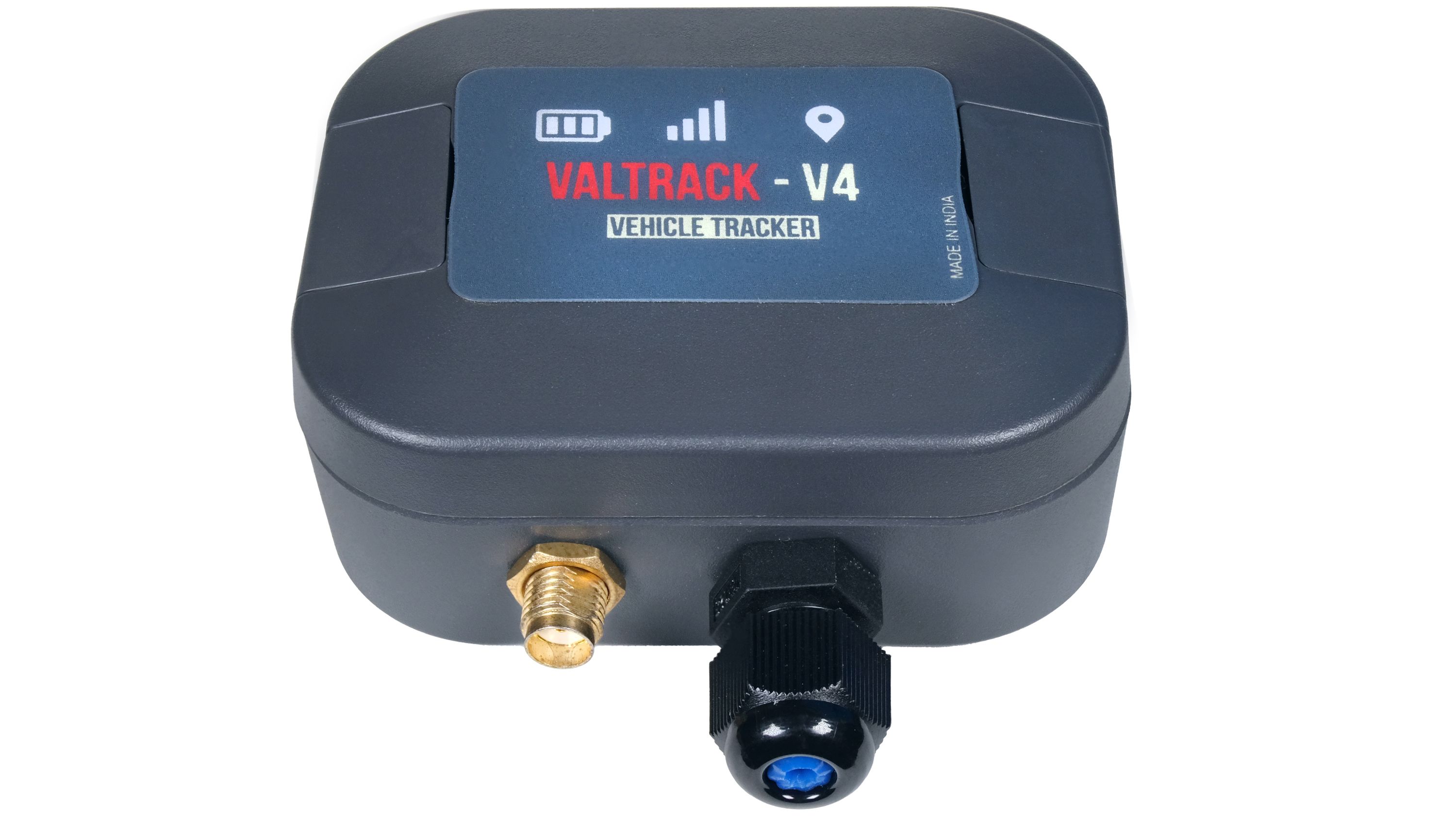

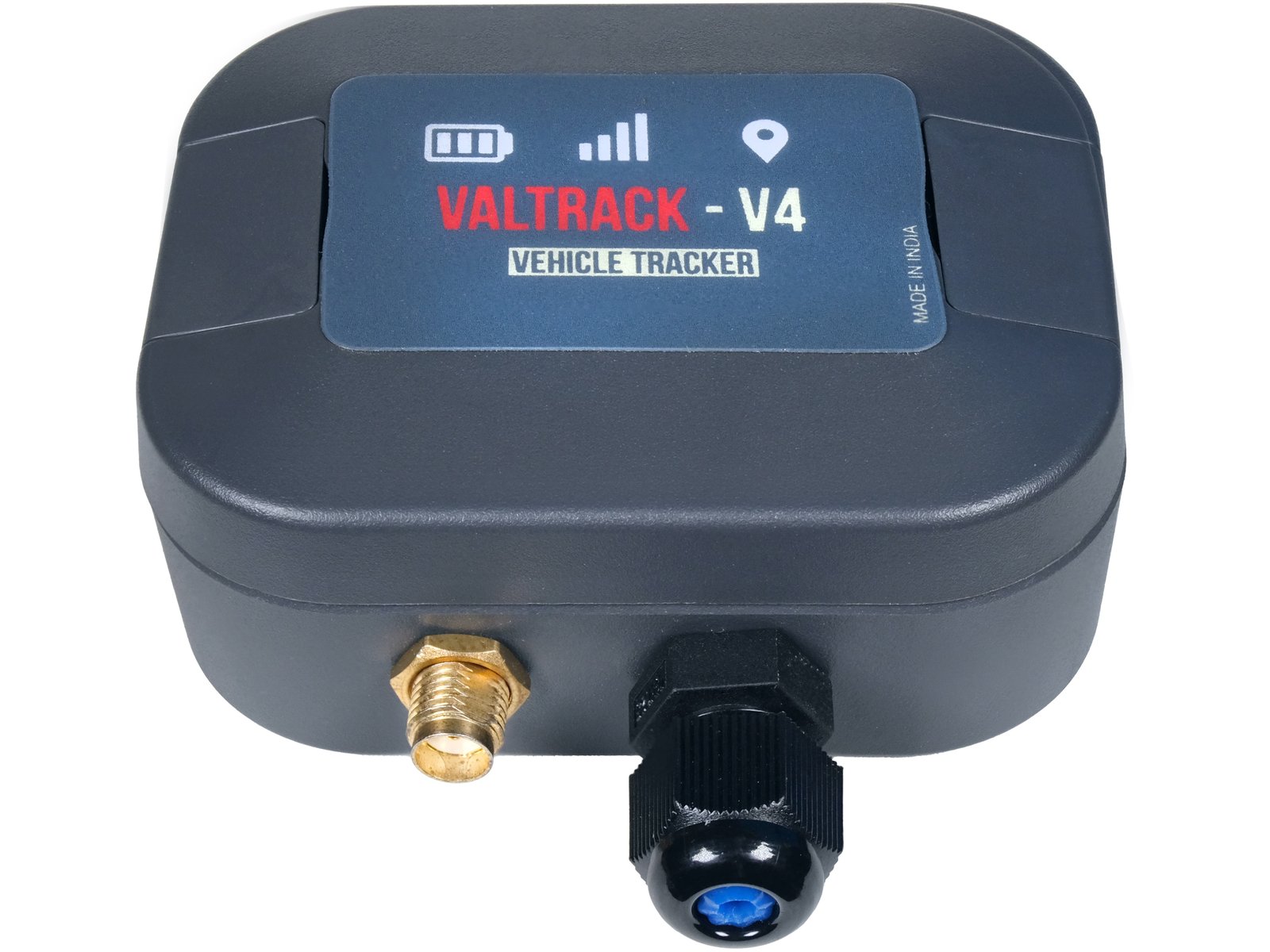

Valtrack V4 is a low cost GPS tracking device which supports 4G-LTE-CAT1 networks. Its based on the ESP32-C3FH4 chipset and comes with built-in GNSS patch antenna and support for external GNSS active antenna. Program Valtrack V4 via the micro USB port with the help of VS Code and ESP-IDF, Espressif’s official IoT Development Framework for the ESP32. Valtrack V4 supports direct connection to a vehicle’s battery and backup battery for emergency uses.

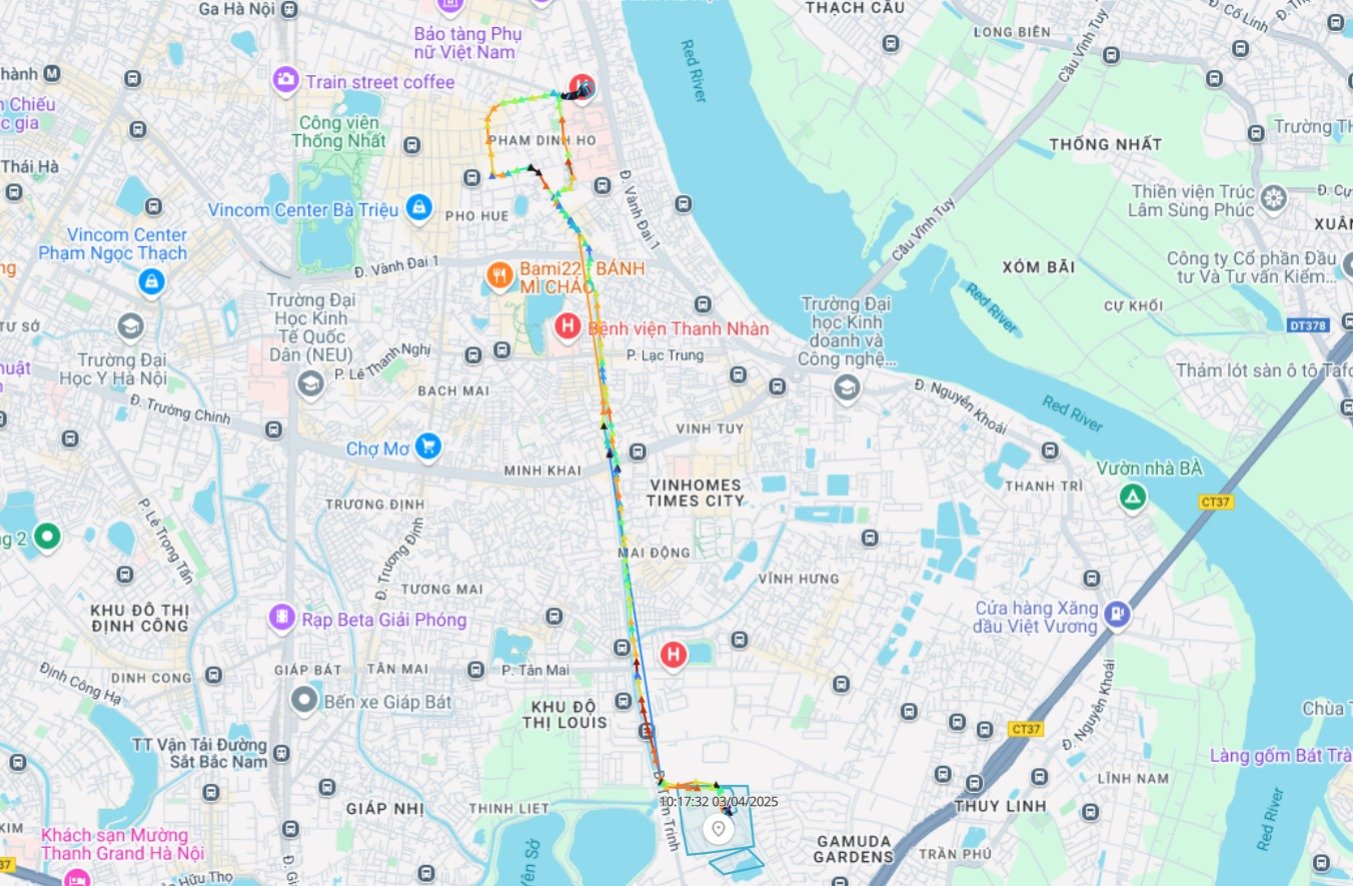

This device can be used for tracking two-wheelers, four-wheelers and any other mobile equipment. Know the real time location of the vehicle, aid in prevention of theft, and recover it with the help of the on-board motion sensor. Valtrack V4 can be customized to send alerts when movement is detected, and since it logs data continuously to the server, you can know the route the vehicle has traveled.

Features & Specifications

• Operating Voltage:
  • Main Power Input: 12 V to 42 V DC [Connect to 12 V Lead Acid Battery] ⚡ Has Reverse Polarity Protection
  • Backup Battery Input: 3.7 V to 4.2 V DC [Connect a single cell 3.7 V - 4.2 V Li-Po or Li-Ion Battery] ⚠ Doesn't have Reverse Polarity Protection
• Dimensions:
  • With Enclosure: Length: 52 mm * Width: 65 mm * Height: 30 mm

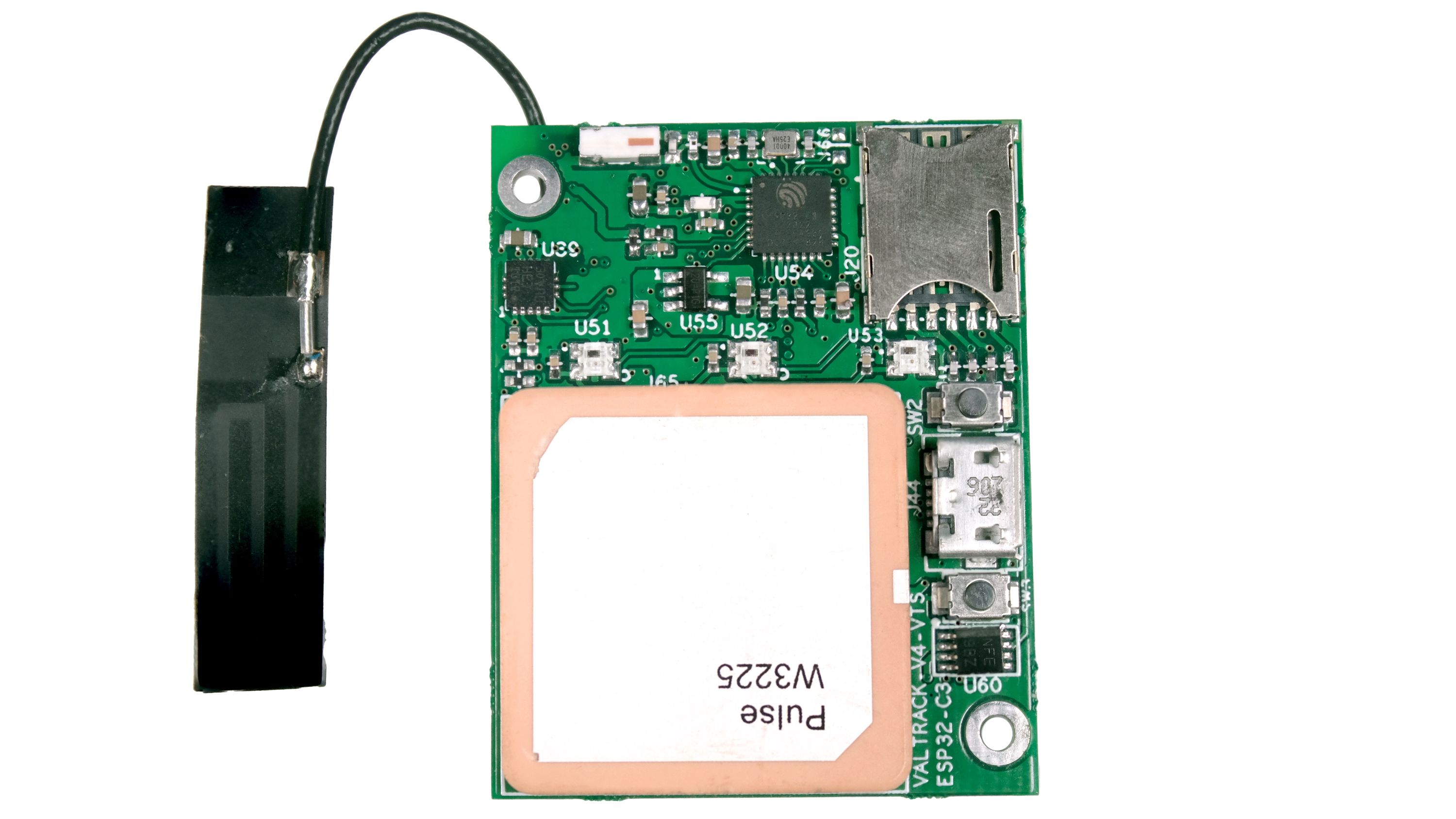

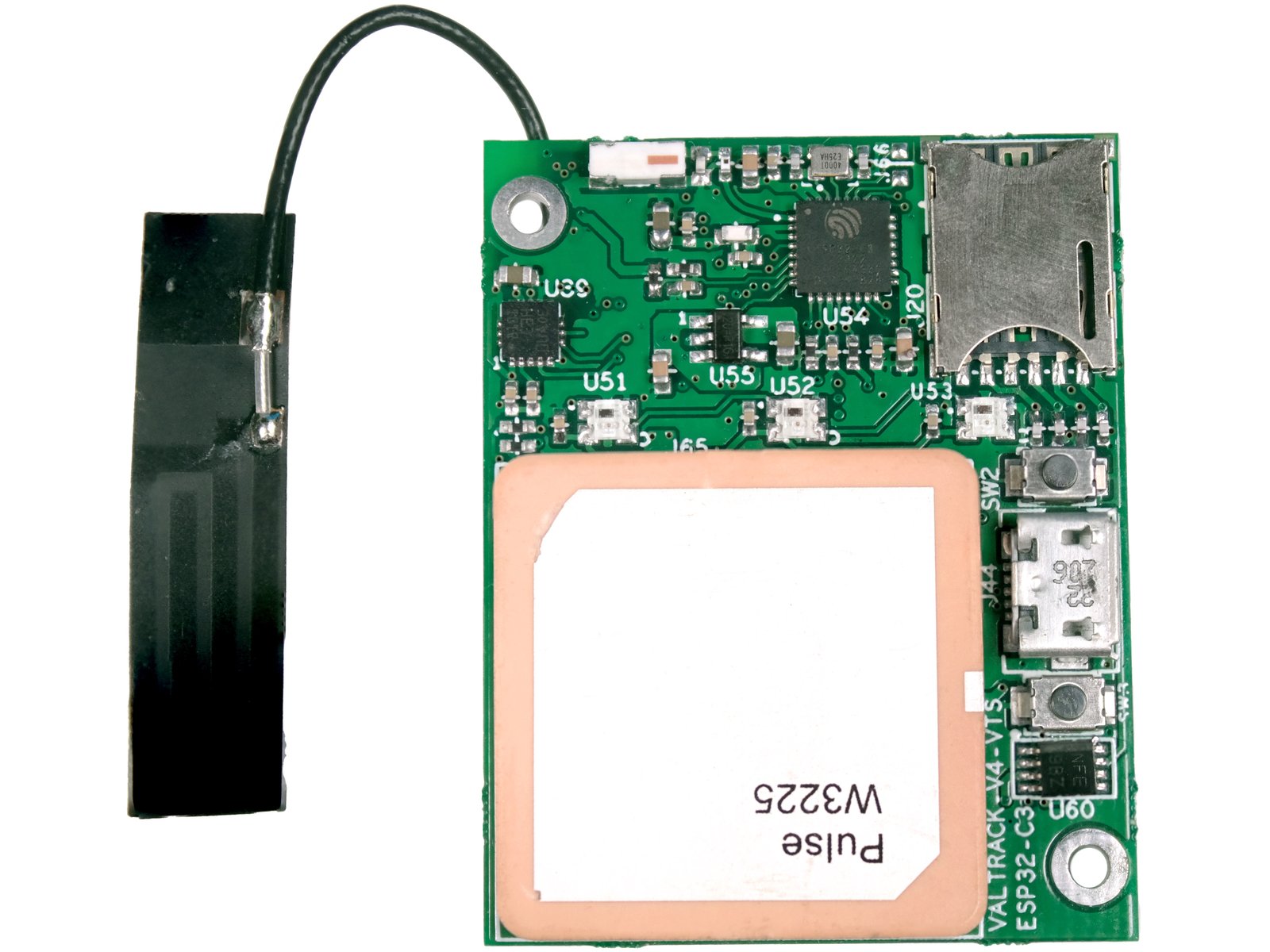

  • Bare PCB Dimensions: Length: 34 mm * Width: 43 mm * Thickness: 1.6 mm
• Cellular module:
  • A7672S - 4G-LTE-CAT1 / 2G - For India & Asia
  • A7672E - 4G-LTE-CAT1 / 2G - For Europe
  • A7672SA - 4G-LTE-CAT1 / 2G - For South America & Australia
  • SIM7672NA - 4G-LTE-CAT1 for North America
• Antenna:
  • 📶 Cellular: U.FL Connector 1.5 dBi gain Flexible PCB antenna comes attached

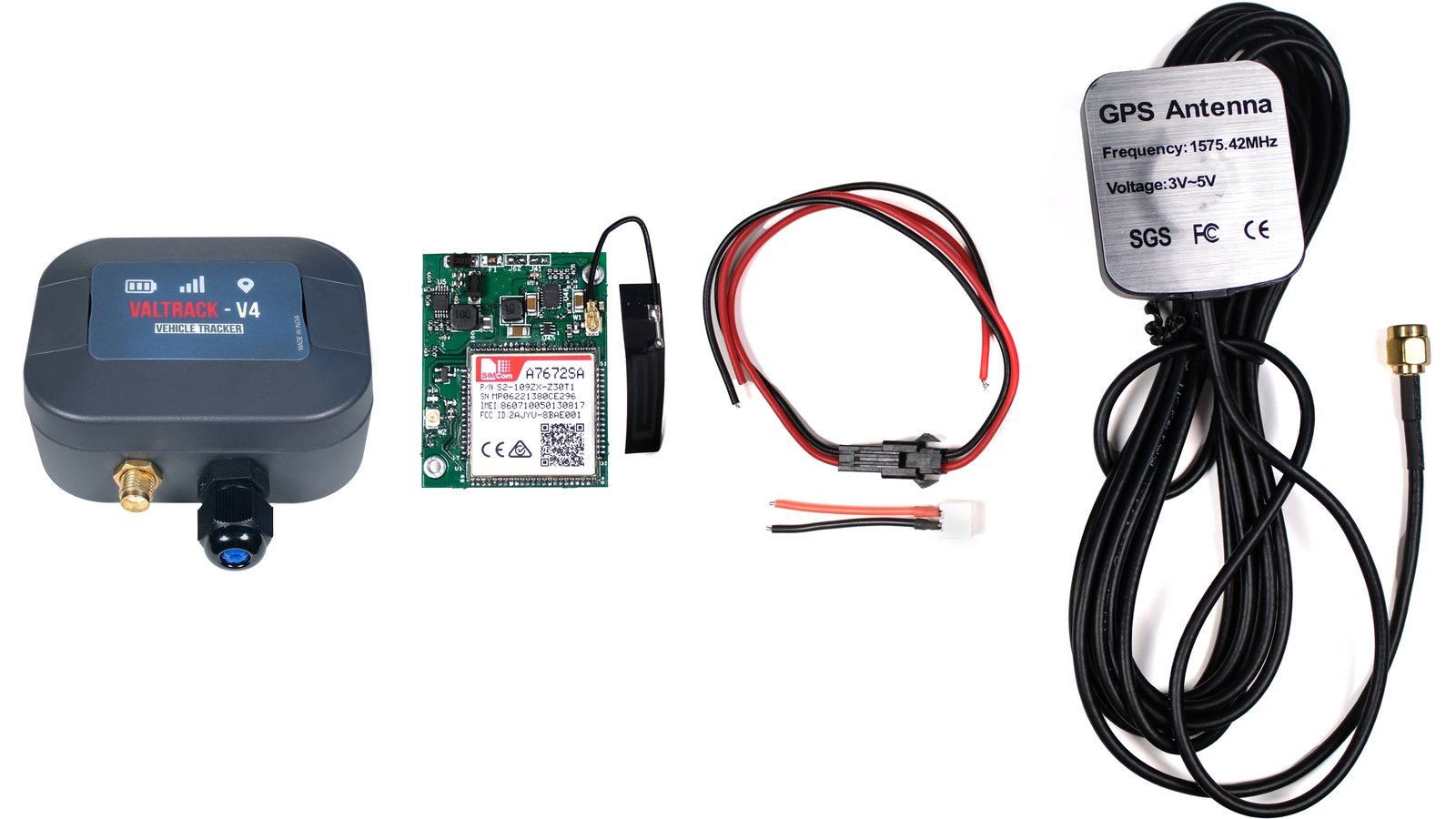

  • 🛰 A7672x GNSS: U.FL Connector, Patch antenna comes attached, (External GNSS is enabled on request only)
  • ESP32 Wi-Fi & Bluetooth Antenna: 2.4 GHz Chip antenna provided on board
• Battery Support: 3.7 V - 4.2 V DC Li-Po backup battery is supported. Use > 400 mAH capacity battery. MP2617 charger chip is used to handle the battery charging.
• Navigation hardware: Inbuilt GNSS of A7672x. A7672x has inbuilt GNSS hardware which needs passive or external active antenna [Bias is already provided to the GNSS U.FL connector]
• Operating Modes: HTTP, MQTT

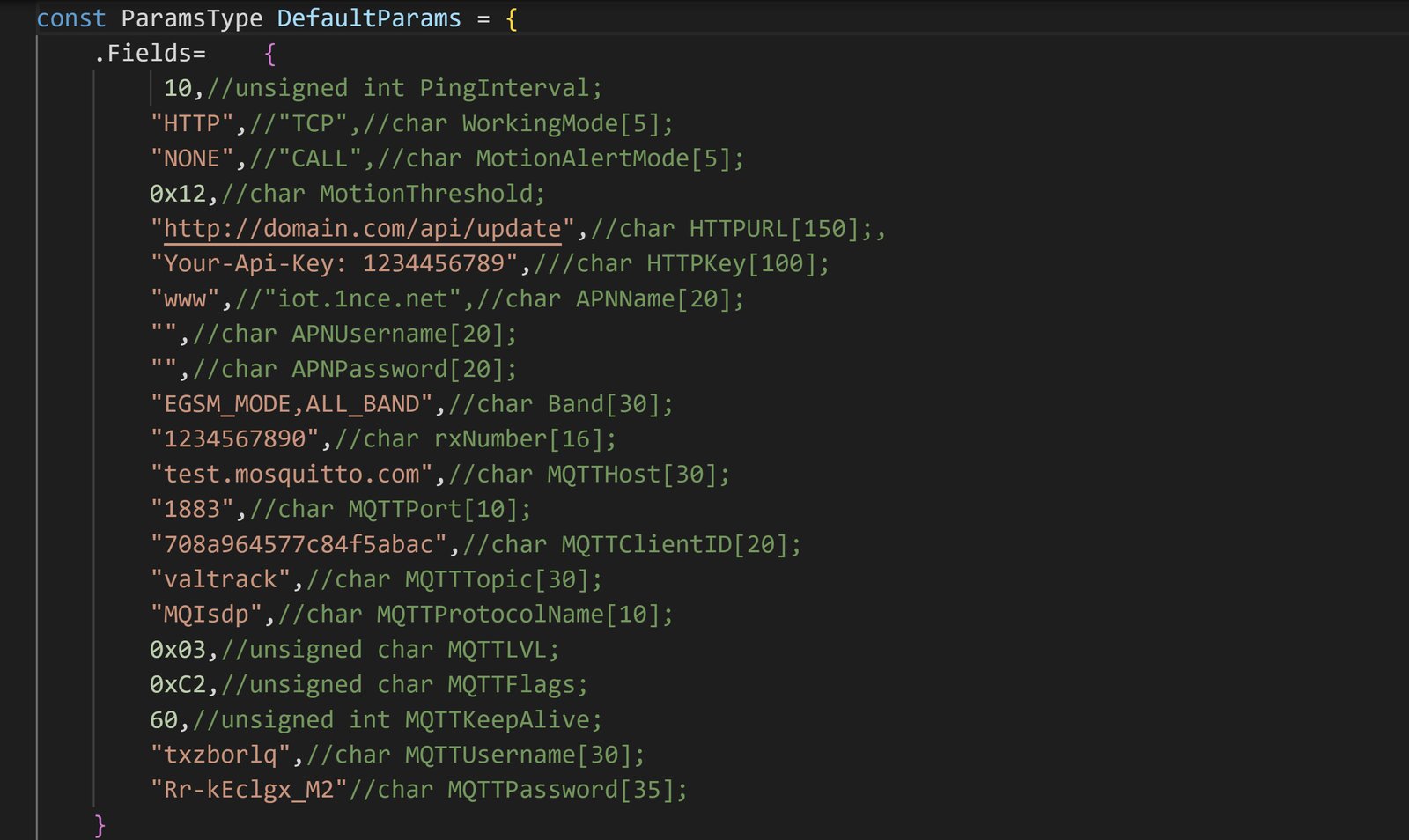

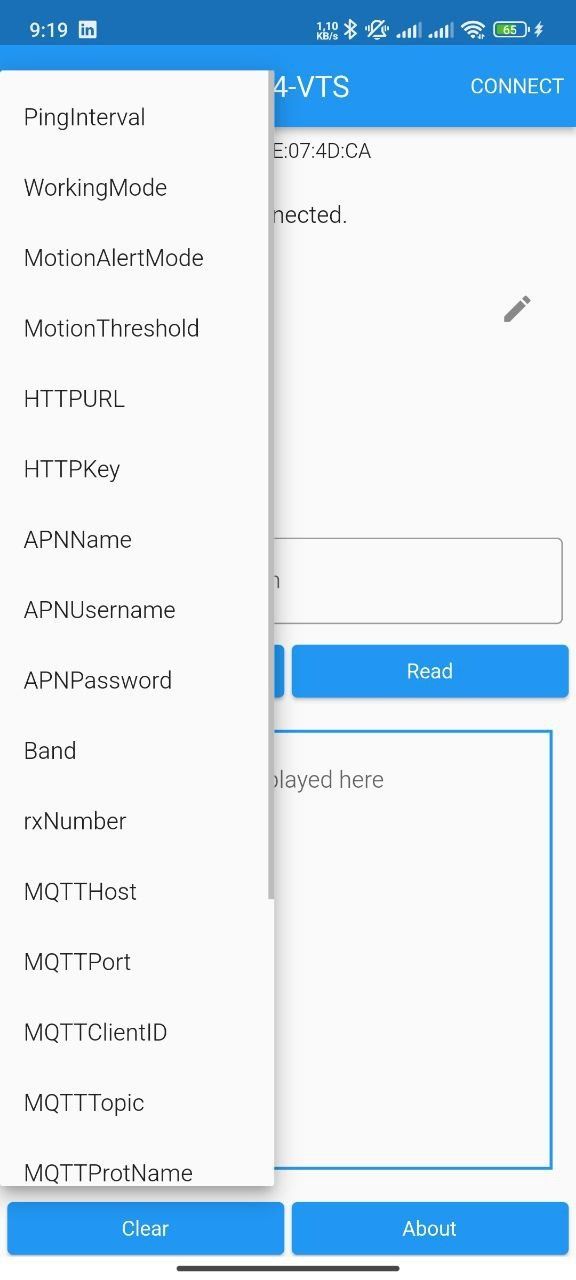

• Configuration Methods: USB / Bluetooth
• Processor: Espressif ESP32 - C3FH4 RISC-V chipset
• Motion Sensor: LIS3DH 12-bit, 3-axis Accelerometer
• Memory: 4 MB inbuilt flash of ESP32 - C3FH4
• Connectivity: Bluetooth, GPRS, SMS, Call
• SIM connector: Nano SIM card connector

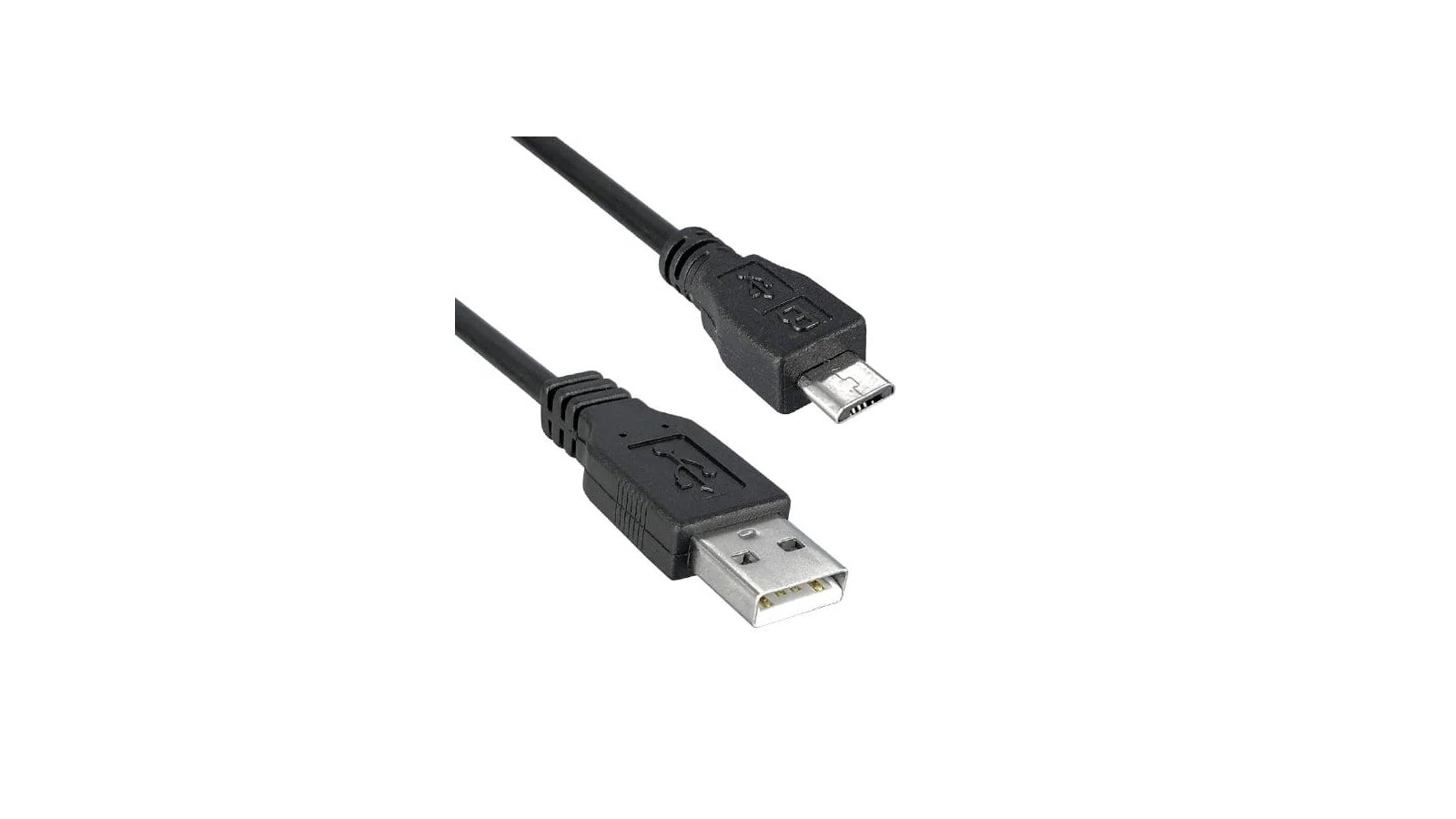

• Flashing options: Micro USB

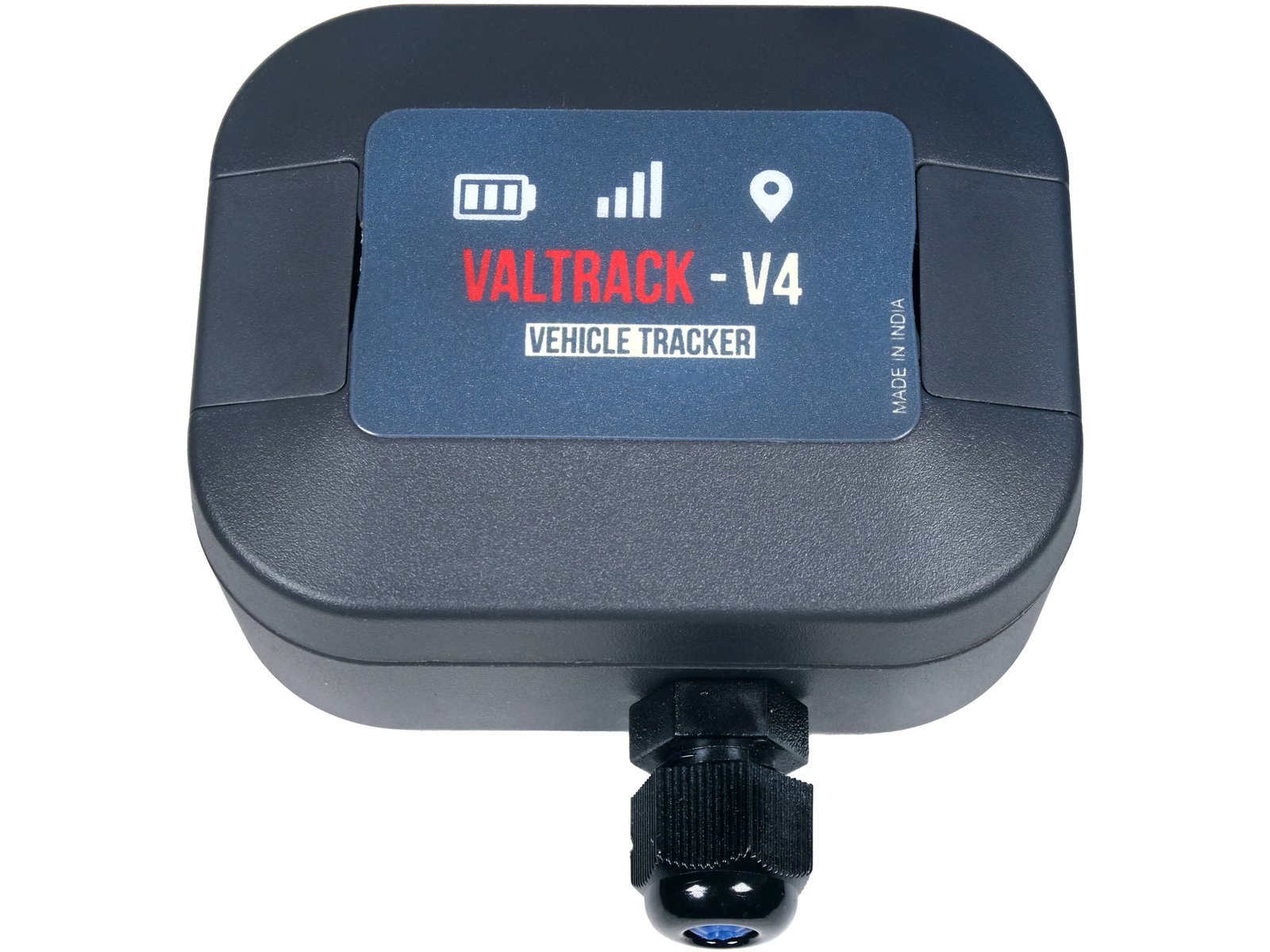

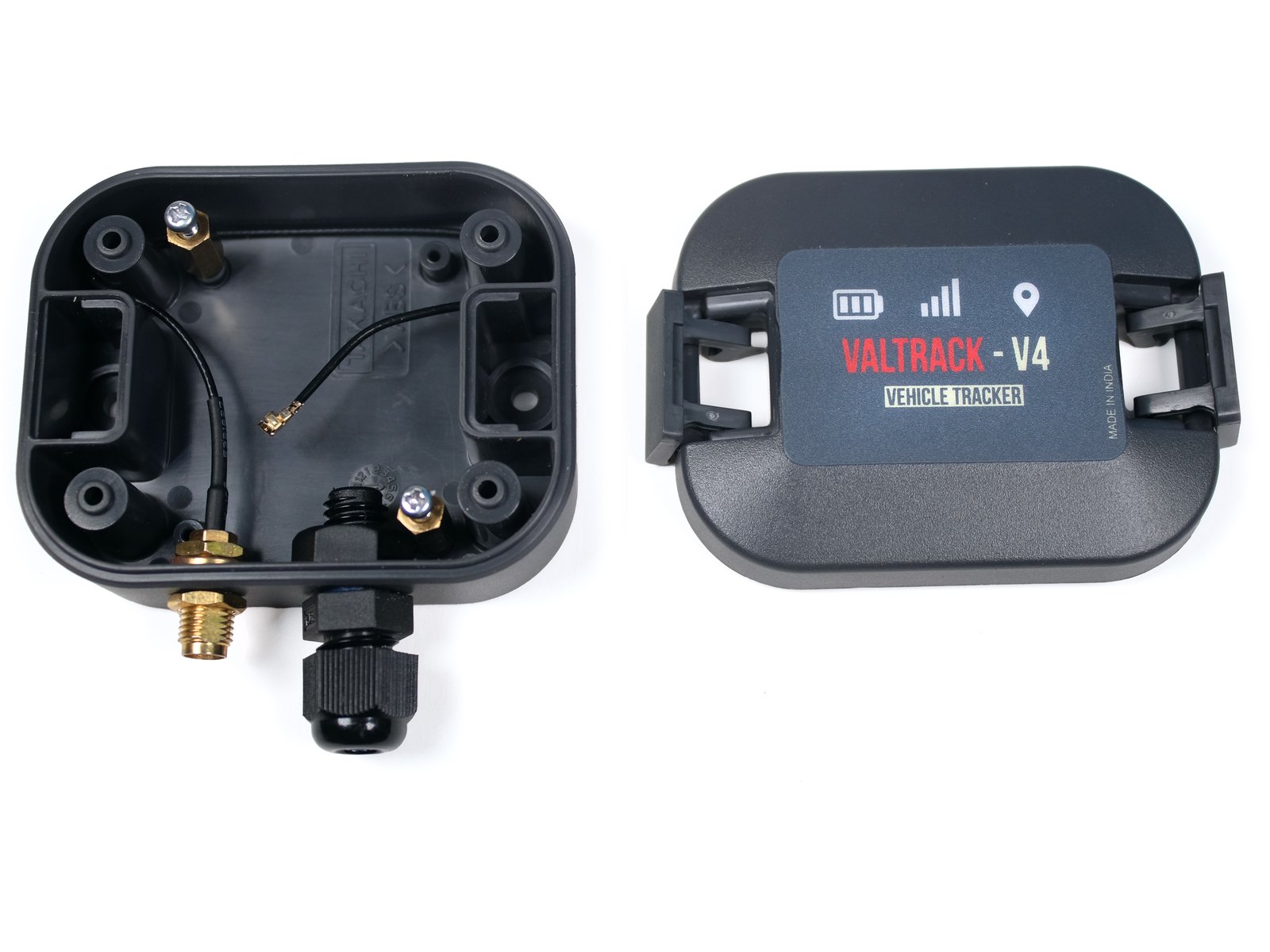

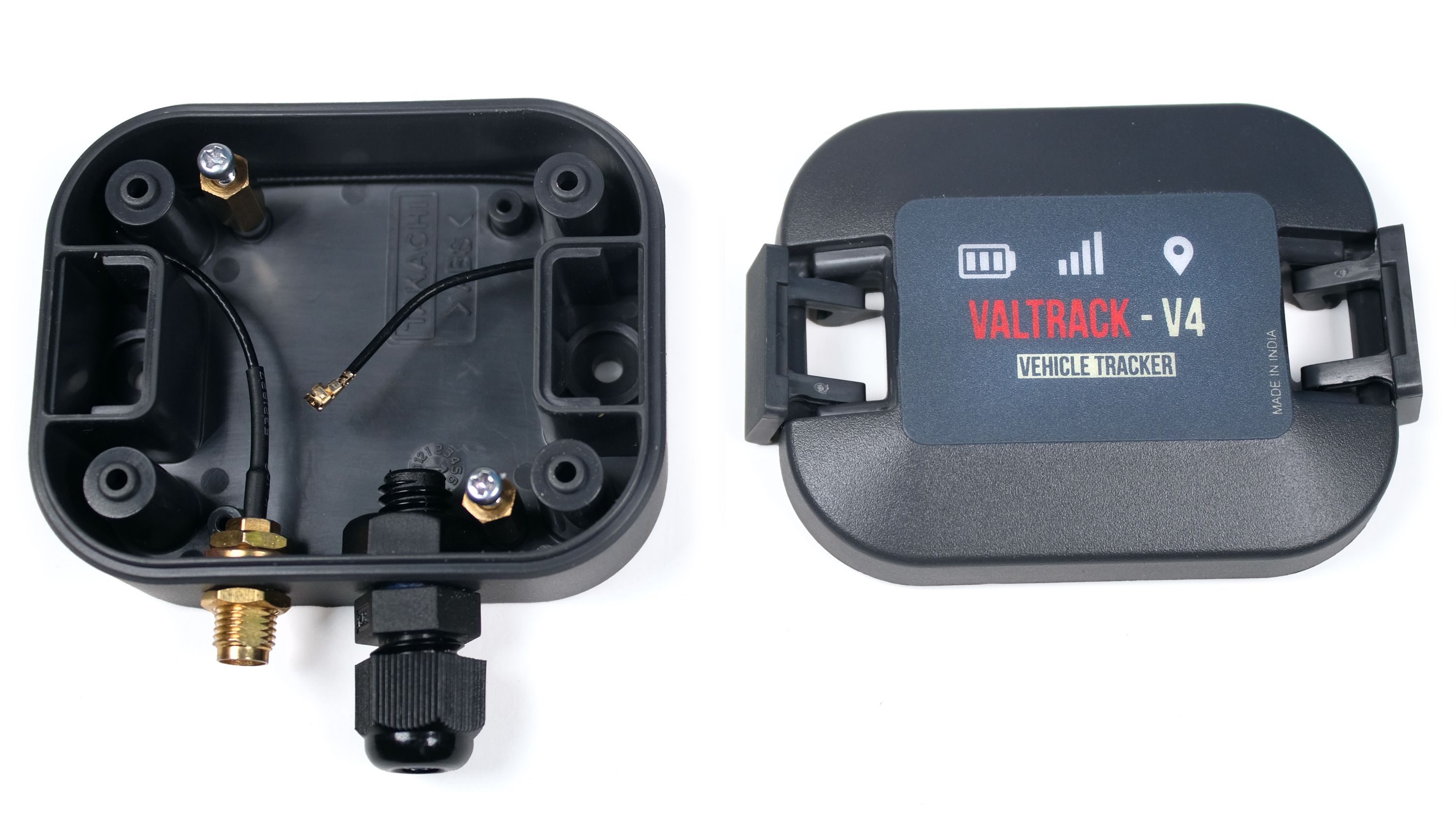

• Enclosure: (Optional) Standard IP67 rated enclosure
• Indicators: 3x WS2812 RGB LED indicators for battery, network & location information

Comparison Chart

Open Source

You can find the full Valtack V4 documentation, including a getting started guide, configuration, programming and more in our Wiki.

Open Hardware:

• Board schematics
• Firmware
