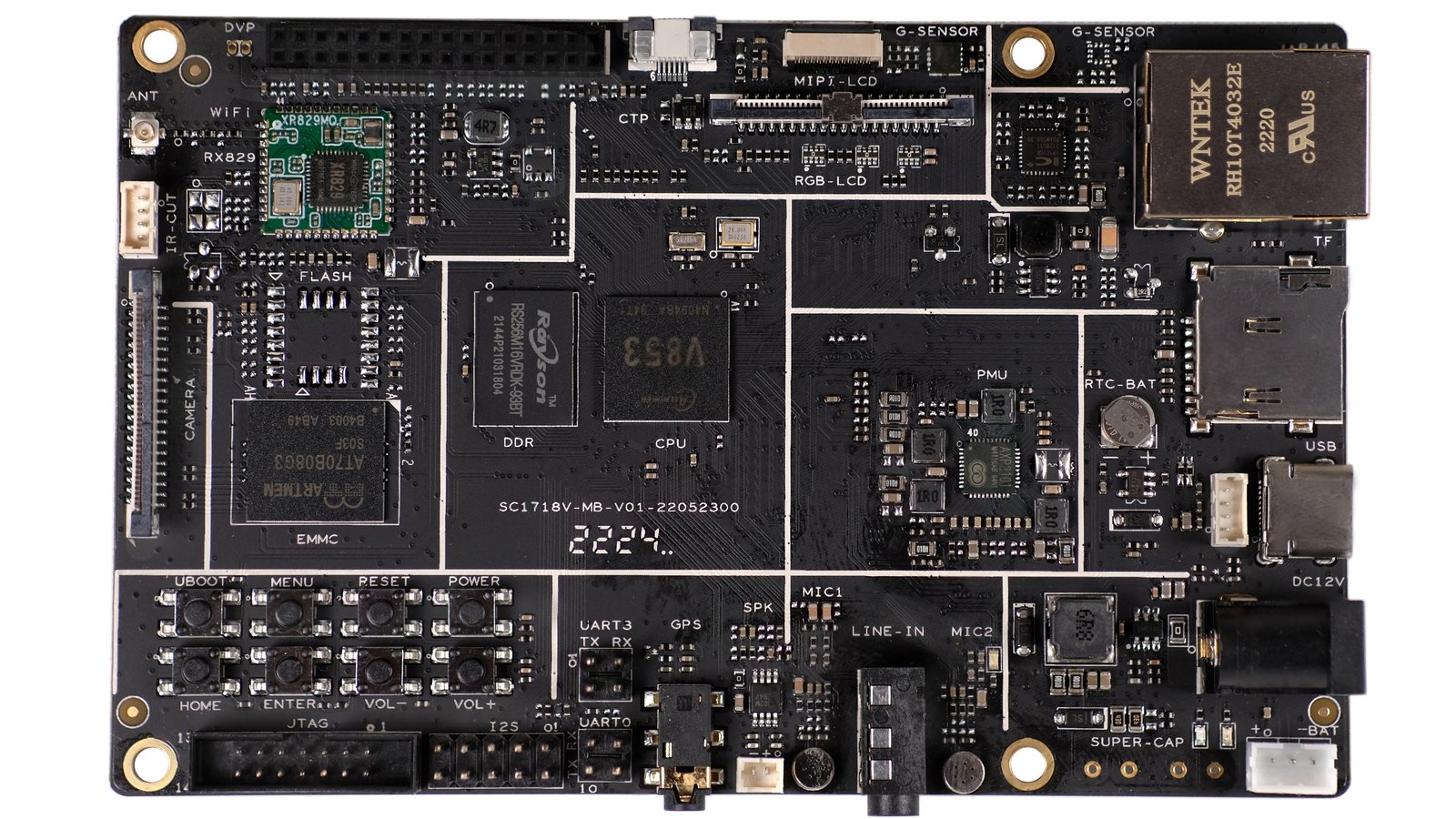

V853 Dev Board realizes the full potential of Allwinner’s powerful V853 SoC, which includes a 1-GHz Arm Cortex-A7 core, a 600-MHz RISC-V E907 core, and a 1-TOPS NPU core. It does so by integrating several additional modules that, together, provide 512 MB of DDR3 memory, 8 GB of eMMC storage, SD-card support, Wi-Fi, Bluetooth, Ethernet, SD-card support, USB connectivity, dual microphones, a dual-camera interface, IT-CUT, a screen interface, a battery interface, an RTC battery, buttons, power management, a speaker, GPS support, a G-SENSOR interface, JTAG, I²S, and UART, among other features.

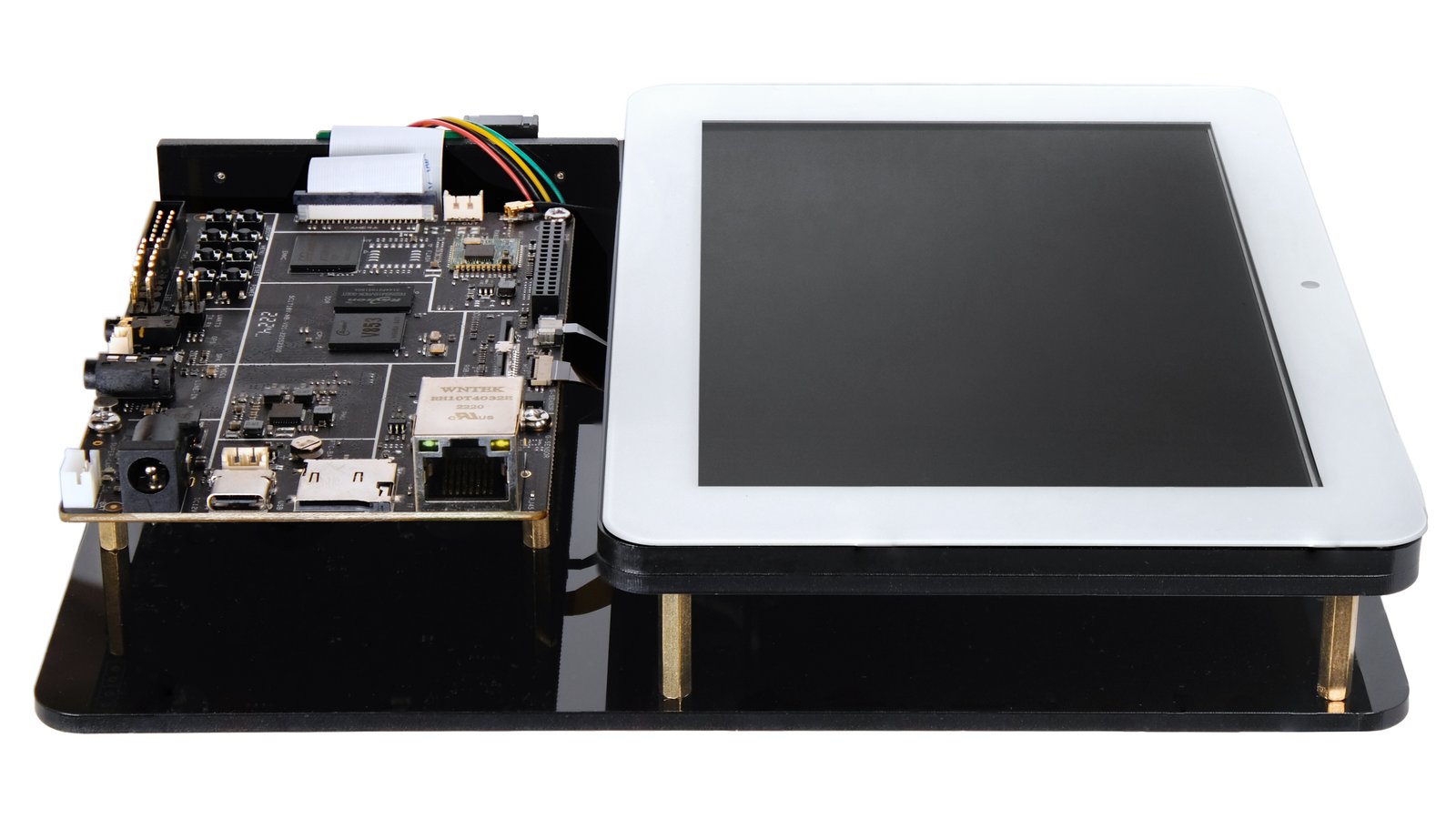

V853 Dev Board is also equipped with a 7-inch MIPI-LCD screen, a dual-camera module, and official support for a Tina Linux system based on version 4.9 of the Linux kernel and Uboot 2018.

Features & Specifications

• SoC: Allwinner V853 (1-GHz Arm A7 + 600-MHz RISC-V E907 + 1-TOPS NPU)
• Memory: 512-MB DDR3 (Crystal Memory RS256M16VRDX-93BT)
• Storage: 8-GB eMMC (AT70B08G3)
• Wireless networking: 2.4-Gbit Wi-Fi/BT (Allwinner XR829 module)
• Wired networking: 100-Mbps Ethernet (IP101GR)
• Camera: 1080p stereoscopic camera (2x GC2063)
• Screen: 7-inch LCD
• Microphone: 2x analog microphones
• Buttons: 8 (Uboot, Power, Reset, and 5x GPADC function)
• LEDs: 1x green, 1x red, and 1x blue
• Debugging: Supports UART serial-port and ADB USB debugging
• USB: USB Type-C with support for power delivery and data transmission
• PMU: Allwinner AXP2101
• Dimensions: 118 x 75 mm
• PCB: 4-layer board

Open Source

You can find documentation and source files on our website.

About Allwinner

Allwinner is a popular SoC-design company in China. They have produced designs for smart-car, smart-home, and smart-industry solutions as well as other products, including wireless SoCs. AWOL and Whycan, both subsidiaries of Allwinner, are the organizations behind V853 Dev Board, which is an SoC designed specifically for AI-vision applications.
