Pin Header

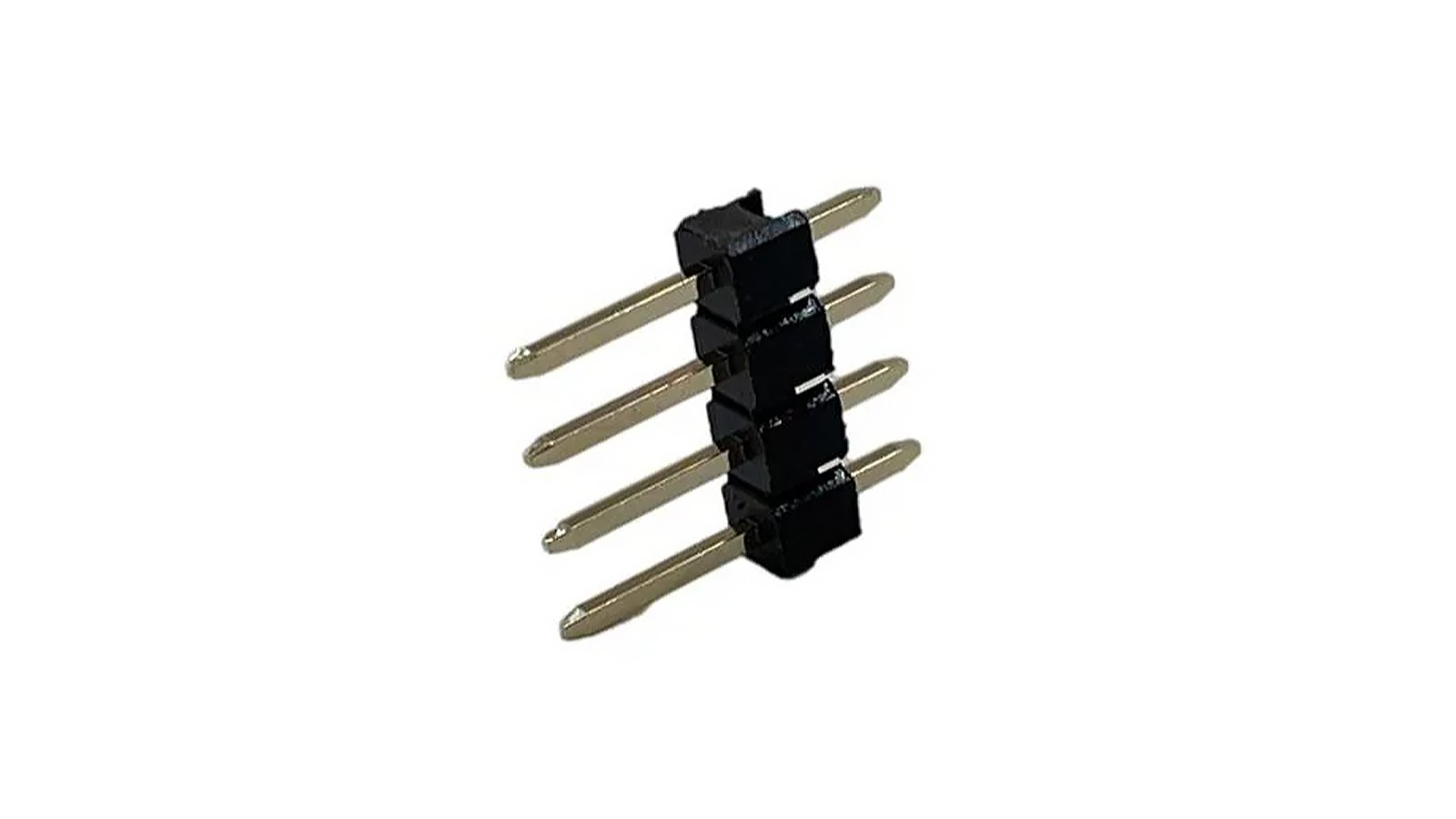

2.54 mm gold-plated single row pin header. No additional shipping charge when ordered with other products.
$1
Free Worldwide Shipping
2.54 mm gold-plated single row pin header. No additional shipping charge when ordered with other products.
| Parameter | Details |
|---|---|
| Insulator | PBT, glass reinforced, rated UL 94V-0 |
| Contacts | Brass |
| Plating | Gold flash over Nickel underplate overall |
| Operating Voltage | 250 VAC max |
| Current Rating | 3 Amps max |
| Contact Resistance | 20 mohms max |
| Insulation Resistance | 5,000 Mohms min @ 500 VDC |
| Dielectric Withstanding Voltage | 1,000 VAC for 1 minute |
| Environmental | Lead-free, RoHS compliant |
| Manufacturer |
Adam Tech
|
|---|---|
| Introduced | Mar 04, 2015 |
| Lifecycle Status | Active |
