The E-Series 065B dev kits are the perfect way to explore the Agilex 5 FPGA. The two versions, Premium and Modular both feature the same A5ED065BB32AE6SR0 FPGA, but accommodate different use cases with their form factors and connector options.

Unboxing Video

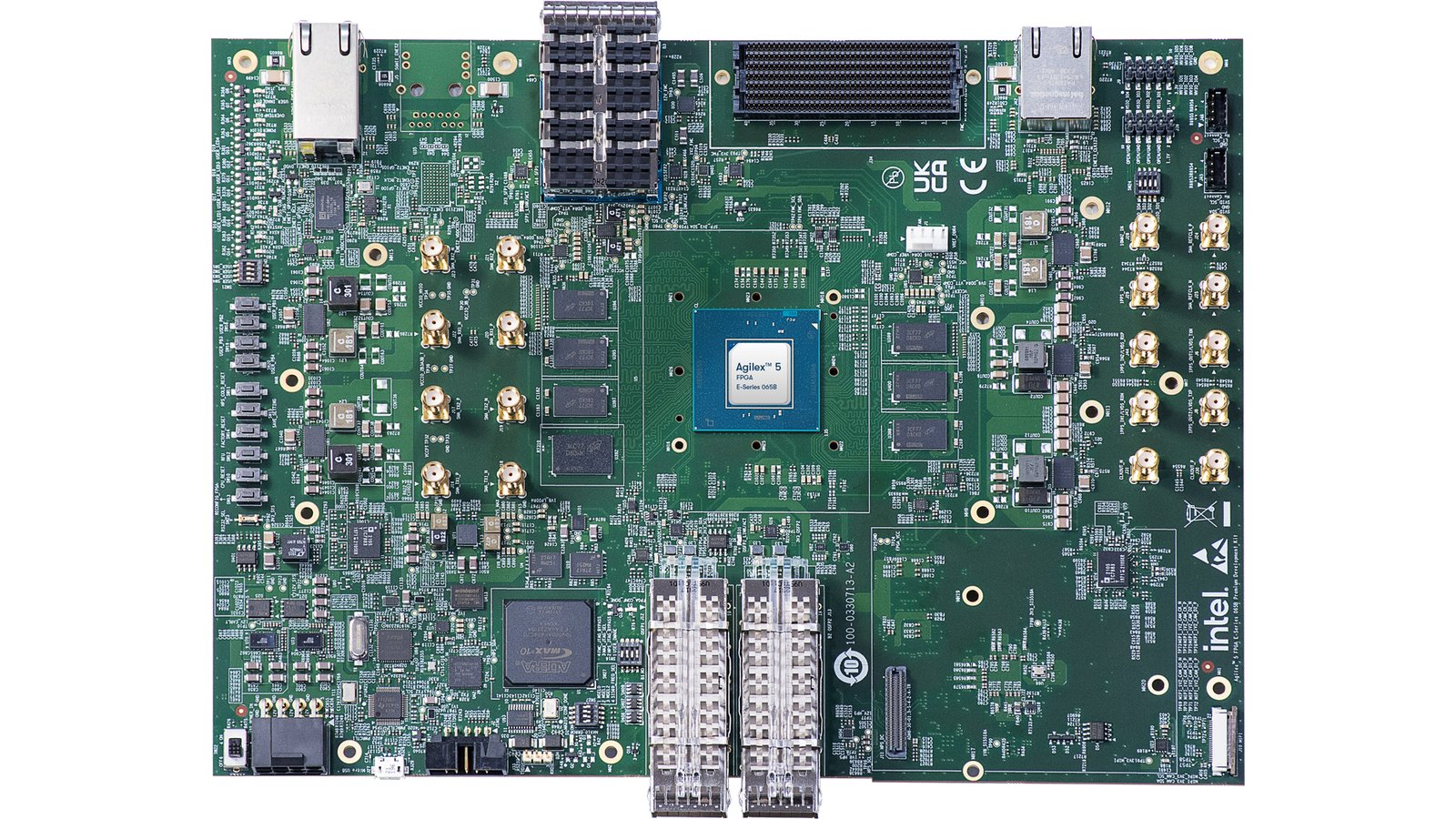

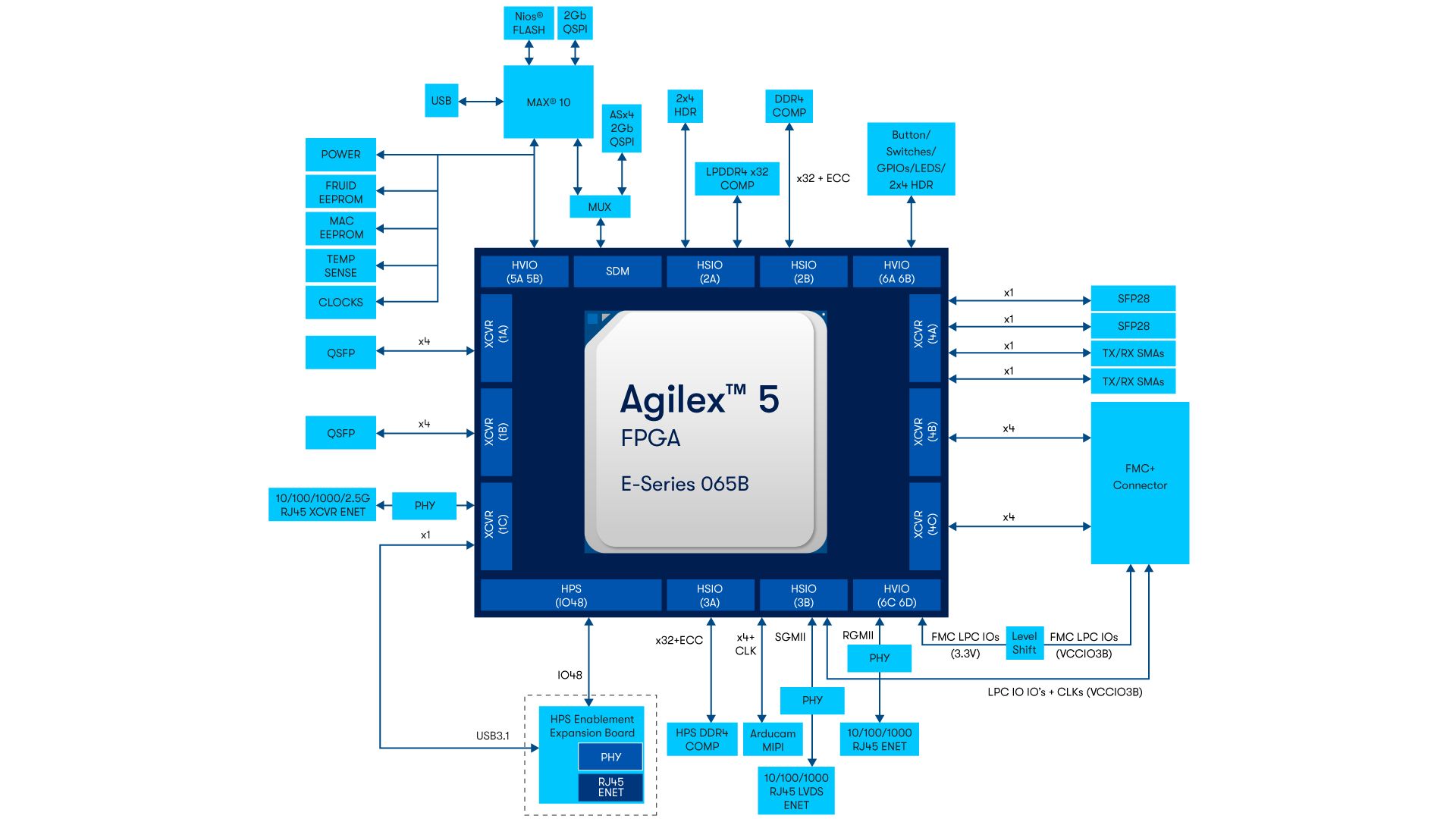

Premium Dev Kit

• FPGA: A5ED065BB32AE6SR0 engineering sample silicon (see errata)
  • Quad hard processor system (HPS) w/ expansion for microSD, RJ45, USB Type-C (USB2/3.2Gen1)
  • 17 Gbps transceivers
  • 656K logic elements
  • B32A package (32 mm x 32 mm)
• Interfaces:
  • 8 TX/RX FMC+ connector
  • two channels to QSFP and SFP+, TX/RX SMAs, SGMII (RJ45 Ethernet)
• PCIe:
  • x4 support through FMC+ connector
• Memory:
  • LPDDR4
  • DDR4
  • HPS DDR4 up to 2667 Mbps (component soldered)
• Storage:
  • Nios flash memory
  • 2 Gb QSPI Flash Memory
• Form factor:
  • Tabletop
• Software:
  • Includes a one-year license for the Quartus® Prime Pro Edition design software

Agilex™ 5 FPGA E-Series 065B Premium Development Kit delivers a complete prototyping and reference platform design environment that includes both hardware and software for your Agilex™ 5 FPGA E-Series development needs.

The development kit delivers the perfect balance of power efficiency and performance required for a variety of markets from embedded and edge to communications, and many more. It is powered by the Agilex 5 FPGA and SoC. The development kit comes in a tabletop form factor packed with a robust set of features and connectors interfacing with extensive transceivers, DDR4 memory, PCI Express 4.0 x4 connectivity through our FMC+ connector, Nios® Flash memory and 2Gb QSPI Flash memory. It includes a Hard Processor System (HPS) expansion board. All these features are made available to ensure you have everything you need to get started with your designs.

This kit comes in a tabletop form factor, packed with a robust set of features and connectors that are designed to meet your edge and embedded applications​. The features include:

• 17G transceiver interfaces
• Memory interfaces enabling lightning-fast memory access
• PCIe 4.0 x 4 connectivity through our FMC+ connector
• Nios® FLASH and 2Gb QSPI FLASH memory​
• Hard Processor System expansion board

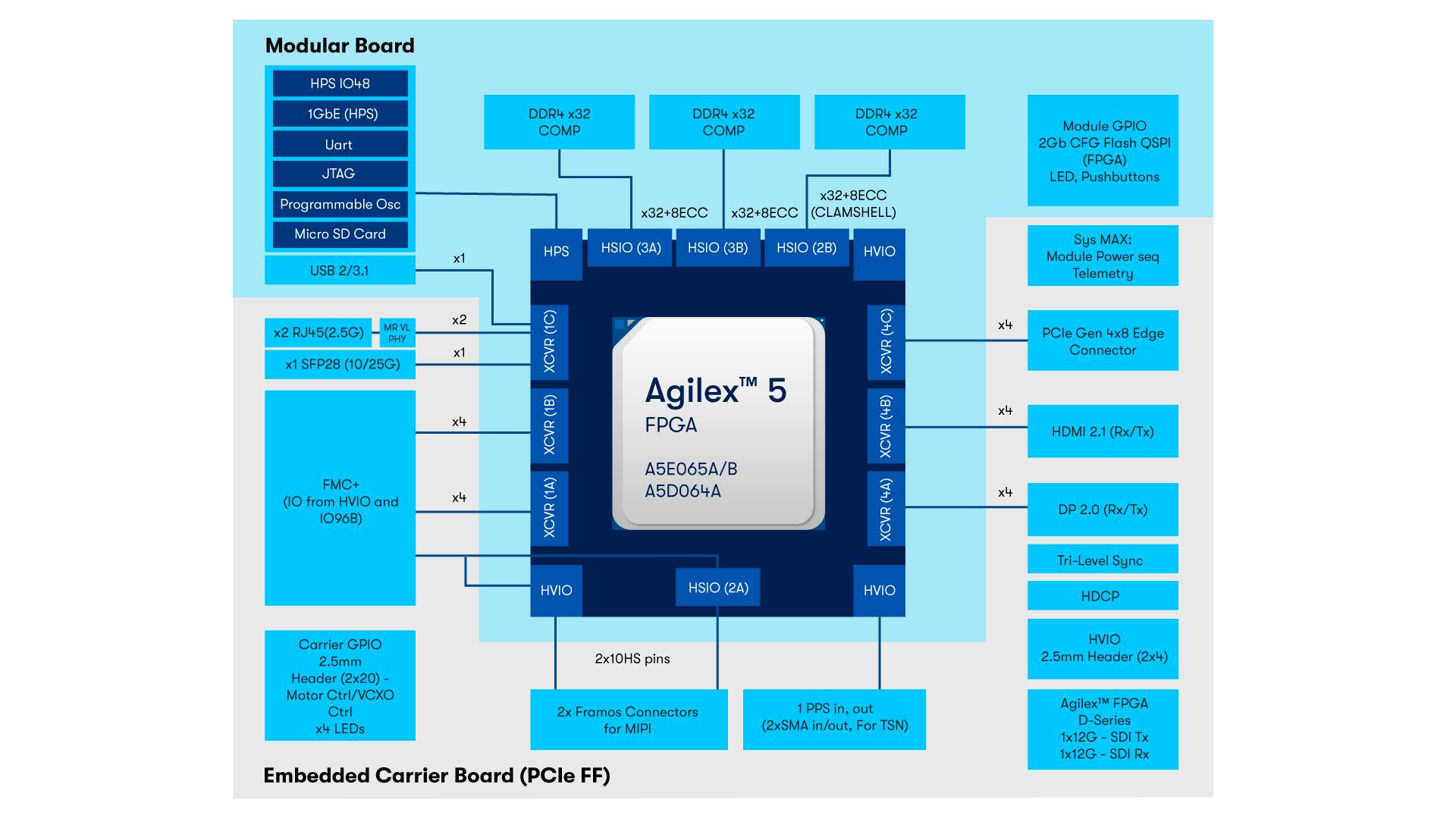

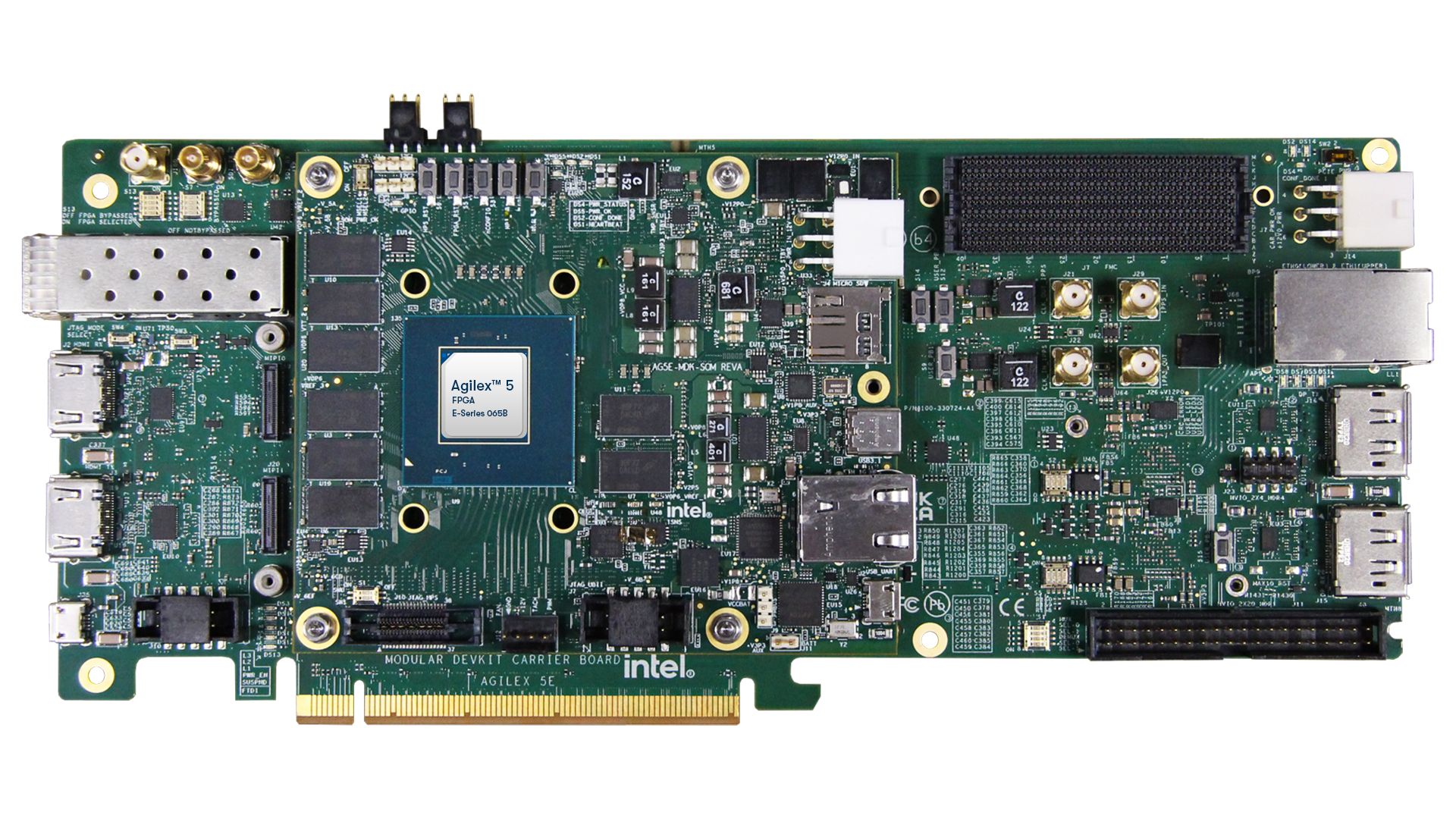

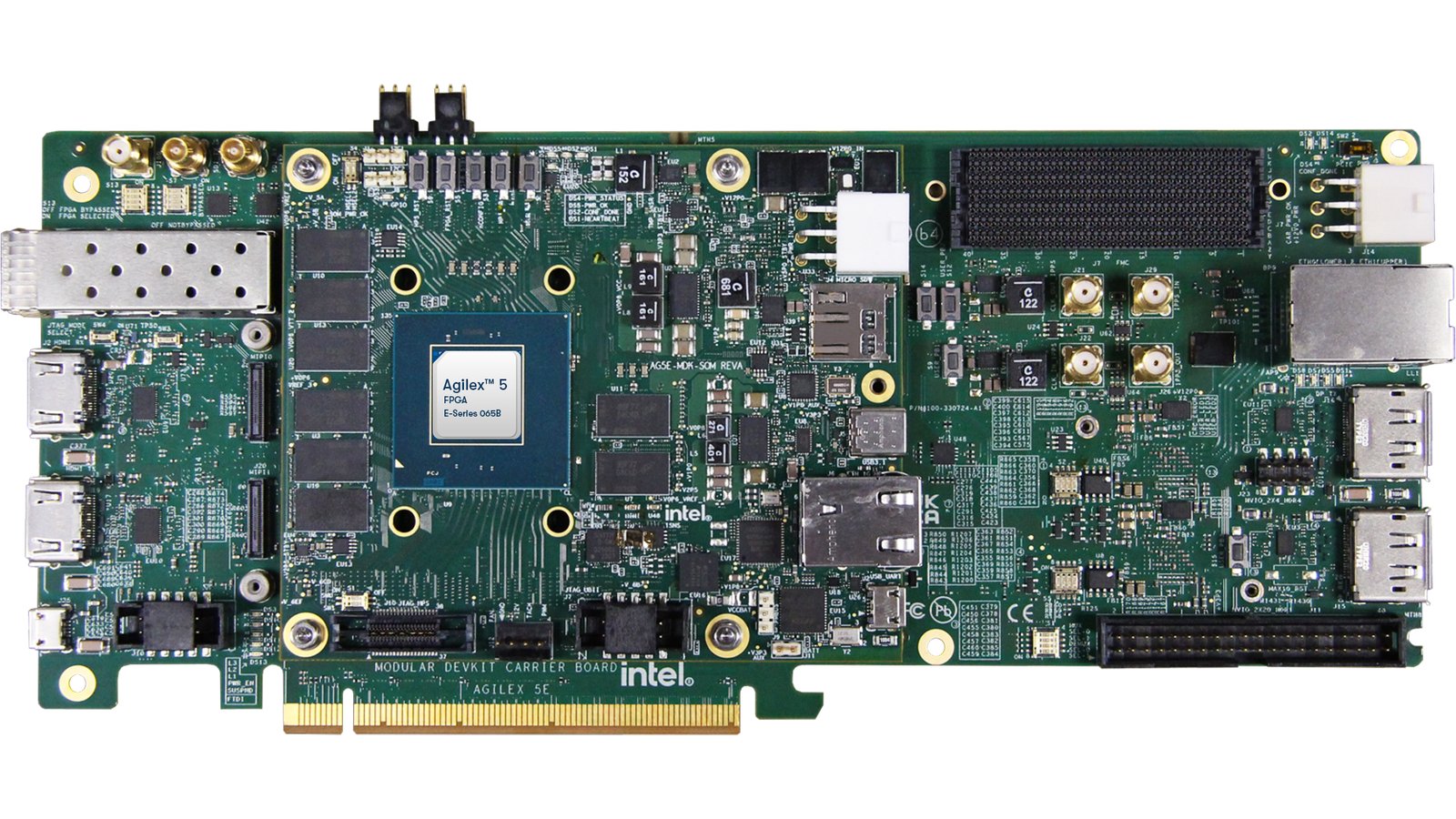

Modular Dev Kit

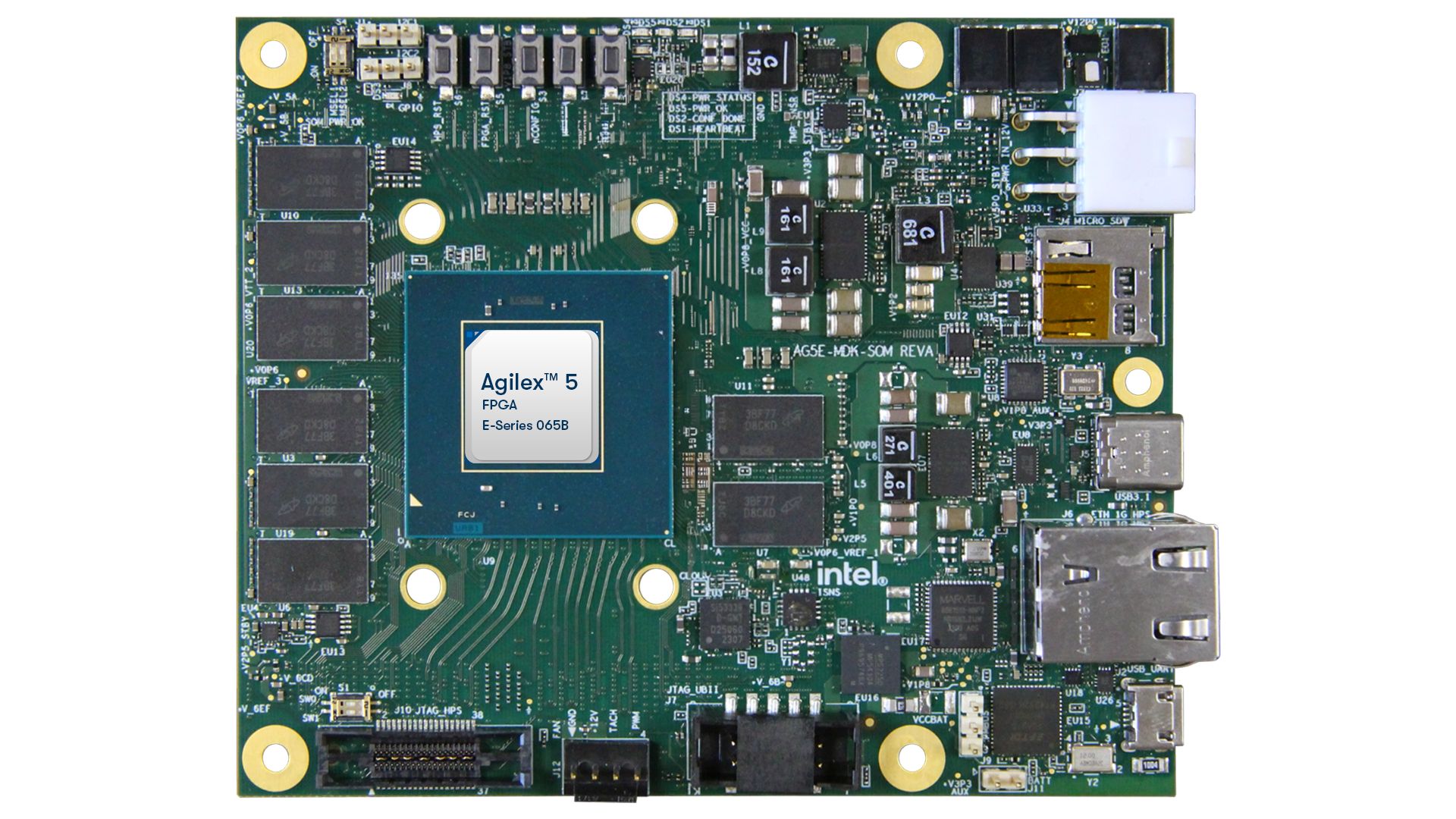

Modular Board

• A5ED065BB32AE6SR0 FPGA engineering sample silicon (see errata)
• microSD card slot
• USB Type-C
• RJ45
• USB Micro Type-B UART
• SDM JTAG
• HPS JTAG

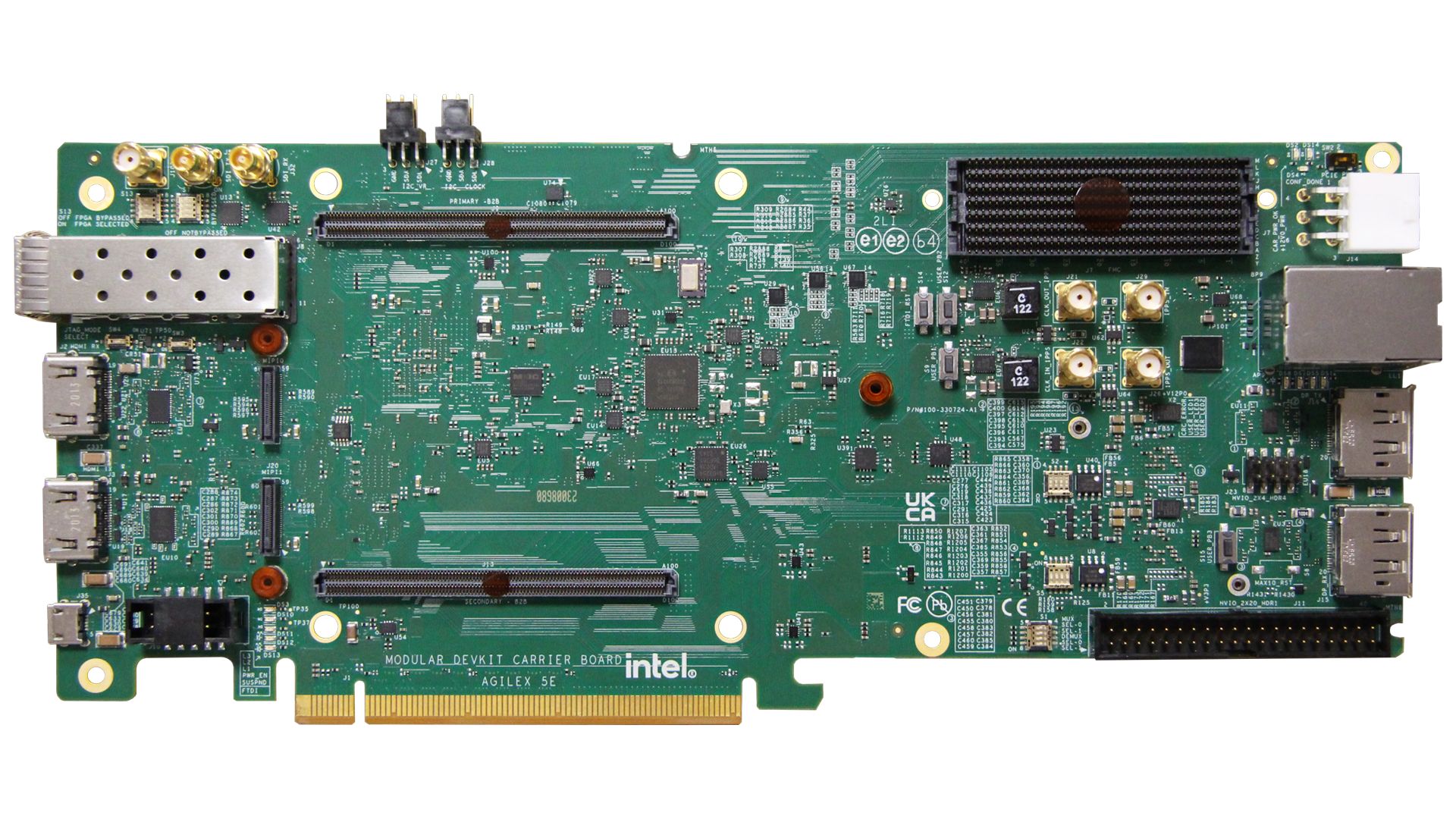

Carrier Board

• Video interfaces – HDMI, DP, MIPI, SDI
• Network – 10/25GE, TSN
• FMC
• PCIe EF – PCIe CEM ¾ FF, Dual slot
• PTP – IEEE1588 Circuit
• Debug - SDM
• Application specific carrier
• Carrier board reusable beyond Agilex 5 FPGA E-Series
