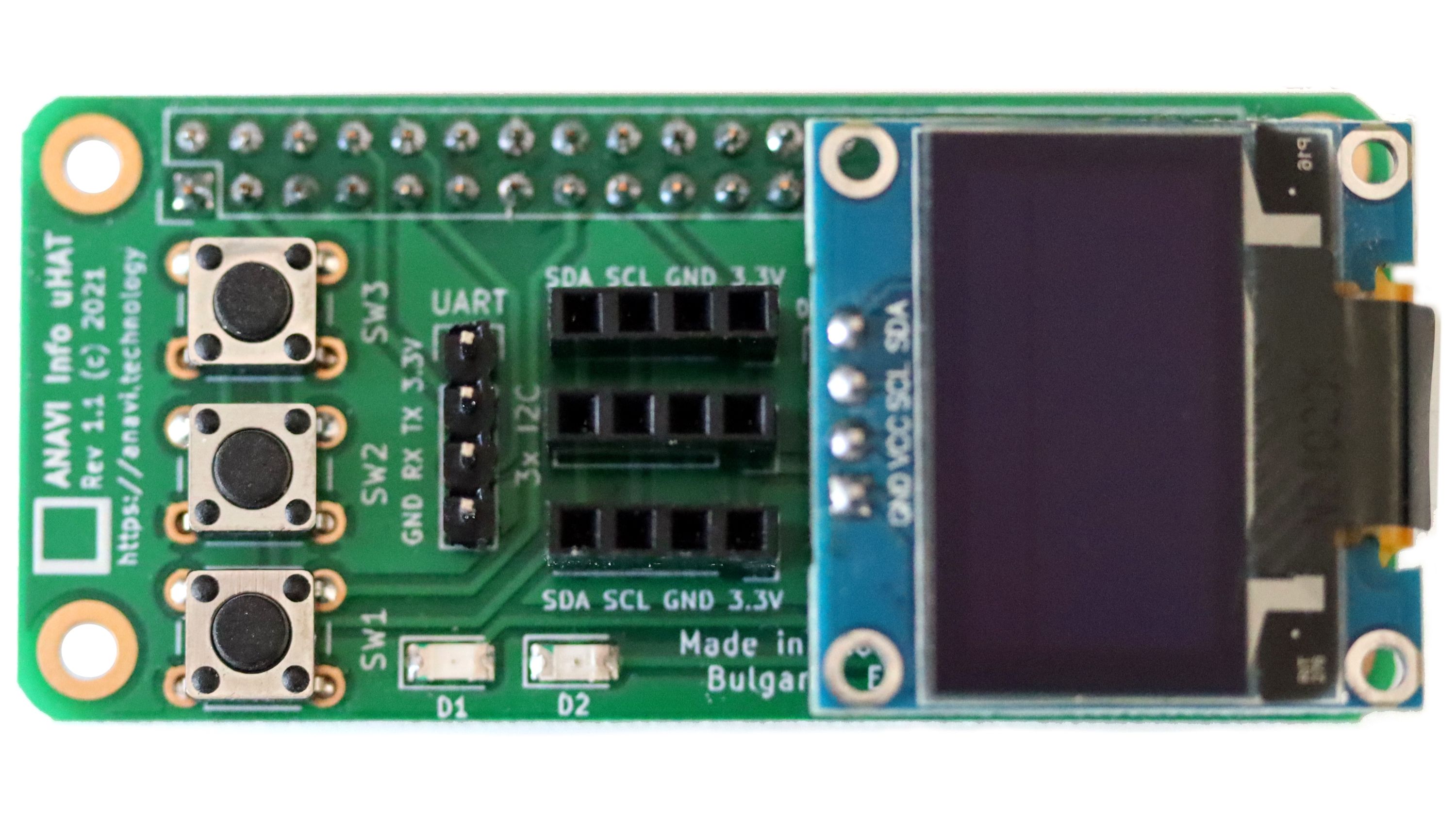

ANAVI Info uHAT is a low-cost, open source Raspberry Pi add-on board with mini OLED display, 3 buttons, red and green indication LEDs as well as slots for various sensors. Each kit includes 0.96" yellow-blue I²C OLED display with resolution of 128x64 individual white OLED pixels. This is a low power consumption display that makes its own light and therefore no additional backlight is required. Additional slots allows attaching various I²C sensors for temperature, humidity, light and barometric pressure as well as a UART pins for easy serial communication. ANAVI Info uHAT follows the official Raspberry Pi uHAT mechanical specification with a valid ID EEPROM.
ANAVI Info uHAT is a perfect open source solution for headless Raspberry Pi applications for use cases such as weather station or showing system information and status on setup with Pi-hole, OctoPrint, Kodi, Homebridge, openHAB, etc.
Features & Specifications

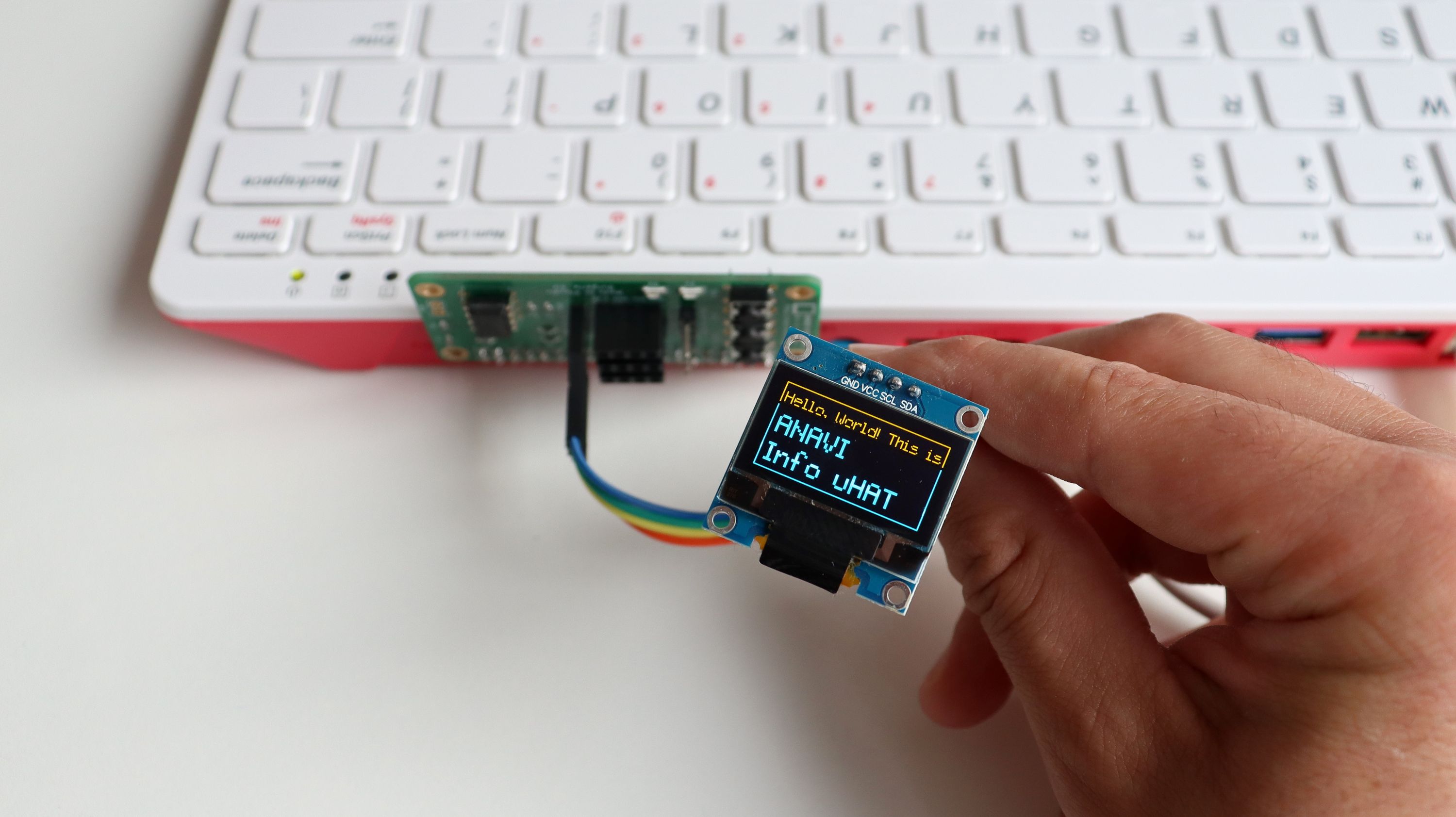

- Replaceable 0.96" yellow-blue I²C OLED display
- Slots for up to 3 plug-and-play I²C sensors
- UART pins for serial communication

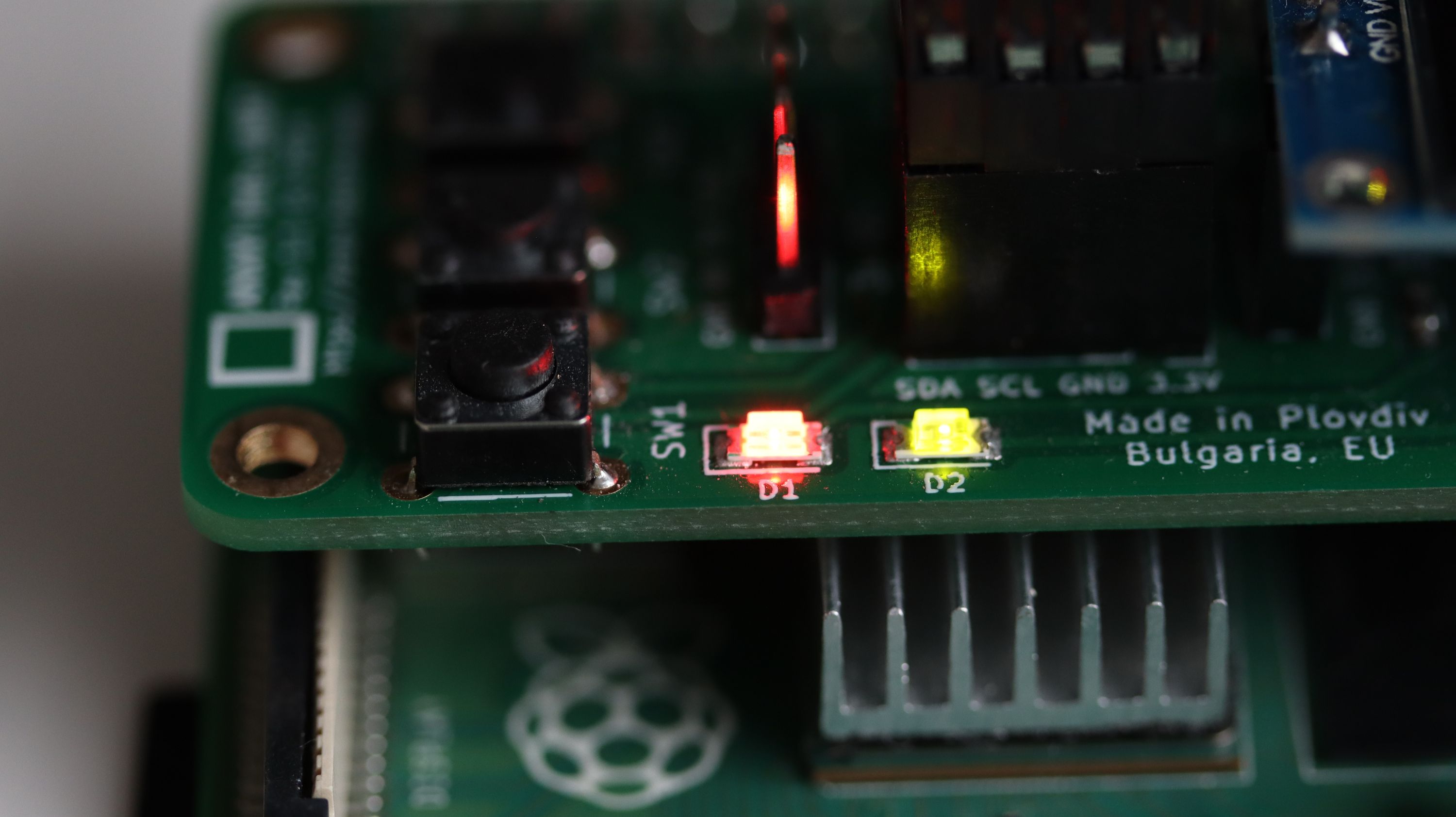

- Green and red indication LEDs

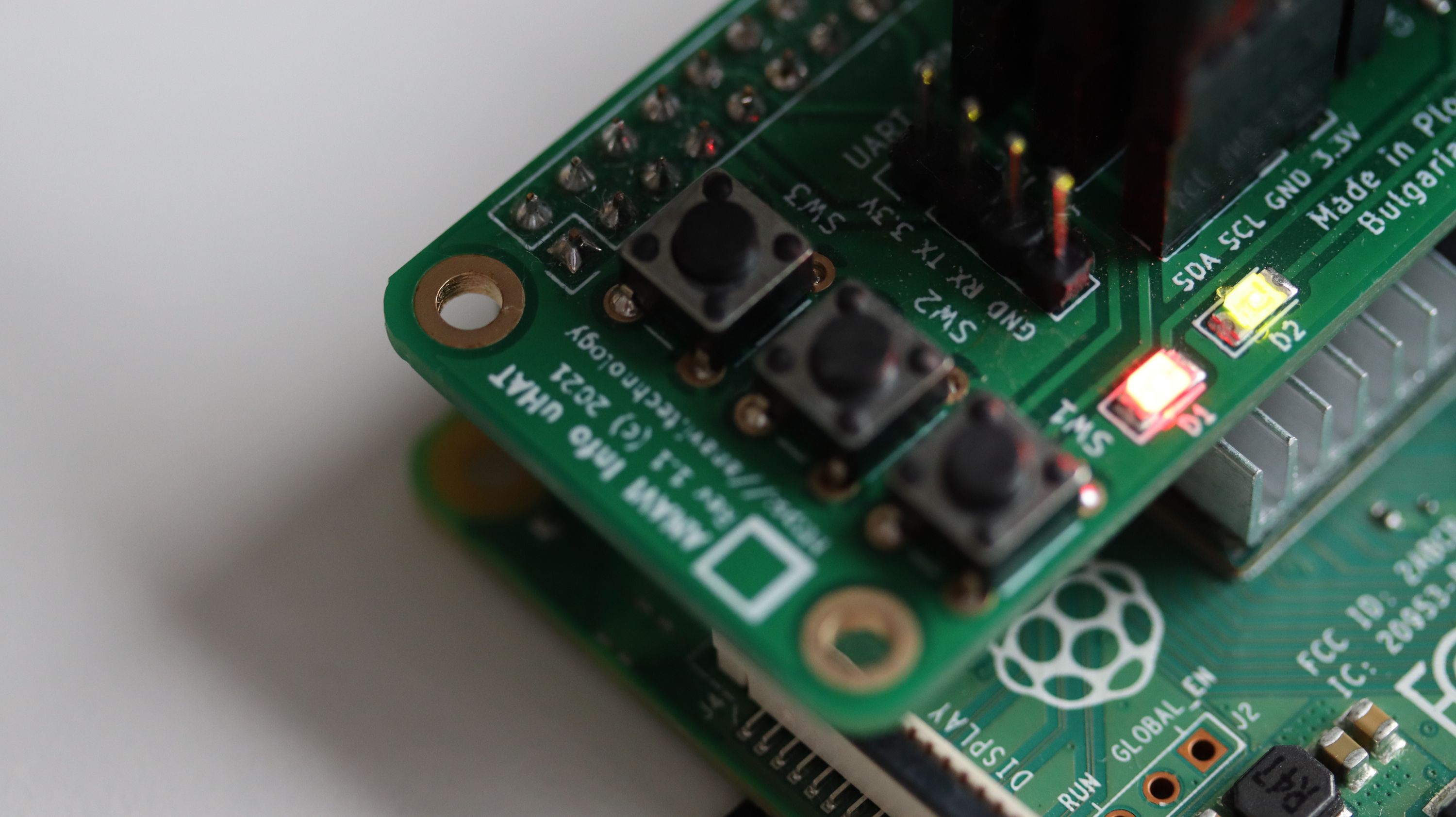

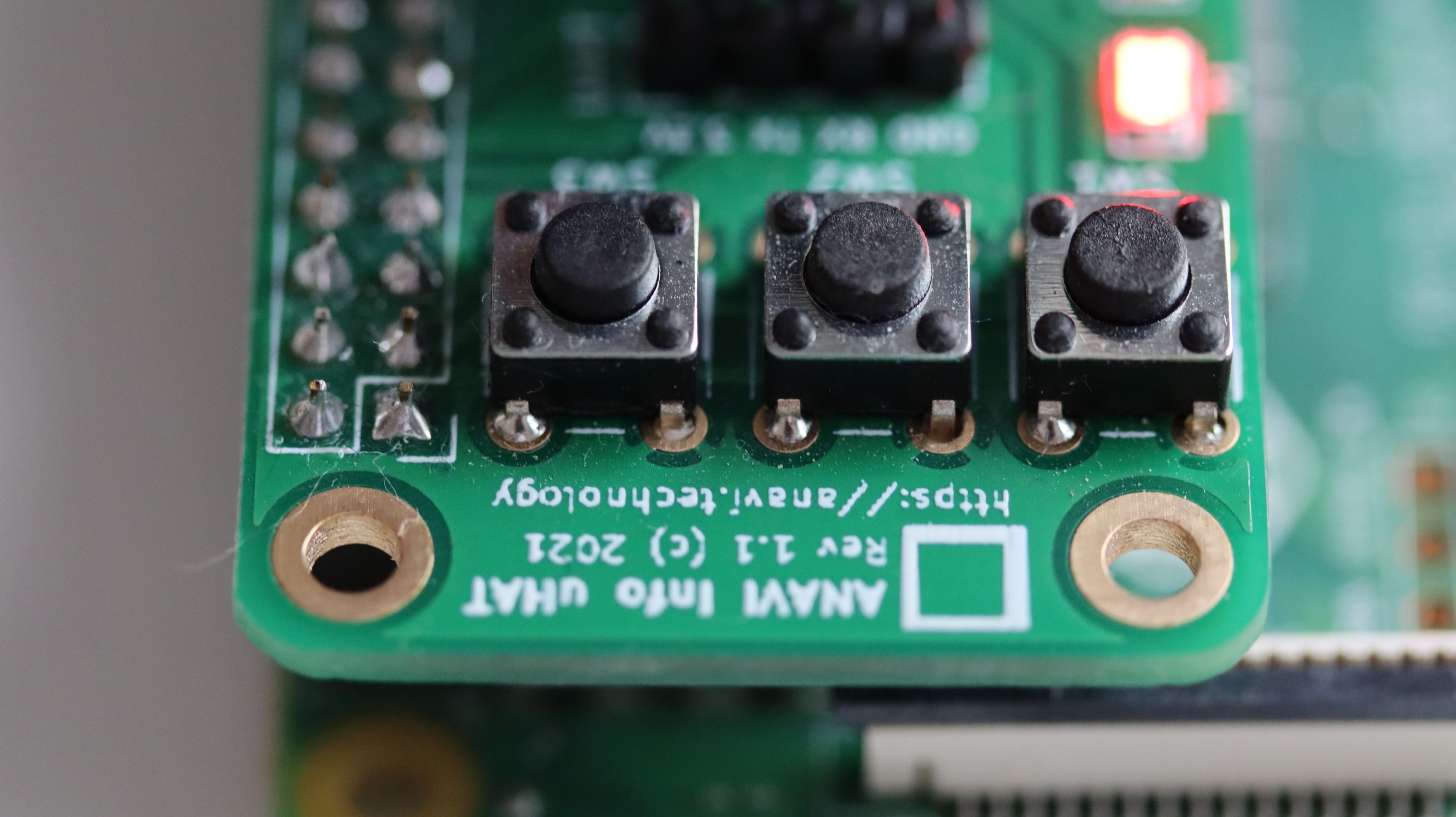

- 3 buttons
- Follows uHAT mechanical specification with a valid ID EEPROM
- Excellent software support, documentation, and open source examples
Extensive Compatibility

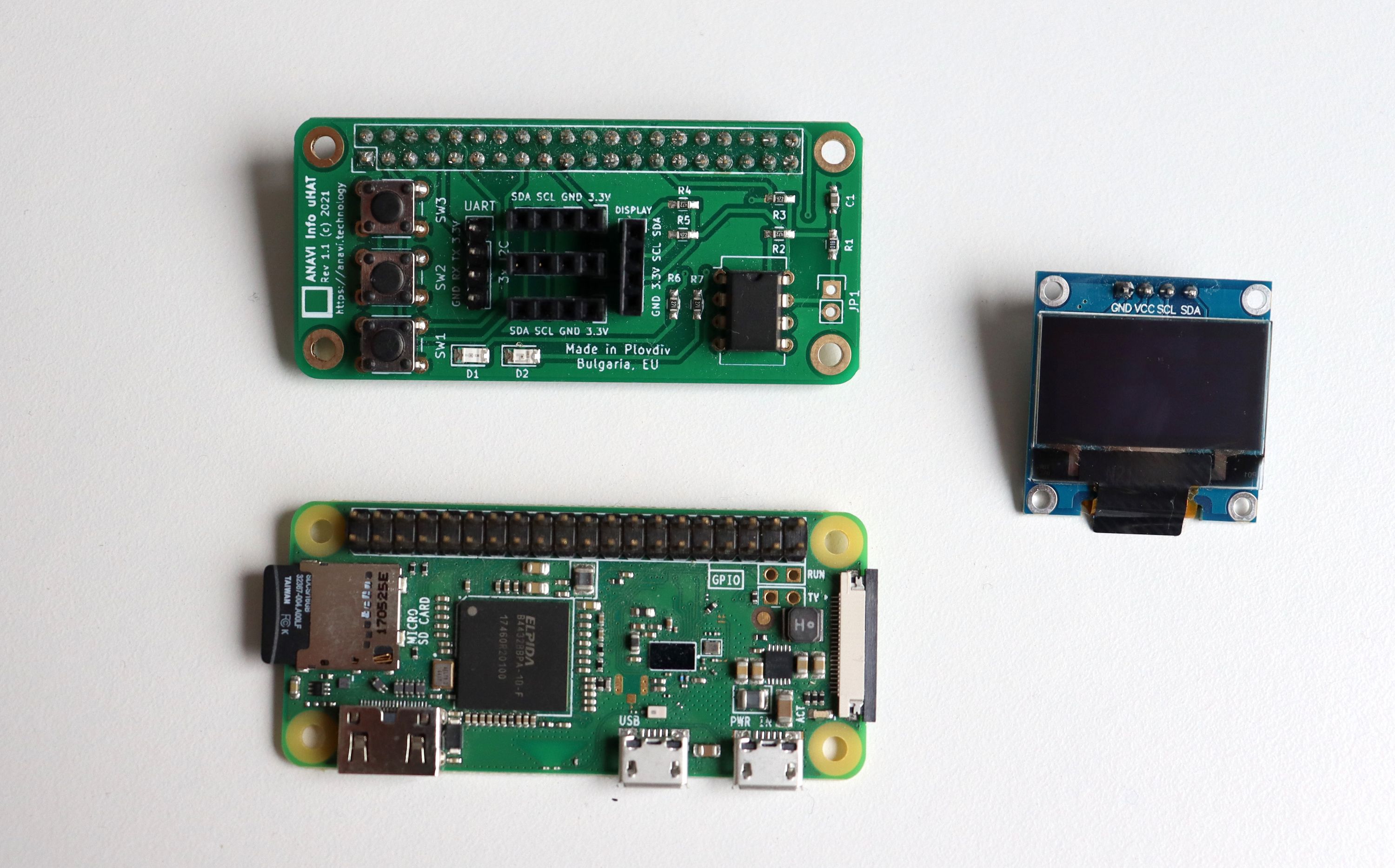

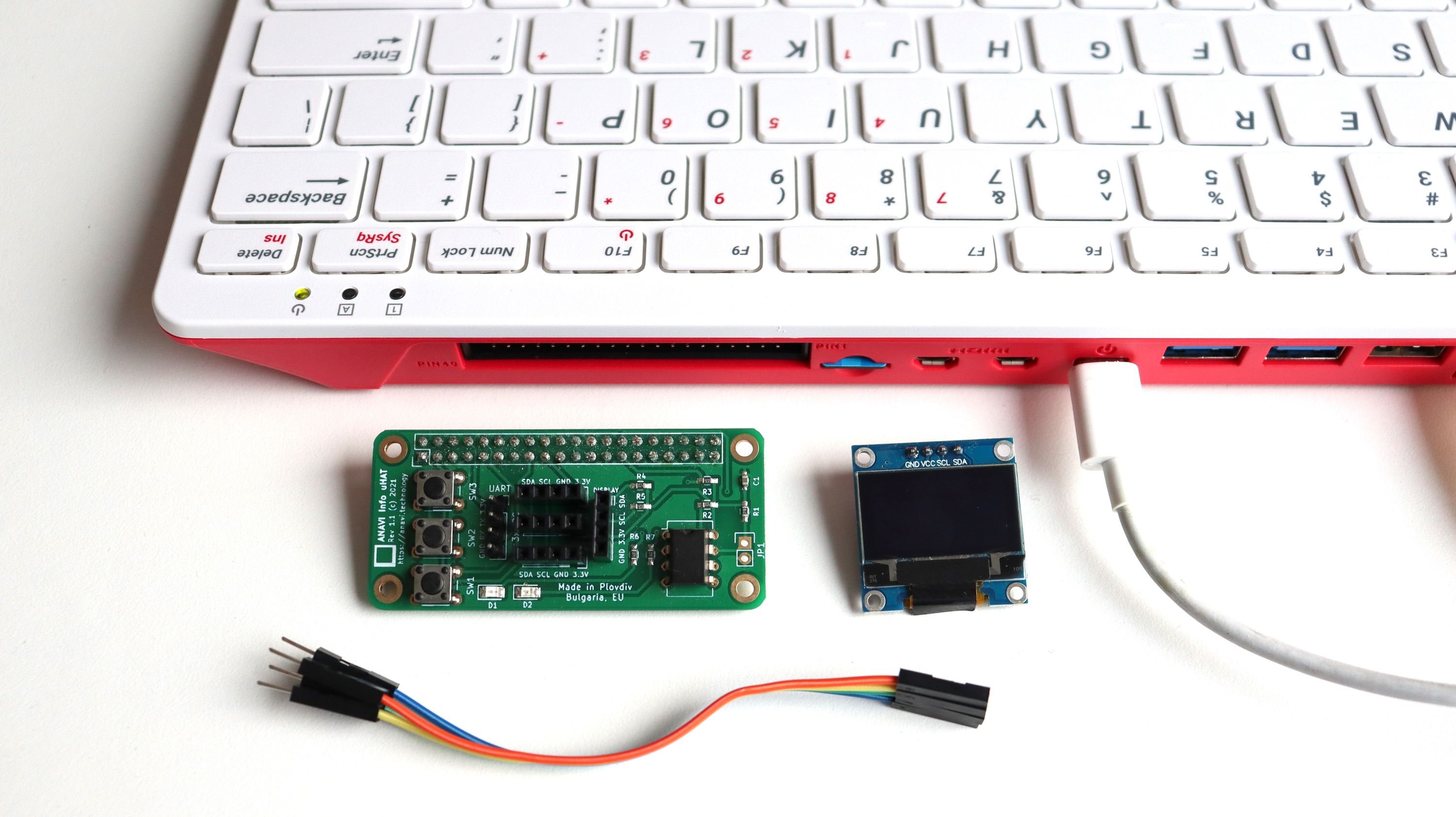

ANAVI Info uHAT works with any Raspberry Pi single board computer (SBC) with a 40-pin header, including Raspberry Pi 4 and Raspberry Pi Zero W.
In addition, ANAVI Info uHAT officially supports the following sensor modules:
- HTU21D sensor for temperature and humidity
- BH1750 sensor for light
- BMP180 sensor for barometric pressure
You can attach any other I²C device or sensor, but you will have to take care of their software integration.

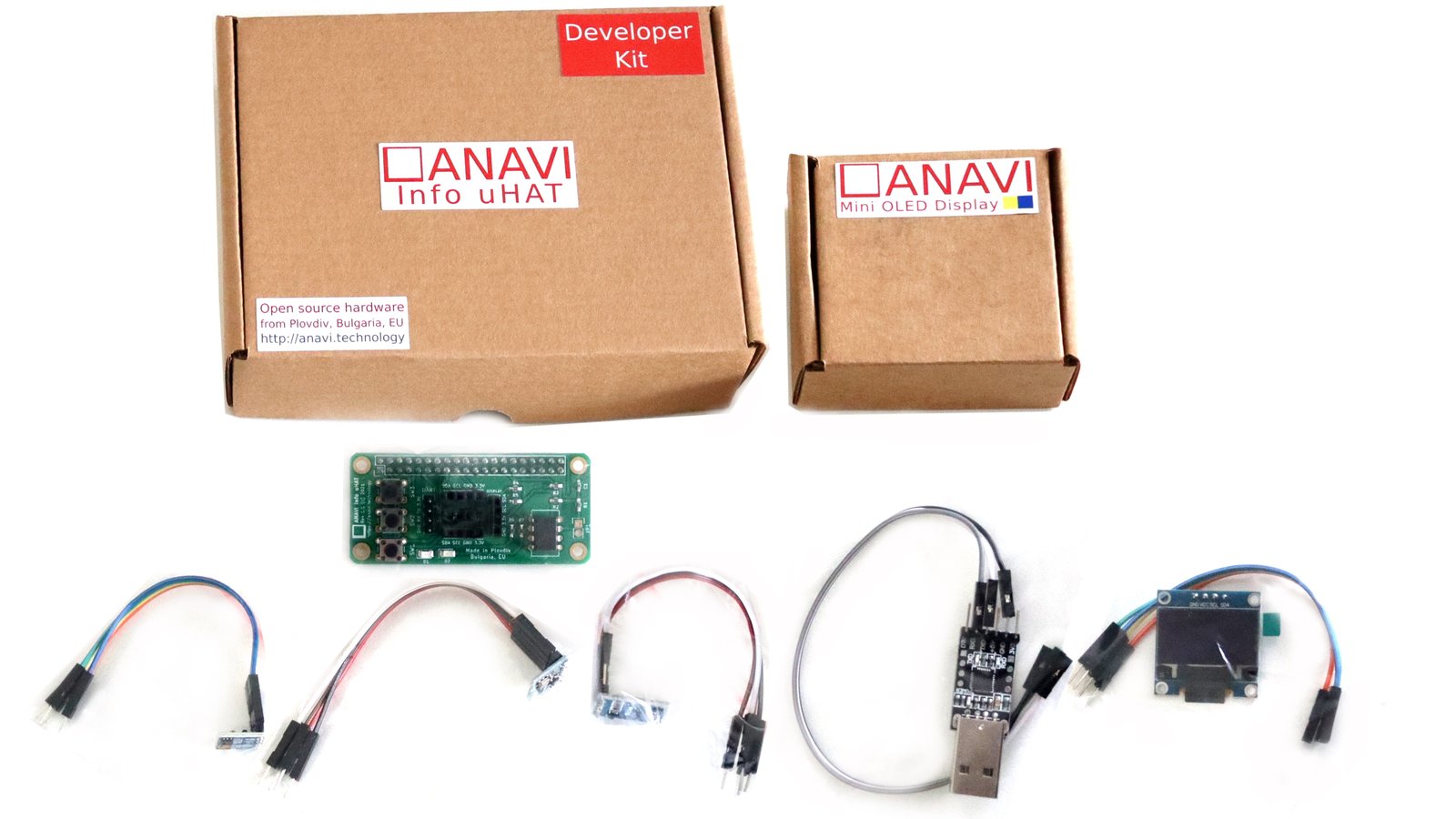

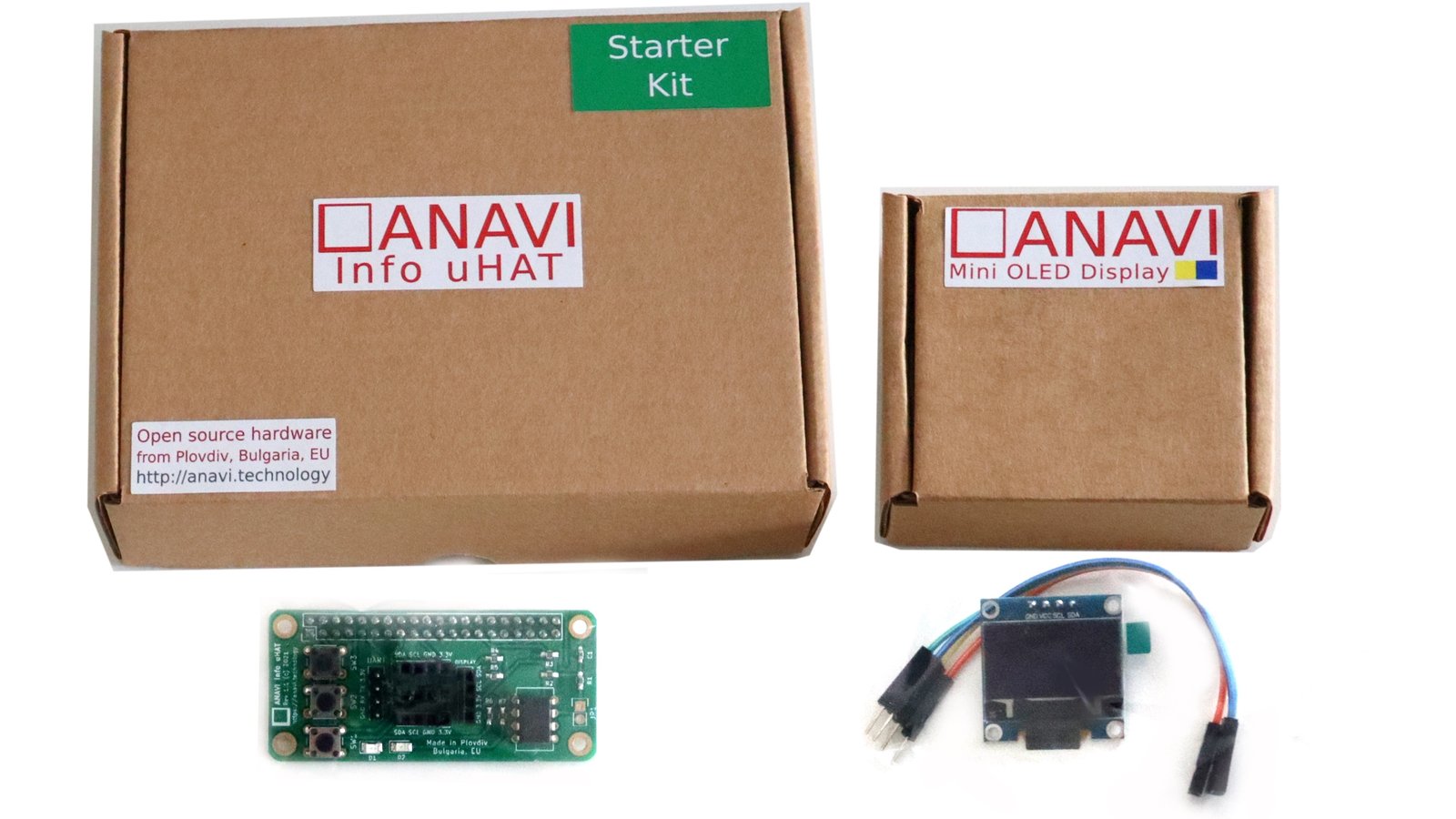

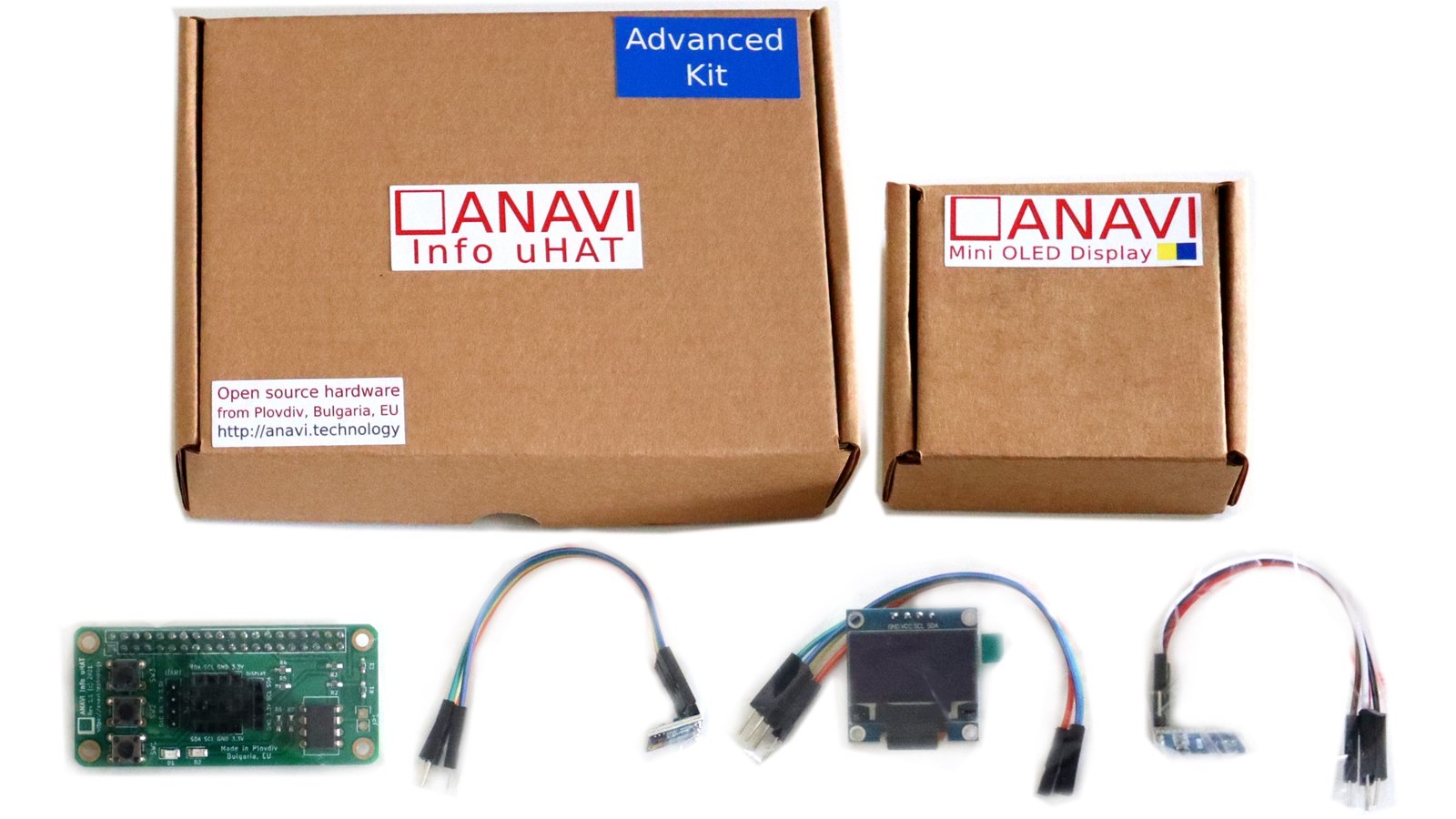

Kit Configurations
ANAVI Info uHAT is available in three do-it-yourself kits.
| Starter Kit | Advanced Kit | Developer Kit | |
|---|---|---|---|
| ANAVI Info uHAT | Yes | Yes | Yes |
| Mini 0.96" OLED I2C display, yellow-blue | Yes | Yes | Yes |
| Temperature-and-humidity sensor | No | Yes | Yes |
| Light sensor | No | Yes | Yes |
| Barometric pressure and temperature sensor | No | No | Yes |
| USB-to-serial debug cable | No | No | Yes |
Proudly Open Source
As with all ANAVI projects, ANAVI Info uHAT is open source and intentionally combines open source hardware with free and open source software:
Simple, Affordable, and Easy to Use
ANAVI Info uHAT is simple, affordable, easy to use, and extremely powerful in the hands of a skilled maker. And if you’re new to the Raspberry Pi ecosystem, don’t worry. Not only is this project entirely open source, it is designed to help newcomers to the Raspberry Pi ecosystem get started easily, thanks to its thorough documentation and helpful sample code.
Stretch Goals
Our crowdfunding campaign has a very modest goal of just $1, but if we raise:
- $500, we will add some awesome stickers
- $1,000, we will make video tutorials for all supported sensors
Manufacturing Plan

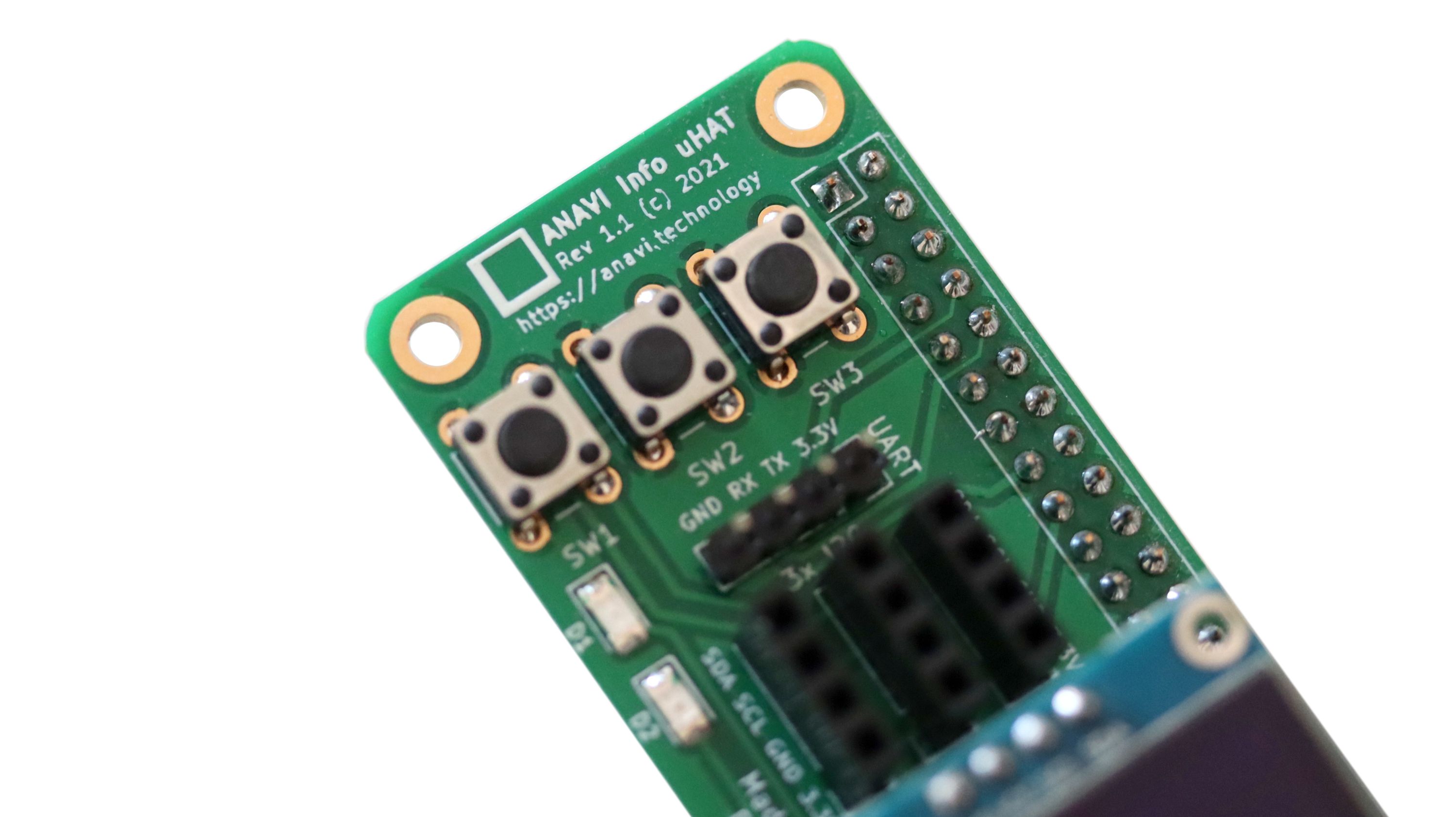

Over the years, we have delivered many open source hardware products. In the process, we have established a reliable supply chain that ensures consistently high quality. We work with trusted local factories in the EU. The printed circuit board of ANAVI Info uHAT has a green solder mask and a gold surface finish. Following the Raspberry Pi Foundation’s HAT (Hardware Attached on Top) specifications, the EEPROM on each board will be carefully flashed. All features will be manually tested, and each kit will be packaged in a recyclable cardboard box.
Fulfillment & Logistics
All ANAVI Info uHAT kits will be shipped to our backers using Crowd Supply’s fulfillment services. Once manufacturing is complete, we’ll make a bulk shipment to Crowd Supply, and, from there, the packages will be shipped out to our individual backers. For more details, please have a look at this guide to ordering, paying, and shipping.
Risks & Challenges
After a couple of hardware revisions, ANAVI Info uHAT is a stable open source product. We have already manufactured the first batch to ensure that everything works correctly, and we are now ready to make more!
Our previous crowdfunding campaigns have given us lots of experience delivering projects on time, and even ahead of schedule. Unfortunately, due to the global chip shortage we are facing some new challenges this time. To reduce the associated risks, we have already sourced some critical components and manufactured the first batch of boards. As we learn more, we will notify backers promptly through our regular campaign updates. In the unlikely event that we are entirely unable to deliver, we will of course offer backers a full refund.
