ANAVI Fume Extractor

by Anavi Technology

The open source smart solder smoke absorber

View all updates Sep 05, 2020

Second Batch of PCBs is Ready

by ANAVI Technology

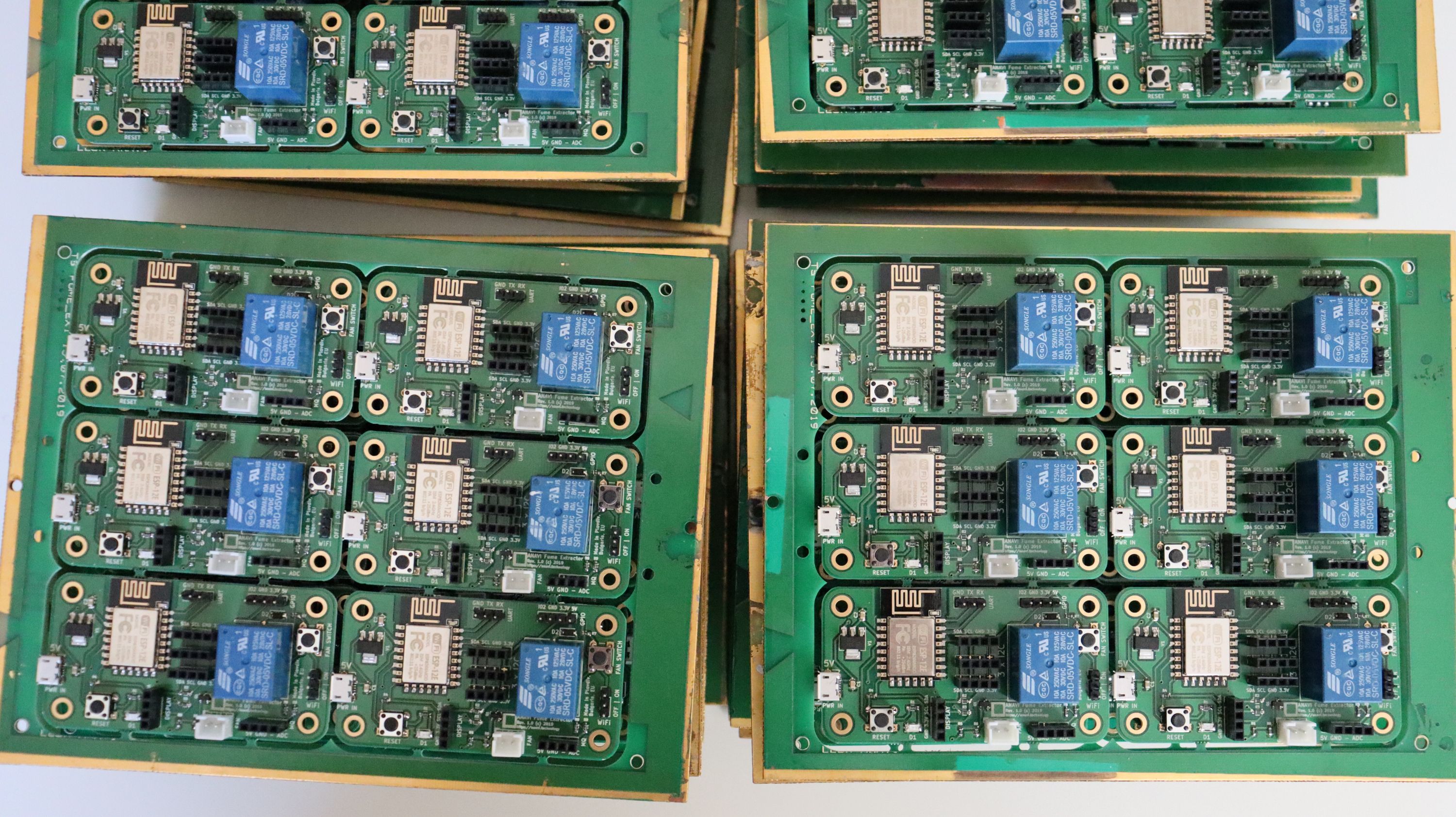

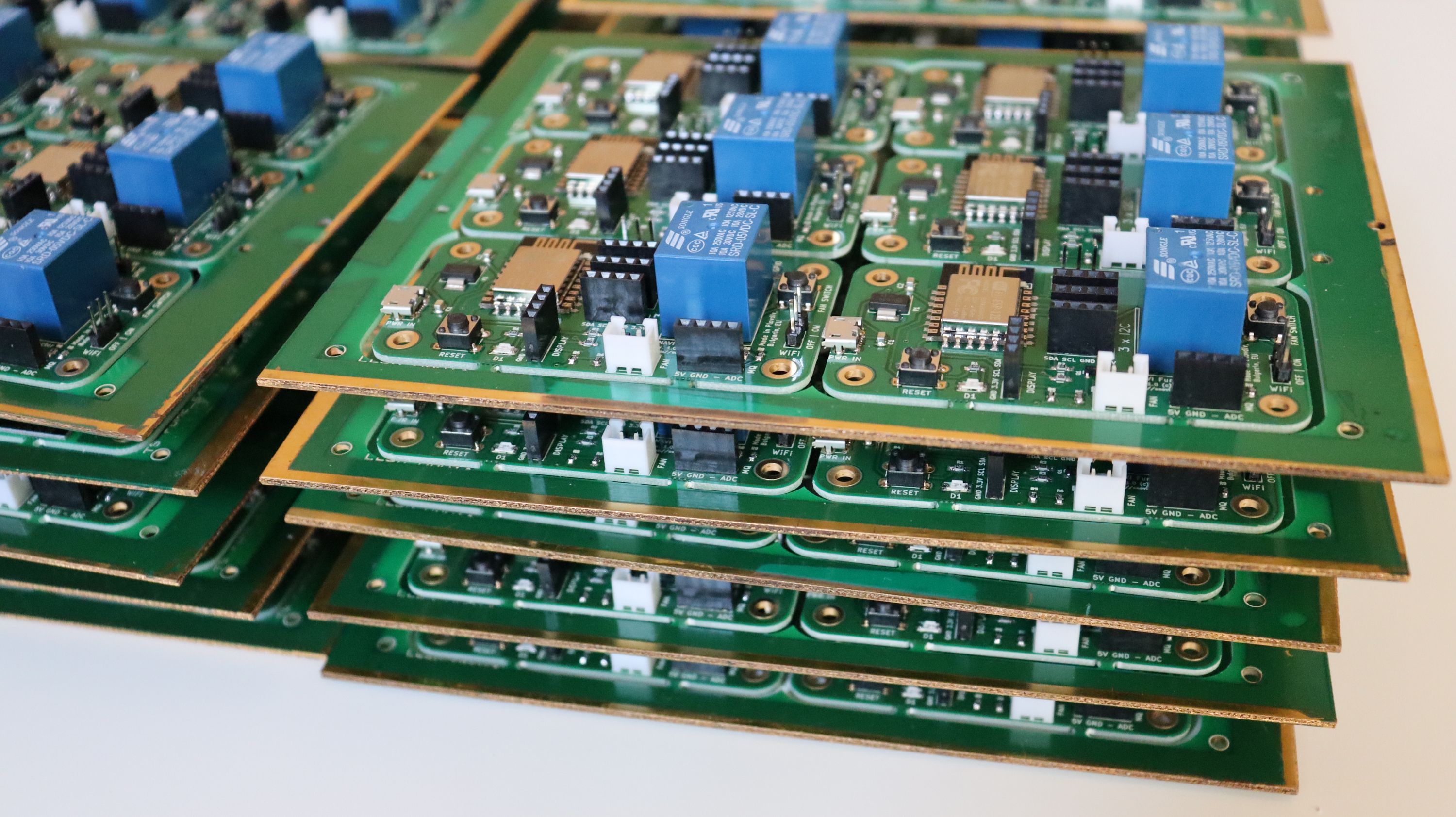

The local factory in Plovdiv, Bulgaria is back from summer vacation and have finished the 2nd batch of printed circuit boards for ANAVI Fume Extractor. Here are a couple of photos of the assembled gold-plated printed circuit boards arranged on panels. Each panel contains 6 boards.

We will proceed with flashing firmware and testing the boards. Next week we expect more laser-cut acrylic enclosures, which will be used for the rest of the kits.

The first batch with ANAVI Fume Extractor kits has been ready and packed since mid-August. It is a big and heavy parcel. Crowd Supply team is arranging the logistics. I hope we will be able to ship the kits to Crowd Supply warehouse soon. After that their team will take care of shipping your orders.

Once again, thank you for supporting the crowdfunding campaign ANAVI Fume Extractor. As usual we will keep you updated.

In the mean time, we launched a new crowdfunding campaign for a completely different open source hardware product you might be interested in. ANAVI Macro Pad 8 is an eight-key programmable mechanical keyboard with backlighting, underlighting, and an OLED screen. The developer kit is fully assembled, but the maker kit requires soldering skills and allows modifications.

Best regards, Leon

About the Author

ANAVI Technology

AnaviTechnology  ·  AnaviTechnology  ·   Plovdiv, Bulgaria


$6,600 raised

of $1 goal

Funded! Order Below

Product Choices

$49

Starter Kit

The perfect kit for getting started. Includes ANAVI Fume Extractor PCB (1), 5 V DC 80x80 mm fan (1), acrylic enclosure (1), filters (2), 0.96" OLED display (1), and USB-to-serial debug cable (1).


$59

Advanced Kit

The kit for makers. Includes ANAVI Fume Extractor PCB (1), 5 V DC 80x80 mm fan (1), acrylic enclosure (1), filters (2), 0.96" OLED display (1), USB-to-serial debug cable (1), HTU21D temperature, and humidity sensor (1) and MQ-135 gas sensor (1).


$69

Developer Kit

Everything a developer needs! Includes ANAVI Fume Extractor PCB (1), 5 V DC 80x80 mm fan (1), acrylic enclosure (1), filters (2), 0.96" OLED display (1), USB-to-serial debug cable (1) and all sensor modules: HTU21D temperature and humidity sensor (1), MQ-135 gas sensor (1), BH1750 light sensor (1), and BMP180 temperature and barometric pressure sensor (1).


$219

Family Kit

The ultimate solution that features a developer kit and three advanced kits.
