Nov 14, 2017

Haasoscope Is Now Live

For those of you who have been following the Haasoscope progress, I want to be the first to announce that the Haasoscope campaign is now live! We’ve put together the boards, add-ons and a bundle option I hope you’ll like. Please help spread the word about Haasoscope.

$8,186 raised

of $10,000 goal

22

days left

82%

funded

107

pledges

Pledge Now

$5

Support Us!


$129

The Haasoscope Bundle

Receive 1 Haasoscope + 2 probes + USB-serial adapter + USB blaster + screen


$99

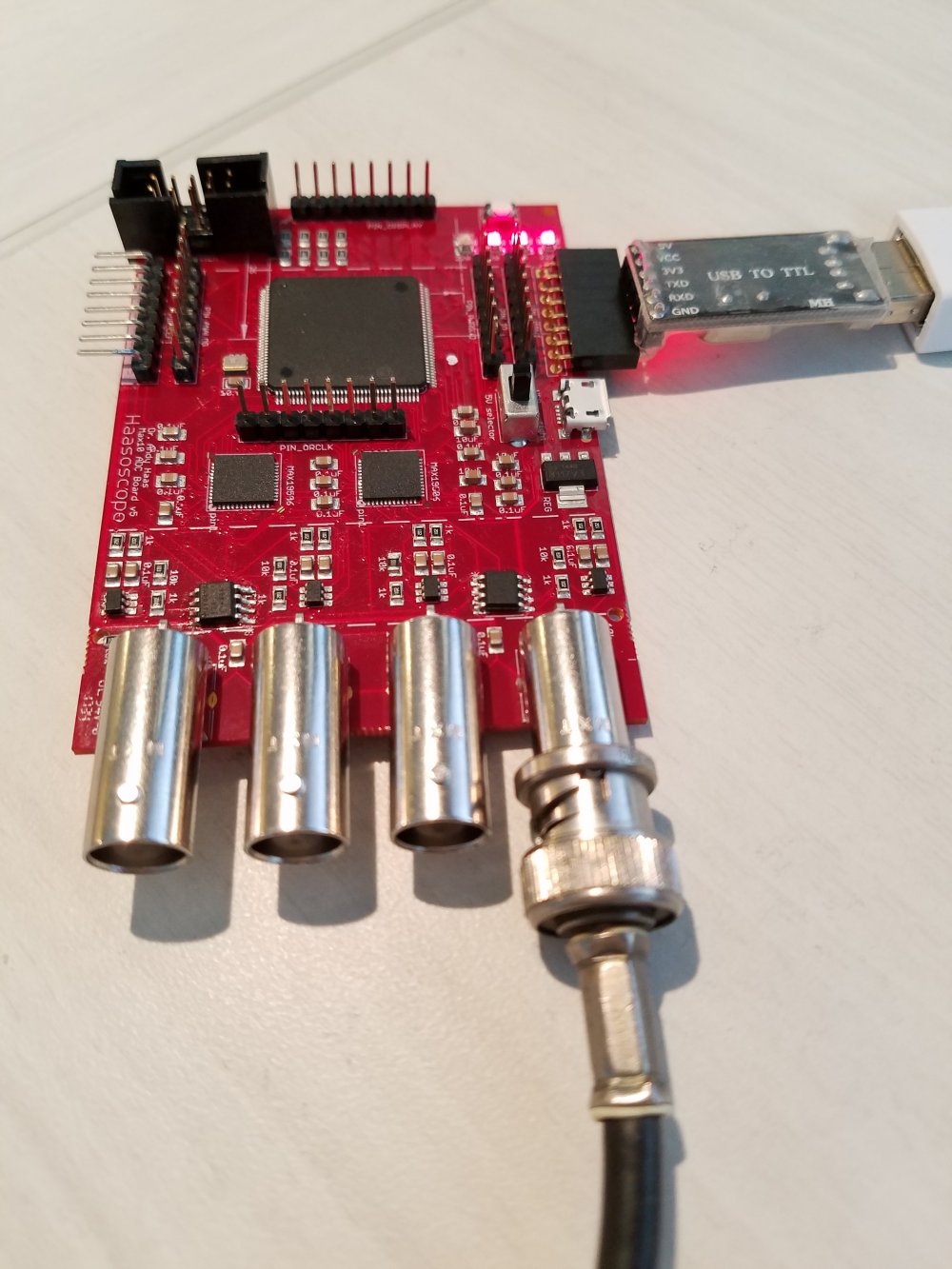

Your very own Haasoscope!

A fully assembled Haasoscope, preloaded with firmware and ready for data-taking! You also might want to grab a USB-serial adapter (for interfacing to a computer) and/or a USB-blaster (for reprogramming the firmware). Haasoscope will retail for $119 after the end of the campaign.


$190

Haasoscopes are happier together - get two!

Two fully assembled Haasoscopes, preloaded with firmware and ready for data-taking! Again you may want a serial adapter and/or USB-blaster, but you just need one of each for both of them. The 2-pack will retail for $229 after the end of the campaign.


$360

Now we're talking about a serious data-acquisition system - 4 Haasoscopes!

Four fully assembled Haasoscopes, preloaded with firmware and ready for data-taking! Again you may want a serial adapter and/or USB-blaster, but you just need one of each for all four of them. The 4-pack will retail for $429 after the end of the campaign.


$5

USB-serial Adapter

This plugs into your computer (USB port) and then connects to the right side of the Haasoscope (serial RX/TX). It also can power the Haasoscope. You need one of these if your computer doesn't have a serial port, which is almost all modern computers. Arduinos and Raspberry Pi's do talk serial though - you can use them to read out the Haasoscope without an adapter!


$9

USB-blaster

This lets you reprogram the Haasoscope FPGA firmware from either Windows or Linux using the free Altera Quartus II software via the JTAG connector.


$9

A Cool Screen!

This is a 0.96" 128X64 pixel white OLED screen. It communicates with the Haasoscope over an SPI interface, and can show ADC data from a selected channel, or whatever you tell it to! It can plug directly into the header above the FPGA.


$16

Oscilloscope Probes

Two passive 100 MHz bandwidth oscilloscope probes for connecting to Haasoscope 100 MHz ADC inputs using BNC.


$17

Opto-isolated USB-serial Adapter

For those of you probing some dangerous stuff, you can now act crazy without killing your laptop. This USB-serial adapter works just like the standard one, but is opto-isolated, for 1500V of protection!


$15

High-speed USB Readout Board

In case 1.5 Mb/s is not enough bandwidth for you, grab one of these boards and have high-speed USB2 output from a Haasoscope! Using just 8+2 digital outputs on the Haasoscope, you can get about 4 MB/s, about 20x faster than serial, and still use the same python readout code. It's supported in the stock firmware too! Using 8+4 digital outputs, you could in theory even get up to 40 MB/s using C++ readout code and the free FTDI USB libraries.


$35

A Haasoscope Mug!

Drink your coffee in style and support the Haasoscope dream.
