Haasoscope

by Andy Haas

Cheap, flexible, data acquisition for all!

View all updates Oct 11, 2017

Latest Prototype

The latest prototype is in, and it works! The board has 2 2-channel op-amps now, and 4 digital switches, which allow for 2 gains for each channel independently: +-4 V and +-400 mV. You can also fine-tune the input DC offset, also digitally from the FPGA (PWM baby!). Now it’s just fine-tuning. There’s a bit more noise than I’d like, so I’m trying out a 4-layer board with a dedicated ground plane and some more intelligent routing of the ground current returns.

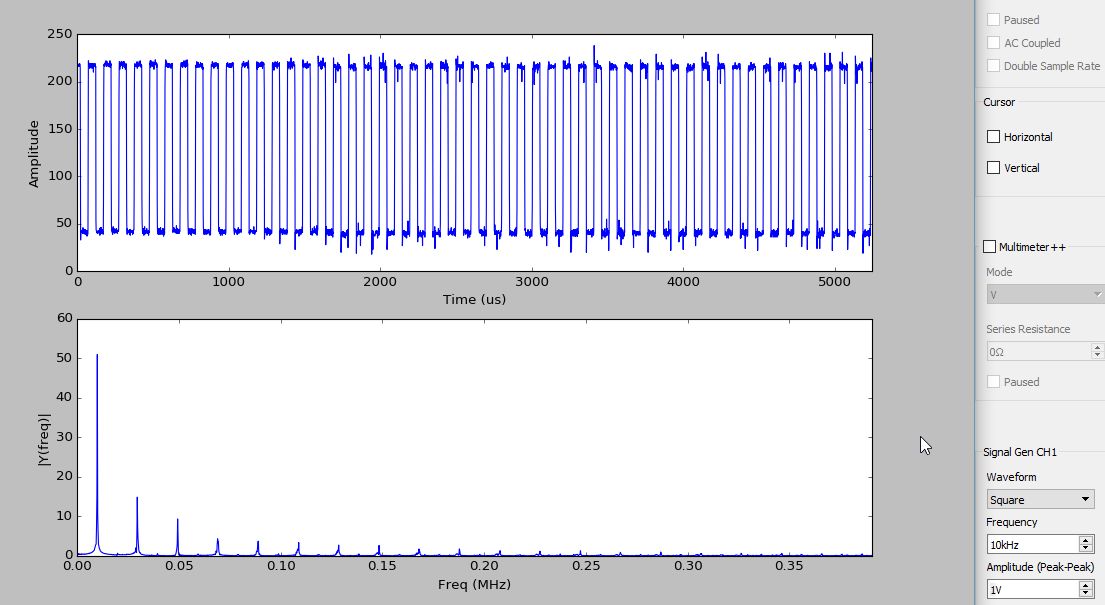

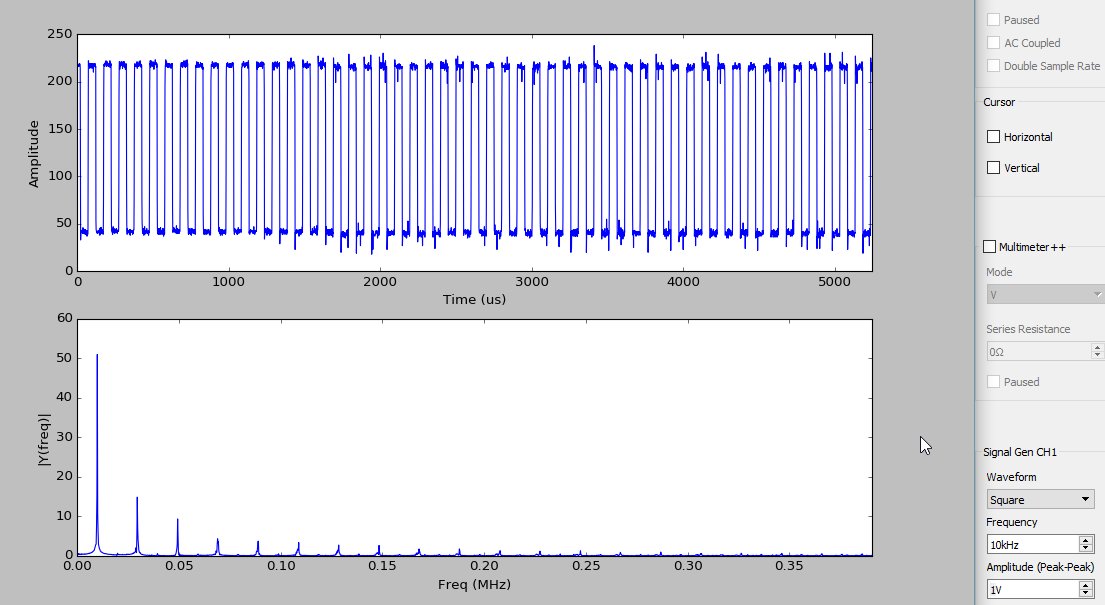

The software can continued to develop. In addition to letting you adjust the gains and DC offsets per channel, there’s also a new FFT window! It’s all just python, so easy to expand the functionality.

We hope to launch this project VERY soon. Thanks for your support!


$18,733 raised

of $10,000 goal

187% Funded! Order Below

Product Choices

$149

The Haasoscope Bundle

Receive 1 Haasoscope + 2 probes + USB-serial adapter + USB blaster + screen


$119

Your very own Haasoscope!

A fully assembled Haasoscope, preloaded with firmware and ready for data-taking!


$9

USB-blaster

This lets you reprogram the Haasoscope FPGA firmware from either Windows or Linux using the free Altera Quartus II software via the JTAG connector.


$16

Oscilloscope Probes

Two passive 100 MHz bandwidth oscilloscope probes for connecting to Haasoscope 100 MHz ADC inputs using BNC.
