SimplePnP

by Citrus CNC

Your personal open hardware PCB assembly machine

View all updates Jan 28, 2020

Moving forward on fabrication as our campaign comes to a close

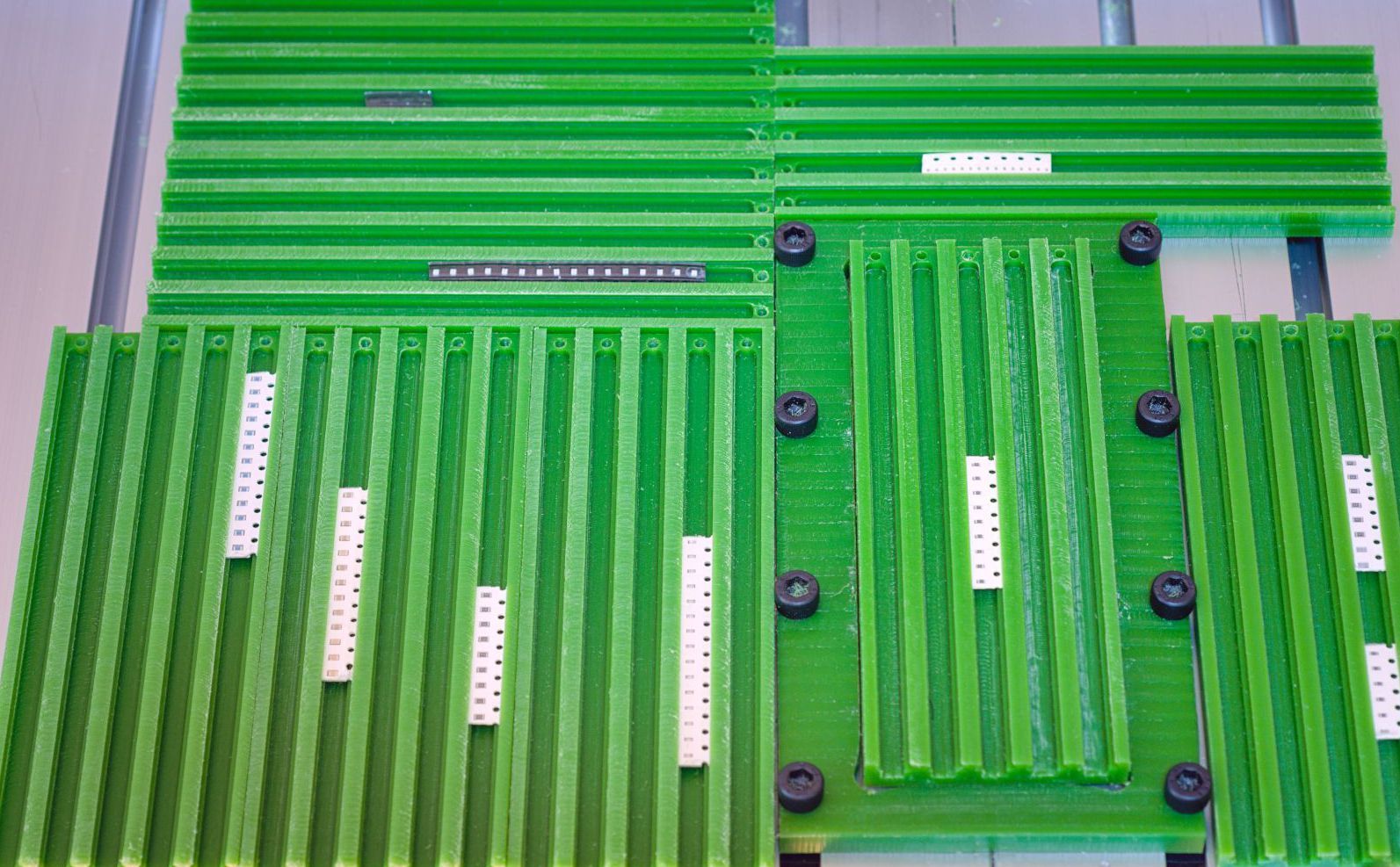

To begin with, we wanted to let you all know that we’ve made some new design files available in our repo. We also received the plastic plate stock and aluminum flat bar we ordered. We began machining strip-feeders from the former, for testing toolpaths and SMD tape fit. In a few days, we’ll begin fabricating pick-and-place parts from the latter. Finally, we ordered some laser-cut acrylic camera light diffusers. The design files for those will be available in our repo shortly.

Aside from that, we need to wait for the end of Chinese New Year so we can place our orders for PCB fabrication and other outstanding parts. Expect more updates as things progress!

Tomorrow is the last day of our campaign. We’ll continue taking orders, of course, but some models might not be available, and pre-order prices might increase slightly. (Please do keep in mind that shipping is included for all US orders!)

Thanks again to everyone for their support.


$38,930 raised

of $6,500 goal

598% Funded! Order Below

Product Choices

$800

Dual Head SimplePnP with Bottom Vision

A partially assembled Cartesian frame with extrusions, motors, rails, mounting hardware, pulleys, and belts. An assembled vacuum head with one nozzle holder, a top-vision camera, a bottom-vision camera (including mounting hardware and a USB cable), one rotation motor, one linear rail, and pneumatic components. Adds an additional nozzle holder, rotation motor, and linear rail (including mounting hardware). Includes a vacuum pump, a power supply, motion control electronics, and three Juki nozzles (sizes 503, 504, and 505).
