SimplePnP

by Citrus CNC

Your personal open hardware PCB assembly machine

View all updates Mar 18, 2020

Parts Arriving & Vision Camera Tested

by Gino Magarotto

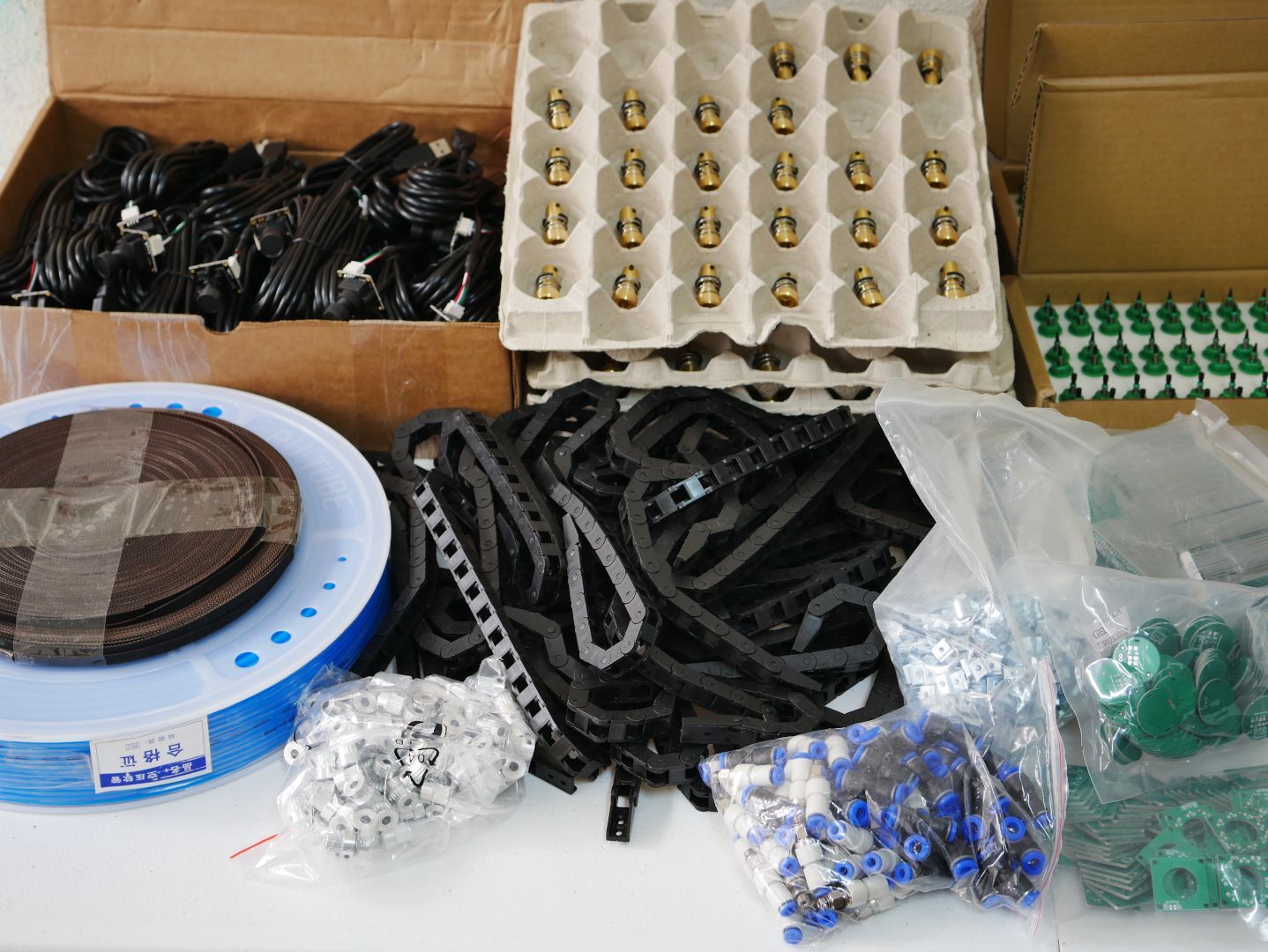

Spring has begun, and our first packages are starting to arrive. An assortment of nozzles, nozzle holders, PCBs, USB cameras, and some other miscellaneous items were delivered a few days ago.

Stepper motors and linear rails for the motion system will also be shipped shortly.

The vision cameras have already been tested, and every unit is performing correctly. Our next steps are to finish purchasing the electronic components, to assemble some test boards, and to start checking the fit of the nozzles.
