Control your radiant floor heating system with Home Assistant

This project is launching soon.

Coming Soon
0
updates
You'll be notified about news and stock updates for this project.

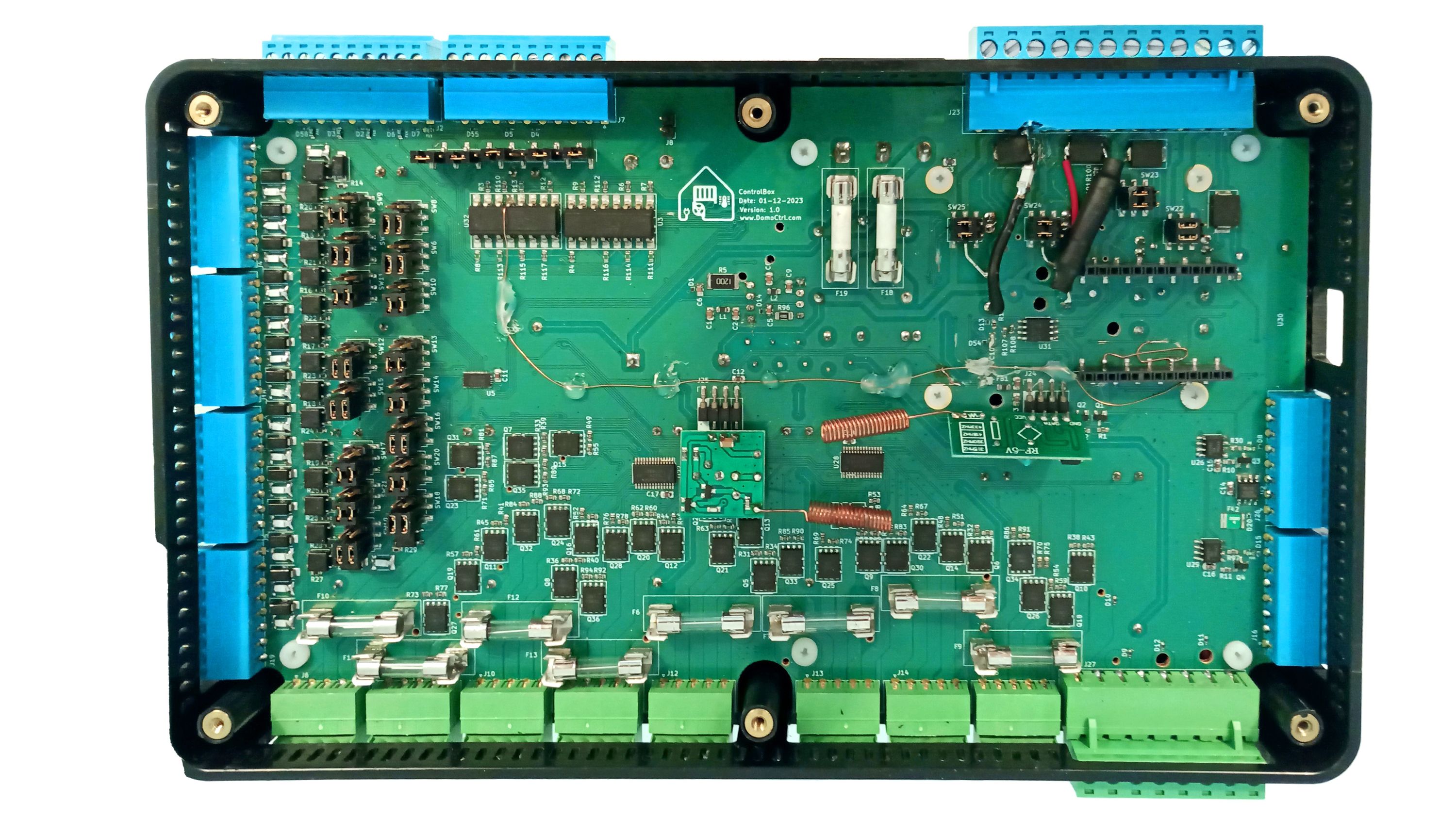

ControlBox is what you need to control hydronic radiant floor heating systems with Home Assistant. It is designed to control thermal valves, hydraulic PWM pumps, and related RFH devices. It can read large numbers of 1-wire temperature sensors over long cables (>6 m). ControlBox also contains 32 LED-strip output channels, providing up to 2 kW output.

Its integration with Home Assistant gives you complete control over the heating peripherals used in your house. With Home Assistant’s advanced scheduling and control features, you can schedule your house’s heating more efficiently, which will help you conserve energy and save money.

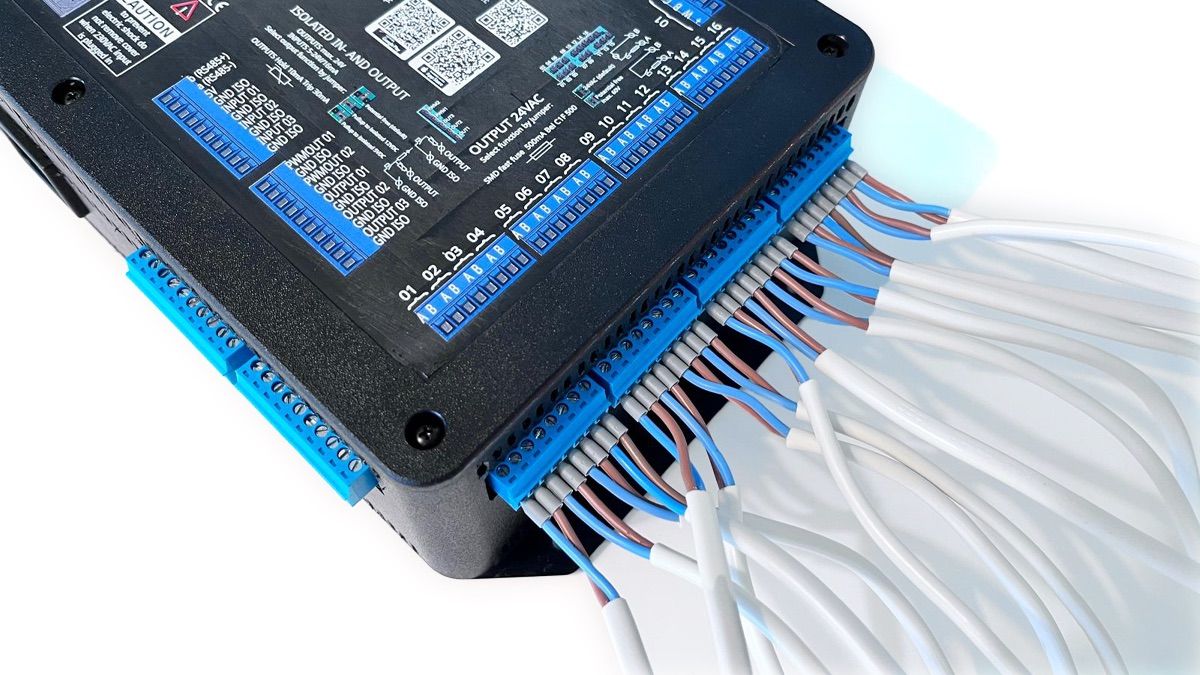

The inputs and outputs are considered a core functionality of ControlBox, and they are all provided by hard-wired connections. This ensures maximum reliability so you can always control your radiant floor heating system.

Optimize Your Energy Consumption

With air conditioning and radiant floor heaters on one Home Assistant network, the opportunities for fine-tuning your home’s temperature are almost endless. By installing ControlBox in your home, you can:

…and whatever other scenarios you can dream up.

Features & Specifications

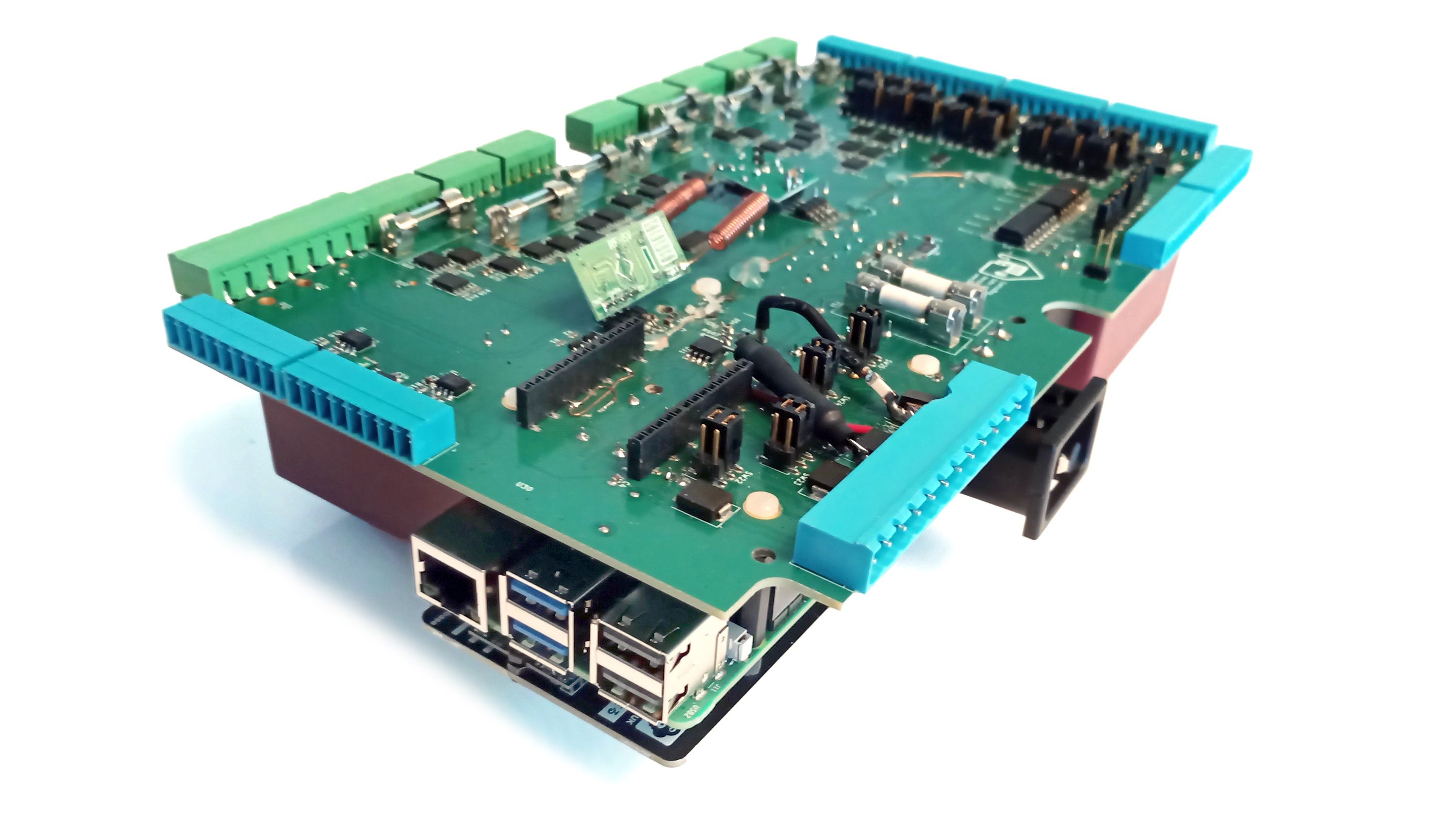

ControlBox is powered by a Raspberry 5 4 GB with an NVMe SSD, running Home Assistant. Alternatively, ControlBox can be used with a W32-ETH01 board running ESP32 Home.

Open Source

Information about ControlBox software development can be found on our GitHub page. The ControlBox repo contains some Home Assistant integrations required for using the LED outputs and the 24 V AC and mains outputs.

For the hardware, a pinout guide with more information is on our website. After the product’s launch, the schematics will also be available on our GitHub page.

Interested in This Project?

You can sign up at the top of this page to be notified when the campaign launches and to receive other updates. We only send out useful information, and you can unsubscribe at any time.

In the Press

Hackster News

"Stay warm and well-lit with this all-in-one gadget — or swap the Raspberry Pi for an ESP32 for integration into an existing smart home."

About the Team

DomeCtrl B.V.

 ·

We will bring you products to save energy and improve your life with smart home controls.

Falco de Kort
 bestronics.nl
Enver Tanriverdi
