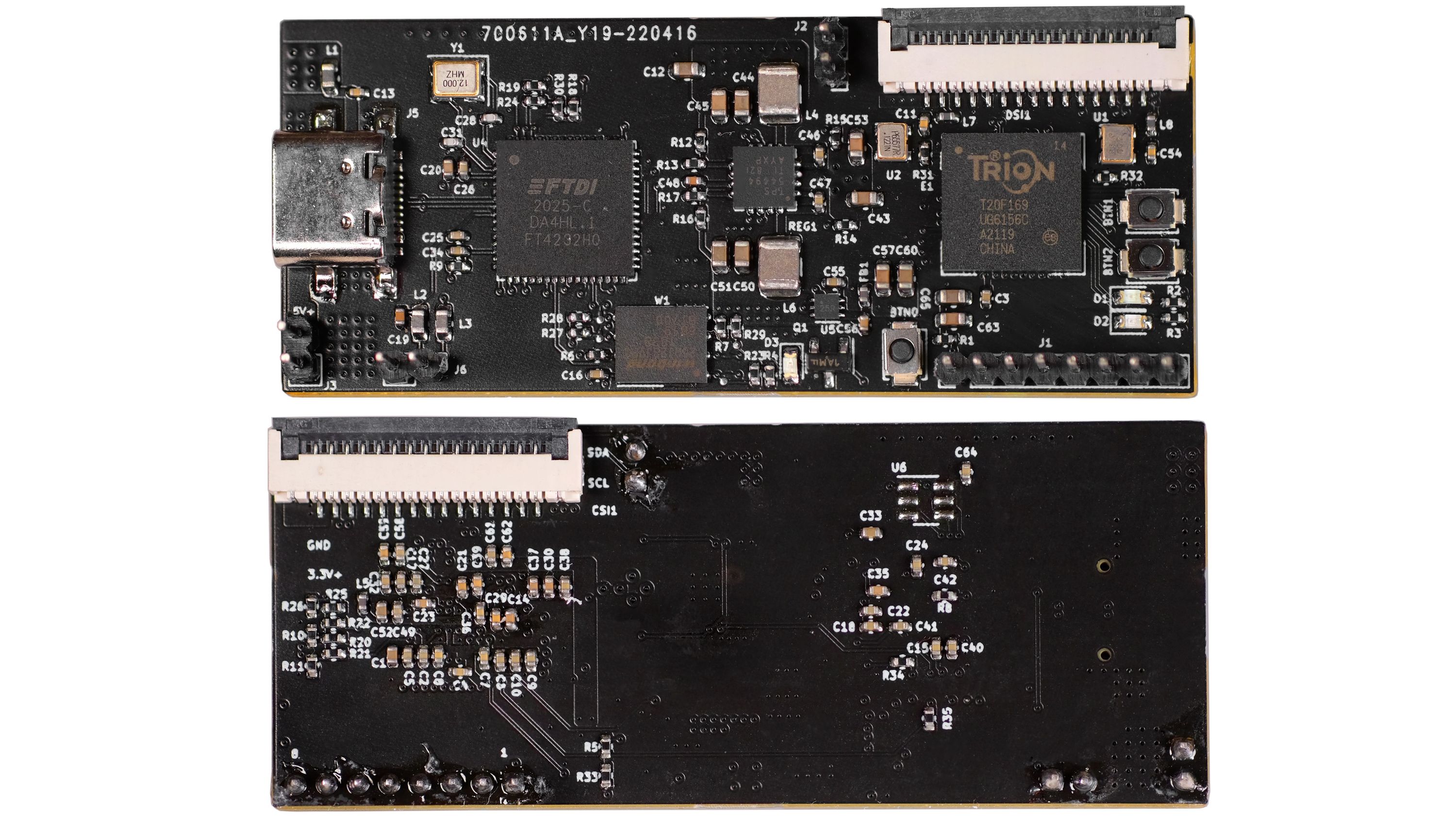

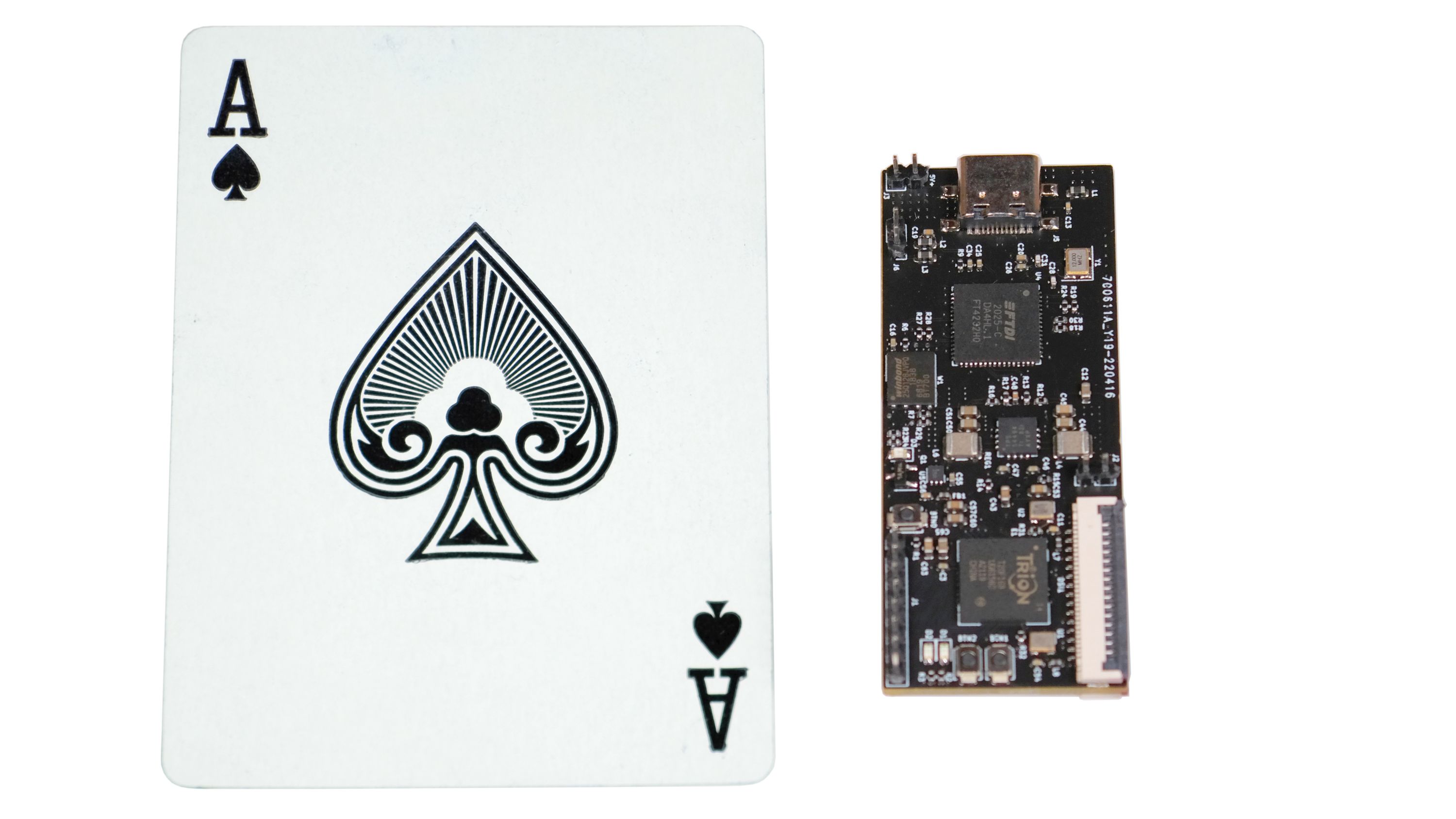

Bajiu Lite is a resource-rich FPGA development board with 20,000 logic elements (LEs), 36 multipliers, and up to five PLLs. It can easily run at frequencies above 150 MHz with very low power consumption. It is small, convenient, and ready to facilitate rapid FPGA development right out of the box. To assist with this, Bajiu Lite utilizes Efinix software tools, which are easy to set up and straightforward to use.

Along with the Bajiu hardware, we have also developed a robust, custom RISC-V development environment called CRiscV, which is an open source, VexRiscv-based SoC soft core that has been adapted to the Bajiu Lite dev board. It allows you to implement powerful tools quickly, including those related to vision processing, neural networks, RISC-CPUs, robotics, and other common applications.

Fun fact: "Bajiu" means 8 * 9 = 72, which is a reference to the mythical Monkey King’s thousand variations. We chose this name because Bajiu Lite can be used to implement nearly any logic!

Features & Specifications

• 20,000 LEs
• 1 Mb RAM
• 36 Multipliers
• 5 PLLs
• 1 MIPI CSI
• 1 MIPI DSI
• 3 LEDS
• 3 Buttons
• 10 GPIOs
• 128 Mbits Flash
• 2 UART interfaces
• FTDI JTAG Debugger

CRiscV Software

• RV32I[M][A][F[D]][C] instruction set
• Pipelined from 2 to 5+ stages ([Fetch*X], - - - Decode, Execute, [Memory], [WriteBack])
• Branch prediction
• Instruction, data cache
• Multiplication and division unit
• OpenOCD debugging features

Open Source

You can find a "Getting Started" guide for Bajiu Lite and CRiscV, as well as our open source documentation, in our GitHub repo.
