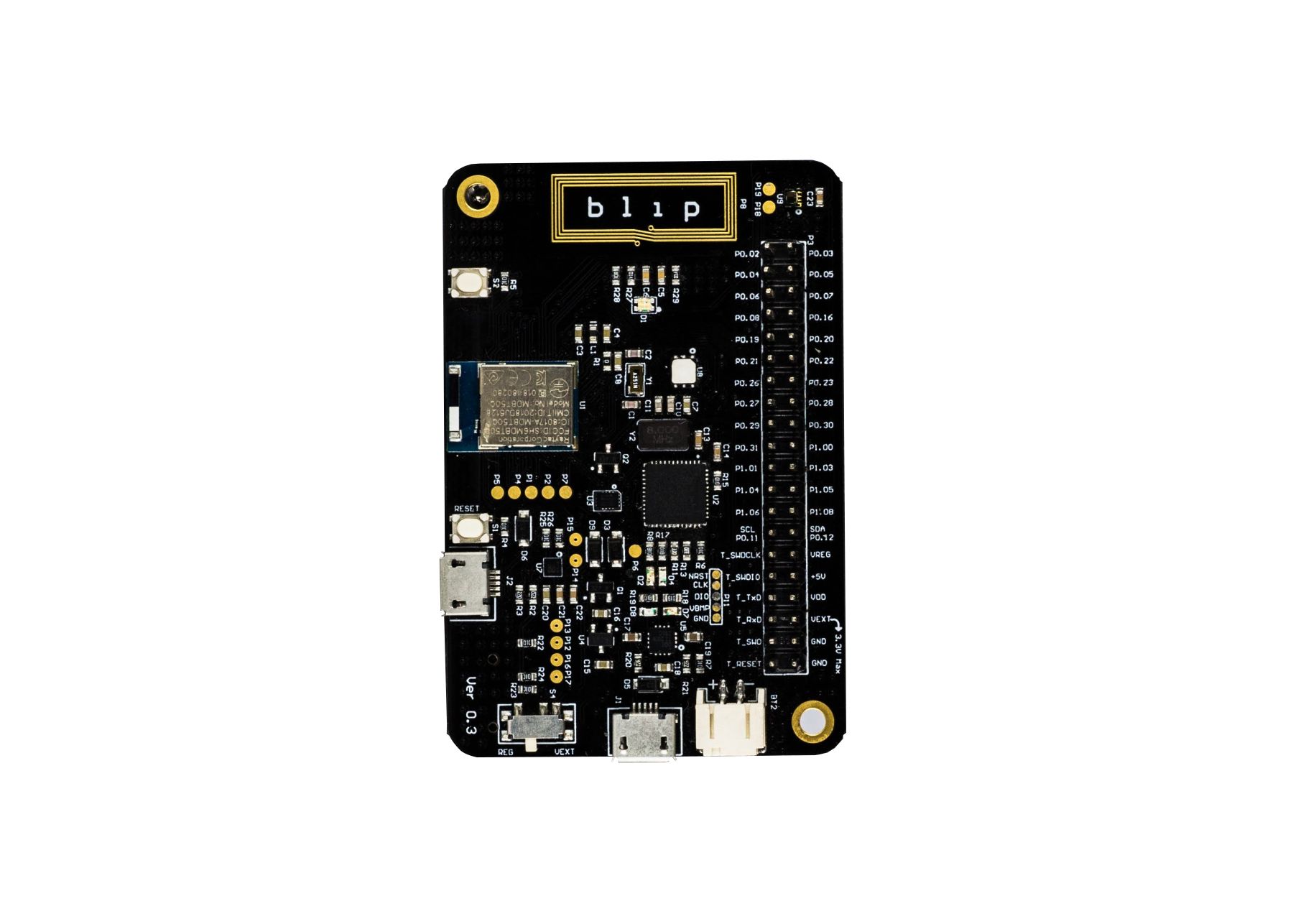

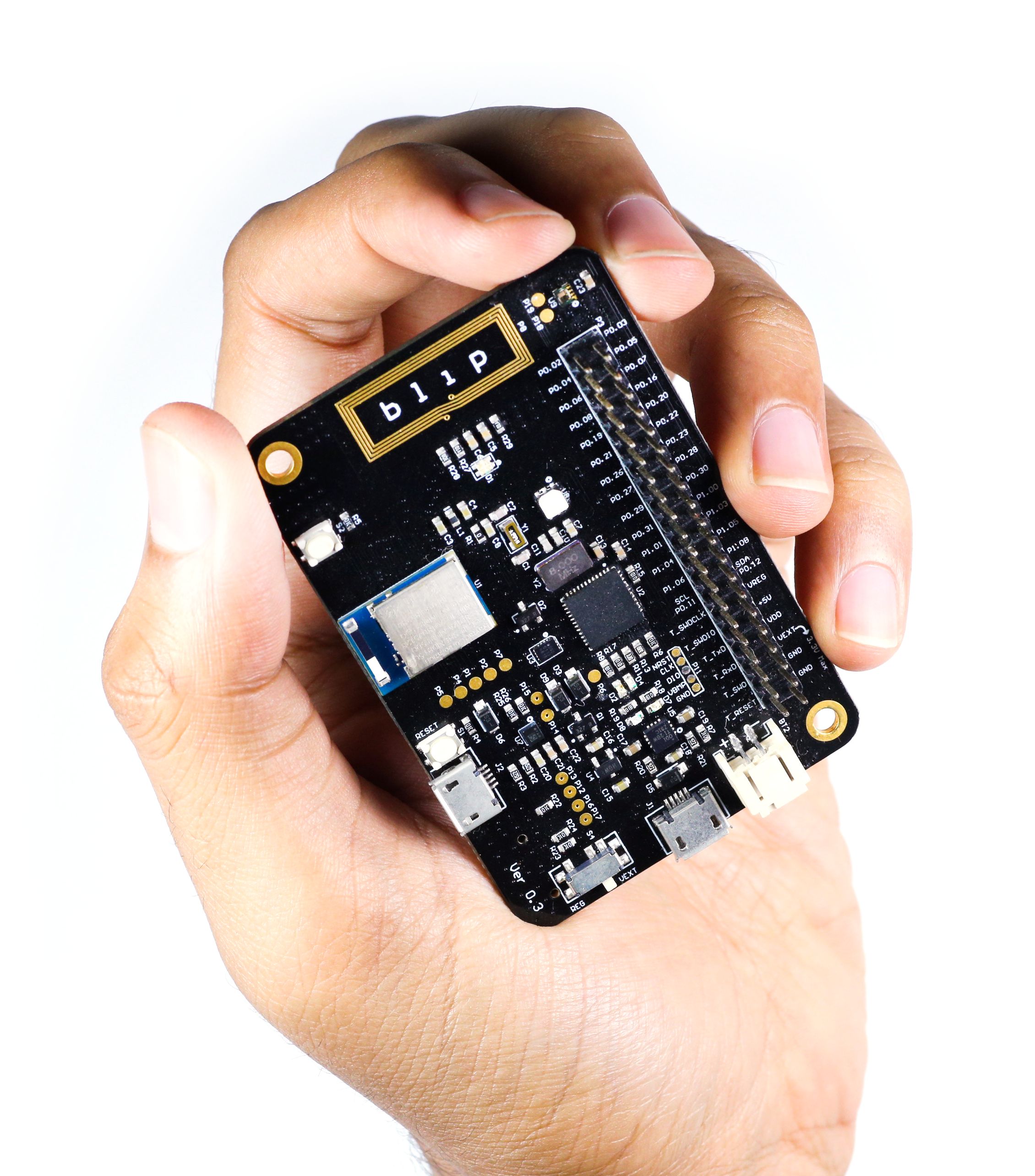

Blip is a development board for Bluetooth Low Energy (BLE) and 802.15.4-based wireless applications, built around the Nordic Semiconductor nRF52840 SoC.

Built-in Tools for Versatile Development

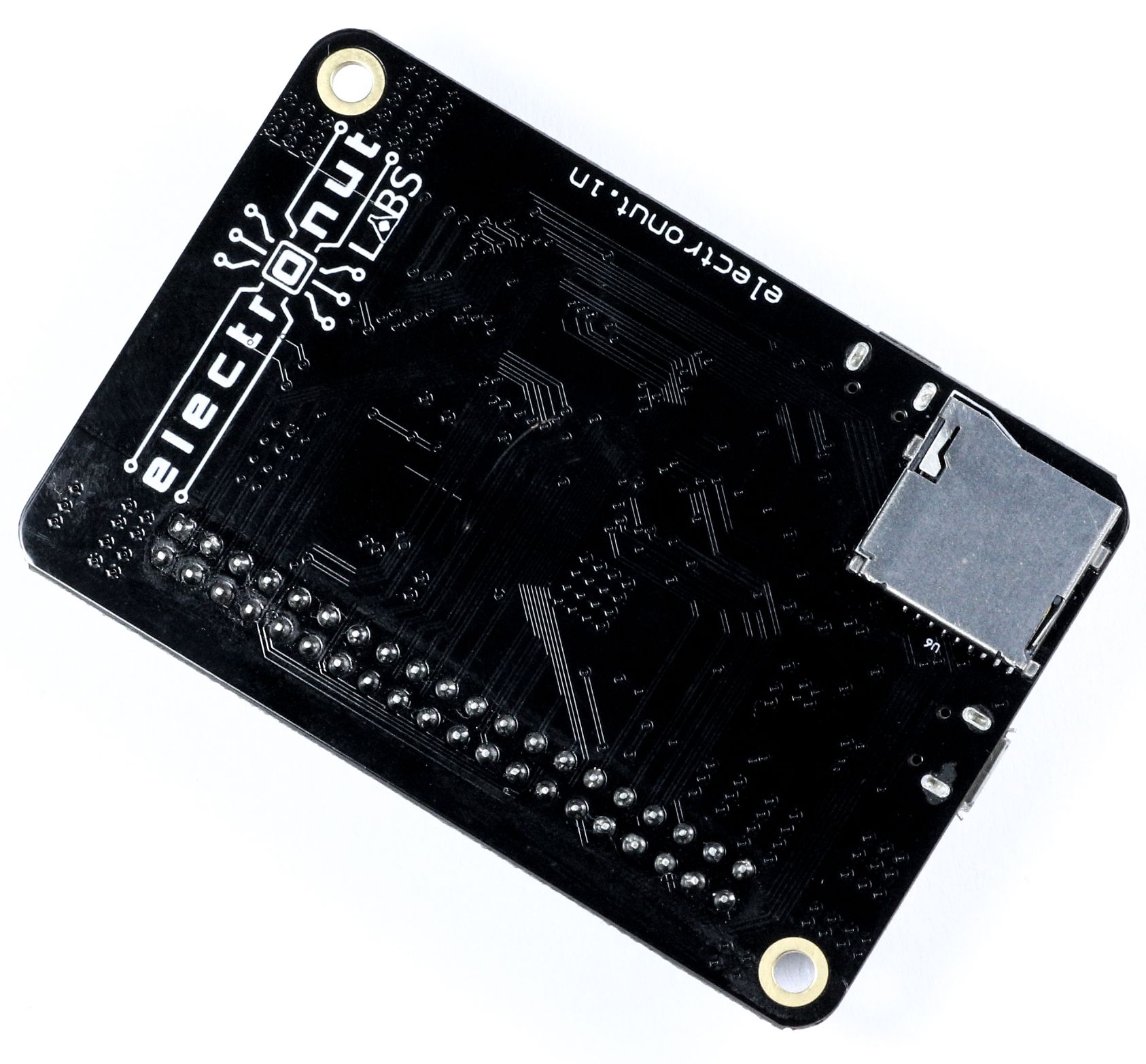

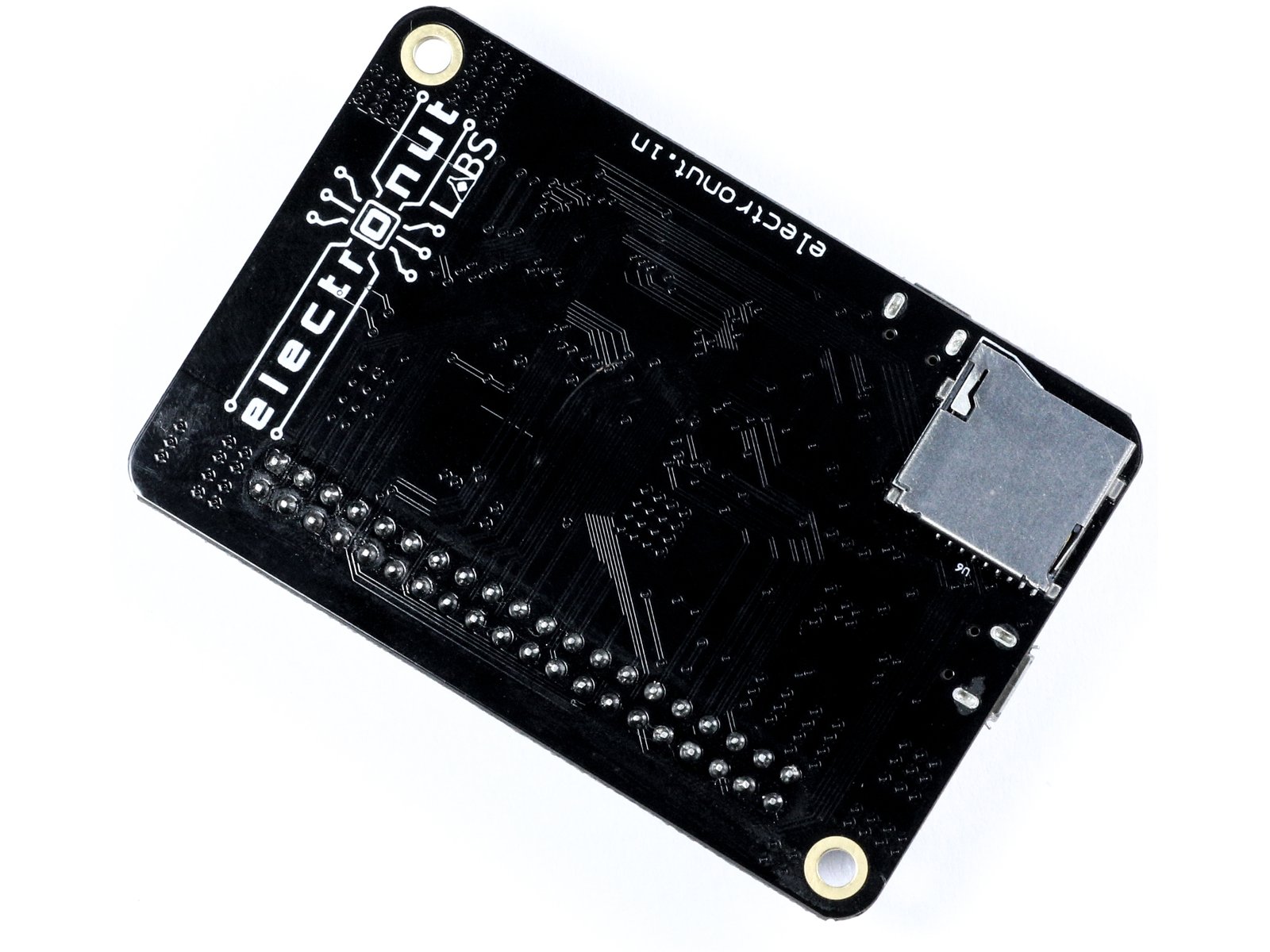

Blip has a Black Magic Probe compatible programmer and debugger built in, along with a temperature/humidity sensor, ambient light intensity sensor, and a three-axis accelerometer. It can be used to prototype very low power devices. It also has provisions for a microSD card slot, which makes it a complete and versatile development board.

Blip supports Nordic Semiconductor nRF5 SDK, Zephyr RTOS, Arduino and CircuitPython, so users can easily find resources to interface it with pretty much any hardware. There’s even an Android/iOS App and a Bluetooth web interface.

Features

nRF52840 Features

Operating Conditions

Maximum Input Voltage

Power Ratings

Available Shields: E-paper and Gaming

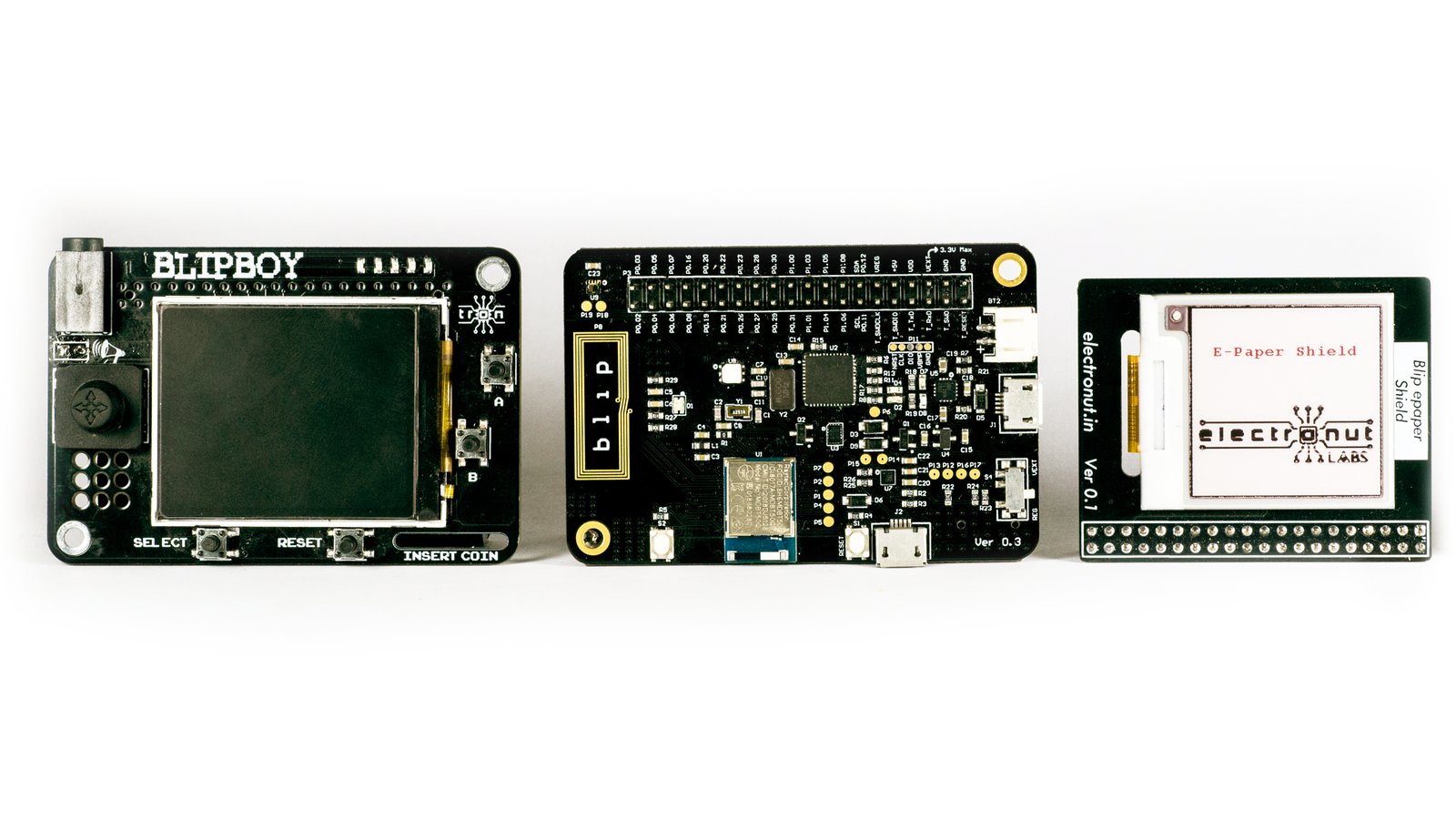

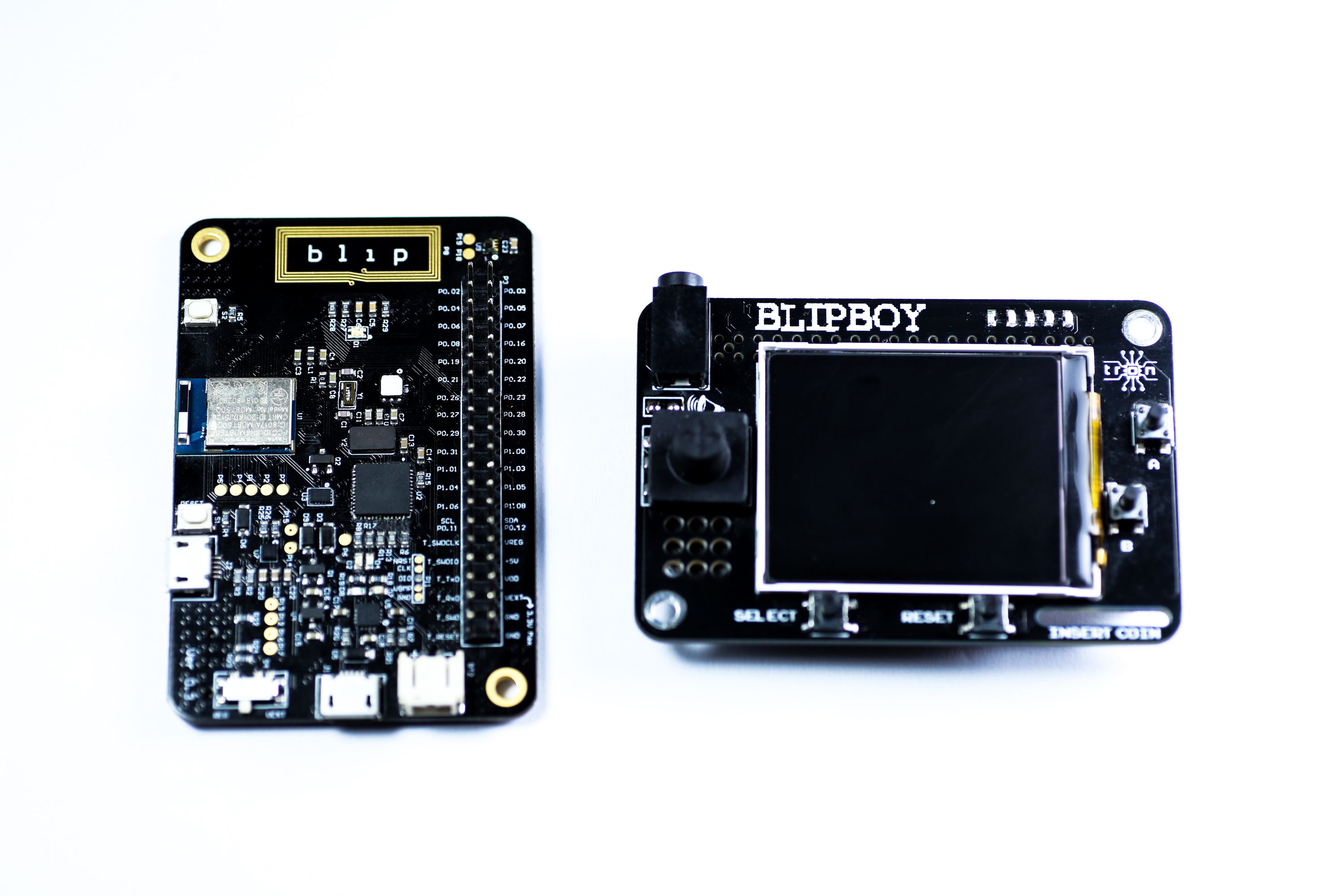

There are two shields available for Blip, the Blip E-paper Shield and the Blipboy Gaming Shield.

E-paper Shield

Blip Epaper Shield

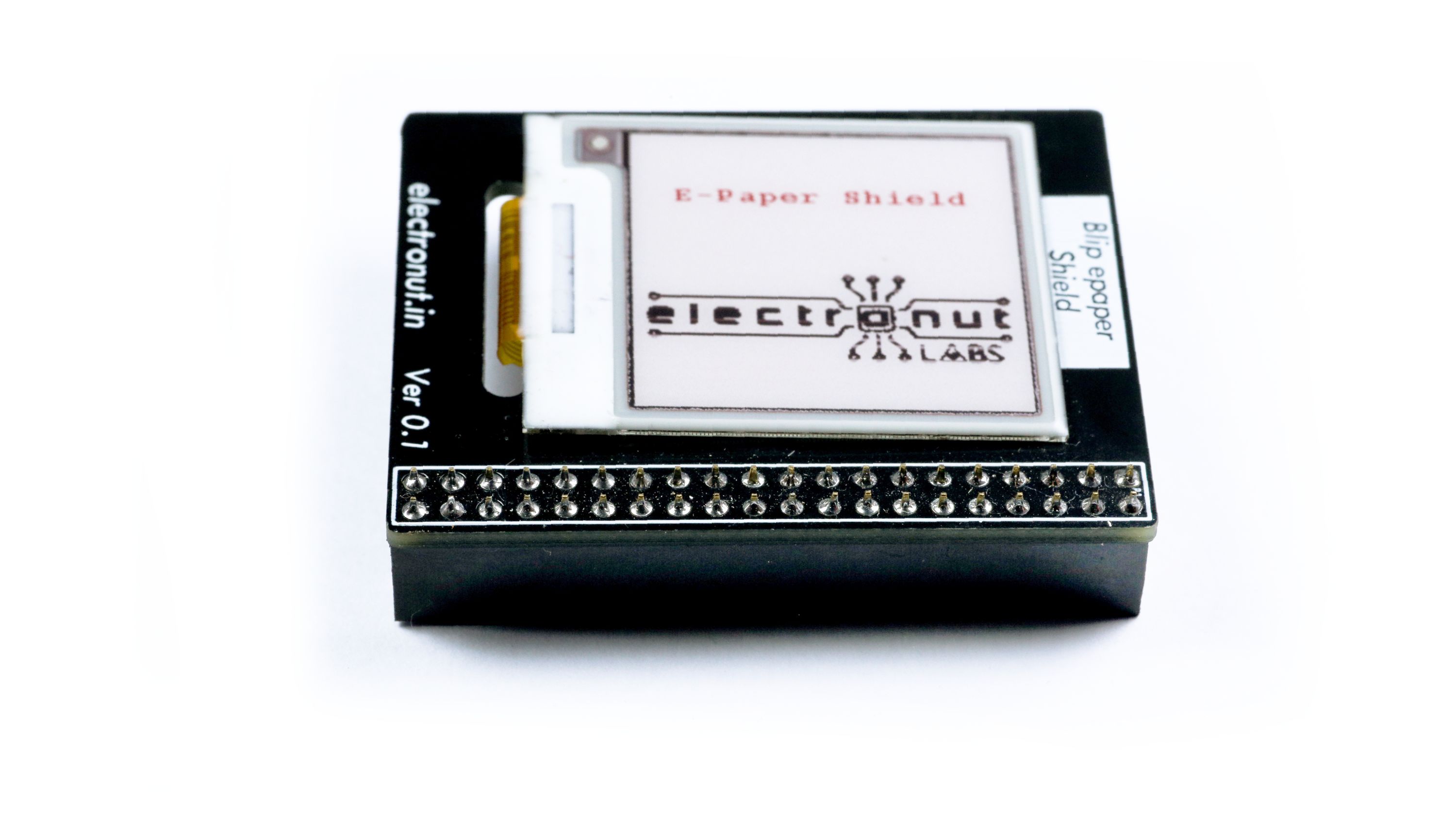

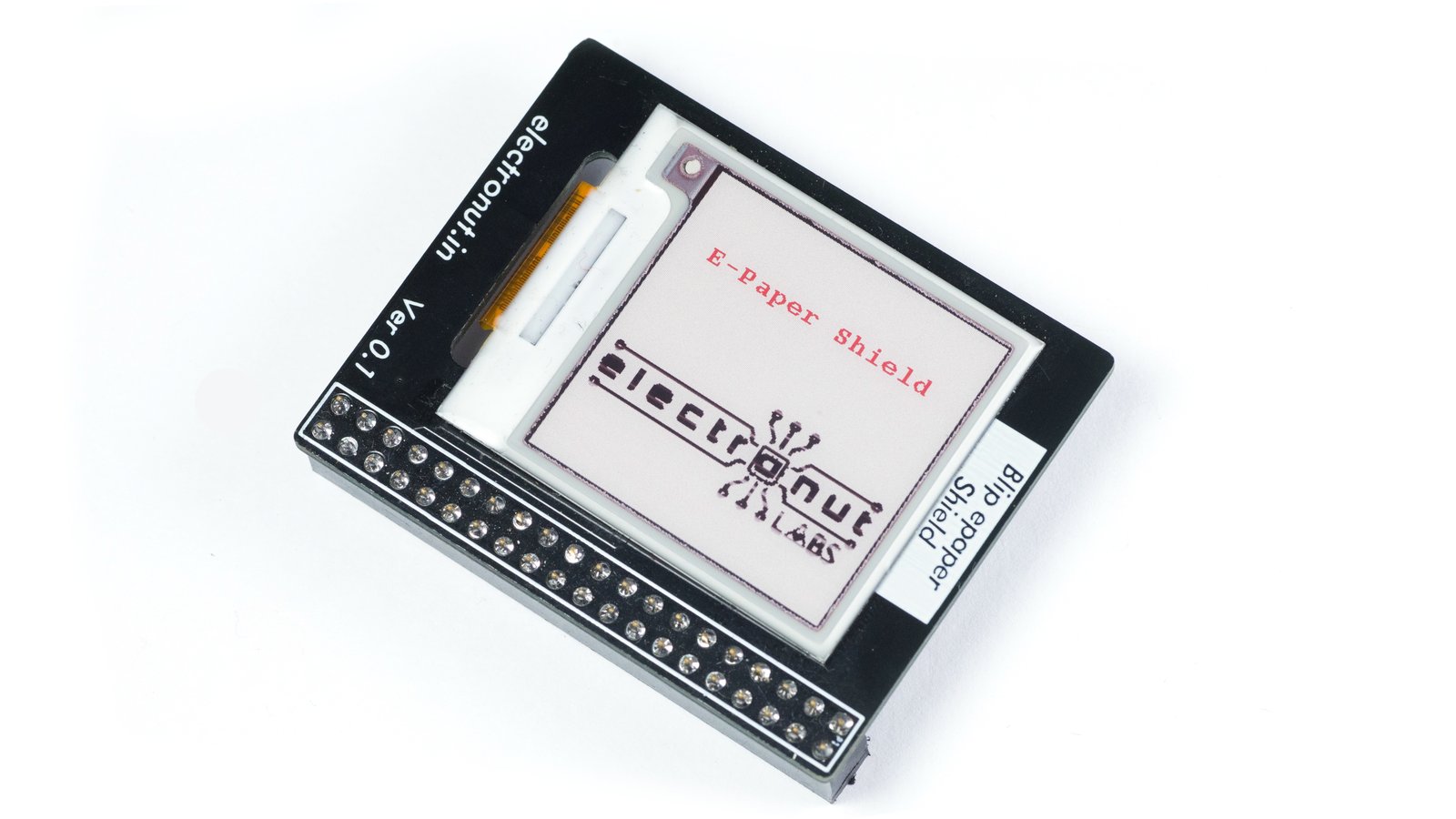

This shield can be plugged into Blip to convert it into a low-power display device.

Schematic: https://docs.electronut.in/blip/shields/e-paper/e-paper_shield.pdf
Documentation: https://docs.electronut.in/blip/shields/e-paper/

Blipboy Gaming Shield

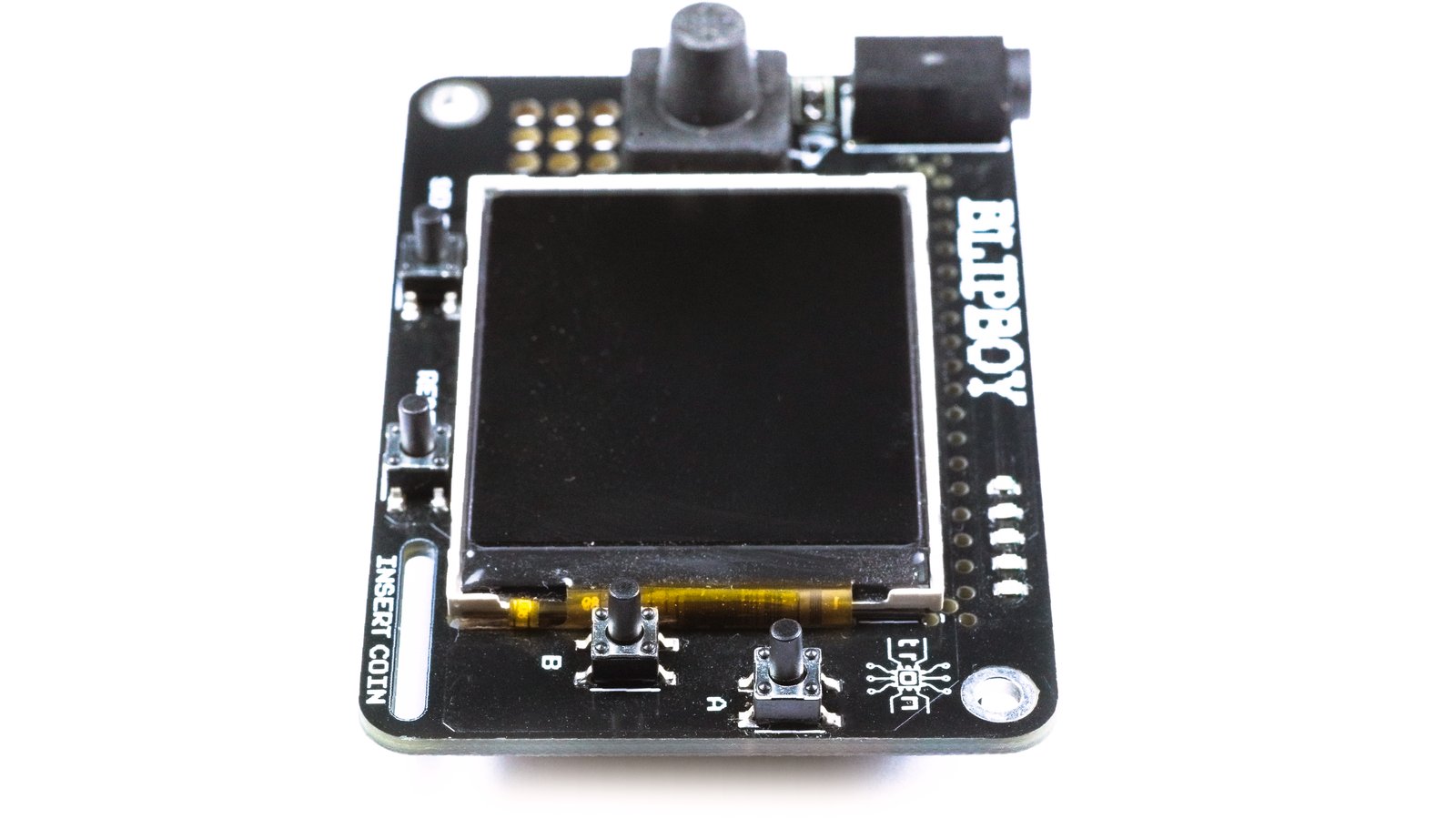

This shield can be plugged into Blip to convert it into a handheld gaming device!

Blip with the blipboy shield can support CircuitPython, Arduino, Zephyr, etc. You can play (and make) games in Python for this. We already have one sample running and are working on more to come.

Schematic: https://docs.electronut.in/blip/shields/blipboy/schematic-blipboy.pdf
Documentation: https://docs.electronut.in/blip/shields/blipboy/

Specifications

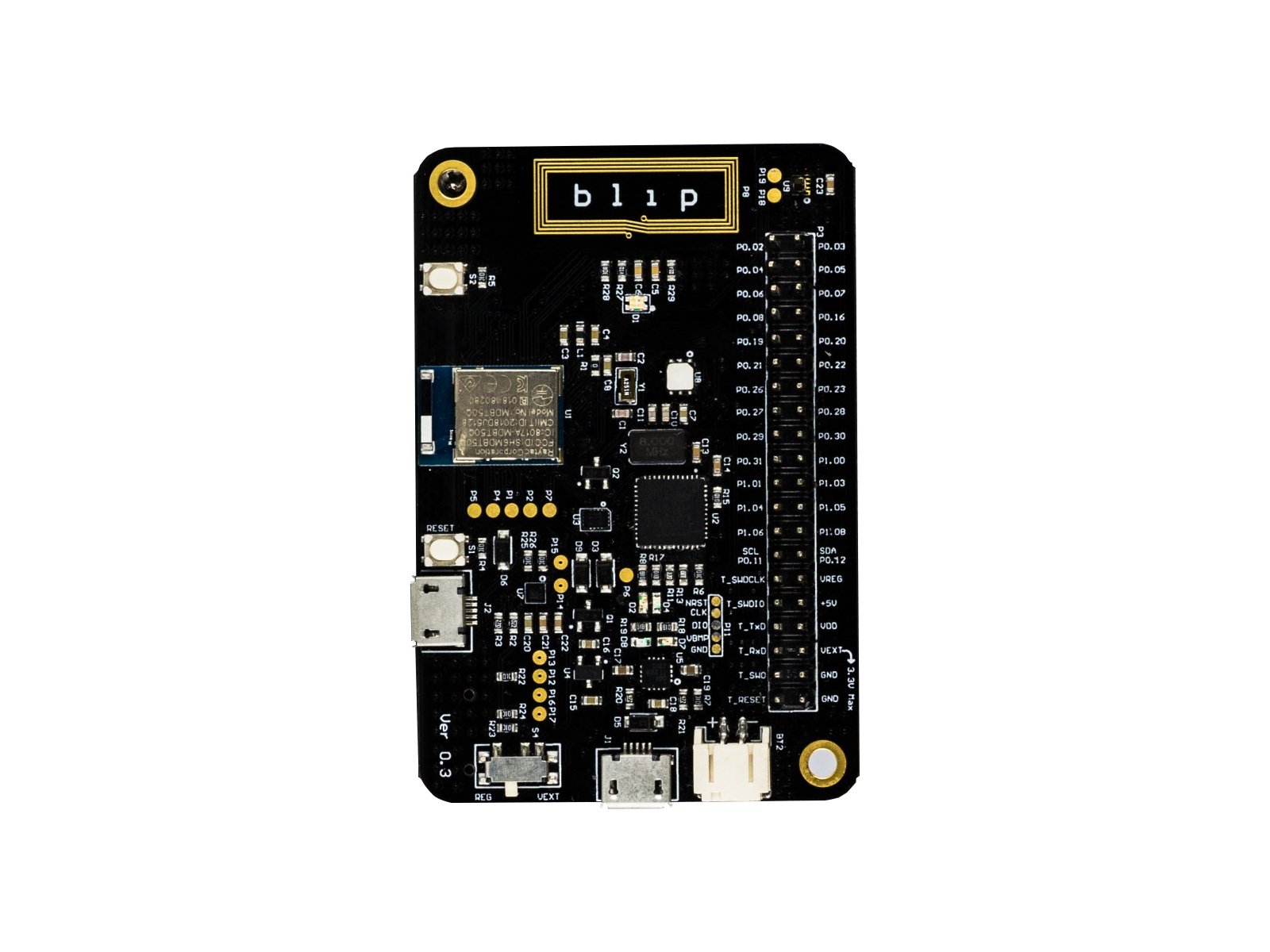

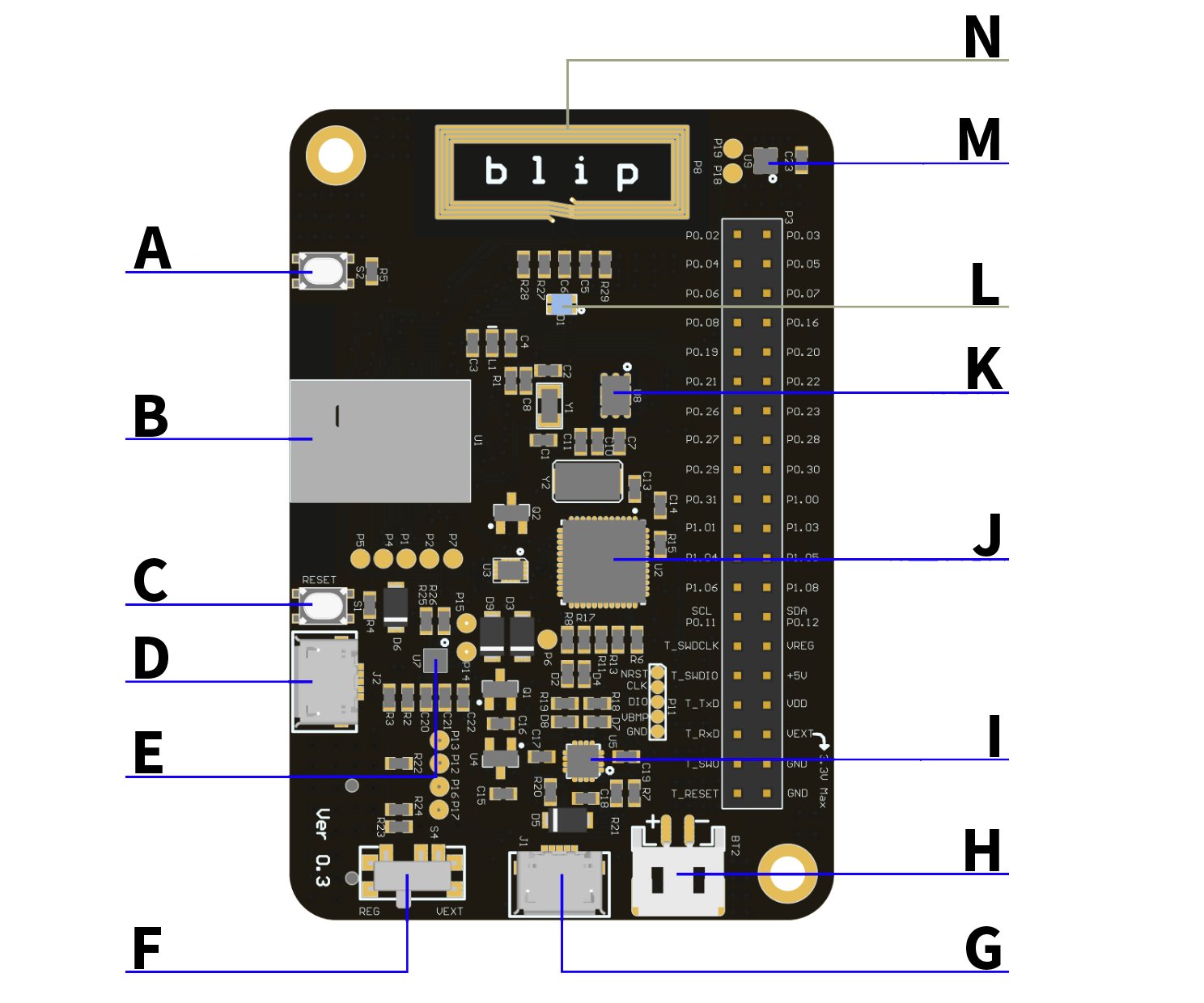

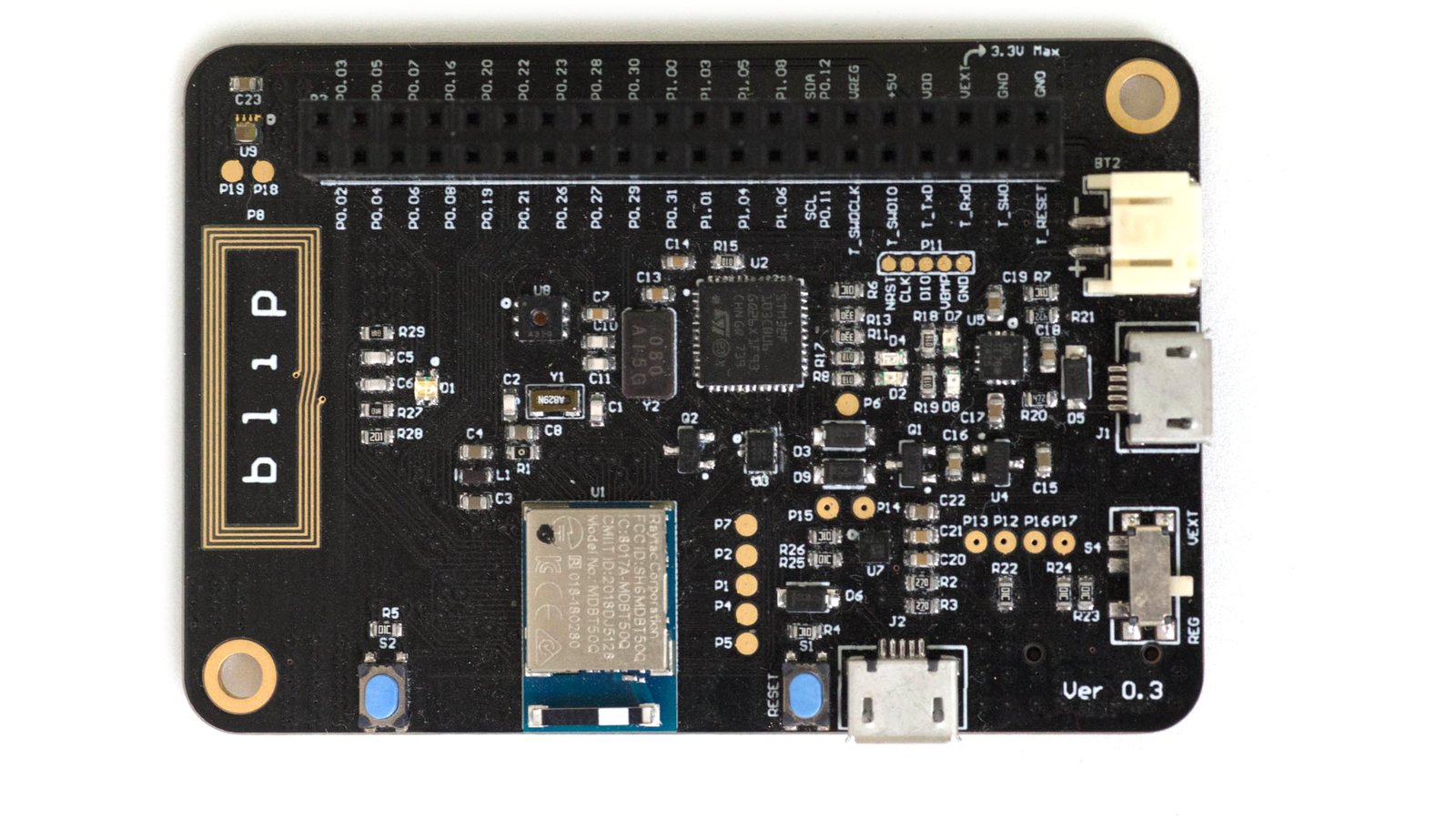

Blip Board Labelled
A. User buttonH. LiPo battery connector
B. nRF52840 module (MDBT50Q)I. LiPo charger (BQ24079RGTR)
C. nRF RESETJ. Black Magic Probe programmer (STM32F103CBU6)
D. nRF USBK. Temp/Humidity sensor (S170065-A20)
E. Three-axis accelerometer (LIS2DH12TR)L. RGB LED
F. Power selection switchM. Ambient light sensor (LTR-329ALS-01)
G. Programmer / debugger USBN. NFC antenna

Documentation and Resources:

Blip’s schematic, BOM, extensive documentation, and a wealth of example projects are available on our documentation portal.

Sample firmware, datasheet, images, etc. can currently be found in this GitLab repository.

Datasheet PDF: https://docs.electronut.in/blip/blip_datasheet.pdf
Schematic PDF: https://docs.electronut.in/blip/blip_v0.3_schematic.pdf

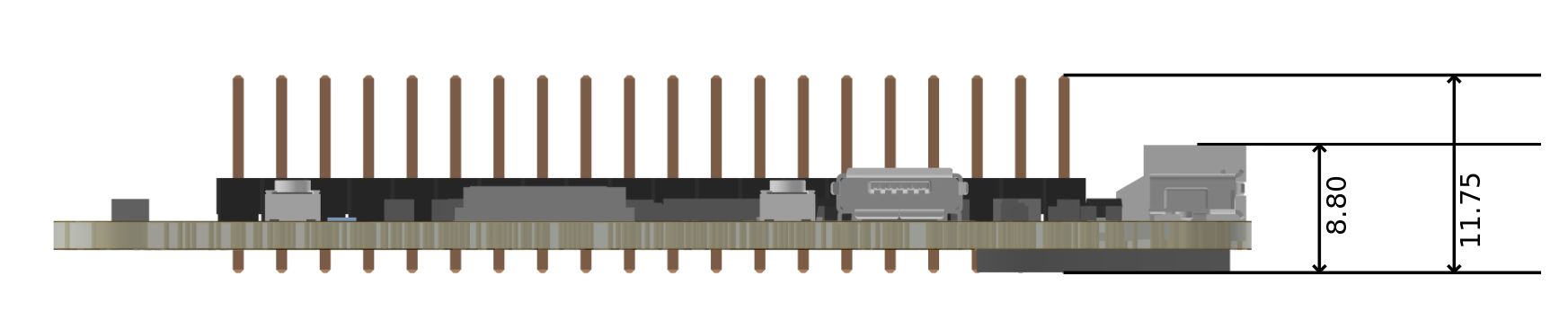

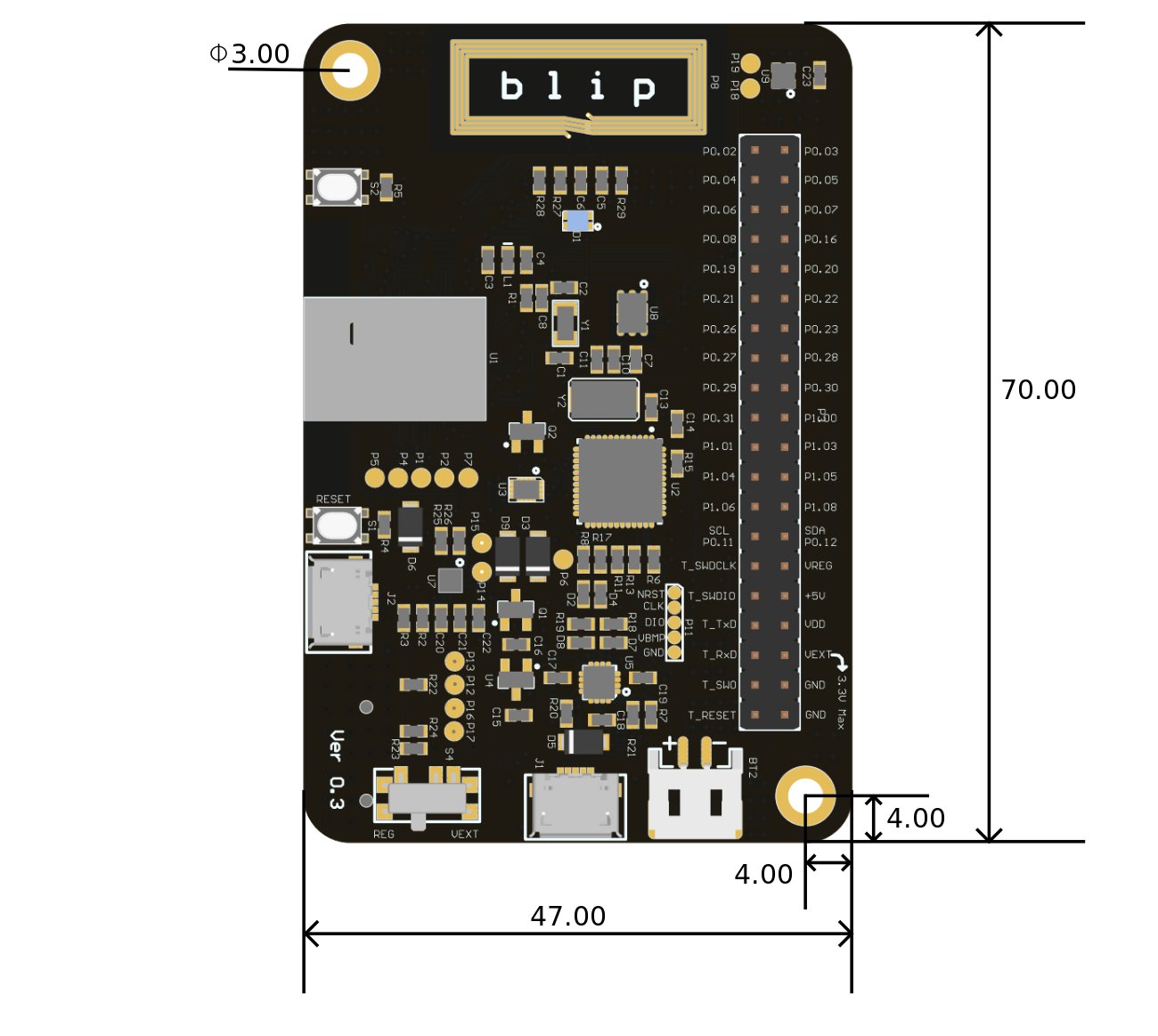

Blip Dimensions:

Length: 70 mm
Width: 47 mm
Height: 8.8 mm (11.75 mm with pins)

Comparisons

See how Blip compares to other development boards also using the nRF52840 semiconductor.

Blip Makerdiary nrf52840-mdknRF52840 FeatherReel boardPro nRF52840 mini
ManufacturerElectronut Labs Makerdiary Adafruit Phytec Sparkfun
DebuggerBlack Magic Probe CMSIS-DAP No CMSIS-DAP No
NFC antennaPCB antenna No No No No
MicroSD slotYes No No No No
QSPI flashNo 8 MB 2 MB No No
Battery conn.JST No JST AAA JST
AccelerometerYes No No Yes No
Light sensorYes No No Yes No
Temp/HumidityYes No No Yes No
DisplayE-paper shield available No No E-paperNo
LEDsRGB RGB Red, Neopixel RGB Blue
Price (USD)$55 $39$24.95$54.9$29.95

Demo Applications

Blip’s on-board nrf52840 SoC chip is very capable. We have made it very easy to get started with Blip and develop many kinds of applications and projects. The following projects use Arduino, Zephyr RTOS and nRF SDK.

BLE Demo Firmware

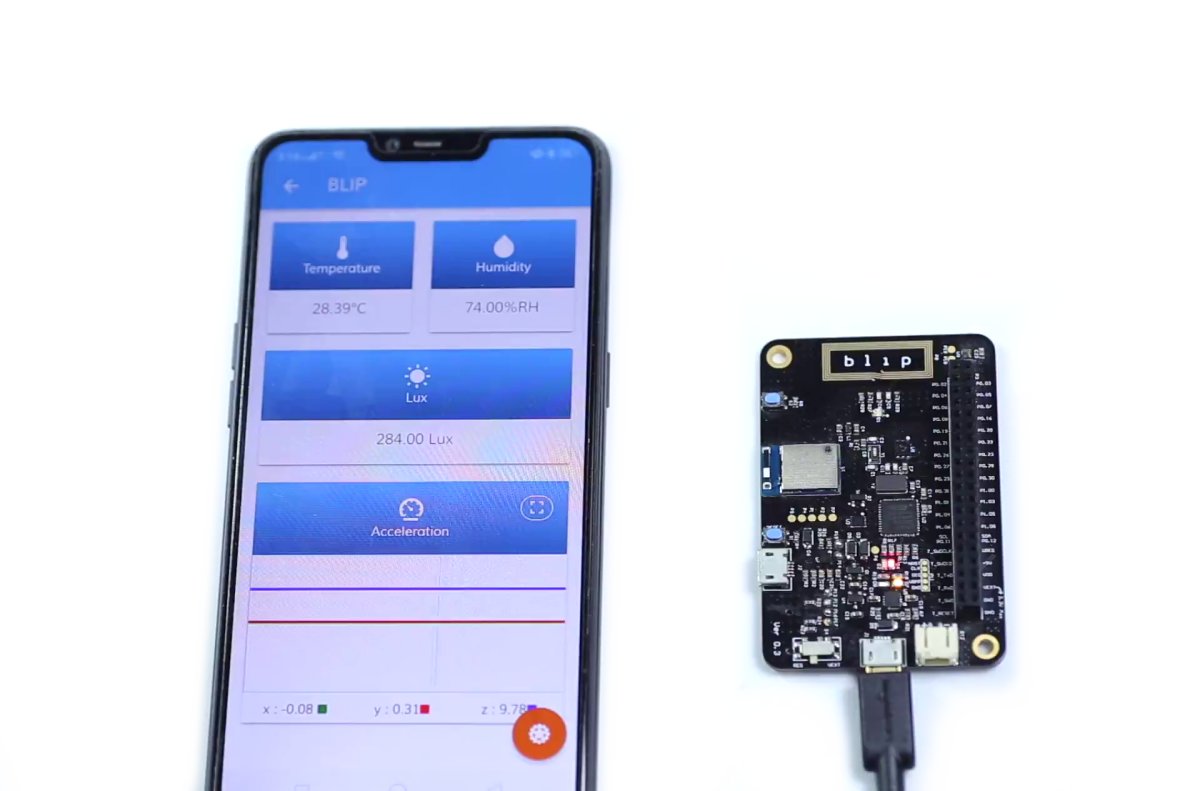

The default firmware collects data from all onboard sensors (temperature/humidity, light, and accelerometer) and sends it over BLE (Bluetooth Low Energy) to the Electronut Labs mobile app. The app can be used to connect to the device and see the sensor data.

We also have a web Bluetooth demo that shows the data and plots directly in a browser. You can see more details about this on this page: https://docs.electronut.in/blip/code/default_fw/.

LED Matrix Project

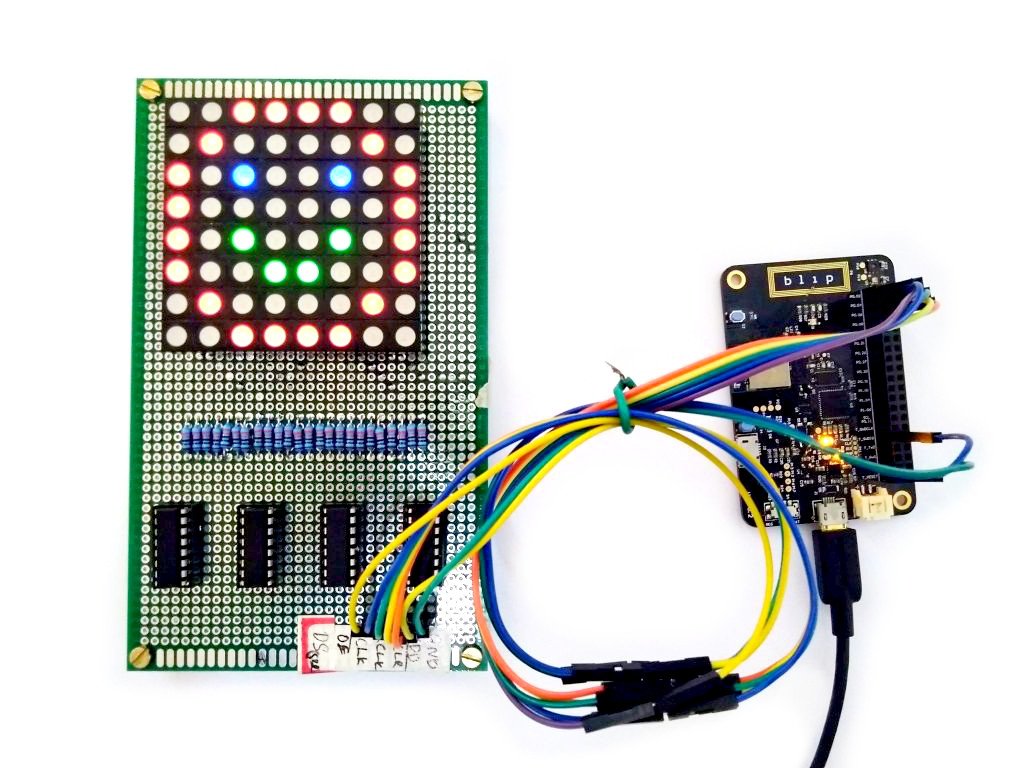

This project is about interfacing an 8x8 RGB LED matrix with Blip to transfer and display LED patterns on the matrix over BLE.

Arduino IDE is used for this project, and you can talk directly to Blip using web Bluetooth.

You can see more details on this page: https://docs.electronut.in/blip/code/projects/led_matrix/.

Soil Moisture Sensor

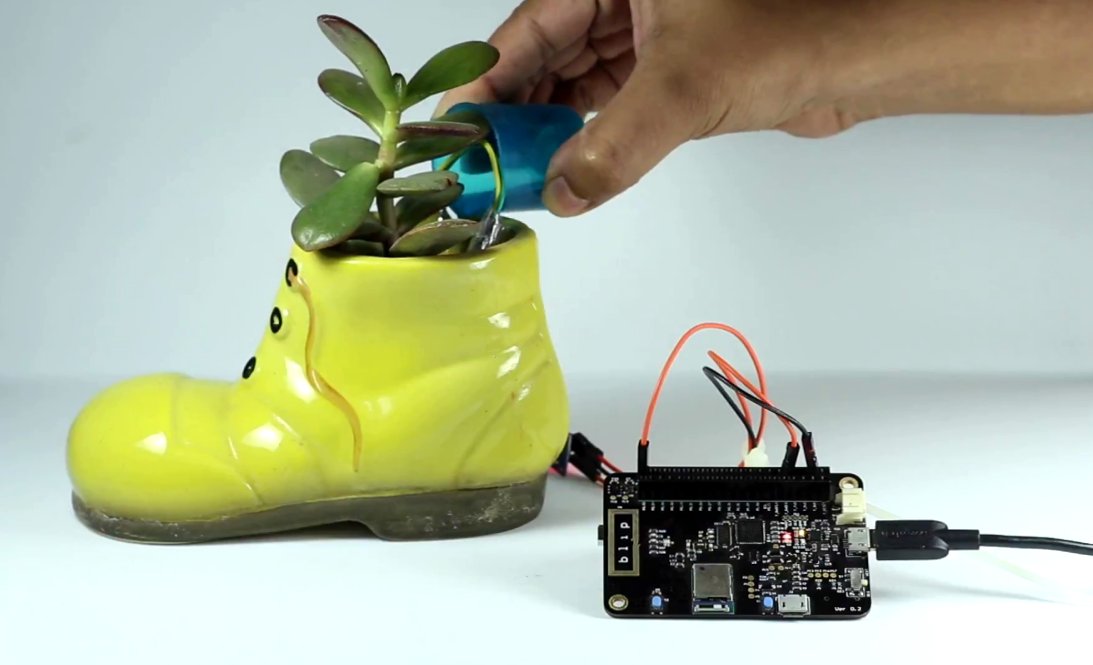

In this project, we have a Blip connected to an analog soil moisture sensor. The firmware, which is written with Zephyr, updates the value in a BLE characteristic which is read periodically by a Node.js script running on a RaspberryPi. This scripts puts the data in a MongoDB instance and shows it in a web UI.

You can see more details here: https://docs.electronut.in/blip/code/projects/plant-moisture-monitor/.

Vibration Analysis

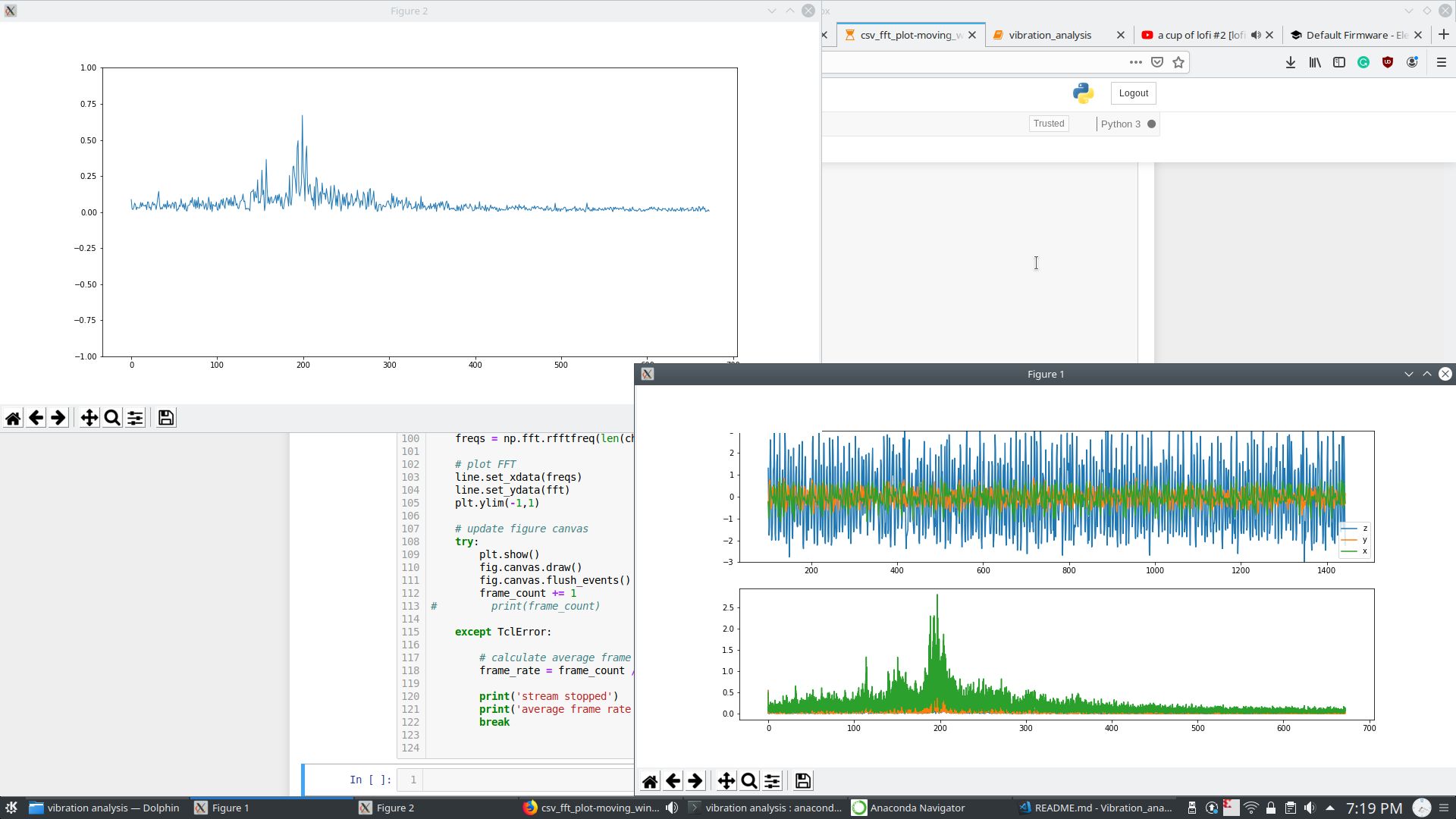

In this project, we analyze mechanical vibrations of a machine by attaching Blip to it and recording its vibrations using the on-board accelerometer. We configure the LIS2DH12 accelerometer in stream mode, so that it is continuously sending data to Blip using the accelerometer’s FIFO and interrupts. Data is recorded in a .csv file on a microSD card, and it is later analyzed with a Python script, by calculating a moving FFT.

You can see more details here: https://docs.electronut.in/blip/code/projects/Vibration_analysis/.

Manufacturing Plan

We plan to manufacture Blip and the shields with Elecrow in Shezhen, China. We have been using Elecrow as a manufacturing partner for our hardware for the past couple of years, and we have been happy with their service and the quality of the production hardware.

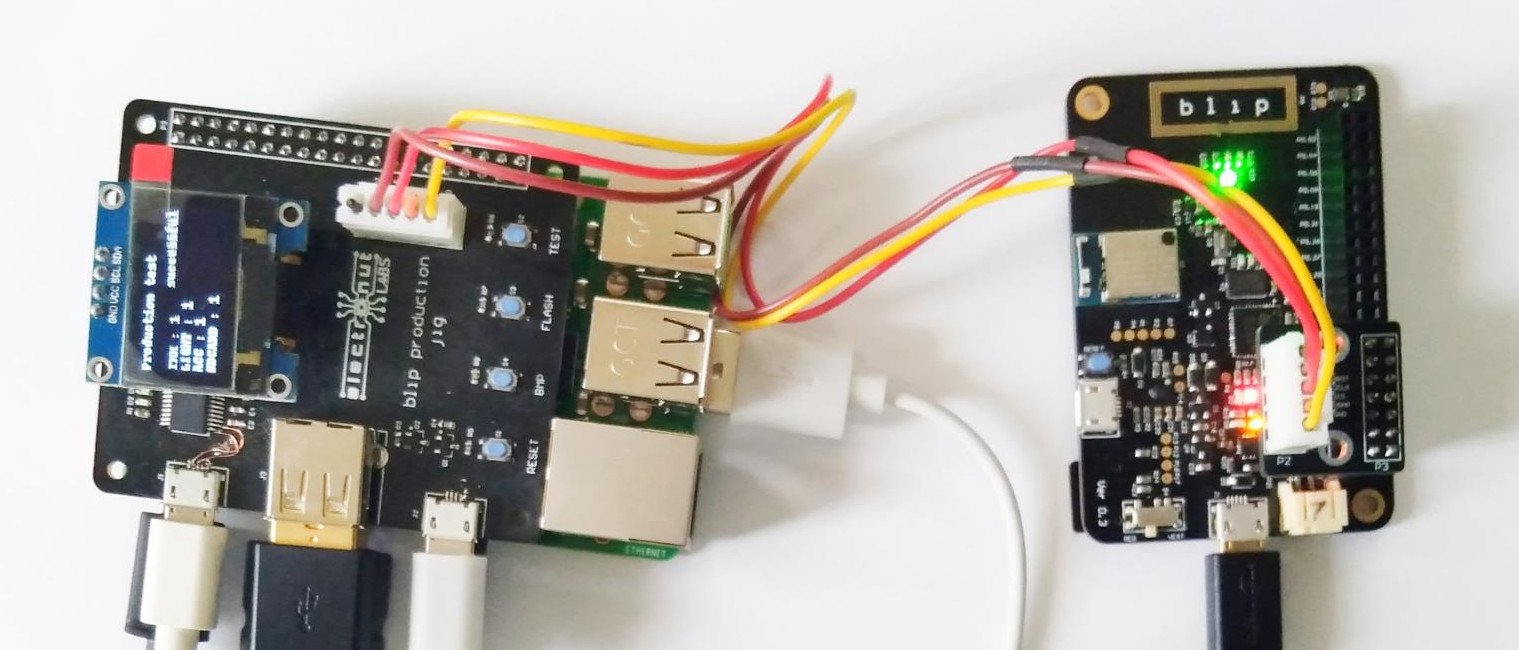

They will test the boards using a production test jig we made for Blip to check board assembly, programming, and all sensors. The test will upload a functional testing firmware to Blip and run all diagnostics; the status for pass/fail is shown on the OLED screen.

Fulfillment and Logistics

Boards manufactured by Elecrow will be shipped directly to Crowd Supply, who will then ship out the boards to the backers. For more information on Crowd Supply fulillment, please see their Guide on ordering, paying, and shipping.

Risks and Challenges

There are always risks associated with manufacturing hardware. However, we have a solid track record of creating interesting hardware for makers, we have experience selling internationally on Tindie as well as Crowd Supply, and we’ve consistently delivered our products on time. Any delays or challenges will be clearly communicated with backers through updates.

About Electronut Labs

Electronut Labs has strong maker roots. Our first hardware product snapVCC was successfully crowdfunded right here at Crowd Supply. These days, we take on a lot of consulting work on embedded systems - especially in the area of low power wireless technology. We wanted to make a board that we would love to use ourselves. Something which would let us explore the latest BLE and 802.15.4 technology, would be easy to program and debug, and would already have sensors built in. This is how Blip came to be.

In the Press

Hackster News

"This little module makes it easy to build Bluetooth mesh-networked sensors and more."

Electronics-Lab.com

"It is able to help you easily start your next IoT Development using BLE technology."

CNX Software

"Aimed at prototyping and projects in a wide variety of BLE and 802.15.4, wireless application scenarios."

industriaembebidahoy

"Con dos encapsulados posibles para necesidades concretas, esta placa de desarrollo con sensores, NFC y Bluetooth otorga a los desarrolladores una gran flexibilidad."


Produced by Electronut Labs in Bangalore, India.

Sold and shipped by Crowd Supply.

Blip - Early Delivery

A Blip from our first production run, available to ship at the end of the campaign.

$55 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

Blip

One Blip board.

$55 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

Blip E-paper Shield

One E-paper Shield - Blip not included.

$24 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

Blipboy Gaming Shield

One Blipboy Gaming Shield - Blip not included.

$26 $8 US Shipping / $18 Worldwide

Want to buy this item? Check the current project page for the latest information.

Blip Kit

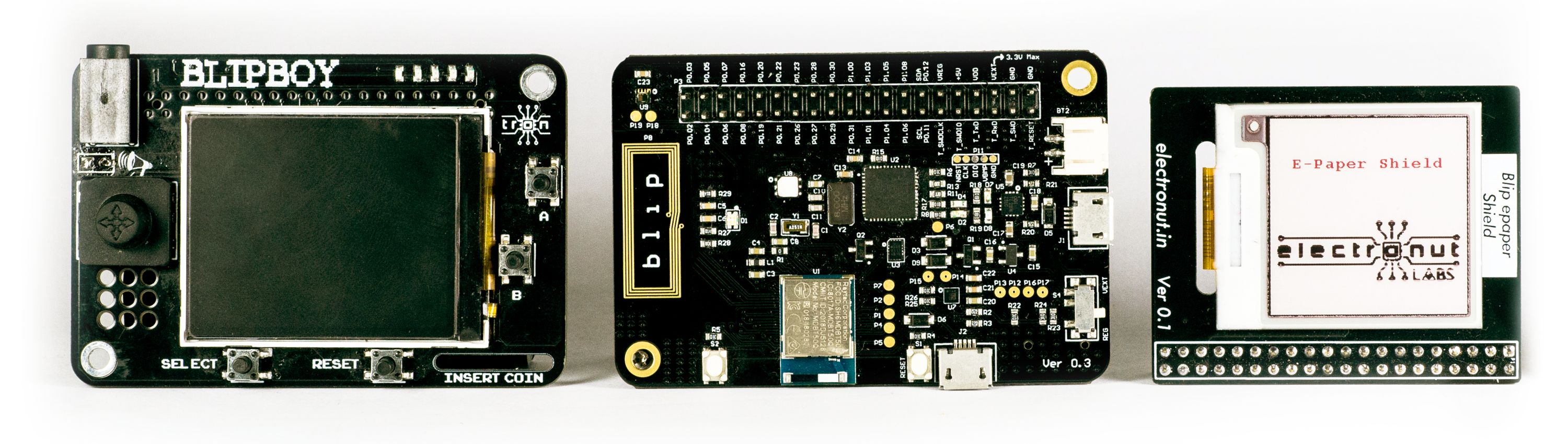

All three boards: Blip + Blip E-paper Shield + Blipboy Gaming Shield.
