USBpwrMe is a compact adapter that allows you to power any USB-powered device directly from your bench power supply. It includes multiple safety features and is designed to fit most laboratory power supplies.

When working with USB-powered devices, it is often important to monitor things like input current and power consumption, and USBpwrMe gives you a great deal of control. Simply connect your device via the USB Type-A or USB Type-C port on the adapter board, turn on your bench power supply, and you’re ready to start testing. The board operates from 3 V to 20 V, making it suitable for a wide range of applications, with charging negotiation when used at 5 V.

Power Up Your Workbench

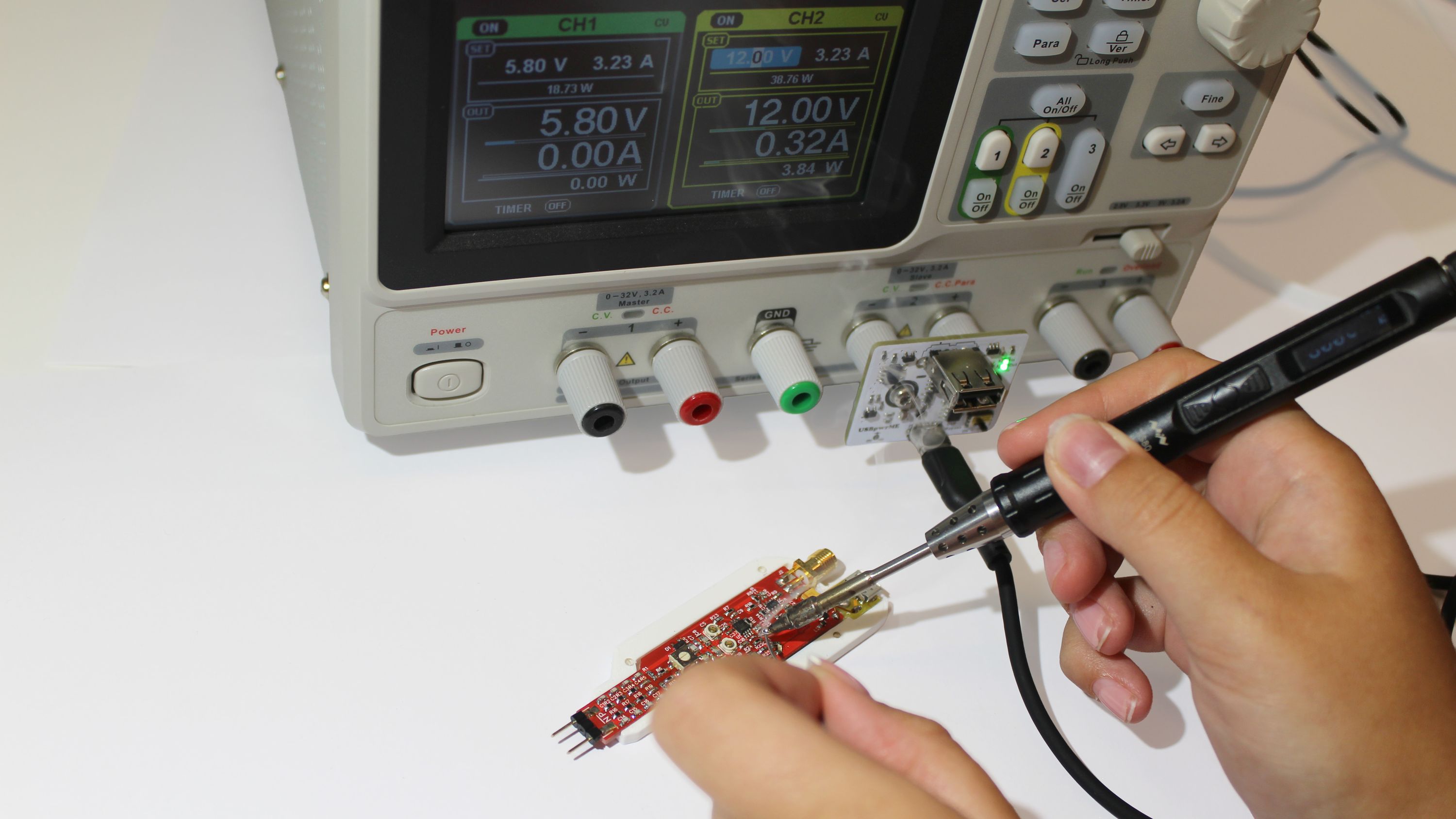

USBpwrMe is an essential tool for electronics development, testing, and troubleshooting. For anyone who needs to power prototypes as they’re developing custom hardware.

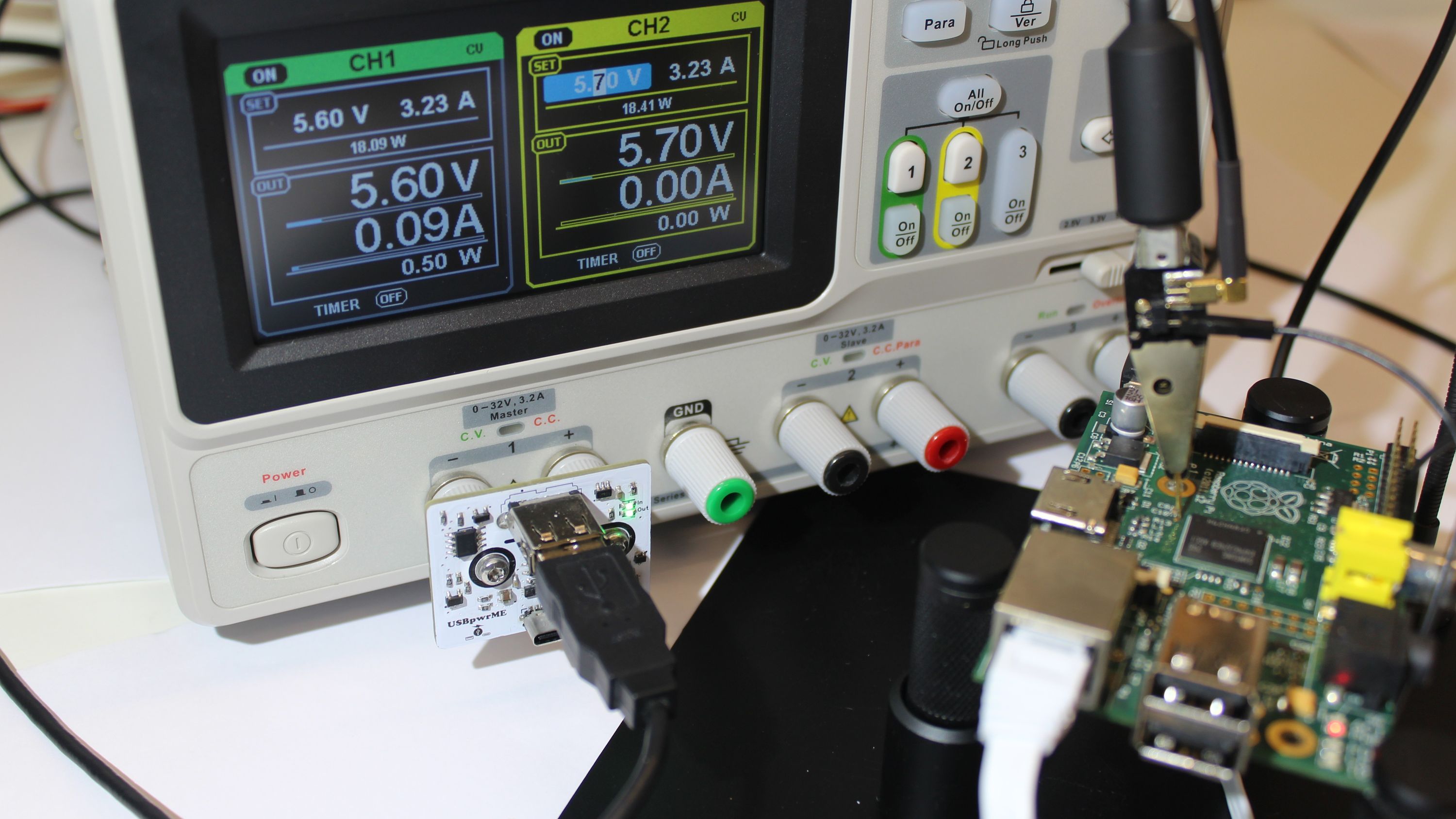

Quickly plug in and troubleshoot a wide array of USB-powered devices—it lets you sanity check your latest board revision and monitor its power draw in seconds.

With the flexibility and convenience of USBpwrMe, you’ll never have to search for matching cables and connectors again. There’s no need to cut or modify cables to connect to your bench power supply. Simply connect your DUT and forget the frustration of cutting up your last USB cable.

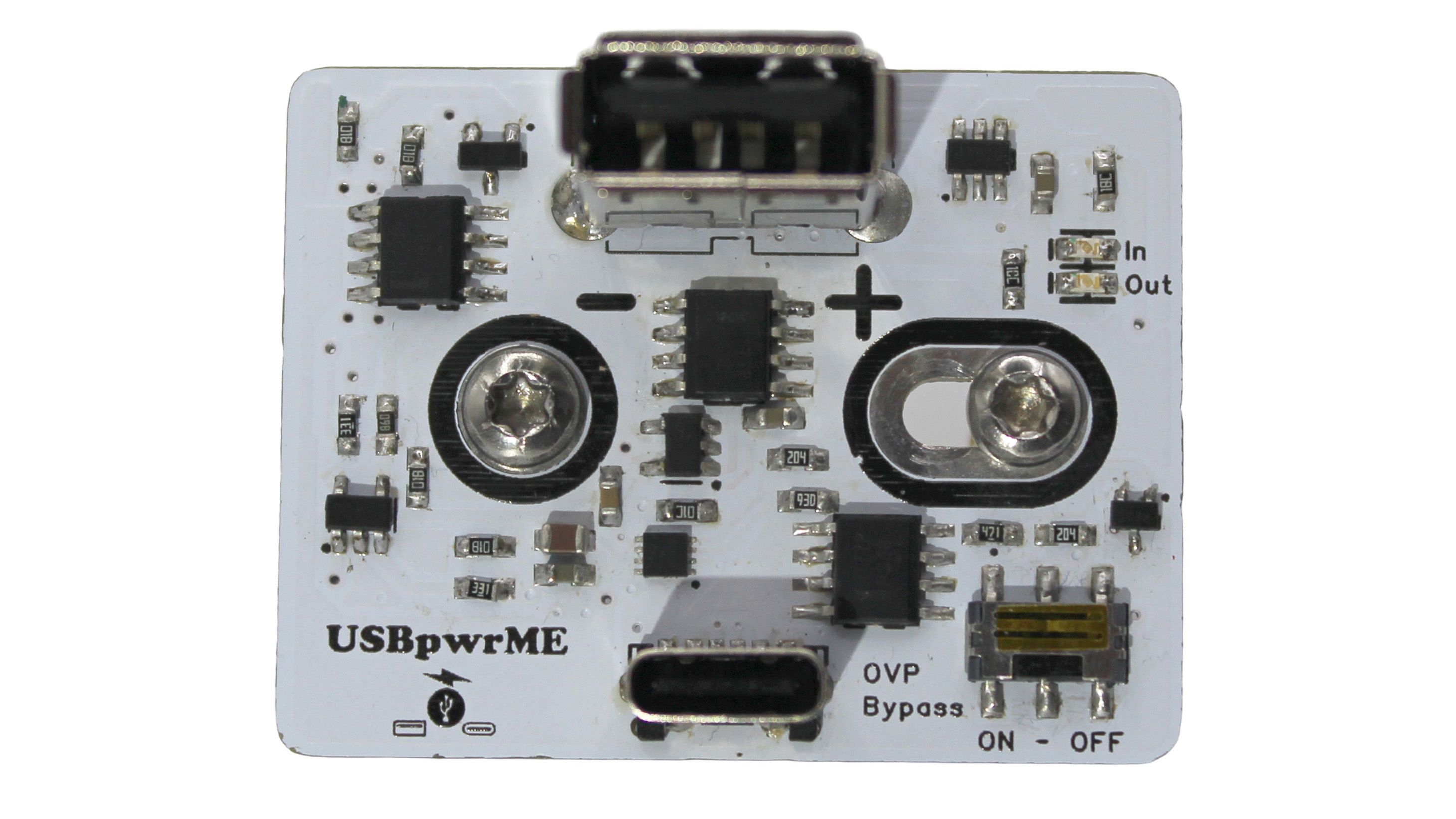

Features and Specifications

• Input voltage: 3 V–20 V
• Maximum current: 6 A total
• USB Type-A negotiated output power: up to 10 W
• USB Type-C negotiated output power: up to 15 W
• USB Type-A pass through output power: 25 W max
• USB Type-C pass through output power: 35 W max
• Reverse polarity protection
• Overvoltage:
  • Protection in 5 V mode
  • Overvoltage protection can be disabled for higher output voltages
• Status LEDs
• Compatible with bench power supplies with binding post spacing of 19–23 mm (0.75–0.91 in)
• Input ports: 2x banana plug connector (4 mm, 0.16 in)
• Switch to enable or disable OVP and passthrough mode
• Output ports: 1x USB Type-A, 1x USB Type-C
• Physical dimensions: 32 x 42 x 34 mm (1.26 × 1.65 × 1.34 in)
• Weight: 10 g (0.35 oz)

Note: Only one USB output should be used at max load

Open Source

This project is open source and design files are released under the CERN Open Hardware License Version 2 (CERN-OHL-W v2). Files will be available on GitHub prior to launch.

Interested in This Project?

You can sign up at the top of this page to be notified when the campaign launches and to receive other updates. We only send out relevant content, and you can unsubscribe at any time.
