HestiaPi Touch
by MakeOpenStuff
An open source, smart thermostat for controlling HVAC and water systems
Details
Recent Updates
- Jan 10, 2020 Shipping Delay
- Dec 11, 2019 Shipping Soon
- Oct 15, 2019 Assembly Progress and Soldering Video
- Sep 04, 2019 What a Month (and a Half)
As Featured In
"all the home automation advantages of something like Google’s Nest “smart” thermostat without running the risk of your data being sold to the highest bidder. "
"The HestiaPi features an integrated Raspberry Pi Zero W, wireless connectivity, 3.5-inch LCD display, and a host of sensors to monitor and control home heating and water."
"Runs a Linux-based openHAB stack on an RPI Zero W along with relays, a 3.5-inch display, and temperature, humidity, and pressure sensors."
"offer(s) root access and increased privacy and security from the prying eyes of large corporations"
"HestiaPi Touch is compatible with many devices and home automation systems and can serve as a central point of control that ties them all together in your home."
(ch)own your smart home thermostat - if you don’t have root access, someone else does.
HestiaPi Touch is a completely open source smart thermostat for your home. With it, you can monitor your home’s temperature, relative humidity, and atmospheric pressure. You can also control your heating, ventilation, air conditioning, hot water, and more from anywhere you have an Internet connection. You can do all this securely and with confidence your private data stays private. HestiaPi Touch is compatible with many devices and home automation systems and can serve as a central point of control that ties them all together in your home.

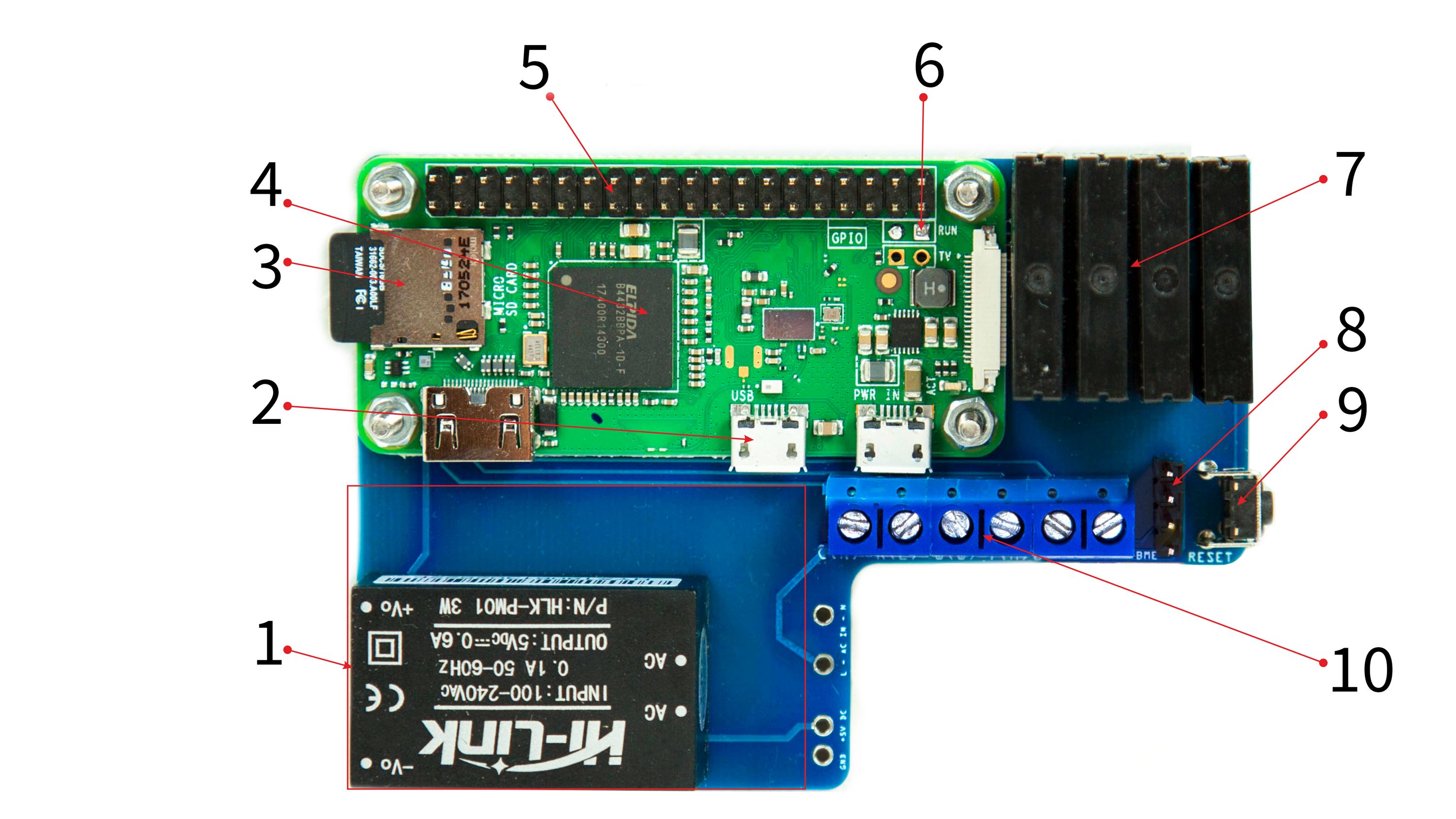

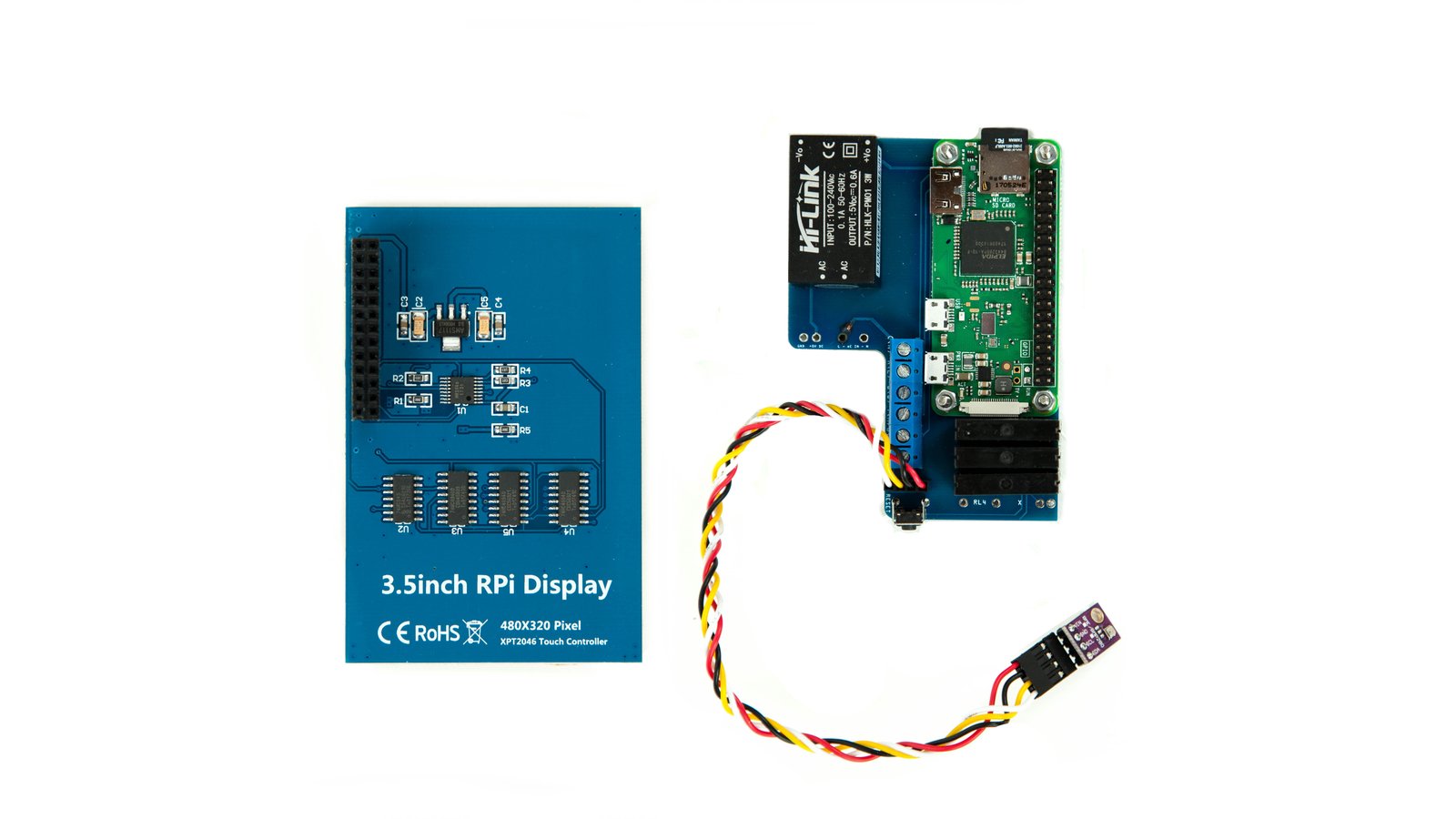

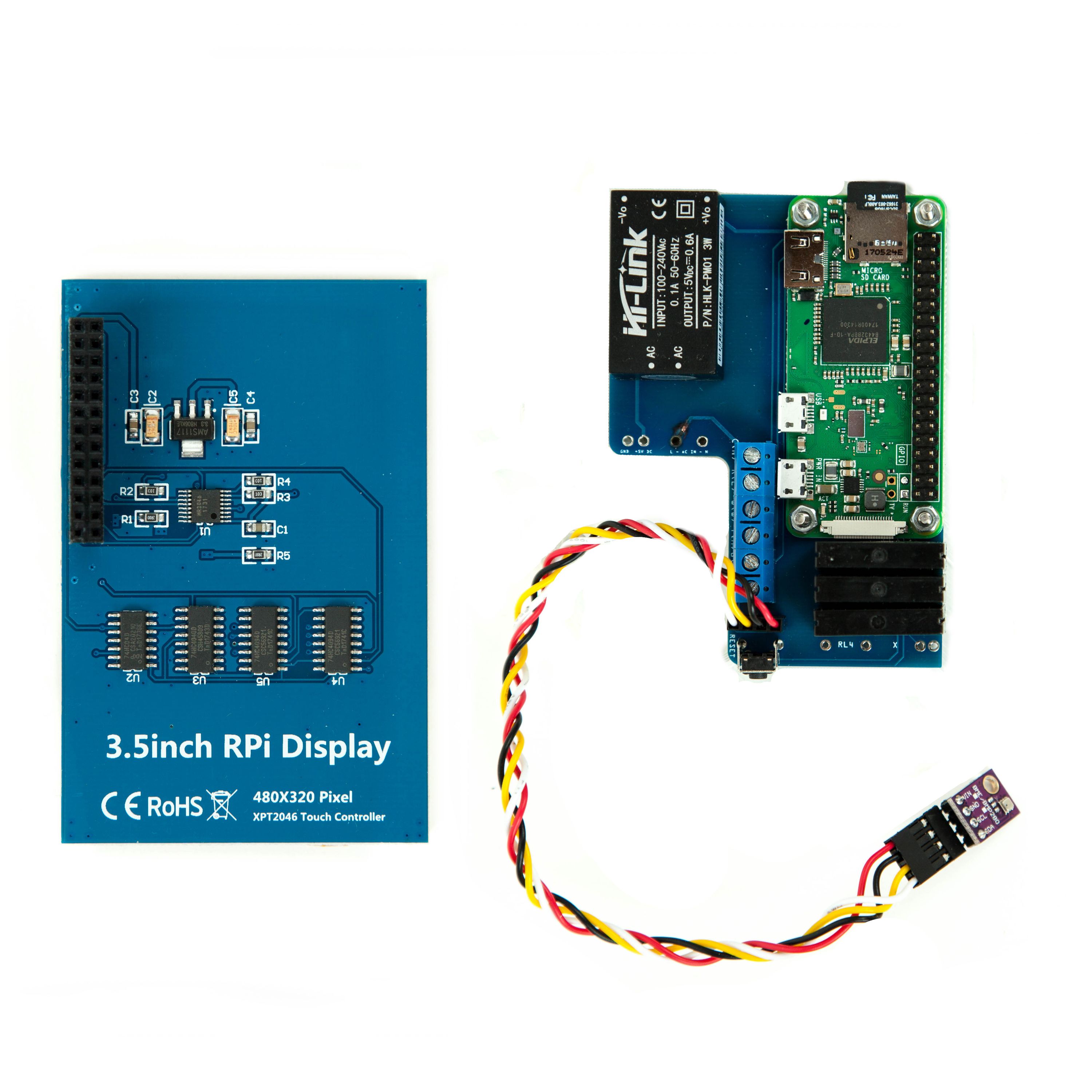

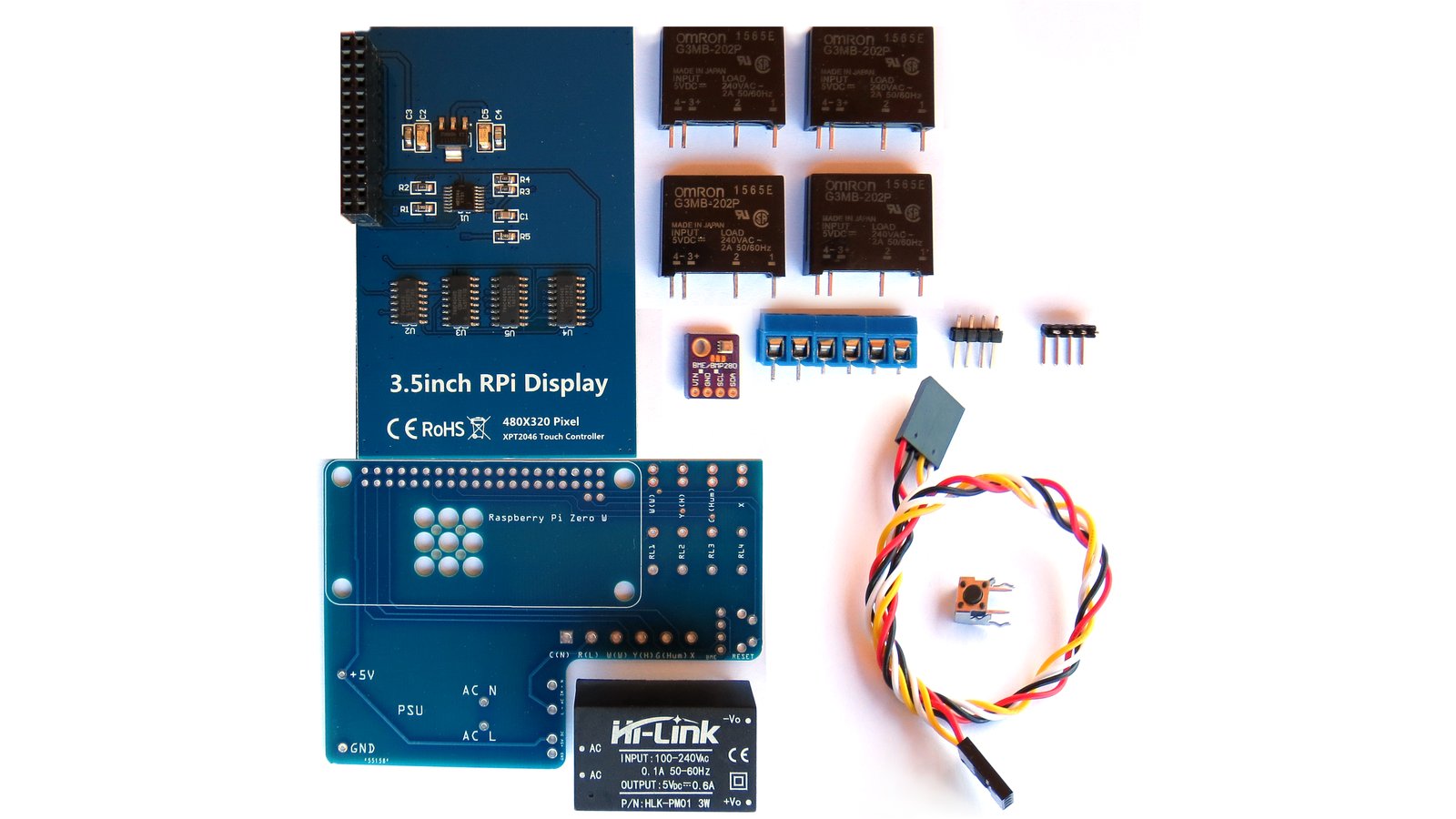

| Board Diagram | |
|---|---|
| 1. Modular PSU | 6. Reset pin |
| 2. MicroUSB (power + data) | 7. 4x Relays |
| 3. MicroSD card | 8. Sensor connector |
| 4. Raspberry Pi | 9. Reset button |
| 5. LCD Connector + GPIO | 10. Terminals |
Features & Specifications
- Integrated Raspberry Pi Zero W*
- Processor: Broadcom BCM2835 single-core CPU running @ 1 GHz
- Memory: 512 MB RAM
- Storage: includes 16 GB microSD card with latest software
- Wireless Connectivity
- 802.11 b/g/n wireless LAN
- Bluetooth 4.1 Low Energy (BLE)
- Touch Display
- 3.5" LCD resistive, single-point touch screen
- Snaps onto Raspberry Pi GPIO header
- Temperature, Humidity, Pressure Sensing
- Integrated Bosch BME280 I²C
- Temperature: -40-80°C, ±0.5°C
- Relative humidity: 0-100%, ±3%
- Atmospheric pressure: 300-1100 hPa, ±1.0 hPa
- Integrated Bosch BME280 I²C
- Solid State Electrical Relays
- Four relays with normally open contacts
- Relays are for AC loads only (as standard for all HVAC systems), no DC loads
- Each relay rated for 2 A, 110-250 V AC
- Power
- Connects to mains power or common (C) wire
- Consumes less than 3 W (< $5 per year)
- Open Source Software
- Pre-installed with openHAB 2
- Mobile apps for Android, iOS, and Windows
- Fully MQTT compatible
- Can work with Google Home and Amazon Alexa

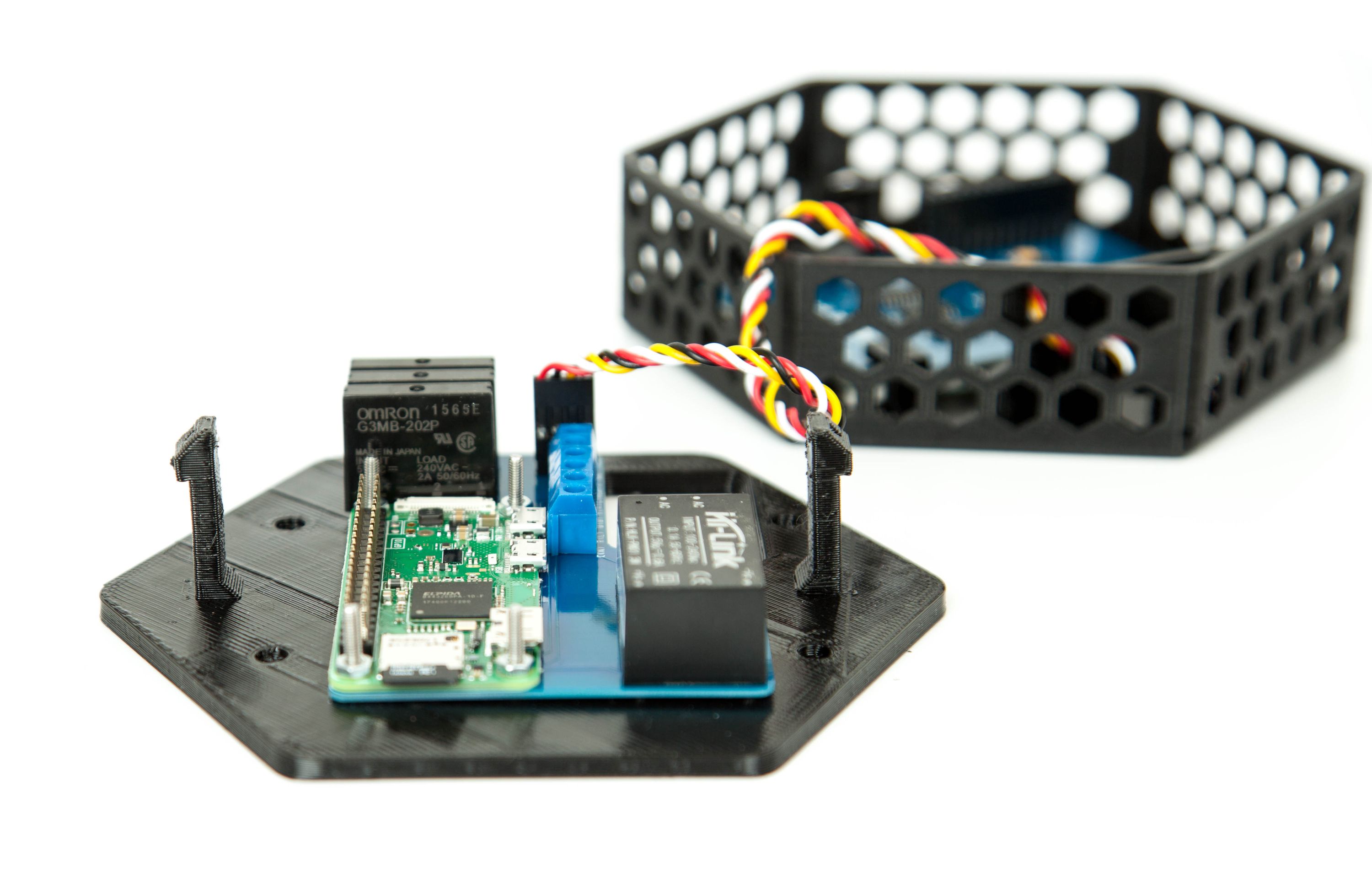

- Enclosure
- 3D-printed
- Choice of colors
- Dimensions
- 12 cm x 13.5 cm x 3.8 cm
- 200 grams (EU), 225 grams (US)
- Compatibility
- Supports most US systems with five wires: C, R, W, Y, G (Common, Red, White, Yellow, Green)
- Supports most 100-220 V AC mains-powered EU systems
- Fahrenheit (°F) and Celsius (°C) supported
*: Bottom side of PCB - mini HDMI, USB for power and camera connectors are physically blocked.
Terminal Block Wiring
| Label | US | EU |
|---|---|---|
| C(N) | C - Common wire | Neutral |
| R(L) | R - Red | Live |
| W(W) | W - White | Hot water |
| Y(H) | Y - Yellow | Heating |
| G(Hum) | G - Green | Humidity |
| W2 | Two-stage furnace | Two-stage furnace |
US vs. EU: Which option is right for me?
HestiaPi Touch is available in two options: US or EU. These determine the power supply input voltage (US: 24V AC, EU: 100-240V AC). The US option supports the C (common) wire in HVAC systems. Even if you live in the US, you may live in a house that does not support the C-wire, so make sure to check which is the right option for you.

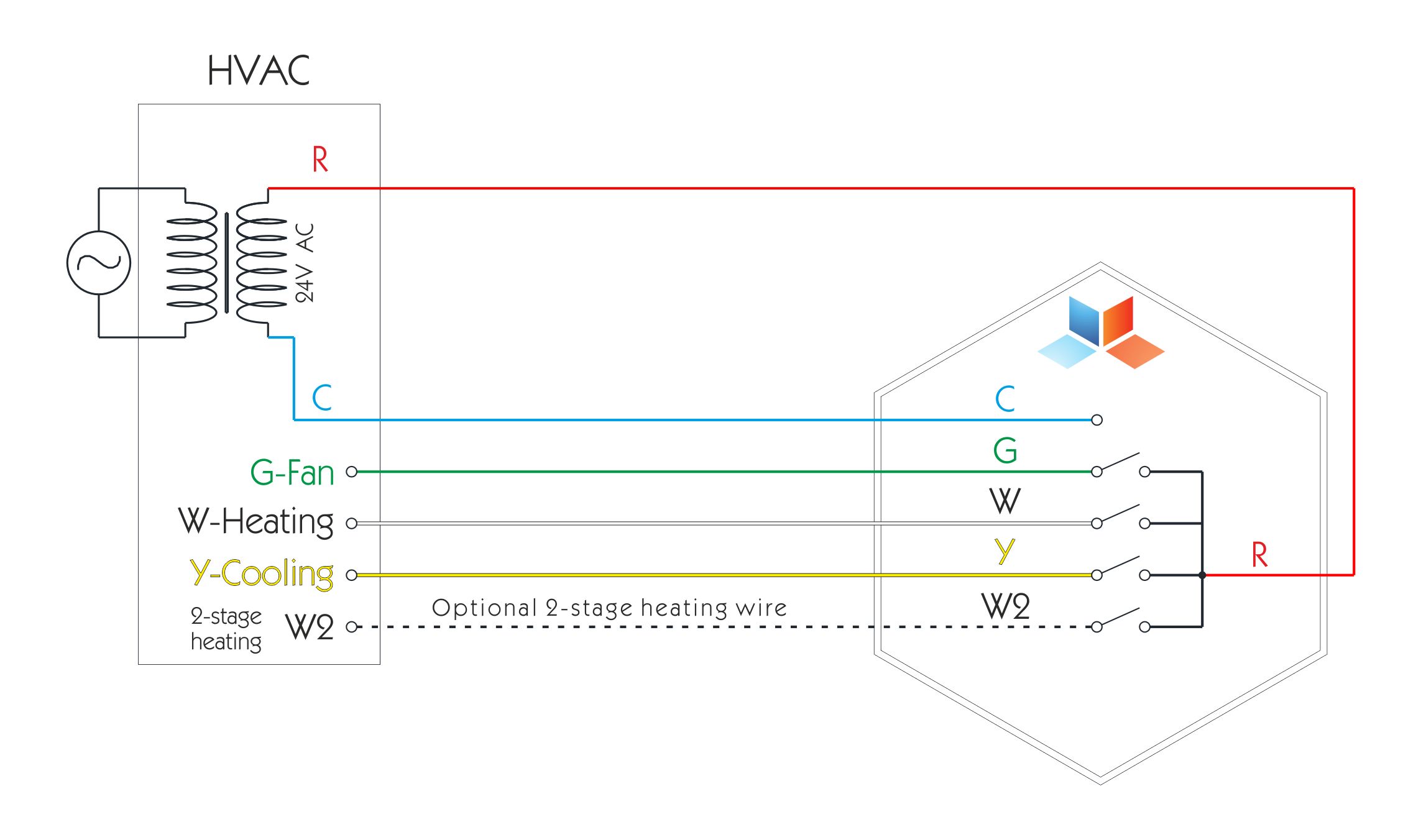

US-HVAC Model Hookup (24V AC)

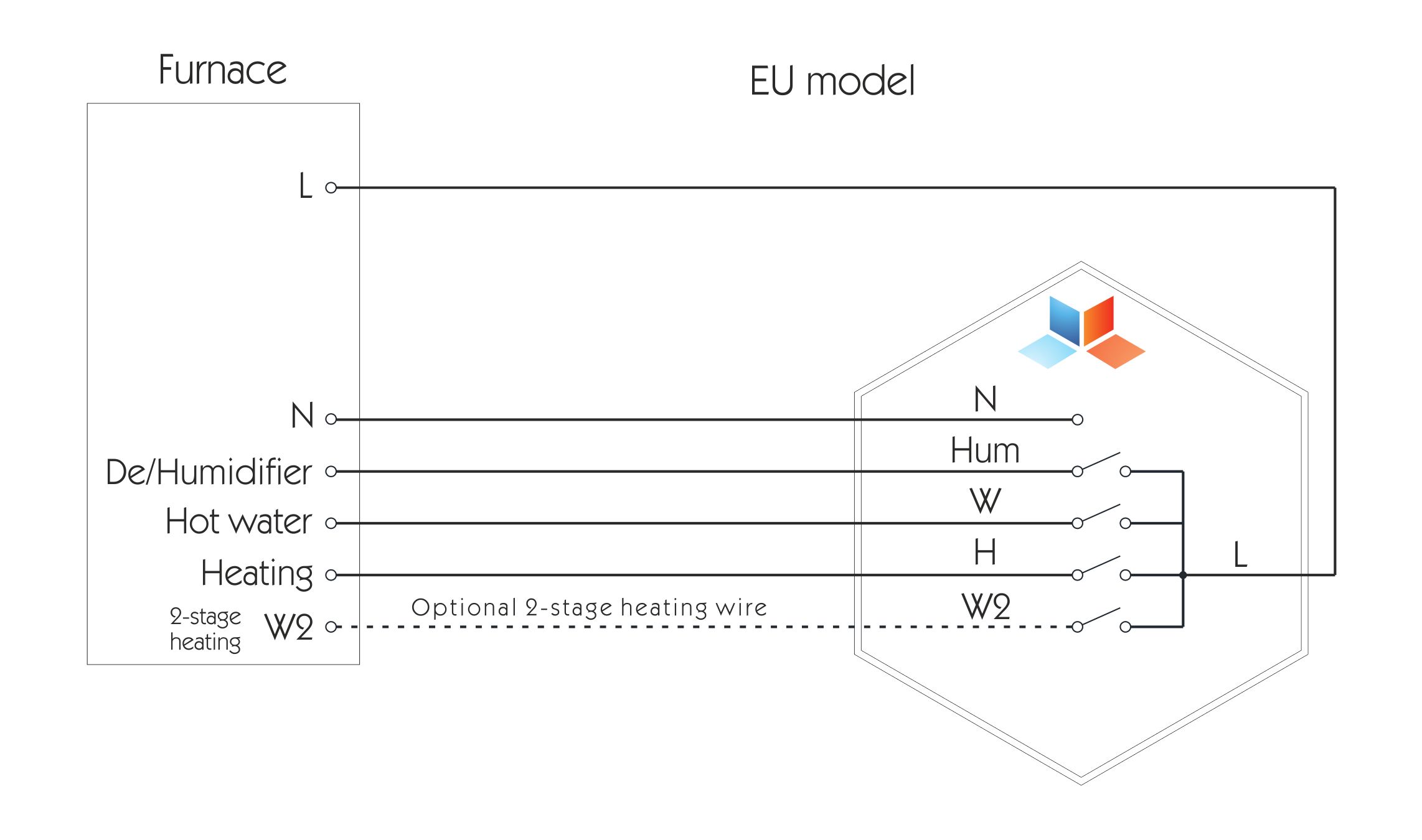

EU Model Hookup (100-240V AC)
No Need to Trade Privacy for Convenience
Our homes are becoming ever more enhanced with complex technologies. With proper automation and coordination of these technologies, our lives will become easier and more comfortable. Coming home after work to find a warm home with hot water ready to use is convenient. However, the very automation that affords us these conveniences also strips us of our privacy by constantly harvesting data about us and shipping it off to companies for marketing and other purposes.
We wanted a home automation solution that preserves our privacy and security, has all the features we need, and is available at a reasonable price. So, we did what engineers do in these situations: we spent time and brain cells to design and develop (and redesign and iterate) what would fit most of the people in the most economical way. As the number of pilot users increased, more features kept being added (and more bugs were squashed). Finally, we reached a point where HestiaPi covers most people’s needs out of the box and almost everyone else’s needs with just a bit of modification.
Open Source Benefits
HestiaPi is ready for makers, hackers, and developers. Because it’s open source, you can:
- Control your own data
- Fix your own hardware with off-the-shelf components
- Add hardware to fit your needs
- Run the software you want
- Patch security fixes first
- Run a custom distro or software
- Check open ports, services, and logs
- Create a custom enclosure to fit your location
Designed for Expandability
HestiaPi’s open nature begs for expansion. So far, we have prototyped wireless sensor modules for sensing CO, CO2, various other gases, dust (PM2.5), smoke, temperature, relative humidity, wind speed and direction, water level, water leak, proximity, PIR motion, and magnetic contacts. We’ve also prototyped controlling and monitoring standard relays, power relays, electric motors, water pumps, sirens, lights, and RGB LED strips.
If HestiaPi is funded, a series of smaller projects are scheduled to deliver the most popular expansions, so you can start building your desired home automation on top of HestiaPi. For less techy people, Sonoff, M5Stack, and other manufacturers already offer solutions that can easily integrate with HestiaPi’s ecosystem.
Easy-to-use Interface Control

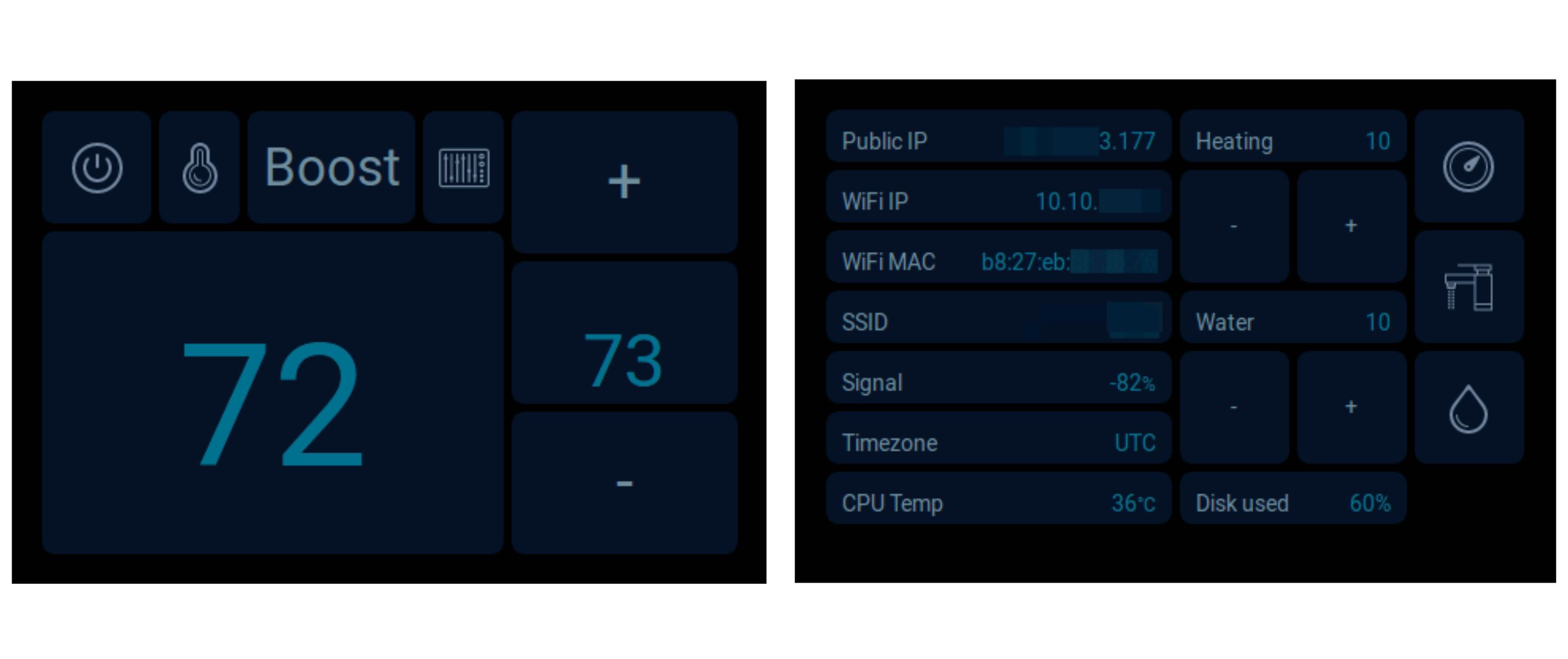

HestiaPi Touchscreen

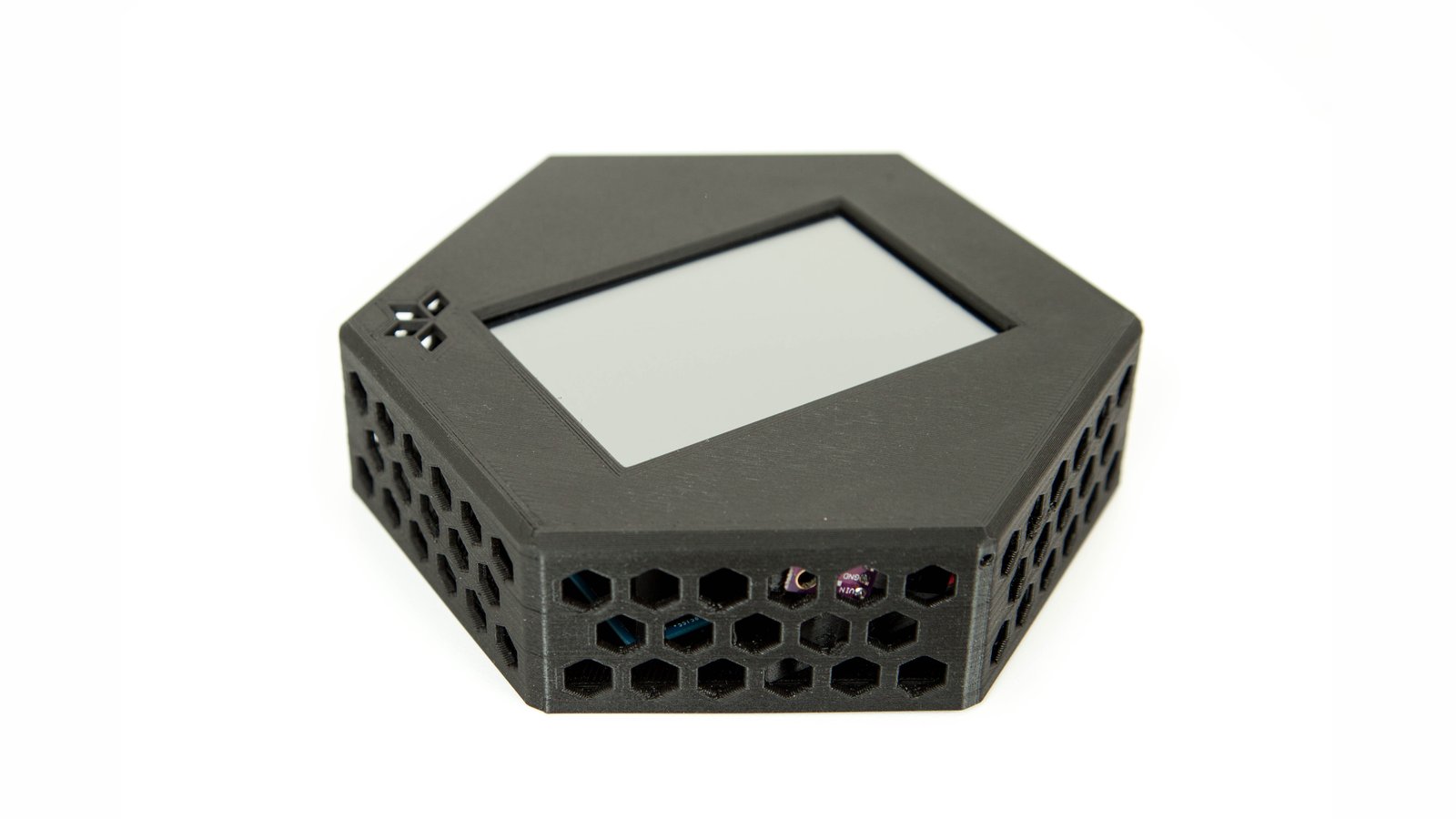

Use HestiaPi’s attractive touchscreen to control the device.
HestiaPi has an easy-to-use, touchscreen interface.
We Support openHAB
HestiaPi is based on the openHAB platform. Use the platform’s accessible web and mobile interface to control HestiaPi.
Most of the cool things HestiaPi can do are because of openHAB. For every HestiaPi purchased during the crowdfunding campaign, we will donate at least €1 to openHAB Foundation e.V.

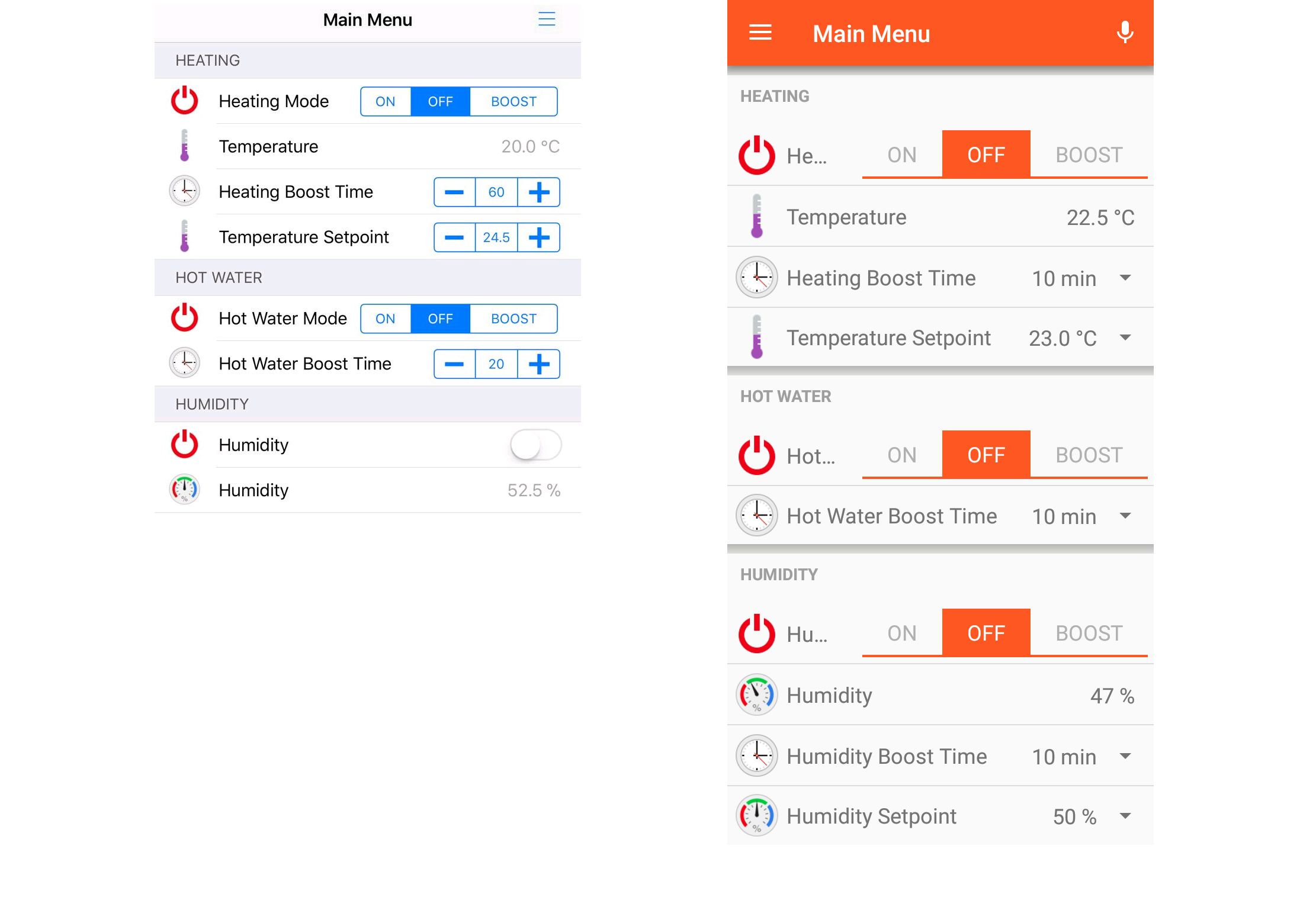

openHAB UX, from right to left: iOS, Android Light

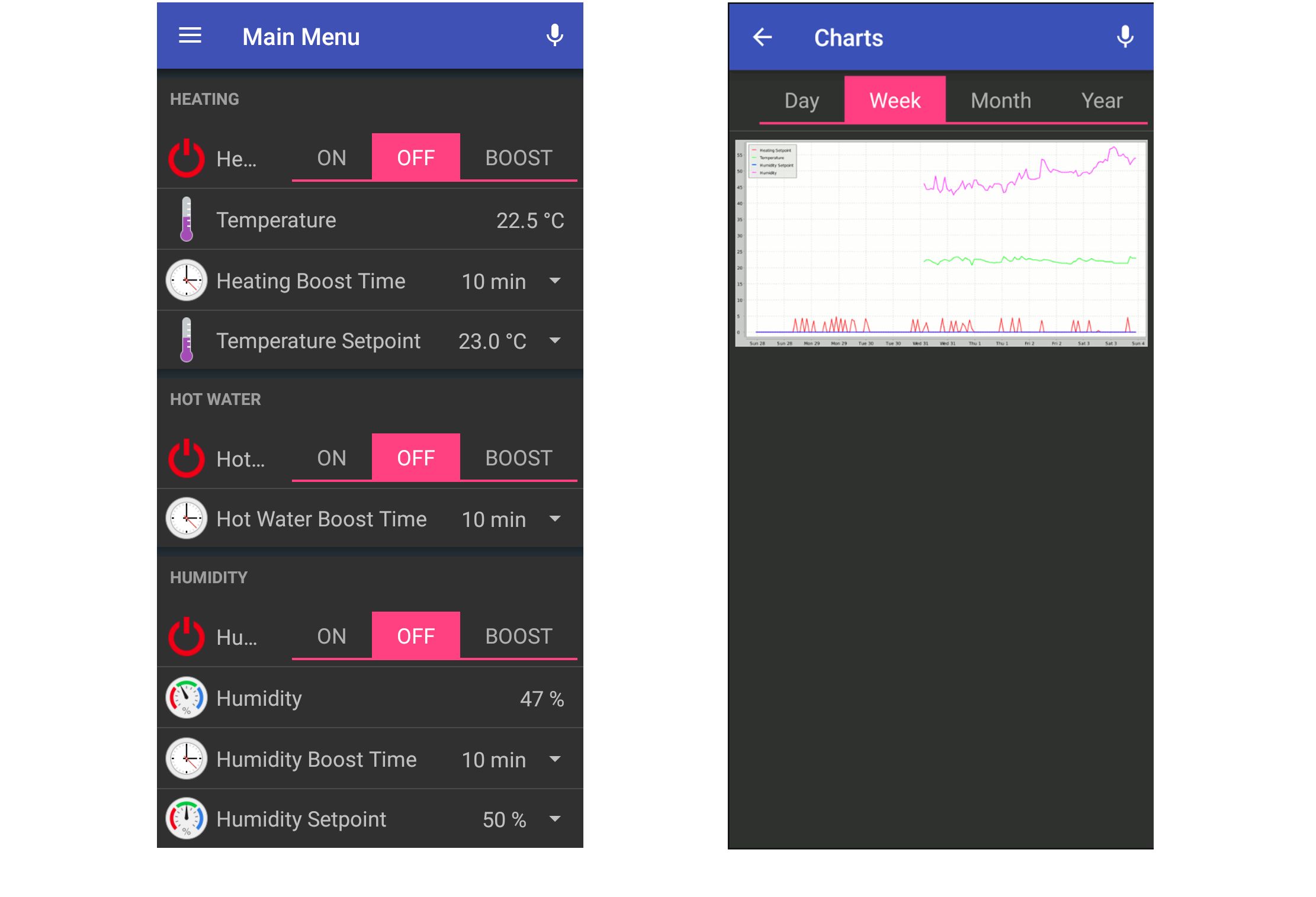

openHAB UX; Android Dark
Compatible with Google Home and Amazon Alexa
OpenHAB already supports your favorite assistants, so you can easily add HestiaPi to your existing ecosystem.
How HestiaPi Compares
| HestiaPi Touch | Nest | ecobee4 | tado° | Honeywell Lyric | Hive | |
|---|---|---|---|---|---|---|
| Price (USD) | $145 | $249 | $249 | $253 | $253 | $228 |
| US HVAC | Yes | Yes | Yes | No | No | Yes |
| EU Heating | Yes | Yes | No | Yes | Yes | Yes |
| Hot Water | Yes | Yes | No | No | No | Yes |
| Dehumidifier/Humidifier | Yes | No | No | No | No | No |
| User Interface | Touchscreen & app | Touchscreen & app | Touchscreen & app | Buttons & app | Touchscreen & app | Buttons & app |
| Connectivity | Wi-Fi, Bluetooth, and Ethernet (w/ additional adapter) | Wi-Fi only | Wi-Fi only | Ethernet only with Internet bridge | Wi-Fi only | Wi-Fi only |
| Works with Alexa, Google Home | Both | Both | Both | Both | Both | Both |
| US/EU | Both | Both | US only | EU only | EU only | EU only |
| Power Type | Mains, AC, C wire support | Mains, AC, C wire support | C wire only | Batteries | No C wire support, mains, AC | Batteries |
| Batteries | None | None | Required | Required | None | Required |
| Privacy | Only you control your data | Google controls your data | ecobee controls your data | tado° controls your data | Honeywell controls your data | Hive controls your data |
| Home Automation Integration | Any API or open platform | Check compatibility list | No | No | No | Very limited |
| Hackable | Yes | No | No | No | No | No |
| MQTT Support | Yes | No | No | No | No | No |
| ESP8266 and Sonoff/Tasmota Support | Yes/Yes | No/No | No/No | No/No | No/No | No/No |
Support & Documentation
If you have a technical question about the operation of the HestiaPi or any of its applications, please ask the creators your question directly on their forum using the link above.
Shipping & Fulfillment
- Orders will ship from Crowd Supply's warehouse in the US.
- Domestic orders ship for free. Due to the complexities and costs of international shipping, an international surcharge will be assessed at checkout.
- For more information, please read this page about ordering, paying, and shipping.
Additional Hardware Road Map
Should the HestiaPi campaign succeed, we’ll work on additional hardware modules and kits that will work with your unit.
| Feature | Release date |
|---|---|
| Portable remote sensor thermostat | Q1 2020 |
| Weather station | TBD |
| Modbus communication support (not backwards compatible) | Q2 2020 |
| RGB & WS2812 LED strip wireless control | Q1 2020 |
