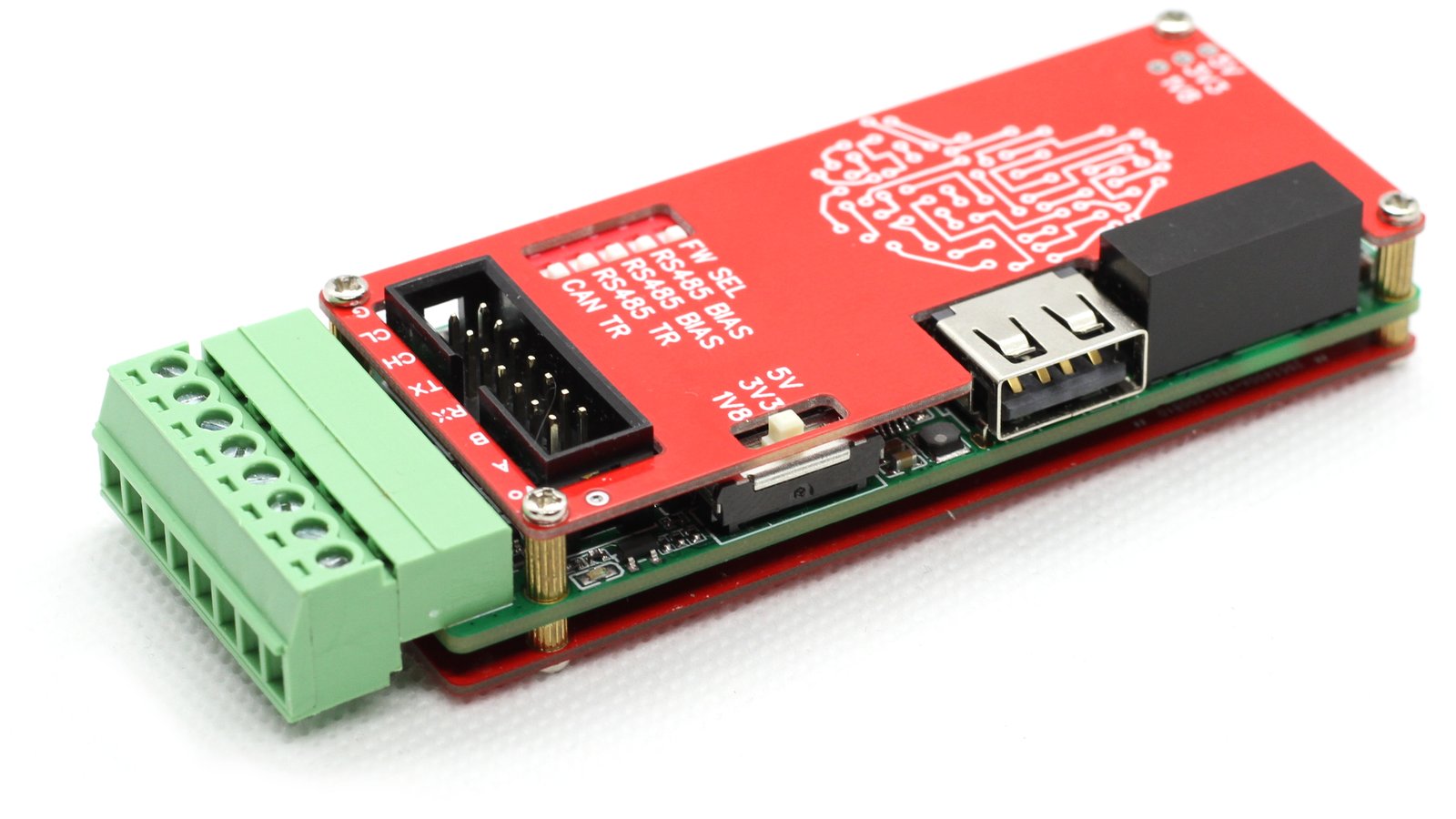

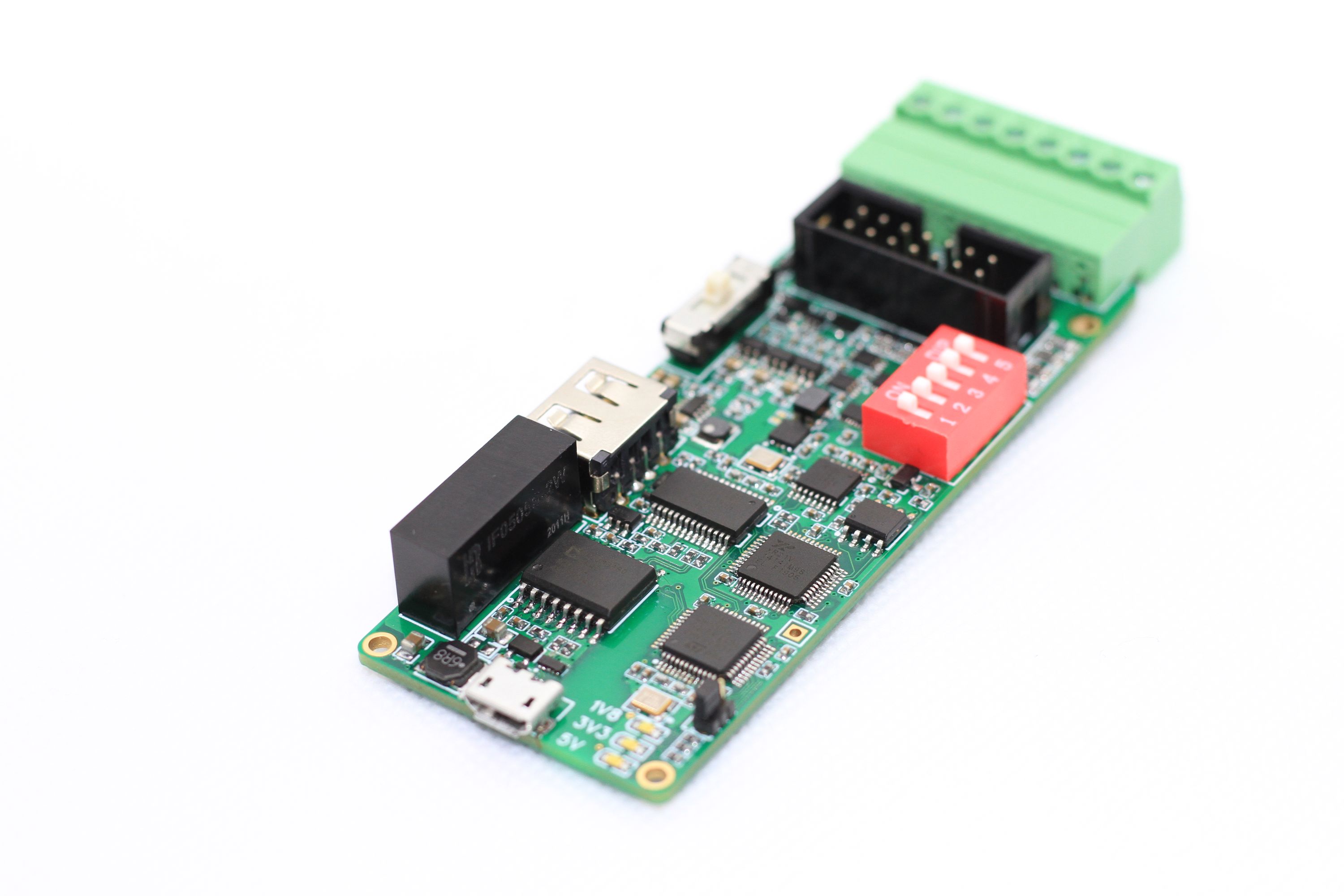

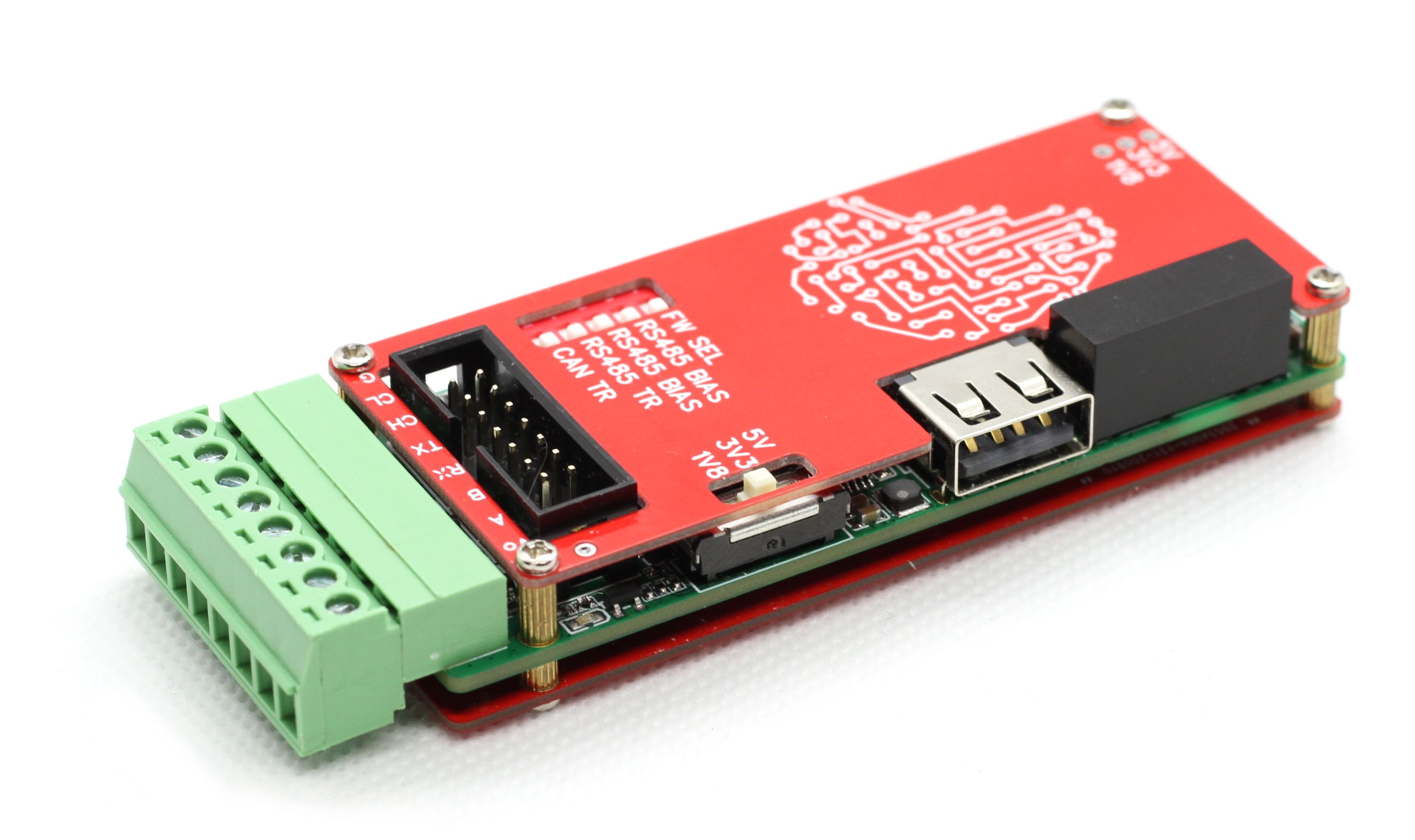

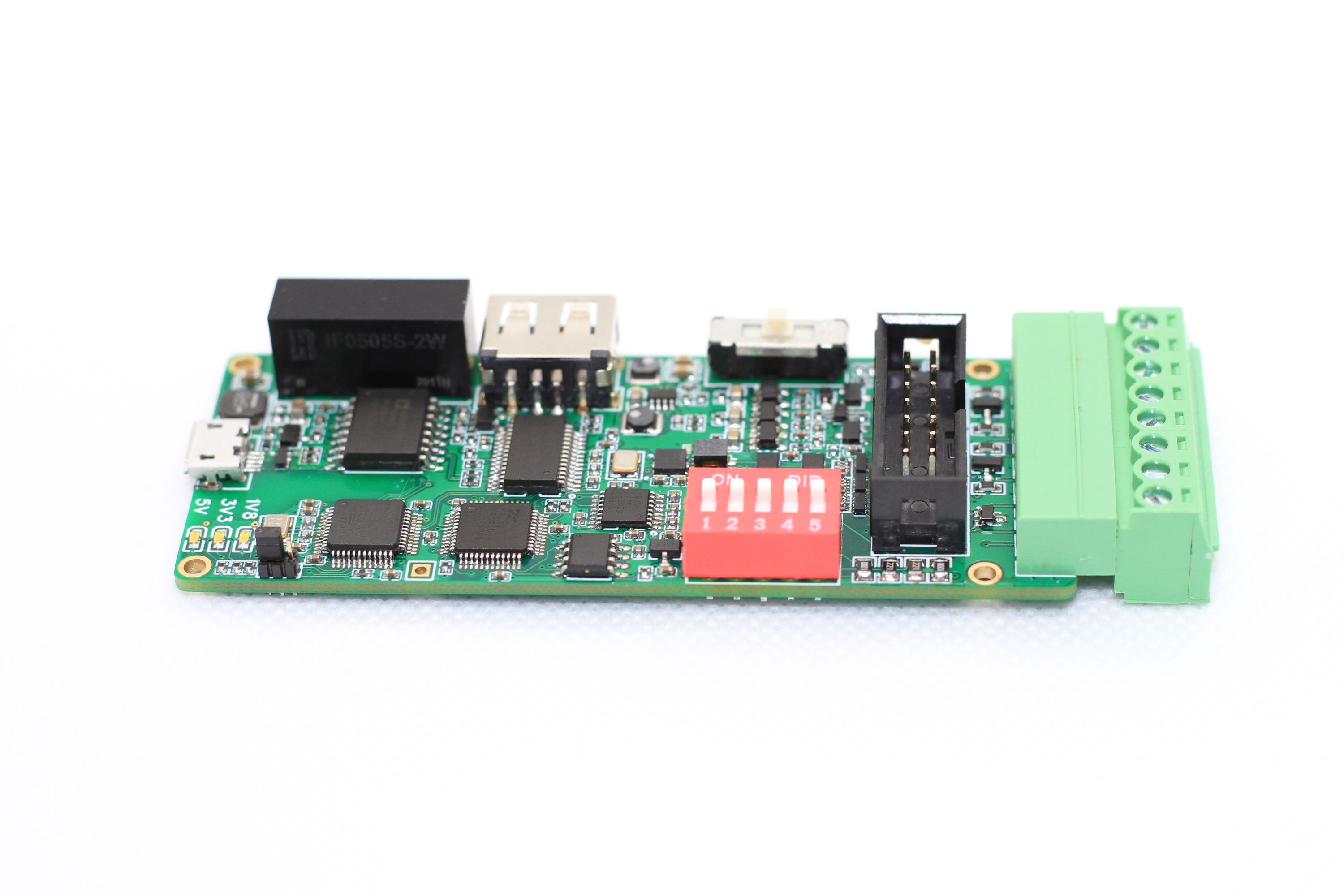

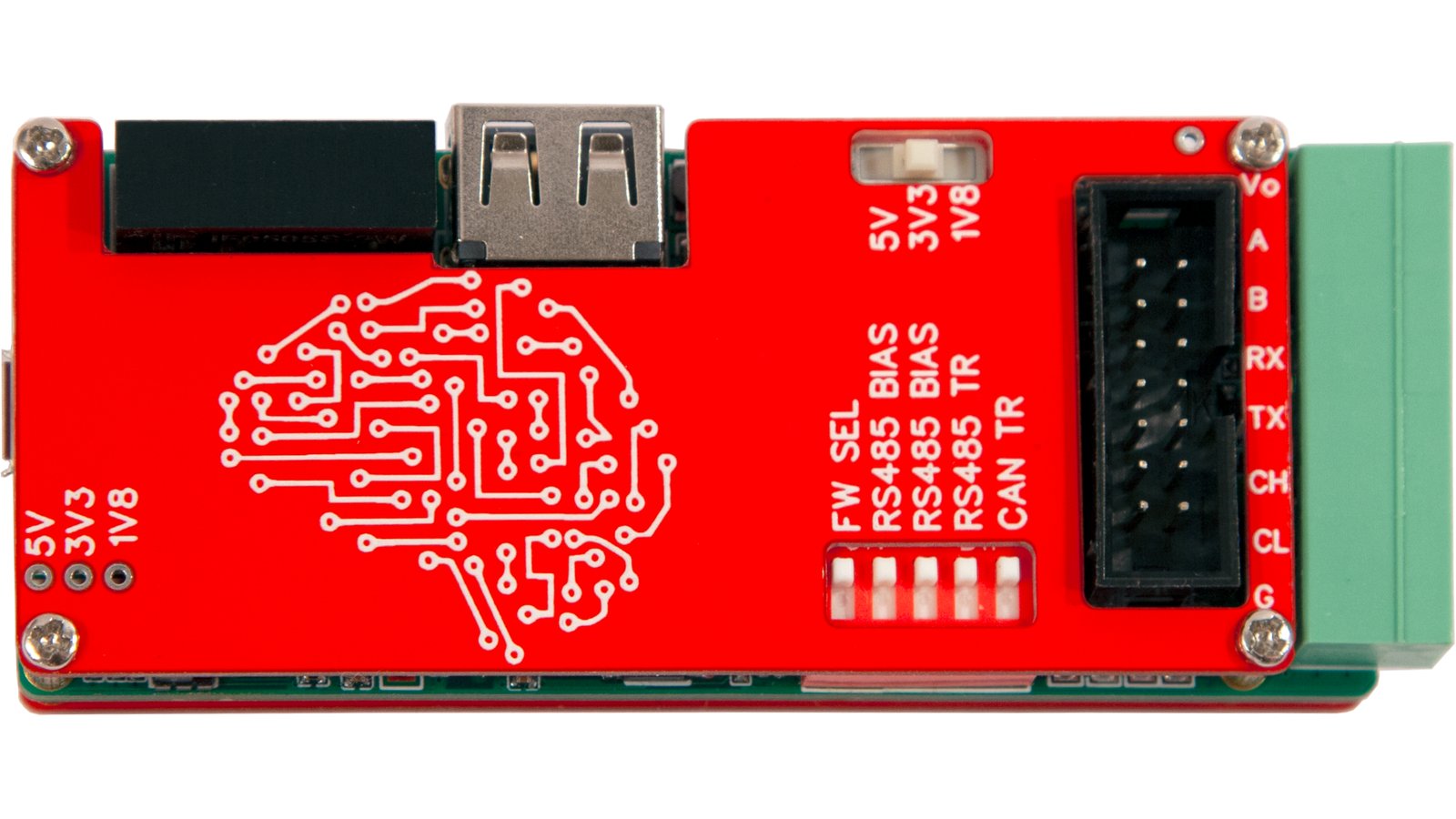

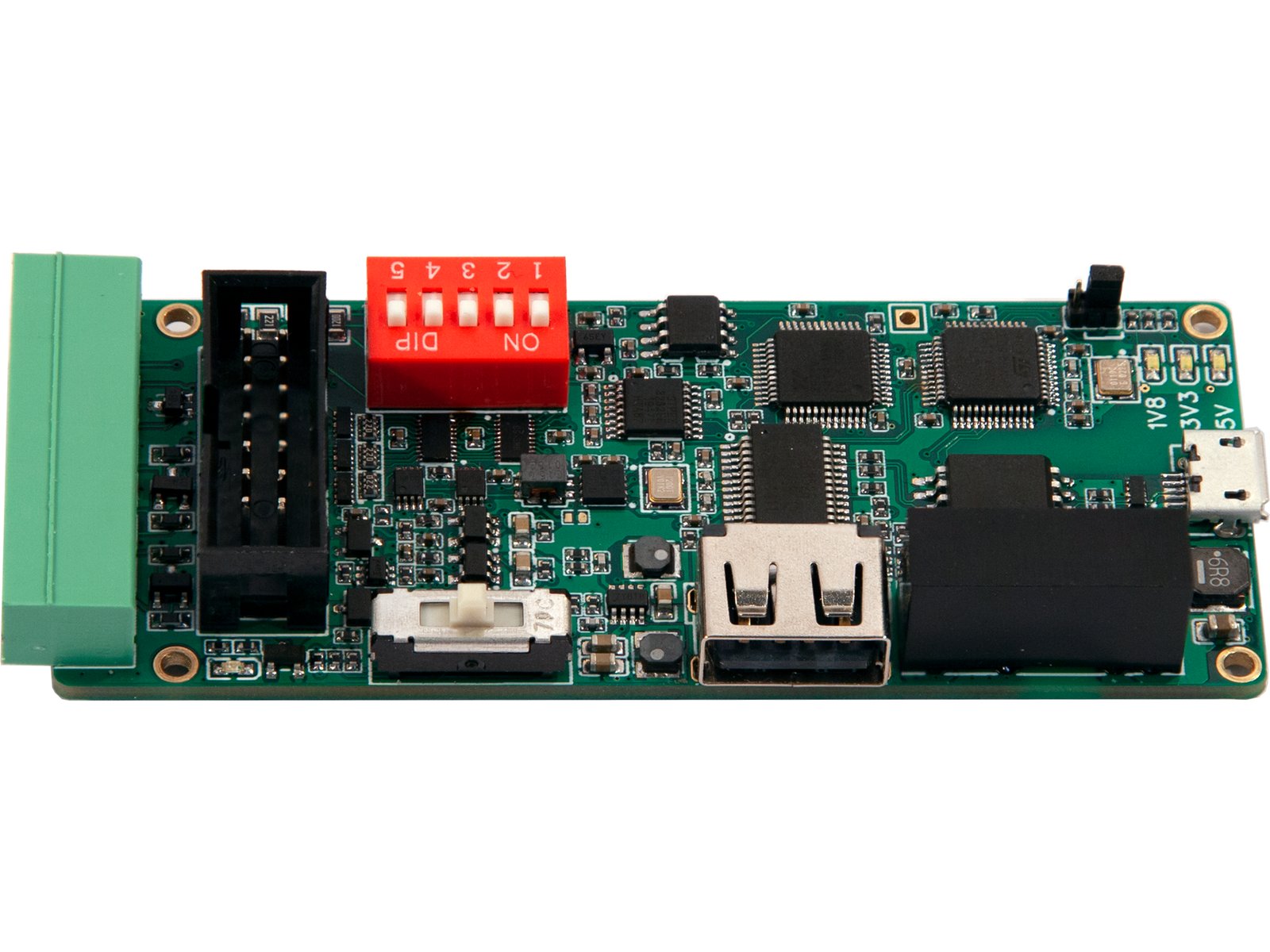

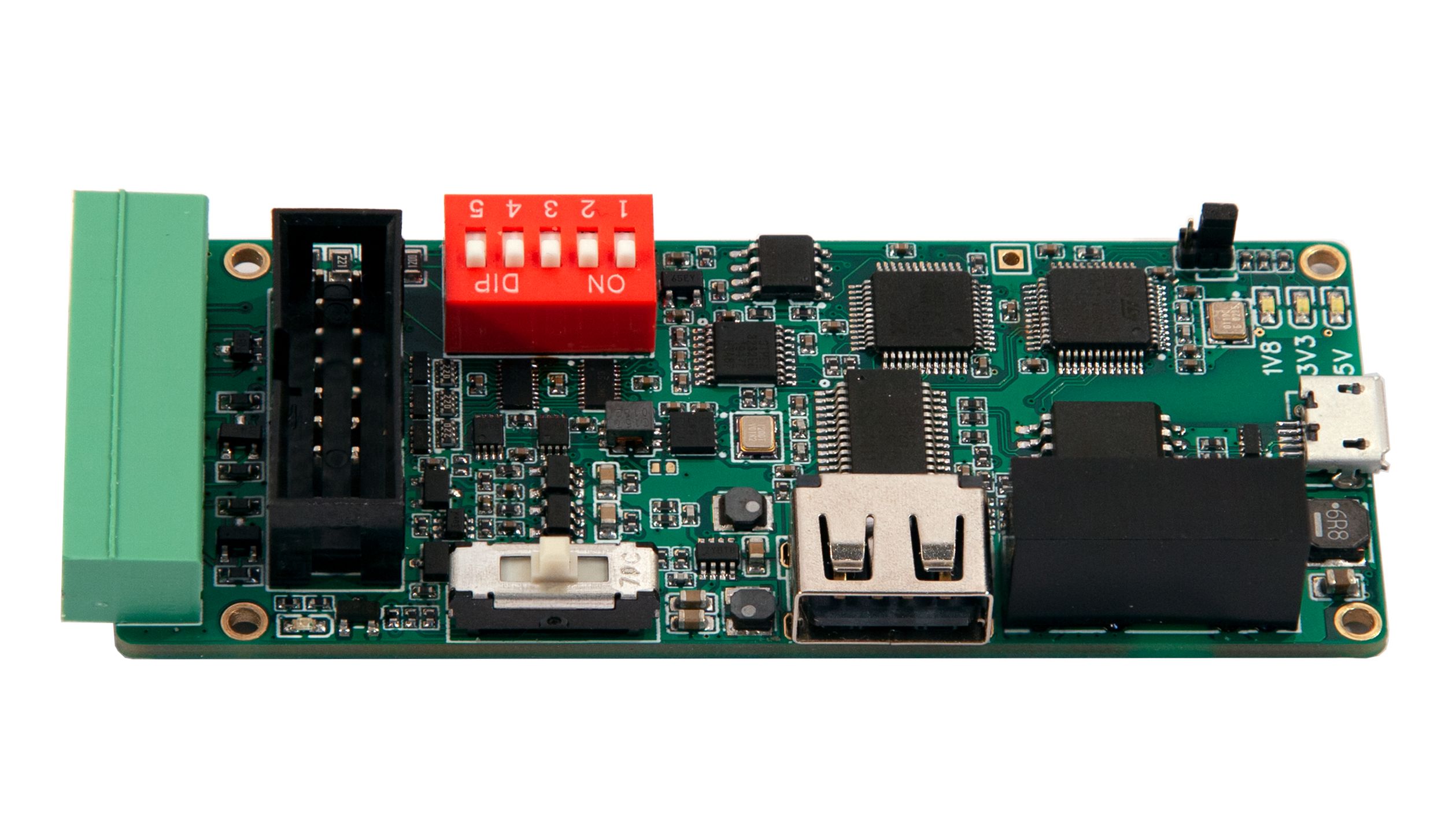

Ollie is an isolated, multifunction interface module and USB-to-isolated-UARTx2/CAN/USB/RS485/RS232 converter. This versatile device combines our most commonly used interface modules into one safe, reliable, compact, and affordable package.
Need quick access to safe power? Ollie’s isolated power output requires you to set a voltage level before plugging in the host USB, which prevents accidental changes in voltage. All interfaces are ESD protected.

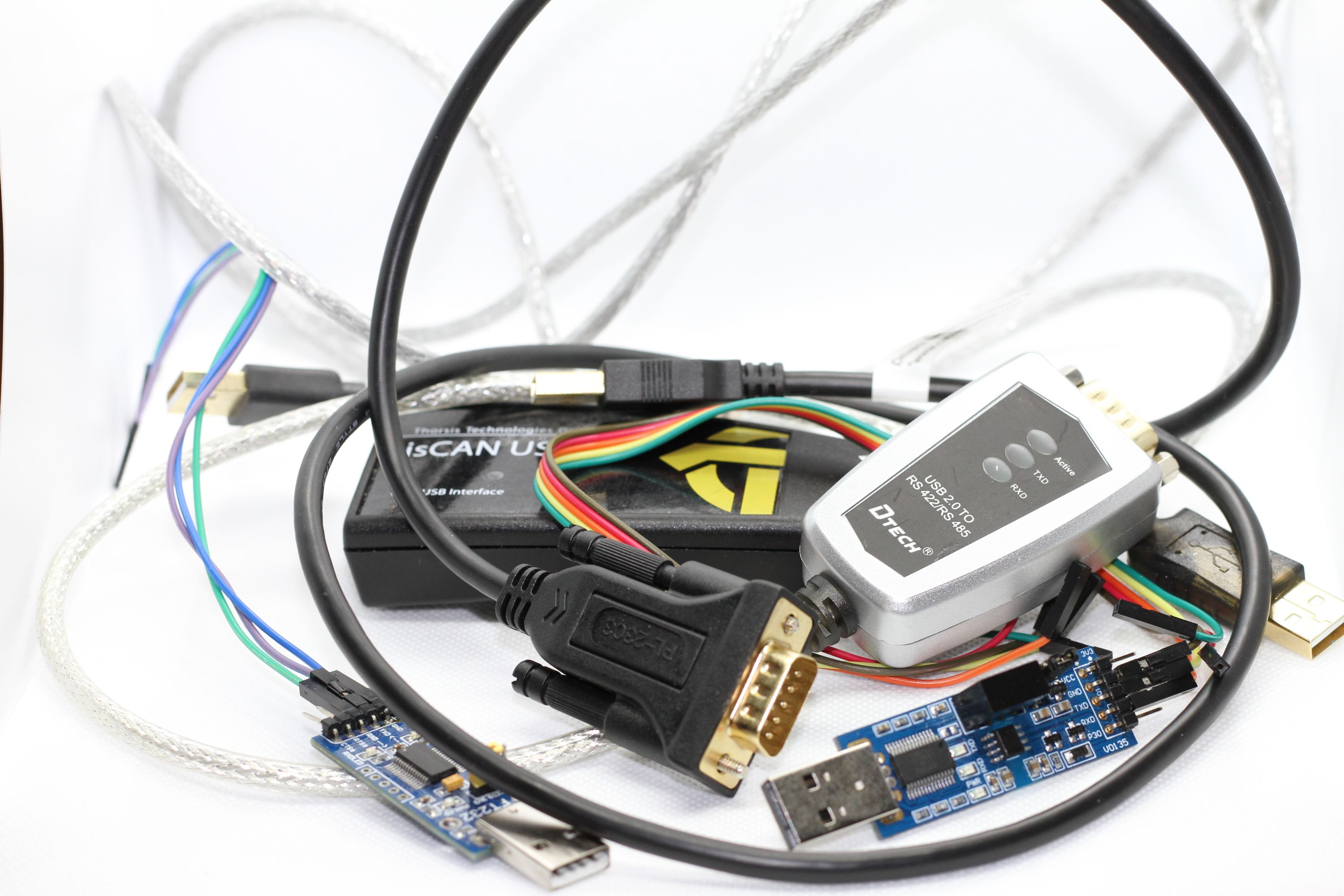

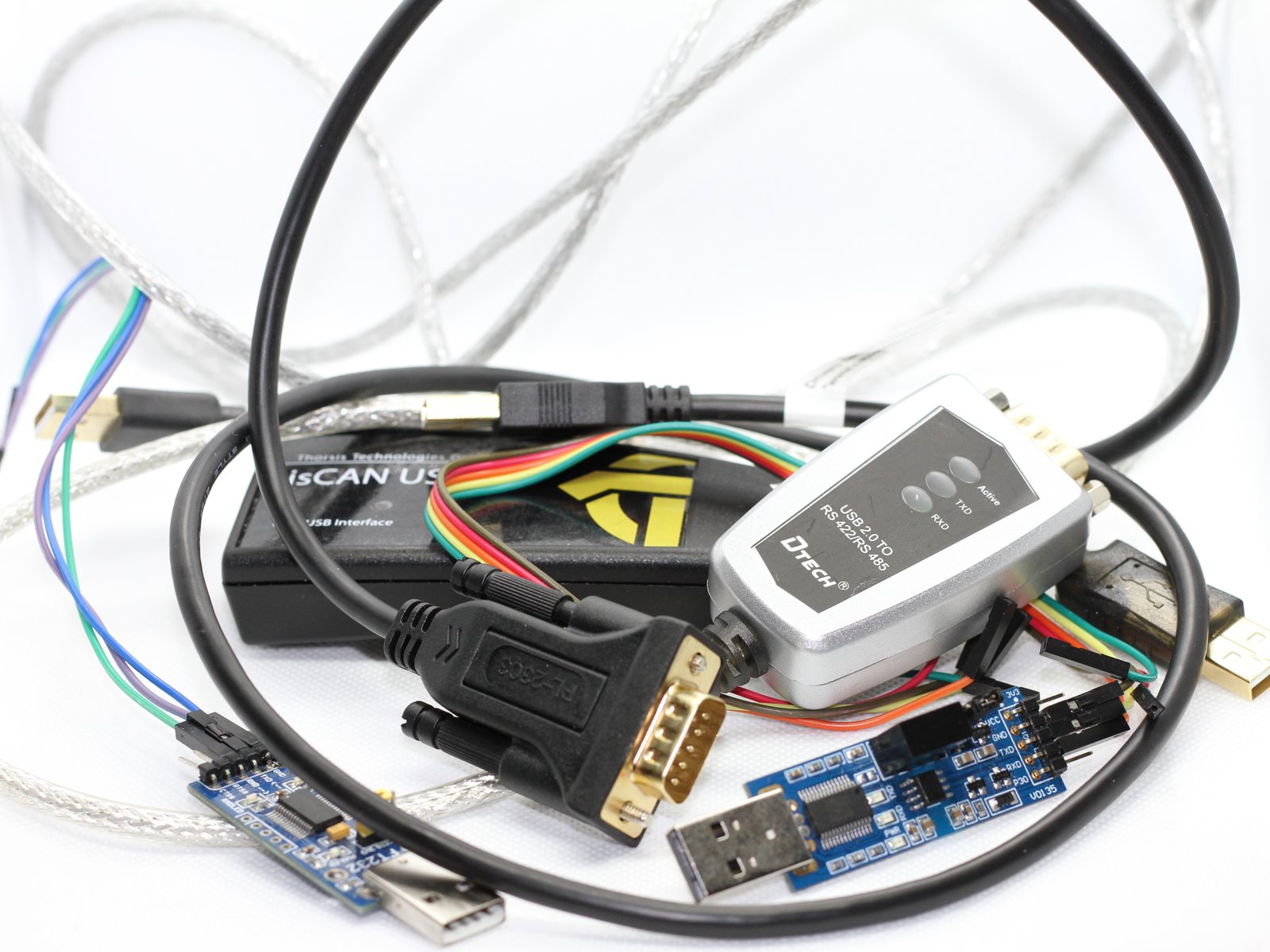

The main objective of this project is turning this mess of wires (left) into a neat and useful device (right)!
Ollie prioritizes safety through isolation, which will save your computer from damage if things go wrong when you’re interfacing with high voltage devices.
Ollie is the perfect tool for hackers and field engineers; a compact device to keep in your tool box whether you’re traveling, hacking your car, or just need quick access to power supply without worrying about damaging your laptop.

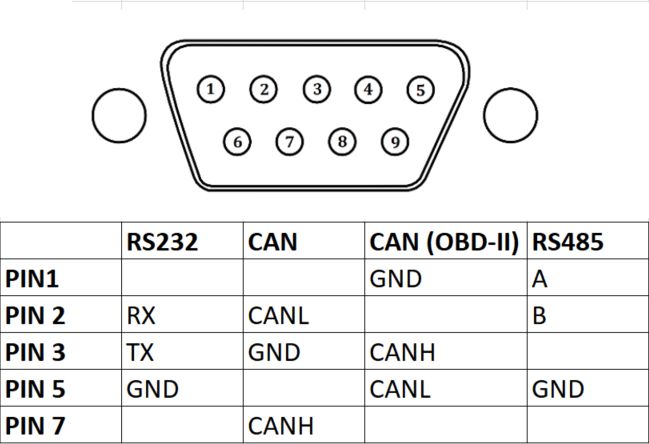

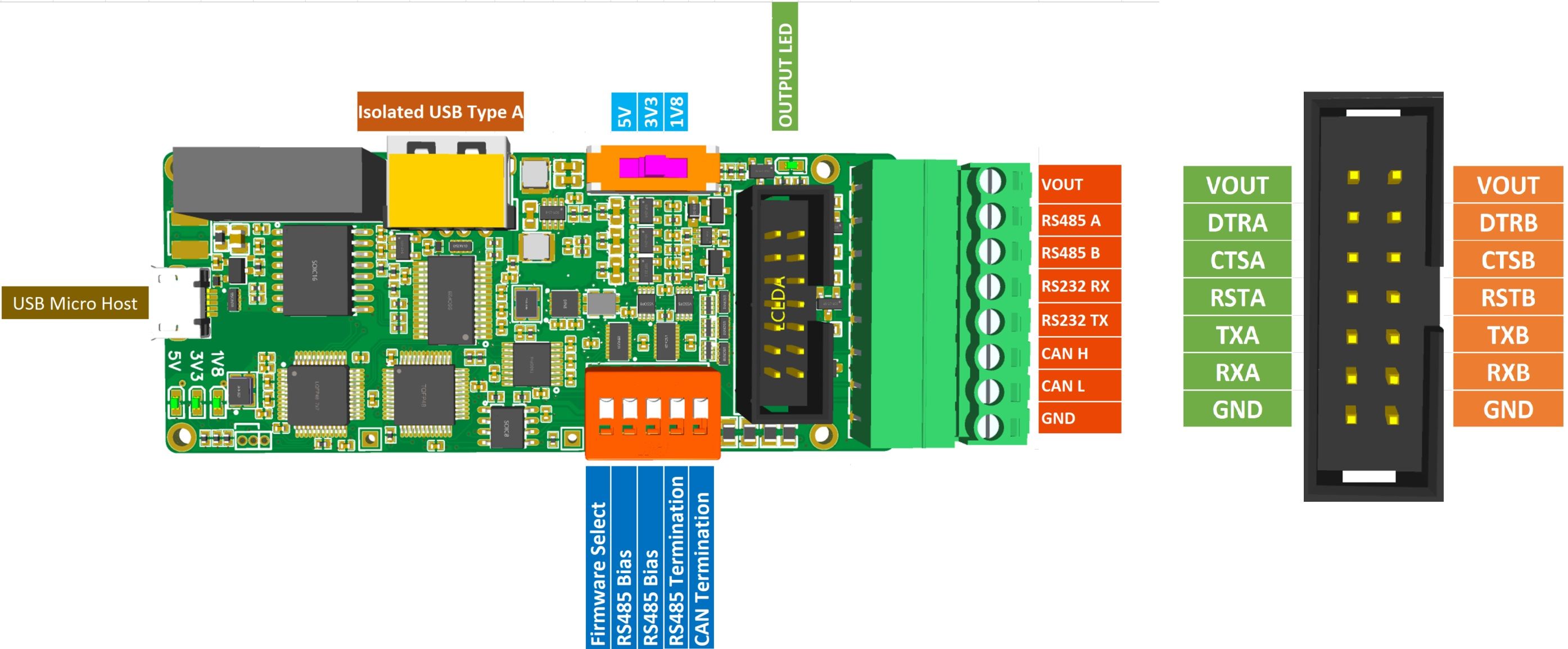

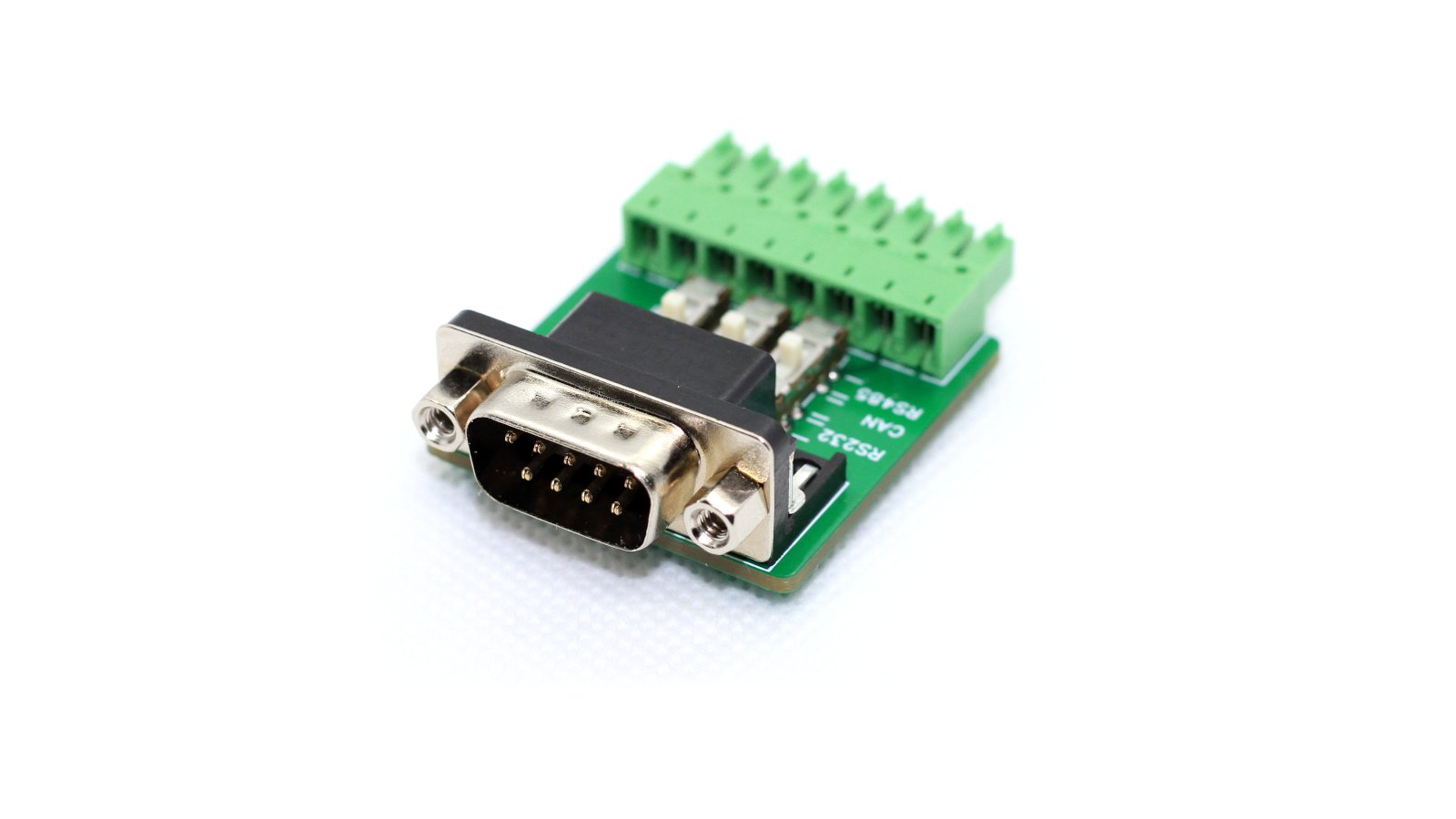

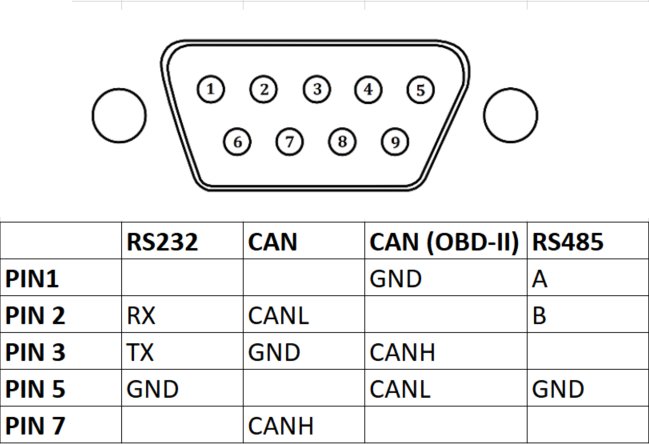

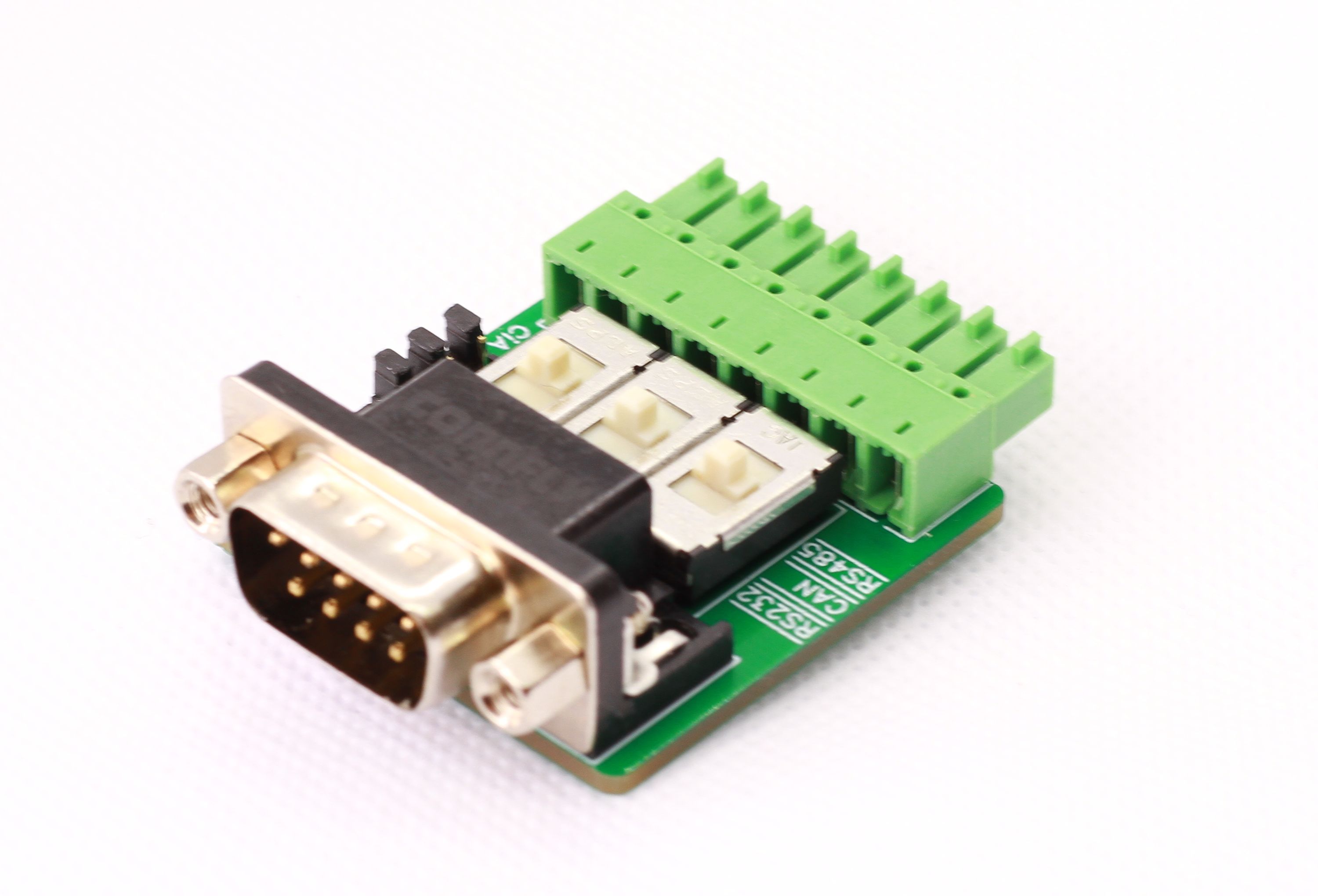

Ollie also includes a configurable DB9 adapter which can be plugged in instead of the screw terminal. The function can be selected by moving all three DIP switches to the desired configuration. Also CAN OBD-II or CiA 303-1 function can be selected using the jumpers.

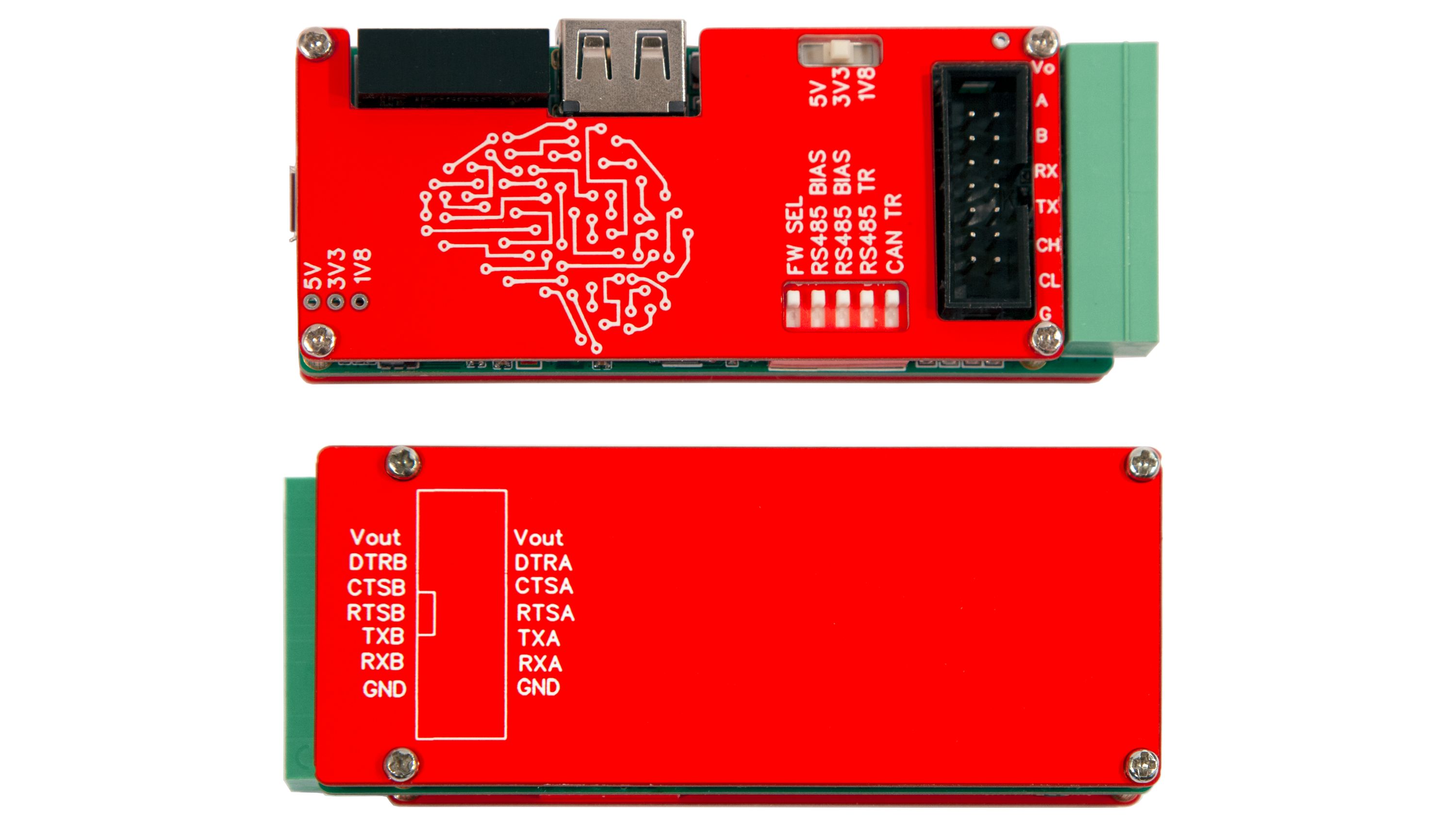

Ollie comes with a custom protective enclosure, so you can feel safe using it in any situation.
We designed Ollie as the perfect multi-tool for hackers and field engineers; to be a "Swiss Army knife" of interface modules. With that in mind, Ollie can be used in a wide range of situations, but here are some ideas of where we think it will be useful.
|Ollie||CANABLE PRO||μArt||Waveshare USB TO RS232/485/TTL||DFRobotMulti USB/RS232/RS485/TTL||Adafruit USB Isolator|
|Isolated UART||2x UART||No||1x UART||1x UART||Non isolated||No|
|Voltage level UART||1.8, 3.3, 5 V||No||Yes||3.3, 5 V||No||No|
|UART max data rate||12 Mbps||No||3 Mbps||0.9216 Mbps||2 Mbps||No|
|Isolated USB downstream||Yes||No||No||No||No||Yes|
|Isolated USB current||200 mA||No||No||No||No||100 mA|
|Isolated power out||1.8, 3.3, 5 V||No||No||No||Non isolated 5 V||5 V|
|Multifunction DB9 connector||Yes||No||No||No||No||No|
* The Ollie campaign price is $56, the future retail price will be $66 USD.
PCBs will be manufactured by JLCPCB. I’ve also partnered with a factory in China that I often use for other projects, they will handle the assembly and testing.
I will focus on quality and consistency. Before every batch is shipped, I will receive samples to check the manufacturing quality. And each every unit will be fully tested before it leaves the factory.
We have set the estimated delivery date with the Chinese New Year in mind. We are also keeping an eye on the general situation around global shipments and any delays that may be caused by Covid-19.
Crowd Supply will handle the fulfillment and logistics. All orders will be shipping from their warehouse in Texas, in the US. See the Crowd Supply Guide for more information on their ordering and shipping policies.
"Ollie is not the first of it’s kind, there are several tools... which possesses similar features and are used for similar purposes... but all fall short in one way or the other when compared to Ollie."
Produced by MeatPi Electronics in Melbourne, Australia.
Sold and shipped by Crowd Supply.
One Ollie interface module board, with custom enclosure.
One DB9 pluggable connector, for use with Ollie.
A shirt to honor the heart of all those little ones and zeros that make our world go!
