Open Smart Kit

Open source, flexible, modular hardware modules with Home Assistant compatibility for any of your automation needs

This project is launching soon.

Coming Soon
0
updates
You'll be notified about news and stock updates for this project.

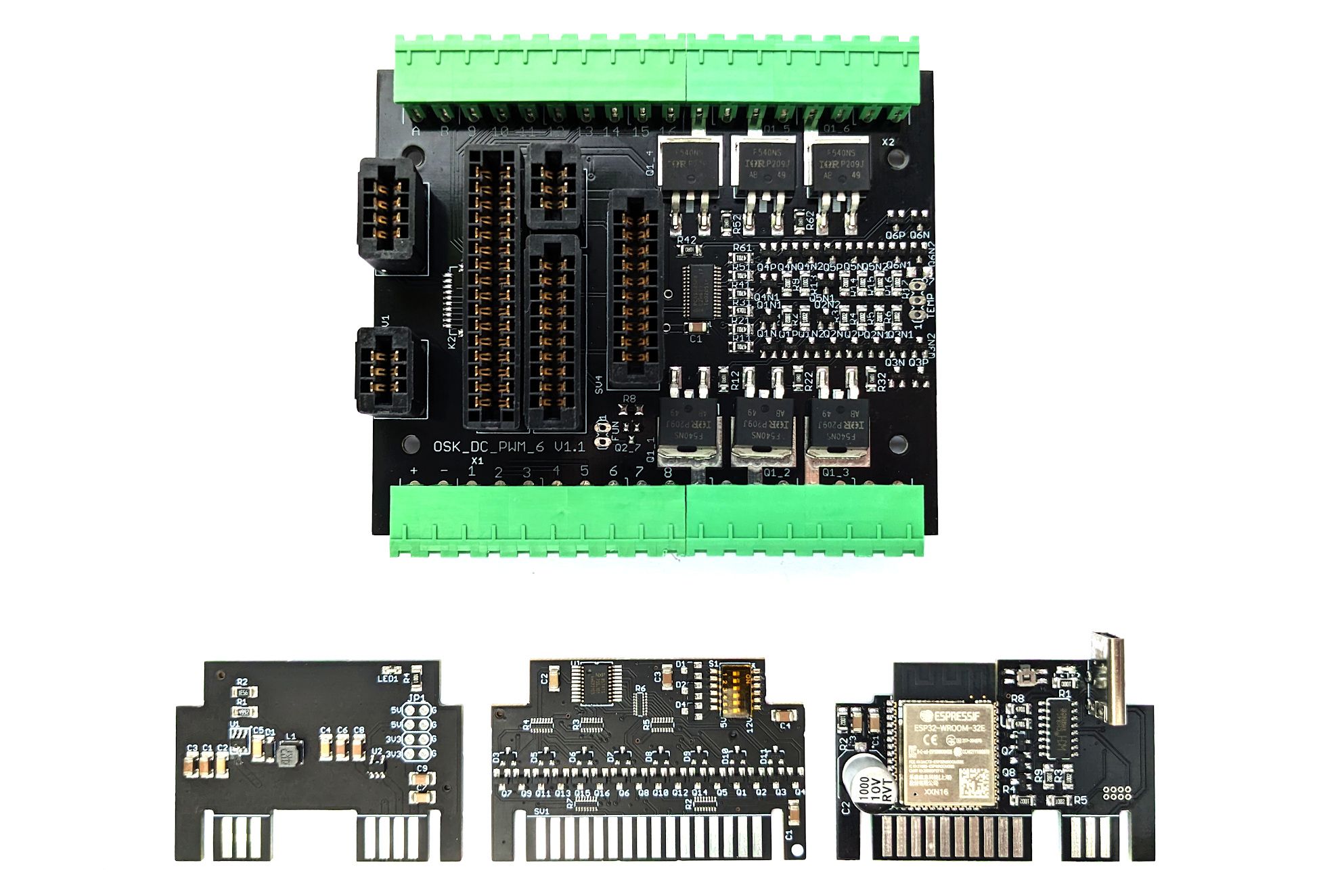

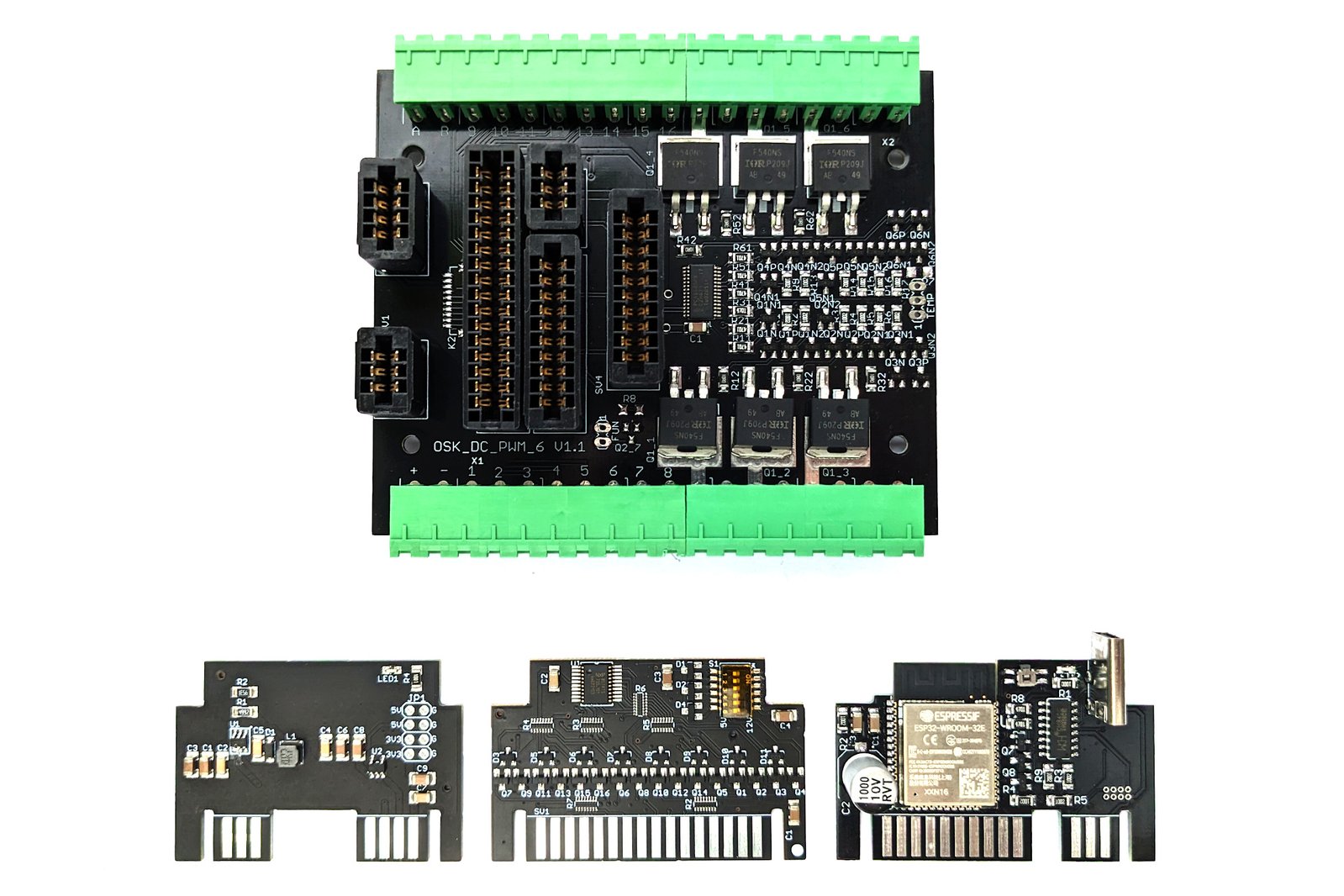

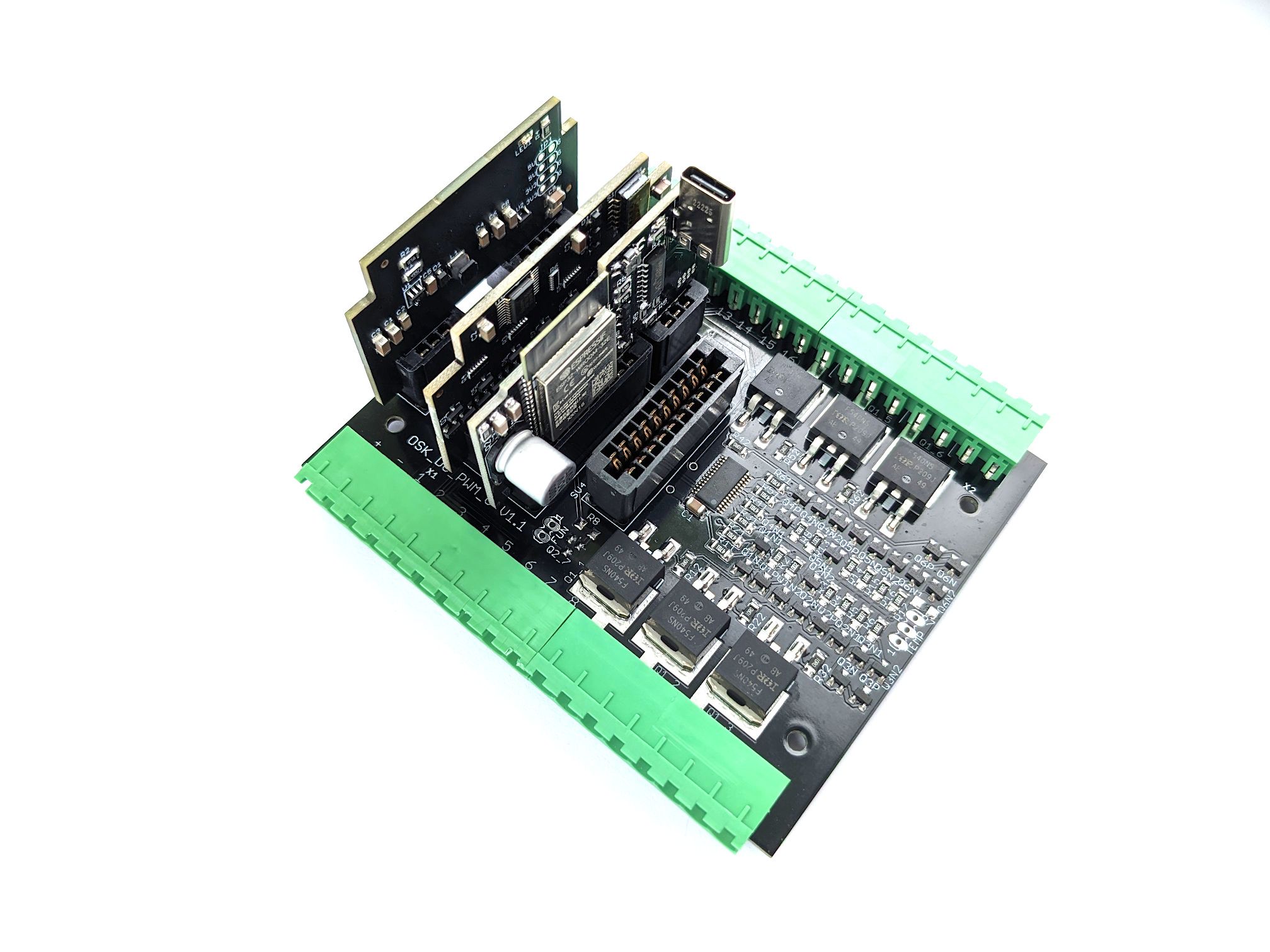

Open Smart Kit (OSK) is a set of open source ESP32-based modules ideal for a variety of automation tasks, including home automation. All OSK modules are enclosed and support DIN rail mounting.

Open Smart Kit fills the gap between a fully DIY automation solution, which may require a lot of knowledge and effort with non-optimal results, and professional devices that are often expensive, proprietary and closed-source.

Open Smart Kit was created by programmers for programmers, so users can develop custom firmware and easily flash it without limitations. At the same time, users who don’t wish to program OSK can set it up in minutes by using a friendly, plug-and-play software like ESPHome or Home Assistant.

OSK is useful in a wide variety of situations, including but not limited to light and climate control, working with AC/DC, connecting sensors (temperature, mountain, etc.), and integrating with Home Assistant or other home IoT systems. Due to the modular and open source architecture the hardware can be improved, extended, or upgraded with new functionality and characteristics over time.

OSK Ecosystem

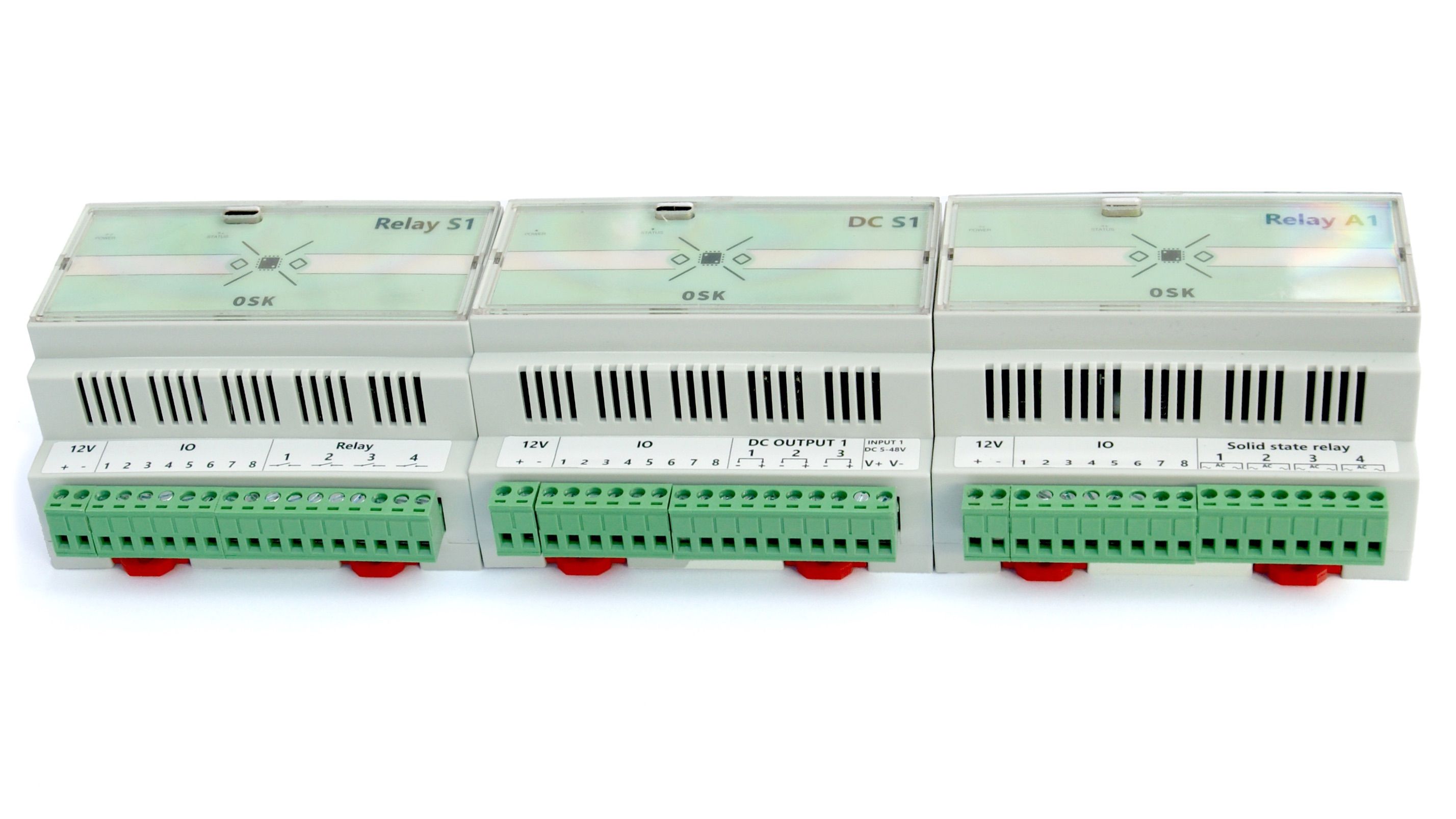

The Open Smart Kit ecosystem includes your choice of three useful modules:

Features & Specifications

Features:

Specifications:

 Relay S1Relay A1DC S1
MicrocontrollerESP32ESP32ESP32
CoreXtensa® dual-core 32-bit LX6Xtensa® dual-core 32-bit LX6Xtensa® dual-core 32-bit LX6
Wi-Fi802.11 b/g/n, 2.4 GHz802.11 b/g/n, 2.4 GHz802.11 b/g/n, 2.4 GHz
Ethernet10BaseT/100BaseTX10BaseT/100BaseTX10BaseT/100BaseTX
Bluetooth®Bluetooth v4.2 and BLEBluetooth v4.2 and BLEBluetooth v4.2 and BLE
Additional protocolsRS485 or CAN busRS485 or CAN busRS485 or CAN bus
Power12 V12 V12 V
PortsUSB Type-CUSB Type-CUSB Type-C
I/O terminals161616
I/O native999
I/O input only444
I/O via expander777

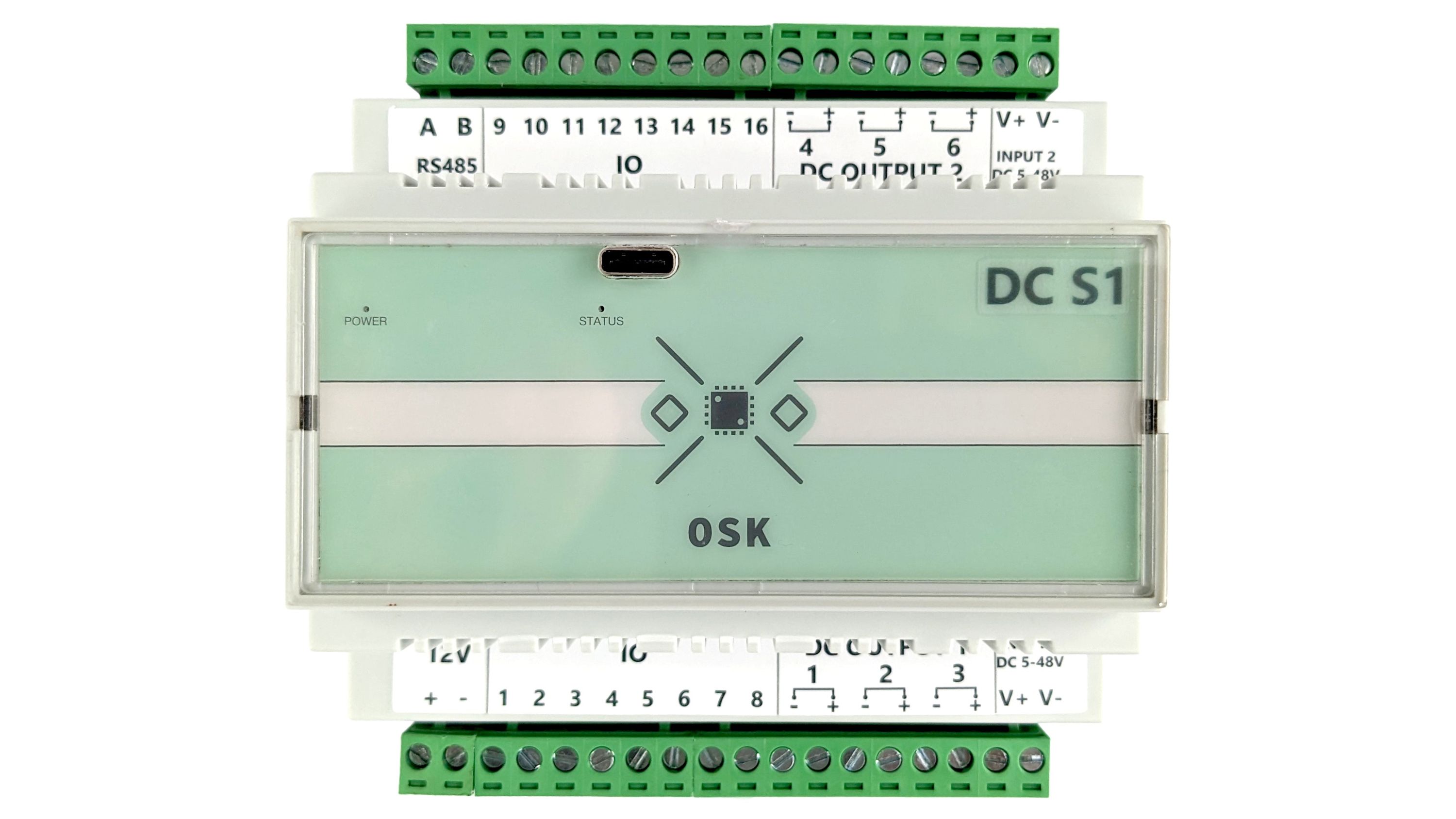

DC PWM--6 channels 6 A 48 VDC

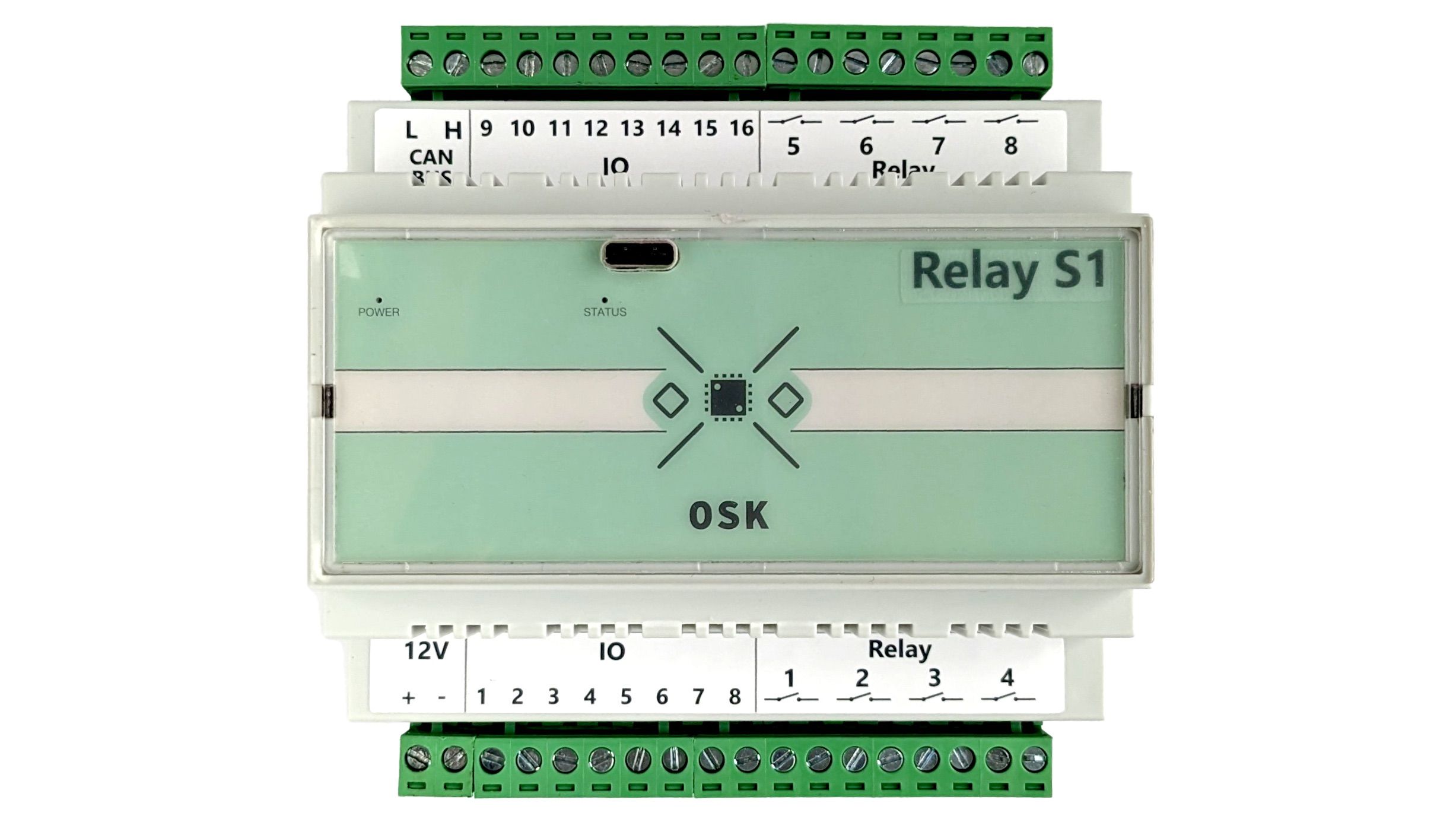

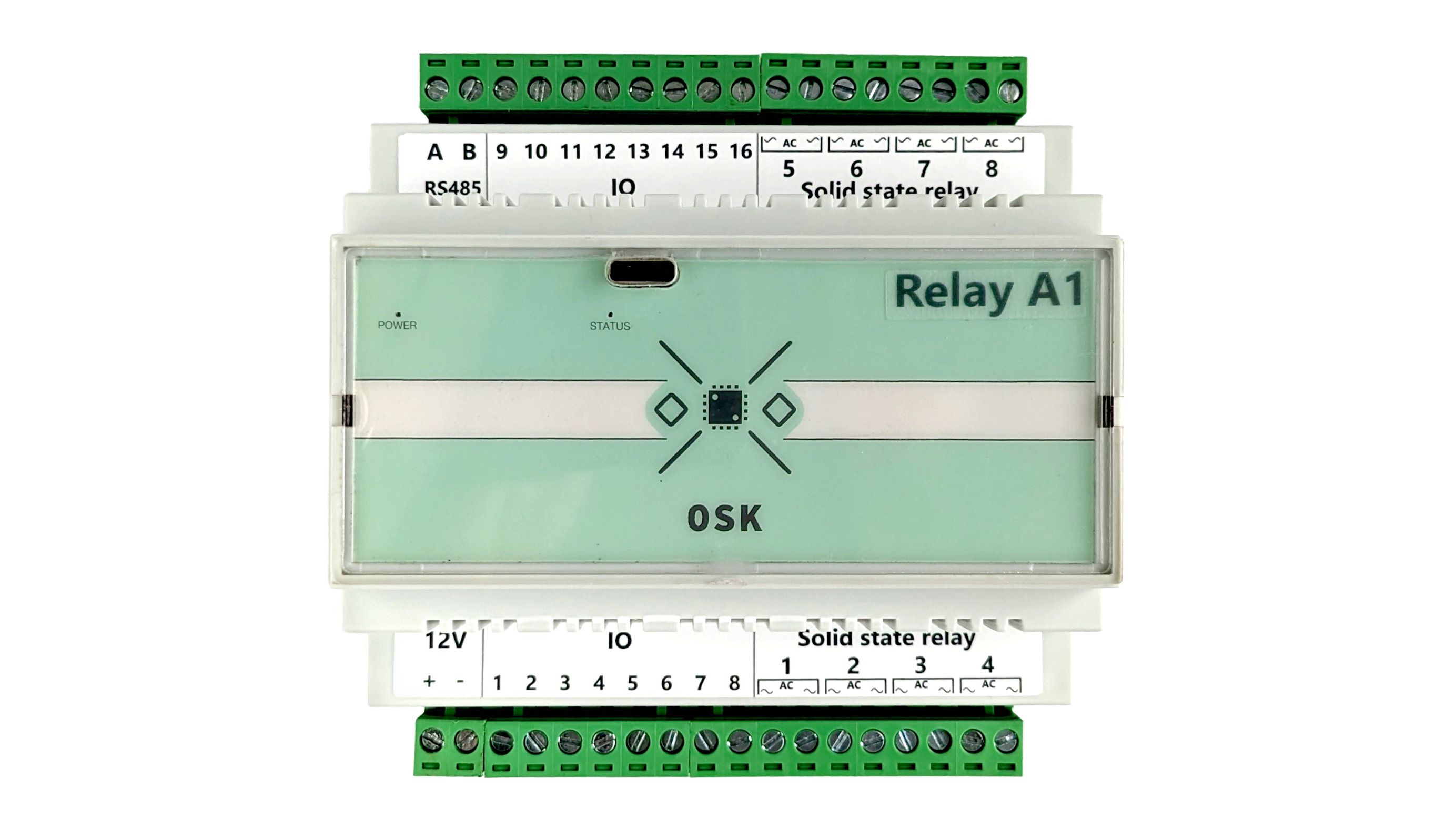

Relays8 6 A 250 VAC 6 A 30 VDC8 SSR 2 A 240 VAC-

Open Documentation

We have made our schematics and documentation open and available in our Github repository.

Interested in This Project?

You can sign up to be notified when this campaign launches, and to get any other useful updates, right at the top of this page. We work hard to only send out useful information and you can unsubscribe at any time.

About the Team

OSK

 ·   ·

Our goal is to manufacture open hardware for automation. We created OSK for our own needs and hope that other people require such hardware as well. Currently, we are a new, small company, but with community support OSK will grow up and produce high-quality, affordable products for engineers and enthusiasts.
