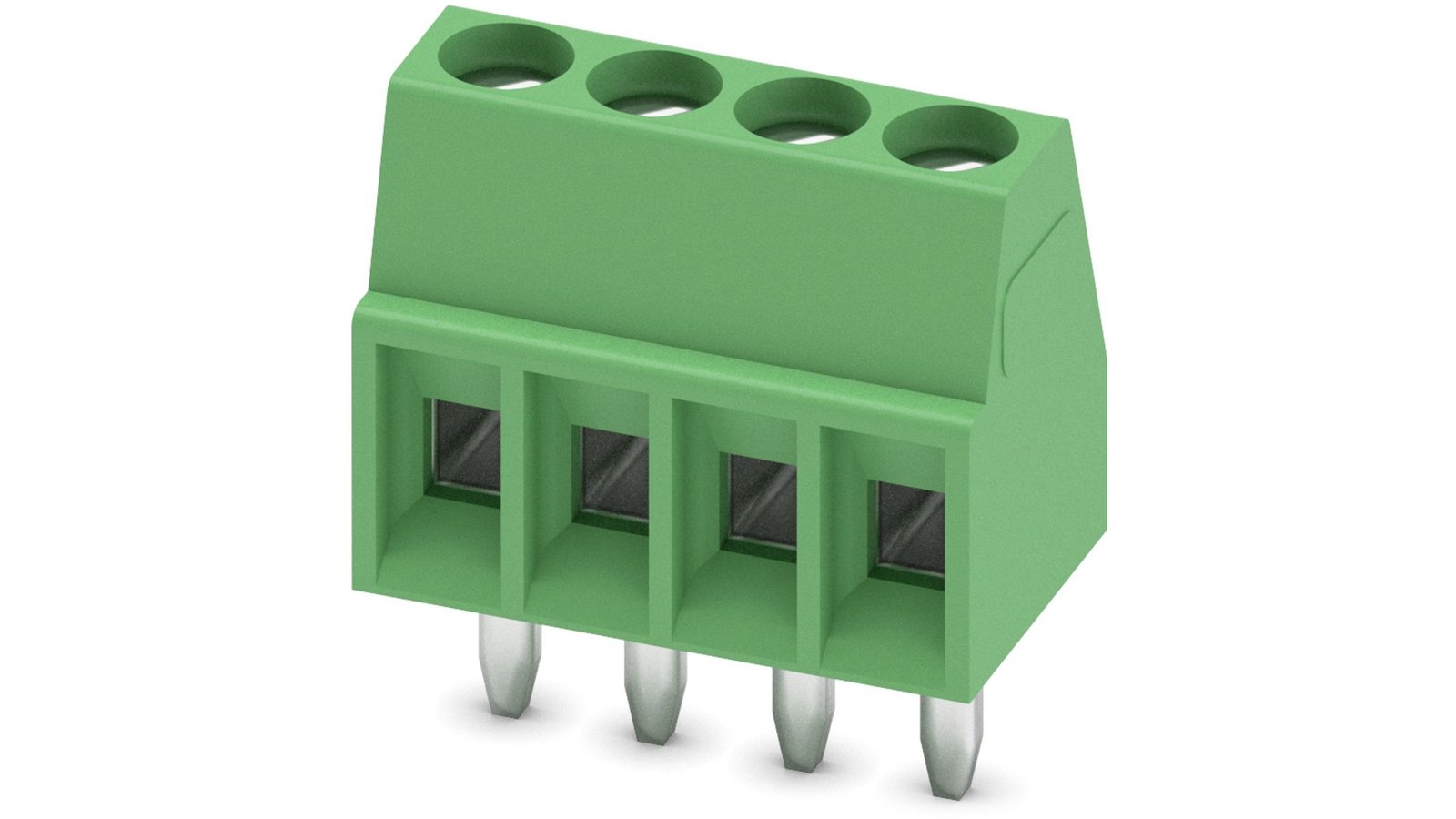

PCB Terminal Block
A Compact PCB terminal block designed for secure, reliable wire-to-board connections. No additional shipping charge when ordered with other products.
$3
Free Worldwide Shipping
Phoenix Contact
Fixtures & Adapters
A Compact PCB terminal block designed for secure, reliable wire-to-board connections. No additional shipping charge when ordered with other products.
| Parameters | Details |
|---|---|
| Printed Circuit Board Terminal | Yes |
| Nominal Current | 6 A |
| Rated Voltage (III/2) | 160 V |
| Nominal Cross Section | 0.5 mm² |
| Number of Potentials | 4 |
| Number of Rows | 1 |
| Positions per Row | 4 |
| Product Range | MPT 0,5 |
| Pitch | 2.54 mm |
| Connection Method | Screw connection with tension sleeve |
| Screw Head Form | L Slotted |
| Mounting | Wave soldering |
| Conductor/PCB Connection Direction | 0° |
| Color | Green |
| Pin Layout | Linear pinning |
| Solder Pin Length [P] | 3.5 mm |
| Solder Pins per Potential | 1 |
| Type of Packaging | Packed in cardboard |
| Manufacturer |
Phoenix Contact
|
|---|---|
| Introduced | Oct 01, 2005 |
| Lifecycle Status | Active |
