JuicyBoard: Modular Robotic Control System

← View All Updates
May 31, 2017

70% of the Finished Boards Received

Hello Everybody, a quick update

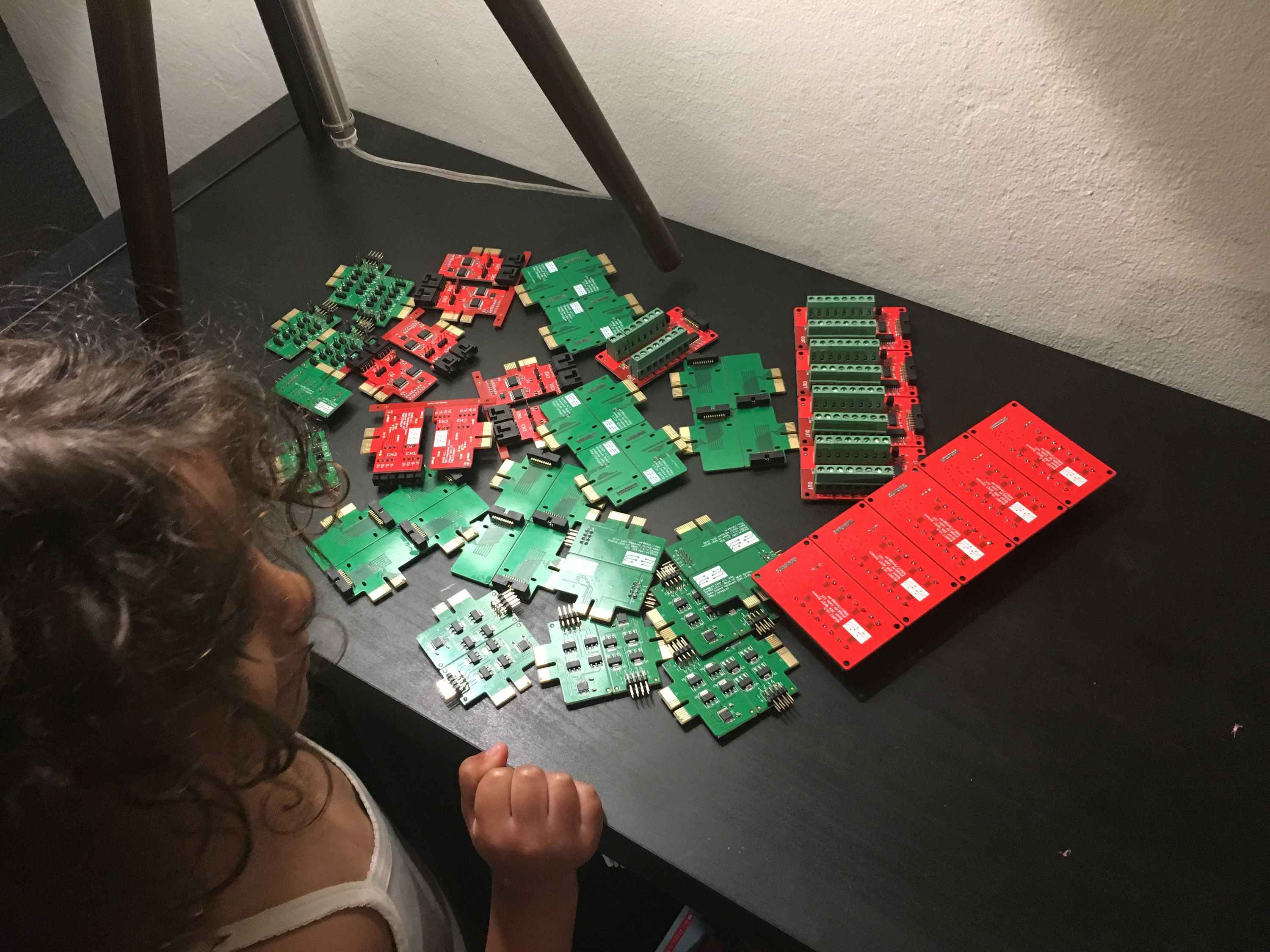

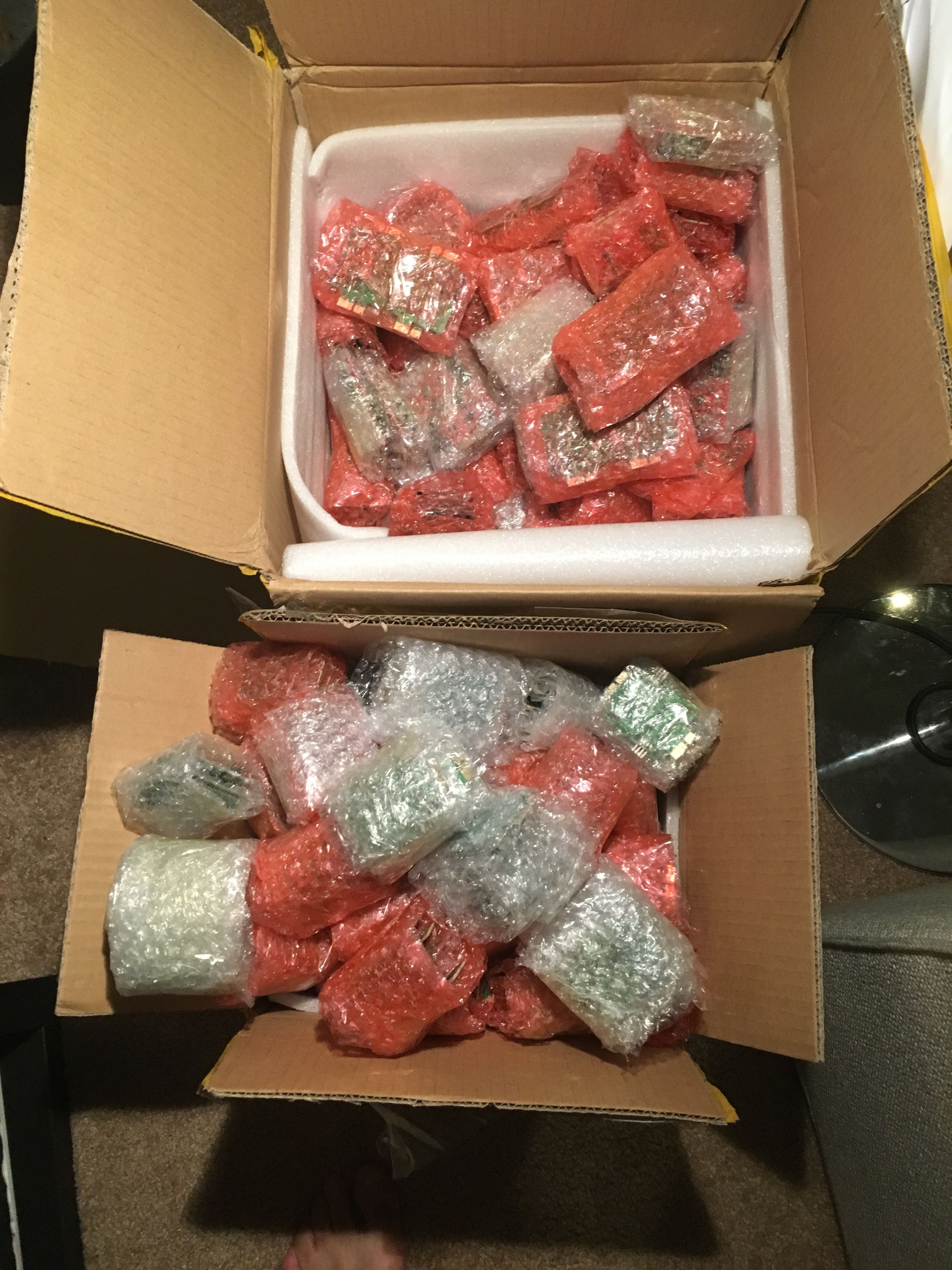

We’re happy to announce that we’ve received 70% of the finished boards and we’re currently sorting and testing them. We’ve received all boards except R1001 and R1000AX.

Select Your Interposer Board

As announced in our previous update, please fill out the survey to select your interposer board. To avoid delays we will ship out an interposer for particle photon if we don’t receive a response by the time the boards are ready ship. Here’s the link:

Compute Interposer Survey

$5,950 raised

of $1,000 goal

Funded! Order Now

Apr 16

funded on

595%

funded

52

pledges

Product Choices

$5

Support Us!

Thanks for helping make JuicyBoard a reality! You will be rewarded with good karma, regular backer updates.

$299

Builder Kit

A complete kit that can build almost any complex 3D printer, CNC or router. Includes: R1000AX board (1); R1001 Stepper Motor Drivers (8); R1002 Quad 1A DC Low Side NFETs module (1); R1003 Analog/Digital I/O modules (2); R1007 Quad 20A DC Low Side NFETs modules (2); R1008 Dual Channel Platinum RTD PT100 Temperature Sensor modules (2).

Orders placed now ship Jun 15, 2017.

Free US Shipping / $25 Worldwide

$94

JuicyBoard R1000AX

This is the JuicyBoard with all bells and whistles! 15 feature slots + SD card slots + all the reliability and safety features.

Orders placed now ship Jun 15, 2017.

Free US Shipping / $15 Worldwide

$19

R1001 Smart Stepper Motor Driver

Smart stepper motor driver module with independent current control, stepping resolution, and telemetry functions.

Orders placed now ship Jun 15, 2017.

Free Worldwide Shipping

$9

R1002 Quad 1A DC Low Side NFETs

Quad switches for controlling low-power peripherals, such as large LED status displays and fans. Maximum current limit of 1 A per channel.

Orders placed now ship Jun 15, 2017.

Free Worldwide Shipping

$5

R1003 Analog/Digital I/Os

This module provides a quad channel analog or digital interface to the main CPU. It includes a 1% 4.7 kΩ resistor as required in most thermistor setups. Can be used for analog inputs, digital inputs, or outputs.

Orders placed now ship Jun 15, 2017.

Free Worldwide Shipping

$15

R1007 Quad 20A DC Low Side NFETs

Four super-low resistance NFETs that can be used to drive very large peripherals (like a large heater or DC spindle). The transistors are rated 100 A (with less than 2 mΩ series resistance). Includes the necessary R1005 extender module.

Orders placed now ship Jun 15, 2017.

Free Worldwide Shipping

$39

R1008 Dual-Channel Platinum RTD PT100 Temperature Sensors

This module uses two Maxim MAX31865 RTD-to-digital converters for precision temperature measurement. Hook up two PT100 resistors appropriate for your application (not included) for temperature readings accurate below +/- 0.3 C. Can be configured to sense 2-wire, 3-wire, and 4-wire PT100 configurations.

Orders placed now ship Jun 15, 2017.

Free Worldwide Shipping
