Built on ESP32 & programmable with Arduino IDE or MicroPython

A powerful, Wi-Fi enabled ESP32 microcontroller makes this six-inch e-paper display – recycled from a Kindle e-reader – incredibly easy to control. Just plug in a USB cable, open Arduino IDE, and change the contents of the screen with few lines of code.

There’s Just Something About E-Paper

If you’re like us, the first time you saw an e-reader, you thought to yourself, "I could do something with that." Thanks to clean lines, high contrast, daylight readability, and the remarkable level of energy efficiency that comes from drawing power only when changing the contents of the screen, e-paper is uniquely suited to many applications.

After experimenting with the handful of readily available e-paper screens, however, we just couldn’t shake the sense that none of them was really a finished product. We had to wire them up to external microcontrollers, learn device-specific commands to update their screens, locate hard-to-find sample code, cobble together our own power management, and provide whatever interfaces our project ideas might require. It was a mess.

E is for Easy

With Inkplate 6, our goal is to make e-paper accessible to hobbyists and DIY product designers by offering a plug-and-play hardware platform that has it all:

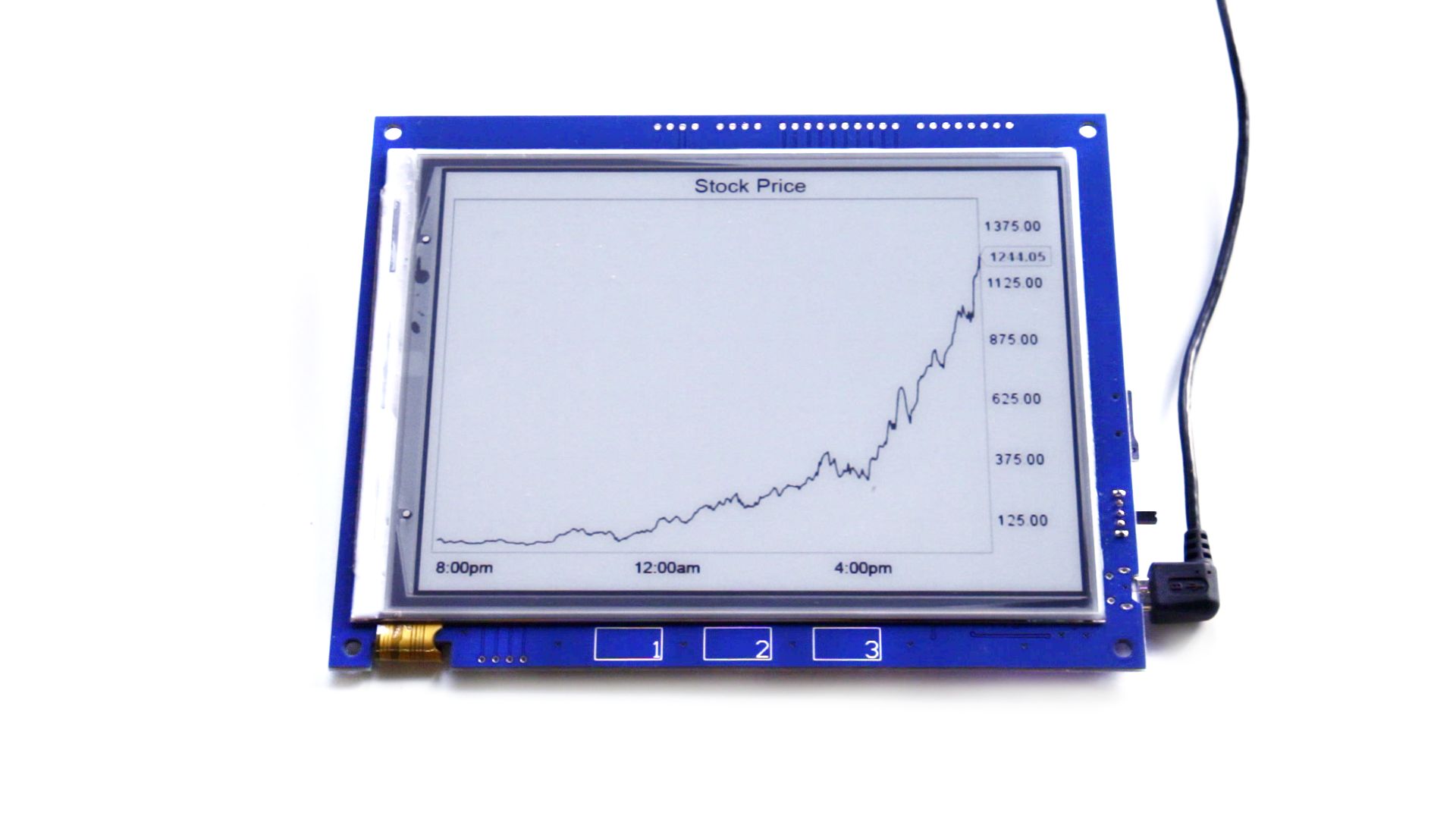

• A 6-inch, 800x600 pixel e-paper display with support for greyscale, partial updates, and accelerated refresh cycles
• An on-board ESP32 microcontroller with integrated Wi-Fi and Bluetooth 4.0 (BLE)
• Extremely low-energy, battery- or USB-powered operation (including a 25 µA sleep state) that wrings days, weeks, or months out of a single charge
• A MicroSD card reader from which Inkplate 6 can pull images to display
• Three capacitive touch pads

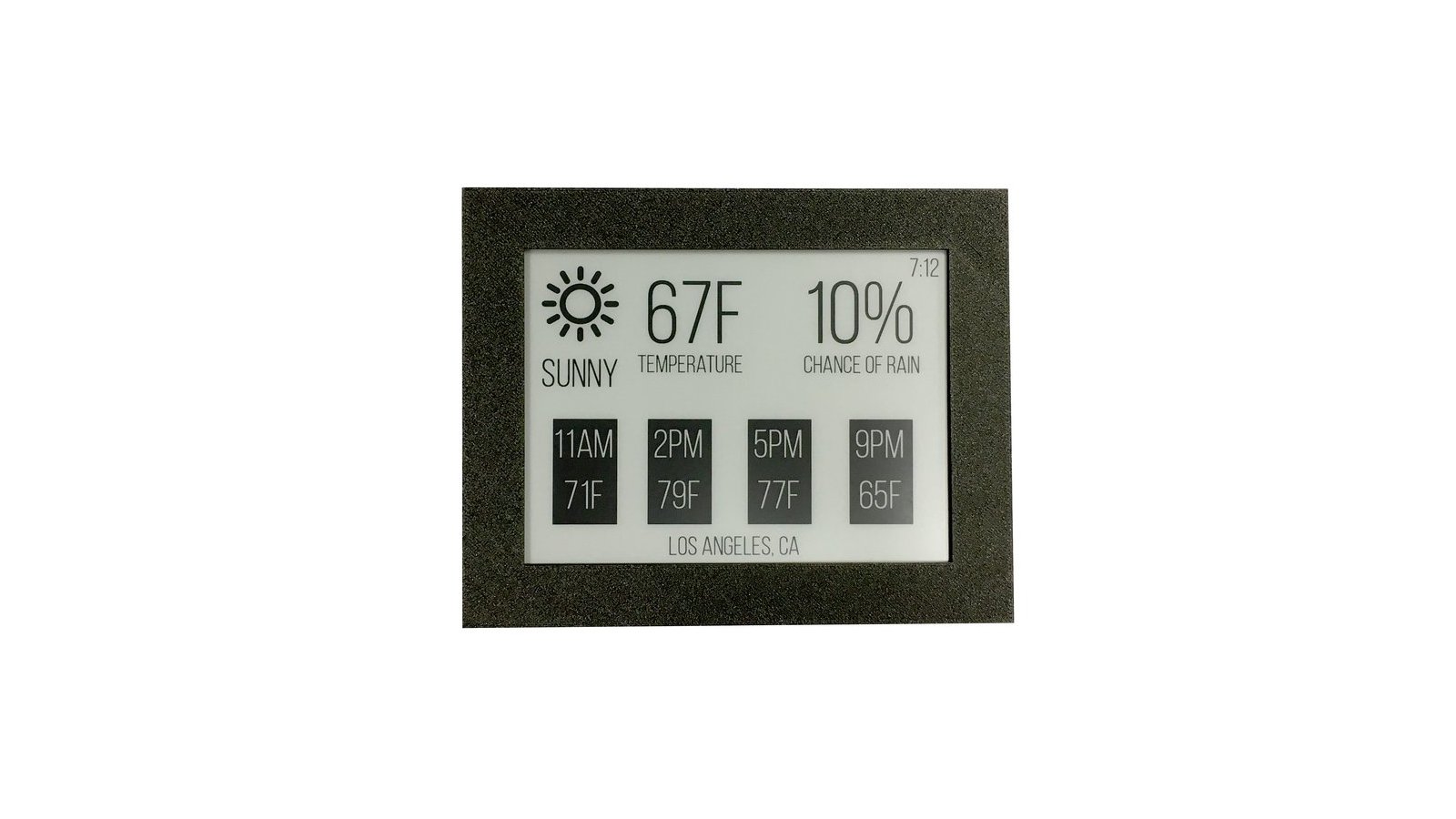

• A form factor that's optimized for the design of custom enclosures
• Additional GPIO pins, easyC/Qwiic compatibility, and support for I²C and SPI
• Arduino libraries (100% compatible with Adafruit GFX) and a MicroPython module that facilitate the rendering of text, images, and line art

Limited Only by Your Imagination

Here is a random sampling of things you might want to see hanging from your wall, sitting on your desk, stuck to your refrigerator, tucked away in your bag, or surrounded by a custom frame:

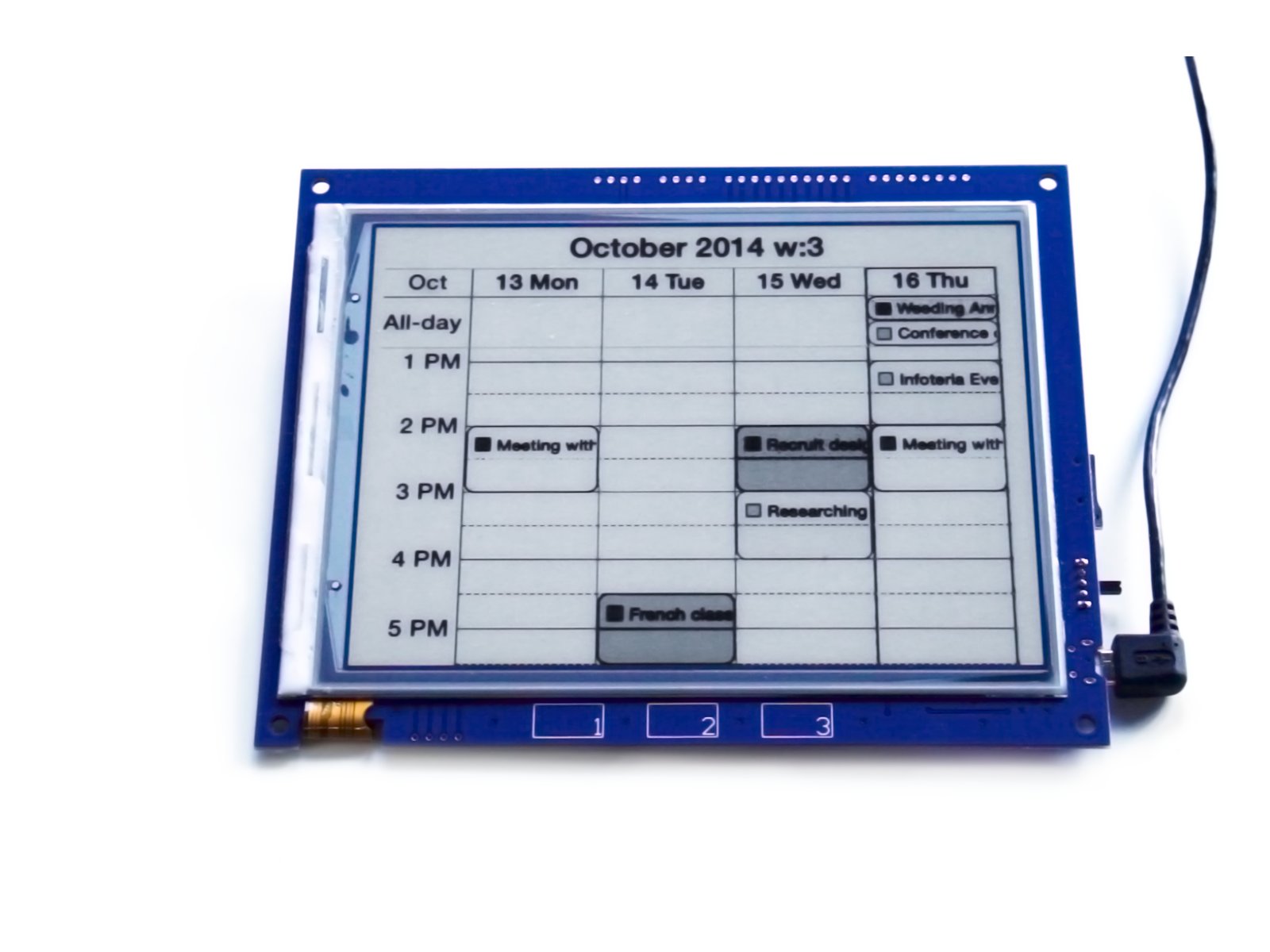

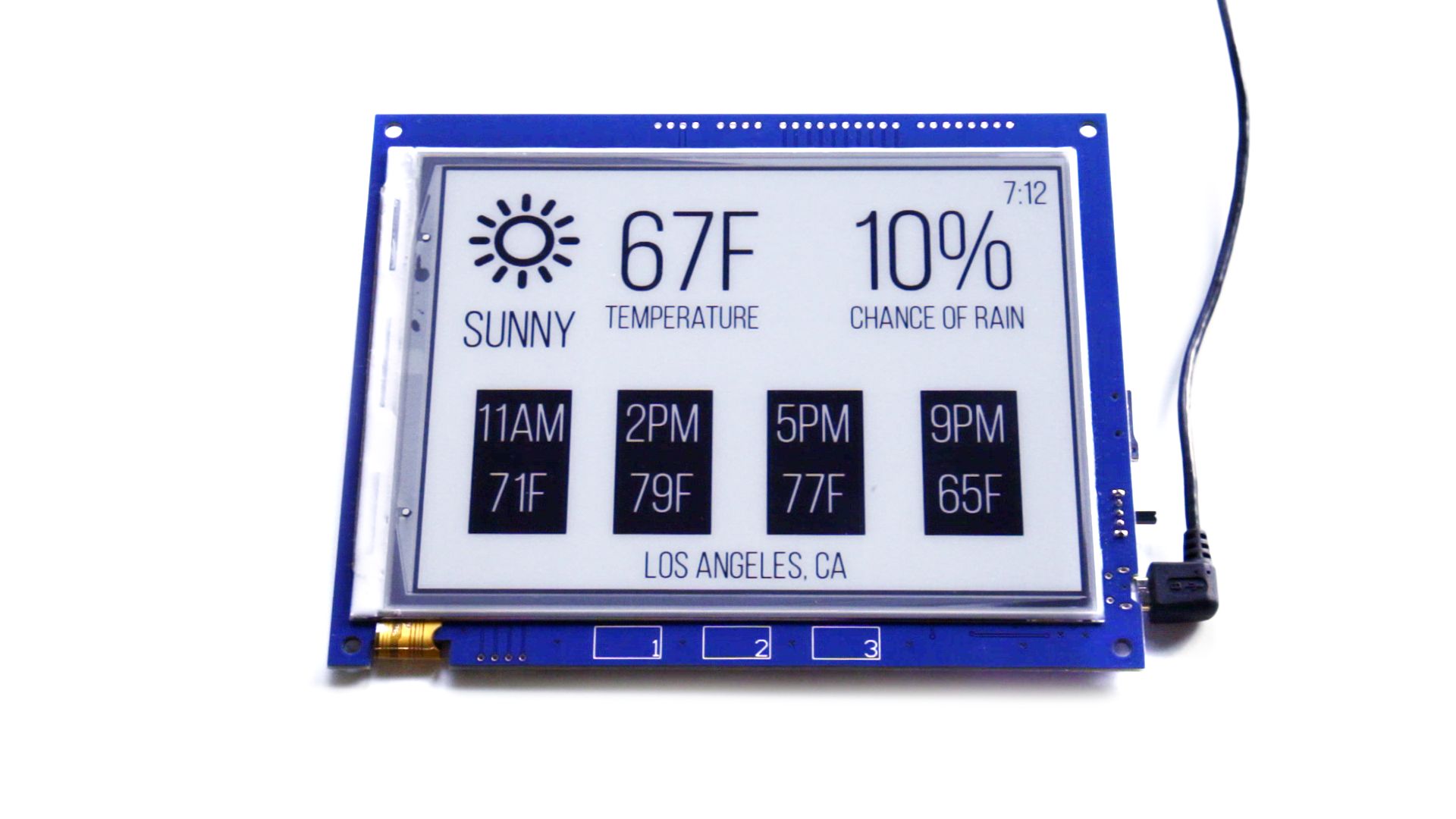

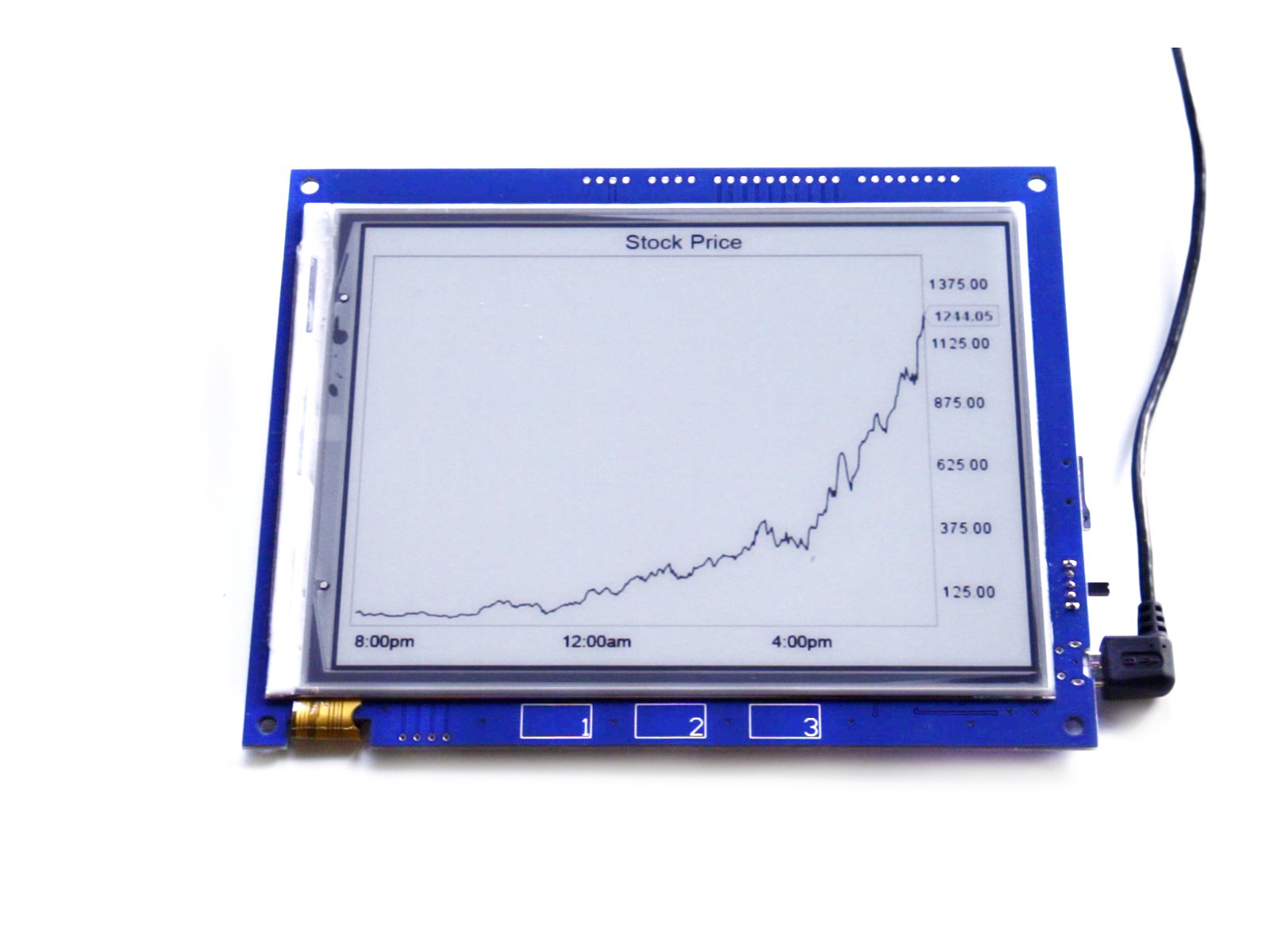

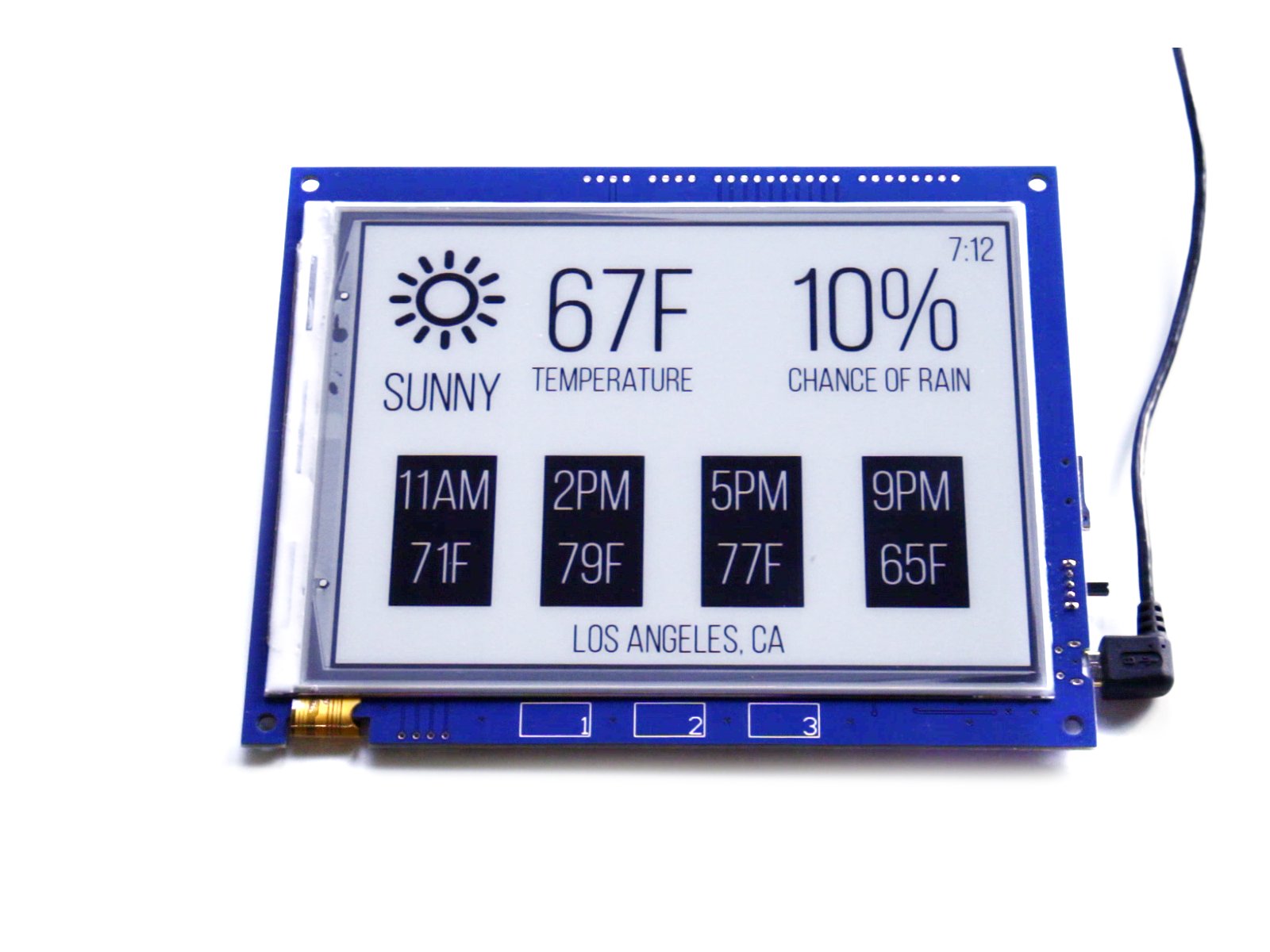

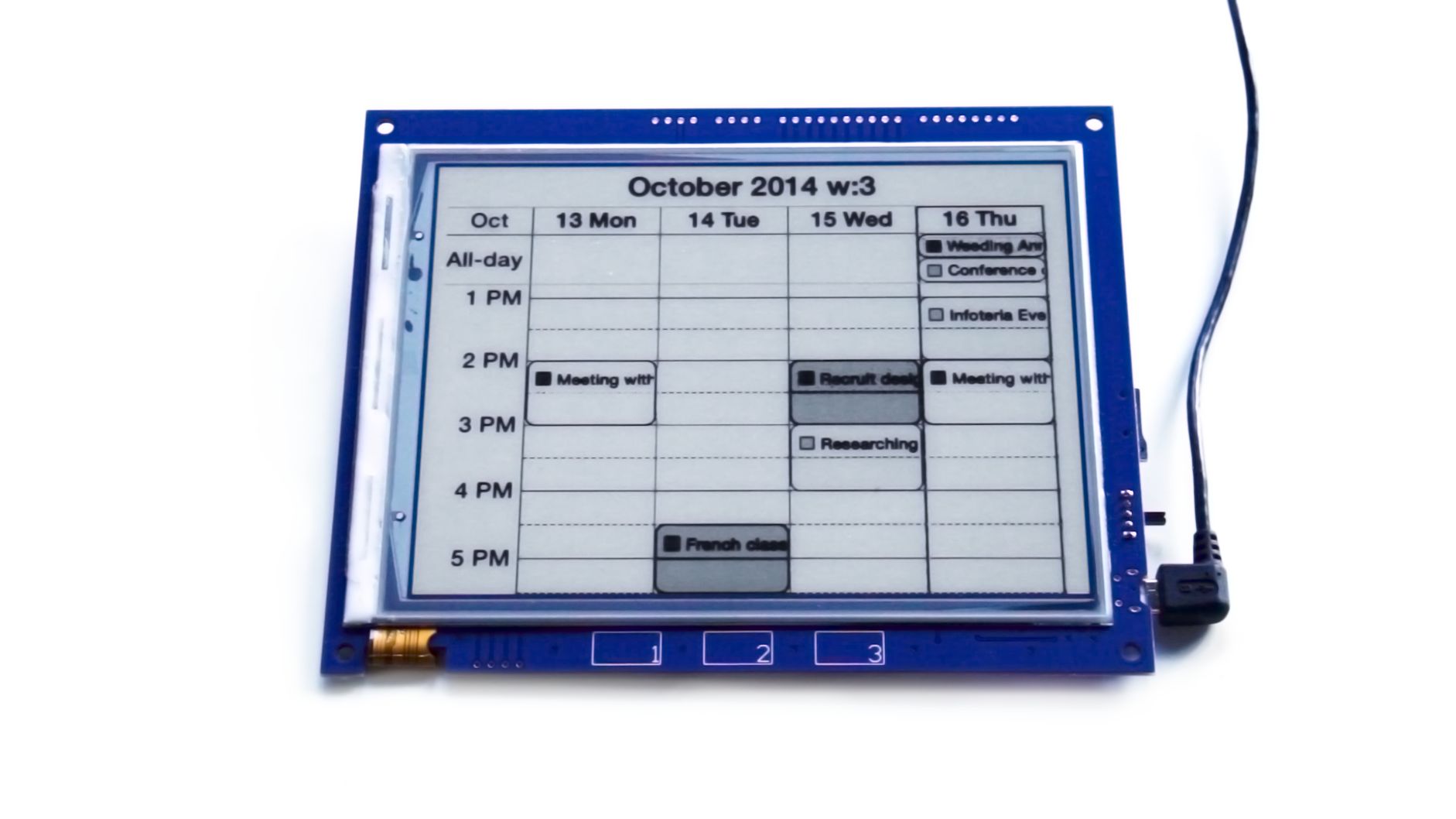

• High Latency Information Panel - Show calendar, temperature, weather, and air quality data. Track your stocks, learn a new word each day, display information about whatever song is playing, or tally up your likes on social media (if you must). Download updates, and only hit the battery when you do.
• Collaborative Task Tracker - Maintain shared lists of groceries to buy, chores to do, and birthdays to remember. Or replace the power-hungry wall monitor in your office with an e-paper kanban on each desk. Give away your dry-erase markers.
• Minimalist E-Paper Typewriter - Get those words out. Sync them to the cloud or store them on an SD card. And keep distractions like social media and email away from your line-of-sight.

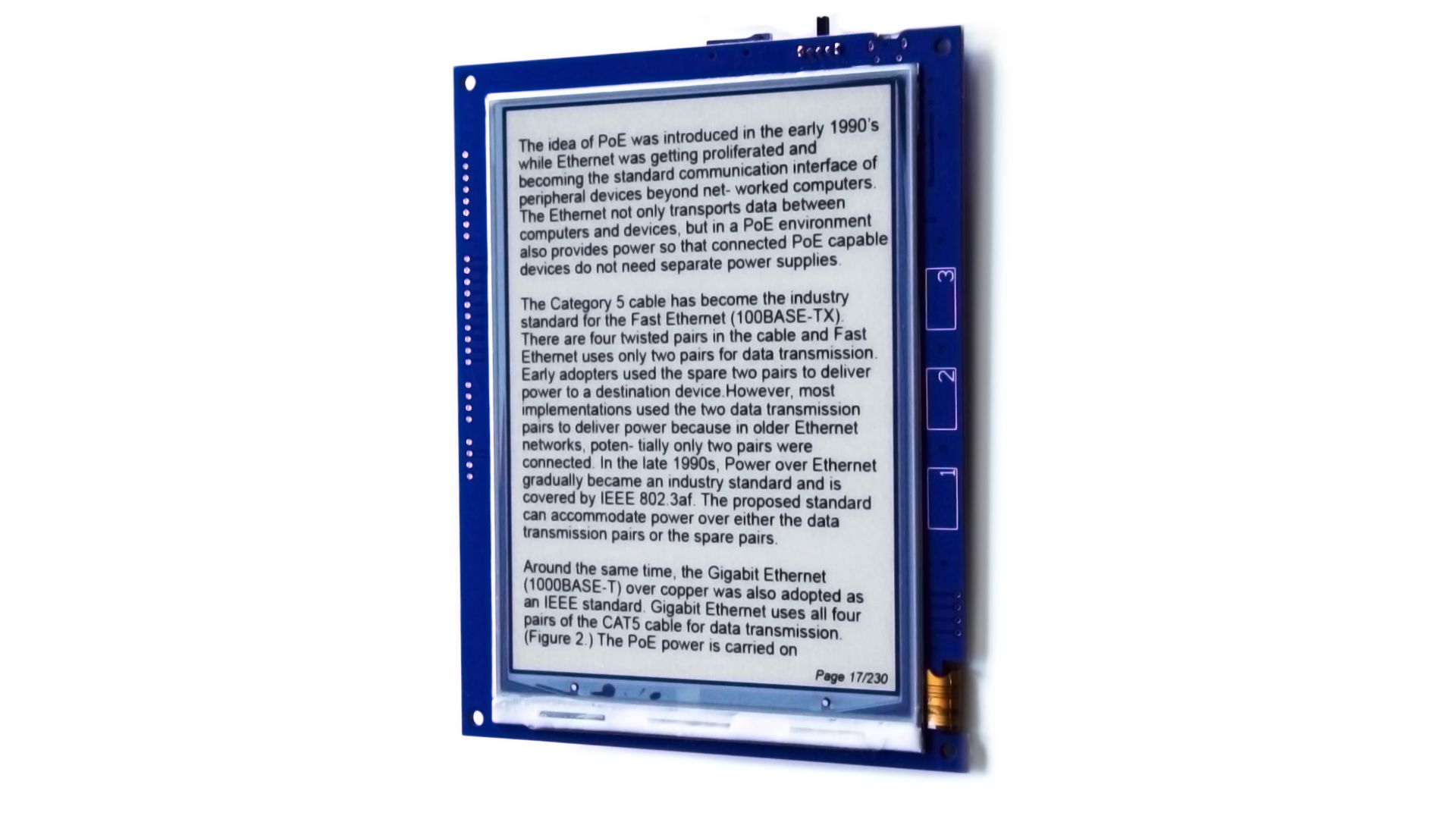

• Open Hardware E-Reader - Sweep aside the barriers put in place by restrictive, centralized platforms and e-read whatever you want.
• Art - Frame photographs pulled from an SD card or an online cameraroll, sure, but why not generate abstract art from sensor data? Or torment your house guests with a modern take on the classic, four shot, black-and-white photobooth?

Whatever your e-paper idea might be, as long as it’s compatible with a six inch screen, Inkplate 6 probably represents your quickest path to it. And even if you’re working toward something larger or smaller, Inkplate 6 can still save you some headaches while you’re prototyping.

Kindles Have Nice Screens

We’d rather see them in your hands than in a landfill somewhere. And by recycling used Kindle screens, we are able to offer high-end features at an affordable price. You can find more information in the comparison table below, but some of the highlights include:

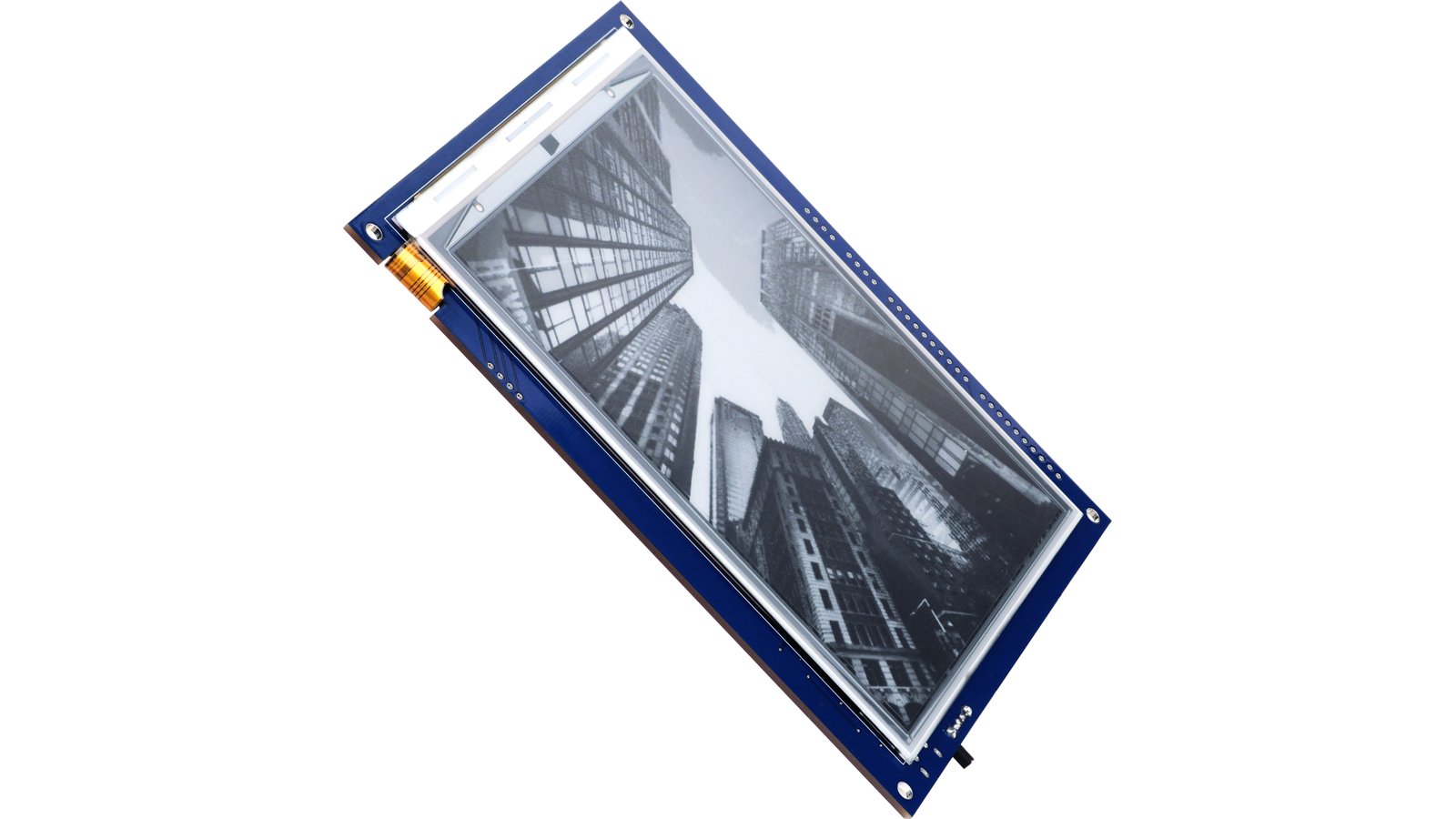

• 3-Bit Greyscale, which allows Inkplate 6 to display black, white, and six different shades of grey (1-bit black & white mode also available)
• 264 ms Refresh, which is unusually fast for an e-paper screen of this size
• Partial Updates, so you don't have to reset the entire screen to add content

Fast Partial Updates

ESP32 is the Place to Be

Inkplate 6 is built around one of today’s most popular microcontrollers. If you already have experience working with ESP32, then you’re in good company. Developing for Inkplate 6 should feel mighty familiar. And if you’re new to ESP32, this is a great way to start learning a set of skills that will serve you well for a long time to come.

The ESP32 WROVER module at the heart of Inkplate 6 features:

• A dual-core microprocessor
• 8 MB of RAM
• 4 MB of flash
• Integrated Wi-Fi & Bluetooth 4.0 (BLE)

Help Us Build an Open E-Paper Community

Inkplate 6 is open hardware, and the software that powers it is open source. You can find both our design files and our source code on GitHub. That includes:

• The Inkplate 6 hardware design files, including schematics, Gerbers and our Bill-of-Materials
• The Inkplate 6 Arduino library

Our MicroPython module remains a work-in-progress, as does the datasheet for our board, but we will have both online by the time you receive your Inkplate 6.

We have already done a great deal of work to make Inkplate 6 easy to use, but a larger community could accomplish even more. Inkplate’s Arduino and MicroPython ecosystems will only get healthier over time, and we invite you to contribute to the libraries, tools, and frameworks that will help Inkplate 6 (and subsequent models!) mature into the hundreds of different consumer products they want to be when they grow up.

Comparisons

Features & Specifications

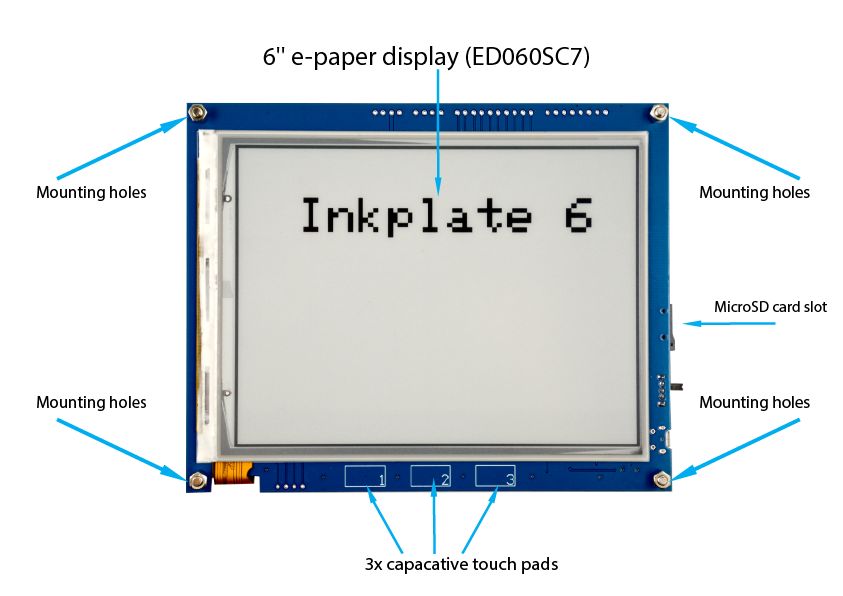

Front-Mounted Components:

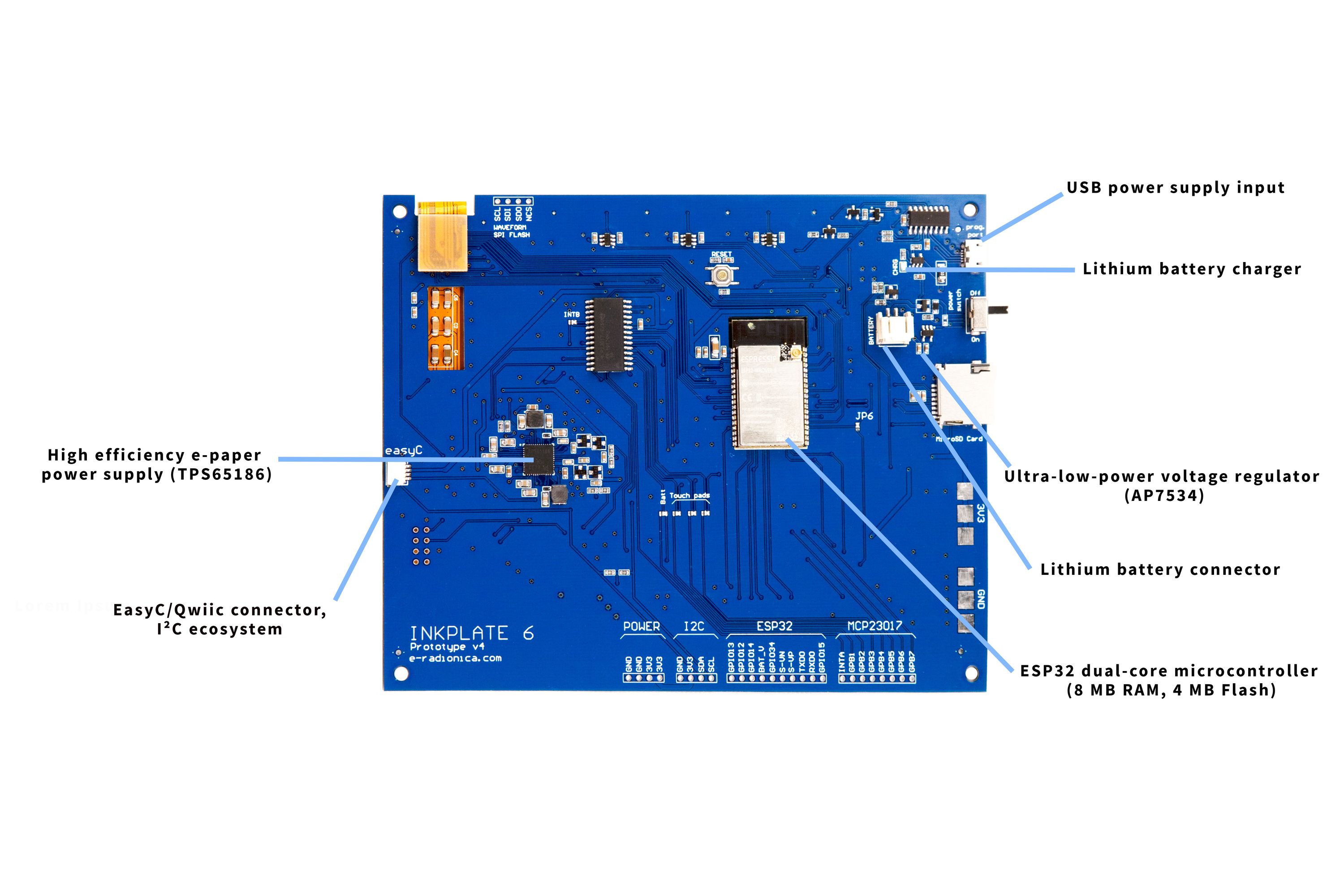

Rear-Mounted Components:

Other Technical Specifications

• Physical Interface:
  • Three capacitive touch pads
  • Hardware power switch
  • One LED battery indicator
  • Hardware reset button
• Connectors: Micro USB, easyC, and GPIO
• Wired Connectivity: USB, I²C, and SPI
• USB to UART converter: CH340C
• Storage: MicroSD card reader
• Power Management:
  • Based on Texas Instruments (TI) TPS65186
  • MCP73831 lithium battery charger with a standard JST connector
• Temperature Sensor: Internal TPS65186

Support & Documentation

All hardware and software documentation for Inkplate 6 will be published and openly maintained in our GitHub repositories. We provide free technical support for all products manufactured by Soldered. An English language forum for this purpose is currently under development. Meanwhile, please contact us through the campaign page if you have any questions.
