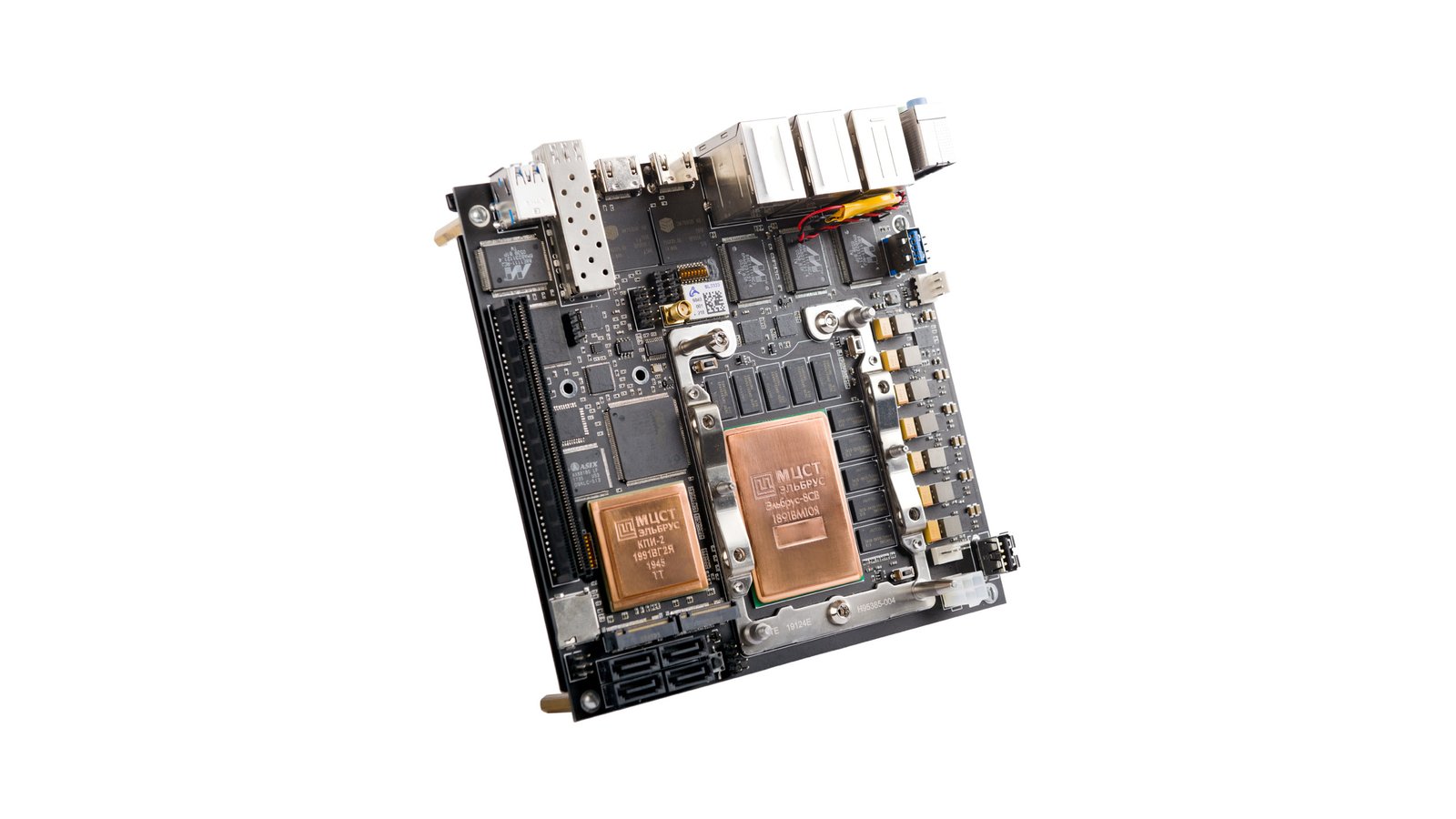

IcepeakITX ELBRUS-8CB

Security-oriented mini-ITX motherboard with MCST Elbrus8CB VLIW as CPU

This project is coming soon. Sign up to receive updates and be notified when this project launches.


Elbrus is a mini-ITX security-oriented motherboard for mobile/embedded usage based on the MCST Elbrus-8CB 8-core @ 1.5 GHz VLIW CPU on ELBRUS architecture.

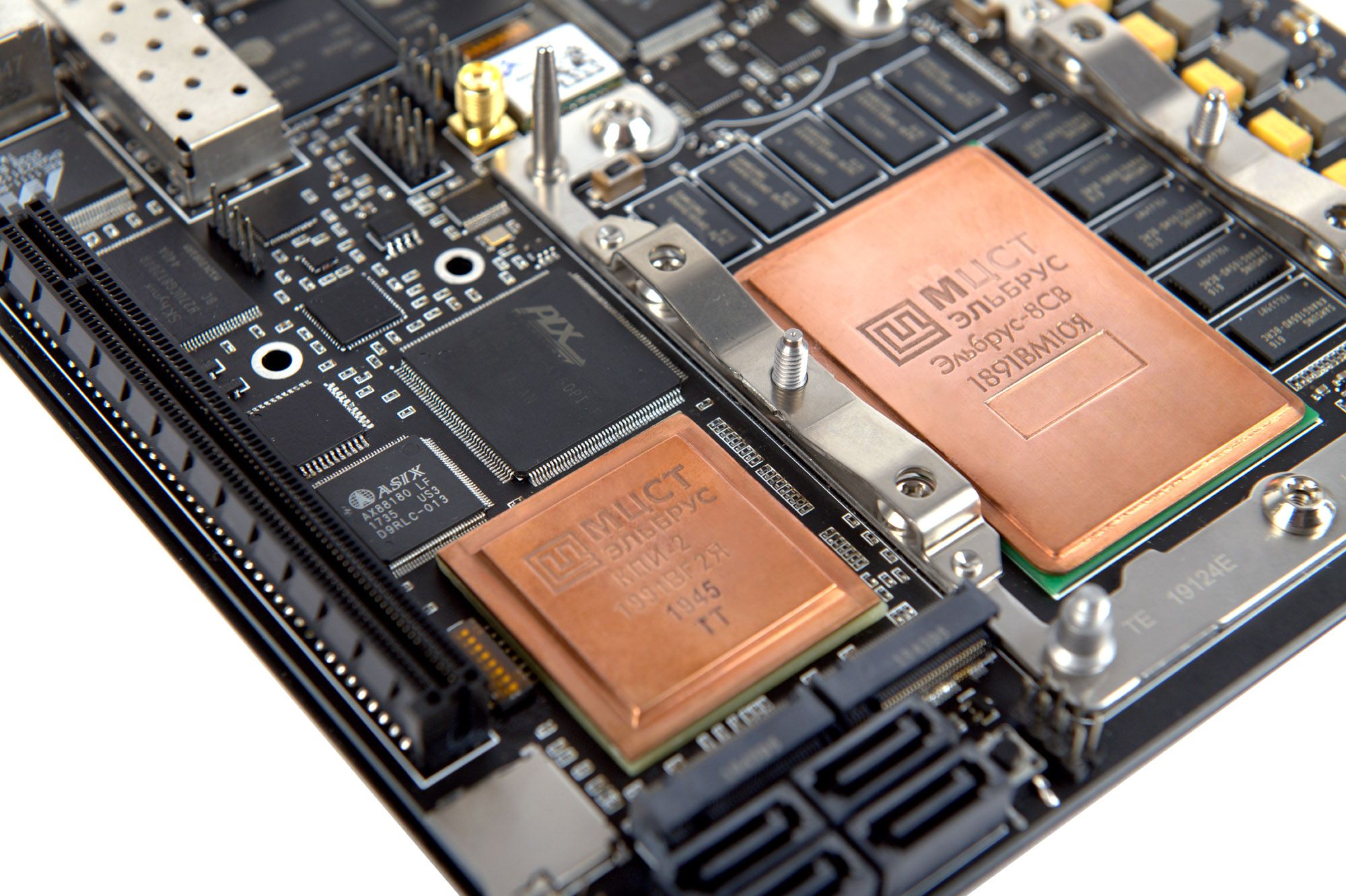

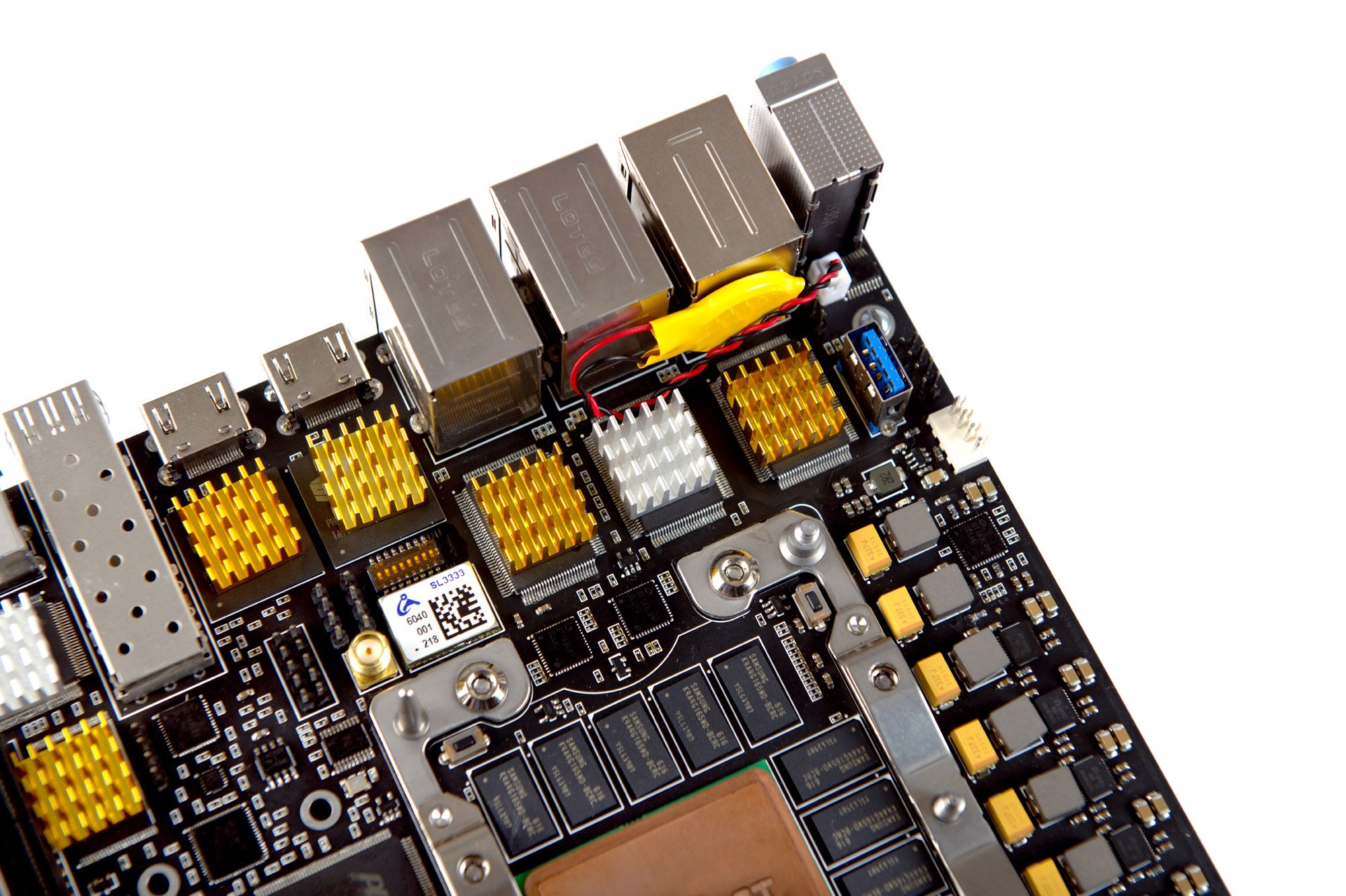

It has 8 GB DDR4 memory, pressure sensors, tamper sensors, a water sensor, gyroscope, GPS, and much more in one single board! And most importantly - x86-64 VLIW firmware for real-time execution of x86-64 code on ELBRUS with minor performance overhead. We are also developing and manufacturing a custom fullly-copper IHS (Integrated Head Spreader) for CPU and SB (MCST KPI-2).

Technical Specifications

  • Form-factor: Mini-ITX
  • CPU: MCST (Moscow Center of SPARC Technologies) Elbrus-8CB 8-core @ 1.5 GHz VLIW (fully compatible with any LGA3647 heatsink)
  • SB: MCST KPI-2 Multicontroller
  • RAM: 8 GB or 32 GB (2x [4+1] 8 Gbit/32 Gbit DDR4 DRAM 2400 MHz ECC)
  • SATA: 2x M.2_2280 + 4x SATA_6G
  • Storage Expansion: 1x microSD (HC)
  • Cache: 1x PATA 8 GB (required as cache device for hardware emulation of x86 on Elbrus)
  • PCIe: 1x PCIe2_x16 + 1x PCIe2_x1 (as USB3)
  • Security:
    • 1x TPM SPI connector
    • 2x boot firmware chip with extra security
    • 3x heatsink detectors
    • 1x temperature sensor trigger
    • 2x tampering sensor
  • Network:
    • Marvell M88E1111-RCJ chipset
    • 1x 1G_SFP
    • 3x 1G_RJ45
  • GPS: GPS chip with internal antenna port
  • USB:
    • 2x USB 2.0 (rear)
    • 4x USB 2.0 (+PD) (rear)
    • 2x USB 3.0 (rear)
    • 1x USB 2.0 (internal)
  • COM: 1x COM header (internal) required for debugging boot
  • Debug: 1x 6-pin debug port, 1x 4-pin (USB to GPIO)
  • Video: 2x HDMI (1 HDMI per SM768/256 MB)
  • Audio: Integrated simple audio codec (Linux-compatible)
  • Additional Sensors:
    • Fall detection sensor
    • Gyroscope
    • Water sensor
  • Additional Connectors:
    • 2x PWM-4
    • RTC battery connector
    • Simple BEEP connector
  • PCB: 14 layers (level 5 accuracy) / ISOLA Hi Tg 180

Open Source

Full source code for board schematics, design specifications, internal design comments, and our BSP will be published in a GitHub/GitLab open repository, and provided on a DVD that comes with the motherboard. MCST’s proprietary C/C++ compiler and bootloader will be provided only as binary, because we do not have access to the source code of this part.
