Terasic LT24 Touch LCD Display

A 2.4" color LCD touch display for DE-series FPGA kits

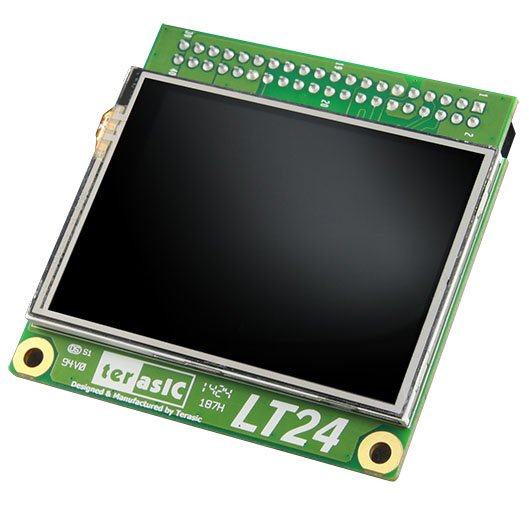

LT24 Touch LCD Display

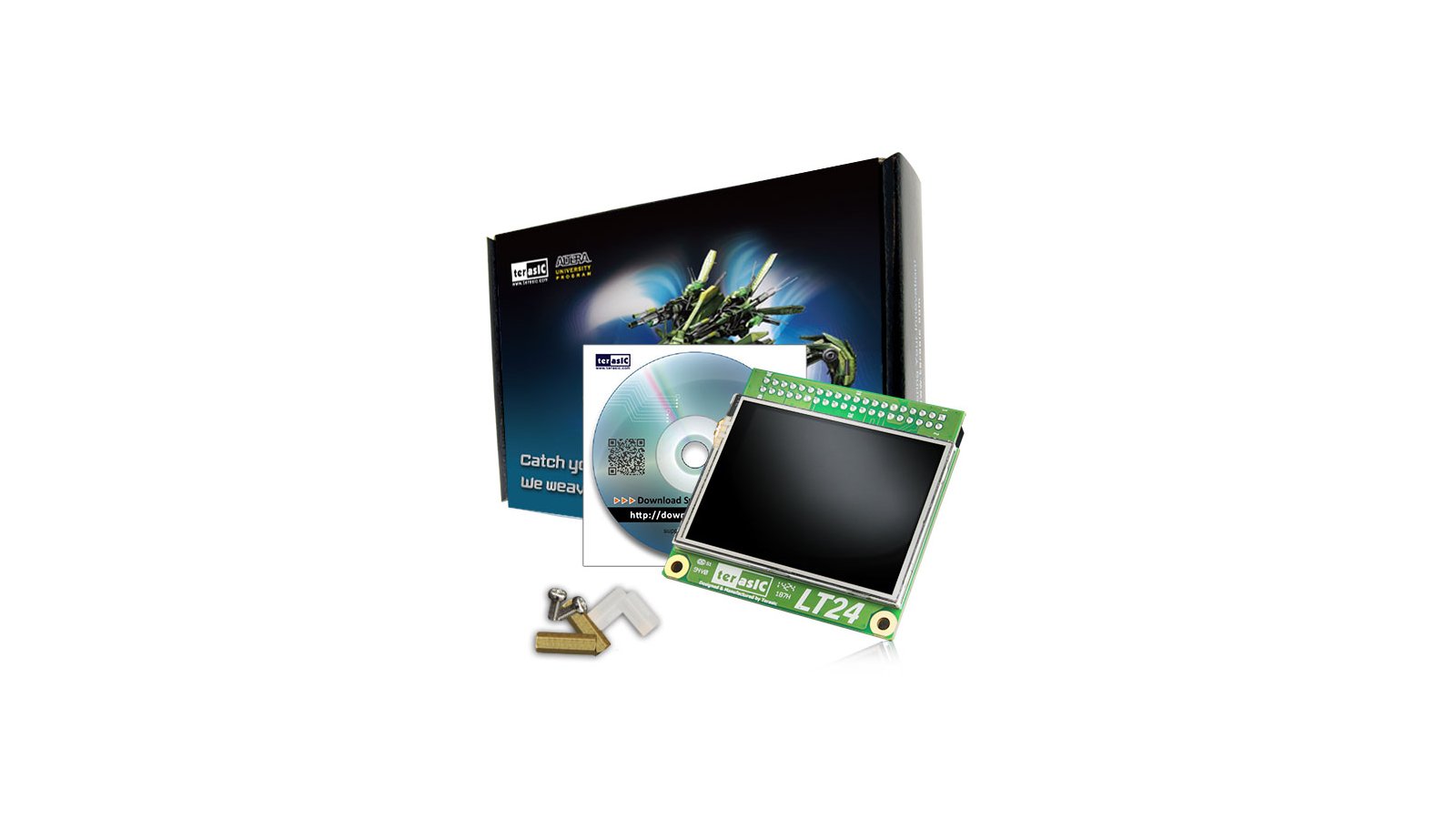

A 2.4” (diagonal) color LCD touch display with a 240 px (height) x 320 px (width) resolution for use with DE-series Terasic FPGA kits. Includes one display module, one set of board standoffs, and one documentation CD-ROM.

^$62 $8 US Shipping / $18 Worldwide

In stock

Features & Specifications

240 px (height) x 320 px (width)
65K RGB color
Single resistive touch
2x20 GPIO interface
Power delivered through 2x20 GPIO interface
Dimensions: 53.6 mm x 61.8 mm

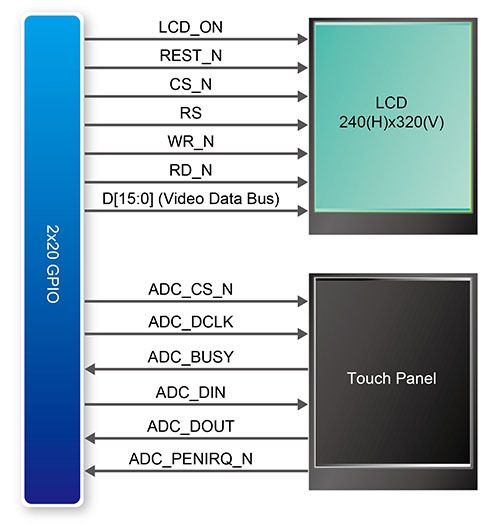

Block Diagram

Compatibility

The LT24 display module can connect to DE-series FPGA boards, such as the DE2-70 shown below.

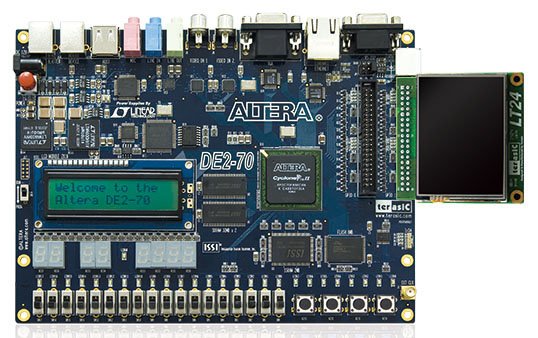

An LT24 display module connected to a DE2-70 dev kit


Manufacturer	Terasic
Introduced	May 31, 2015
Lifecycle Status	Active
