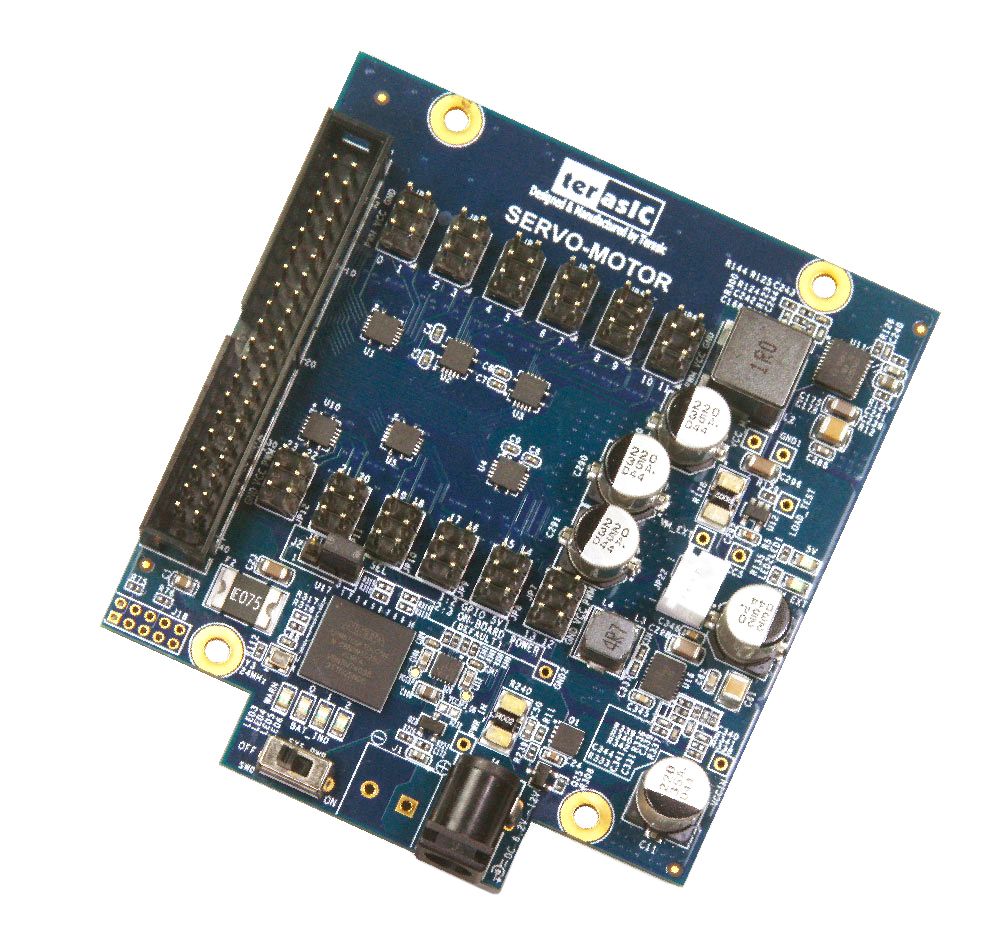

This 24-channel servo motor controller board connects via a 3.3 VDC 2×20 GPIO interface (ribbon cable included) to a compatible host board, such as any Terasic DE-series FPGA board (e.g., DE0-Nano and DE0-Nano-SoC). The host board sends PWM signals to the motor driver card to control the rotation of the attached servo motors.

Demo Video

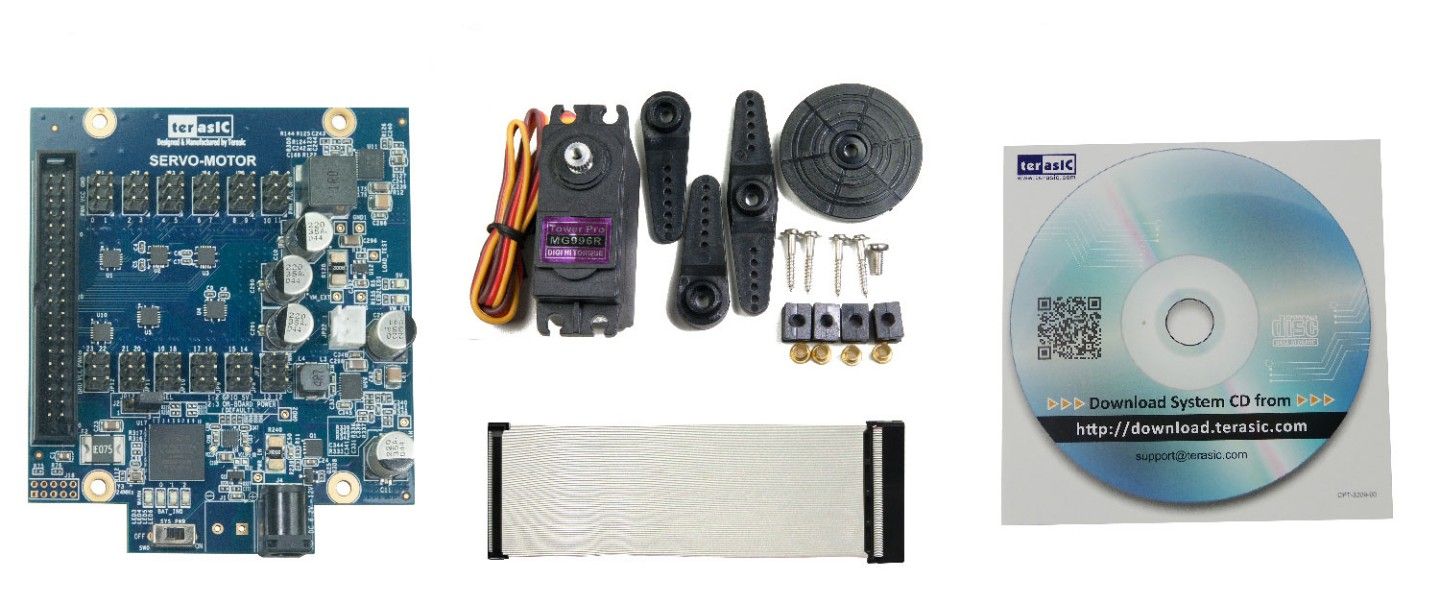

The CD-ROM included in the kit contains demo code and examples showing how to control the servo motor.

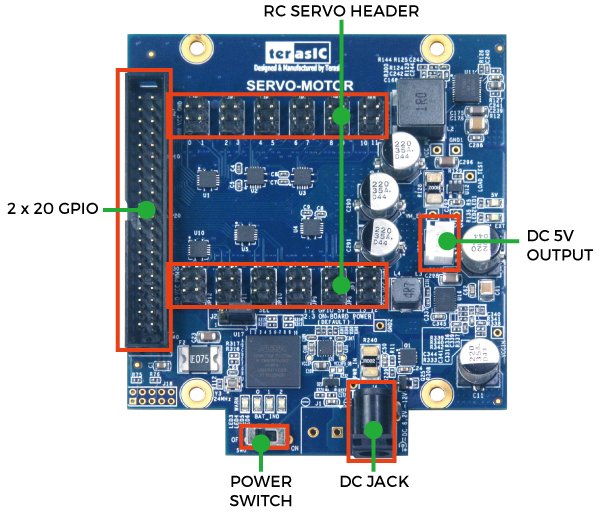

Motor Driver Board Features & Specifications

• Input 6.2 - 12 VDC for driving motors
• Dimensions: 79.12 mm × 91.35 mm
• Provide 5 VDC power output for host board
• 2×20 3.3 VDC GPIO interface
• Drive up to 24 servo motors
• Fuse protection for each servo driving port
• Built-in Altera CPLD and power monitor:
  • Battery voltage monitor
  • Total current monitor
  • Auto shutdown when battery is low or total current is too high
  • Source code is available for users to modify according to their application

MG966R Servo Motor Features & Specifications

• Single motor included with kit
• Rotation angle: 0° to 120°
• Weight: 55 g
• Dimensions: 40.7 mm × 19.7 mm × 42.9 mm
• Stall torque: 9.4 kg/cm @ 4.8 VDC; 11 kg/cm @ 6.0 VDC
• Operating speed: 0.19 sec/60° @ 4.8 VDC; 0.15 sec/60° @ 6.0 VDC
• Operating voltage: 4.8 to 6.6 VDC
• Gear material: metal

Compatibility

The servo motor board can connect to DE-series FPGA boards, such as the DE0 Nano shown below.

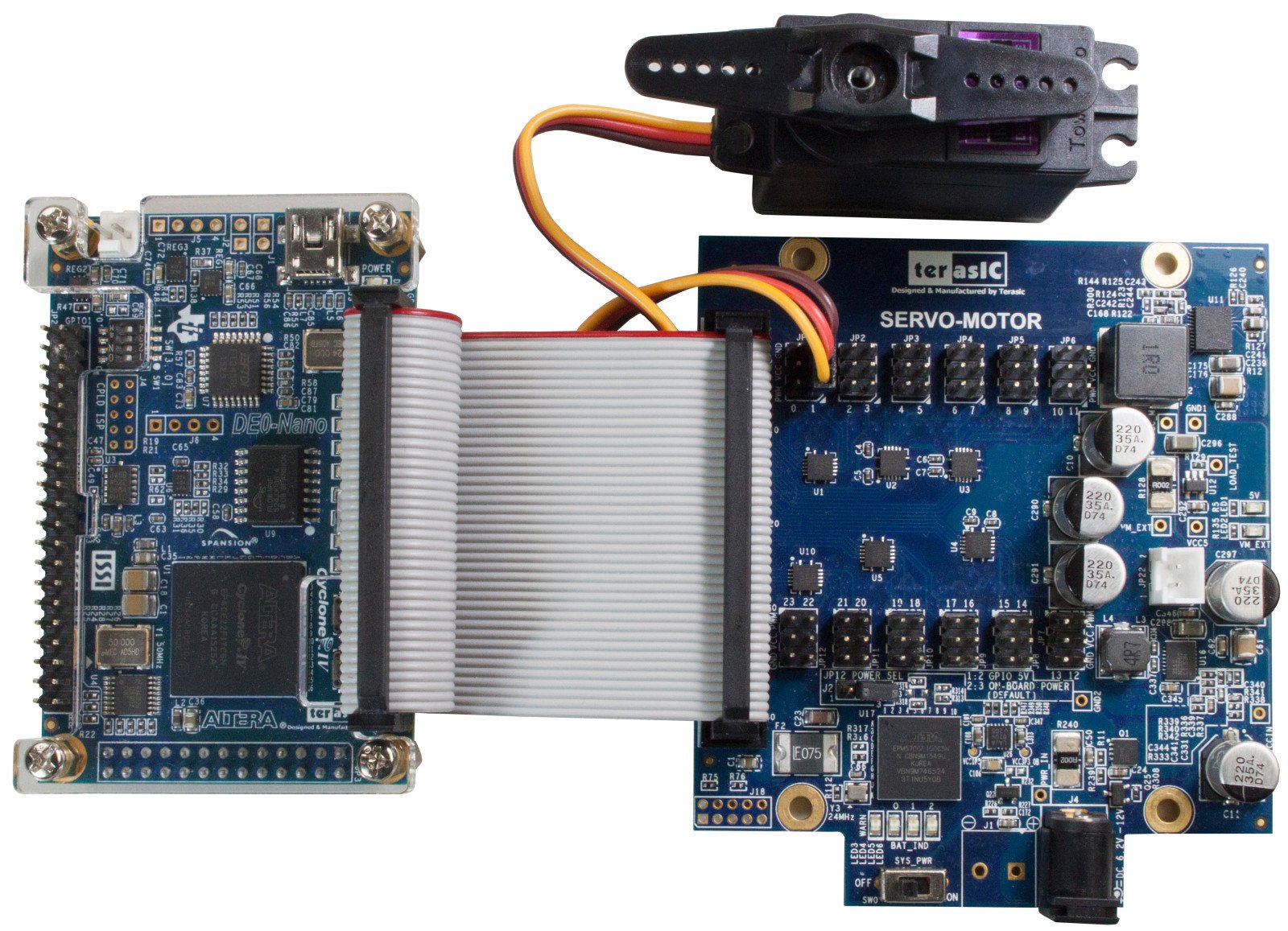

A servo motor kit connected to a DE0 Nano dev kit
