TinyS3

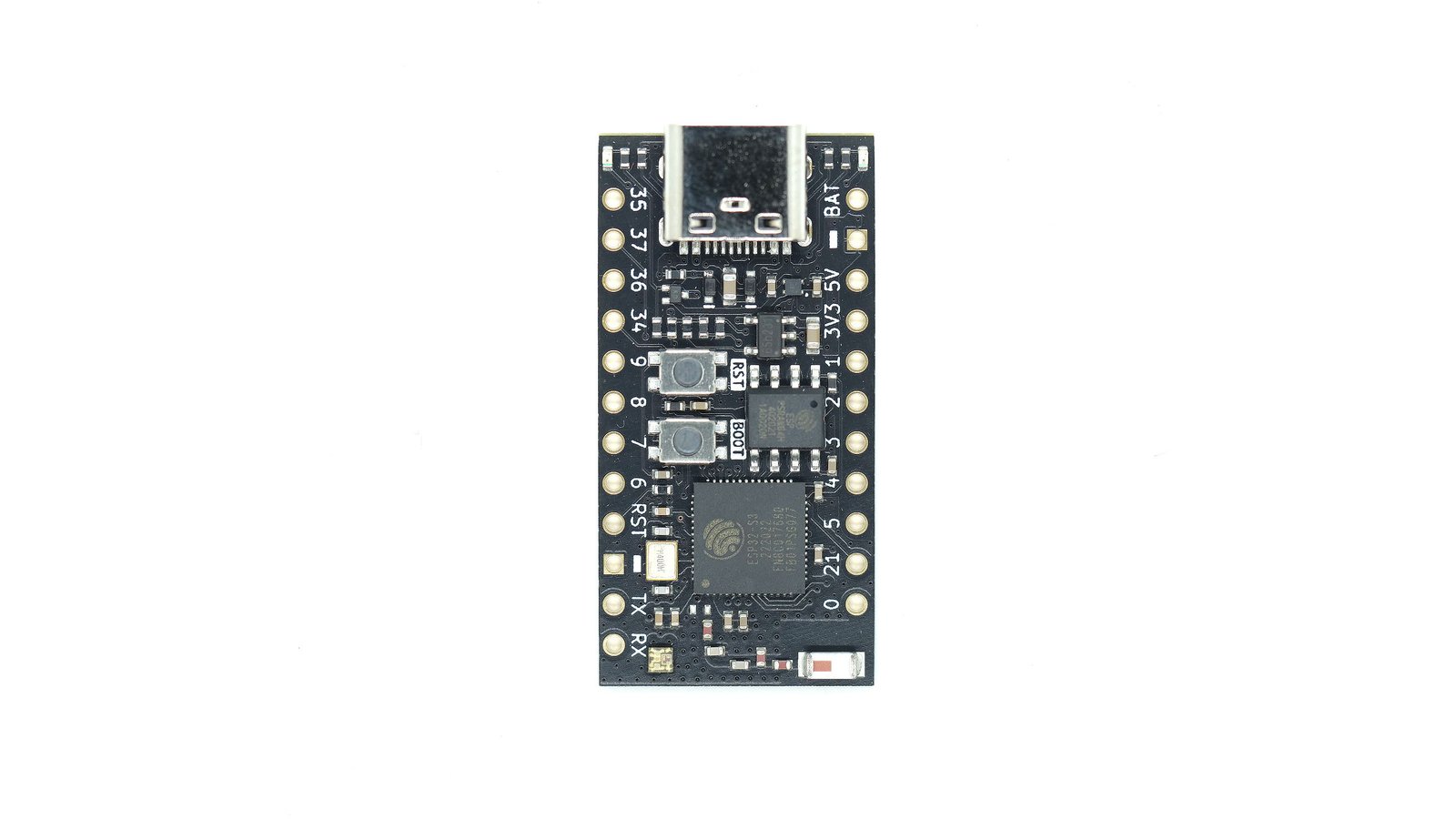

TinyS3 with onboard antenna

ESP32-S3 development board with USB-C connector, battery charging, onboard RGB LED, ultra low deep sleep current and includes an onboard 3D high gain antenna

^$20 $8 US Shipping / $18 Worldwide

Orders placed now ship Jun 30, 2024.

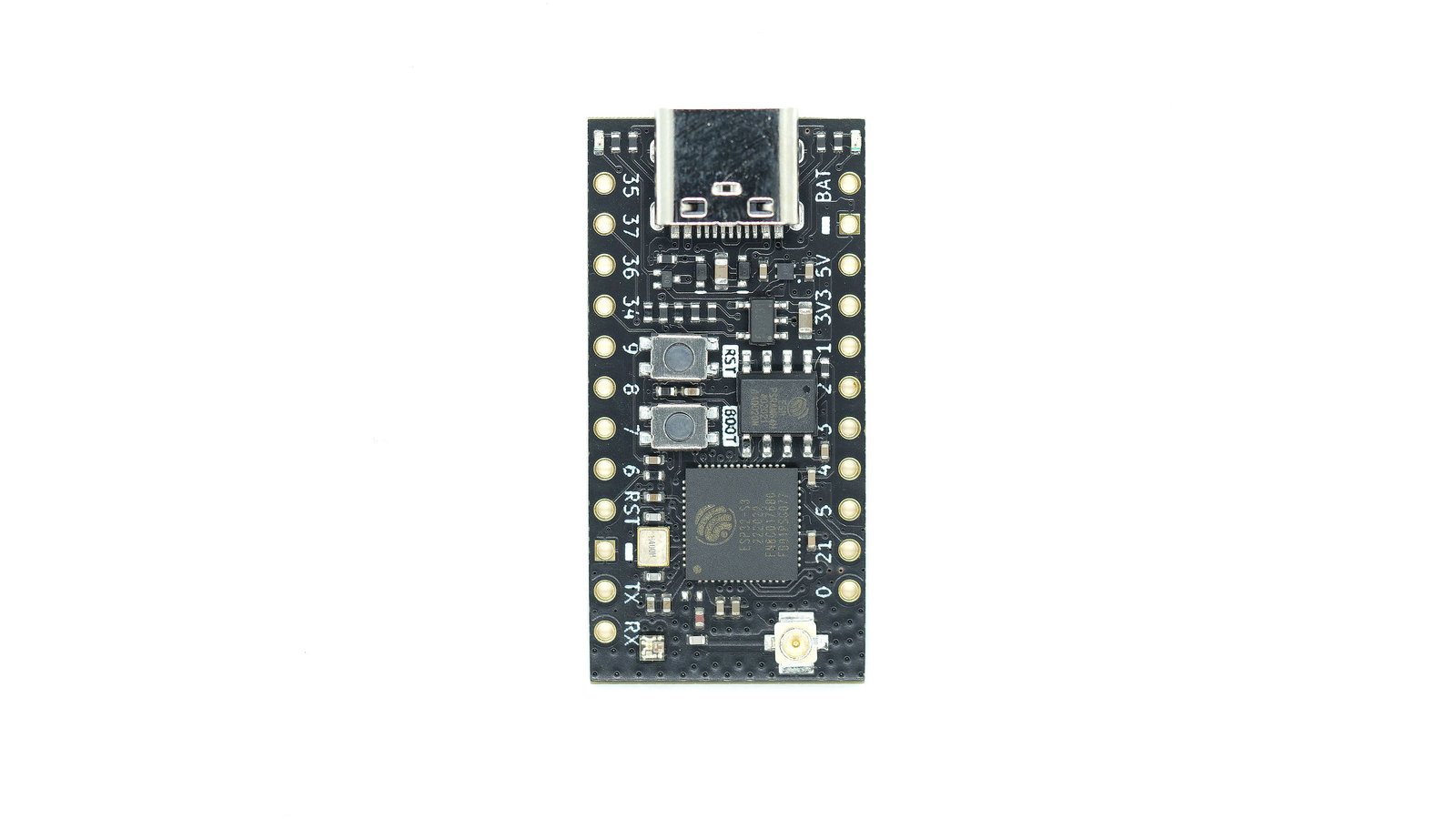

TinyS3 with uFL

ESP32-S3 development board with USB-C connector, battery charging, onboard RGB LED, ultra low deep sleep current and includes a u.FL connector for an external Antenna.

^$20 $8 US Shipping / $18 Worldwide

Orders placed now ship Jul 31, 2024.

I-PEX MHF4 Antenna (698 MHz to 3.6 GHz)

From the Crowd Supply Basics project.

698 MHz to 3.6 GHz I-PEX MHF4 GNSS/WiMAX Antenna

^$7 $8 US Shipping / $18 Worldwide

In stock

USB 2.0 Cable: Type-C to Type-A (1 m / ~3.3 ft)

From the Crowd Supply Basics project.

A 100 cm cable with a USB Type-C and a USB Type-A connector.

^$7 $8 US Shipping / $18 Worldwide

In stock

USB 2.0 Cable: Type-C to Type-A (2 m / ~6.6 ft)

From the Crowd Supply Basics project.

A 200 cm cable with a USB Type-C and a USB Type-A connector.

^$8 $8 US Shipping / $18 Worldwide

In stock

USB 2.0 Cable: Type-C to Type-C (1.5 m / ~5 ft), supports PD 100W fast charging

From the Crowd Supply Basics project.

USB Cables / IEEE 1394 Cables Type-C to Type-C PD Fast Charging Cable, 480 MB/S transmission rate

^$9 $8 US Shipping / $18 Worldwide

Orders placed now ship Sep 30, 2024.

USB 2.0 Cable: Type-C to Type-C (2 m / ~6.6 ft)

From the Crowd Supply Basics project.

USB Cables / IEEE 1394 Cables Cable, USB, 2000 mm, Type C 2.0 to Type C 2.0, 28 AWG, PVC, Black

^$20 $8 US Shipping / $18 Worldwide

In stock

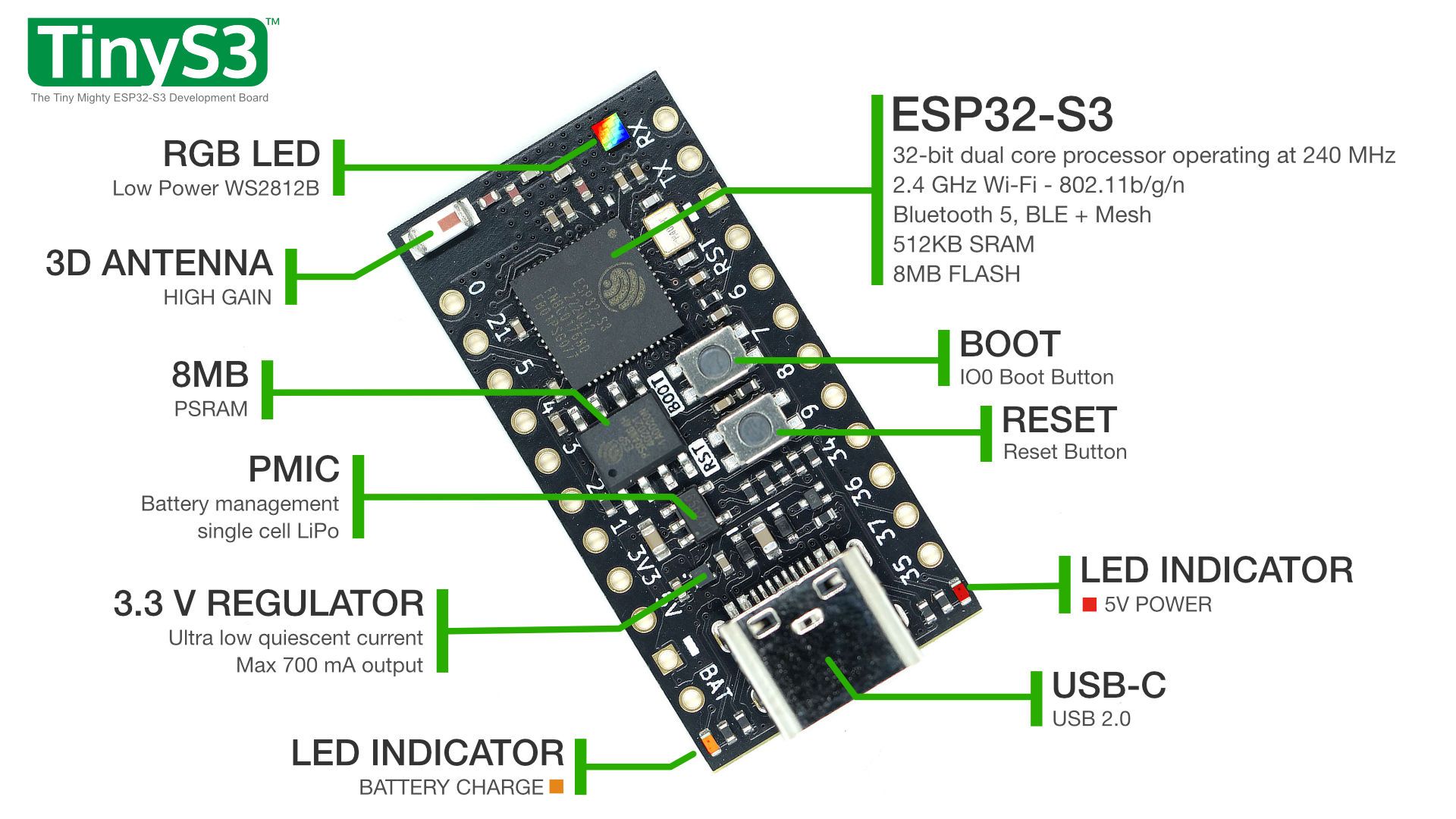

TinyS3 is an ESP32-S3 development board with USB-C connector, battery charging, onboard RGB LED, and ultra low deep sleep current. The TinyS3 comes with either an onboard 3D high gain antenna, or an antenna connector for adding your own 2.4 GHz antenna. TinyS3 is packed with amazing features and peripherals, wireless connectivity and stacks of Flash and PSRAM, all in the same tiny package size as the original TinyPICO! It is fully compatible with the TinyPICO footprint and all TinyPICO shields and add-on boards.

Features & Specifications

Dual 32 bit Xtensa LX7 cores @ up to 240 MHz
RISC-V Ultra Low Power Co-processor
2.4 GHz Wifi - 802.11 b/g/n
Bluetooth 5, BLE + Mesh
8 MB QSPI Flash
8 MB of extra QSPI PSRAM
700 mA 3.3 V LDO Regulator
Low power RGB LED
ULTRA LOW Deep Sleep Current
USB-C Connector with back-feed protection
Native USB + USB Serial JTAG
LiPo Battery Charging
JST pads on the back supports PH connector
VBAT and 5 V Sense Pins
3D High Gain Antenna or u.FL connector
17 GPIO
Only 35 x 18 mm in size
Compatible with TinyPICO & TinyS2
Board Dimensions 35 mm x 17.8 mm
Max Thickness 4.3 mm at the USB-C end

Comparisons

	TinyS3	TinyPICO USB-C	TinyC6	TinyS2
MCU	ESP32-S3FN8	ESP32-PICO-D4	ESP32-C6	ESP32-S2FN4R2
Cores	2x Xtensa LX7	2x Xtensa LX6	HP + LP RISC-V	1x Xtensa LX7
Speed	Up to 240 MHz	Up to 240 MHz	Up to 160 MHz	Up to 240 MHz
ULP	1x RISC-V, 1x FSM	1x FSM	RISC-V 20 MHz	1x RISC-V, 1x FSM
SRAM	512 K	520K	512 K	320 K
FLASH	8 MB	4 MB	8 MB	4 MB
PSRAM	8 MB	4 MB	-	2 MB
GPIO	17	14	17	17
Native USB	CDC, OTG & USB Serial JTAG	-	CDC & Serial JTAG	CDC & OTG
USB Conn	USB-C	USB-C	USB-C	USB-C
WiFi	2.4 GHz b/g/n	2.4 GHz b/g/n	2.4 GHz WiFi 6 802.11ax	2.4 GHz b/g/n
Bluetooth	BLE 5 & Mesh	Classic & BLE 4.2	BLE 5.3 & Mesh	-
Zigbee/Thread	-	-	802.15.4	-
DAC	-	2x 8-bit	-	2x 8-bit
ADC	2x 12-bit SAR, 20 channels	1x 12-bit SAR, 18 channels	1x 12-bit SAR, 7 channels	2x 12-bit SAR, 20 channels
UARTs	3	3	2	2
ETH MAC	-	Yes	-	Yes
DMA Cont	5x TX, 5x RX	-	3x TX, 3x RX	-
SDIO	Yes	Yes	SLAVE 2.0	Yes
Release Date	Feb 2022	May 2019	Nov 2023	July 2021

Tiny comparisons

Documentation

Tiny S3 Info Page
Getting Started Guide
ESP32-S3 Datasheet
Schematic, reference card, and more in the Unexpected Maker ESP32-S3 GitHub Repo


Manufacturer	Unexpected Maker
Introduced	Feb 01, 2022
Lifecycle Status	Active
