BLYST Nano

by I-SYST inc.

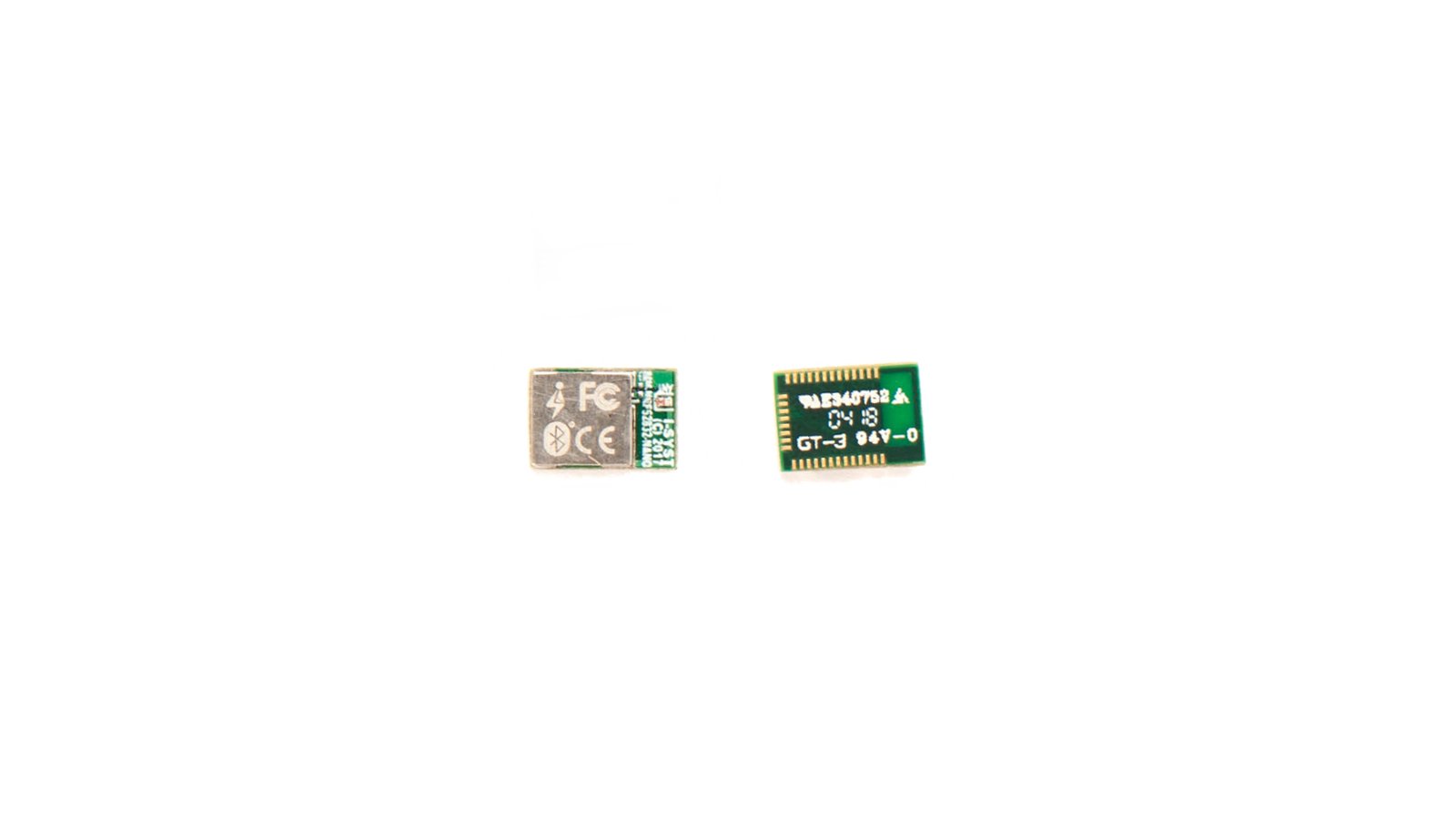

The finger-tip sized ARM Cortex-M4F module with BT 5, BT Mesh, and 30 I/O

Crowdfunding Page History

This page is an archive of the original crowdfunding campaign for this project. It may not be up-to-date with the latest updates and product availability. Return to the current project page.

$5,515 raised

of $1,000 goal

551% Funded! Order Below

Pledge Now

$17

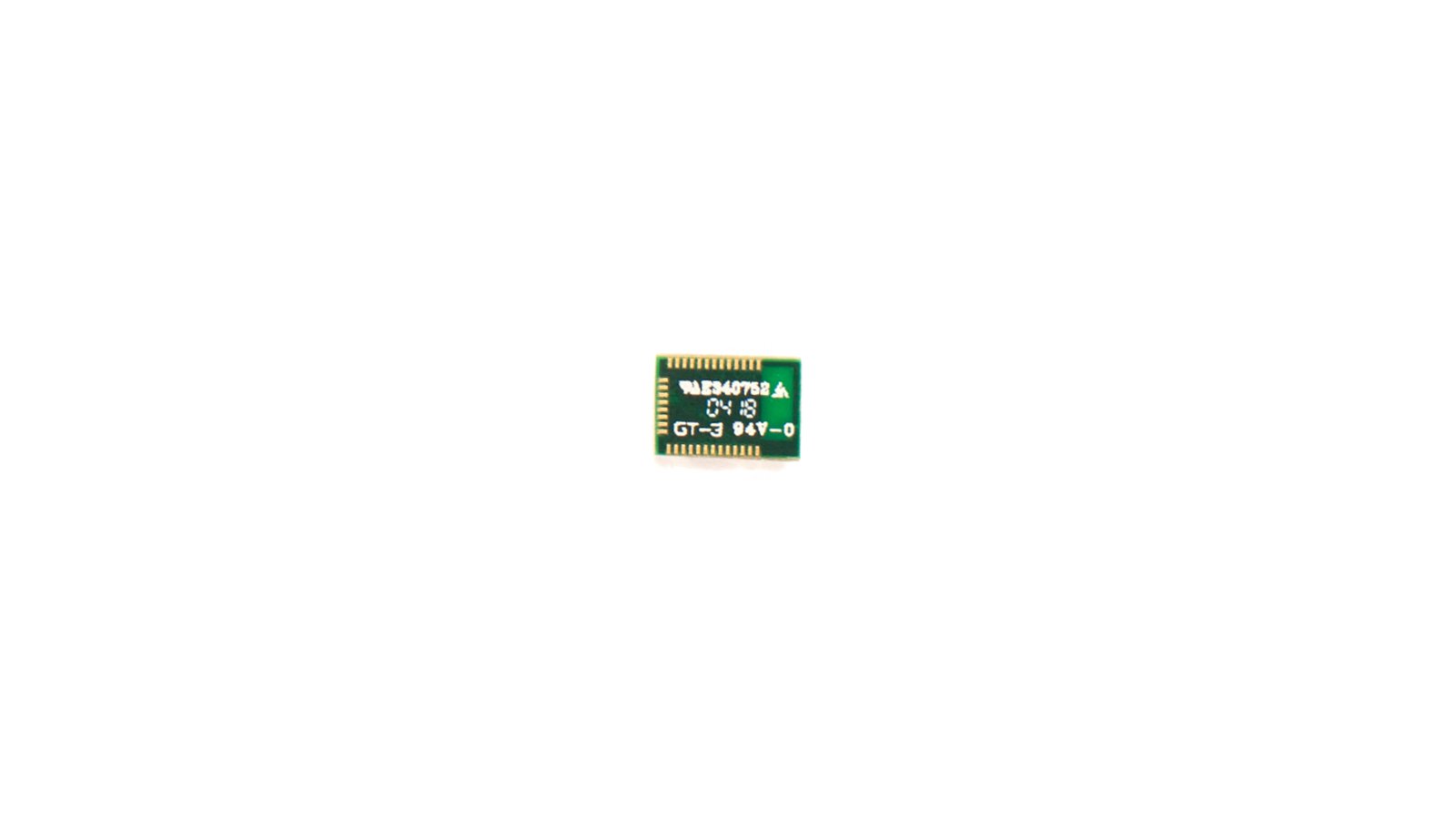

BLYST Nano

One BLYST Nano module.


$30

BLYST Nano x 2

Two BLYST Nano modules.


$68

BLYST Nano x 5

Five BLYST Nano modules.


$134

BLYST Nano x 10

Ten BLYST Nano modules.


$1,300

BLYST Nano 100 Pack

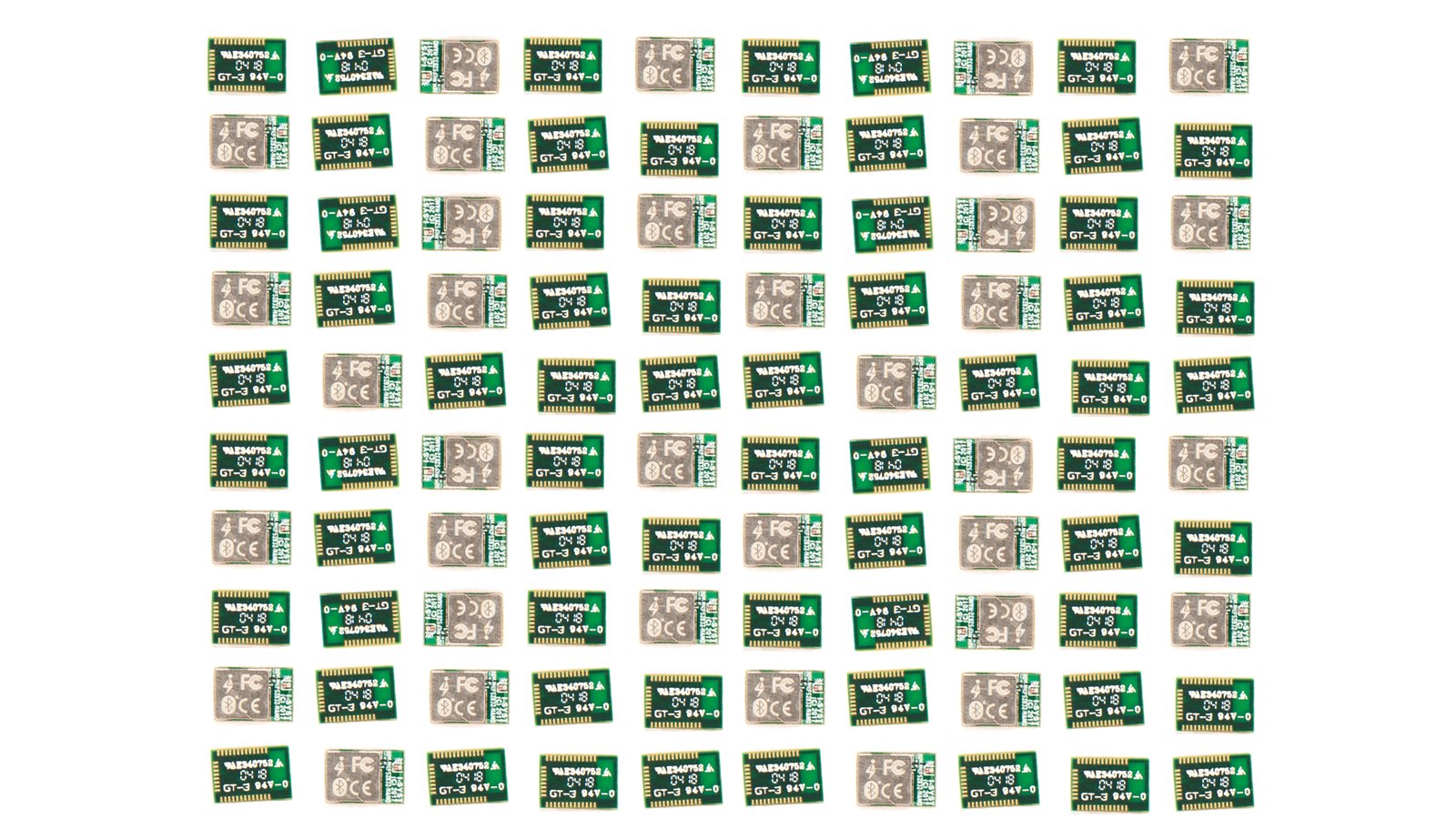

A pack of 100 BLYST Nano modules in cut tape.


$168

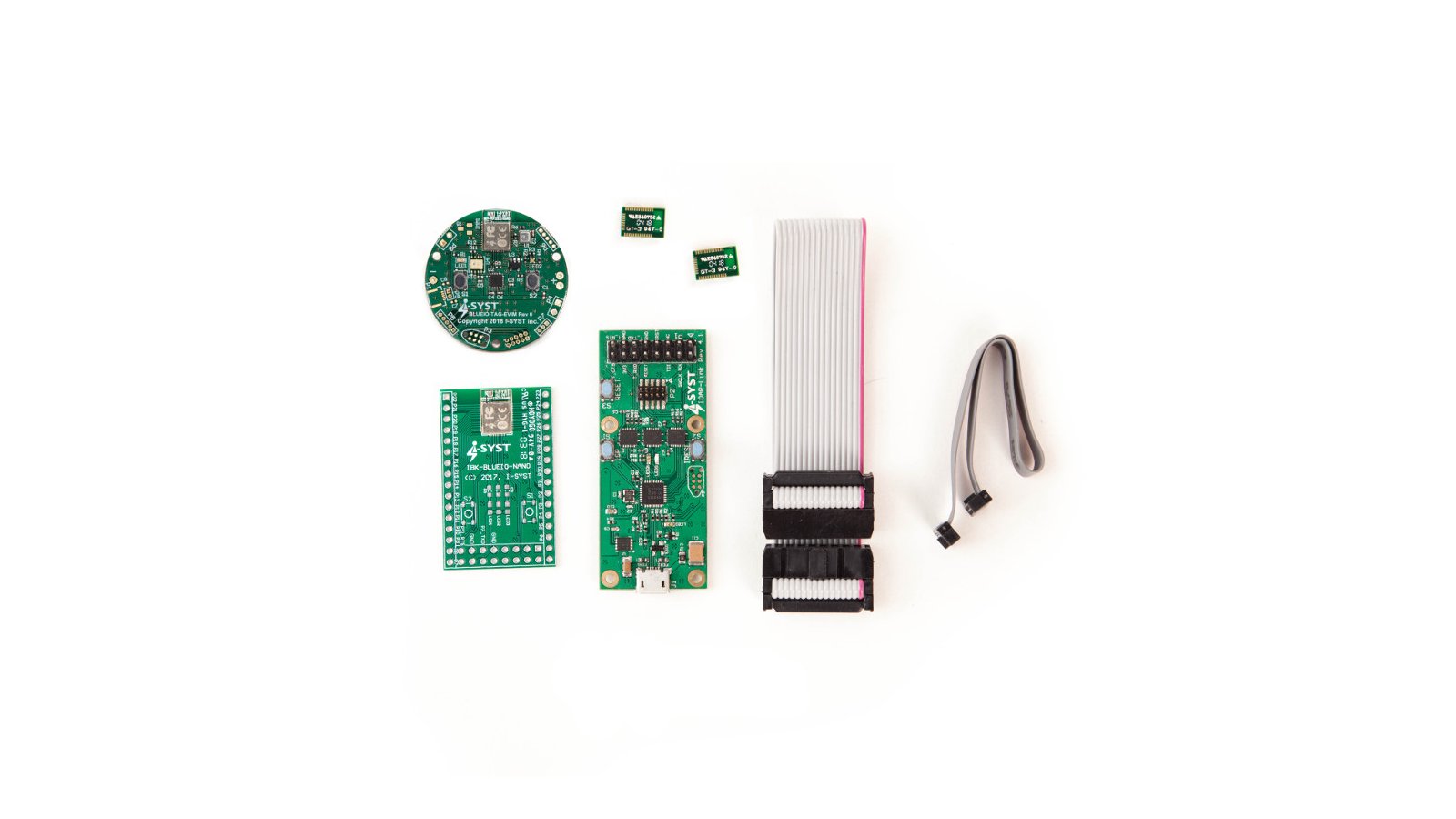

BLYST Nano Exploration Kit

Two BLYST Nano modules, one DIP32 Breakout Board (assembled with BLYST Module), one Sensor Board (assembled with BLYST Module), and an IDAP-Link CMSIS-DAP Debug JTAG. This is the perfect starter kit.


$26

BLYST Nano Breakout

One fully assembled DIP32 Breakout Board with BLYST Nano module.


$65

BLYST Nano Sensor

One fully assembled Sensor Board with BLYST Nano module.


$55

IDAP-Link CMSIS-DAP Debug JTAG

This a CMSIS-DAP Debug JTAG board for programming and debugging any ARM Cortex-M series supported the the IDE. Compatible with most IDE such as Keil, CrossWorks, Eclipse (requires OpenOCD), Arduino (require OpenOCD), etc ... It can used for production parallel programming of any Nordic nRF5 series SoC.

Details

Recent Updates


As Featured In

Hackster.io

"30 configurabe I/O pins, woah! ...On this teeny, tiny, little thing!"

Hackster.io

"The BLYST Nano packs a surprising amount of hardware into the 10 x 7 x 1.6mm module... [which] can be integrated into a myriad of projects, including wearables, remote sensing, building/home automation, and a host of others."

comunicacionesinalambricashoy

"Configurable también para otros protocolos como ANT o propietario, este SoM Bluetooth para la IoT ofrece un dispositivo completamente integrado que no requiere de ningún otro componente en la placa, ahorrando así espacio y costes en los desarrollos."

The arrival of Bluetooth 5 was a significant leap forward for the IoT developer community, especially with its new Bluetooth Mesh functionality, which connects more devices and more sensors. Nearly four billion devices are expected to be shipped with Bluetooth technology in 2018. Bluetooth is driving innovation and creating new markets for wireless audio, wearables, tracking assets, building automation, lighting, sensor farms, etc…

With a design based on the Nordic nRF52832 SoC, combining a low power 64 MHz ARM Cortex-M4F and the 2.4 GHz radio in a single chip, the BLYST Nano SoM (System on Module) is the perfect way to catch this new Bluetooth IoT wave driven by both Bluetooth 5 and Bluetooth Mesh.

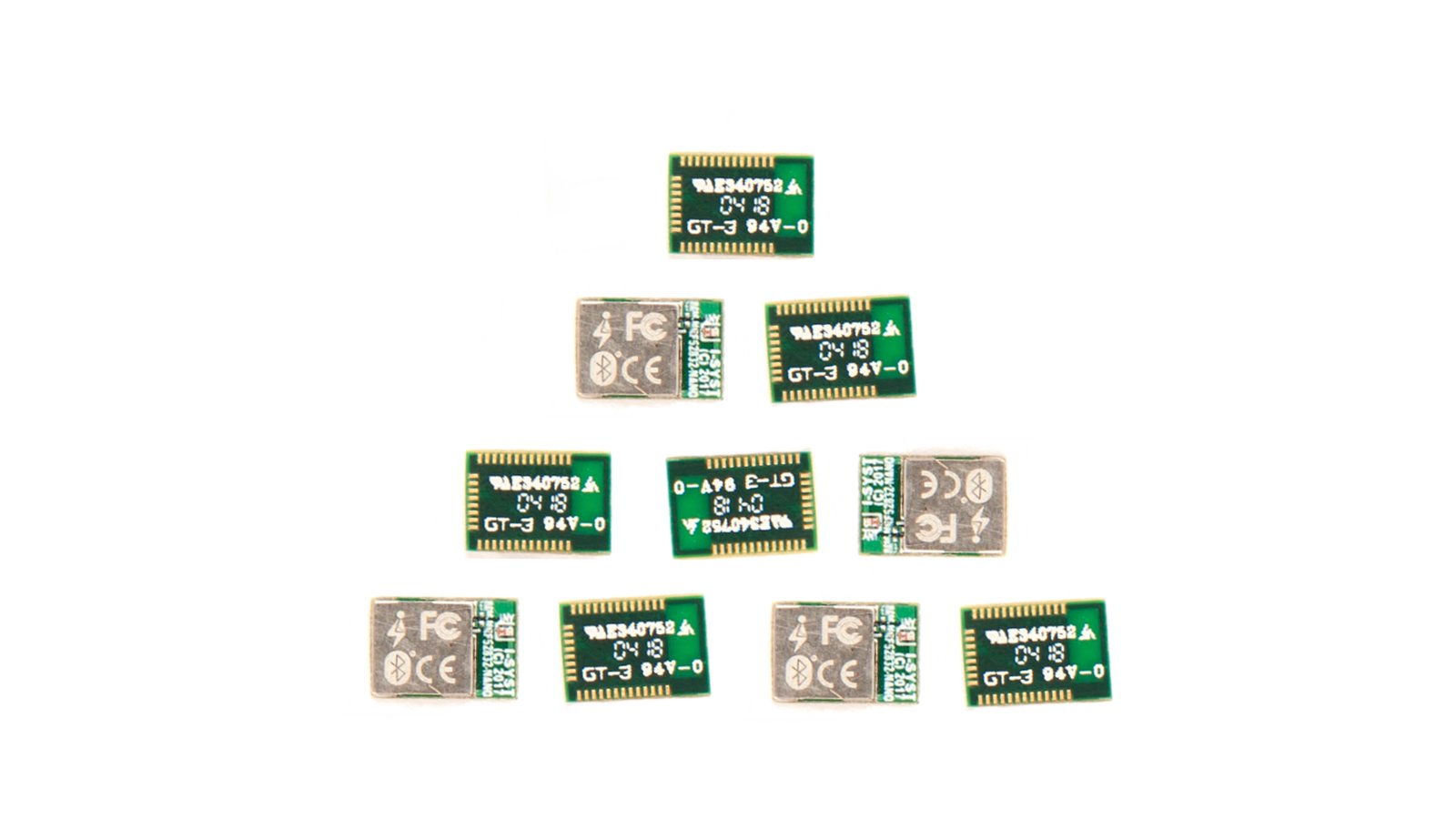

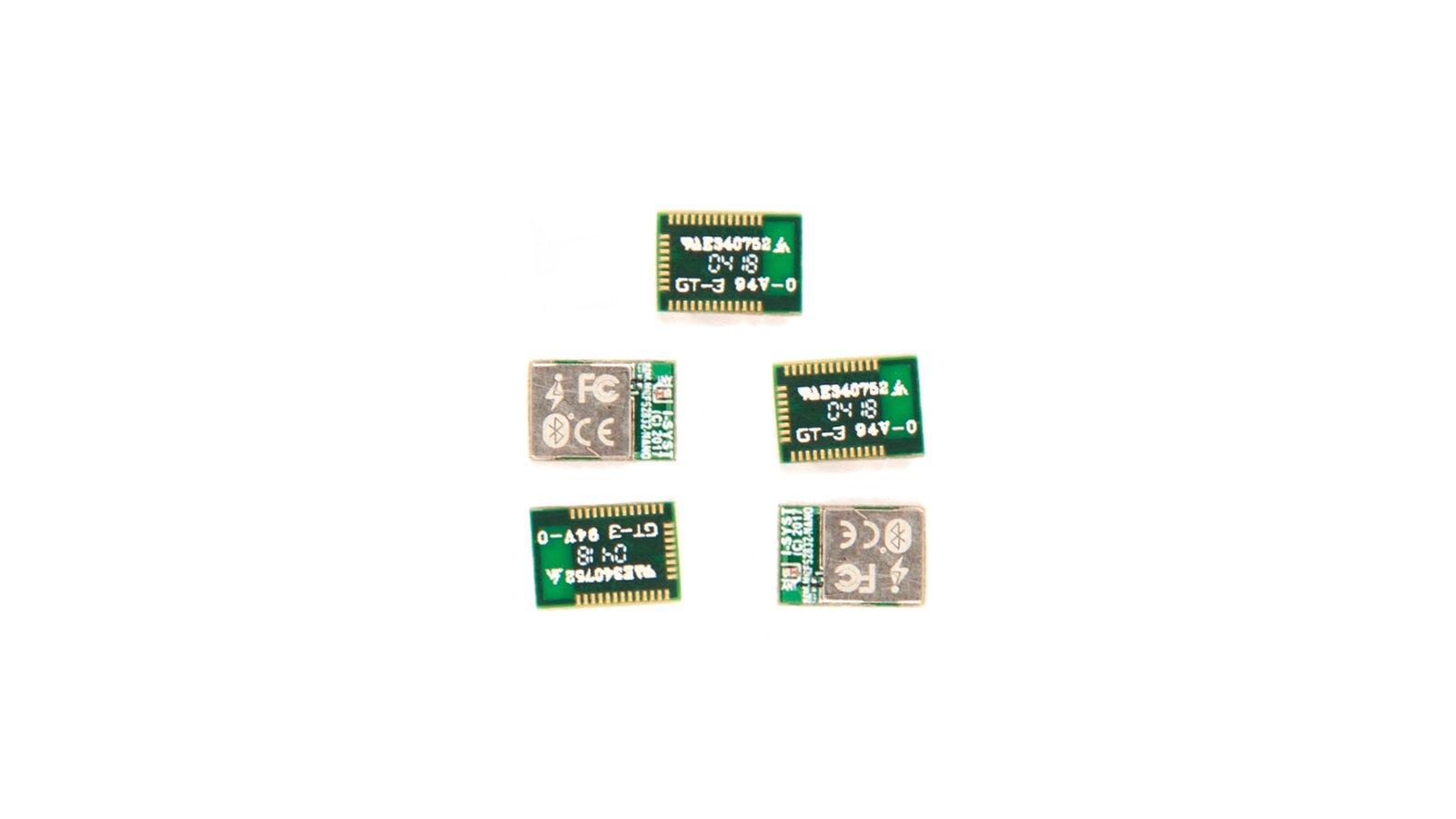

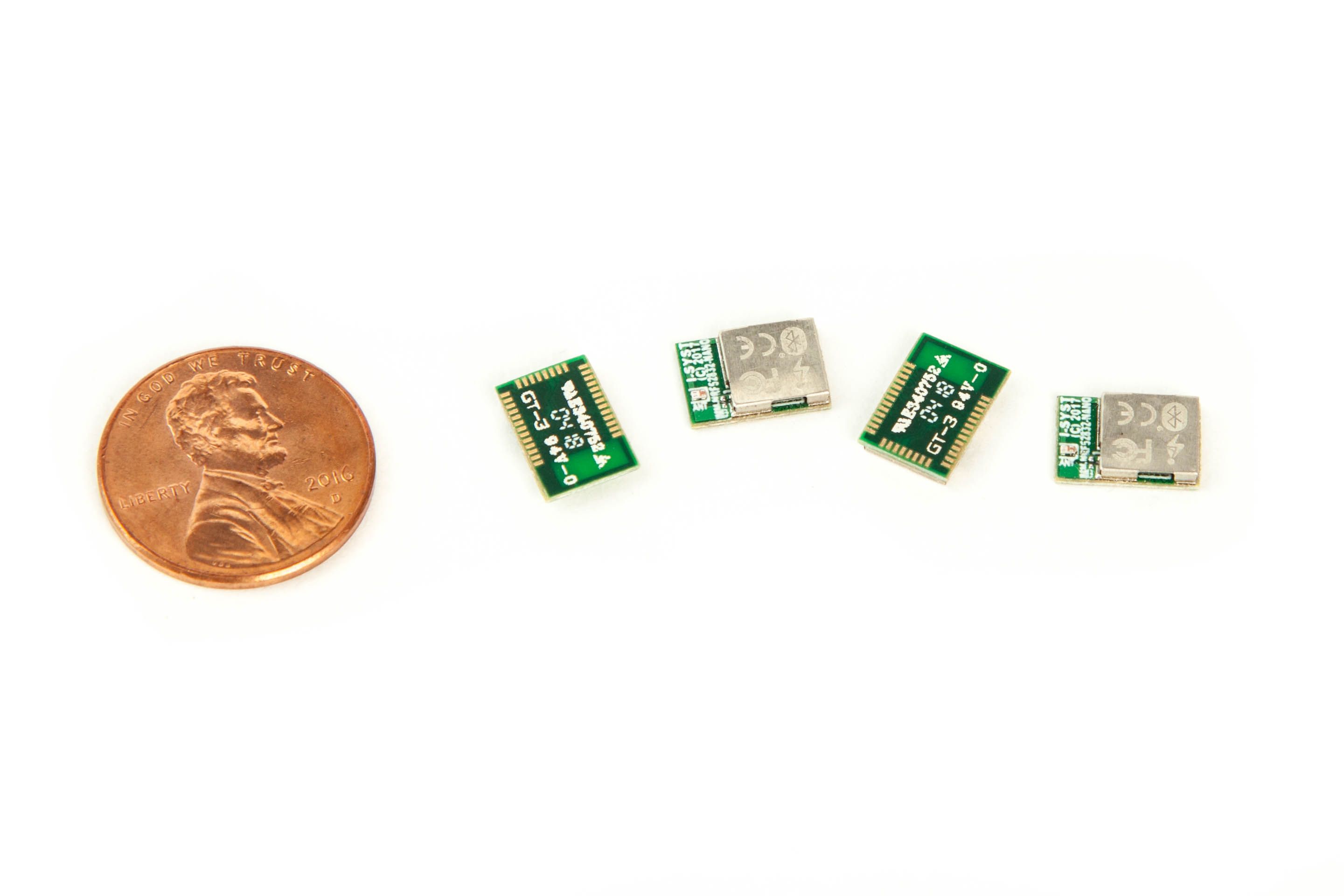

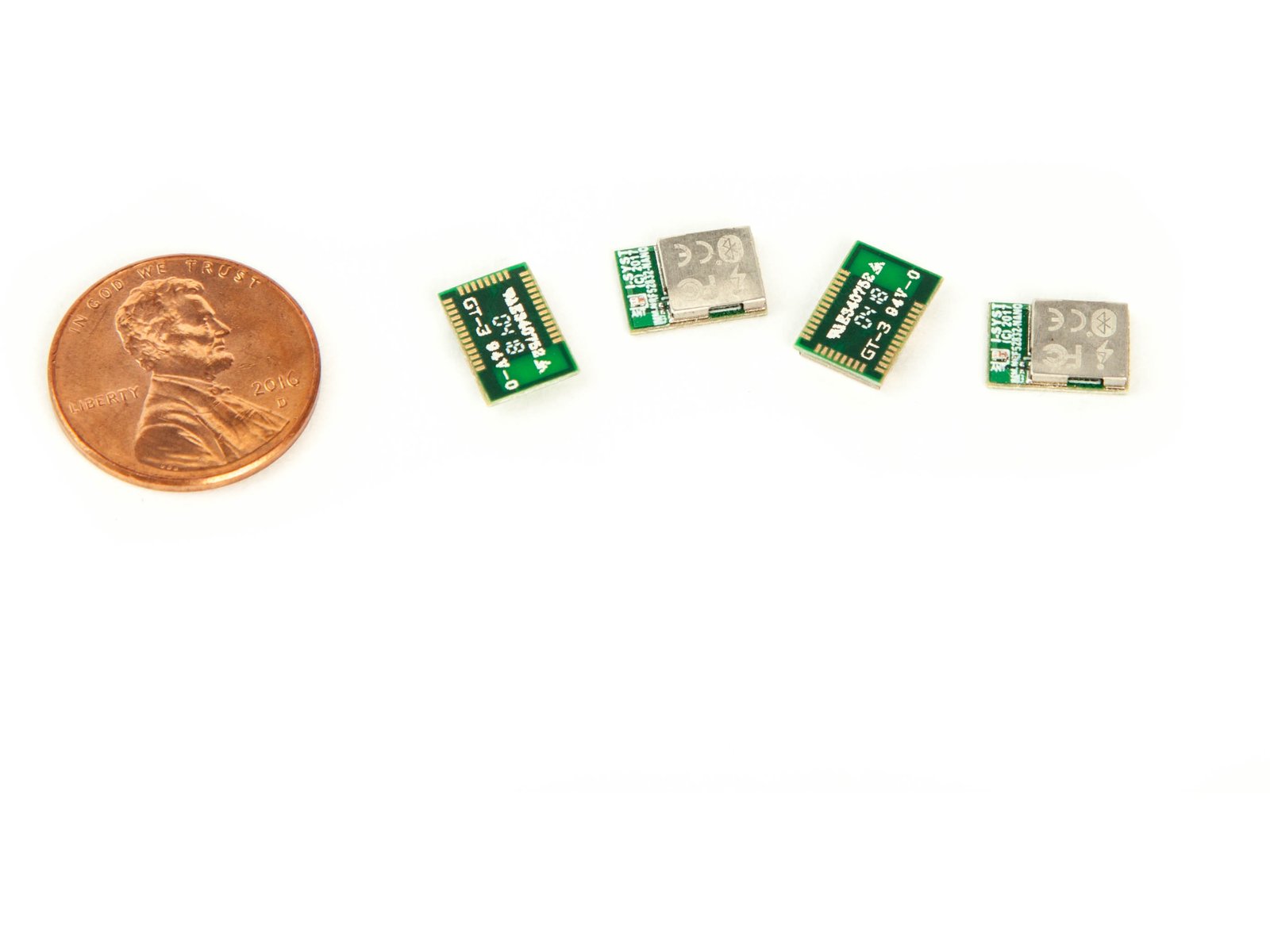

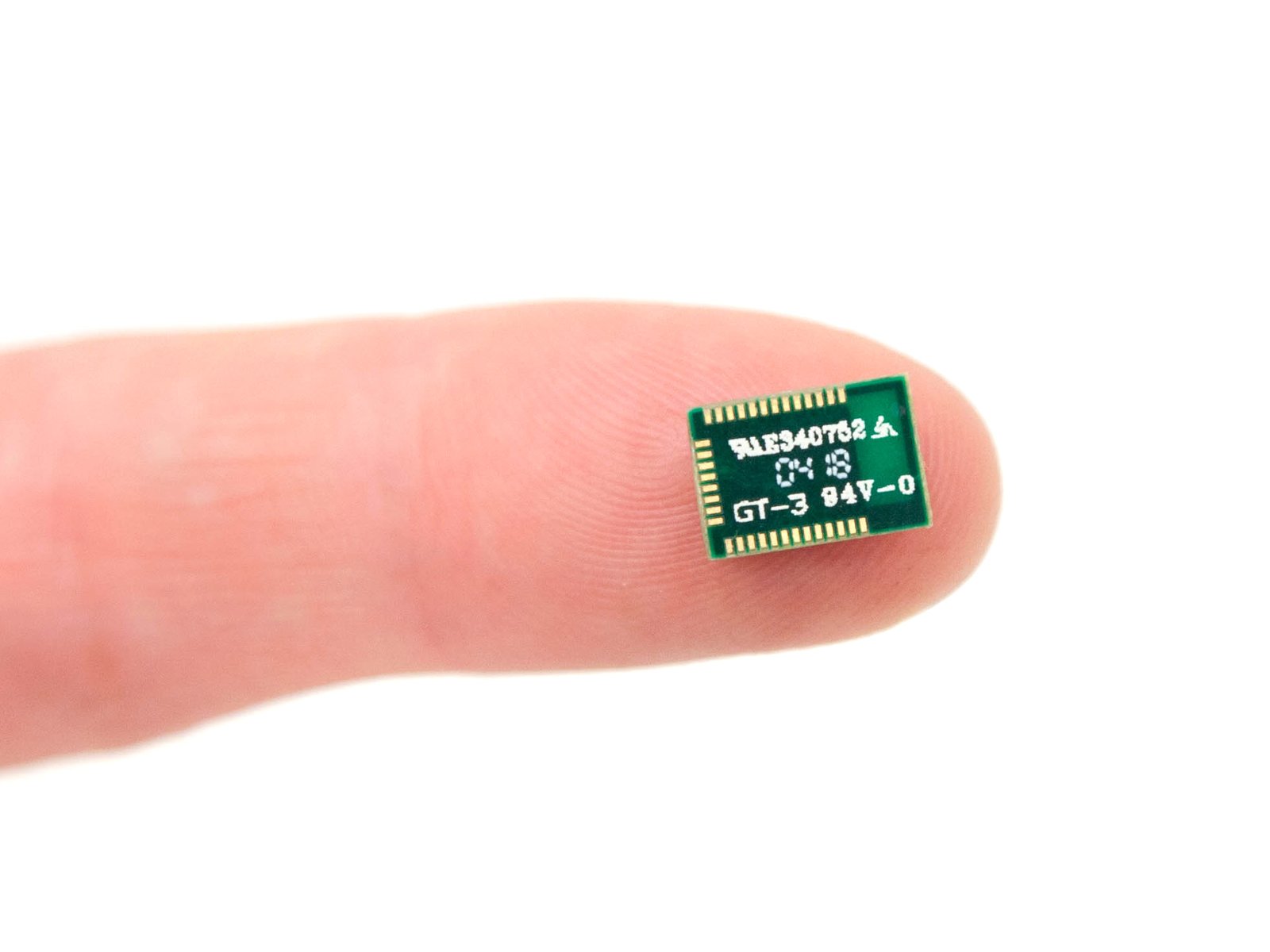

  • The BLYST Nano is low power and small enough, at 10 x 7 x 1.6 mm, for wearable and sensor applications.
  • With 30 programmable I/O pins, it’s versatile enough to fit any control and automation application.
  • With a hardware floating point unit, algorithms can be directly implemented on the device, allowing more realtime sensor fusion processing.
  • It is a complete System on Module with all required components (crystals, coils, DC/DC, etc.) built-in and ready to use. So you don’t need to take up more board space with add-on components needed to support a given module.

BLYST Nano Module Features

  • Built-in ceramic antenna
  • Built-in coils for low power DC/DC mode
  • Built-in 32 MHz & 32.768 MHz crystal for low power
  • Dimensions: 10 x 7 x 1.6 mm
  • No extra PCB spaces or any external components required on users’ application board
  • All I/O pins of the nRF52832 are exposed to pads around the edges of the module to take full advantage of the nRF52832 and for easy assembly without compromise
  • FCC & CE certified

nRF52832 Features

  • Single chip, highly flexible, 2.4 GHz multi-protocol SoC
  • 32-bit ARM Cortex-M4F Processor
  • 1.7 V to 3.6 V operation
  • 512 kB flash + 64 kB RAM
  • Supports concurrent Bluetooth low energy/ANT protocol operation
  • On-chip NFC tag for Out-of-Band (OOB) pairing
  • Up to +4 dBm output power
  • -96 dBm sensitivity, Bluetooth Low Energy (BLE)
  • Thread safe and run-time protected
  • Event driven API
  • On air compatible with nRF24L and nRF24AP series
  • 2 data rates (2 Mbps/1 Mbps)
  • PPI - maximum flexibility for power-efficient applications and code simplification
  • Automated power management system with automatic power management of each peripheral
  • Configurable I/O mapping for analog and digital I/O
  • 3 x Master/Slave SPI
  • 2 x Two-wire interface (I²C)
  • UART (RTS/CTS)
  • 3 x PWM
  • AES HW encryption
  • 12-bit ADC
  • Real Time Counter (RTC)
  • Digital microphone interface (PDM)

Processing Power

The nRF52832 incorporates a powerful Cortex-M4F processor enabling the most demanding applications with complex arithmetic requirements to be realized in a single chip solution. The IC supports DSP instructions, a Floating Point Unit (FPU), single-cycle multiply and accumulate, and hardware divide for energy-efficient processing of computationally complex operations.

Multiprotocol Radio

The 2.4 GHz radio supports multiple protocols including Bluetooth Low Energy, ANT, and 2.4 GHz proprietary. The radio has high definition RSSI (Received Signal Strength Indication) and highly automated functionality, including EasyDMA for direct memory access during packet send and retrieve. Nordic provides protocol stacks for Bluetooth Low Energy. ANT protocol stacks are available directly from ANT.

Power Efficiency

The nRF52832 SoC is an extremely power efficient device that can run from a supply that provides 1.7 V to 3.6 V. All individual peripherals and clocks can flexibly power down when not required for task operation, thus minimizing power consumption. The IC has a comprehensive system of automated and adaptive power management features. These features range across the entire IC’s operation, from power supply switching to peripheral bus/EasyDMA memory management, to automated shut down of all but the absolute essential peripherals required to perform a task.

On-chip NFC Tag

NFC™-A tag support is included on-chip. Out-of-Band (OOB) pairing using NFC simplifies the process of authenticated pairing between two Bluetooth devices by exchanging authentication information over an NFC link.

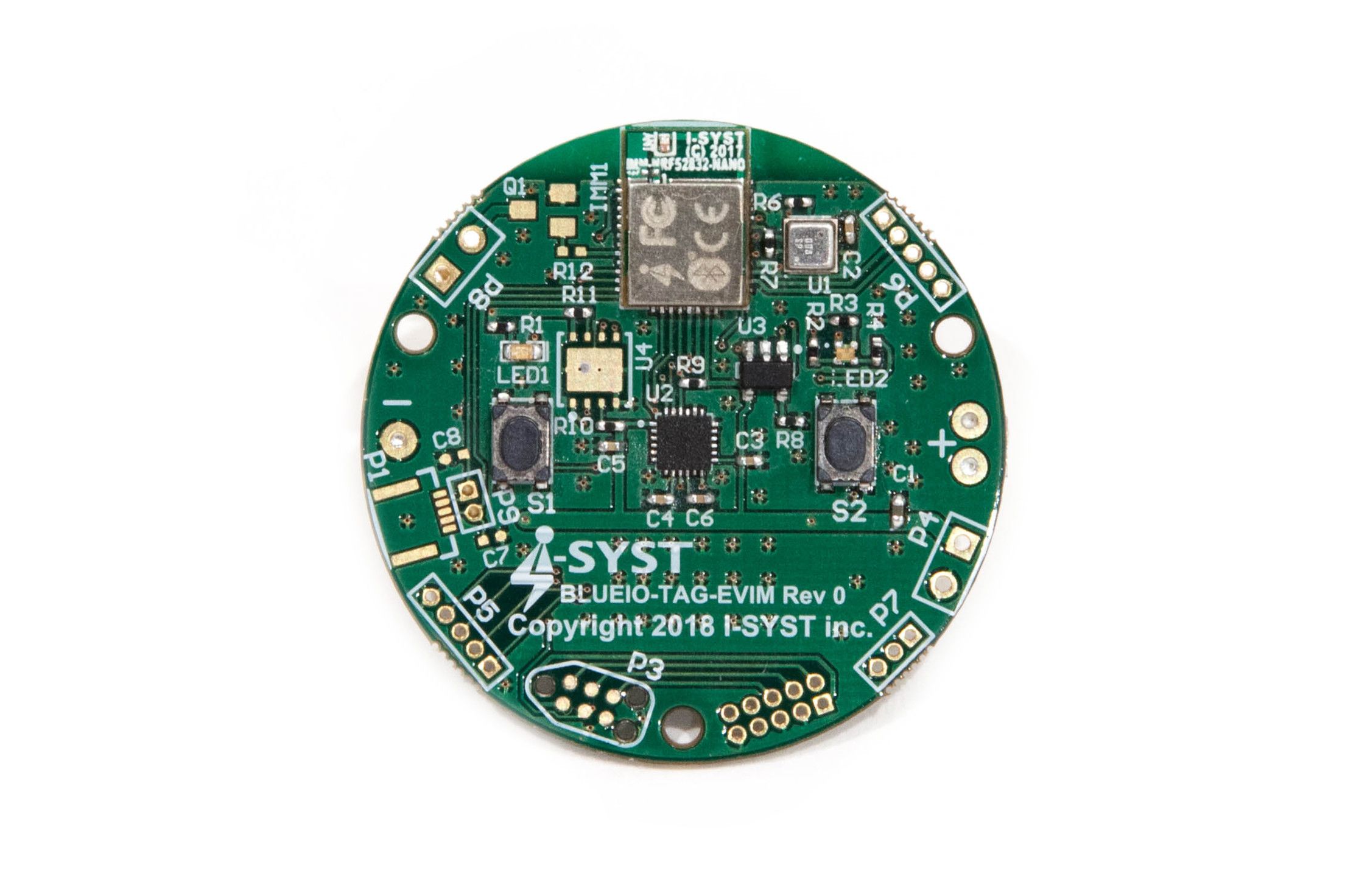

Sensor Board

The Sensor Board pledge level

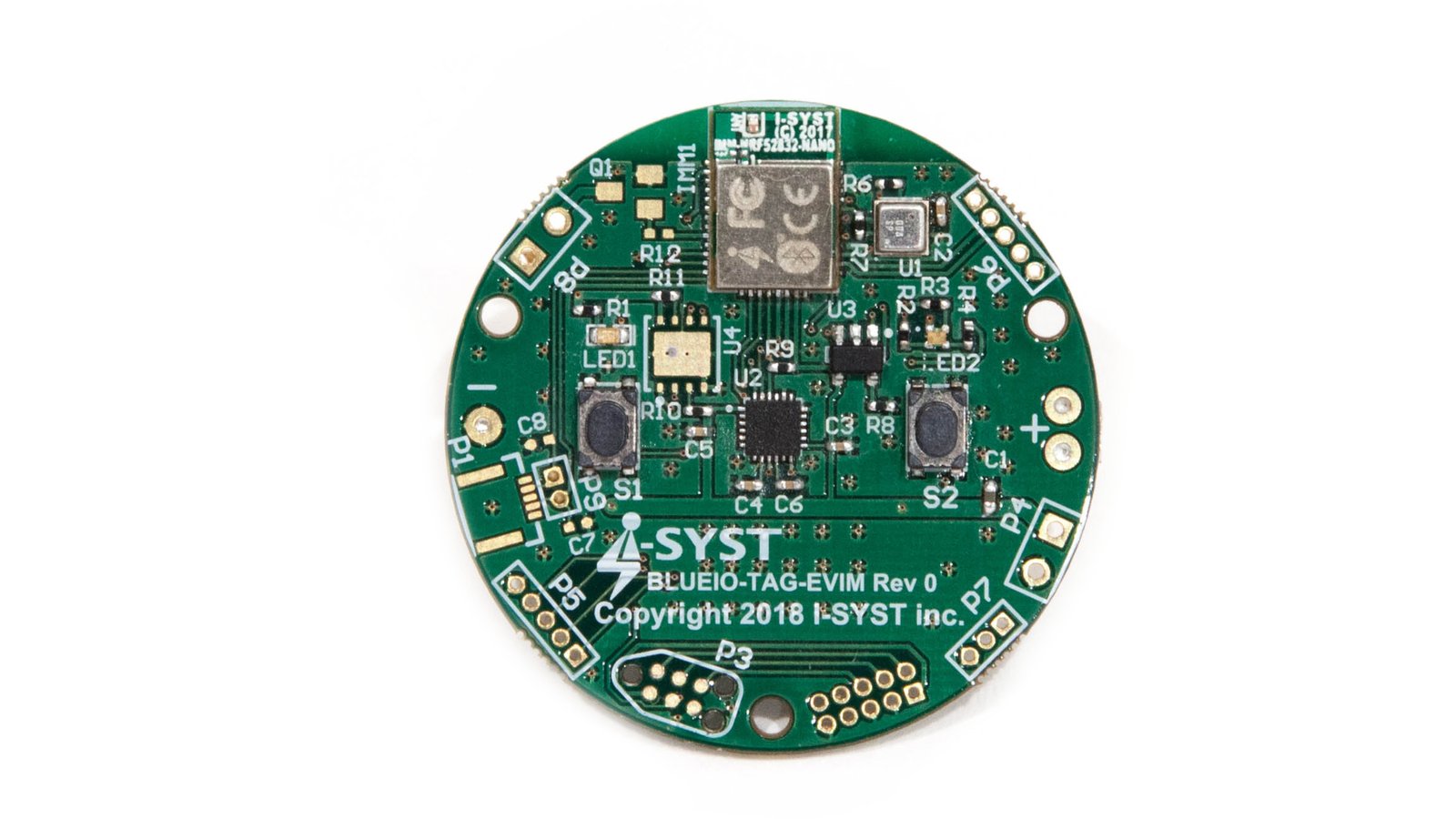

The Sensor Board is a 34 mm diameter round board pre-assembled with a BLYST Nano module. It has a suite of sensors on-board including: temperature, humidity, pressure, air quality, and motion sensing. And it has all the components you’d need to run a stand-alone sensor node with data logging.

Features

  • BLYST Nano comes assembled on the board
  • Bosch BME680 - Temperature, Humidity, Pressure, Gas (Air Quality index)
  • ICM-20948 - 9 axis IMU (Inertial Measurement Unit) for acceleration, gyroscope, and compass sensors with on-chip digital motion processor to offload computation of motion processing algorithms
  • Breakout pins for NFC, I/O, UART, a buzzer
  • EEPROM
  • Flash memory
  • RGB LED
  • Two pushbuttons
  • Battery retainer for CR2450

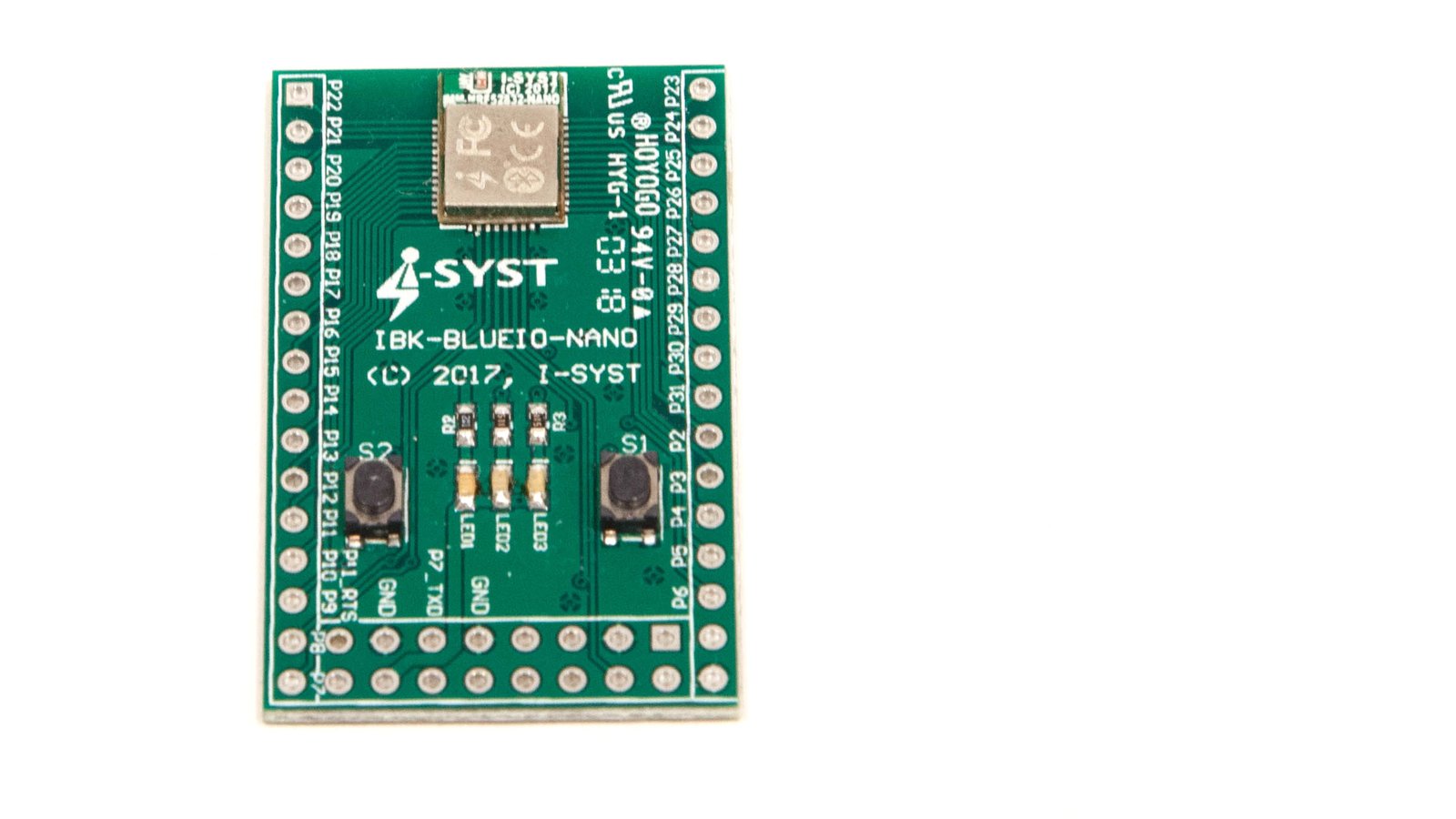

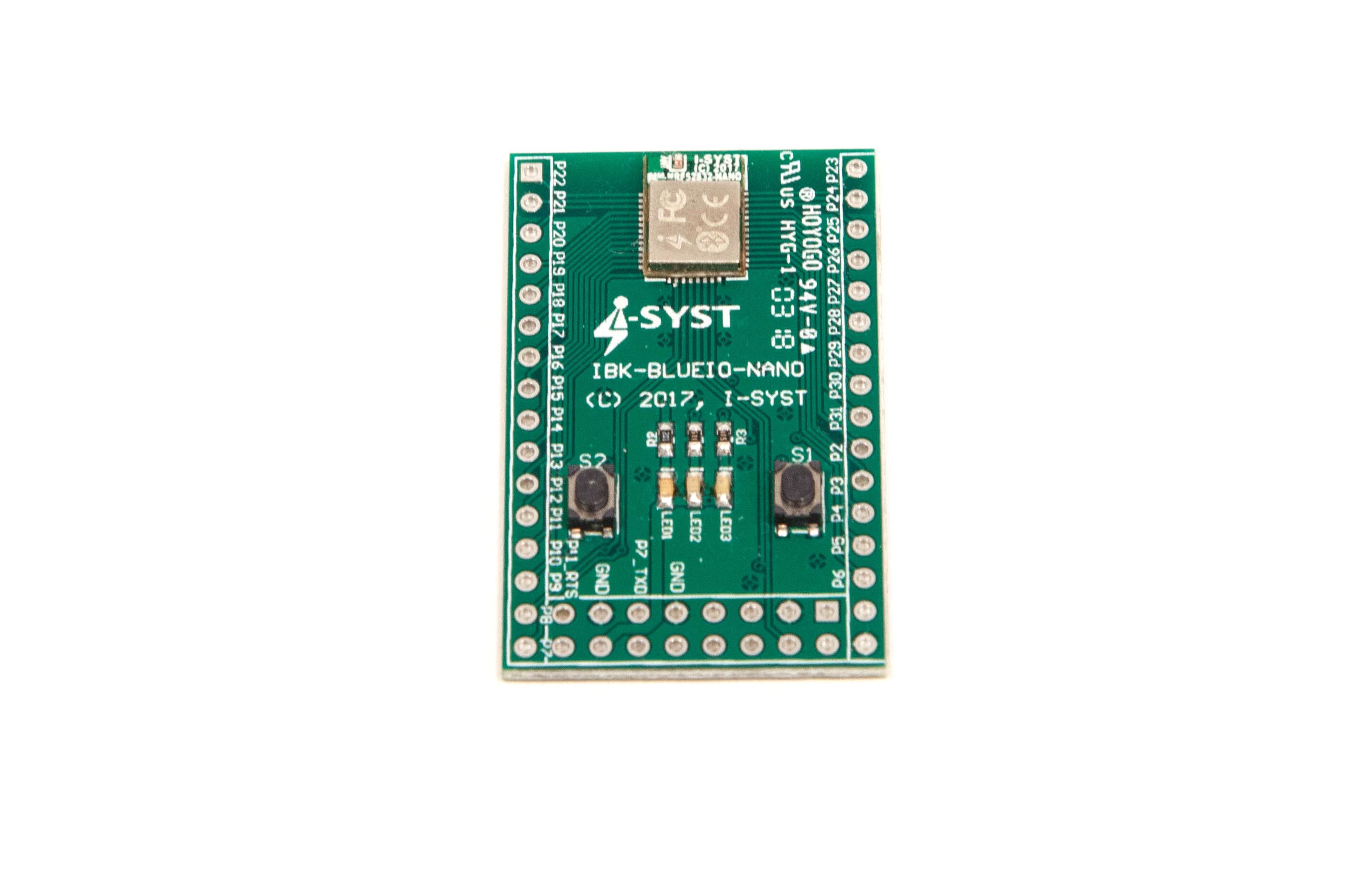

Breakout Board

The Breakout Board pledge level

The Breakout Board is designed to make it easy for you to build prototypes by breaking out all 30 I/O pins and adding some LED indicators and easy pushbuttons.

  • BLYST Nano comes assembled to the board
  • Two user-defined pushbuttons
  • Three user-defined LEDs
  • Pads for a coin-cell battery holder (not included) - using ML-621S batteries
  • Standard 2.54 mm (.100 inch) holes for headers (not included)

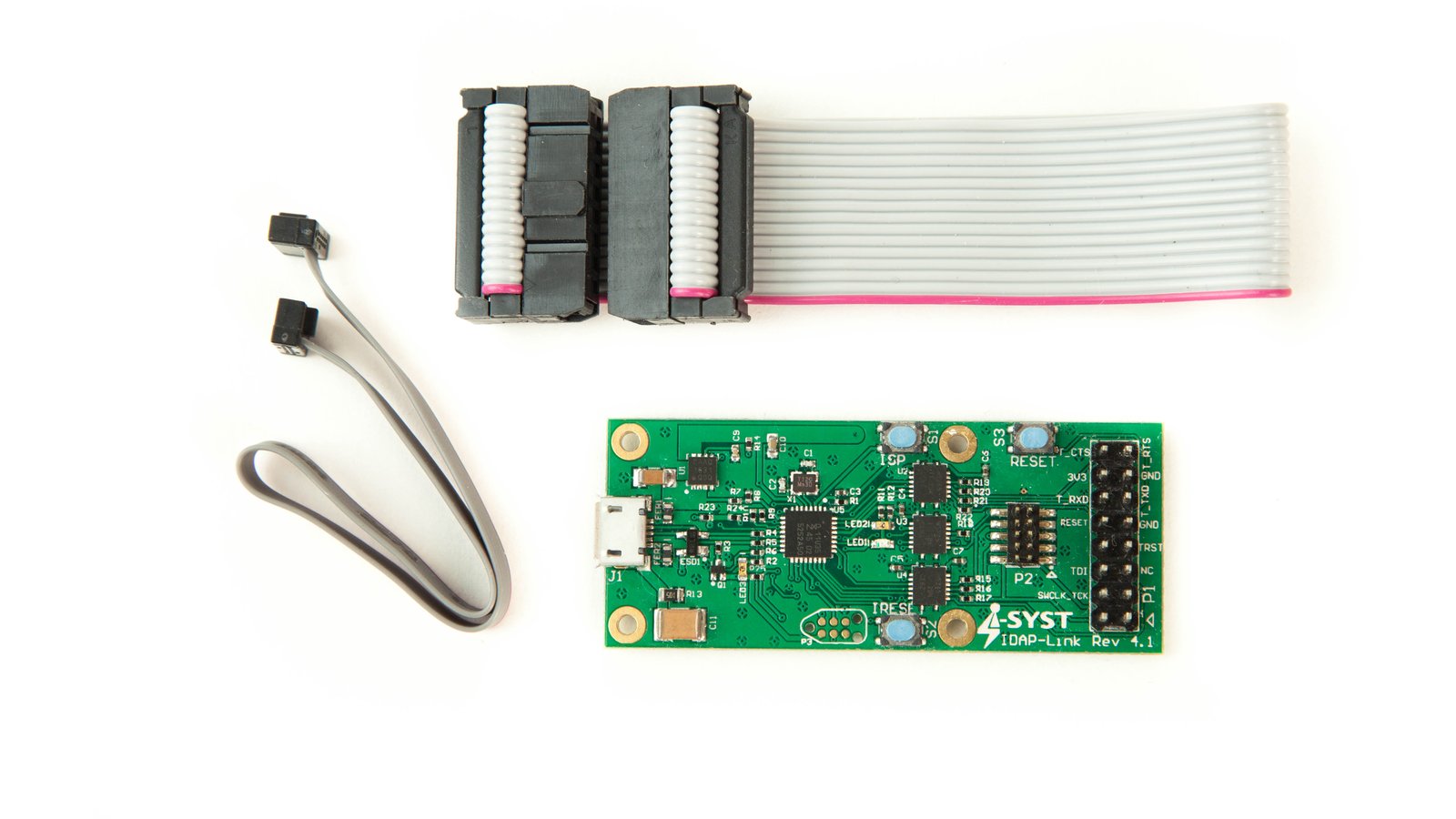

The IDAP-LinkTM is a low cost CMSIS-DAP JTAG debug probe with enhanced features. It does a lot more than just debugging. The unit appears as a USB disk drive on the host computer. This allows firmware flashing easily by copying the firmware file over without requiring any special flashing software and will work instantly with Windows, Linux & OSX operating systems. It provides a UART to USB bridge for communication between the target device and the PC. It also provides regulated 3.3 V power to directly power the target device over USB without an additional power source.

Features

  • Supports both SWD & JTAG mode
  • Debug compatibility with most IDEs such as Keil, CrossWorks, Eclipse, etc..
  • Onboard 3.3 V regulator to power the target device
  • UART to USB bridge for communication between target and PC up to three MBaud
  • Firmware flashing by simple drag & drop file copy
  • microSD slot for flash programming without a PC
Flashing software for Nordic nRF5x series
  • Parallel flashing software for gang programming
  • Full support readback protection
  • Flashing Softdevice + App + DFU without requiring mergehex

Download IDAP-Link software & documentation

BLYST Nano Software Development Resources

How BLYST Nano Compares

Model BLYST Nano Taiyo Yuden EYSHCNZWZ Raytec MDBT42 Murata MBN52832 InsightSIP ISP1507 Rigado BMD-350 Fanstel BC832
Dimensions (mm) 10 x 7 x 1.6 12.9 x 9.6 x 2.0 13.8 x 8.8 x 1.9 7.4 x 7 x 1.0 8 x 8 x 1.0 8.7 x 6.4 x 1.5 7.8 x 8.8 x 1.3
Antenna Yes Yes Yes Requires external components Yes Yes Yes
Requires extra PCB space for supporting components No No For crystal & DC/DC For crystal & antenna 18 mm min antenna keep out For crystal For crystal & DC/DC
Builtin low power DC/DC Yes Yes No No Yes Yes No
Builtin low power crystal Yes Yes No No Yes No No
I/O 30 30 30 18 30 30 30
Hand-assembly prototyping Easy pads - edge only Difficult bottom pads Intermediate bottom pads Difficult bottom pads Very difficult LGA pads Difficult bottom pads Very difficult LGA pads
