RoomSense IQ allows smart-home enthusiasts to automate household infrastructure based on their physical presence. It makes your heating, cooling, ventilation, lighting, entertainment, air-filtration, home-security, and emergency-alert technology—among other essential services—smarter, easier to manage, and more efficient. Create a truly harmonious living environment that knows where you are, and has a pretty good idea what you’re up to, but does not share that information with a third party unless you tell it to. You remain in control without having to manage so many…controls.

If indoor air-quality monitoring isn’t on your list of priorities for home-automation, it probably should be. Poor air quality can lead to respiratory issues such as asthma and allergies, and carbon-monoxide buildup can be life threatening. Our ClimateSense modules integrate seamlessly with RoomSense IQ to monitor indoor-climate conditions like temperature, humidity, CO₂ levels, smoke, and other such indicators. ClimateSense provides actionable insights to help you keep your living and working spaces healthy, comfortable, and productive.

Smart Presence Detection Thanks to mmWave Radar & PIR sensors

RoomSense IQ is built around the the powerful ESP32-S3 SoC, which supports Wi-Fi connectivity and enables seamless integration with existing IoT networks and other systems that facilitate realtime data transmission and remote monitoring. It utilizes mmWave radar to detect presence and movement, within a 120° arc, at ranges of up to six meters. To ensure precise detection and reduce false positives, RoomSense IQ is also equipped with a passive infrared (PIR) sensor that filters out non-human activities such as spinning fans and wind-blown curtains.

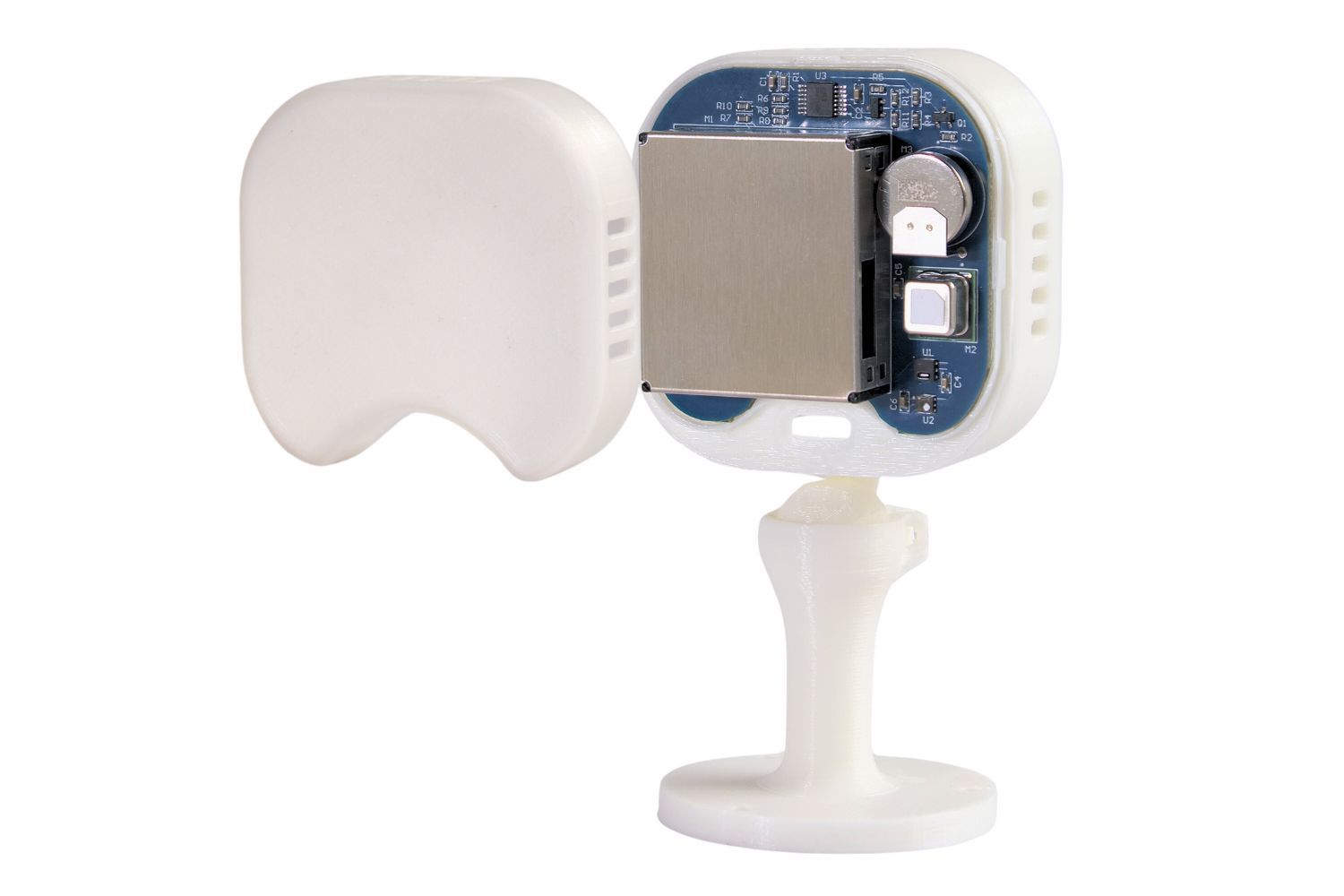

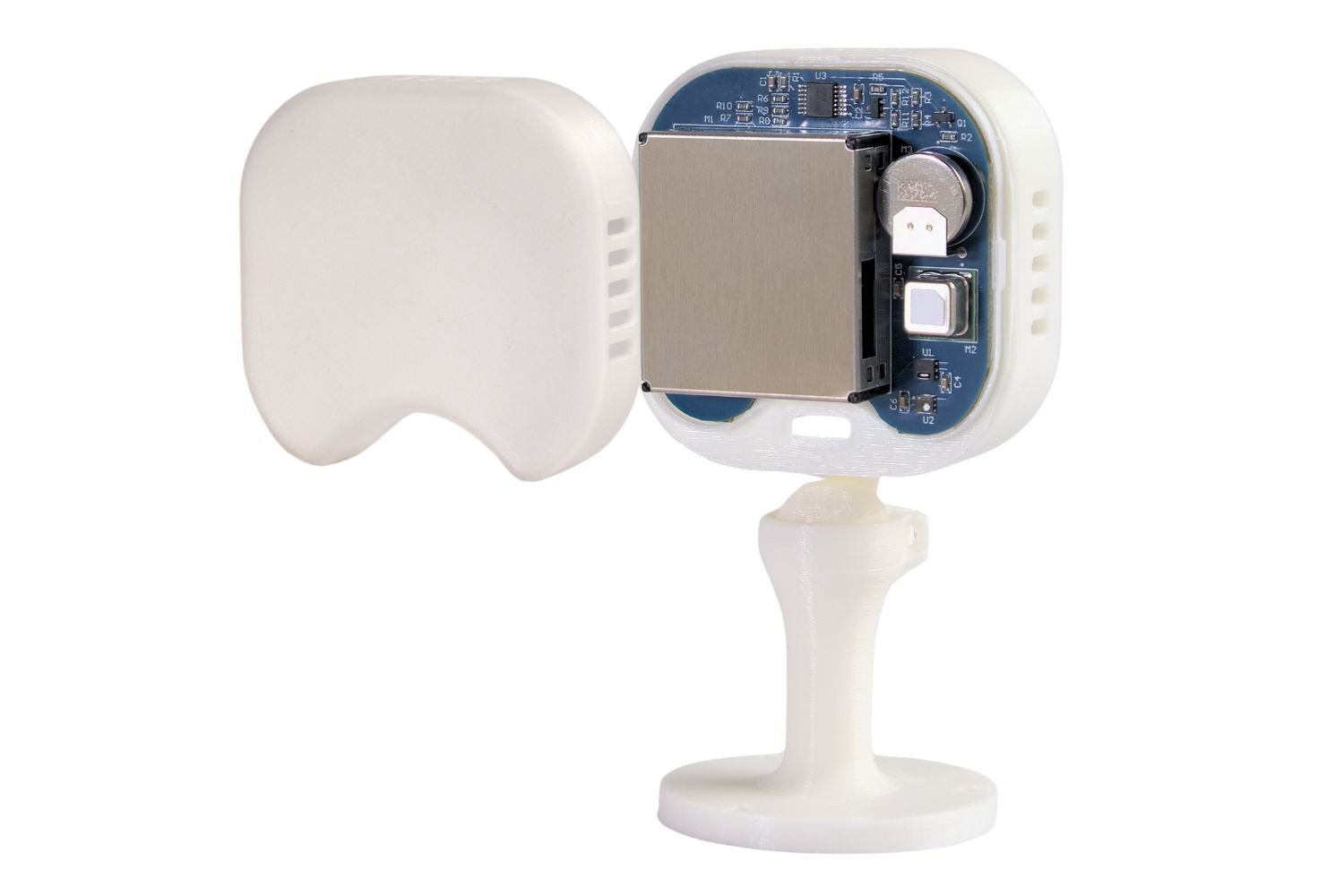

By accurately measuring ambient illumination, the built-in light sensor can automatically adjust lighting conditions to optimize energy consumption and create a more comfortable environment. A multi-purpose RGB LED conveys at-a-glance status information, and a USB Type-C interface draws power and handles serial communication. Finally, our ball-mount enclosure allows you to orient the sensors in any direction. Maximize coverage by positioning RoomSense IQ in a corner of the room it’s monitoring or accommodate unique deployment with custom placement.

Don’t Compromise on Your Family’s Well Being

We designed ClimateSense to help you maintain optimal indoor climate conditions. These hardware expansion modules provide unprecedented insights into your environment by monitoring temperature, humidity, dew point, and crucial contaminants such as airborne chemicals (TVOC), carbon dioxide (CO₂), carbon monoxide (CO), dust, and smoke. This level of comprehensive monitoring allows for the intelligent control of purification, humidification, and ventilation systems, which can reduce your energy consumption while enhancing the comfort and safety of your family members, coworkers, or tenants.

Every room in your home has unique climate and safety requirements, which can be challenging for those of us trying to minimize indoor air pollution. To meet this challenge, we tailored our line of ClimateSense modules to address the specific requirements of each room.

Note: After the end of our crowdfunding campaign, only RoomSense IQ and the ClimateSense Pro module will be available for purchase.

Introducing SightSense, our Web-Based Dashboard

SightSense is a web application that adds a whole new layer to this powerful ecosystem by giving you an intuitive interface through which to manage the various RoomSense IQ sensors. Unlike some other platforms that tend to be too complex or too limited (or both), SightSense is equipped with basic, easy-to-use settings and advanced configuration options. Examples include CalSense for baseline calibration, MoveSense for movement classification, ProxiSense for proximity-based automation, and BedSense for sleep optimization. All together, these features give you exceptional control over the spaces you inhabit.

Invite RoomSense IQ into Your Existing Smart-Home Ecosystem

If you’re using Home Assistant’s open-source dashboard as a central control hub for your smart home, rest assured that RoomSense IQ is fully compatible with the MQTT auto-discovery protocol. Home Assistant integration allows for flexibility, customization, and support for a wide range of devices. RoomSense IQ also plays well with Amazon Alexa, Apple’s HomeKit, and Google Home through IFTTT. You can find more integration examples on our website.

Key Features

• Web-based dashboard interface for baseline calibration and movement classification
• Home Assistant integration via MQTT over Wi-Fi
• Compatible with Amazon Alexa, Apple HomeKit, and Google Home through IFTTT
• Distance-based zone detection & blacklisting
• Movement classifier with a refresh rate of 25 Hz
• Baseline calibration for false-alarm management
• Pet-friendly calibration
• Realtime and trend values
• Support for over-the-air (OTA) firmware updates
• Configurable IP addresses and MQTT port

Technical Specifications

• ESP32-S3 SoC with Wi-Fi connectivity
• Multi-purpose RGB LED
• USB Type-C for power and serial communication
• Thermally isolated enclosures for optimal sensor accuracy
• A ball-mount enclosure design that allows you to orient sensors in any direction
• Power consumption: 80 mA at 5 V
• Board dimension: 5.5 x 5.5 cm (2.1 x 2.1 inches)

ClimateSense Modules

¹ Carbon dioxide
² Total Volatile Organic Compounds (TVOC)
³ Carbon Monoxide
⁴ Particulate Matter (PM1.0, PM2.5, and PM10)

Sensor Specifications

• Sampling interval: 5 minutes
• Temperature sensitivity: ± 0.3 °C / F
• Humidity sensitivity: ± 2%
• CO₂
  • Measurement range: 400 –2000 ppm
  • Accuracy: ± (50 ppm + 5% of reading)
• VOC
  • Measurement index range that can be directly used for indoor air-quality applications: 1 - 500
  • The Gas Index Algorithm adapts to the sensor's surroundings.
• Particulate matter
  • Laser scattering based optical particle counter
  • Particle size detection range: 300 nm to 10 μm
  • Range: 0~1000 μg/m³
  • Measurement error (PM2.5): ±10μg/m3 (@ 0 ~100 μg/m3), ±10% (@,100 ~200 μg/m3)

Sensor Guideline Thresholds

Sensor Components

RoomSense IQ

• LD2410 - mmWave Radar 24 GHz with the sensing distance of up to six meters with a 110° FoV
• EKMC2601111K - PIR sensor to filter out non-human activities and reduce false alarms
• Photocell - Light sensor for smart lighting control

ClimateSense PRO

• MPM10CD - Laser Particulate Matter Sensor
• SCD40-D-R2 - Photoacoustic NDIR sensor
• TGS5141 - Electrochemical Carbon Monoxide sensor
• SGP40-D-R4 - Indoor Air Quality Sensor for VOC Measurements
• SHT21 - Humidity and Temperature sensor

ClimateSense Sentinel

• MPM10CD - Laser Particulate Matter Sensor
• TGS5141 - Electrochemical Carbon Monoxide sensor
• SHT21 - Humidity and Temperature sensor

ClimateSense EcoBalance

• SCD40-D-R2 - Photoacoustic NDIR sensor
• SGP40-D-R4 - Indoor Air Quality Sensor for VOC Measurements
• SHT21 - Humidity and Temperature sensor

ClimateSense AirCarbon

• SCD40-D-R2 - Photoacoustic NDIR sensor
• SHT21 - Humidity and Temperature sensor

ClimateSense VOC

• SGP40-D-R4 - Indoor Air Quality Sensor for VOC Measurements
• SHT21 - Humidity and Temperature sensor

ClimateSense Basic

• SHT21 - Humidity and Temperature sensor

Comparisons

Support & Documentation

We invite you to reach out using the appropriate Ask a question link below. You will find RoomSense IQ source code, design files, and documentation in our public Github repository.

Manufacturing Plan

Over the past few years, we’ve put significant effort into launching this product. Our in-house engineering team carefully crafted every element of RoomSense IQ, from the hardware to the firmware to the ball-mount enclosure. During the prototype and alpha stages of development, we thoroughly vetted and endorsed suppliers for production, prioritizing quality and reliability while nurturing valuable partnerships and establishing a reliable supply chain.

Throughout production, each unit will undergo thorough testing to ensure that all components are functioning properly and to validate communication with control systems. We’ve also crafted a comprehensive production schedule that delineates daily, weekly, and monthly targets to optimize our manufacturing processes and improve the likelihood of on-time product delivery.

Fulfillment & Logistics

After our production run is complete, we will package everything up and send it along to Crowd Supply’s fulfillment partner, Mouser Electronics, who will handle distribution to backers worldwide. You can learn more about Crowd Supply’s fulfillment service under Ordering, Paying, and Shipping in their guide.

Risks & Challenges

At RoomSense Labs, we are committed to shipping on schedule, but challenges can arise during the development and manufacture of any electronic product. Transparency is our top priority, so we’re happy to enumerate a few of the potential risks we might face:

1. Design Challenges - Many unexpected design issues have emerged over the past few years, but our team continues to find innovative solutions when they do.
2. Production Delays - Unforeseen manufacturing or supply-chain issues could impact our delivery timeline.
3. Quality Assurance (QA) - Manufacturing quality products at scale can be challenging, but we've invested in stringent QA protocols to minimize defects.
4. Regulatory Hurdles - Regulatory and compliance issues can affect timelines, but we're working with experts to navigate them.

Throughout the campaign and the post-campaign production window, we will keep you informed by addressing challenges openly. Your support is invaluable, and we’re committed to delivering a top-quality product. Thank you for joining us on this journey!
