A handheld RFID & NFC test instrument optimized for untethered use in the field

Crowdfunding Page History

This page is an archive of the original crowdfunding campaign for this project. It may not be up-to-date with the latest updates and product availability. Return to the current project page.

$42,100 raised

of $25,000 goal

168% Funded! Order Below

Pledge Now

$400

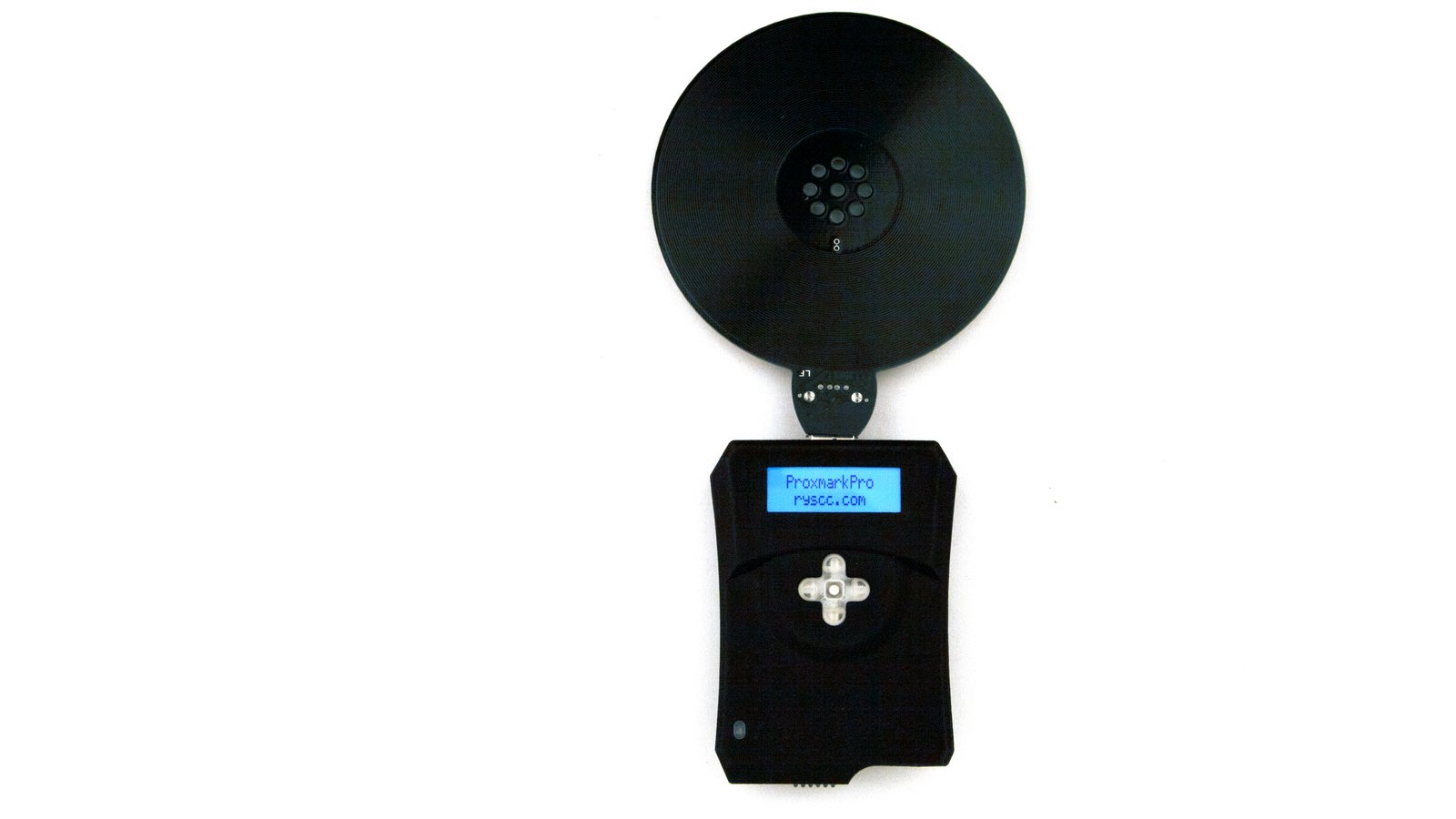

ProxmarkPro Kit

Everything you need get started with your NFC and RFID experiments, including a ProxmarkPro main unit with enclosure and 1200 mAh battery, one low-frequency (LF) antenna, one high-frequency (HF) antenna, a bundle of three HF tags, a bundle of three LF tags, one 16 GB microSD card, and a carrying pouch.


$250

ProxmarkPro Kit - Early Bird

Everything you need get started with your NFC and RFID experiments, including a ProxmarkPro main unit with enclosure and 1200 mAh battery, one low-frequency (LF) antenna, one high-frequency (HF) antenna, a bundle of three HF tags, a bundle of three LF tags, one 16 GB microSD card, and a carrying pouch.

Details

Recent Updates


As Featured In

Hackster.io

"The portable toolset is designed to search for, identify, and demonstrate weaknesses in RFID and NFC systems in the field."

Geeky Gadgets

"ProxmarkPro RFID and NFC vulnerability testing made easy"

A Portable RFID & NFC Tool for Real-world Use

The ProxmarkPro is a portable test instrument designed to quickly discover, identify, and demonstrate weaknesses in popular RFID and NFC systems in the field.

The ProxmarkPro is NOT another development kit. It has been designed from the ground up to meet the demanding requirements of Red Teamers and security research professionals.

The ProxmarkPro is intended to be used in the field or at a desk with no client connection or setup, just turn it on and start using it. The antenna can be easily and quickly swapped out to accommodate a wide variety of systems.

Features & Specifications

The ProxmarkPro is perfect for quickly, easily, and powerfully demonstrating vulnerabilities and risk to non-technical decision makers and stakeholders.

  • Portable: one-handed use, easily concealed, lightweight, compact
  • Self-contained: no external cables, batteries, or computers required
  • Built-in Display: intuitive menu visible in direct sunlight and in the dark
  • Swappable Antennas: no tool required to change tuned antennas
  • Removable Storage: capture and load data with the included 16 GB microSD card
  • State of the Art: built with new-and-improved FPGAs and ADCs
  • Made in the USA: using parts from all over the globe

Upgrades & Improvements

This latest addition to the Proxmark line has several significant upgrades and improvements over previous versions, including:

  • LCD
  • FPGA
  • Nav switch
  • Battery
  • SD card

The ProxmarkPro represents the culmination of over three years of active research and development, incorporating contributions from a global team of experts and feedback from Red Teamers.

Swappable Antennas

Use Case: Identify Tags

Identify low- and high-frequency tags with just a few clicks. Currently supports HID, EM4100, Mifare Ultralight, Classic 1K, and Classic 4K. Support for more tags is coming soon.

Use Case: Save and Load Tags from the SD Card

Read a tag and then save it to the SD card. Then load saved tags from the SD card. Currently supports HID, EM4100, and Mifare Ultralight.

Use Case: Clone a Tag

From tag data saved on the SD card, the ProxmarkPro can make a physical clone of the tag by writing to a T5577 tag. Currently supports HID and EM4100, with more coming soon.

Use Case: Emulate a Tag

Simulate a saved tag to another reader. Currently supports HID, EM4100, and Mifare Ultralight.

Use Case: Brute-force an HID Reader

A brute-force attack can be done by trying to guess multiple tag UID’s similar to a known working tag UID to gain access. You can also adjust the brute-force parameters like tag UID, facility code, format length, and replay rate. This functionality currently supports HID tags.

Comparisons

The ProxmarkPro has some notable upgrades over other Proxmark models. It features an LCD, more powerful FPGA (5x) and ADC, navigation switch, built-in Lithium-ion battery, and microSD card slot.

Proxmark Comparisons

If you’ve used other Proxmark models, the ProxmarkPro will on one hand be familiar, and on the other hand offer a lot of new funcitonality not previously available. The ProxmarkPro is the only model that has an unchained mode, but, like earlier models, it can also still be controlled with PC client software over USB. However, as we add more features to the unchained mode, the hope is the client will be something you only occasionally need to use.

ProxmarkPro Proxmark3 Proxmark3 RDV4
CPU AT91SAM7S512 AT91SAM7S512 AT91SAM7S512
FPGA Spartan 3 Spartan 2 Spartan 2
Interface LCD + Onscreen Menu 4x LED 8x LED
USB Device Mode
Unchained Mode
Removable Storage
Battery
Nav Switch
Antennas Modular Internal
Enclosure
SIM/SAM Reader
Swappable Antennas
Long Range Antennas
HF Read Range Up to 100 mm Up to 100 mm Up to 85 mm
HF Long Range N/A N/A 100 - 120 mm
LF Read Range Up to 140 mm Up to 100 mm Up to 70 mm

Competitor Comparisons

ProxmarkPro Phone + NFC Tools ACR122U HID OMNIKEY 5427 CK ChameleonMini
Read Tag UID
Write Tag UID
Clone Tag UID
Emulate Tag UID
Read blocks and sectors
Write to blocks and sectors
Snoop*
13.56 MHz Cards
125 kHz Cards
Battery
Price $250 Price of phone + free app $40 - $50 $100 $100 - $150

* Snoop: Eavesdrop communication between reader and tag

What’s Included?

Each ProxmarkPro kit comes with:

  • ProxmarkPro main unit
    • 16 GB microSD card
    • 1200 mAh battery
  • Low-frequency (LF) antenna
  • High-frequency (HF) antenna
  • HF tag bundle with three card-style tags
  • LF tag bundle with three card-style tags
  • Carrying pouch

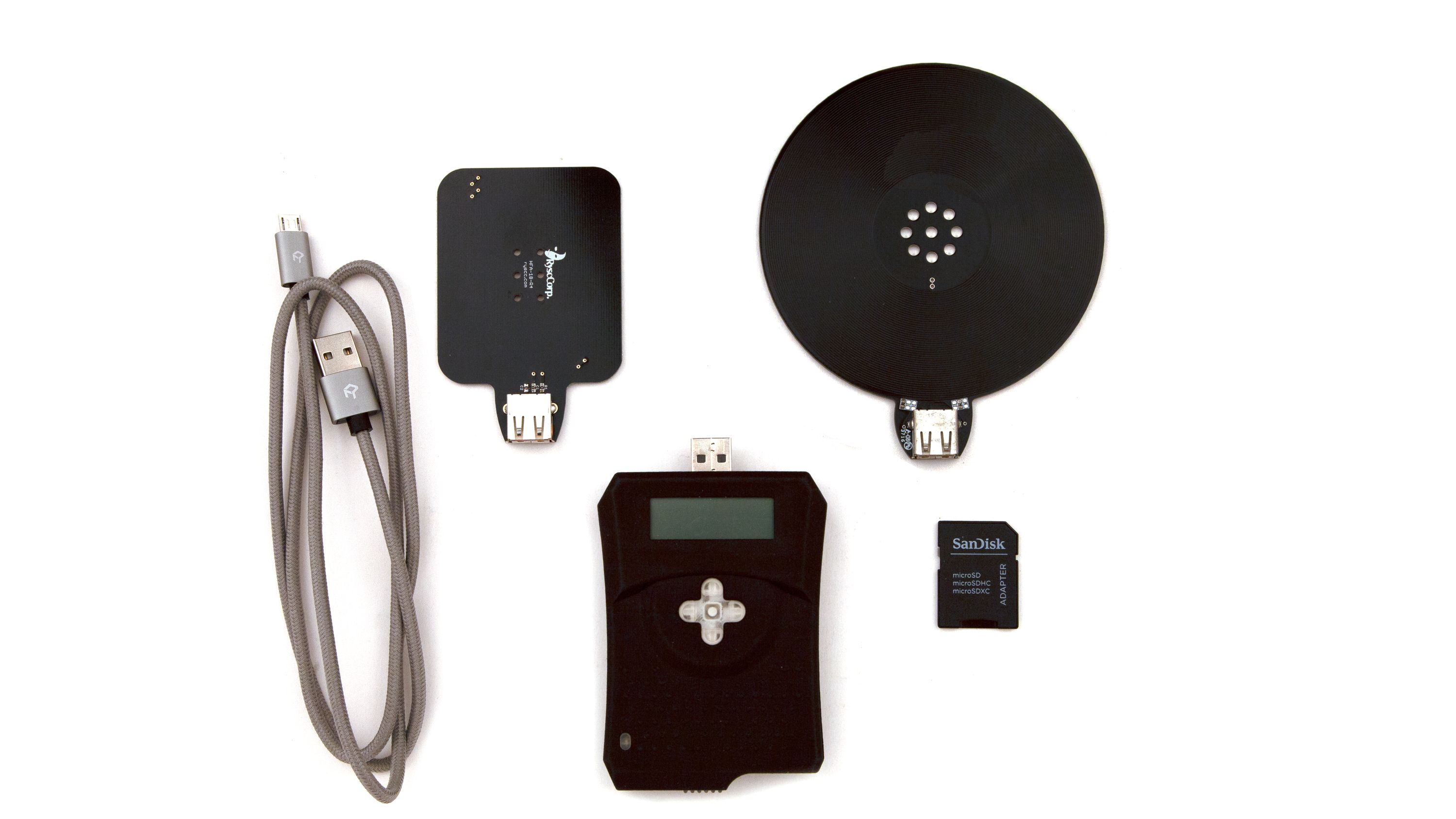

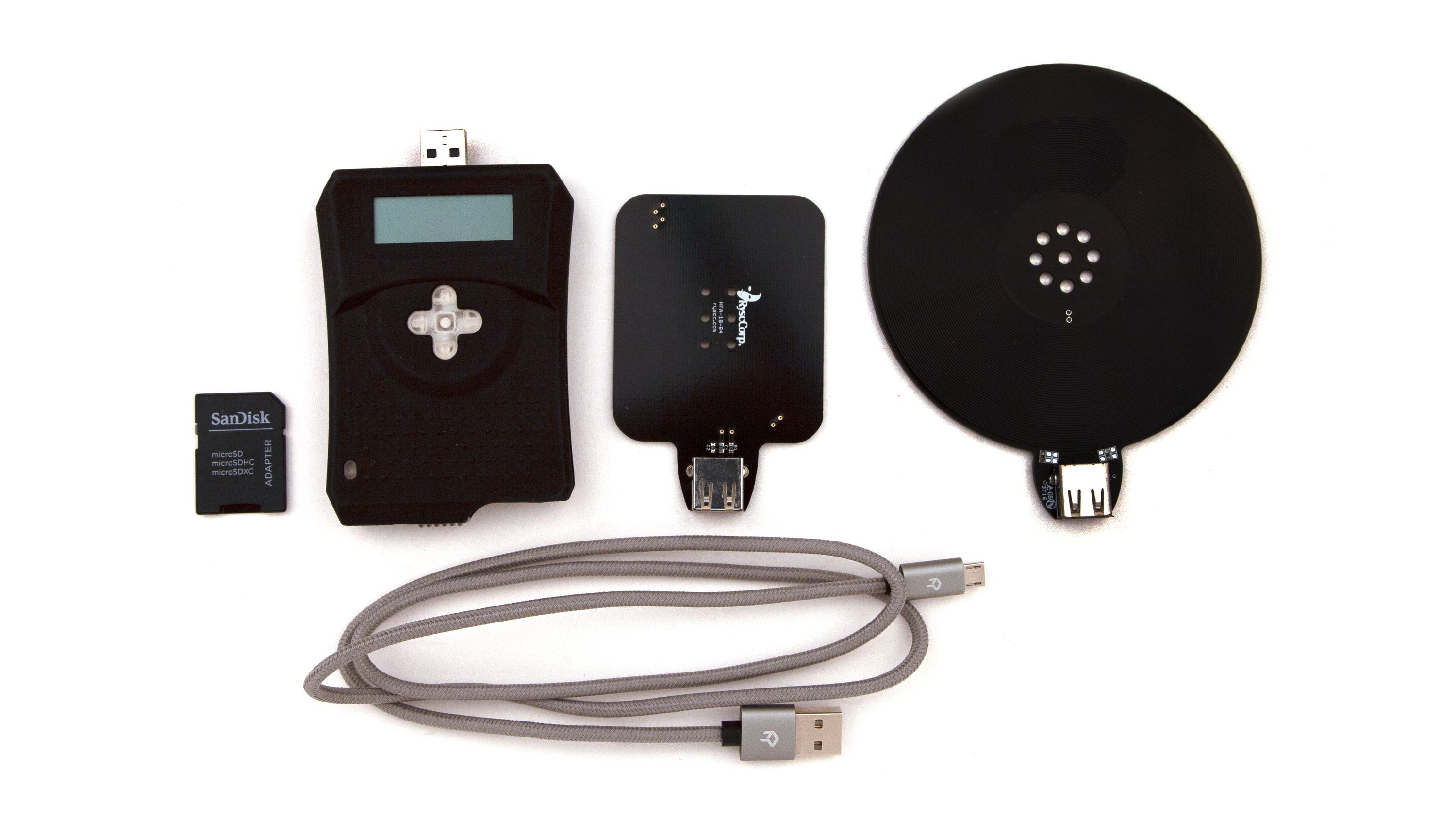

Above: The kit includes a USB cable, low- and high-frequency antennas, the main unit with battery and LCD screen, and a 16 GB microSD card. The kit also includes a carrying case and low- and high-frequency tag bundles (see below).

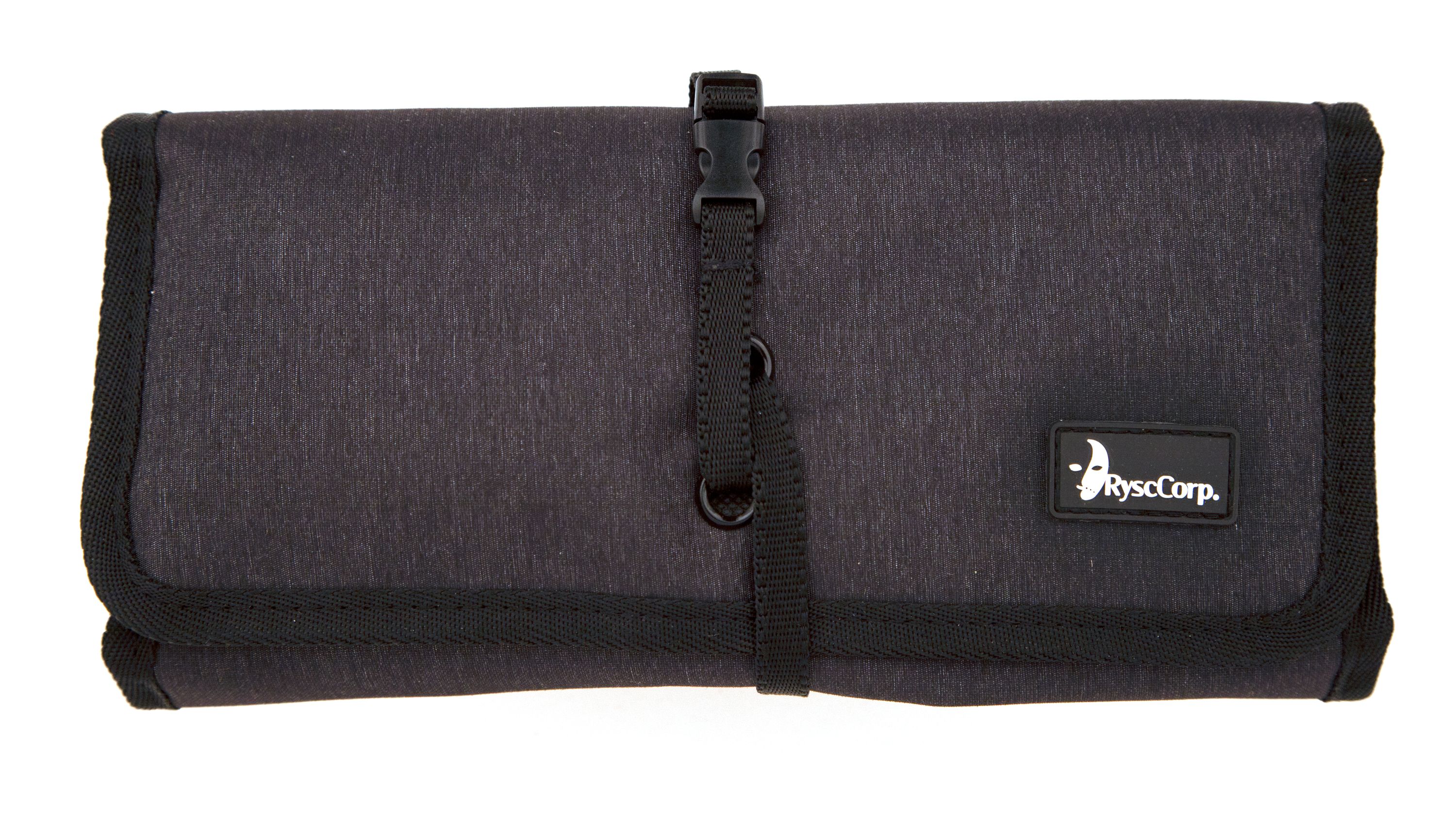

Above: Carrying case for the ProxmarkPro and its accessories.

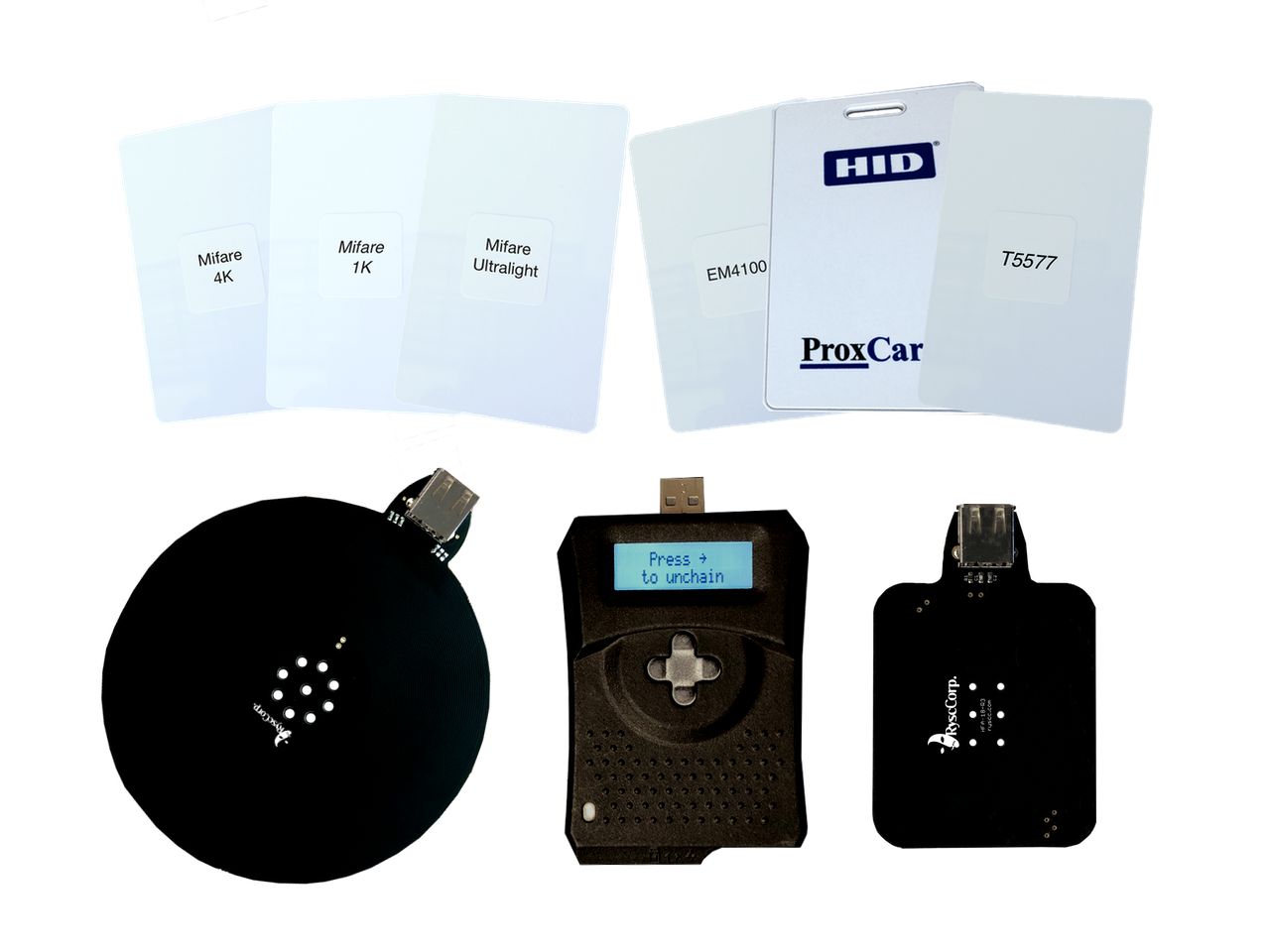

Above: Low-frequency antenna and sample tags (left), high-frequency antenna and sample tags (right), and ProxmarkPro main unit (center).

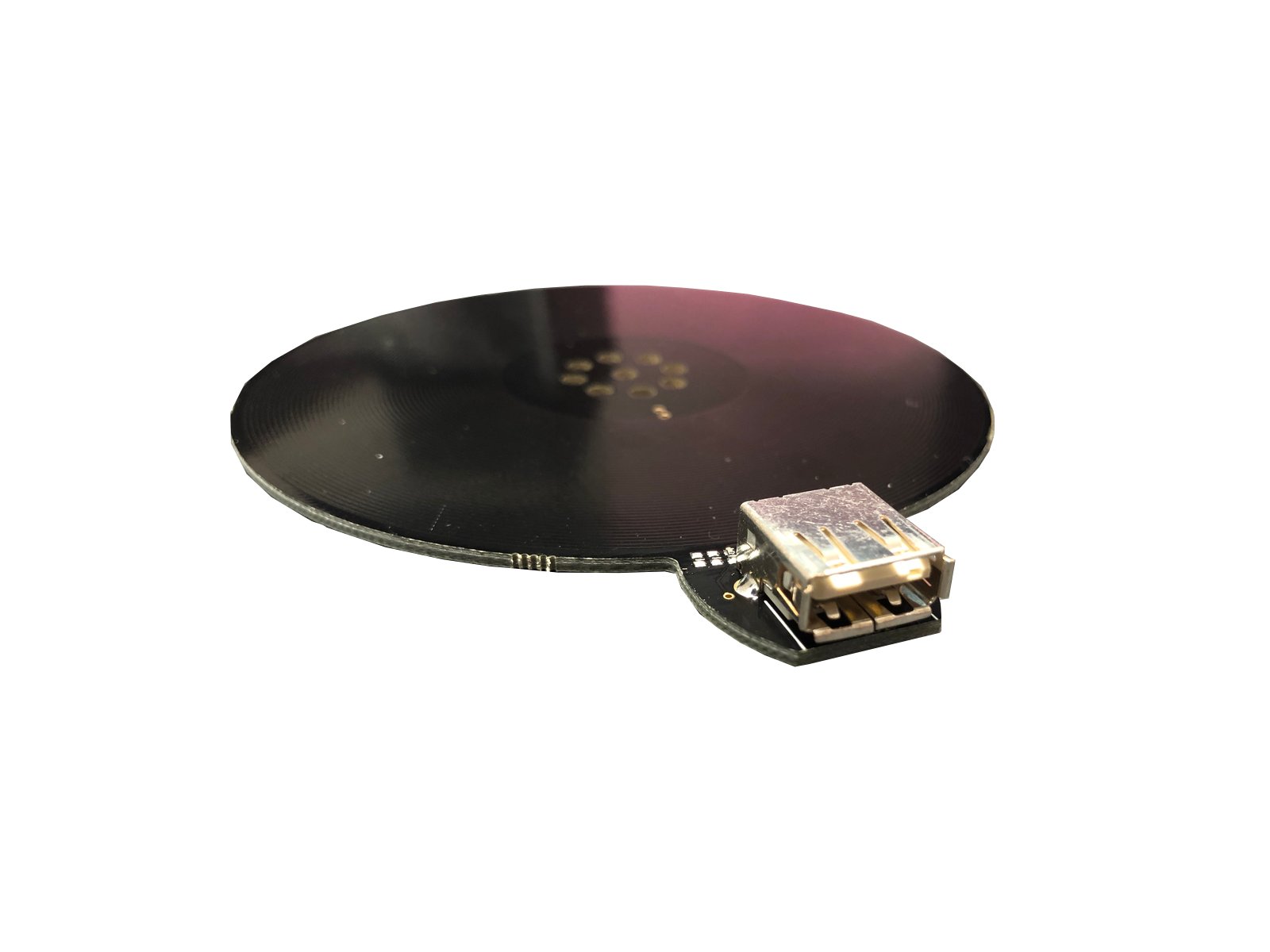

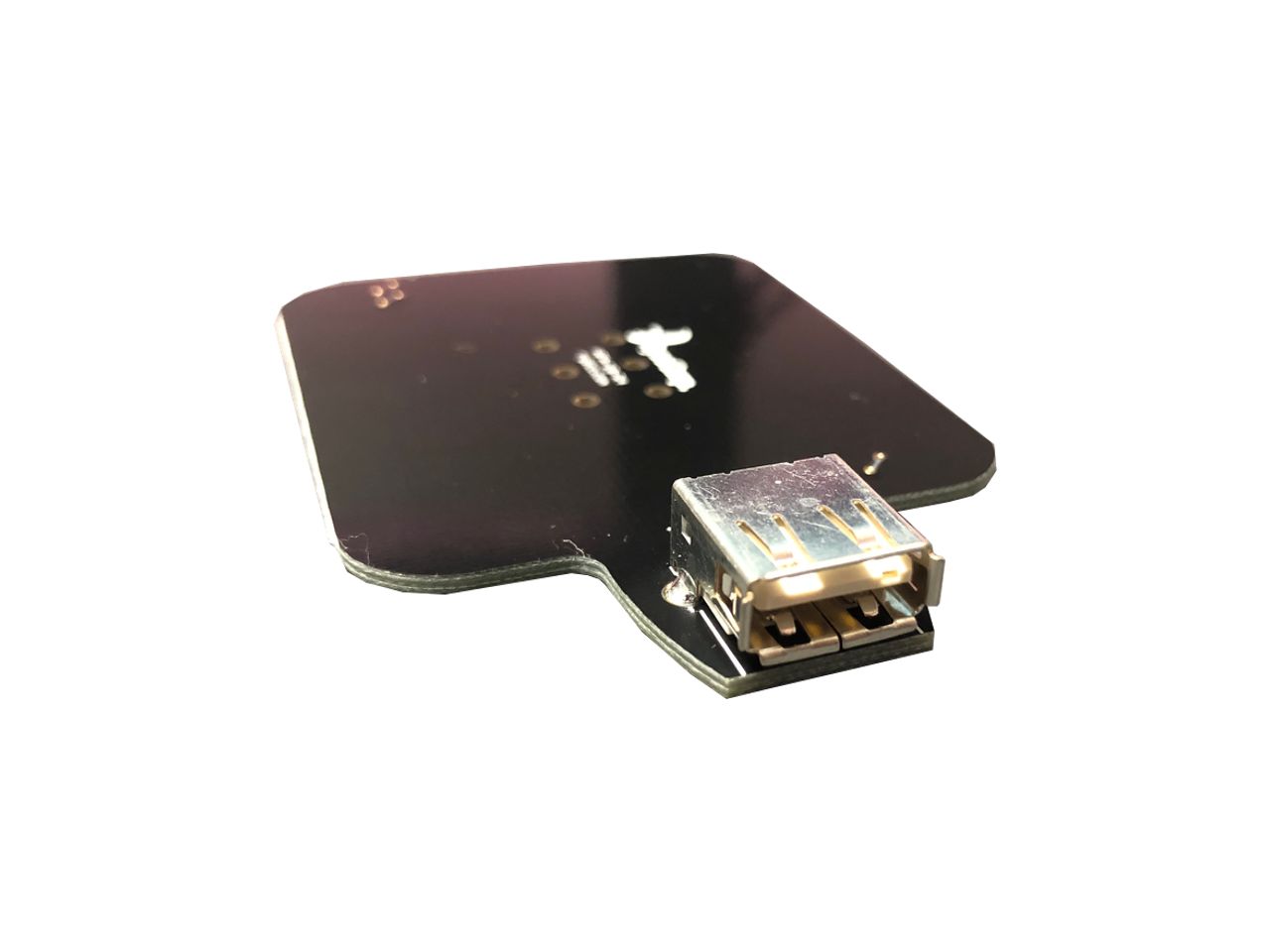

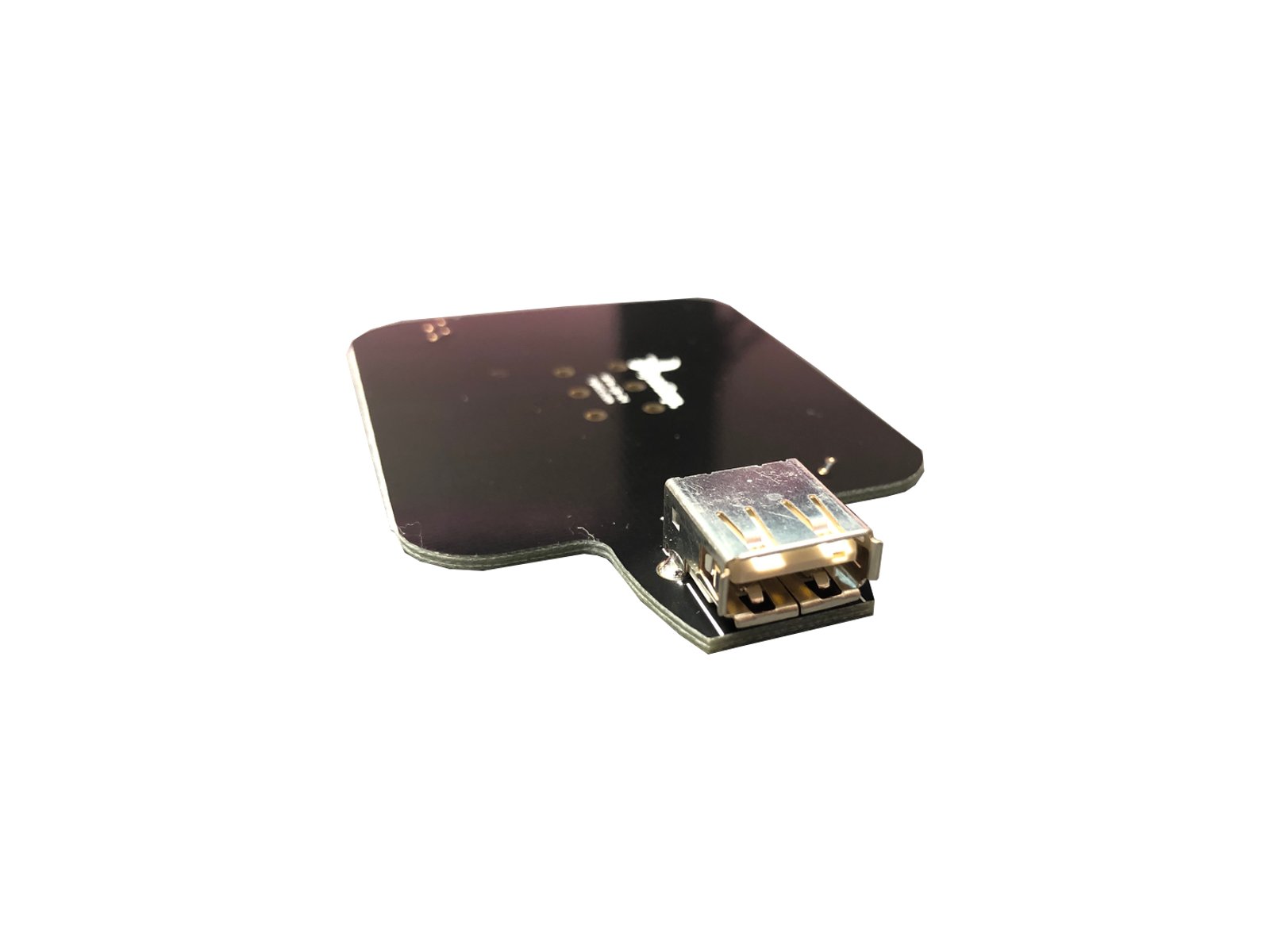

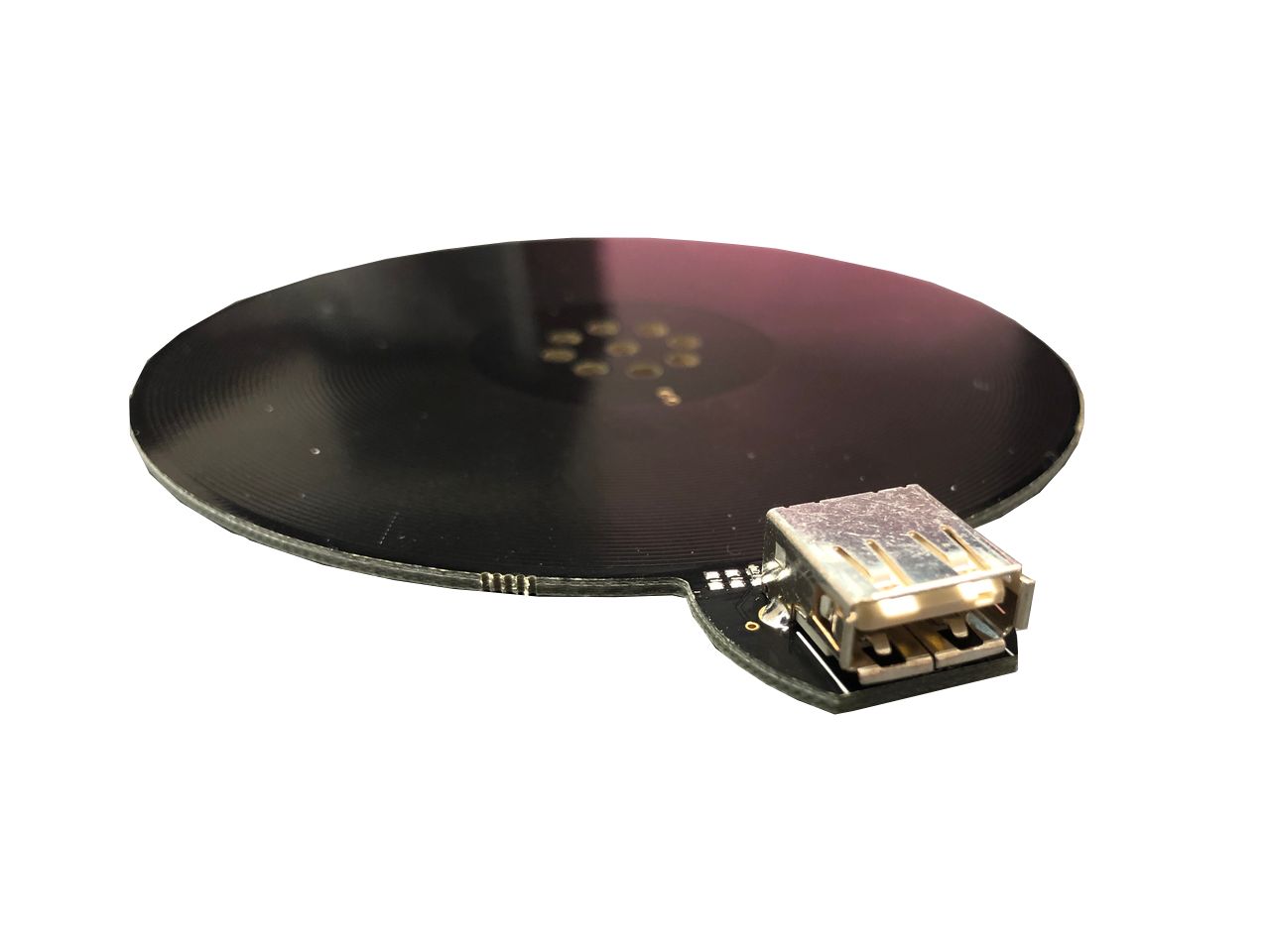

Above: Low-frequency antenna (left) and high-frequency antenna (right).

Manufacturing Plan

All manufacturers and suppliers have been selected. We plan to start production upon successful funding of our project. Manufacturing will take about two to three months to complete.

Fulfillment & Logistics

All ProxmarkPro units will be delivered to Crowd Supply’s warehouse for final distribution to backers worldwide. For more information, please see this page about ordering, paying, and shipping.

Risks & Challenges

There are very few risks and challenges with this project, as the product is complete and all the manufacturers are lined up and ready to go. One challenges we may face is working with some of our new manufacturers - we hope to have no issues, but with new manufacturers some issues may occur.

Support & Documentation

Rysc Corp stands behind our products and plans to help support them as long as we are around. You can find documentation about our products at https://ryscc.com/.
