HiFive1: Open-Source, Arduino-Compatible RISC-V Dev Kit

$27,179 raised

of $1 goal

25

days left

2,717,900%

funded

329

pledges

Pledge Now

$79

HiFive1 Founder's Edition

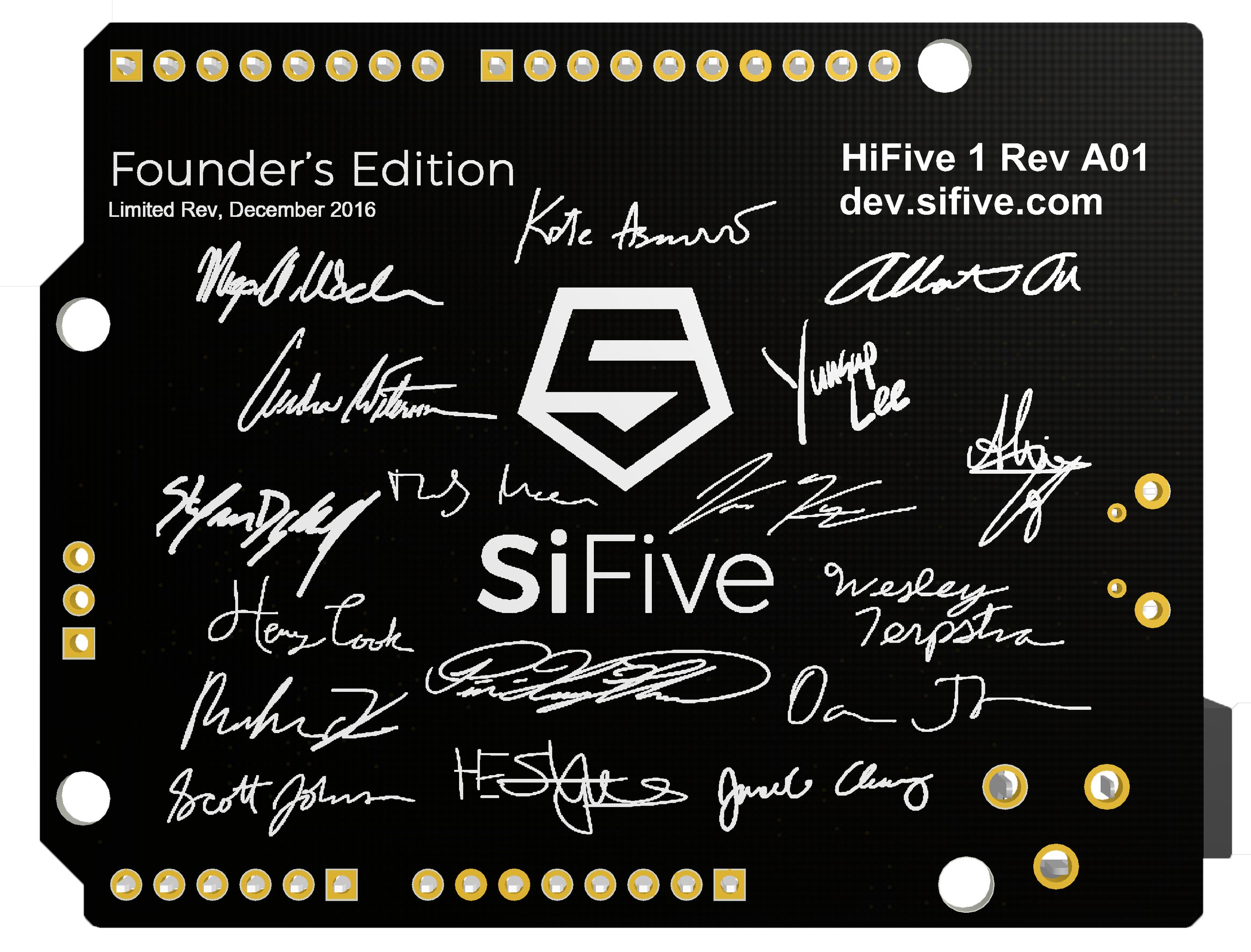

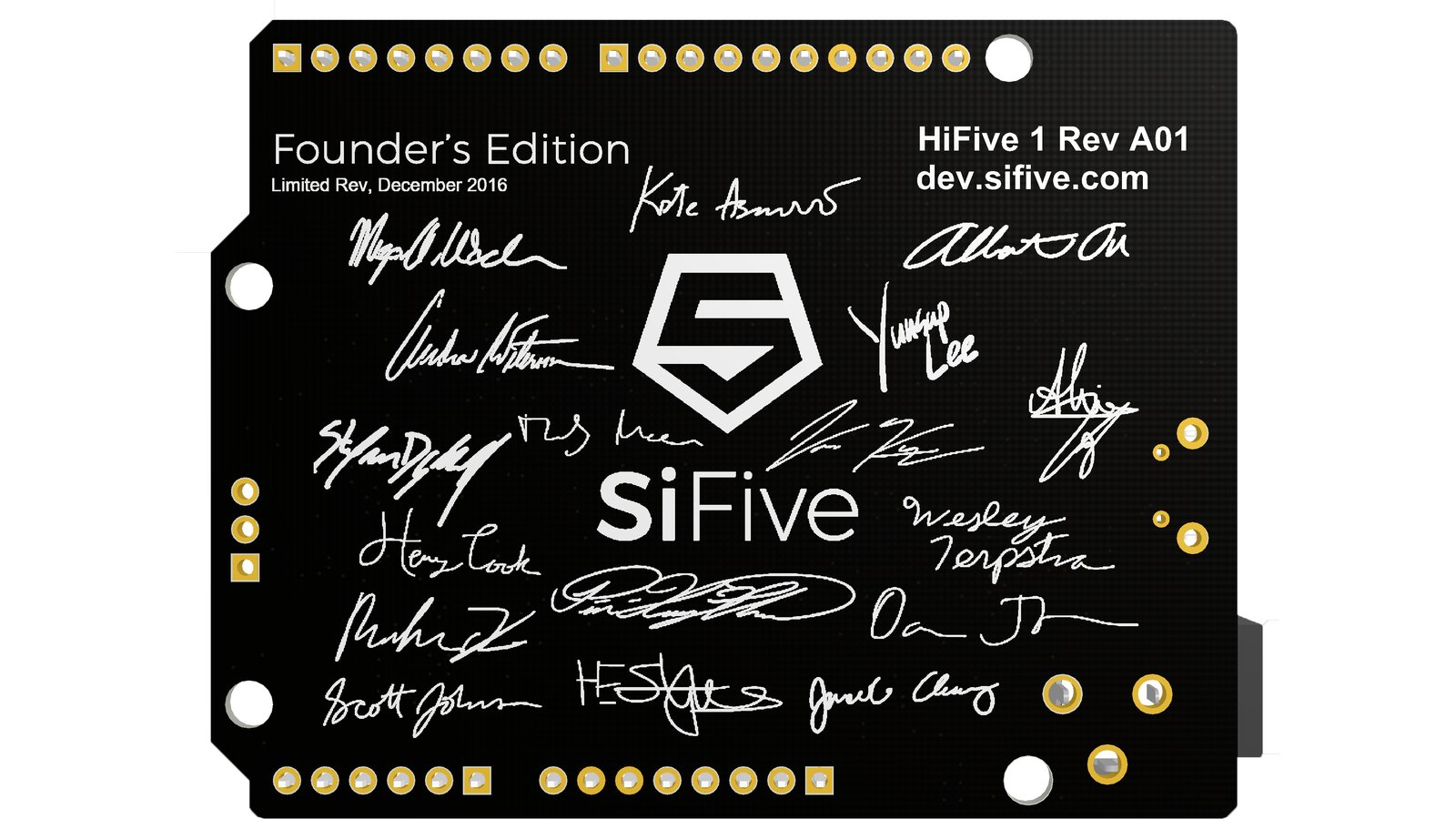

Get your very own, limited edition, HiFive1 Founder’s Edition! Only 250 of these will be available. Not only will you be among the first to have your very own RISC-V Development Kit featuring the industry’s first open-source RISC-V SoC, but these special boards come silkscreened with the SiFive Founding Team’s Signatures. A great collector’s item and/or Christmas gift for your RISC-V enthusiast.


$59

HiFive1

Get a single HiFive1 Dev Kit, featuring the SiFive Freedom E310 SoC, the industry’s first open-source RISC-V SoC.


$279

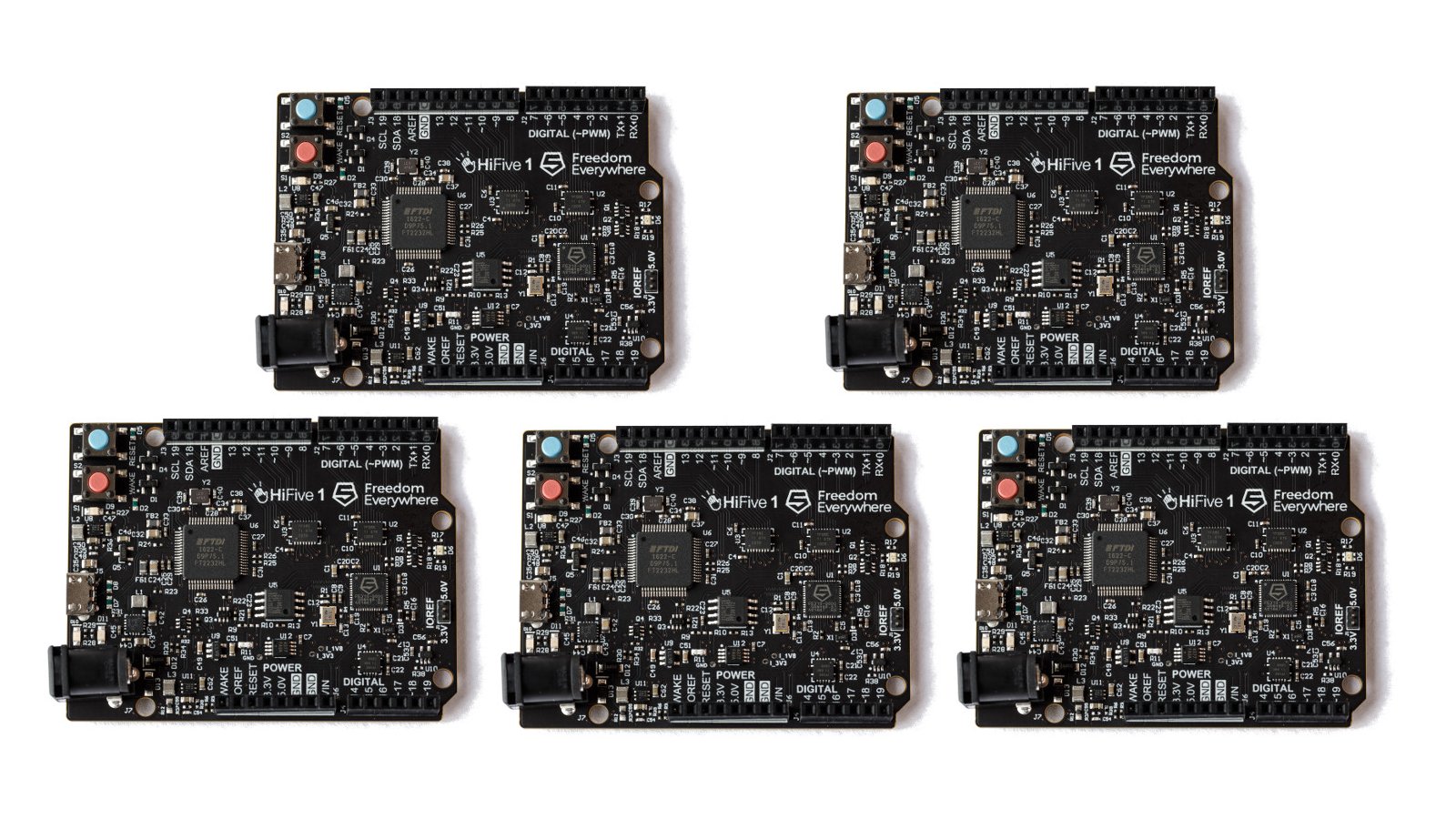

HiFive1 Five-Pack

What’s better than a single HiFive1? Get one for you, and one for your whole team!


$555

HiFive1 Founder's Edition + Two-hour call with the RISC-V Inventors

Get a single HiFive1 Founder's Edition, plus, you will get the opportunity to schedule two one-hour conference calls with Andrew, Krste, or Yunsup. You can spend this time discussing the topic of your choice! From getting tech support with your dev kit, to asking questions about how RISC-V started, or even debating computer architecture with them, the time is yours!

Details

Funding ends on Dec 29, 2016 at 03:59 PM PST (11:59 PM UTC)

HiFive1: Open-Source, Arduino-Compatible RISC-V Dev Kit

As Featured In

EE Times

"The HiFive board is intended to drive demand for custom SoCs SiFive will design and comes with a growing pool of open source Linux variants and tools fed by an expanding foundation that maintains the RISC-V instruction set."

Hackaday

Hackaday

"Choice is always a good thing, and now SiFive, a fabless semiconductor company, has released the HiFive1 as a crowdfunding campaign on CrowdSupply. The heart of the HiFive1 is SiFive’s FE310 SoC, a 32-bit RISC-V core running at 320+ MHz."

IoT Evolution World

"By contributing the FE310 RTL code to the open-source community, SiFive said it aims to encourage open-source development of both software support for RISC-V as well as other open hardware development."

VentureBeat Logo

VentureBeat

"The FE310 is the first member of the Freedom Everywhere family of customizable SoCs designed for microcontroller, embedded, Internet of Things, and wearable applications."

Hackster.io

"SiFive is on a mission to encourage open-source development of both software support for RISC-V as well as other open hardware development... SiFive’s “chips-as-a-service” offering can customize the FE310 to meet [developers'] unique needs."

EE Times

"Many [are] exhilarated by the prospects of free, flexible cores unencumbered by patents with an ecosystem of innovations around them."

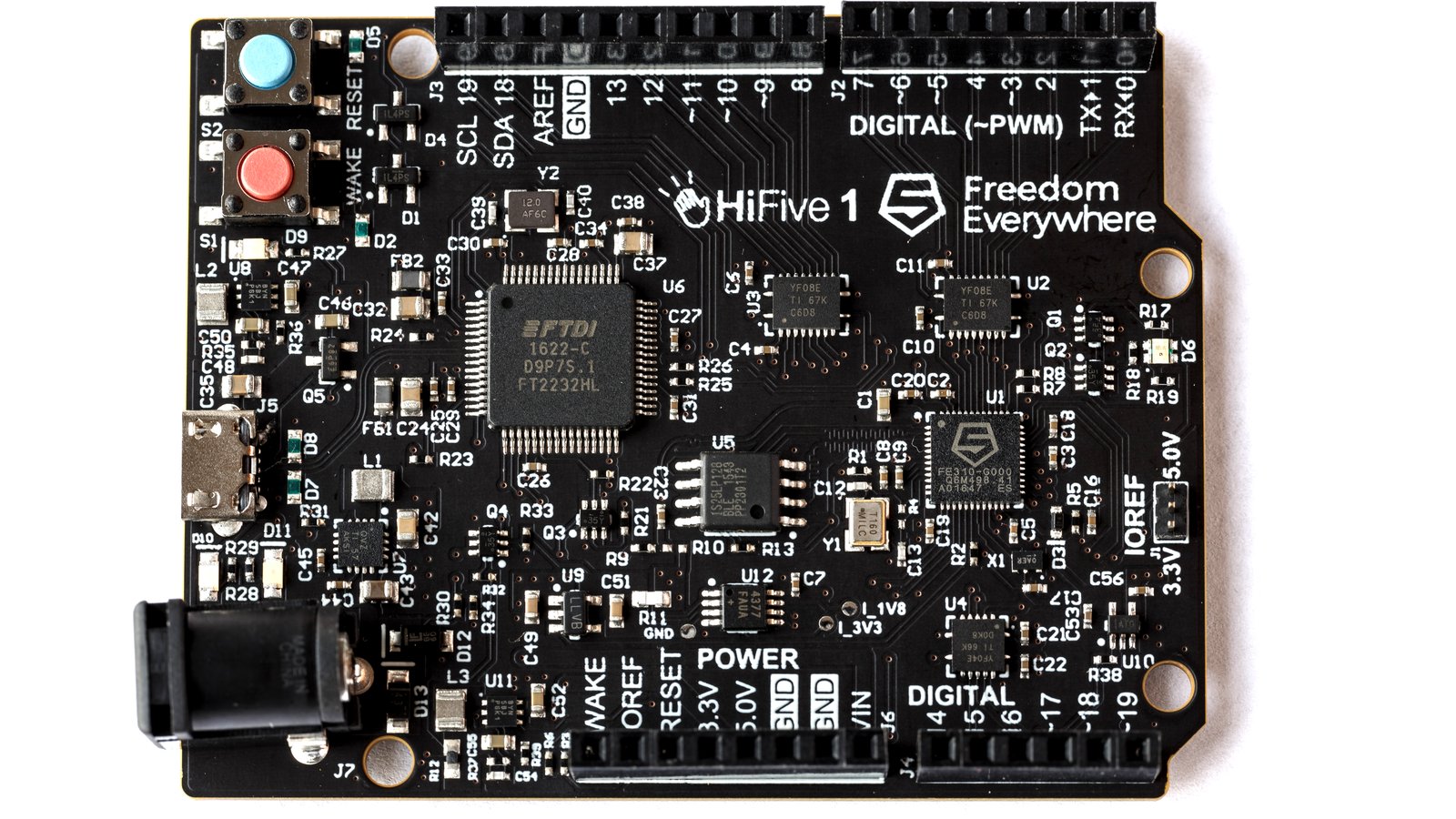

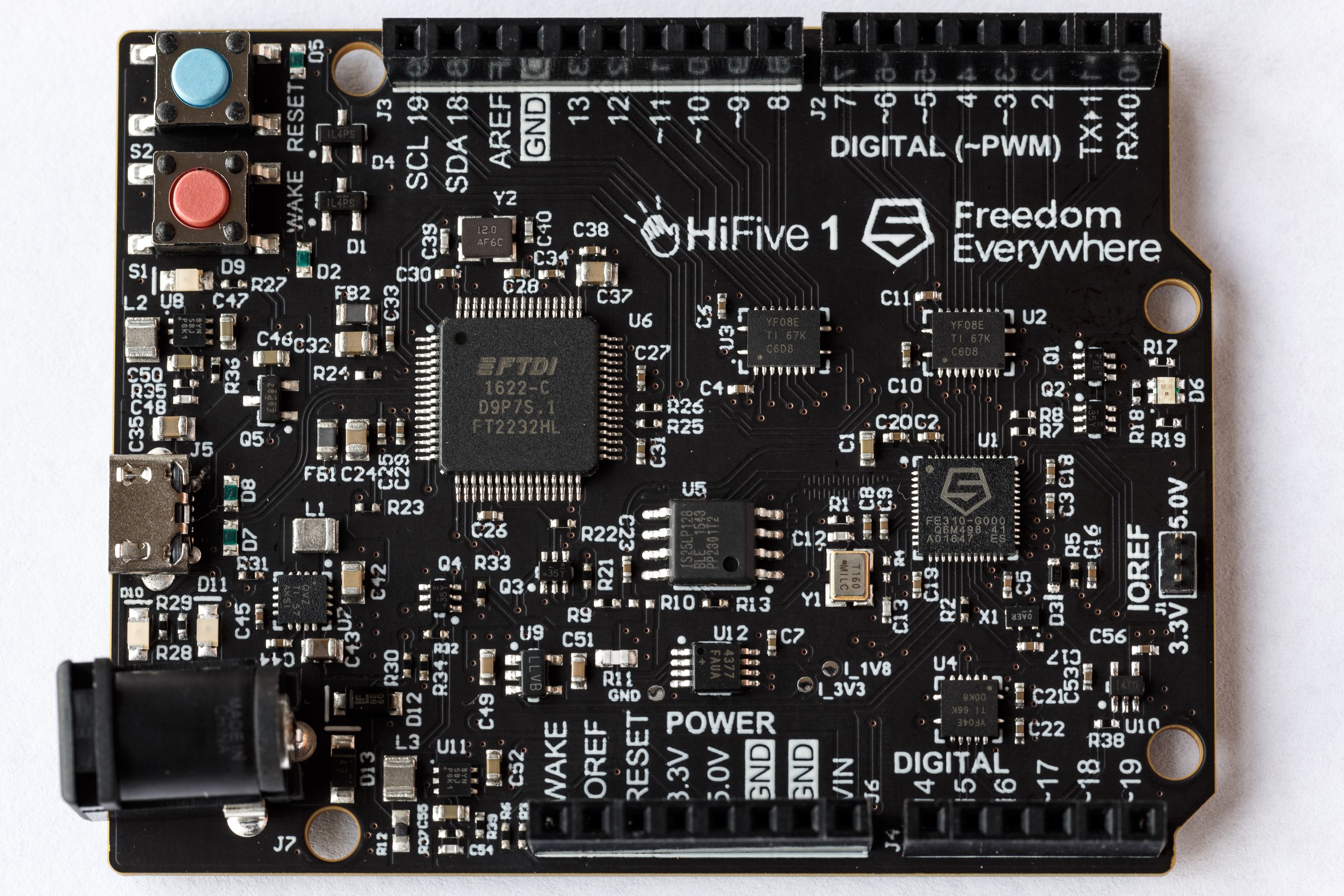

The HiFive1 is an Arduino-Compatible development kit featuring the Freedom E310, the industry’s first commercially available RISC-V SoC.

Freedom Everywhere

The Freedom E310 (FE310) is the first member of the Freedom Everywhere family of customizable SoCs. Designed for microcontroller, embedded, IoT, and wearable applications, the FE310 features SiFive’s E31 CPU Coreplex, a high-performance, 32-bit RV32IMAC core. Running at 320+ MHz, the FE310 is among the fastest microcontrollers in the market.

Additional features include a 16KB L1 Instruction Cache, a 16KB Data SRAM scratchpad, hardware multiply/divide, a debug module, flexible clock generation with on-chip oscillators and PLLs, and a wide variety of peripherals including UARTs, QSPI, PWMs, and timers. Multiple power domains and a low-power standby mode ensure a wide variety of applications can benefit from the FE310.

Open-source RTL!

The FE310 is the first open-source RISC-V SoC available in industry. SiFive has contributed the FE310 RTL code to the open source community. That means you can see what’s inside the chip and completely understand how the hardware works.

Take a look: SiFive GitHub

By releasing the RTL code, SiFive wants to encourage open source development of both software support for RISC-V as well as promote open hardware development.

The RTL code also empowers chip designers with the ability to customize their own SoC on top of the base FE310. For system architects, developers, or companies without chip design capabilities, SiFive’s “chips-as-a-service” offering can customize the FE310 to meet their unique needs.

Chips-as-a-service?

Unless you had millions of dollars to spend, the dream of getting custom silicon was just that – a dream. With the end of conventional transistor scaling and escalating chip design costs, the silicon industry is no longer able to serve the fragmented market and the needs of the next generation of innovators.

At SiFive, we believe that by bringing the power of open-source and agile hardware design to the semiconductor industry, we greatly reduce the cost to harness the performance and energy-efficiency of custom silicon to the smallest company, inventor, or maker.

SiFive’s “chips-as-a-service” is meant for you – the system architect, developer, inventor, creator, and dreamer.

Do you want to write your own RTL? Download the open-source RTL to FE310 and connect your accelerator or peripheral right into the SoC and prototype it on our FPGA dev kits (available separately at dev.sifive.com. Then contact us about how we can quickly deliver an affordable sample of your custom chip and then take you to production by delivering packaged, tested chips.

Or, if you simply know what you want, we can customize the FE310 to meet your unique needs. No RTL needed. So play around with the HiFive1, develop some software, figure out what more you need in your version of the FE310.

Either way – come talk to SiFive. We can make and deliver your own custom chips based on the FE310 for much less than you’d probably pay just to license a different CPU core. Learn more about chips-as-a-service at www.sifive.com.

I don’t want a chip, I just want to play with RISC-V

Perfect! This board is the first RISC-V based development kit in the market. As you can expect from SiFive and the inventors of RISC-V, the FE310 supports the latest RISC-V specifications as of Nov 27, 2016:

  • RV32I Base Integer Instruction Set, Version 2.0
  • “M” Standard Extension for Integer Multiplication and Division, Version 2.0
  • “A” Standard Extension for Atomic Instructions, Version 2.0
  • “C” Standard Extension for Compressed Instructions, Version 1.9
  • RISC-V Privileged ISA Specification, Version 1.9.1
  • RISC-V External Debug Support, Version 0.11

Help contribute the growing amount of open-source software already written for RISC-V: RISC-V Software Ecosystem Overview

Why Buy This Dev Kit?

You should buy this dev kit if you:

  • Are a software developer who wants to develop on RISC-V
  • Want an Arduino-Compatible RISC-V dev kit
  • Want the fastest Arduino-Compatible dev kit
  • Are a hacker or maker
  • Are a system architect who wants to customize their own microcontroller
  • Want to learn more about RISC-V
  • Want to support open-source chips and open hardware!

HiFive1 Features & Specifications

  • Microcontroller: SiFive Freedom E310 (FE310)
    • CPU: SiFive E31 CPU
    • Architecture: 32-bit RV32IMAC
    • Speed: 320+ MHz
    • Performance: 1.61 DMIPs/MHz
    • Memory: 16 KB Instruction Cache, 16 KB Data Scratchpad
    • Other Features: Hardware Multiply/Divide, Debug Module, Flexible Clock Generation with on-chip oscillators and PLLs
  • Operating Voltage: 3.3 V and 1.8 V
  • Input Voltage: 5 V USB or 7-12 VDC Jack
  • IO Voltages: Both 3.3 V or 5 V supported
  • Digital I/O Pins: 19
  • PWM Pins: 9
  • SPI Controllers/HW CS Pins: 1/3
  • External Interrupt Pins: 19
  • External Wakeup Pins: 1
  • Flash Memory: 128 Mbit Off-Chip (ISSI SPI Flash)
  • Host Interface (microUSB): Program, Debug, and Serial Communication
  • Dimensions: 68 mm x 51 mm
  • Weight: 22 g

Software

  • Freedom E SDK
  • Arduino IDE Support

Comparisons

The HiFive1, powered by the Freedom E310 is:

  • 10x Faster CPU Clock than Intel’s Arduino 101
  • Greater than 11x more Dhrystones than the Cortex M0+ based Arduino Zero
  • More power efficient in Dhrystone/mW

A Great Arduino-Compatible Dev Kit!

HiFive1 Arduino 101 Arduino Zero Arduino Uno
Microcontroller Freedom E310 Intel Curie Module Atmel ATSAMD21G18 Atmel ATmega328P
Open-Source RTL? Yes No No No
CPU Speed 320+ MHz 32 MHz 48 MHz 16 MHz
Bits 32-bit 32-bit 32-bit 8-bit
CPU Core SiFive E31 Intel Quark SE ARM Cortex M0+ AVR
CPU ISA RISC-V RV32IMAC x86 ARMv6-M AVR
Performance
DMIPs/MHz* 1.61 1.3 0.93 0.30
Total Dhrystones* 515.2 41.6 44.64 5
DMIPS/mW* 3.16 0.35 - 0.10
Board Specs
IO Voltage 3.3 V and 5 V 3.3 V and 5 V 3.3 V Only 5 V Only
Digital IO 19 14 14 14
PWM 9 4 10 6
SRAM [kB] 16 24 32 2
Flash [kB] 16384 196 256 32
USB Micro Regular 2 Micro Regular

* HiFive1 DMIPs/mW measured at 1.61 V, 200 MHz operation. Intel Dhrystone data and DMIPs/mW taken from their datasheet and product material. Arduino Uno DMIPs/mW estimated based on ATmega328P datasheet and this site.

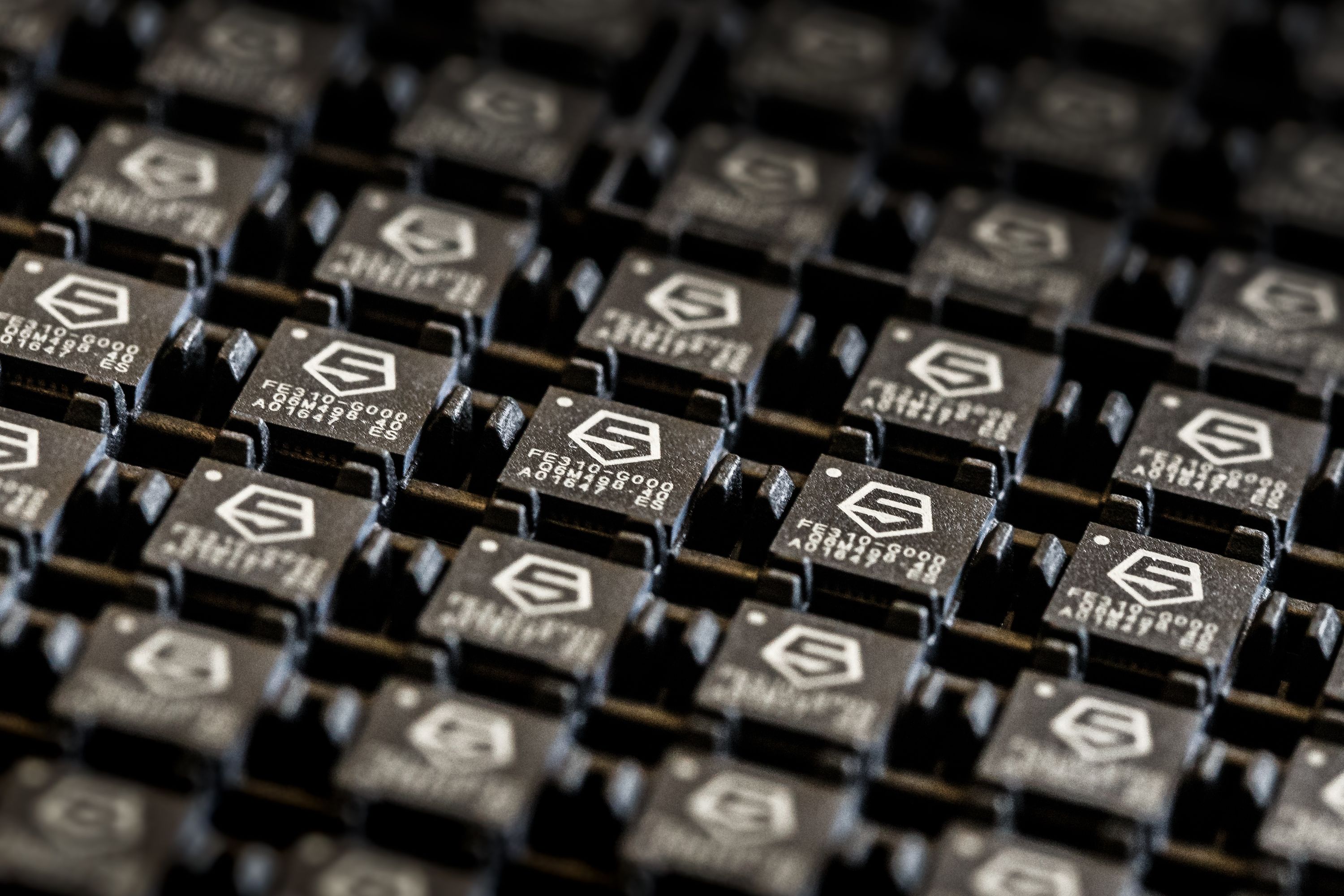

Can I Purchase Just the Freedom E310 Chips?

We do plan to make the individual Freedom E310 chips available, but currently the only thing available is the Hifive1 board. There are some additional complexities associated with providing chips and support that we are working through. Please stay tuned for an update!

Manufacturing Plan

SiFive has launched and demoed the first set of HiFive1 dev kits and Freedom Everywhere 310 SoCs at the 5th RISC-V Workshop held on November 29, 2016.

To get these dev kits to everybody as soon as possible, we are expediting our next manufacturing build. These limited run boards will be known as “HiFive1 Founder’s Edition” and will come with a special silkscreen featuring the signatures of the Founding Team at SiFive, and will be slightly more expensive than the production boards but will ship in December 2016.

The standard HiFive1 dev kits will be available by early February 2017.

Risks & Challenges

Please note that these boards and chips are Engineering Samples, and are intended for development use only.

Ask a Question

Have a question not answered in the description above or in the Updates?

Ask SiFive a Question or Browse the Crowd Supply Knowledge Base

Credits

SiFive

SiFive was founded by the creators of the free and open RISC-V architecture as a reaction to the end of conventional transistor scaling and escalating chip design costs.


Stefan Dyckerhoff

Co-Founder and CEO

Yunsup Lee

Co-Founder and CTO

Krste Asanovic

Co-Founder and Chief Architect

Andrew Waterman

Co-Founder and Chief Engineer

Jack Kang

VP of Product and Business Development

Han Chen

Chief Engineer, Implementations and Methodology

Megan Wachs

Engineer

Ali Habibi

Chief Engineer, DV and Methodology

David Patterson

Technical Advisor

Mark Horowitz

Technical Advisor

Sander Arts

CMO

The Rest of the SiFive Team!
