Watchy

by SQFMI

A fully open source & customizable E-Ink watch

$238,774 raised

of $25,000 goal

955% Funded! Order Below

Product Choices

$59

Watchy Kit + Case

Includes E-Ink display, Watchy assembled printed circuit board, battery, double-sided tape, wrist strap, and injection-molded plastic enclosure, all safely nestled in an attractive and instructional box. Assembly required.


$49

Anodized Aluminum Case

A CNC aluminum case for Watchy, including an anodized top piece, an anodized bottom piece, four anodized buttons, and four stainless steel M3 screws. In total, it will add 25 grams of pure ruggedness to your Watchy Kit (not included).

Details

Recent Updates


As Featured In

The Verge Logo

The Verge

"If you’ve ever wanted to be like Steve Wozniak and have your own custom-made, geeky watch, Squarofumi (stylized SQFMI) may have the product for you: an open-source, Arduino-powered smartwatch with a 1.54-inch e-paper screen."

Uncrate

Uncrate

"For the hackers and coders, Watchy runs on an ESP32 board for custom programming while downloadable designs for 3D-printed cases elevate the aesthetic."

CNXSoft - Embedded Systems News

"The smartwatch is open-source hardware & software with documentation, KiCad hardware design files, 3D Case Designs (STLs), and plenty of examples and watch faces."

Gizmodo Logo

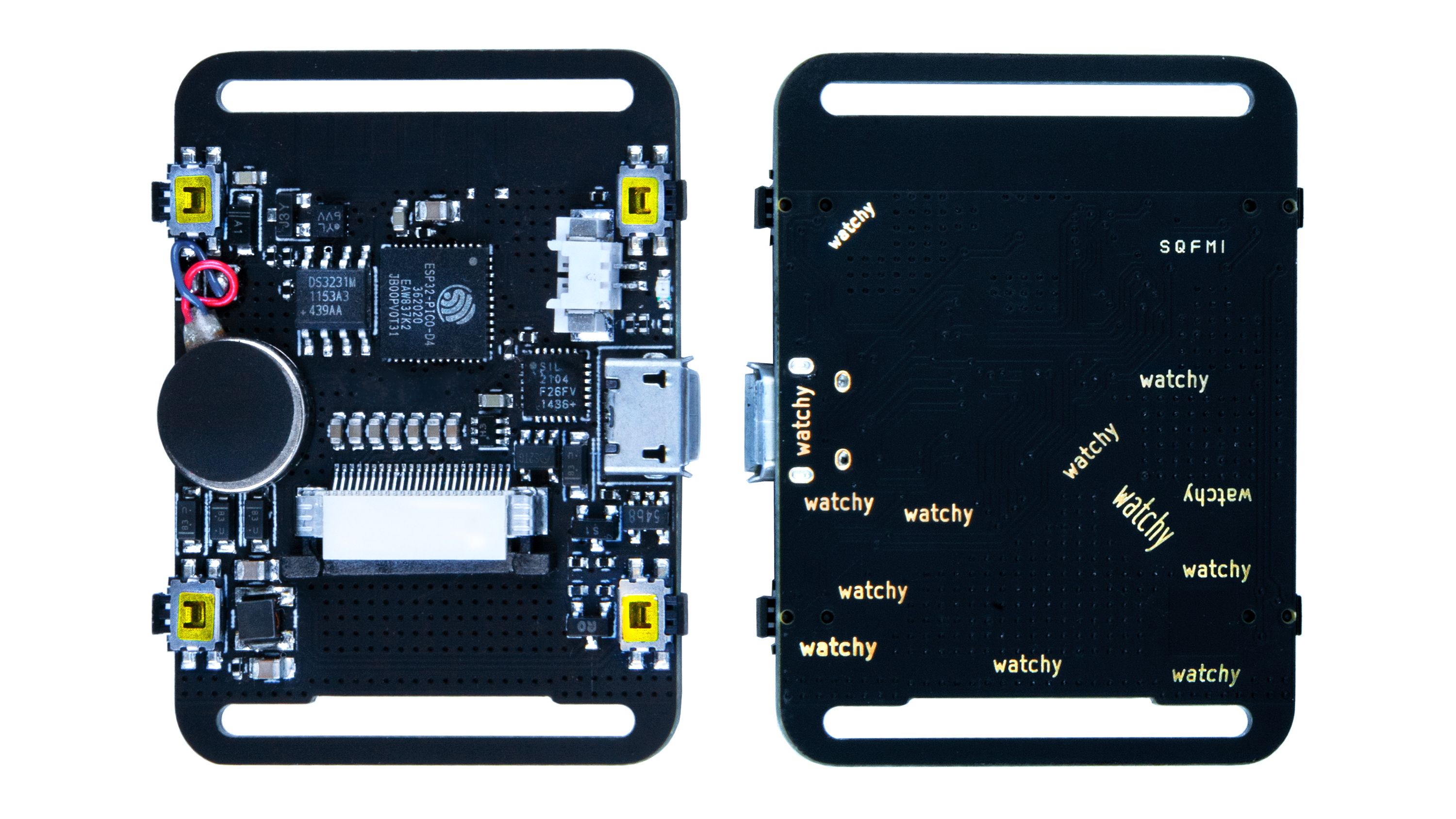

Watchy is an E-Ink watch with open source hardware and software. It has a barebones design utilizing the PCB as the watch body, allowing it to be worn as-is, or further customized with different 3D printed cases and watch straps. It is a unique timepiece that is also a wearable development platform, allowing users to create their own experience.

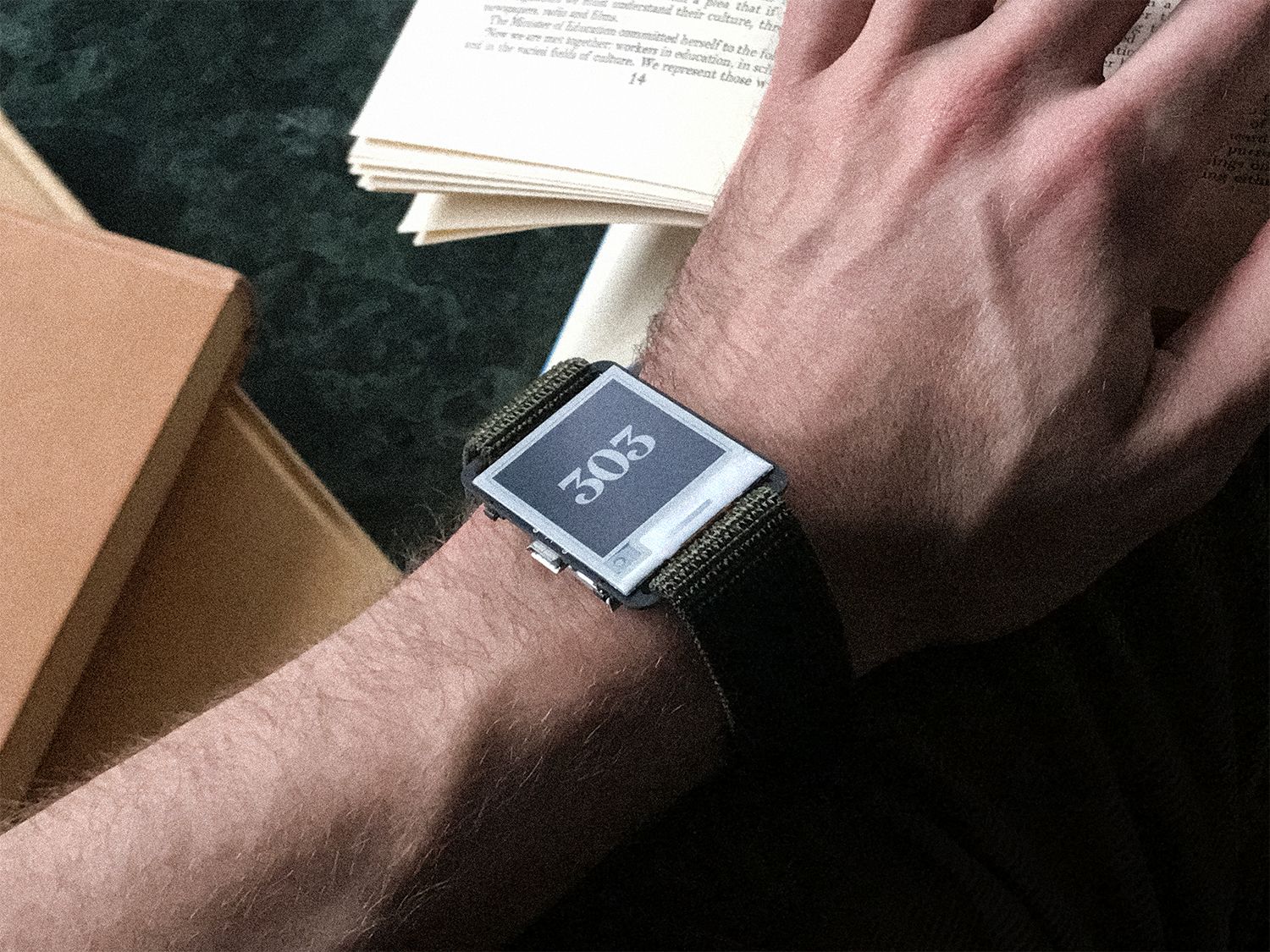

Watchy with the Calculateur watch face by Jochen (@asWeMay). Image used with permission.

Watchy’s E-Ink display delivers an always-on, beautiful, crisp image clearly visible under bright sunlight, and requires no power between updates. At 200 x 200 pixels and monochrome, the display offers a distinctive aesthetic.

Watchy has both Wi-Fi and Bluetooth LE connectivity, allowing it to connect with internet APIs (e.g., weather, news, traffic, maps, Spotify, etc.), as well as Bluetooth LE enabled devices.

With makers/hackers/tinkerers in mind, we chose the ESP32 for its large community and support for a wide variety of development options, such as Arduino, Micropython, ESP-IDF, and Zephyr-RTOS.

Watchy product brief

Click to enlarge

Features & Specifications

  • Ultra-low-power e-paper 1.54" display with 200 x 200 resolution and wide viewing angle
  • Wi-Fi & Bluetooth LE connectivity
  • 3-axis accelerometer with gesture detection
  • Real-time clock for accurate time keeping with calendar and alarm functions
  • Built-in USB-to-serial adapter for programming on the go
  • Vibration motor for alerts
  • Four tactile buttons
  • Open source hardware & software
  • Tons of examples & cool watch faces
  • 3D case designs (stls) to customize your watchy (and watch straps)

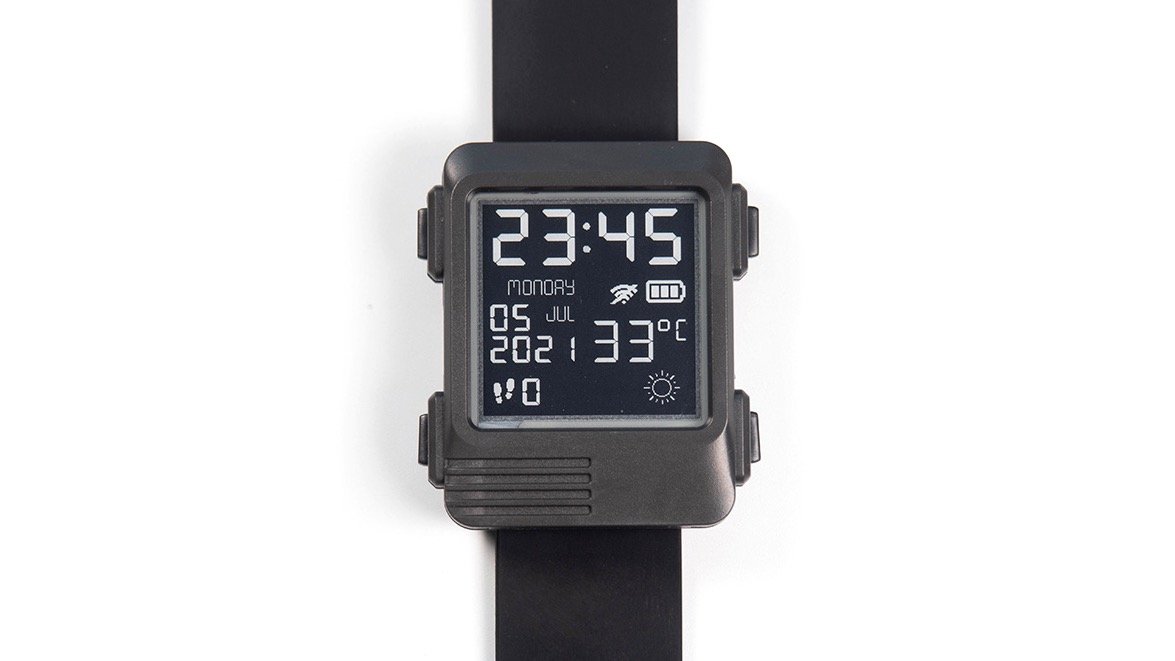

  • New injection-molded plastic case
Watchy schematic diagram

Click to enlarge

New Enclosures

This Crowd Supply campaign addresses one of the most frequently requested features of Watchy — an enclosure! Though we think the plain PCB look is one of the most distinctive features of Watchy, and will continue to offer new 3D printed watch case designs, we think a lot of fans would appreciate a nice injection-molded plastic or CNC anodized aluminum case.

Injection-molded Case

Every Watchy produced as part of this campaign will be bundled with a new watch case! We will be offering three of our own designs, and we will solicit third-party submissions for a vote during the campaign. We will then select which design will be mass produced and offered to everyone!

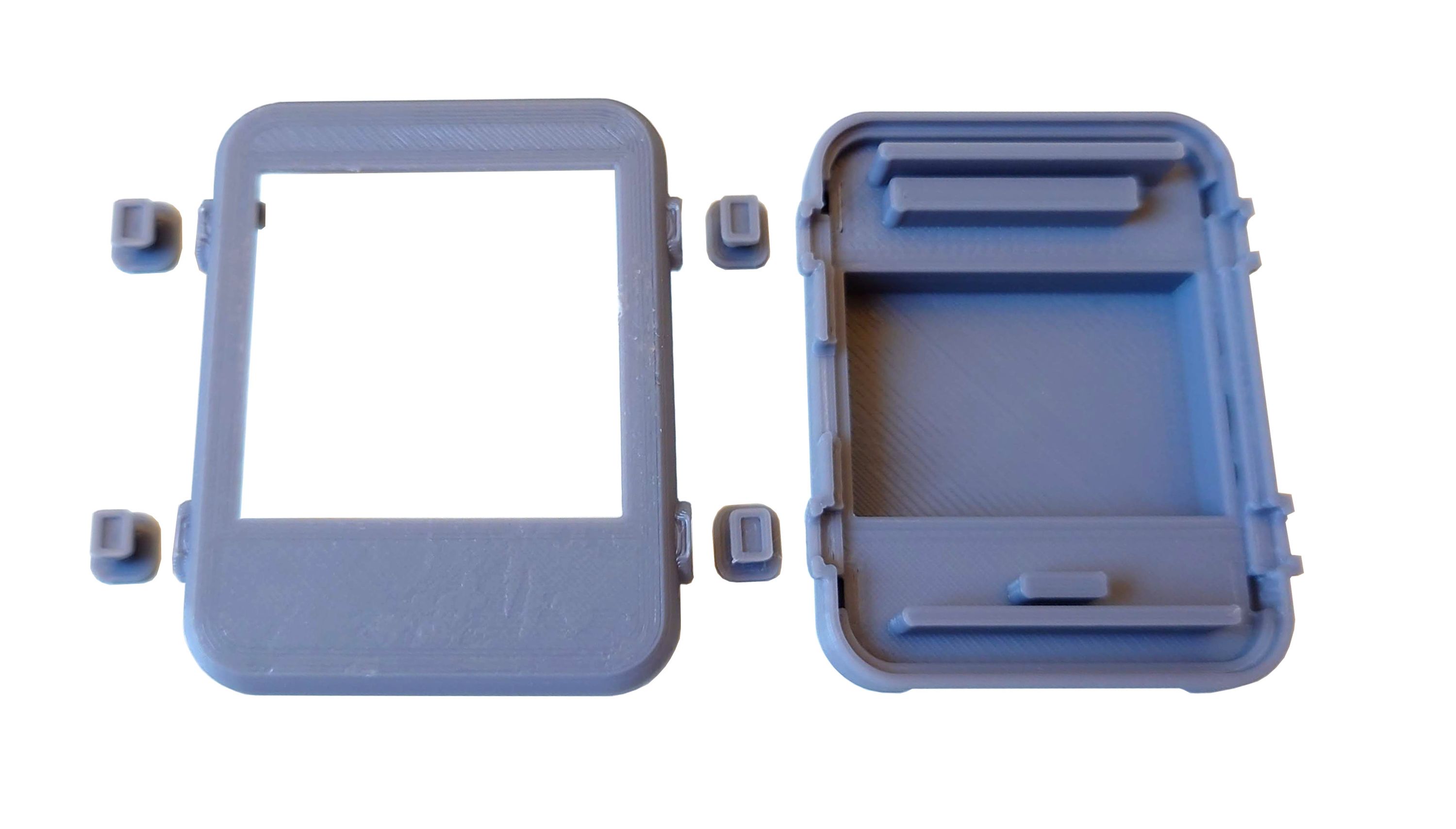

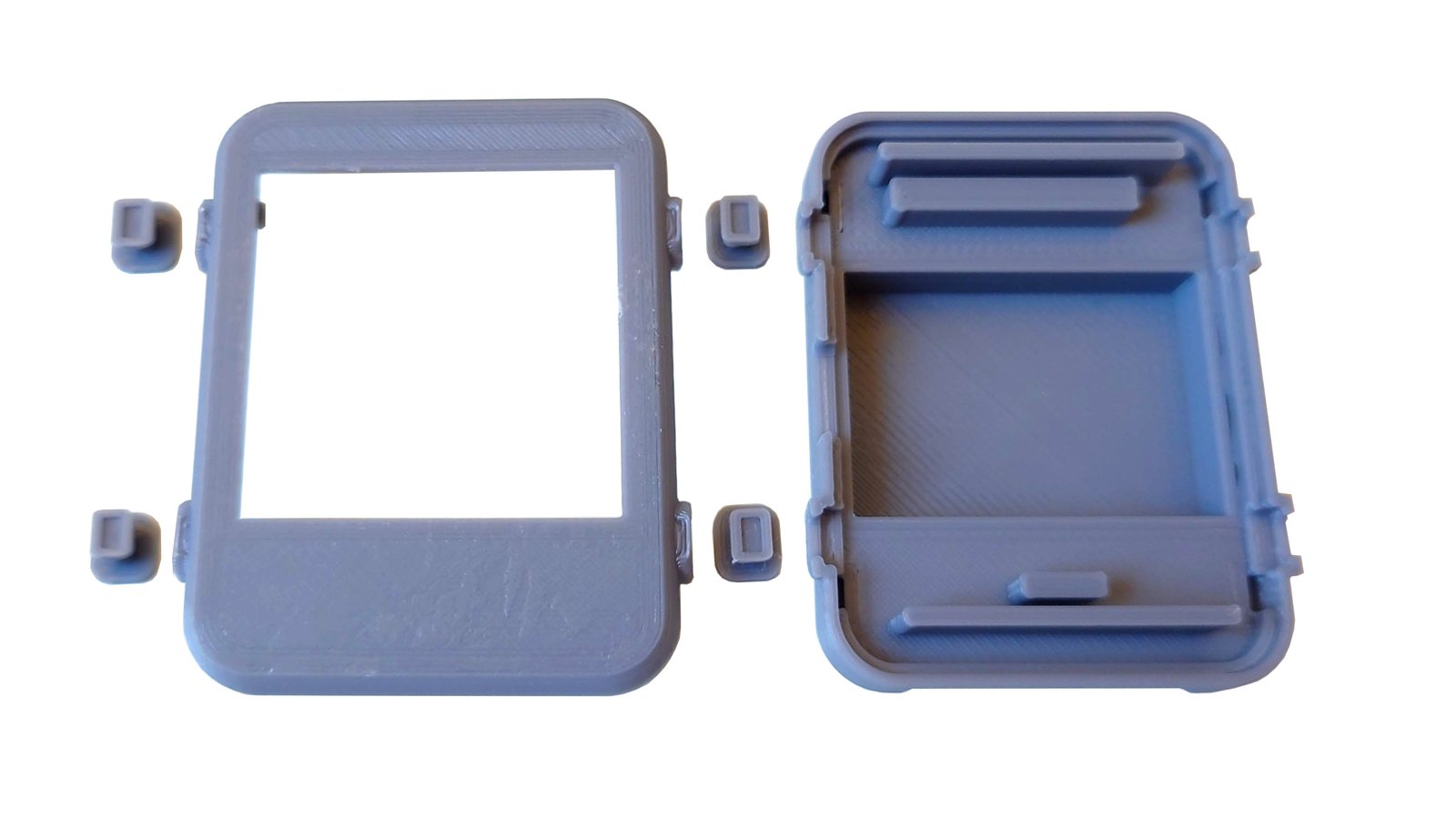

Watchy 3D printed case

Watchy 3D printed case - this campaign introduces a new injection-molded case in a color to be determined

CNC Anodized Aluminum Case

For those who don’t mind the extra weight and want a more rugged enclosure, a separate pledge level is available for a CNC anodized aluminum watch case.

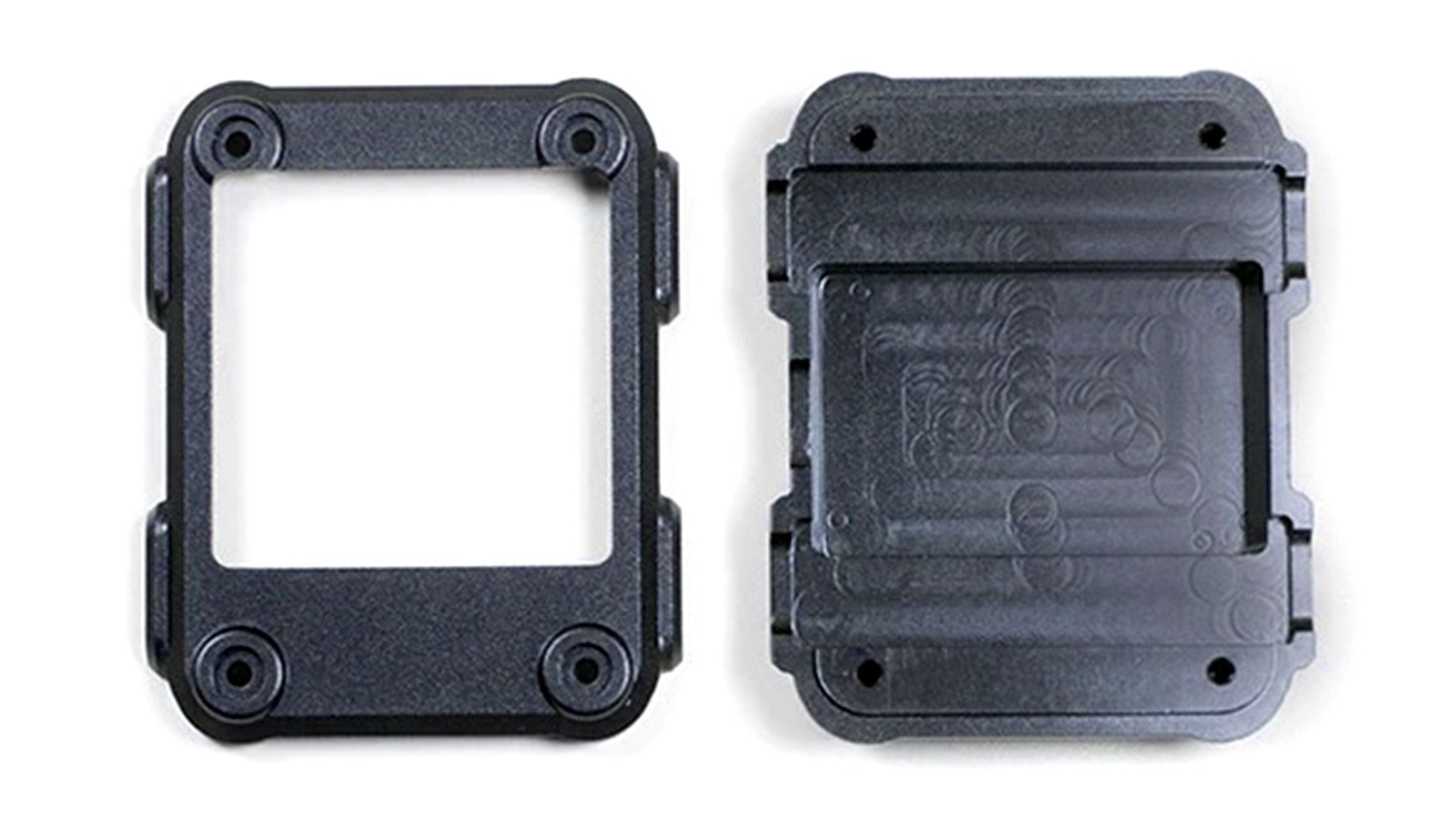

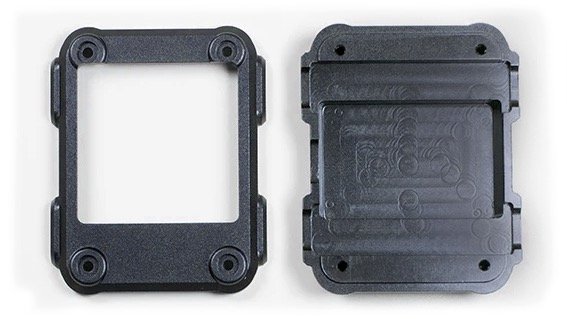

First sample of the aluminum enclosure, which includes a black-anodized front, black-anodized back, four clear-anodized buttons, and four stainless steel M3 screws.

What’s in the box?

Backers of the Watchy Kit + Case (both early bird and regular) will get the kit pictured below, plus the new injection-molded plastic enclosure (not shown).

The Anodized Aluminum Case pledge level on its own includes only the new aluminum enclosure.

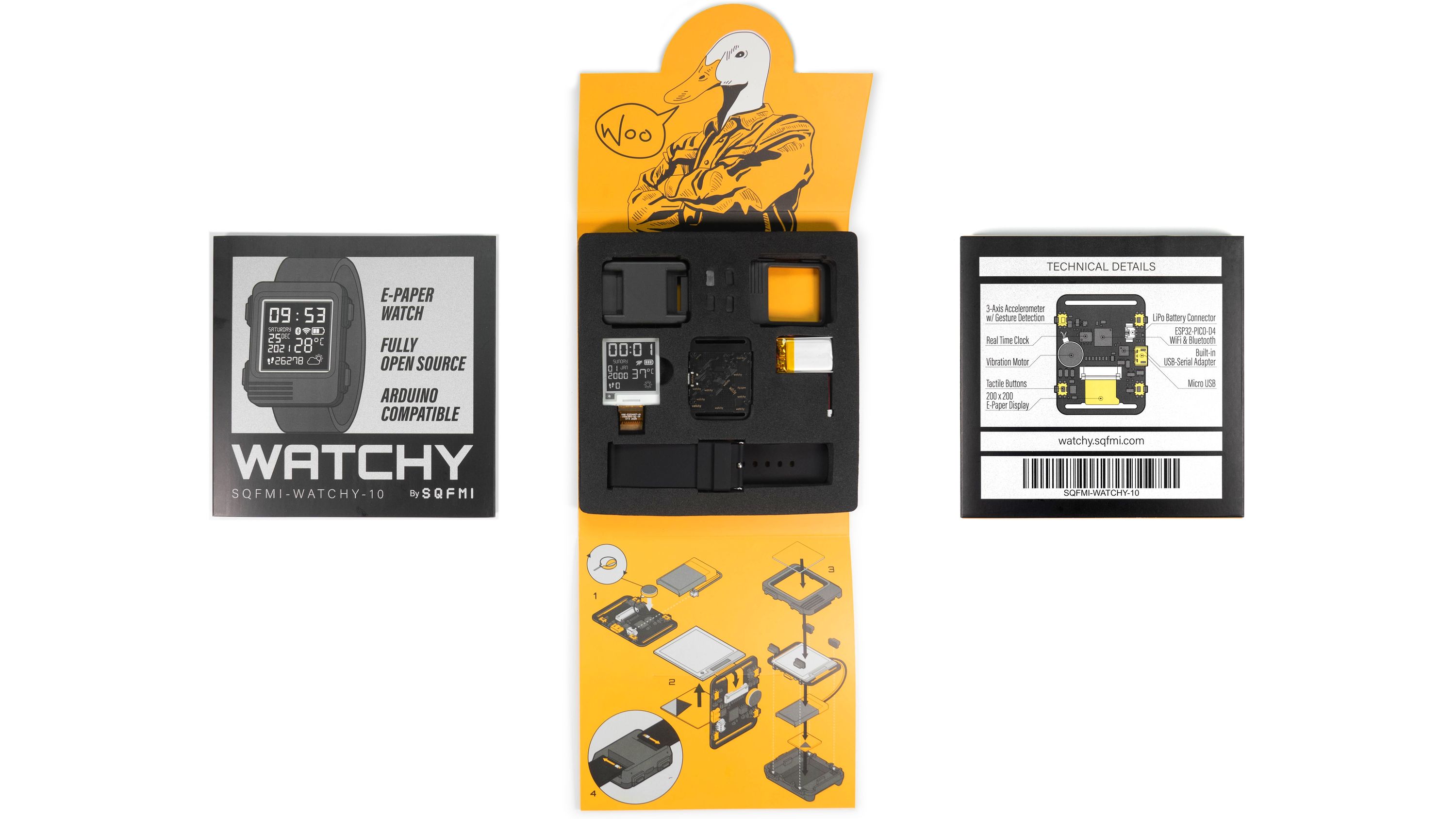

Watchy Kit product packaging (left), Watchy Kit unboxing (center), fully assembled Watchy (right)

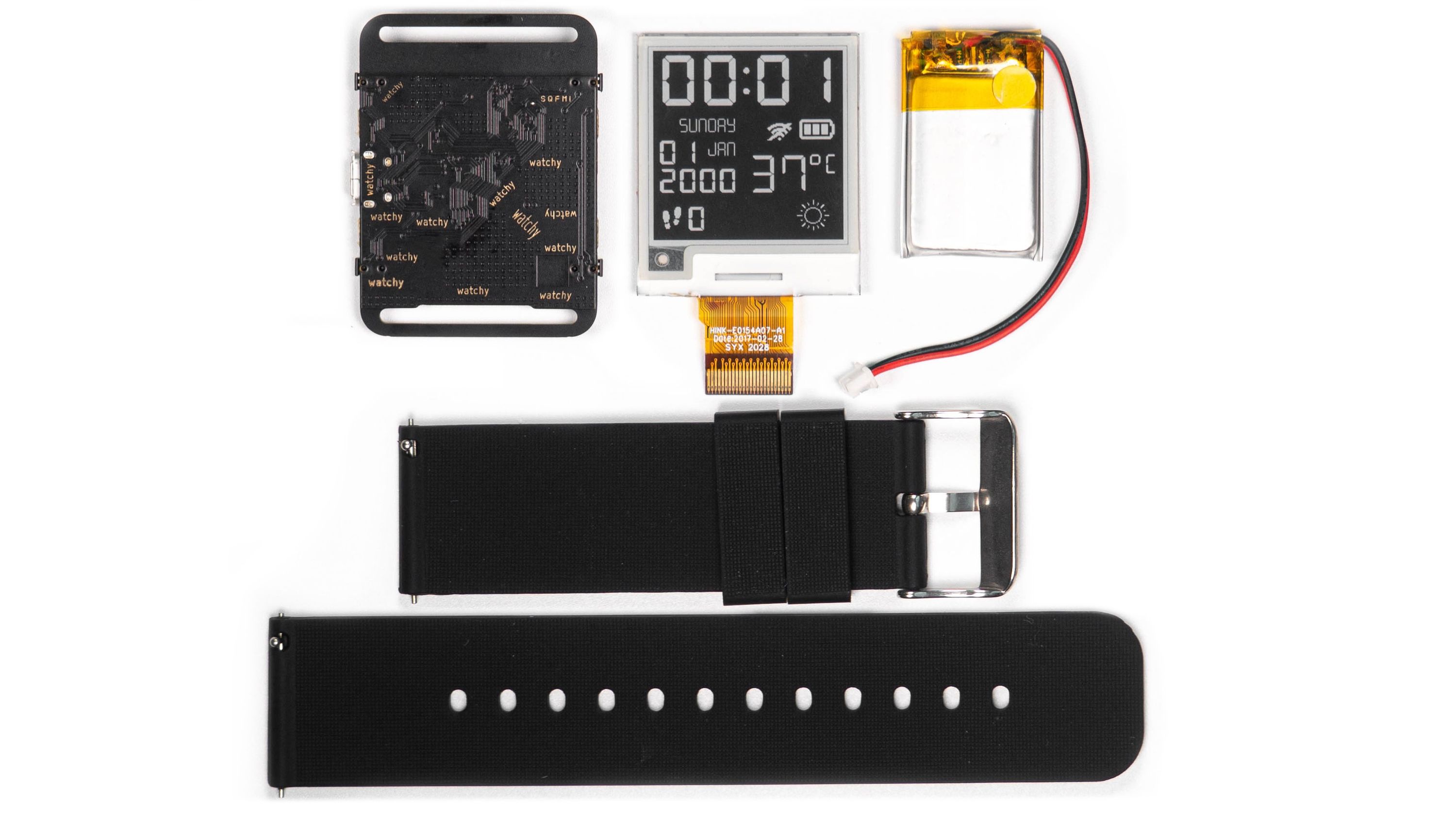

Watchy Kit components (left to right, top to bottom): E-Ink display, assembled PCB, battery, wrist strap

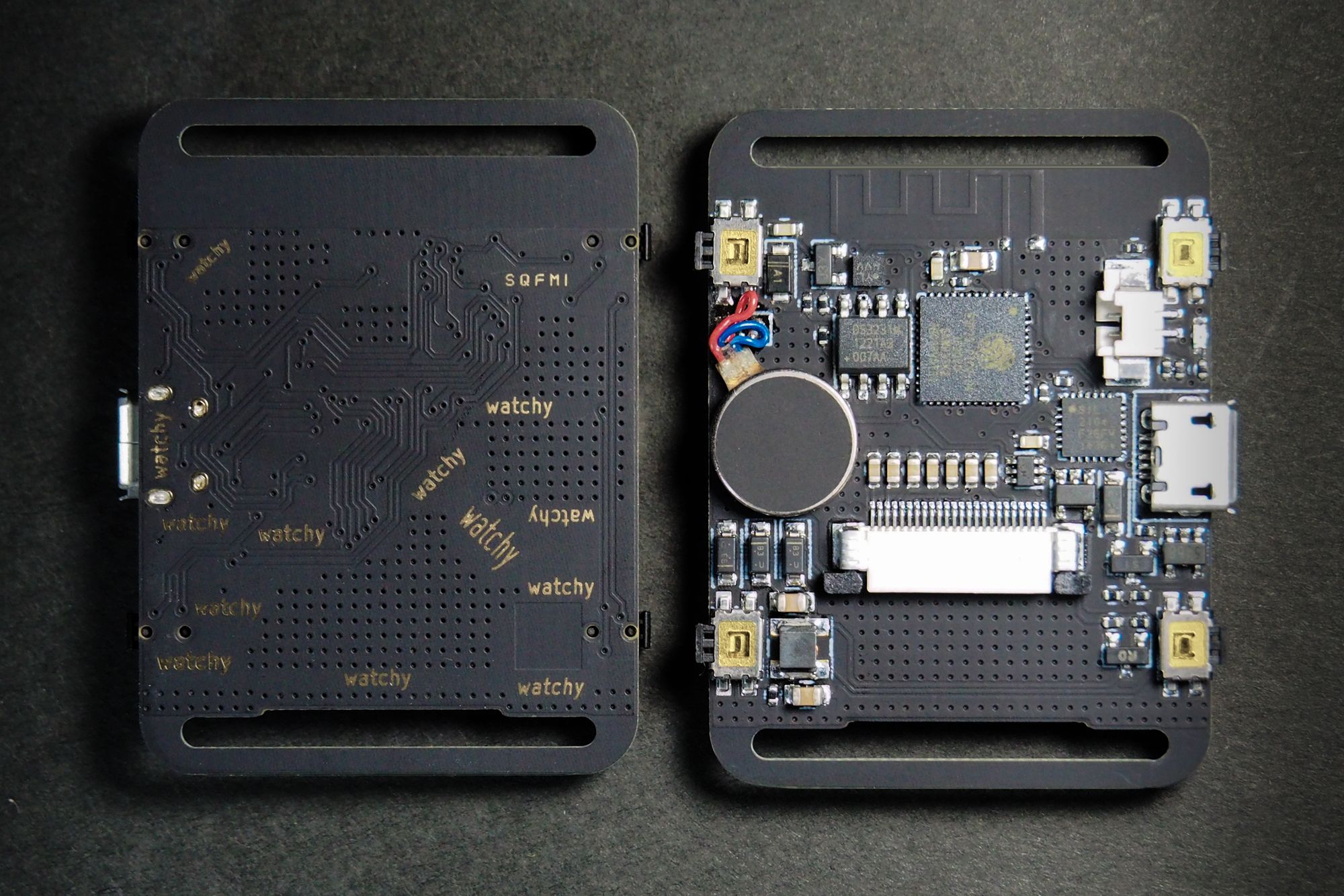

A fully assembled Watchy without an enclosure

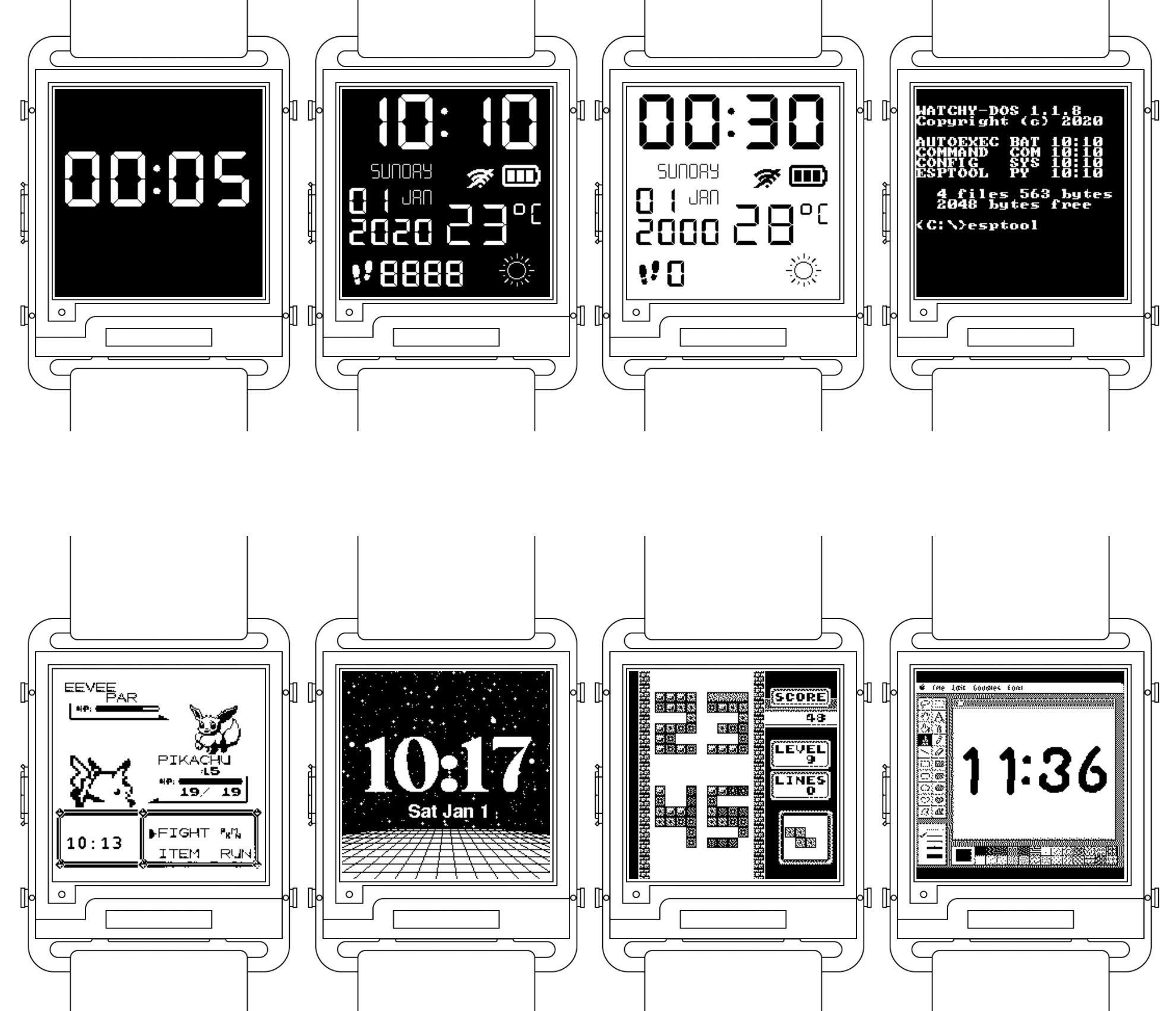

Custom Watch Faces

Check out our watch face gallery. We regularly create new watch faces and showcase community creations. Every watch face is fully open source and part of our Arduino Library.

Open Source

Everything about Watchy is open source under the MIT License and OSHWA-certified:

OSHW US000936

Comparisons

Watchy PineTimeBangleJSPebble OG
ManufacturerSQFMI Pine64 Espruino Pebble
Display1.54" 200x200 E-Ink 1.3" 240×240 LCD 1.3" 240x240 LCD 1.26" 144x168 memory LCD
ProcessorESP32-PICO-D4 nRF52832 nRF52832 STM32F205RE
ConnectivityWi-Fi and Bluetooth Bluetooth Bluetooth Bluetooth
Programming InterfaceBuilt-in USB-serial External pogo pins/SWD Bluetooth Bluetooth
Tactile Buttons4 1 3 4
Touch PanelNone Yes YesNone
SensorsAccelerometer Accelerometer + Heart Rate Accelerometer + Magnetometer + Heart Rate + GPS Accelerometer + Magnetometer
RAM520 KB 64 KB 64 KB 128 KB
FLASH4 MB 512 KB + 4MB 512 KB + 4MB 512 KB + 8 MB
Battery200 mAh 180 mAh 350 mAh 130 mAh
Weight18 g 38 g Unknown 38 g
Thickness9 mm 11 mm 17 mm 11.5 mm
Width34 mm 37.5 mm 50 mm 36 mm
Length46 mm 40 mm 50 mm 52 mm
WaterproofNo IP67 IP68 40 m
Open SourceHW+SW+3D HW+SW SW No
OSHWA CertifiedYes No No No
Design Files AvailableAll Schematic No No
3D-printable Watch CasesYes No No No
Price$59 $24.99 $95 $99

Support & Documentation

Watchy comes with comprehensive documentation and Arduino code examples that demonstrate every hardware feature. New watch faces and examples are regularly added.

Fulfillment & Logistics

All orders are shipped by Crowd Supply via their logistics partner, Mouser Electronics. For more information, you can refer to this useful guide to ordering, paying, and shipping. You can confirm and update your order details and more in your Crowd Supply account.

Manufacturing Plan

At Squarofumi (SQFMI), we have our own manufacturing line, as well as established close partnerships with several other manufacturers to help us scale. We have iterated over Watchy’s design many times since 2018 and it is DFM ready. From Badgy to Watchy, we have since produced thousands of E-Ink gadgets; we are confident to mass produce and deliver the version of Watchy offered in this campaign with quality and on time.


Credits

SQFMI

An abbreviation of Squarofumi [ skwair-oh-foo-mee ]. A group of art and technology enthusiasts, bringing transformative ideas to life.
