The Smart Way to Wire Your Home

When you hear "wired home automation," you probably think "difficult and costly." Well that’s about to change. We believe it’s high time that enthusiasts all over the world be given the resources they need to assemble a proper wired home automation system. GetWired provides reliable hardware and easy-to-use software that will help you get the job done right.

Reliable, open, and easy-to-use. GetWired is built around the well-known and widely-trusted RS485 communication standard. It relies on the open-source MySensors communication protocol and is compatible with Arduino IDE. It is ready for plug & play interaction with a large variety of open-source home automation controllers, including Domoticz and Home Assistant.

Fast, safe, and battery-free. Given the growing popularity of wireless communication standards, one could be forgiven for thinking that wired systems might just be a thing of the past. But the truth is, wired home automation come with a host of advantages:

• Communication stability is far superior
• The throughput of communication is higher and the latency is lower
• Interfaces are immune to many of the vulnerabilities that plague wireless systems
• Preventing access to automation modules through Wi-Fi improves security and privacy
• Nobody enjoys replacing batteries

When planning a smart home, these are some of the most important factors to consider for long-term reliability.

Decentralized Architecture

Wiring your home with actual wires has a reputation for requiring a fair bit of cable, a lot of effort, and even more time. To minimize all three, we have designed GetWired to accommodate a decentralized system architecture characterized by wall-mounted modules distributed throughout the building. This architecture requires only a single additional cable, which can be routed alongside your traditional electrical infrastructure. While we eventually intend to offer products for those who prefer a classic, centralized smart home architecture (and our portfolio already includes a few switchboard-mounted designs like the 4RelayDin Shield), we are firm believers in the virtue of decentralization.

Privacy Respecting & Security Aware

It’s been a busy couple of years for tech journalists who specialize in home automation exploits and IoT vulnerabilities. The recent proliferation of wirelessly-connected, Internet-enabled, sensor-laden devices has produced something of a horror show. Weak security defaults, firmware that never updates itself, sprawling attack surfaces, and a lack of defense in depth have all contributed to the current state of affairs. And now we have to read stories about electronic deadbolts that unlock when asked politely, doorbell cams that expose their admin interfaces on the Web, devices that get recruited into botnets and used to attack other devices, and smart speakers that suffer from demonic possession (and that, on a good day, spend their time siphoning up our personal data).

One of the primary reasons we began working on GetWired was to address the very real privacy and security threats faced by IoT devices and home automation products alike. By limiting attack surfaces, facilitating updates, and keeping topologies simple and transparent, we aim to make your smart home as safe as an old-fashioned light switch.

Aggressively Compliant with Best Practices

Take wired communication, for example. We don’t just recommend it because it’s widely recognized as a home automation best practice. We recommend it for the same reason we recommend that your walls be solid and your roof be water resistant. It just makes sense. It’s a house, after all. "Portability" belongs relatively low on your list of priorities.

GetWired’s design also facilitates network isolation – keeping systems like GetWired on their own physical network – which is another best practice. Network isolation, in turn, helps you control if and when GetWired has access to the Internet. While there are reasons to let your household infrastructure go online, you probably don’t want it to do so accidentally.

Finally, if a vulnerability is found in GetWired – and even if, despite the efforts described above, that vulnerability does end up within reach of some malware on your local network or a malicious actor on the Internet – Firmware-over-the-Wire (FotW) support allows you to fix it with minimal effort.

Features

• Complete: RS485-based wired home automation system capable of controlling home appliances, lighting, roller shutters, and more
• Versatile & Future Proof: Open hardware and open-source software
• Easy to Use: Arduino IDE compatible, easy-to-configure software, and easy-to-mount hardware
• Efficient: Extremely low energy consumption
• Privacy Friendly: Does not require cloud services and does not send anything out on the Internet (unless you tell it to)
• Secure: Modules do not require Wi-Fi Internet access
• Safe: Protected against Electrostatic Discharge (ESD), overcurrent, overvoltage, and reverse polarity
• Reliable: Tested under real life conditions
• Plays Well With Others: Ready for plug & play use with most open-source home automation controllers, including Domoticz and Home Assistant

Comparison Table

It was quite a challenge to prepare the table below, and we think it needs a brief explanation. We chose to compare GetWired with KNX because, as a public standard with decentralized logic, it is the most similar to GetWired in technical terms. Centralized systems like Loxone, on the other hand, take the opposite approach. Control4 represents a set of products that is popular in the US market, and Shelly provides an example of an affordable, easy-to-use, wireless home automation technology. We did our best to double check all of the information presented in this table, but some details were difficult to find. Please let us know if you see any inaccuracies, and we will address them right away.

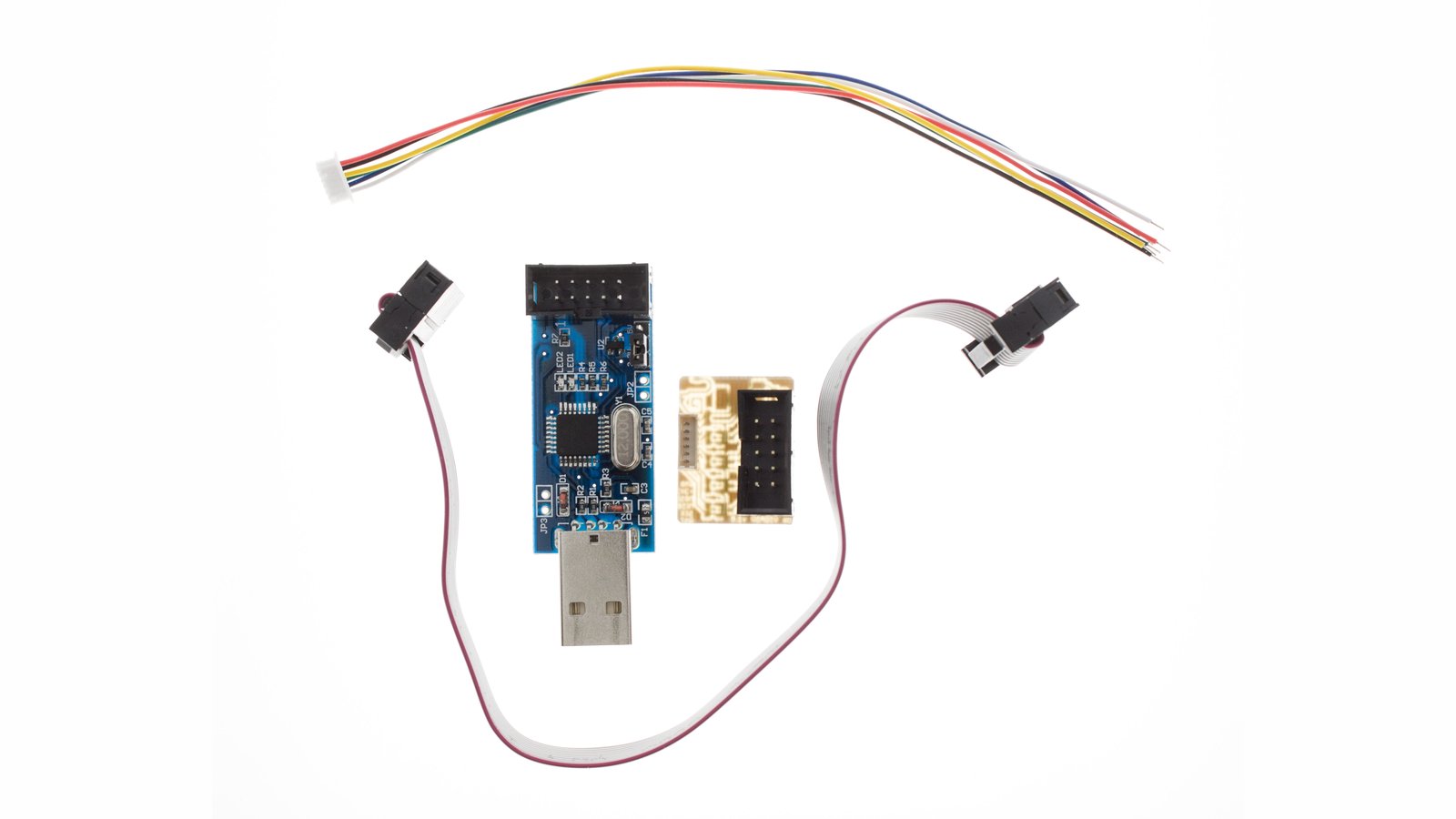

GetWired Modules

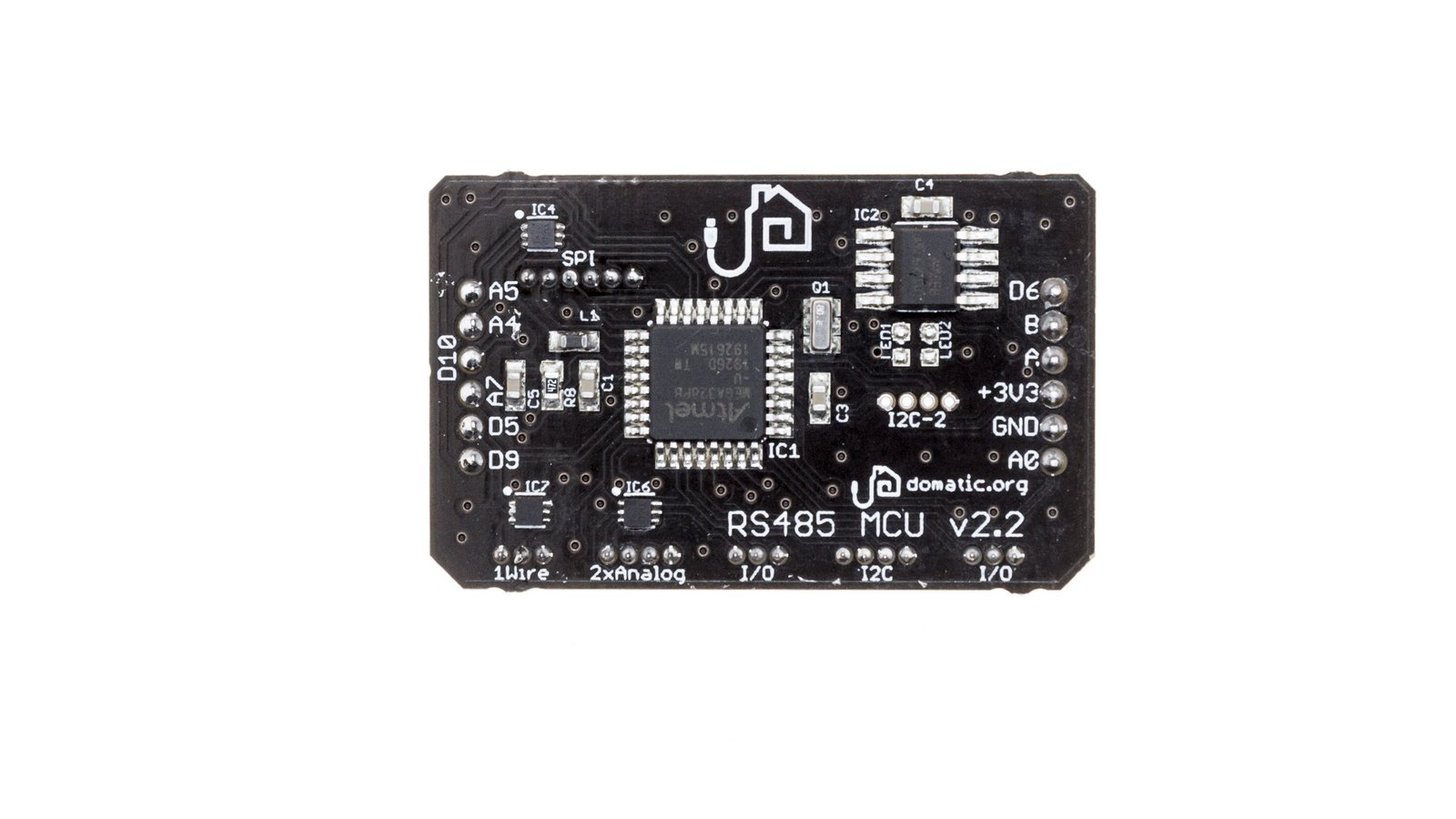

MCU Module

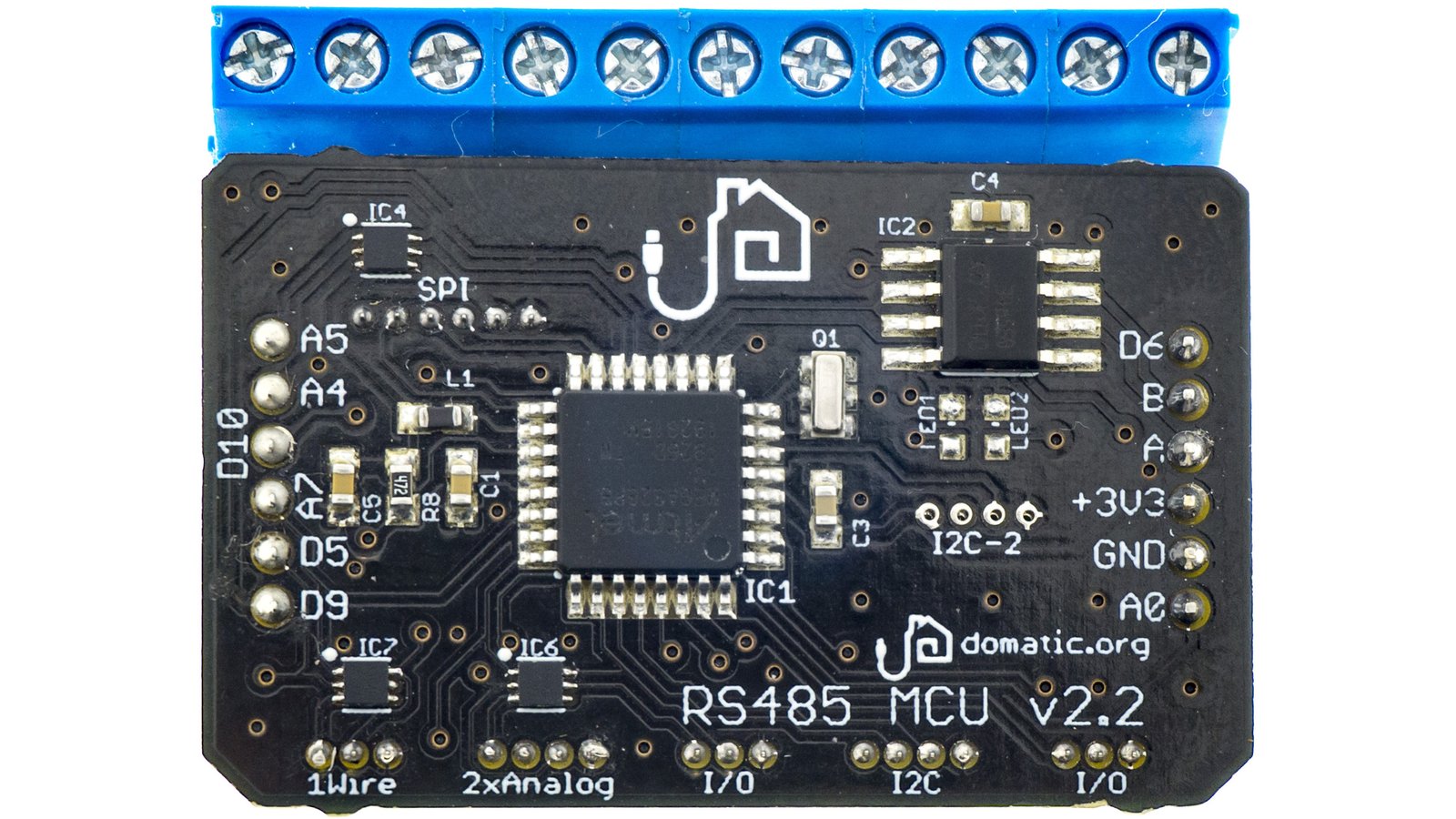

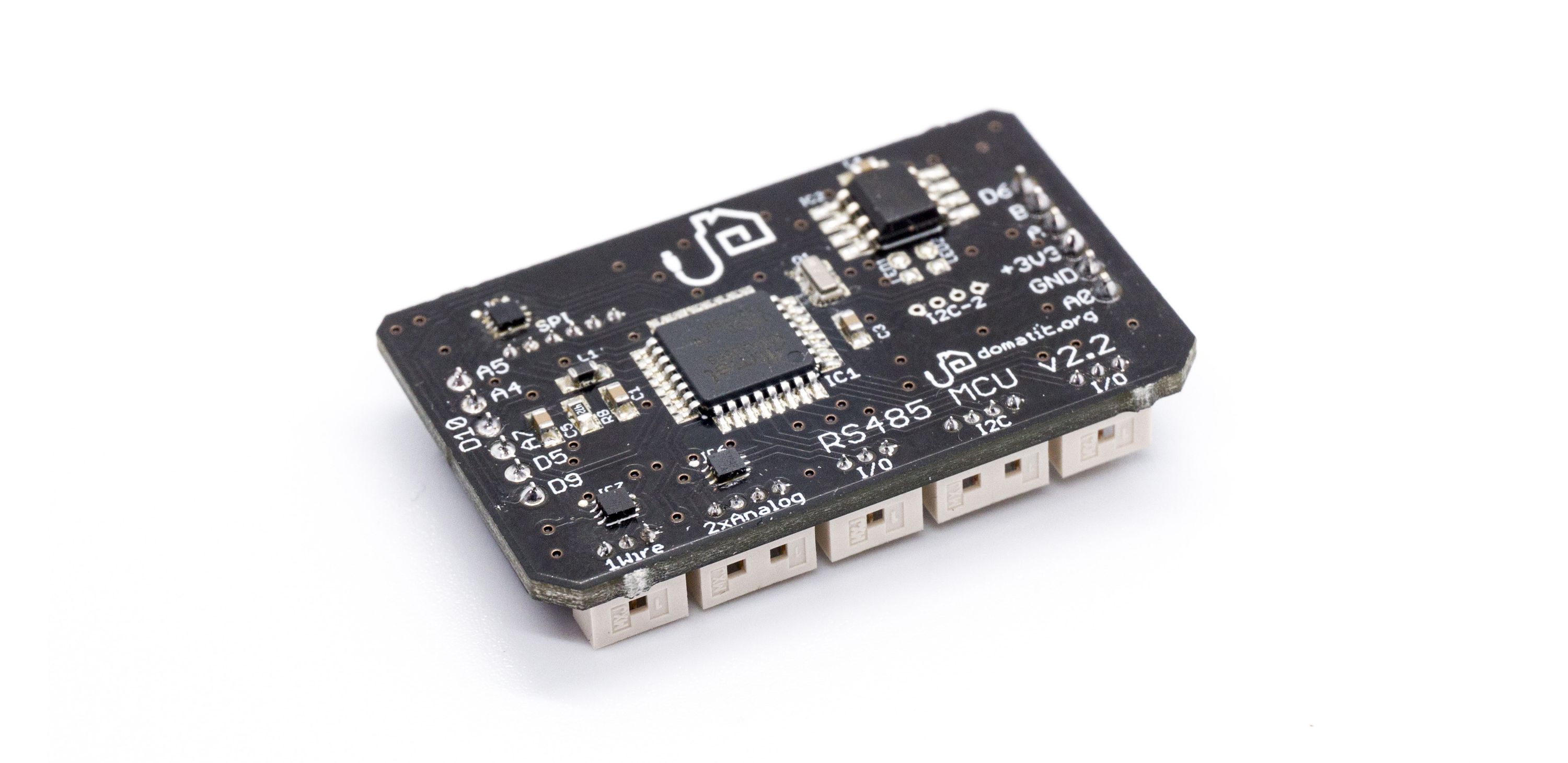

A microcontroller and RS485 transceiver board, with Molex connectors for I/O, that is compatible with a variety of shields. Born of considerable experience with DIY home automation, our MCU Module offers a great many features to home automation enthusiasts while remaining easy to install and use. It is ready for remote, Firmware Over The Wire (FotW) updates and supports various peripherals, including buttons, digital sensors, and analog sensors.

Specifications:

• Microchip ATMEGA328PB microcontroller with 8 MHz clock
• RS485 transceiver working on hardware serial ports for greater speed and reliability
• 64 KB of SPI flash for FotW updates
• 12-pin interface for connecting shields and 6 different Molex connectors for I/O
• PWM, analog, and interrupt pins available
• I²C and 1-wire interfaces (SPI only for programming purposes)
• All I/O interfaces are 15 kV ESD protected
• Extremely compact: 40 mm x 25 mm (40 mm x 34 mm when assembled with an in-wall mountable shield)
• Power consumption under 0.5 W per module (with shield)
• Compatible with 3D-printable enclosures

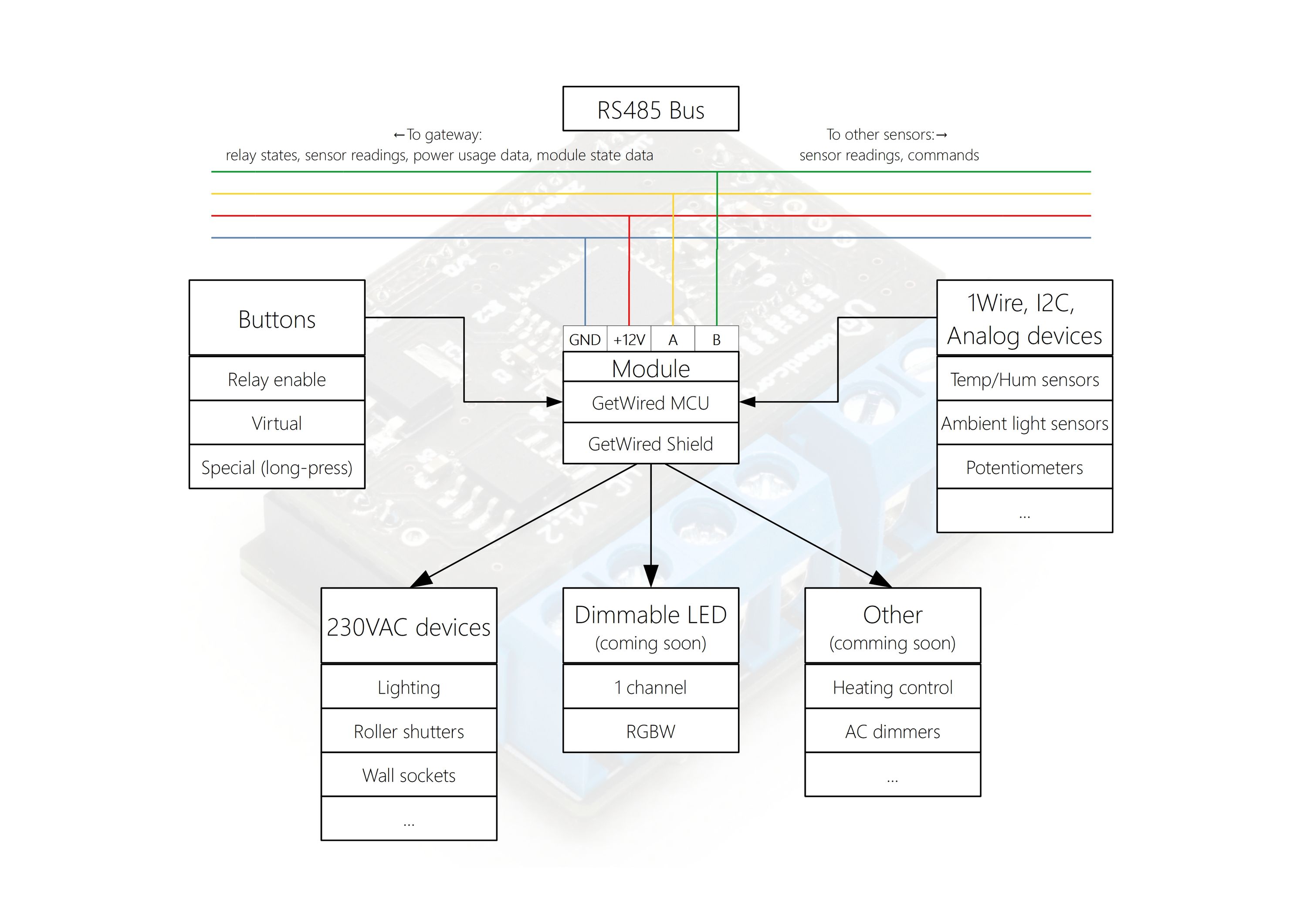

MCU Module Diagram

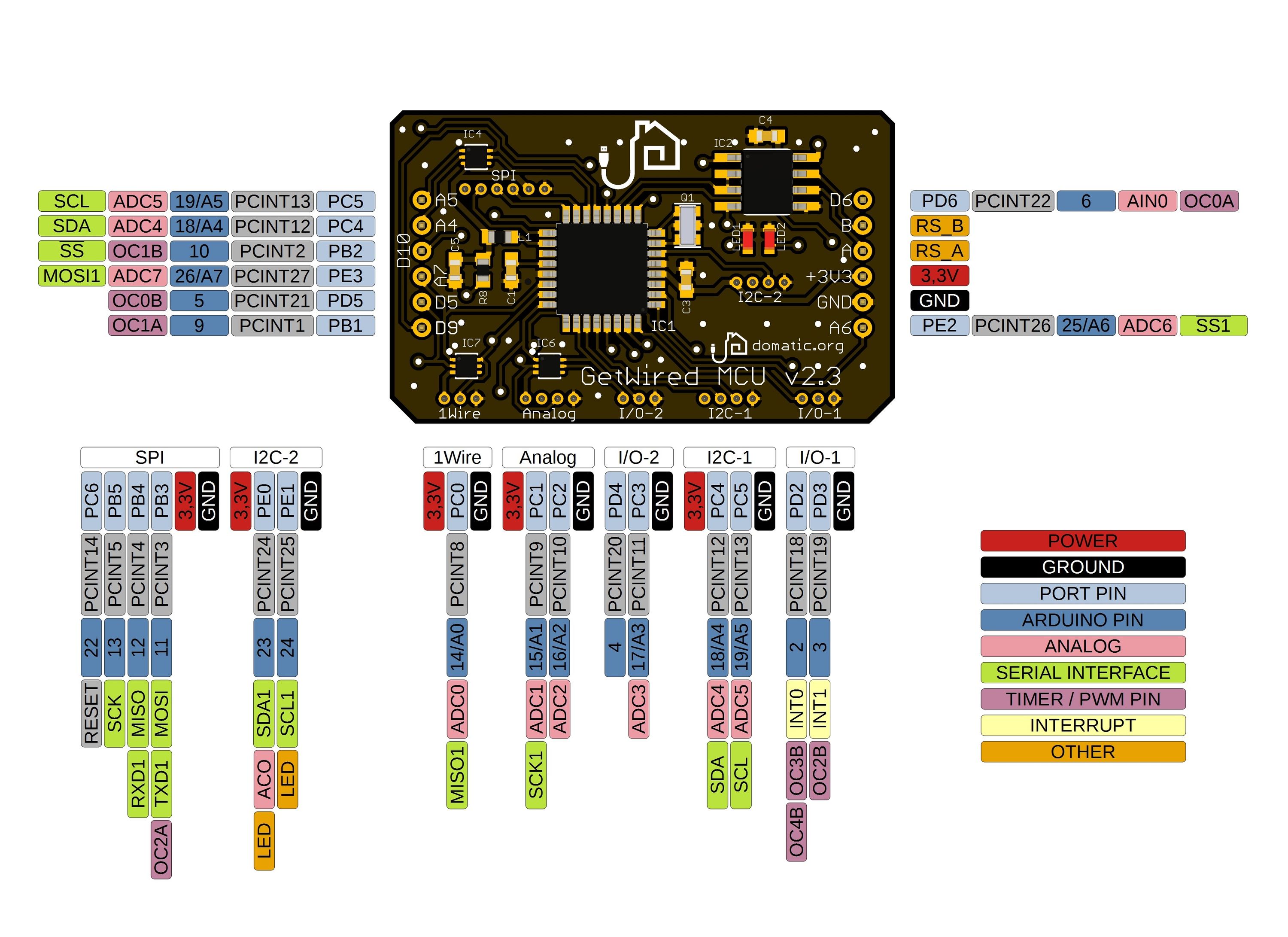

MCU Module Pinout

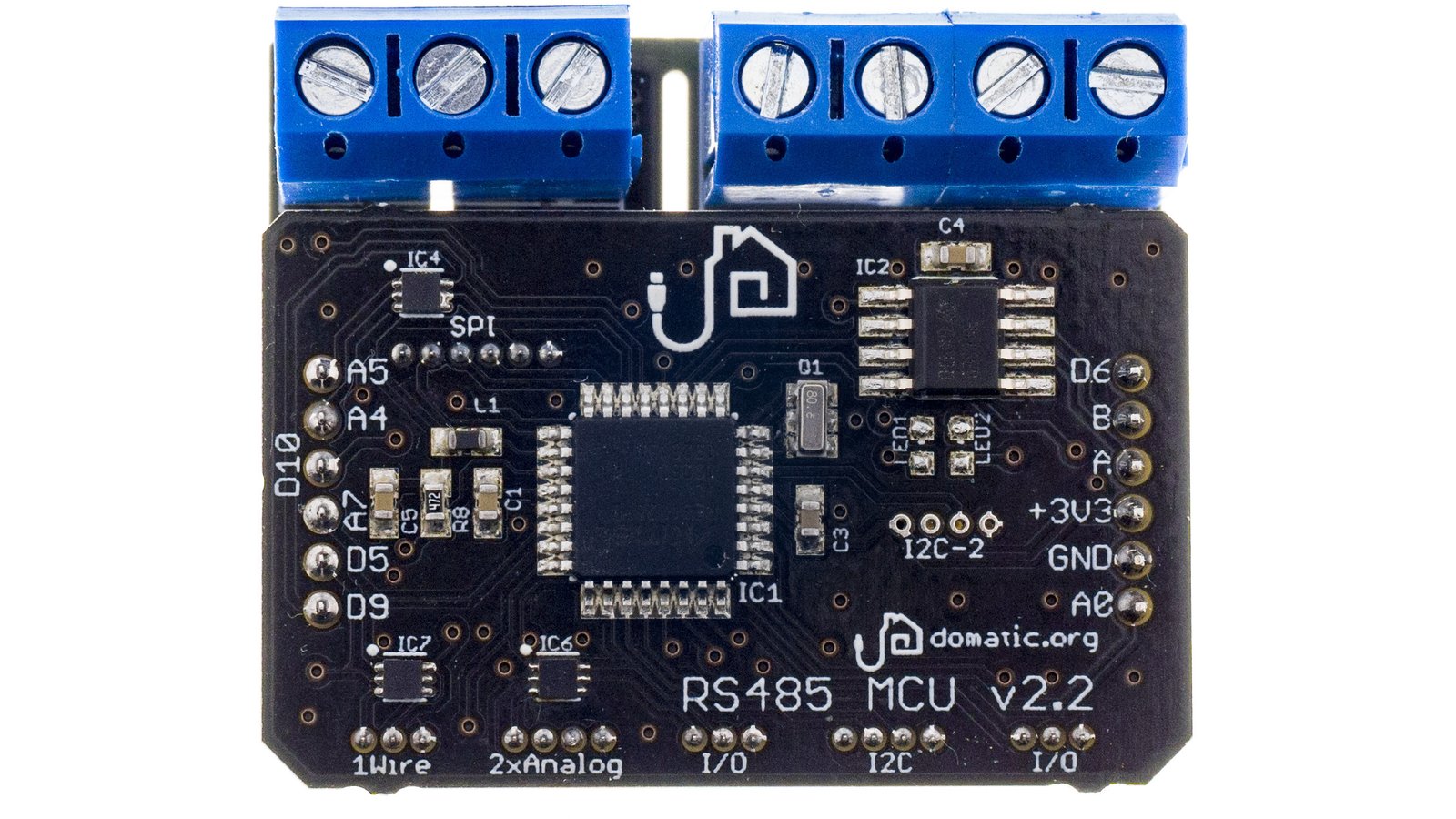

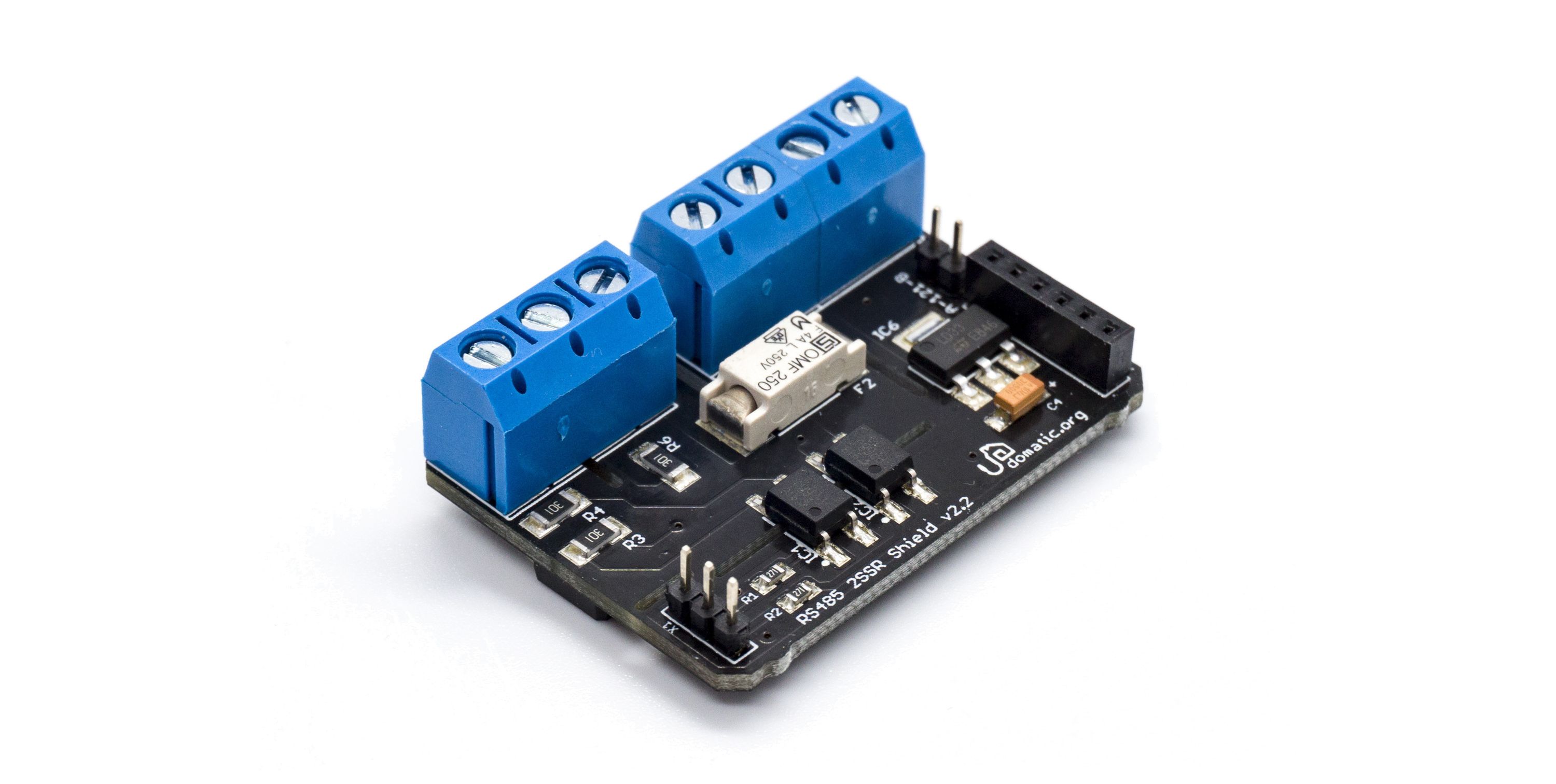

2SSR Shield

An in-wall mountable, 2-channel AC controller shield for the MCU Module. It features solid state relays, supports 200 W of sustained load (tested under 230 VAC), includes an analog current sensor for power monitoring, and is suitable for use with lighting and roller shutters. Our 2SSR Module, which opto-insulates logic from AC load, is electronically, thermally, and physically fused for maximum safety.

Specifications:

• 2x ACST triac, controlled by an opto-triac, for opto-insulation
• Analog current and temperature sensors
• 4 A SMD fuse for AC load
• Protected against ESD, overcurrent, overvoltage, and reverse polarity
• Reusable Positive Temperature Coefficient (PTC) fuse for bus power input
• 8-pin interface for the MCU Module
• 4x screw terminal for bus connection
• 3x screw terminal for AC load connection
• Power consumption (including MCU Module) is under 0.5 W
• Extremely compact: 40 mm x 28 mm

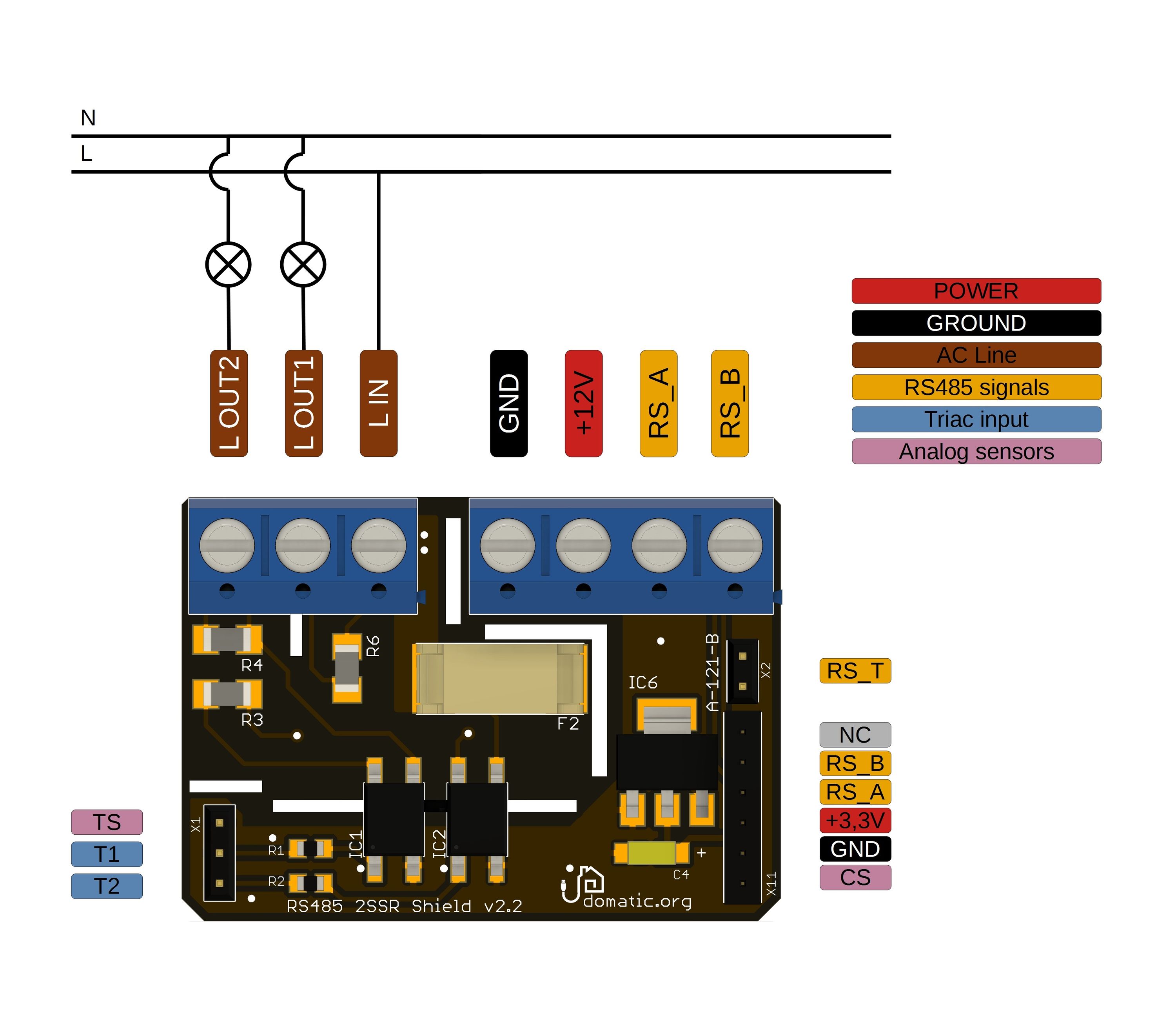

2SSR Shield Pinout

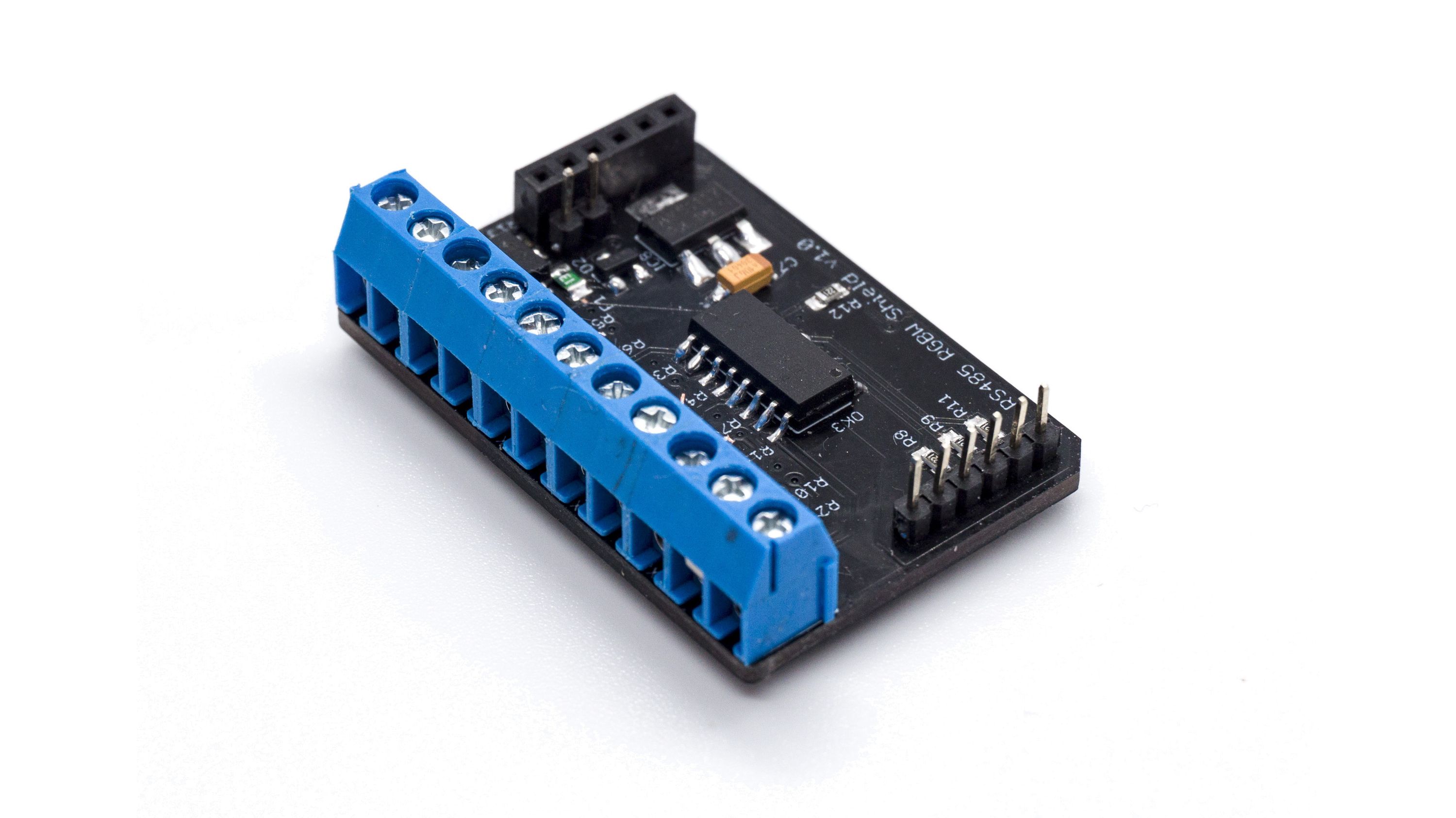

RGBW Shield

In-wall mountable, 4-channel, 12-30 VDC dimmer suitable for use with white, RGB, and RGBW receivers. Includes analog and temperature sensors and is electronically and thermally fused and opto-insulated.

Specifications:

• 4x MOSFET transistor, controlled by phototransistor, for opto-insulation
• Analog current and temperature sensors
• Protected against ESD, overcurrent, overvoltage, and reverse polarity
• Reusable PTC fuse for bus power input
• 12-pin interface for the MCU Module
• 11x screw terminals for load and bus connections
• Power consumption (including MCU Module) is under 0.5 W
• Extremely compact: 40 mm x 28 mm
• 10 A maximum load

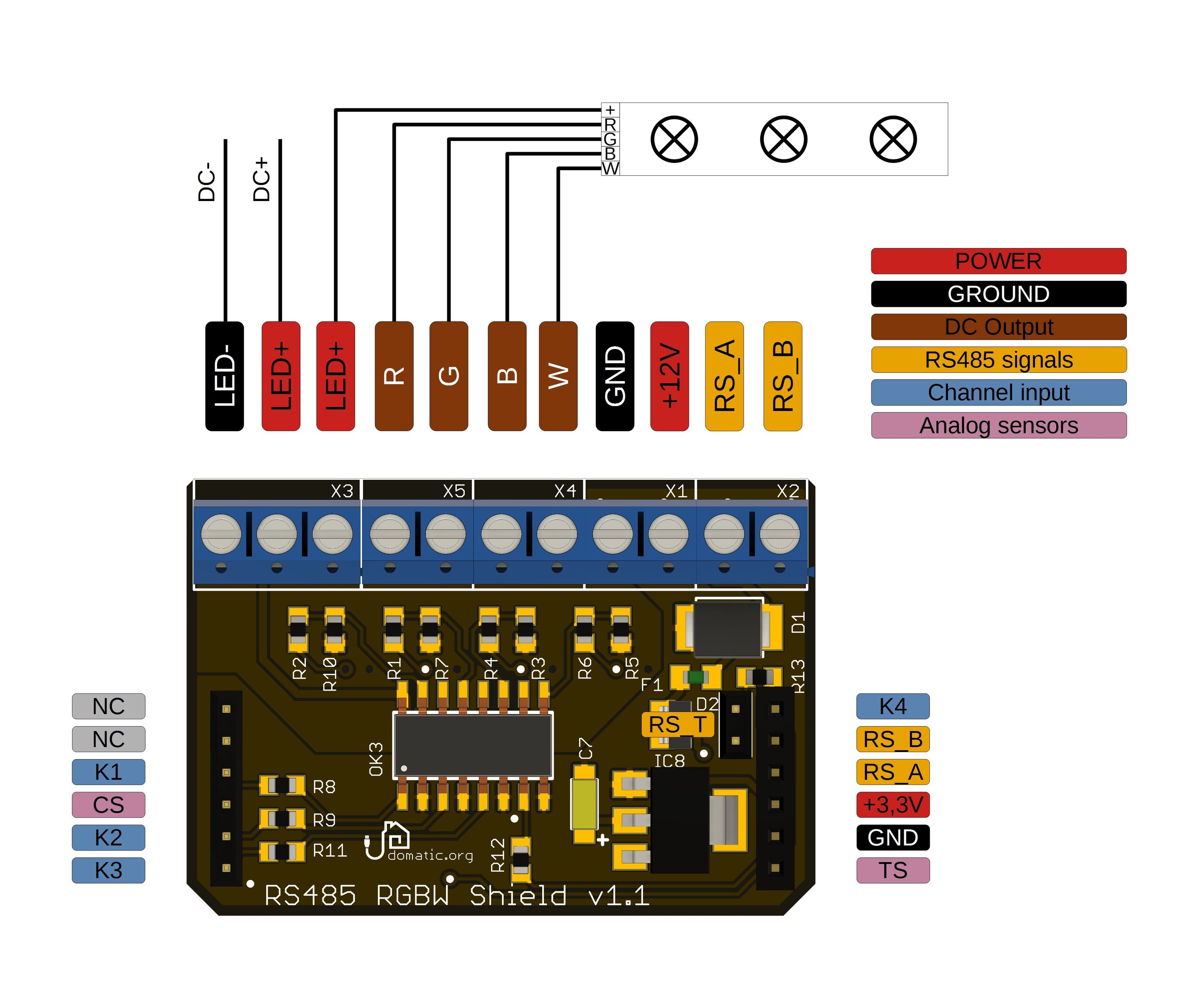

RGBW Shield Pinout

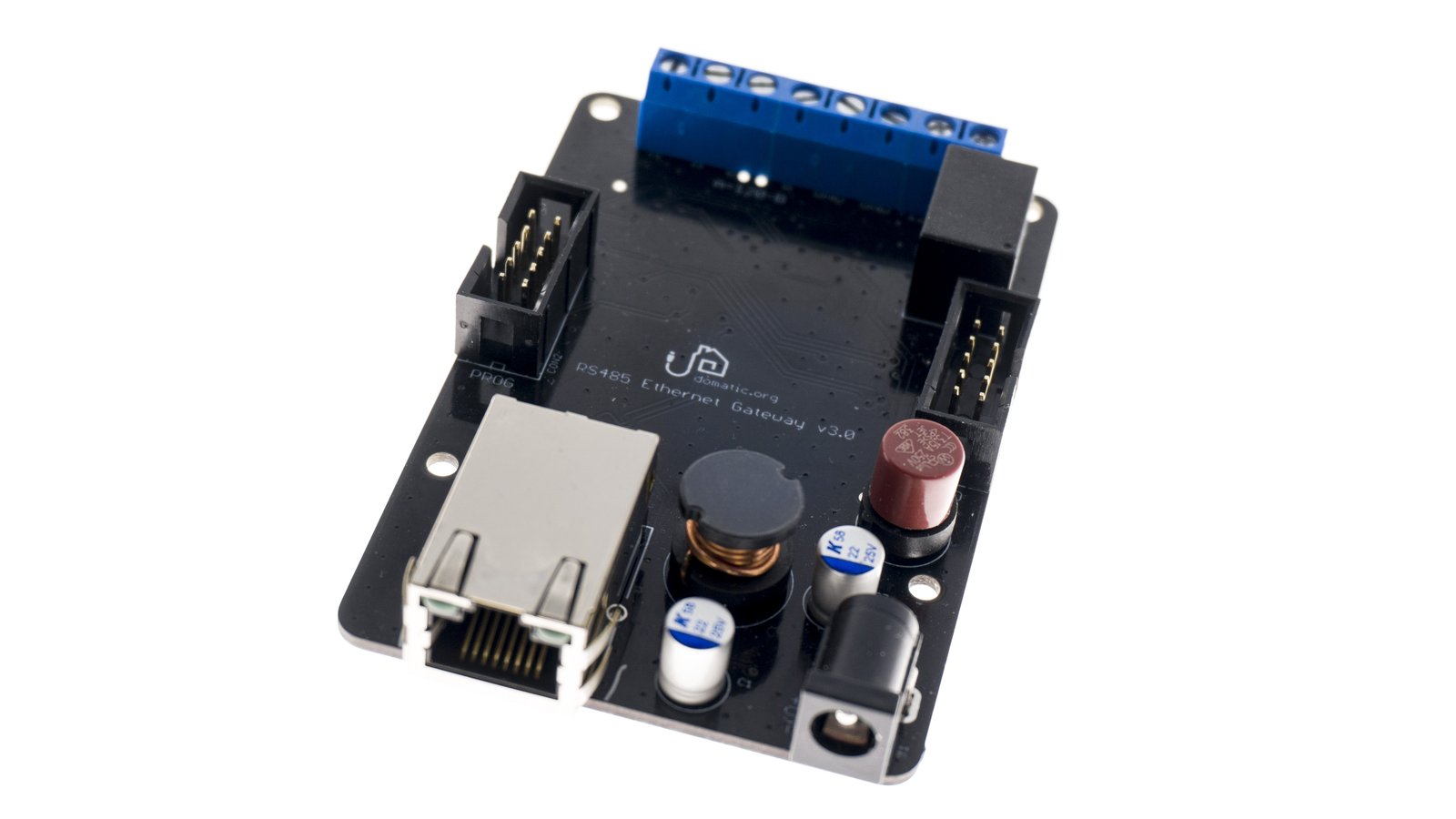

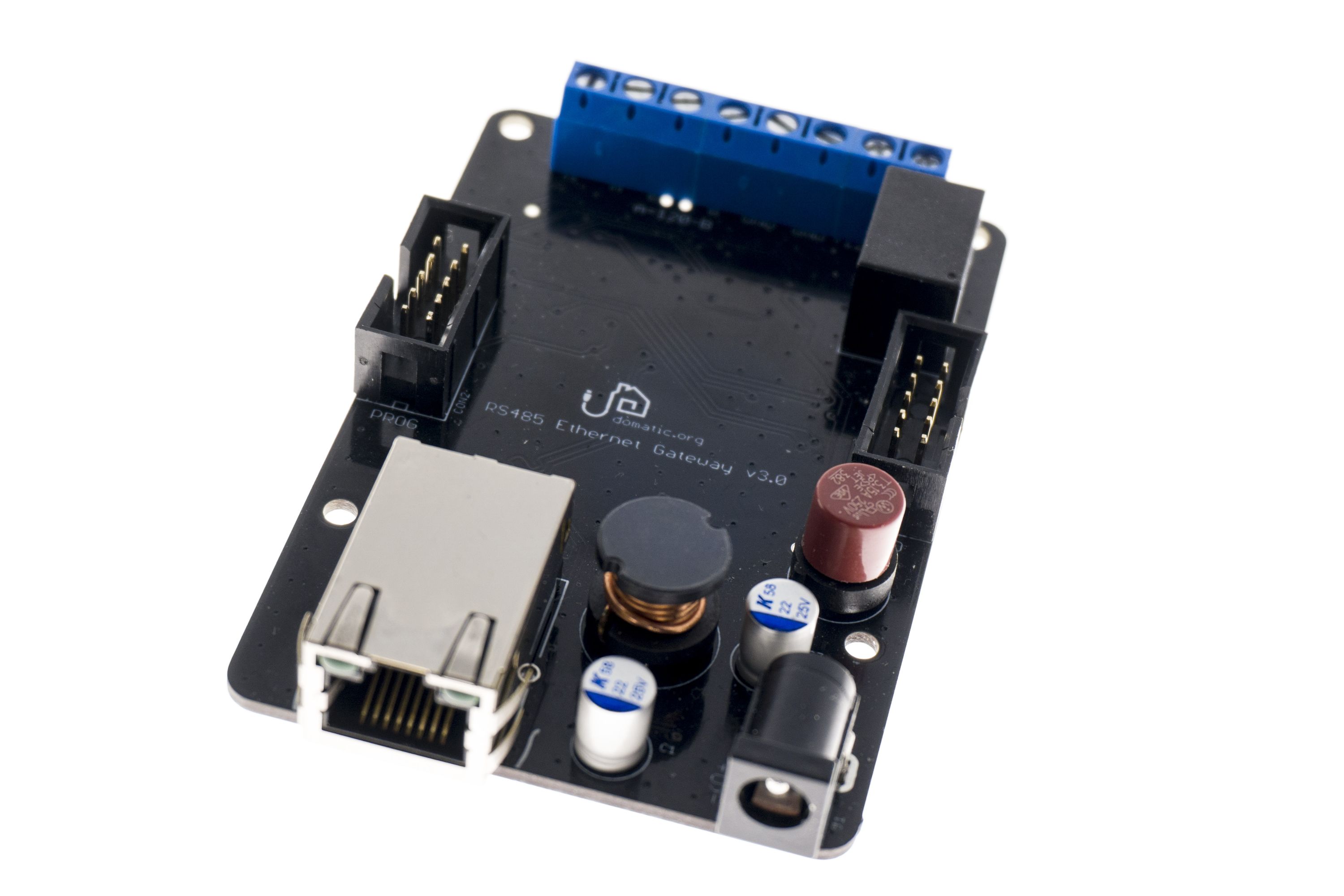

Ethernet Gateway

A switchboard-mountable gateway for GetWired modules. Our Ethernet Gateway serves as a bridge between RS485 and Ethernet communication standards, allowing you to connect your GetWired system – up to 63 modules – to your LAN and to the Internet. It is compatible with a large variety of open-source home automation controllers. And, thanks to an extremely efficient DC/DC converter, it consumes only about 0.3 W of power. It includes a panel with LEDs and buttons that allow you to monitor and control basic functions of the system.

Specification:

• Microchip ATMEGA328PB microcontroller with 8 MHz clock
• RS485 transceiver working on hardware serial ports for greater speed and reliability
• ENC28J60 Ethernet controller working on hardware SPI ports
• Shielded RJ45 socket with LEDs
• 10-pin IDC socket for programming
• 10-pin IDC socket for interfacing with LEDs and Buttons
• Highly efficient DC/DC converter provides exceptional energy efficiency
• DC socket 5.5 / 2.5 mm power inlet, power source 12 VDC (6-14 V), 3 A
• Compact: 85 mm x 56 mm (about the size of a Raspberry Pi)
• DIN mountable, 3D printable enclosure

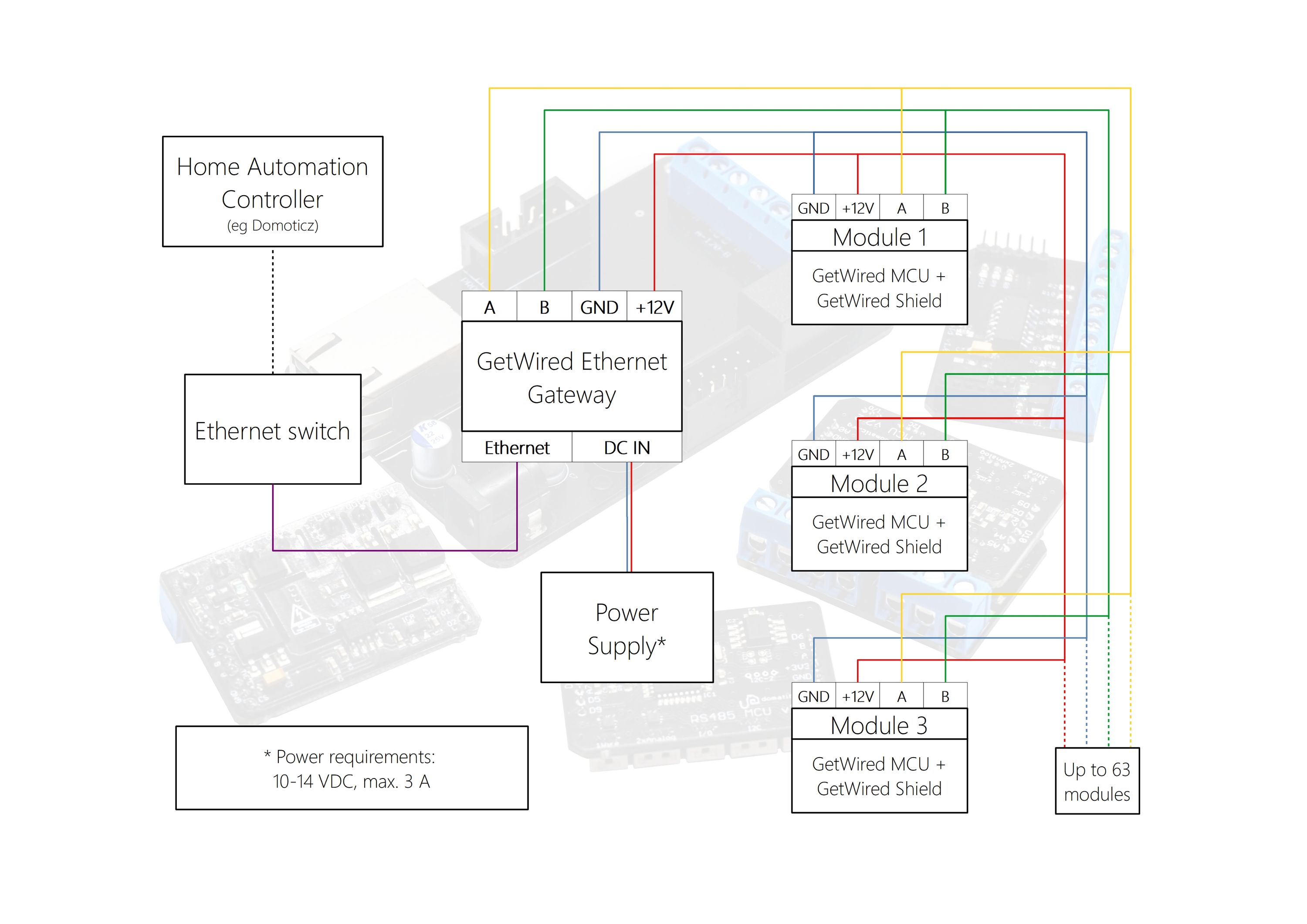

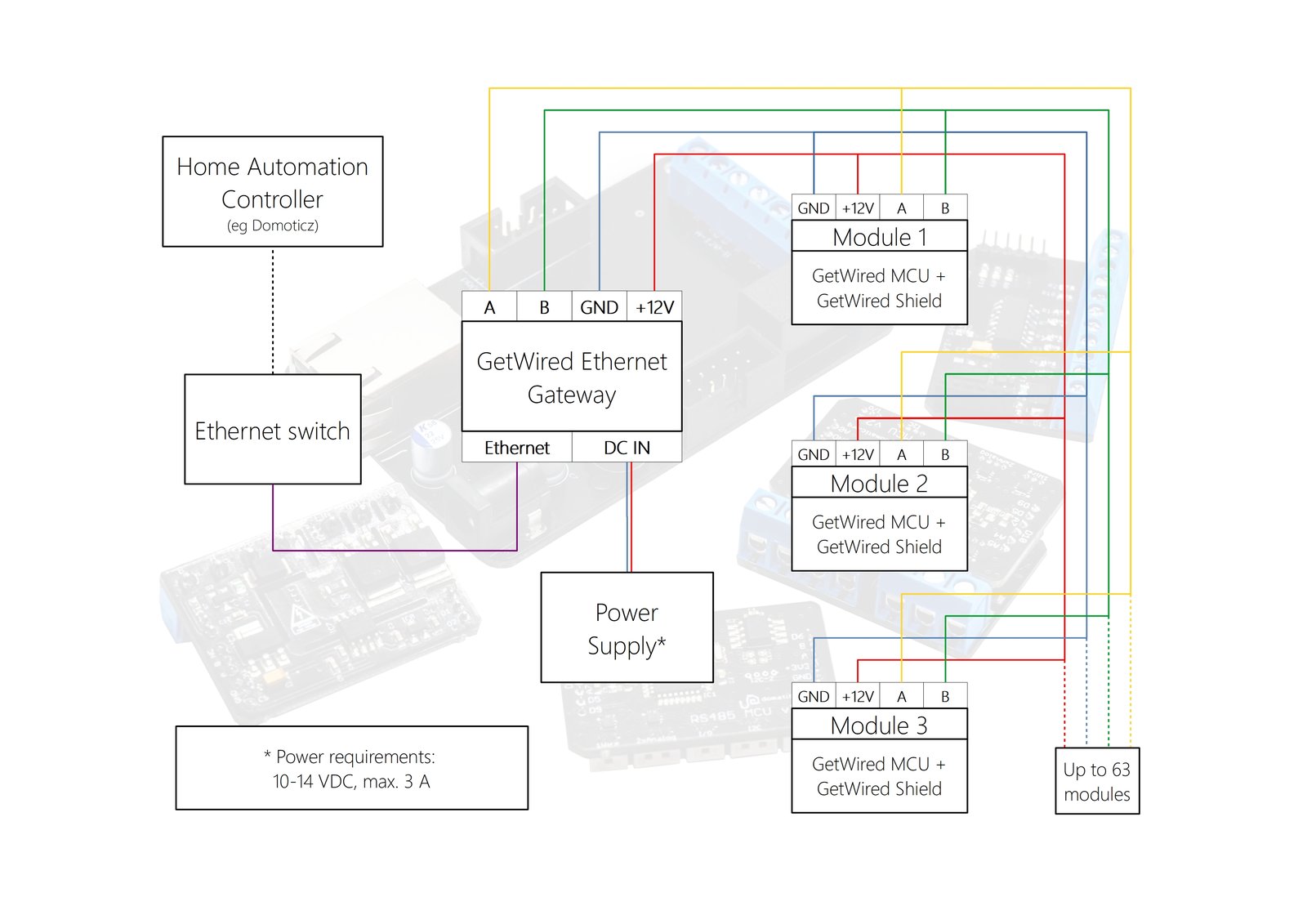

Ethernet Gateway Diagram

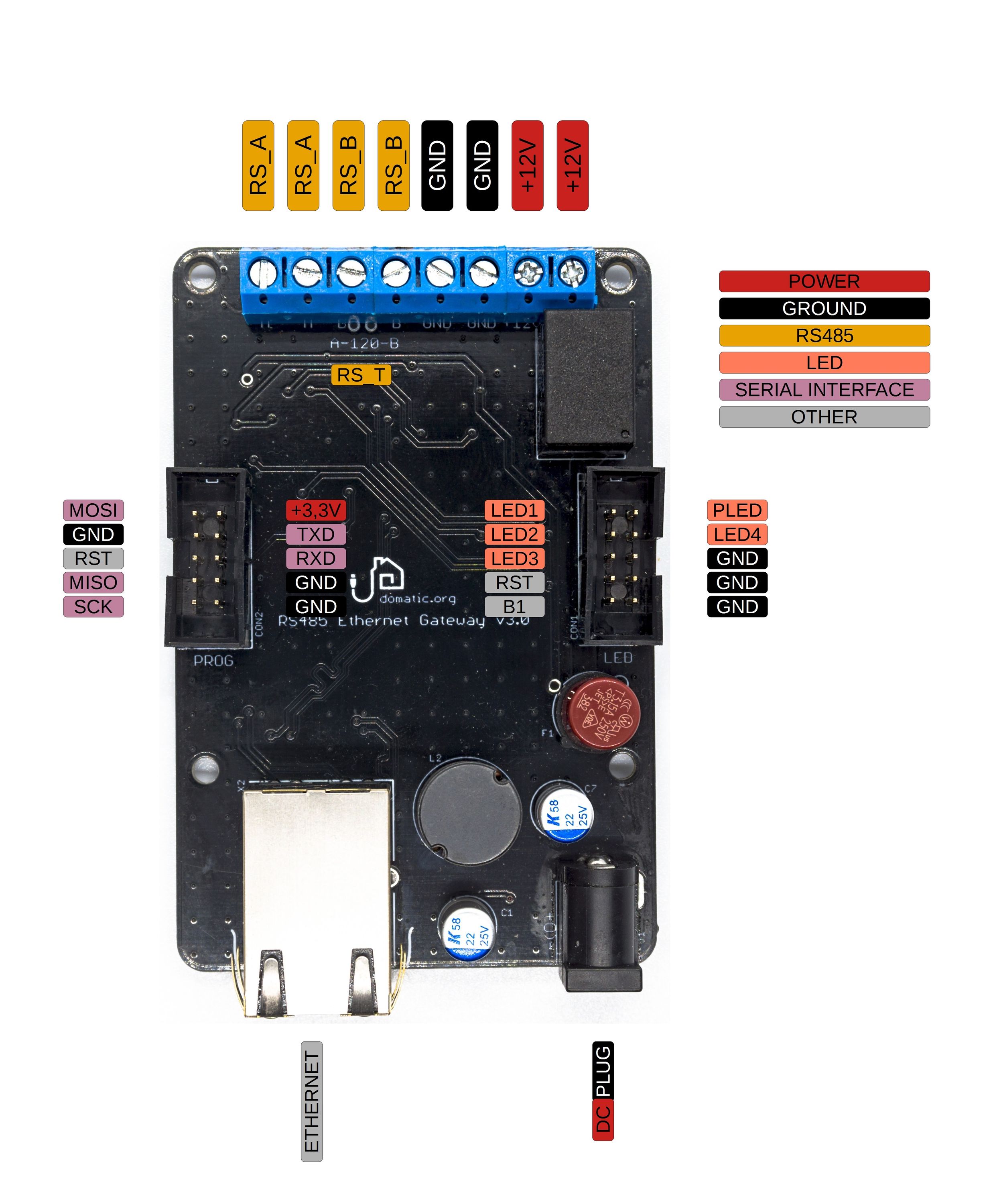

Ethernet Gateway Pinout

Support & Documentation

Our Quick Launch Guide will walk you through the process of installing and configuring GetWired. You can find instructions and other information in our GitHub repository.
