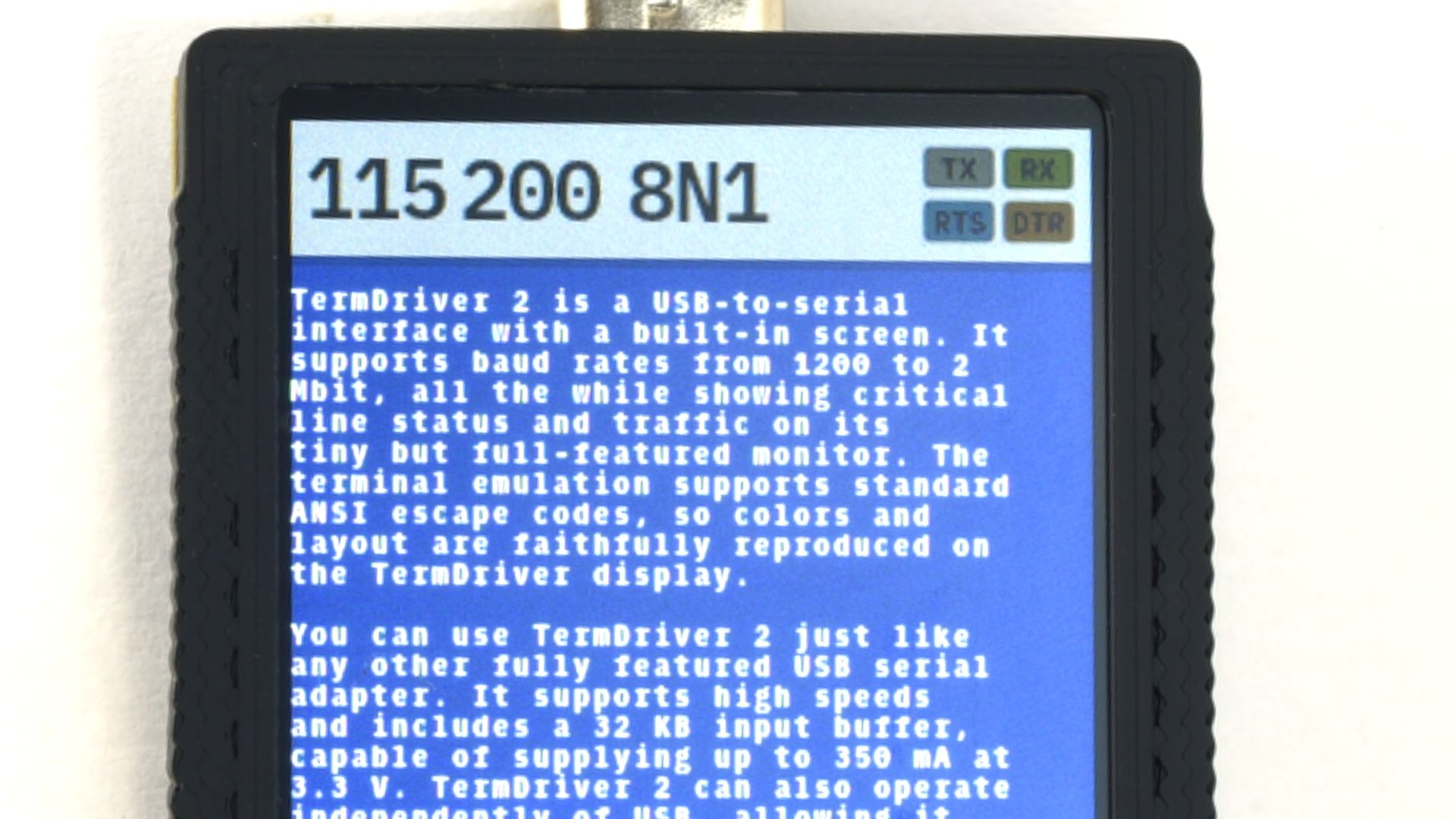

TermDriver 2 is a USB-to-serial interface with a built-in screen. It supports baud rates from 1200 to 2 Mbit, all the while showing critical line status and traffic on its tiny yet full-featured monitor. The terminal emulation supports standard ANSI escape codes, so colors and layout are faithfully reproduced on the TermDriver display.

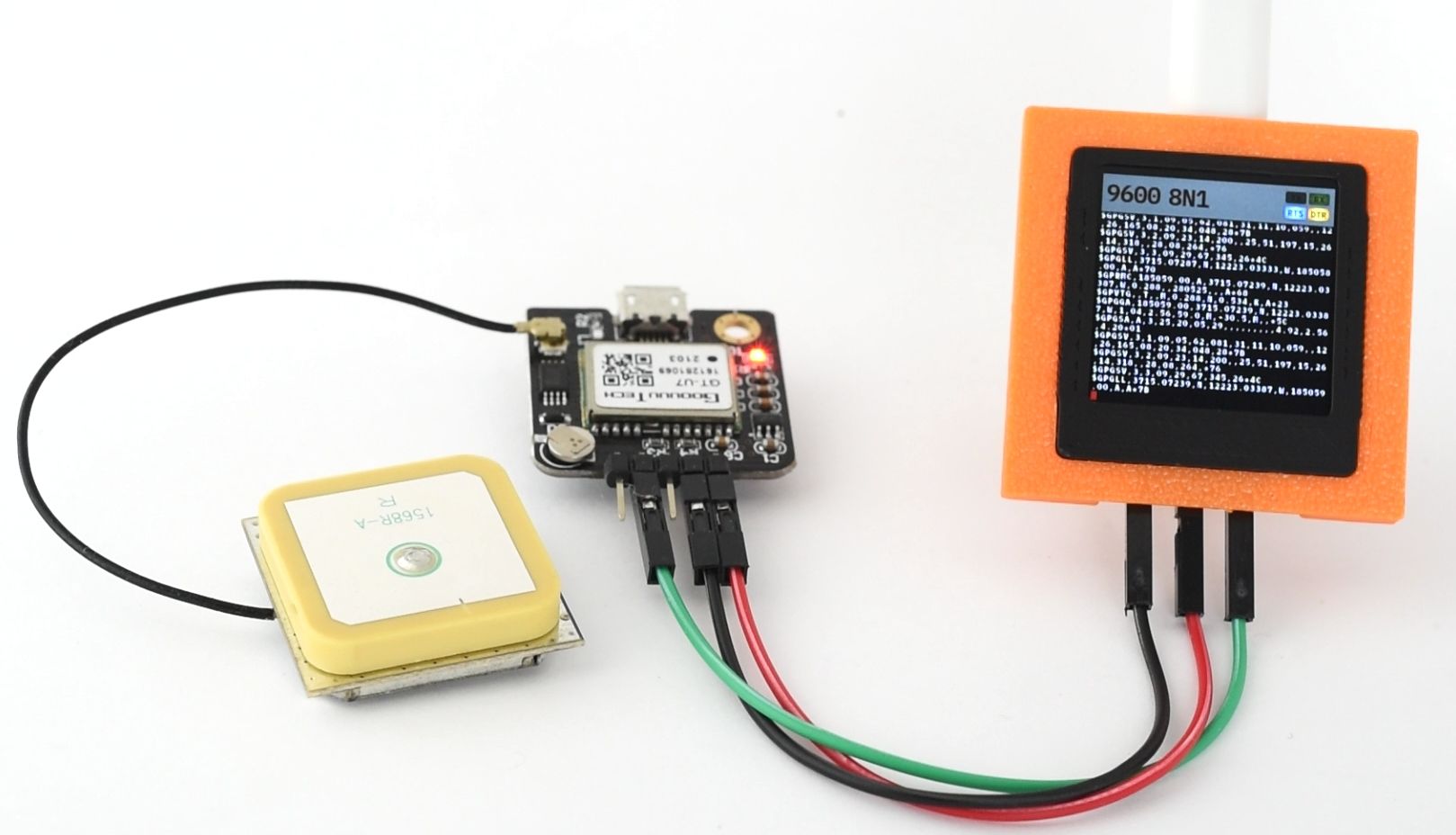

You can use TermDriver 2 just like any other fully featured USB serial adapter. It supports high speeds and includes a 32 KB input buffer, capable of supplying up to 350 mA at 3.3 V. TermDriver 2 can also operate independently of USB, allowing it to be added as a console to embedded systems, such as a Raspberry Pi.

By Makers For Makers

As independent creators ourselves, we spent a long time thinking about what we wanted from a USB-to-serial adapter. We’ve included several features that will save you time compared to other solutions:

• See the serial code immediately, so you can confirm the device it's talking to
• Refer to a connection schematic on the screen—no more squinting at a hard-to-read silkscreened diagram
• Get instant confirmation when the PC establishes a connection

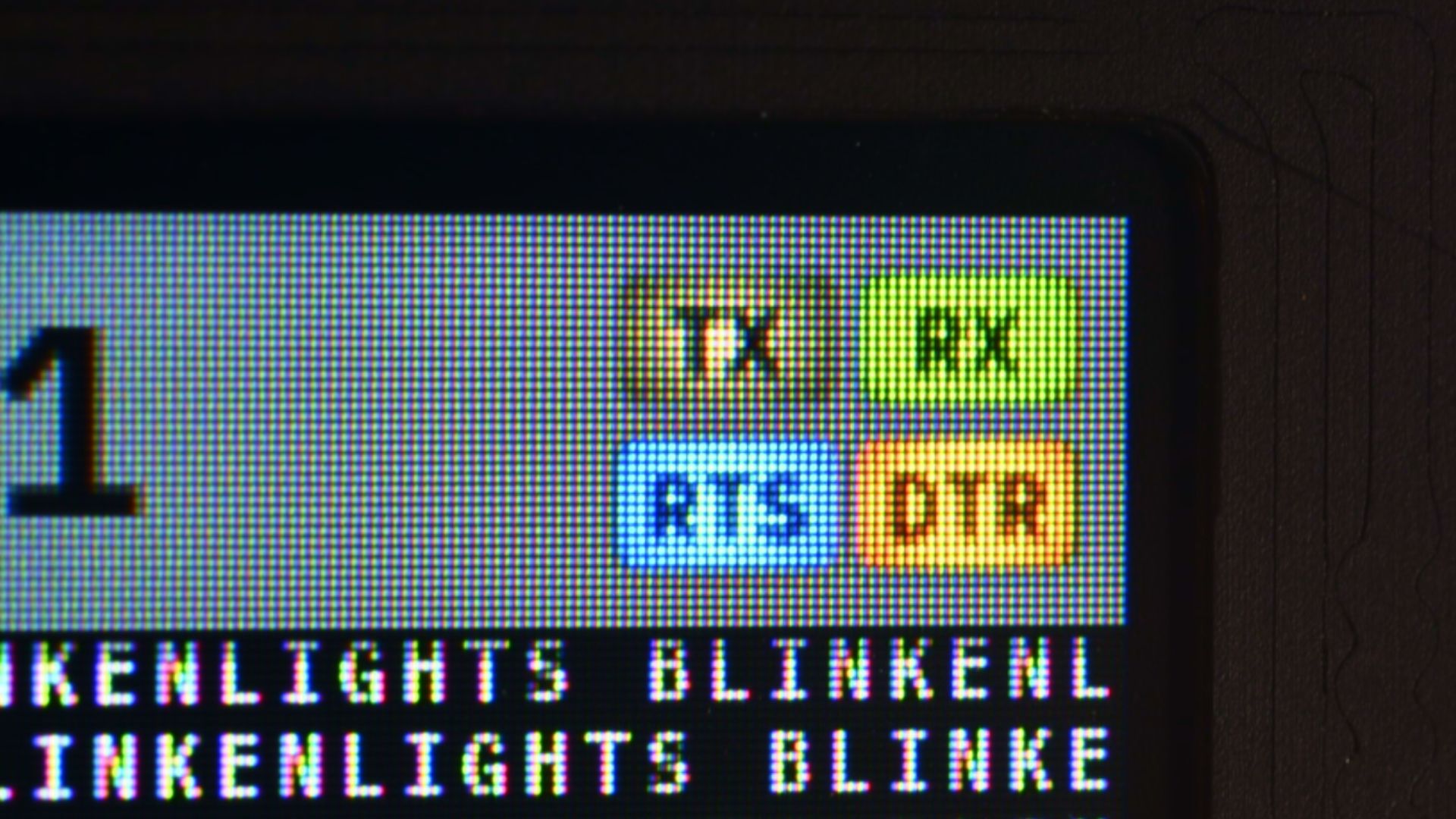

• Bright and clear indicators for TX, RX, along with DTR and CTS control signals

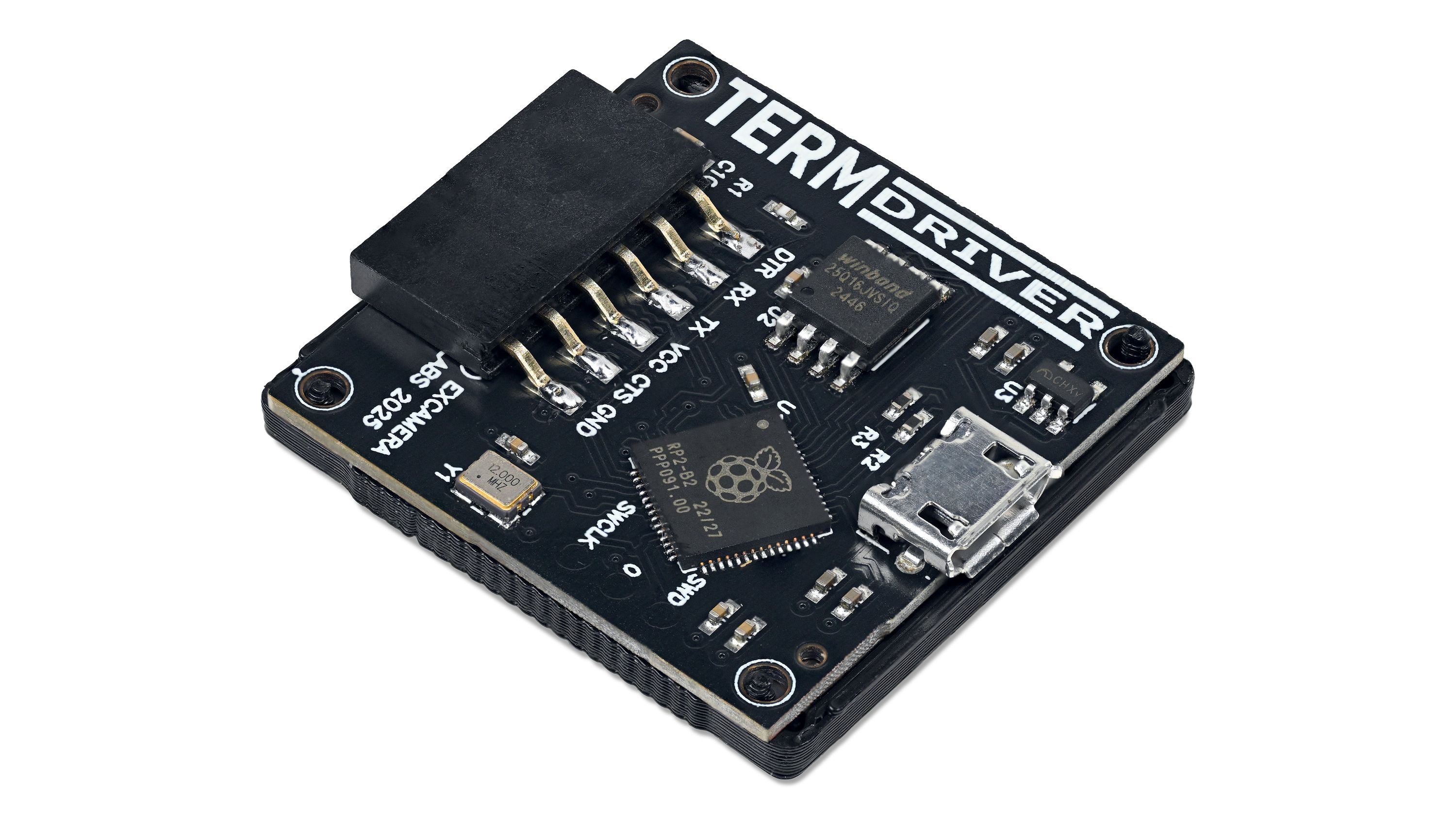

The firmware for the onboard dual-core RP2040 is carefully written for maximum performance. One core handles the USB-to-UART communication, while the second core is responsible for rendering the display.

Features & Specifications

I/O

• Micro USB
• TX (output), RX (input), DTR (output), and CTS (output) on a 6-pin 0.1-inch female header
• All signals 3.3 V compatible, output up to 350 mA
• Supported speeds 1200-2 MBps
• 32 Kbyte input buffer for robust transmission at high speeds
• Full set of line protocols, 7/8 bit, Odd/Even/No parity, 1-2 stop bits

Terminal emulation

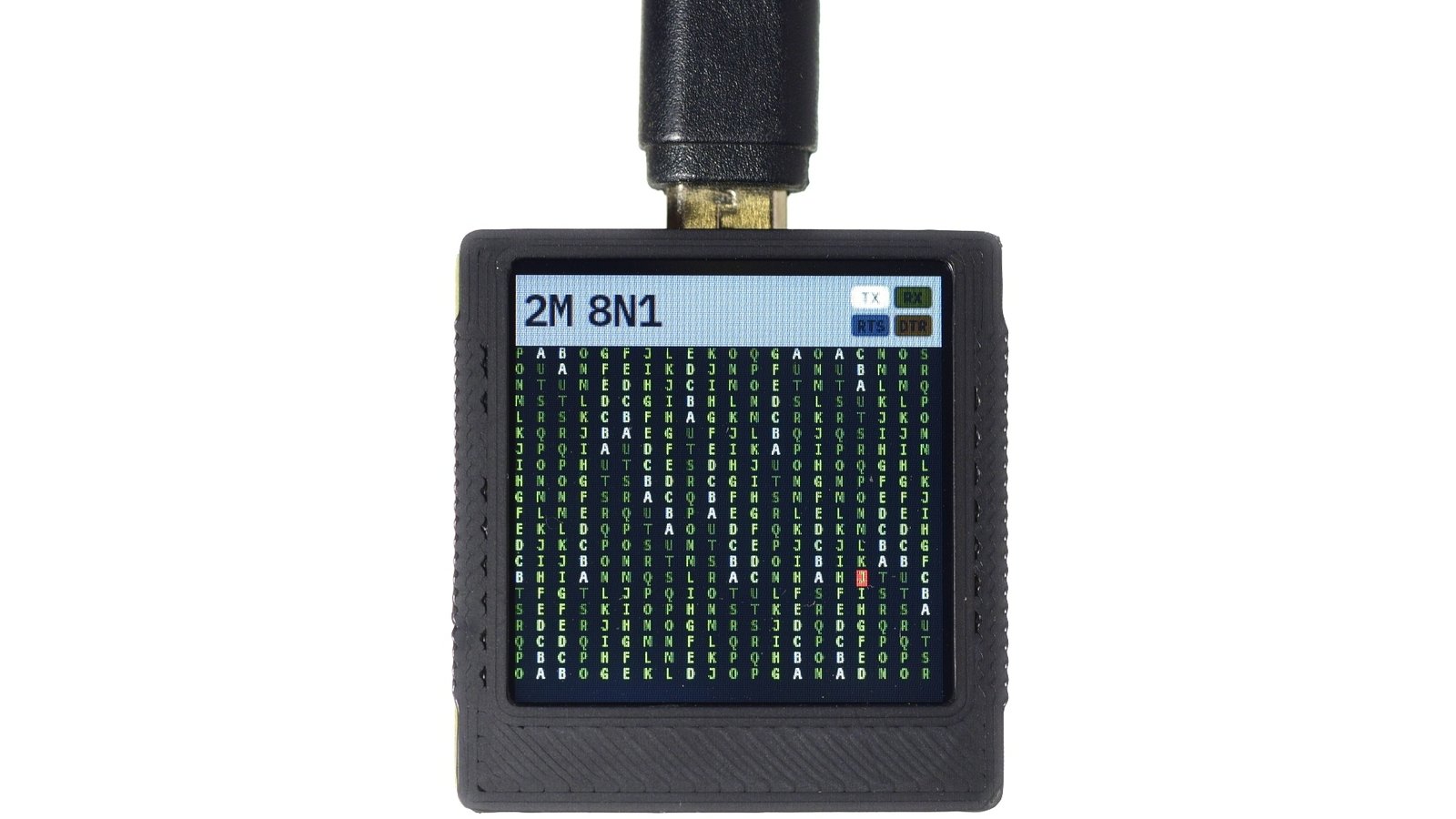

• 1.3-inch 240x240 IPS display

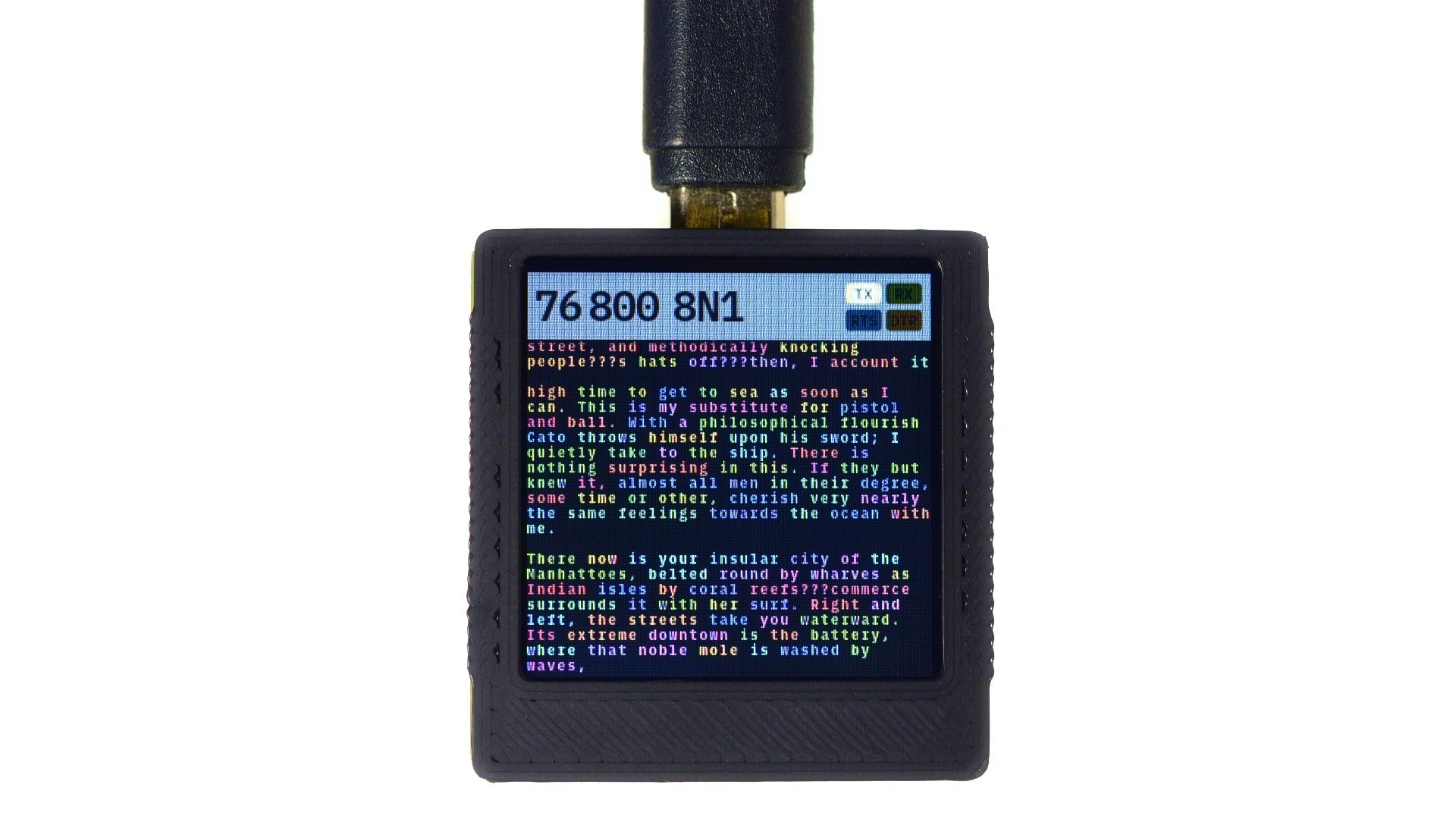

• Full ANSI escape codes, including RGB color
• Terminal text resolution 60x23 characters

Open Source

TermDriver 2’s PCB and firmware are open source. The Open Source repository (BSD 3-clause license) will be opened up as soon as the first batch of TermDrivers have shipped.
