REFLO

$10,962 raised

of $3,000 goal

Funded! Order Now

Feb 03

funded on

365%

funded

40

pledges

Product Choices

$5

Support Us!

Thanks for helping make REFLO a reality! You will be rewarded with good karma, regular backer updates.


$345

Basic Kit

Includes: REFLO, test board


$399

Deluxe Kit

Includes: REFLO, solder paste, test board, sample board "Shakey bot", tote bag


$239

Basic Early Bird Kit

Includes: REFLO, test board


$299

Deluxe Kit Early-Bird

Includes: REFLO, solder paste, test board, sample board "Shakey bot", tote bag

Details

The compact, open, and smart PCB reflow oven. Bake your dream!

As Featured In

diarioelectronicohoy

"MagicBox ha anunciado el horno de reflujo portátil REFLO, un modelo pequeño y abierto con diseño muy cuidado que ayuda a realizar prototipos de circuitos para dispositivos IoT, wearables o pequeños robots."

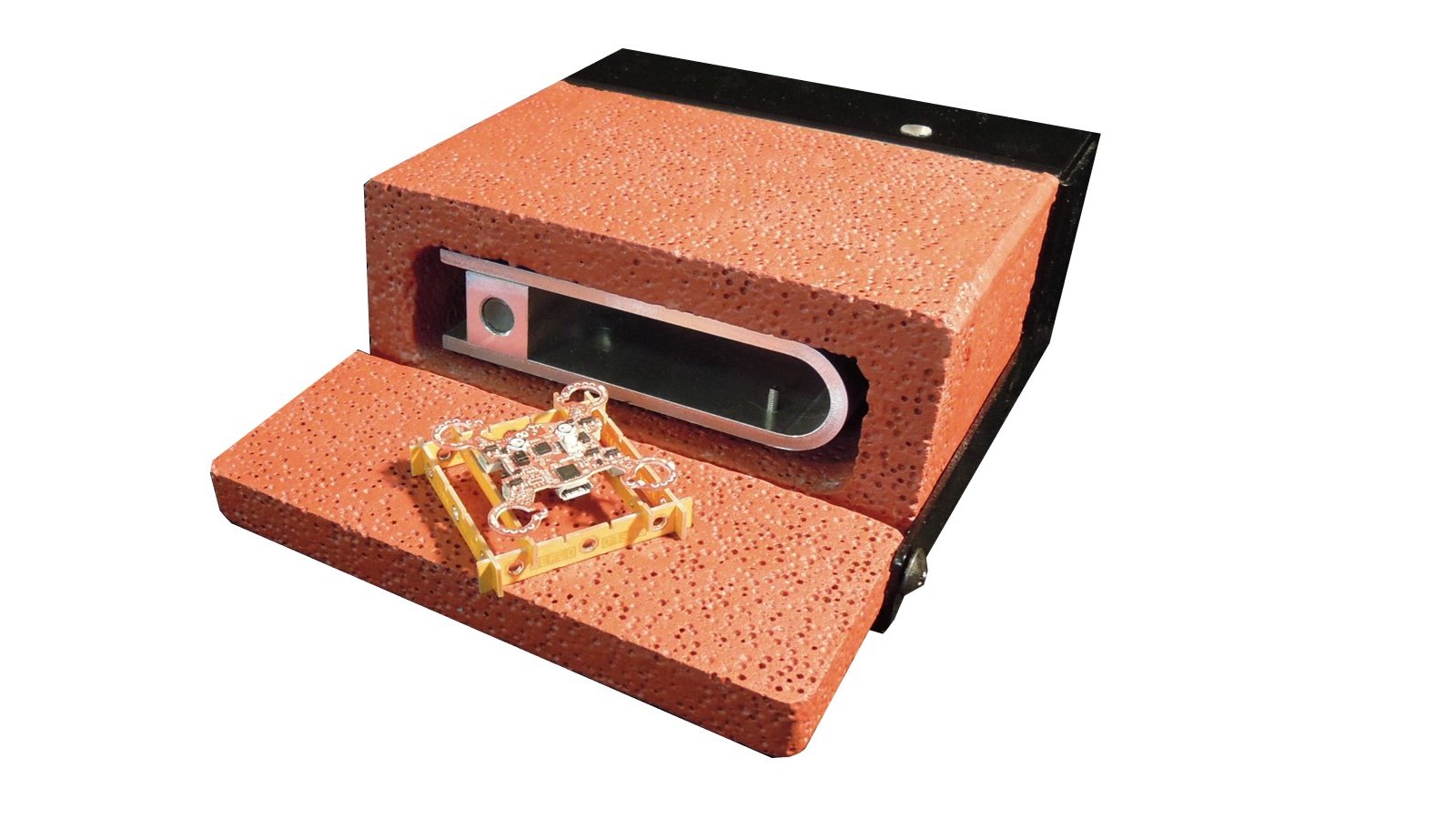

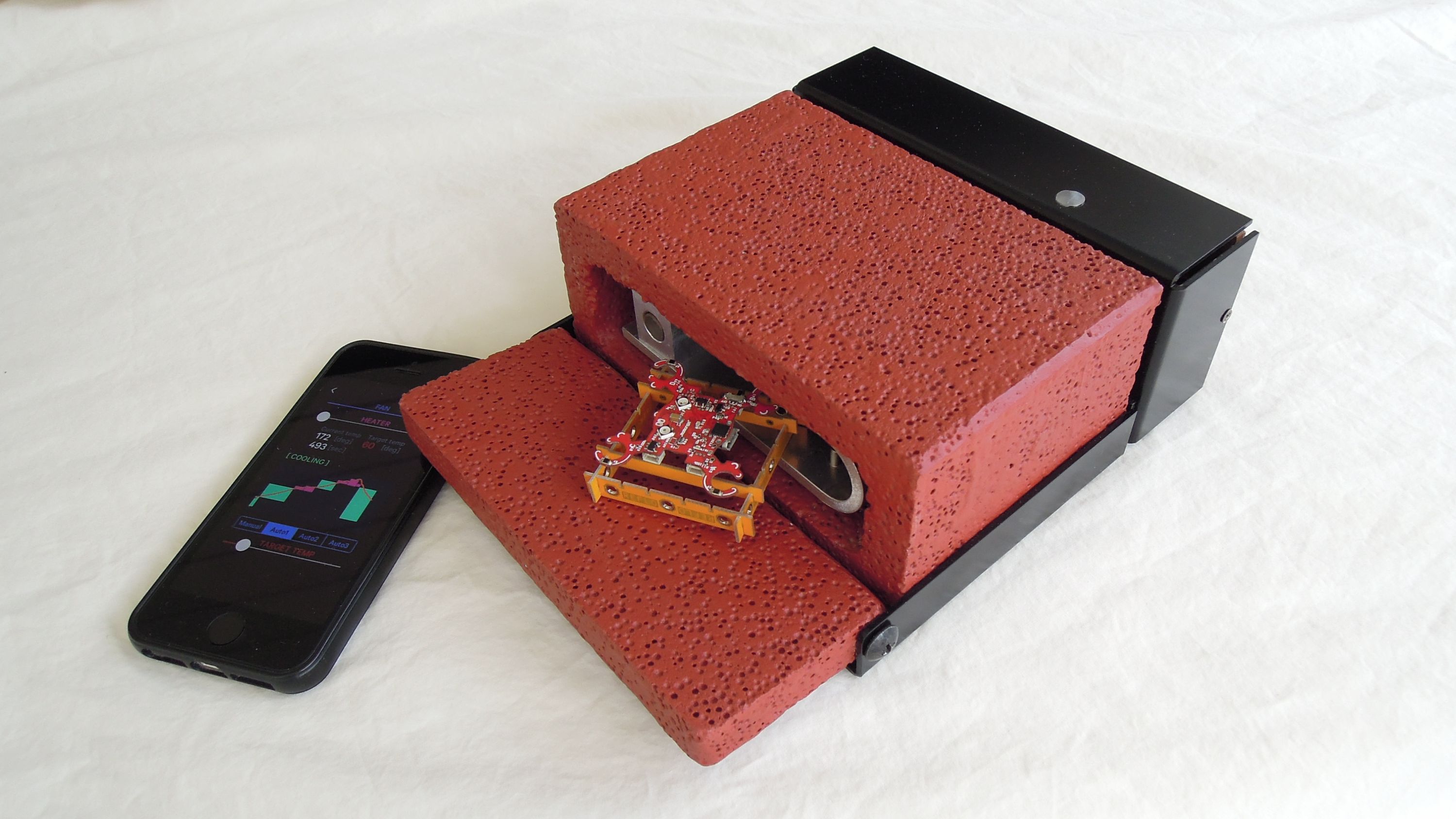

REFLO is a stylish, portable reflow oven for creators and makers to easily, quickly, and professionally prototype circuits for their IoT device, wearable, small robot, etc.

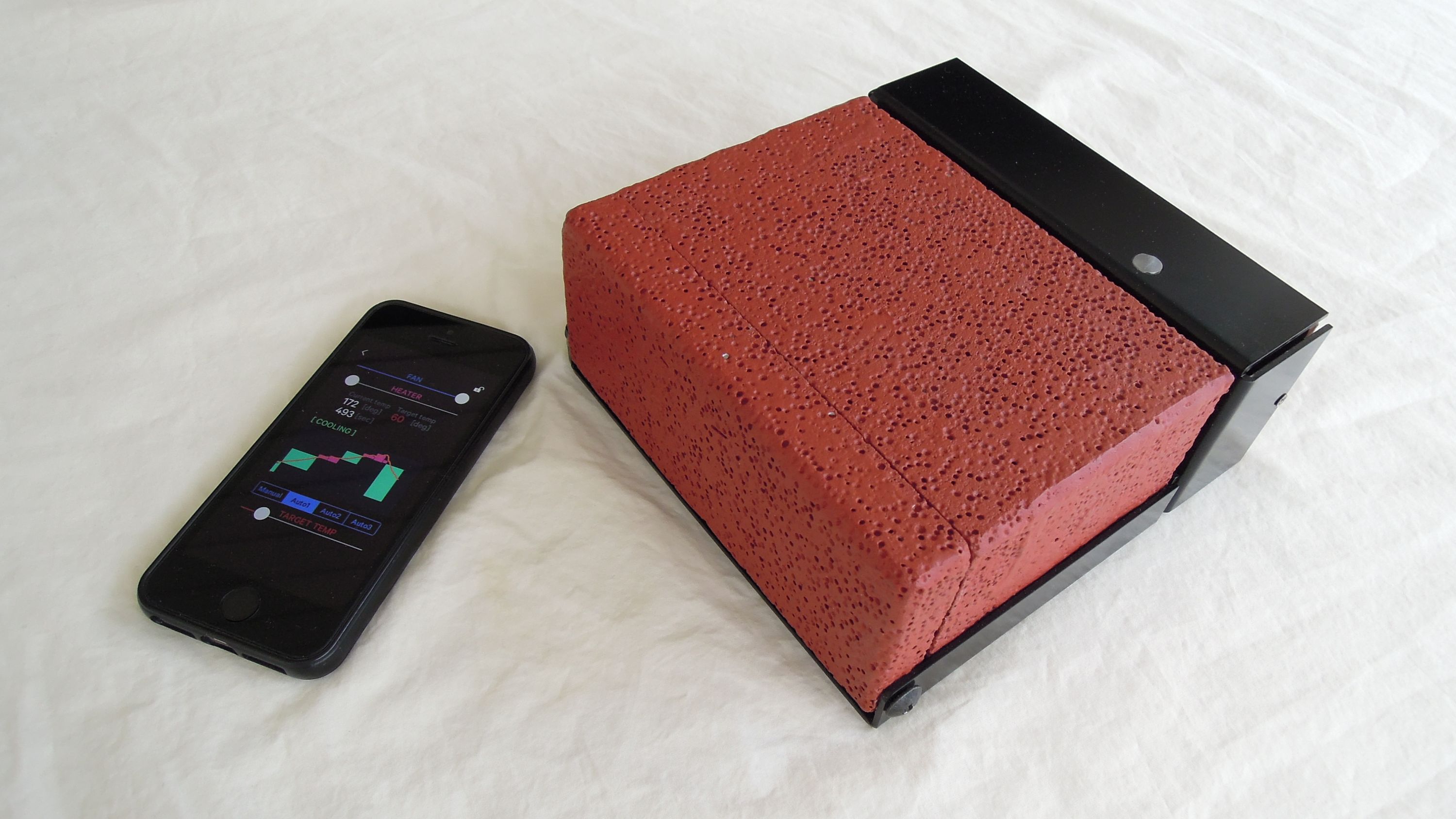

  • Portable at only 6” x 6” x 2.7” - it’s the worlds smallest reflow oven
  • Efficient, requires only 300 W
  • Operable from a mobile device
  • Open source hardware & software
  • Compatible with the Arduino IDE
  • Low cost

Who Needs It and Why?

Designers and makers of electronics know that with every passing year, products get smaller, software and hardware are more tightly integrated, the development cycle gets shorter, and ever faster turnaround times for prototypes are required. In response, there have been great strides in simplifying the difficulty of designing small PCBs. However, there have not been similar advances in the production of prototypes of those PCBs. Instead, designers end up soldering parts one-by-one by hand, gearing up full-scale production facilities, going to outside vendors, all of which can add up to substantial bottlenecks. That’s where REFLO comes in: it’s a compact furnace with high heat retention and a compact high performance heater, combined with a compact control device. It’s a reflow device that anyone can handle.

We believe REFLOs simplicity and accessibility will dramatically improve how quickly projects can be prototyped. We hope REFLO will help folk who are working on removing barriers between hardware and software, and thereby change the way PCBs are produced, much as 3D printing has changed product development. We believe REFLO will accelerate innovation.

Features & Specifications

  • Reflow oven: 2” x 2” max SMD PWB reflow oven
  • Temp control: 100-250 °C temp control with heater, cooling fan, and K-type thermometer
  • Connectivity: Bluetooth 4.0
  • Controller: select reflow profile, reflow process indicated via mobile software
  • Compatibility: iOS and Android
  • Power Consumption: 300 W max
  • Dimensions: 150 mm x 160 mm x 80 mm
  • Weight: 1700 g

Comparisons

REFLO T962A Controleo3 R340A
Footprint 6” x 6” x 2.7” 14.6”x14.2”x9.4” Oven Toaster size 10.50”x16.50”x9.25”
Power 300 W 800 W Oven Toaster 1500 W
price $349 $230-500 $249+Oven Toaster $667
Portability Easy Hard Hard Hard
Open Yes No Yes No
Controller iPhone/iPad (BLE) Front Pannel Front Pannel PC
Workspace 2” x 2” 7” x 9” Oven Toaster size 11” x 8”
Comment Good for small product Populer product DIY

REFLO DESIGN

REFLO consists of:

  • Compact enclosure made from refractory bricks with high thermal insulation
  • A surrounding, rugged, dedicated heater with high thermal conductivity
  • Cooling mechanism with optimized duct and fan
  • BLE controller that adjusts heater and fan with thermocouple

Front View

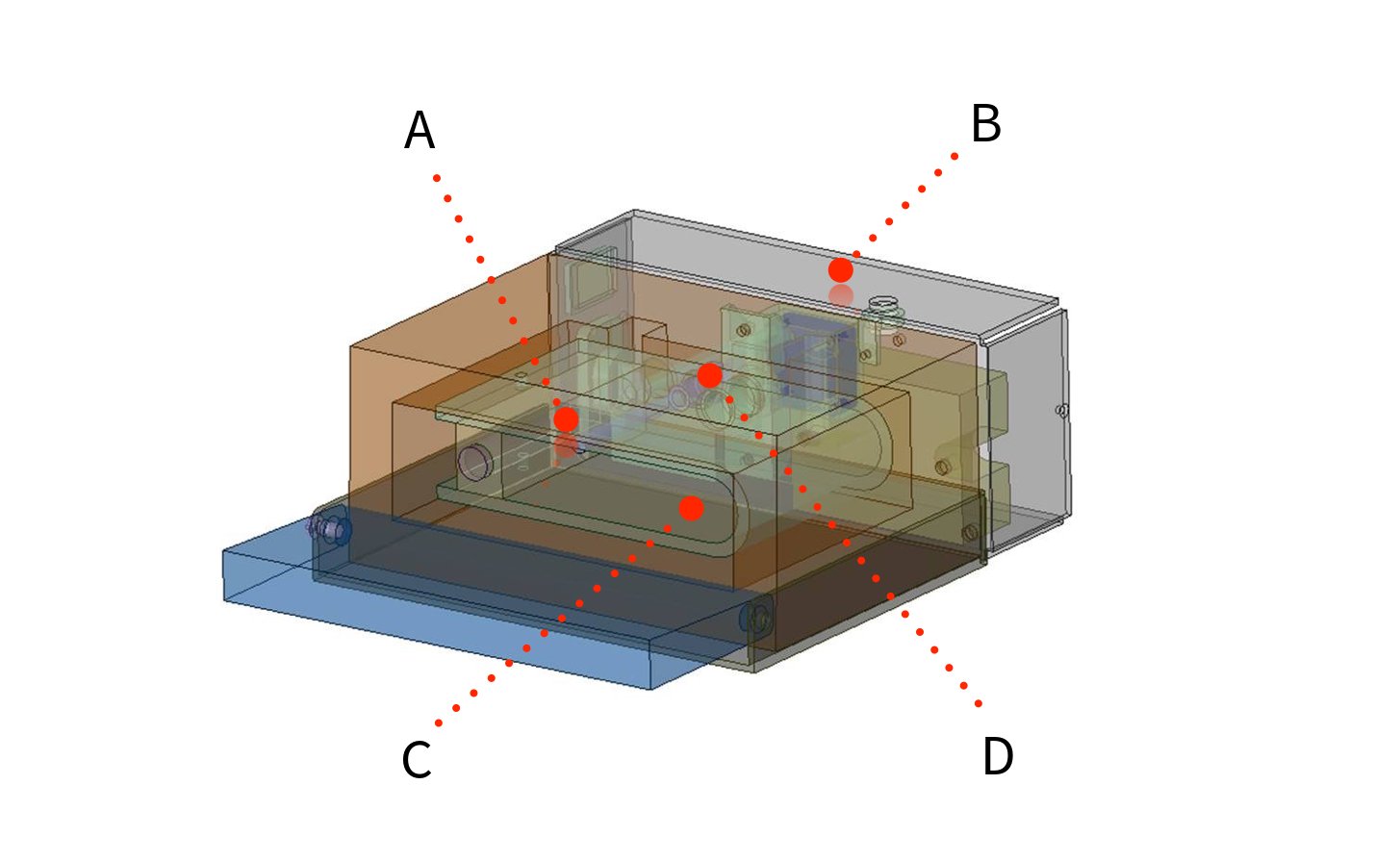

A. 300 W mold heating element heater B. Electronic control unit C. Heater module D. Thermocouple sensor

Back View

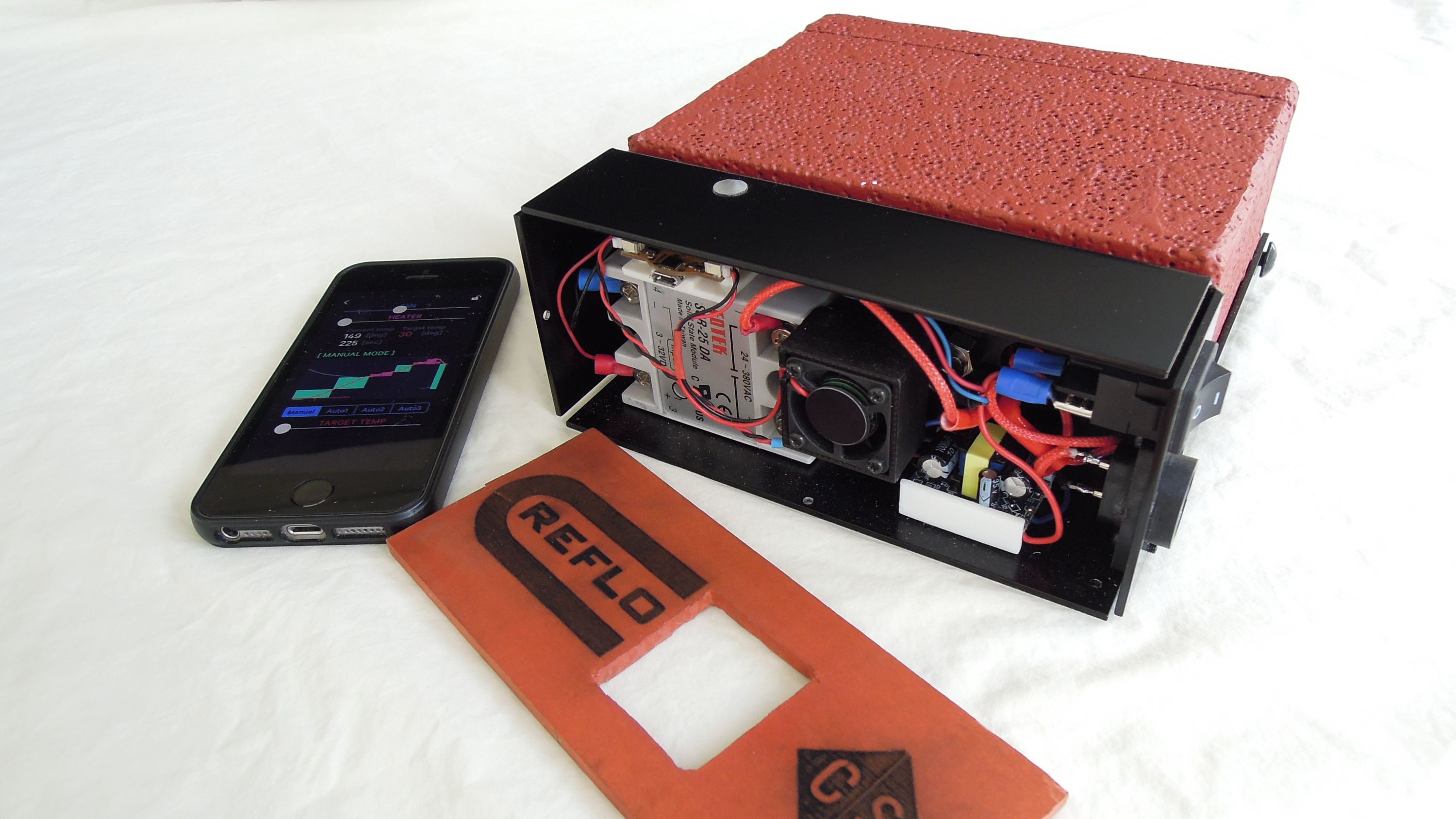

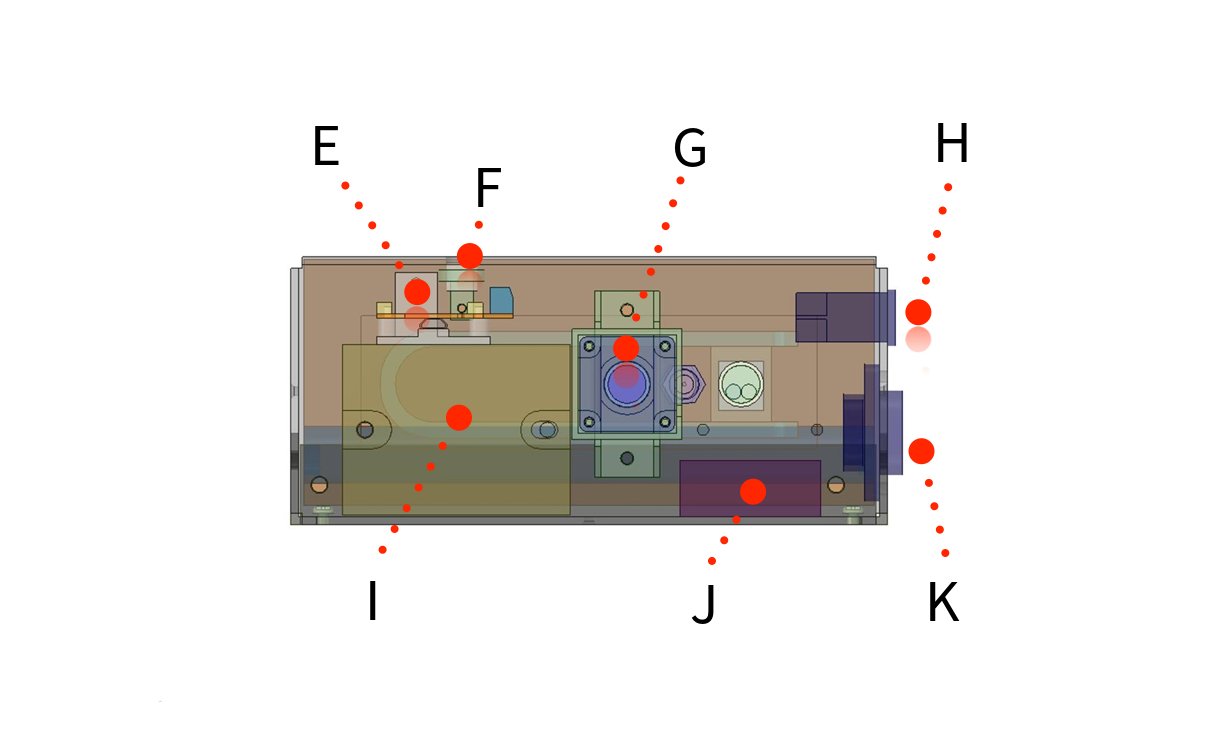

E. Reflow controller F. LED G. Cooling fan H. Power switch I. Solid-state relay J. AD-DC converter K. AC outlet

REFLO’s compact enclosure makes it easy to control the temperature. In addition, by controlling the heater and the fan simultaneously, an ideal temperature curve can be acheived.

  1. The controller is easily accessed via a mobile phone app.

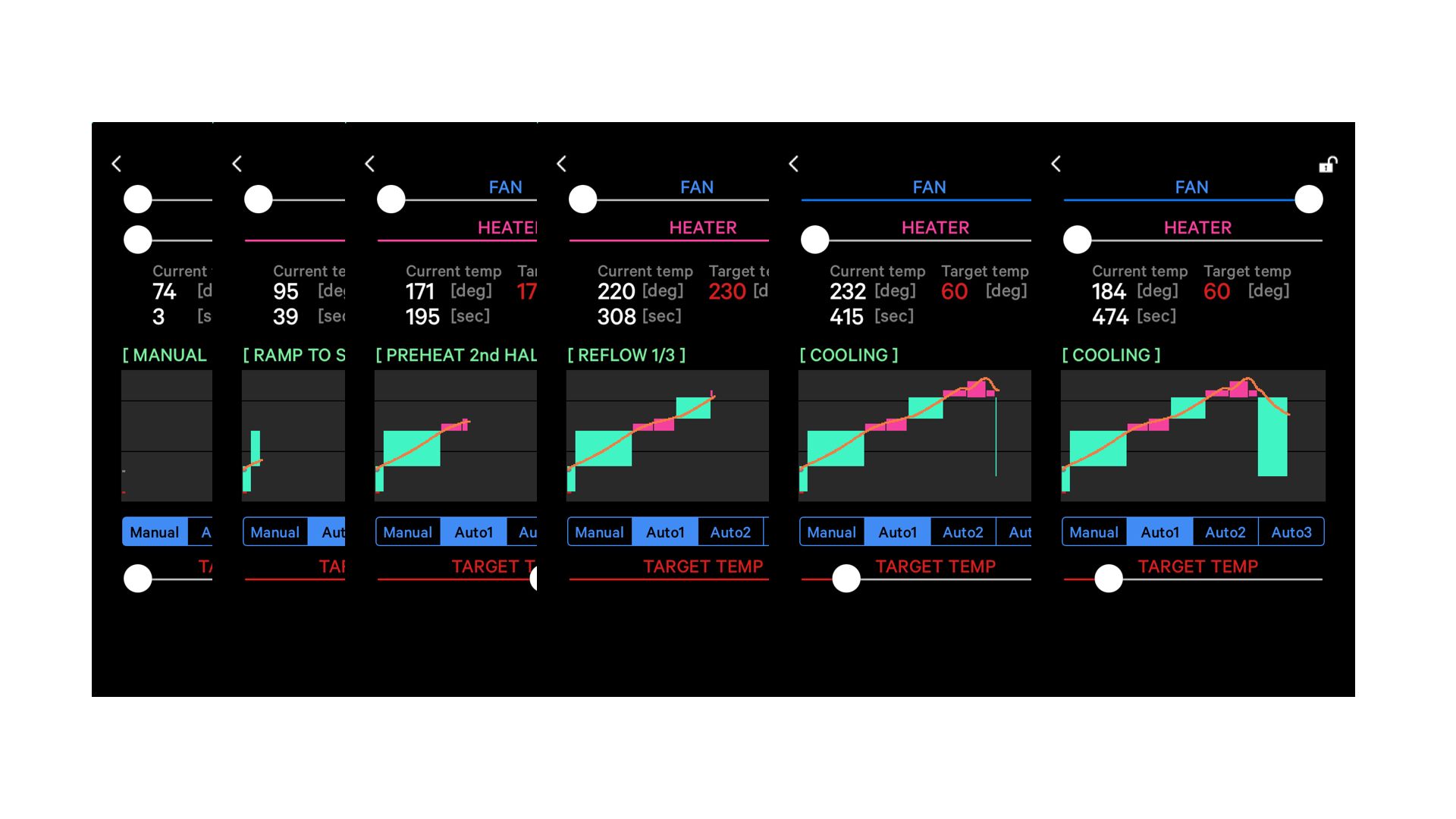

  2. The execution status is displayed in real time.
  3. Temperature profile can selected from three beforehand, according to the solder paste to be used.
  4. By using different types of solder paste, it is possible to assemble double-sided boards.

Since the system is fully programmable via the Arduino IDE, you can re-program things like profiles, which allows for maximum flexibility and adaptability.

Since the heater controls only 300 W maximum by one SSR and has low power, it can also operate in the general environment. With a small, but robust chassis, REFLO can be brought and used almost anywhere.

Manufacturing & Fulfillment Plan

We have worked to minimize the risks. There are no specialized parts in the design, and all the components needed are readily available.

We will be using Crowd Supply to fulfill backer orders. You can read about shipping policies in The Crowd Supply Guide.

Risks & Challenges

For production of 100 or more, it may be necessary to upgrade equipment to improve its ability to cut furnace enclosure.

Ask a Question

Have a question not answered in the description above or in the Updates?

Ask MagicBox a Question or Browse the Crowd Supply Guide
